Low Power Red Cross and Green Arrow Traffic Light Module
-

Model:

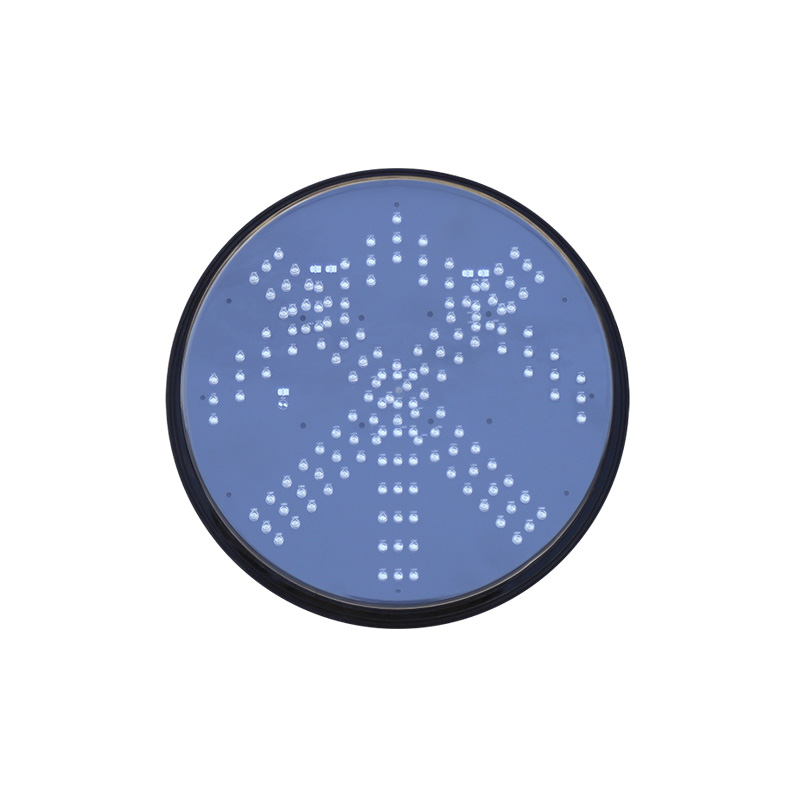

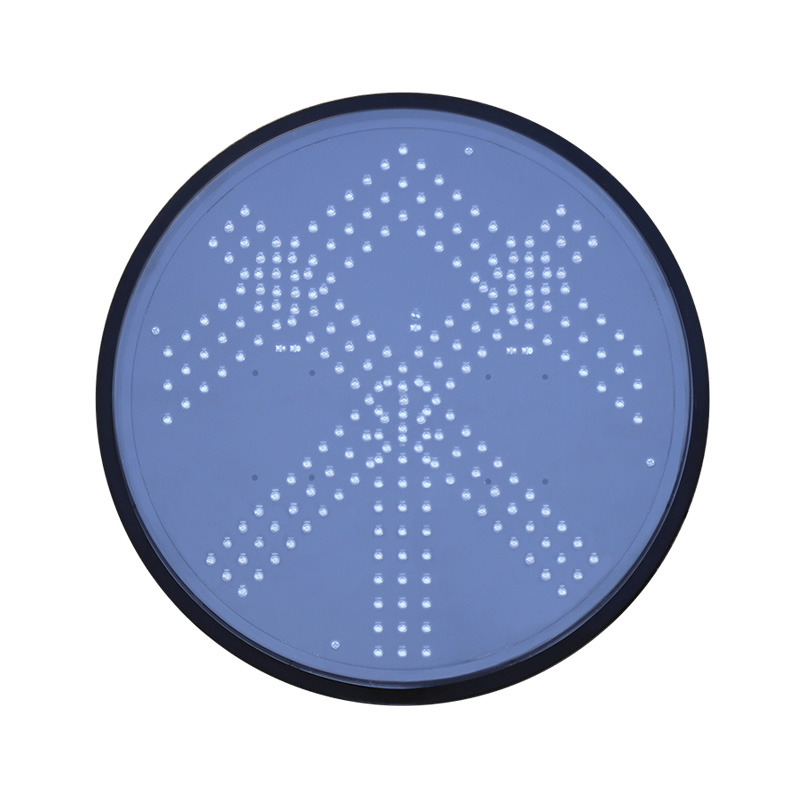

The Low Power Red Cross and Green Arrow Traffic Light Module consists of a light board, lens, power supply, lamp bowl, and other structural components. It is applicable to a wide range of traffic signal-controlled intersections, including tunnels and toll stations.
  • Low Power Red Cross and Green Arrow Traffic Light Module
  • Low Power Red Cross and Green Arrow Traffic Light Module
  • Low Power Red Cross and Green Arrow Traffic Light Module
  • Low Power Red Cross and Green Arrow Traffic Light Module
  • Low Power Red Cross and Green Arrow Traffic Light Module
  • Low Power Red Cross and Green Arrow Traffic Light Module
  • Low Power Red Cross and Green Arrow Traffic Light Module
  • Low Power Red Cross and Green Arrow Traffic Light Module
  • Low Power Red Cross and Green Arrow Traffic Light Module
  • Low Power Red Cross and Green Arrow Traffic Light Module
Overview

Product Introduction:

The Low Power Red Cross and Green Arrow Traffic Light Module consists of a light board, lens, power supply, lamp bowl, and other structural components. It is applicable to a wide range of traffic signal-controlled intersections,  including tunnels and toll stations.


Add the to your project
Functional Features
  • Mesh circuit design ensures stable product operation:
    The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.
  • European standard power supply, more energy-efficient and environmentally friendly:
    It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
  • Constant current drive design, with long service life and low maintenance:
    It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
  • Excellent electromagnetic compatibility, enhancing device stability:
    It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.
ModelDXCD200-3-FM21ADXCD300-3-FM21ADXCD400-3-FM21A
Light-Emitting Surface (LES)  Size200mm300mm400mm
Housing MaterialPolycarbonate housingPolycarbonate housingPolycarbonate housing
Signal Light Color□Red   □Green□Red   □Green□Red   □Green

Mask Color

TransparentTransparentTransparent
Mask ShapeRoundRoundRound
LED Quantity

Red cross 45 pcs

Green arrow 36 pcs

Red cross 105 pcs

Green arrow 90 pcs

Red cross 125 pcs

Green arrow 117 pcs

Operating VoltageAC85V~264V/47HZ~63HZAC85V~264V/47HZ~63HZAC85V~264V/47HZ~63HZ

Lamp Power Consumption

Red cross ≤ 6 W

Green arrow ≤ 5 W

Red cross ≤ 8 W

Green arrow ≤ 6 W

Red cross ≤ 13 W

Green arrow ≤ 11 W

LED Wavelength

Red: 625 ± 5 nm

Green: 505 ± 5 nm

Red: 625 ± 5 nm

Green: 505 ± 5 nm

Red: 625 ± 5 nm

Green: 505 ± 5 nm

Luminous Intensity5000~15000cd/m²5000~15000cd/m²5000~15000cd/m²
Insulation Resistance>2MΩ>2MΩ>2MΩ
LED Lifespan≥100,000 hours≥100,000 hours≥100,000 hours

Operating Temperature

-40℃ to +80℃-40℃ to +80℃-40℃ to +80℃
Relative Humidity≤97%RH≤97%RH≤97%RH
Protection GradeIP53IP53IP53
Visual Distance≥300m≥300m≥300m
Packaging Specifications5 piece per box,  Size: 41 × 30 × 22 cm, Weight: 3.2 ± 0.5 kg5 piece per box, Size: 52 × 39 × 19 cm, Weight: 4.7 ± 0.5 kg5 piece per box, Size: 46 × 46 × 20 cm, Weight: 8.0 ± 0.5 kg

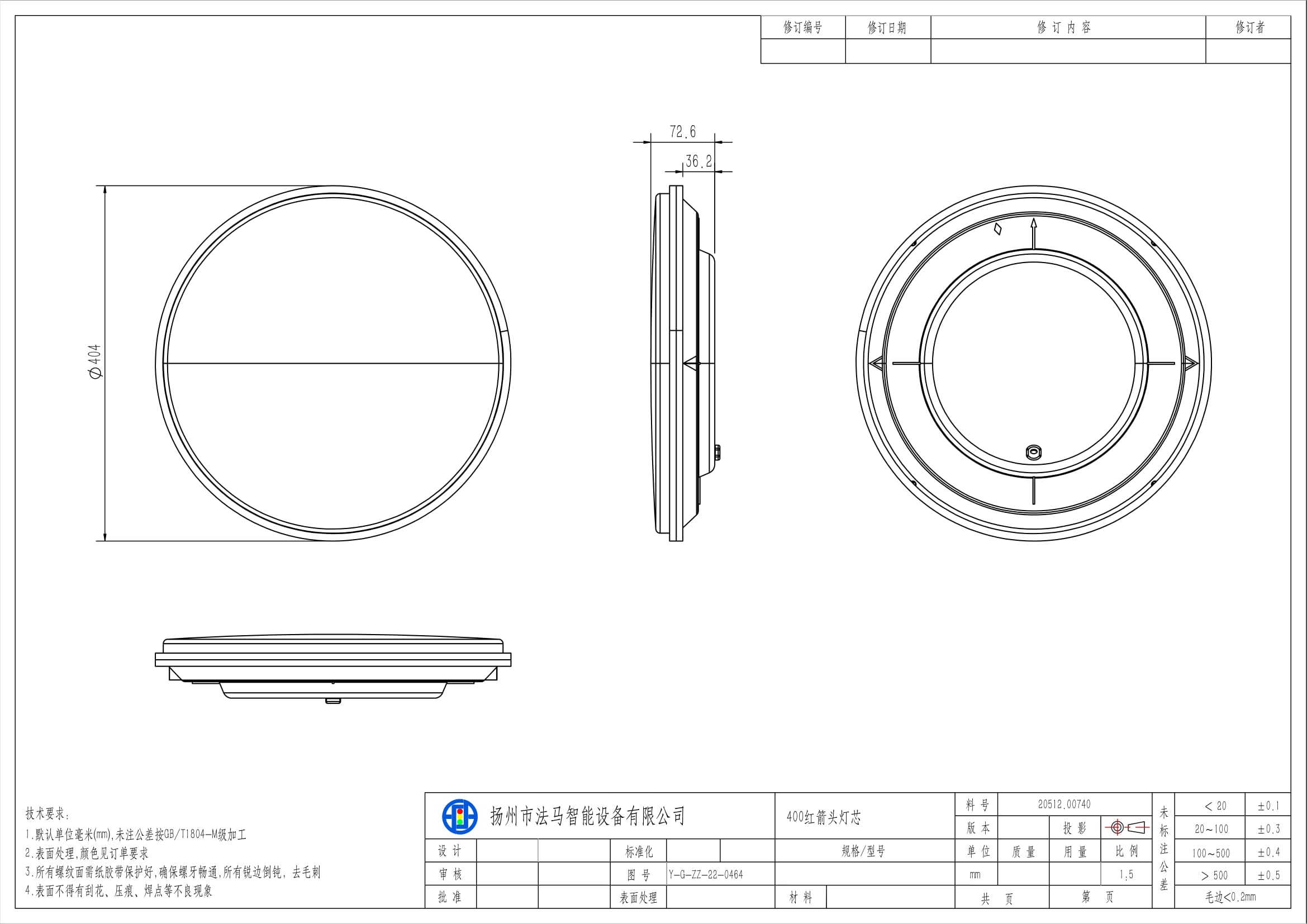

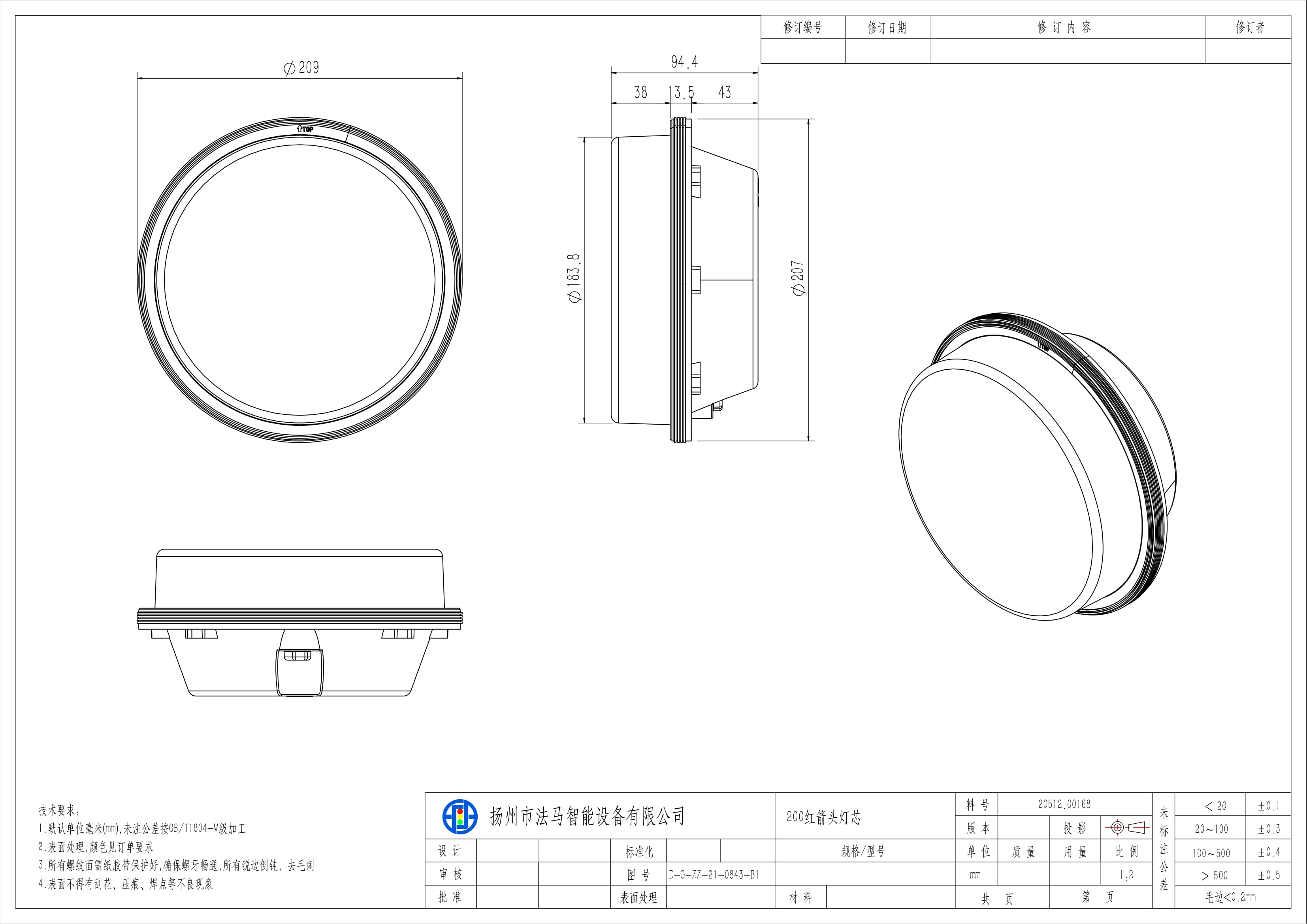

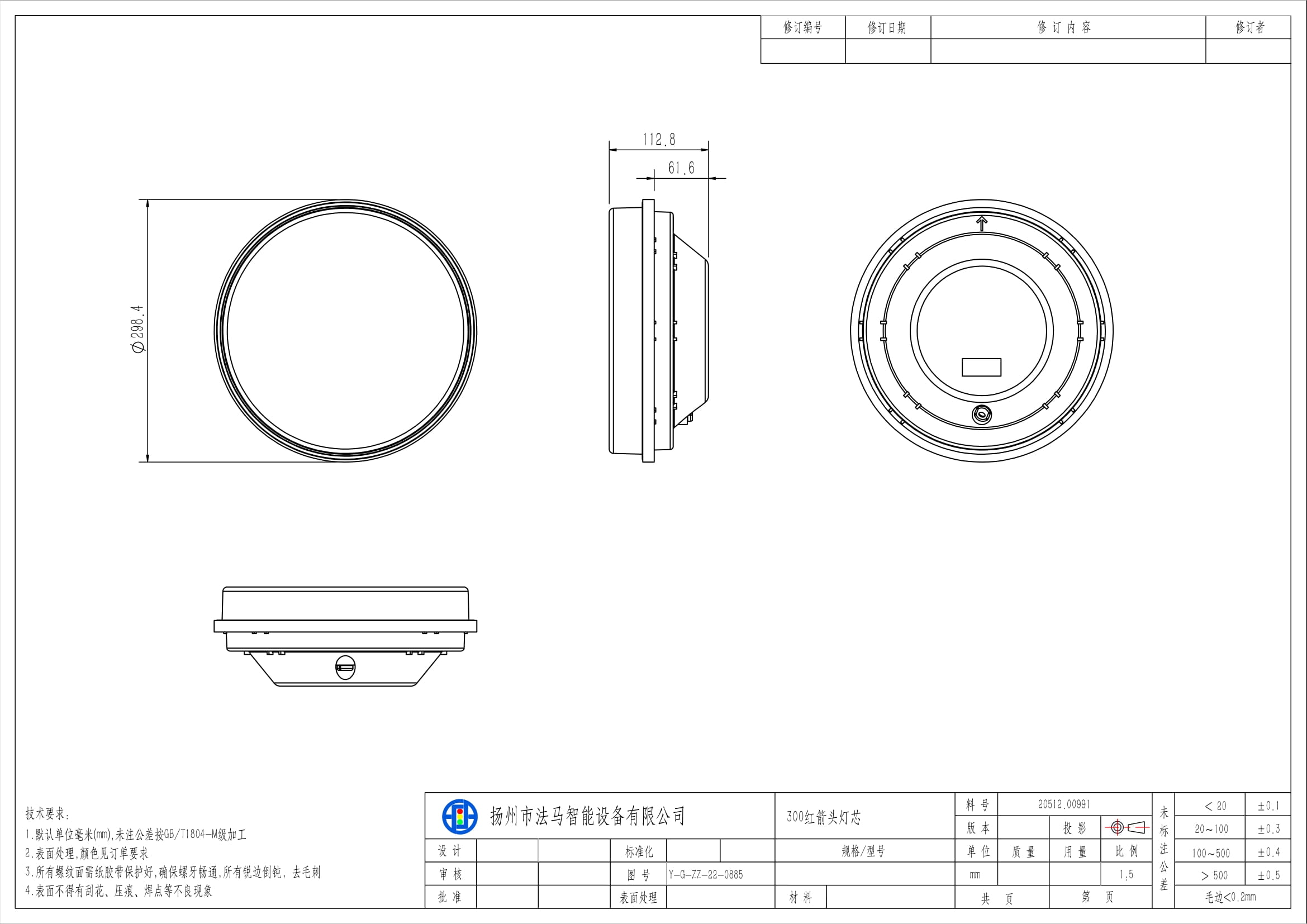

Structural Components
