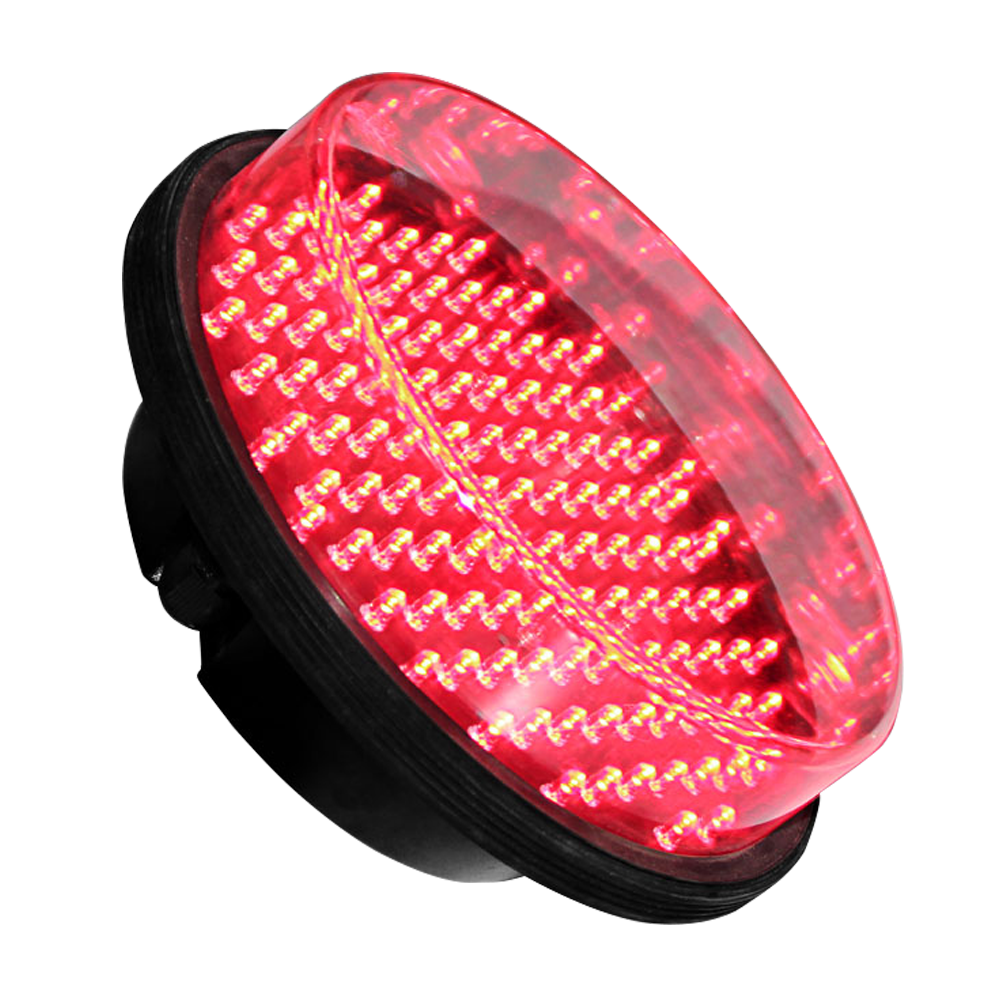

Low Power Full Ball Traffic Light Module
-
Model:
The Low Power Full Ball Traffic Light Module consists of a light board, lens, power supply, lamp bowl, and other structural components. It is applicable to a wide range of traffic signal control intersections.
Overview
Product Introduction:
The Low Power Full Ball Traffic Light Module consists of a light board, lens, power supply, lamp bowl, and other structural components. It is applicable to a wide range of traffic signal control intersections.
Add the to your project
Functional Features
Mesh circuit design ensures stable product operation: The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.- European standard power supply, more energy-efficient and environmentally friendly: It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
- Constant current drive design, with long service life and low maintenance: It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
- Excellent electromagnetic compatibility, enhancing device stability: It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.
At a glance
| Product Model | DXJD100-3-FMR1F DXJD100-3-FMY1E DXJD100-3-FMG1E | DXJD200-3-FMR1F DXJD200-3-FMY1E DXJD200-3-FMG1E | DXJD300-3-FMR1F DXJD300-3-FMY1E DXJD300-3-FMG1E | DXJD400-3-FMR1F DXJD400-3-FMY1E DXJD400-3-FMG1E |
| Light-Emitting Surface (LES) Size | 100mm | 200mm | 300mm | 400mm |
| Housing Material | Polycarbonate housing | Polycarbonate housing | Polycarbonate housing | Polycarbonate housing |
| Signal Light Color | □Red □Yellow □Green | □Red □Yellow □Green | □Red □Yellow □Green | □Red □Yellow □Green |
| Mask Color | Transparent | Transparent | Transparent | Transparent |
LED Quantity | R/Y/G: 31 pcs | R/Y/G: 90 pcs | R/Y/G: 168 pcs | R/Y/G: 205 Pcs |
| Lamp Power Consumption | Red full ball ≤ 5W Yellow full ball ≤ 5W Green full ball ≤ 4W | Red full ball ≤ 7W Yellow full ball ≤ 7W Green full ball ≤ 6W | Red full ball ≤ 13W Yellow full ball ≤ 16W Green full ball ≤ 13W | Red full ball ≤ 16W Yellow full ball ≤ 14W Green full ball ≤ 16W |
| Luminous Intensity | R/Y: >110cd G: >160cd | R/Y: >230cd G: >300cd | R/Y: >400cd G: >600cd | R/Y: >480cd G: >720cd |
| LED Wavelength | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm |
| Insulation Resistance | ＞2MΩ | ＞2MΩ | ＞2MΩ | ＞2MΩ |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Operating Voltage | AC85~264V | AC85~264V | AC85~264V | AC85~264V |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH | ≤97%RH | ≤97%RH |
| Protection Grade | IP53 | IP53 | IP53 | IP53 |
Visual Distance | ≥300m | ≥300m | ≥300m | ≥300m |
| Packaging Specifications | 24 piece per box, Size: 51 × 39 × 18 cm, Weight: 5.8 ± 0.5 kg | 10 piece per box, Size: 104 × 24 × 27 cm, Weight: 6.8 ± 0.5 kg | 5 piece per box, Size: 66 × 44 × 45 cm, Weight: 6.5 ± 0.5 kg | 5 piece per box, Size: 66 × 44 × 45 cm, Weight: 9.6 ± 0.5 kg |

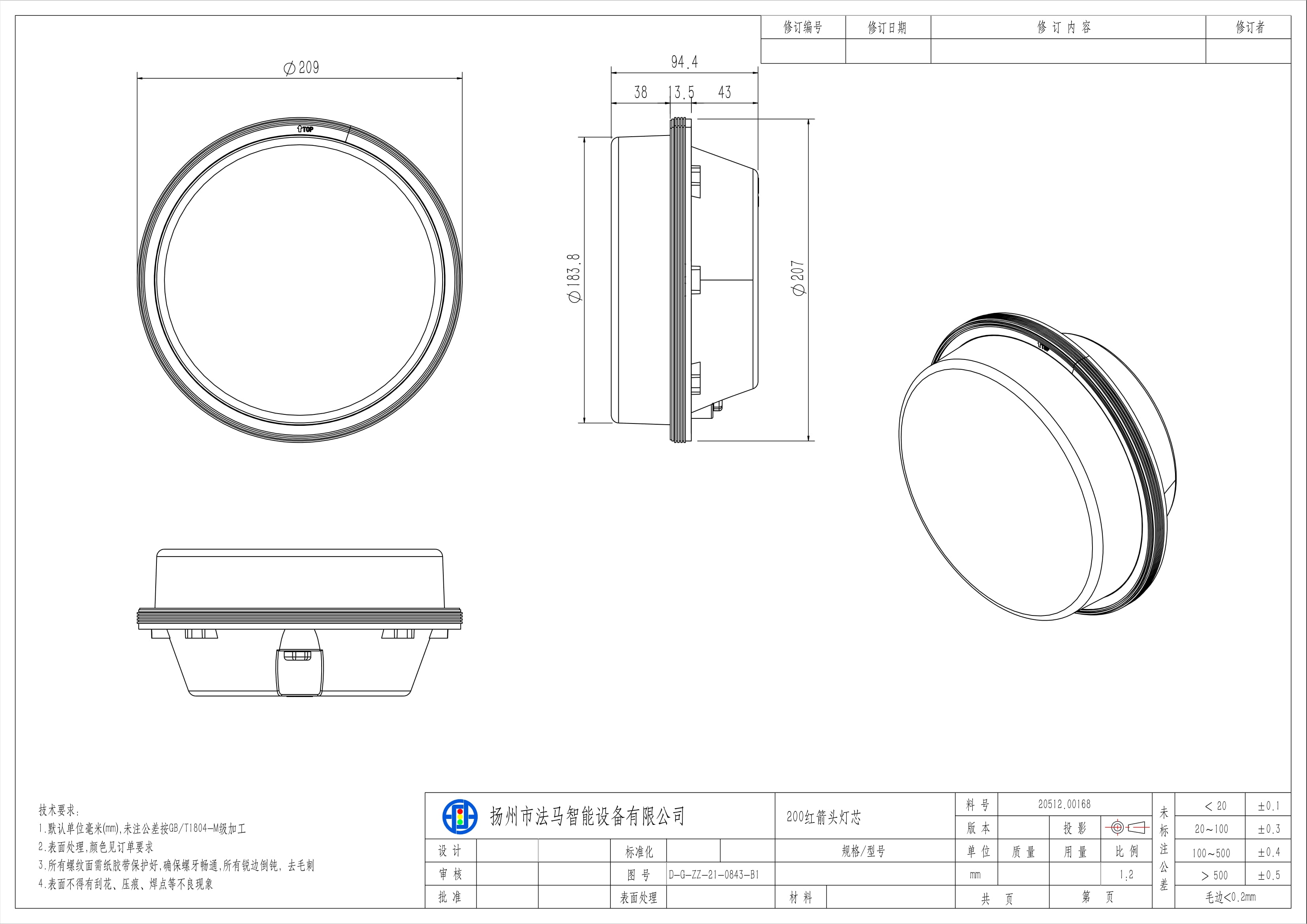

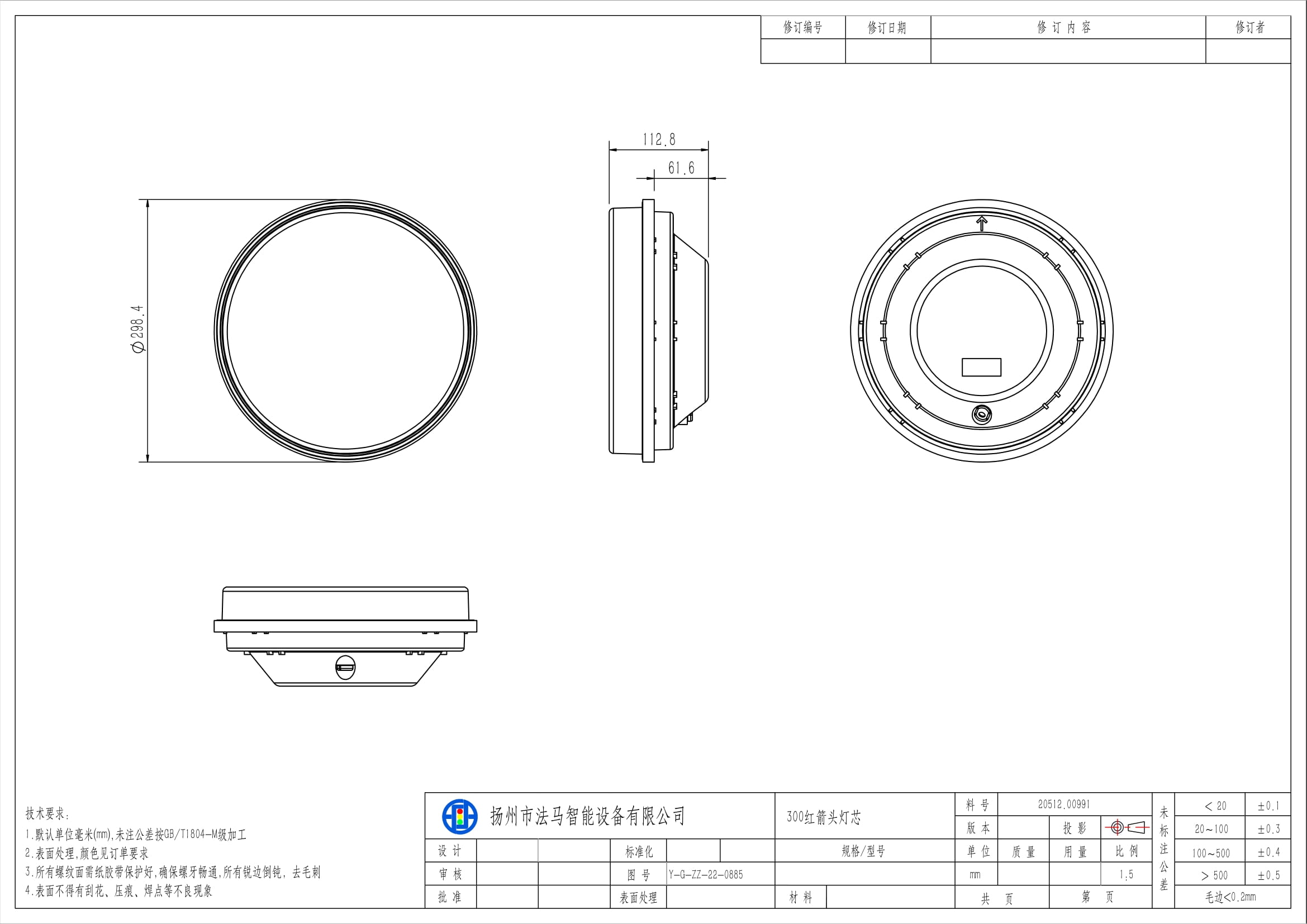

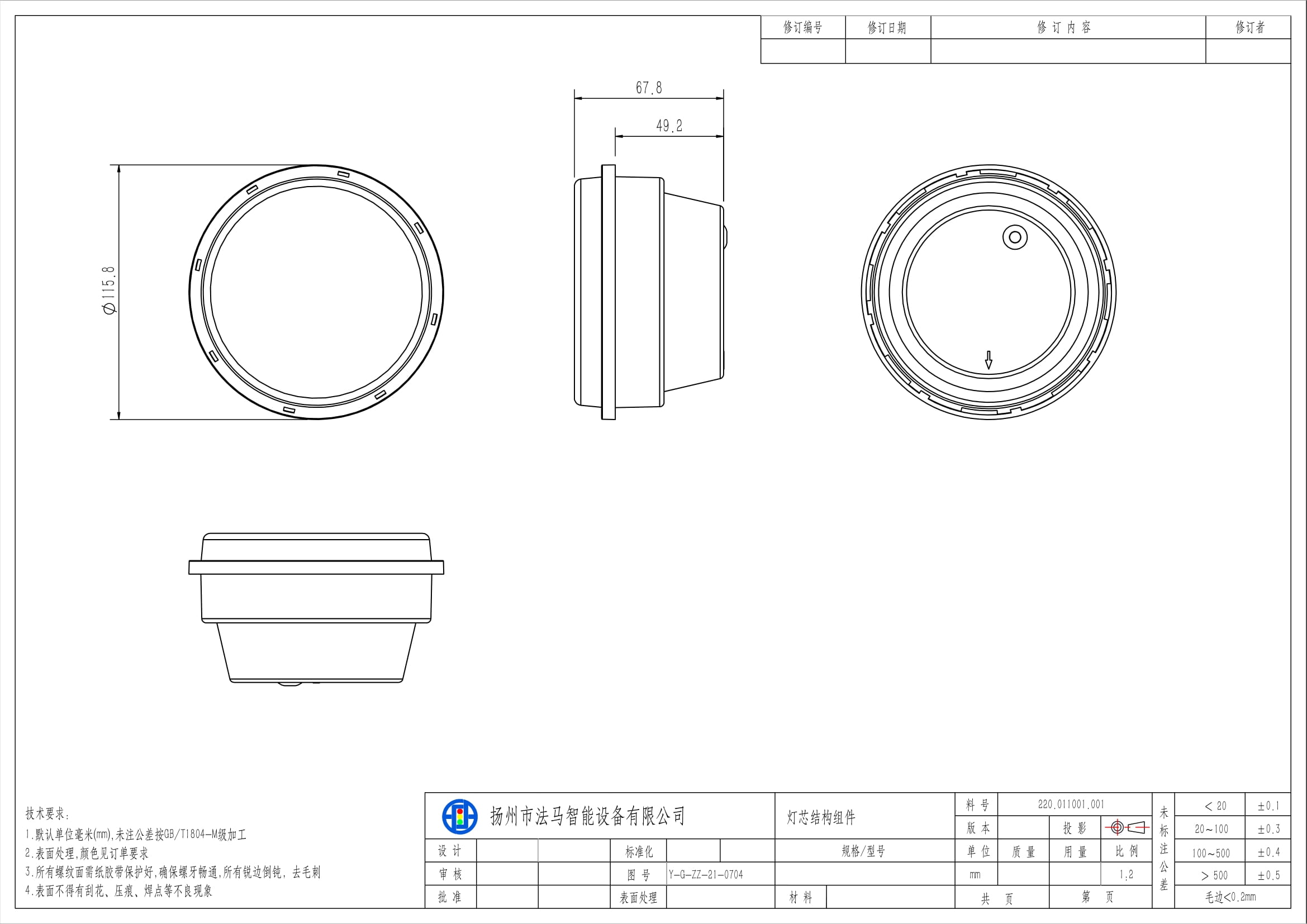

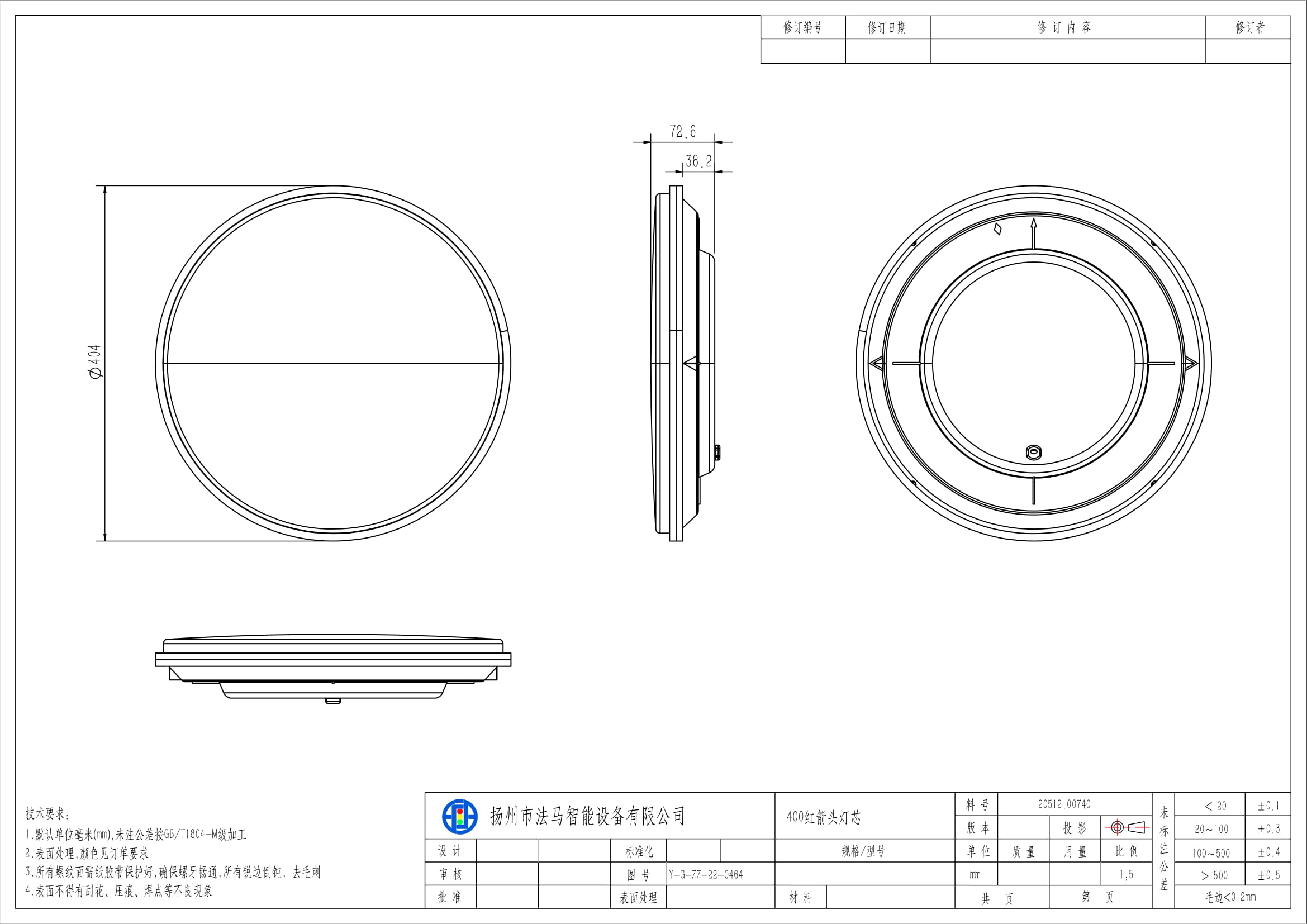

Structural Components
If there is a custom demandor have questions about our services,Please contact us
