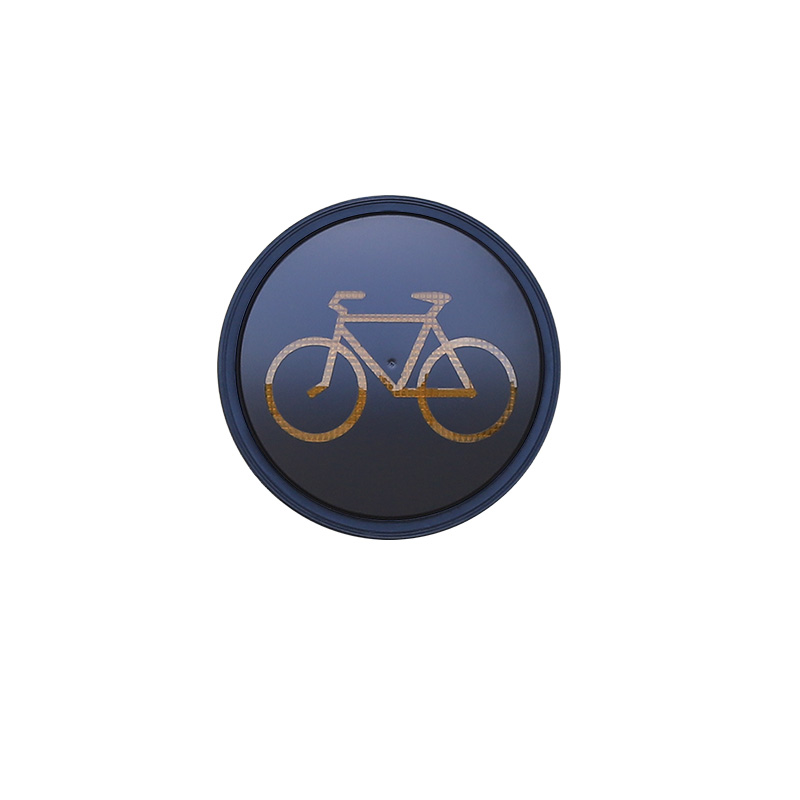

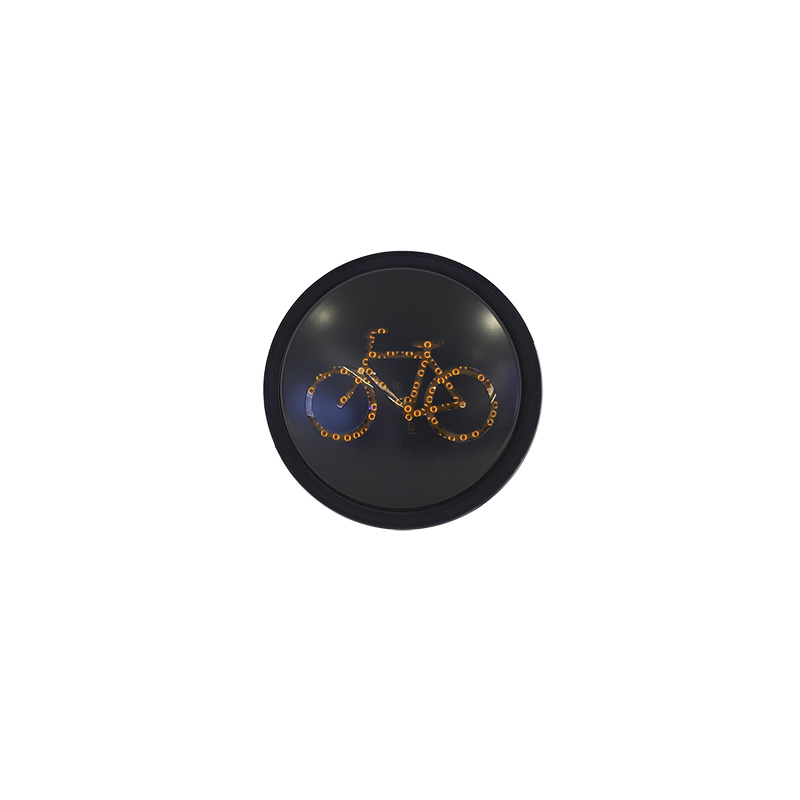

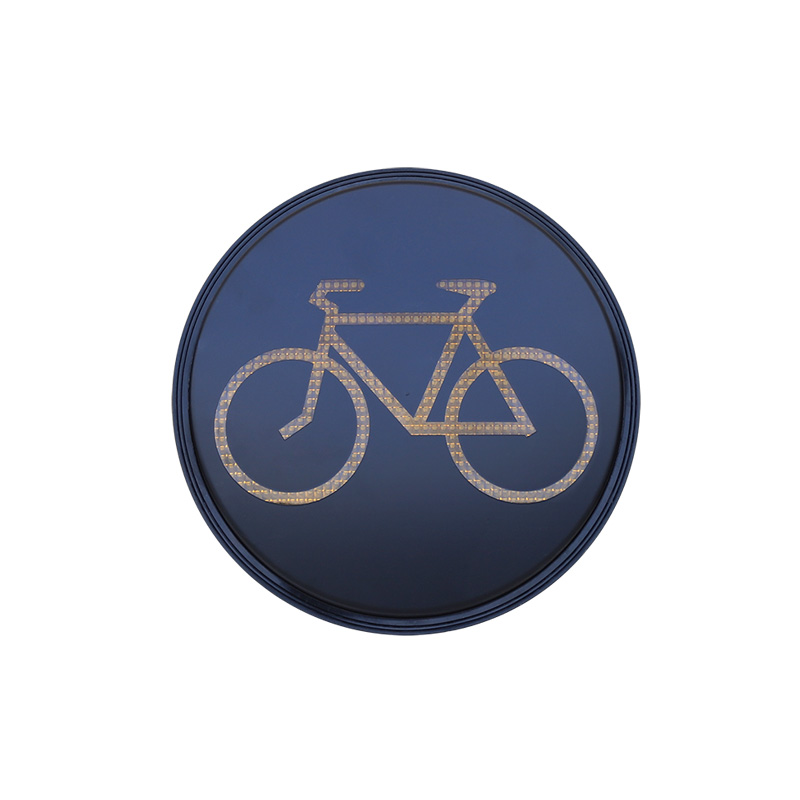

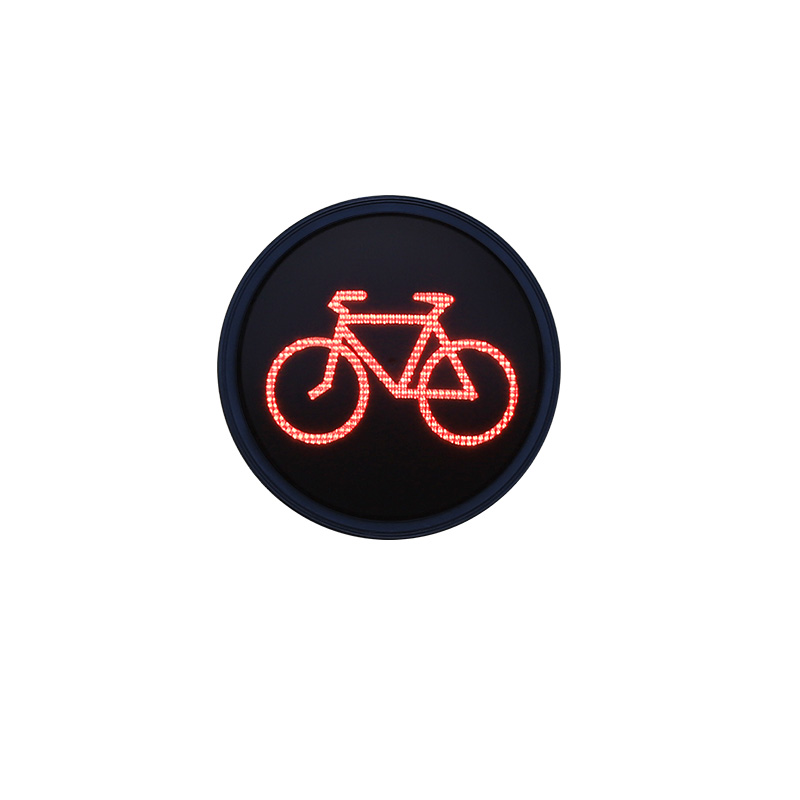

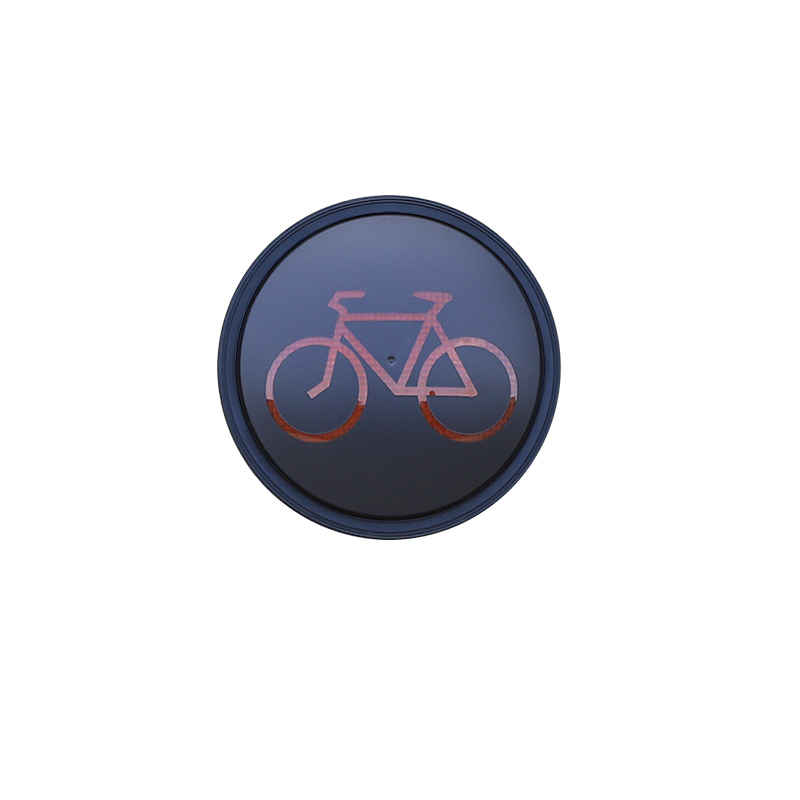

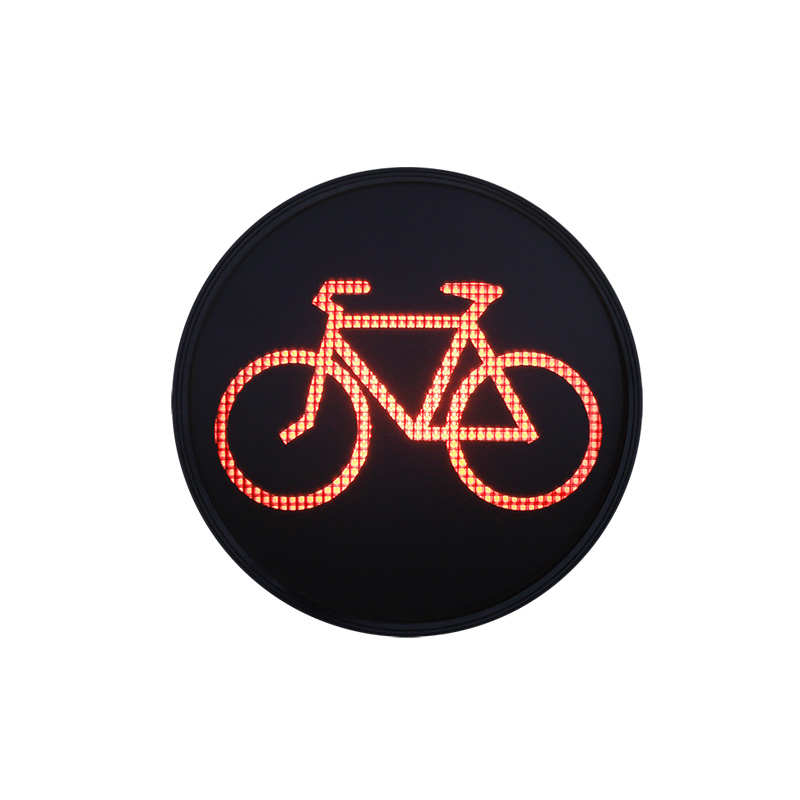

High Flux Bicycle Traffic Light Module
-

Model:
The High Flux Bicycle Traffic Light Module is an integrated assembly consisting of large-sized light sources, a three-layer optical lens system, power modules, a lamp bowl, and external heat dissipation components.
  • High Flux Bicycle Traffic Light Module
  • High Flux Bicycle Traffic Light Module
  • High Flux Bicycle Traffic Light Module
  • High Flux Bicycle Traffic Light Module
  • High Flux Bicycle Traffic Light Module
  • High Flux Bicycle Traffic Light Module
  • High Flux Bicycle Traffic Light Module
  • High Flux Bicycle Traffic Light Module
  • High Flux Bicycle Traffic Light Module
  • High Flux Bicycle Traffic Light Module
Overview

Product Introduction:

The High Flux Bicycle Traffic Light Module is an integrated assembly consisting of large-sized light sources, a three-layer optical lens system, power modules, a lamp bowl, and external heat dissipation components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It is applicable to traffic signal-controlled intersections designated for bicycle lanes.


Add the to your project
Functional Features
  • Three-layer optical processing - Eliminating glare and reducing light pollution
    The high flux full ball traffic light adopts triple optical processing technologies including secondary lens, Fresnel lens and optical mask to achieve uniform surface lighting and output light patterns that comply with international standards. It effectively eliminates glare caused by direct emission from conventional point light sources, thereby significantly mitigating light pollution.
  • Three core technologies – Effectively extending service life

    Through the integrated application of external heat dissipation technology to improve heat dissipation efficiency, wide-voltage and high-surge-protection (AC 90–264V / 4000V) constant-current power supply technology to ensure stable system operation, and large-sized LED chips featuring low light attenuation and high luminous efficiency, these three core technologies collectively ensure the product's exceptional reliability and an extended service life.

Model

DXFJ100-3-FMR4A

DXFJ100-3-FMY4A

DXFJ100-3-FMG4A

DXFJ200-3-FMR4A

DXFJ200-3-FMY4A

DXFJ200-3-FMG4A

DXFJ300-3-FMR4A

DXFJ300-3-FMY4A

DXFJ300-3-FMG4A

Light-Emitting Surface (LES)  Size100mm200mm300mm
Signal Light Color□Red  □Yellow  □Green□Red  □Yellow  □Green□Red  □Yellow  □Green
Housing MaterialPolycarbonate housingPolycarbonate housingPolycarbonate housing
Mask ColorColouredColouredColoured
Mask ShapeRoundRoundRound
LED QuantityR/Y/G: 1 PcsR/Y/G: 2 PcsR/Y/G: 5 Pcs
Lamp Power Consumption

Red bicycle ≤3 W

Yellow bicycle ≤3 W

Green bicycle ≤3 W

Red bicycle ≤ 5W

Yellow bicycle ≤ 5W

Green bicycle ≤ 5W

Red bicycle ≤ 10W

Yellow bicycle ≤ 10W

Green bicycle ≤ 10W

LED Wavelength

Red: 616 - 628 nm

Yellow: 589 - 592 nm

Green: 500 - 510 nm

Red: 616 - 628 nm

Yellow: 589 - 592 nm

Green: 500 - 510 nm

Red: 616 - 628 nm

Yellow: 589 - 592 nm

Green: 500  -510 nm

Luminous Intensity5000~15000cd/m²5000~15000cd/m²5000~15000cd/m²
LED Lifespan≥100,000 hours≥100,000 hours≥100,000 hours
Insulation Resistance>2MΩ>2MΩ>2MΩ
Operating VoltageAC85~264VAC85~264VAC85~264V
Operating Temperature-40℃ to +80℃-40℃ to +80℃-40℃ to +80℃
Relative Humidity≤97%RH≤97%RH≤97%RH
Protection GradeIP53IP53IP53
Visual Distance≥300m≥300m≥300m
Packaging Specifications12 piece per box, Size: 39 × 26 × 18 cm, Weight: 2.8 ± 0.5 kg10 piece per box, Size: 110 × 28 × 24 cm, Weight: 7.2 ± 0.5 kg5 piece per box, Size: 83 × 33 × 34 cm, Weight: 8.65 ± 0.5 kg

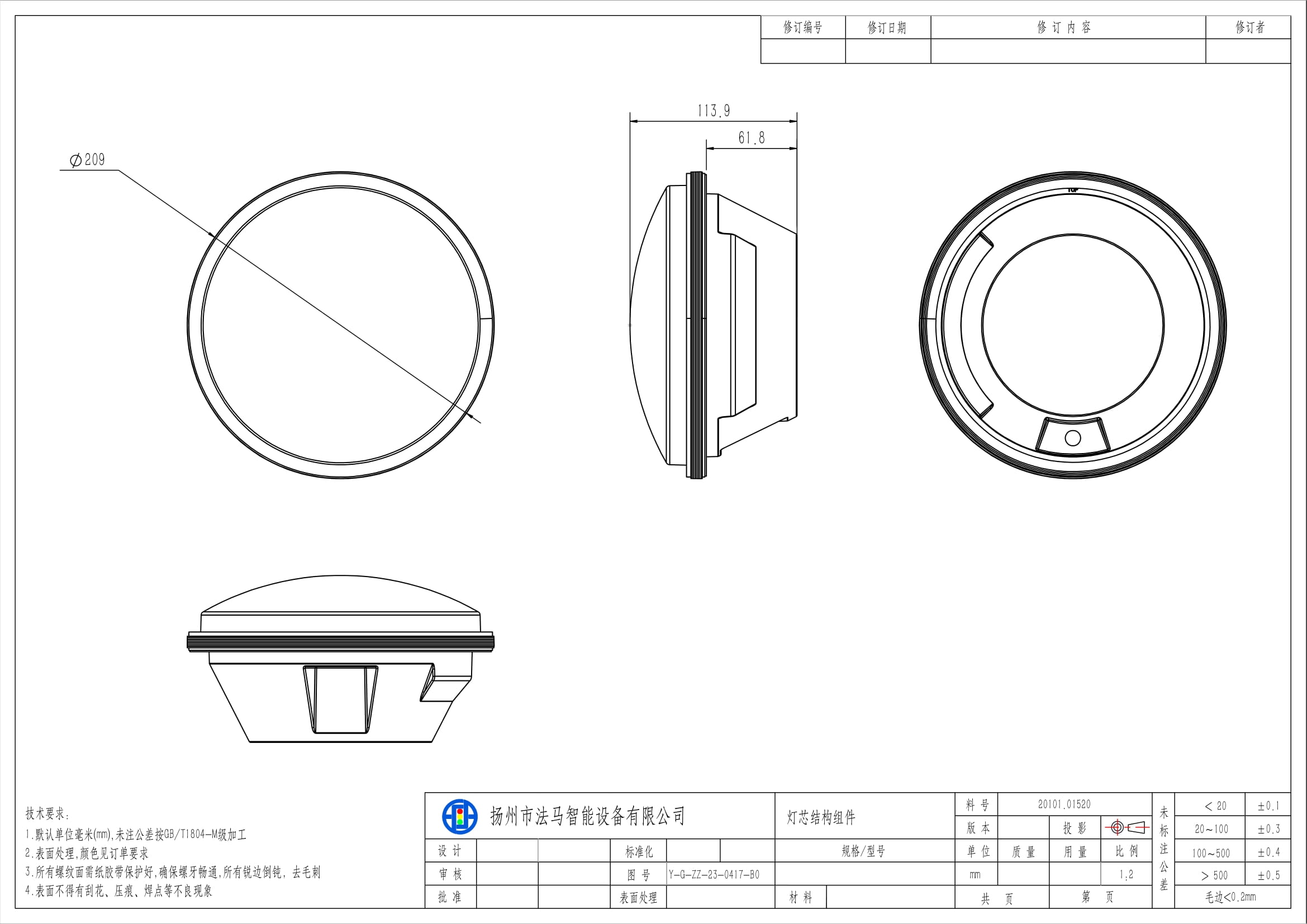

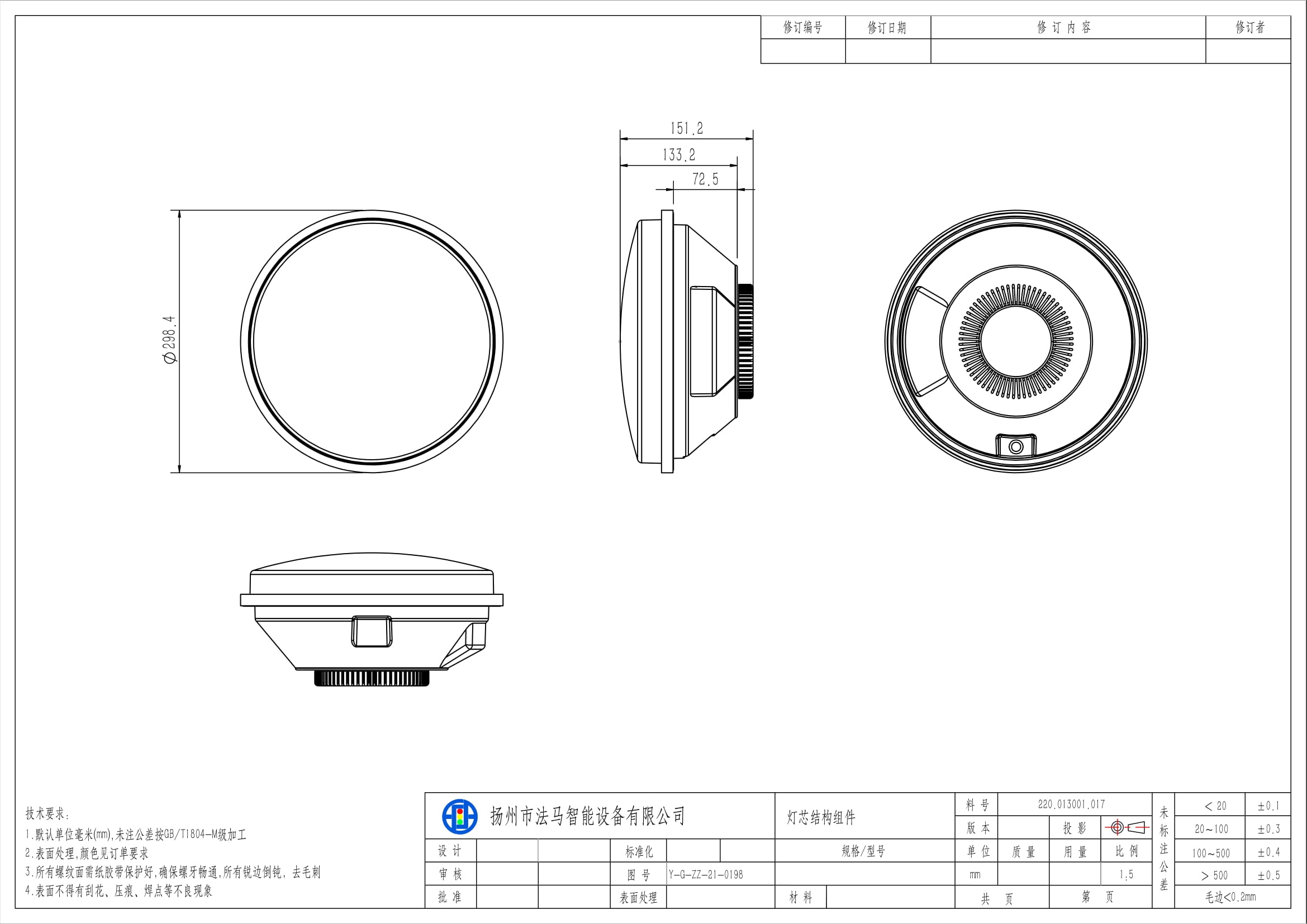

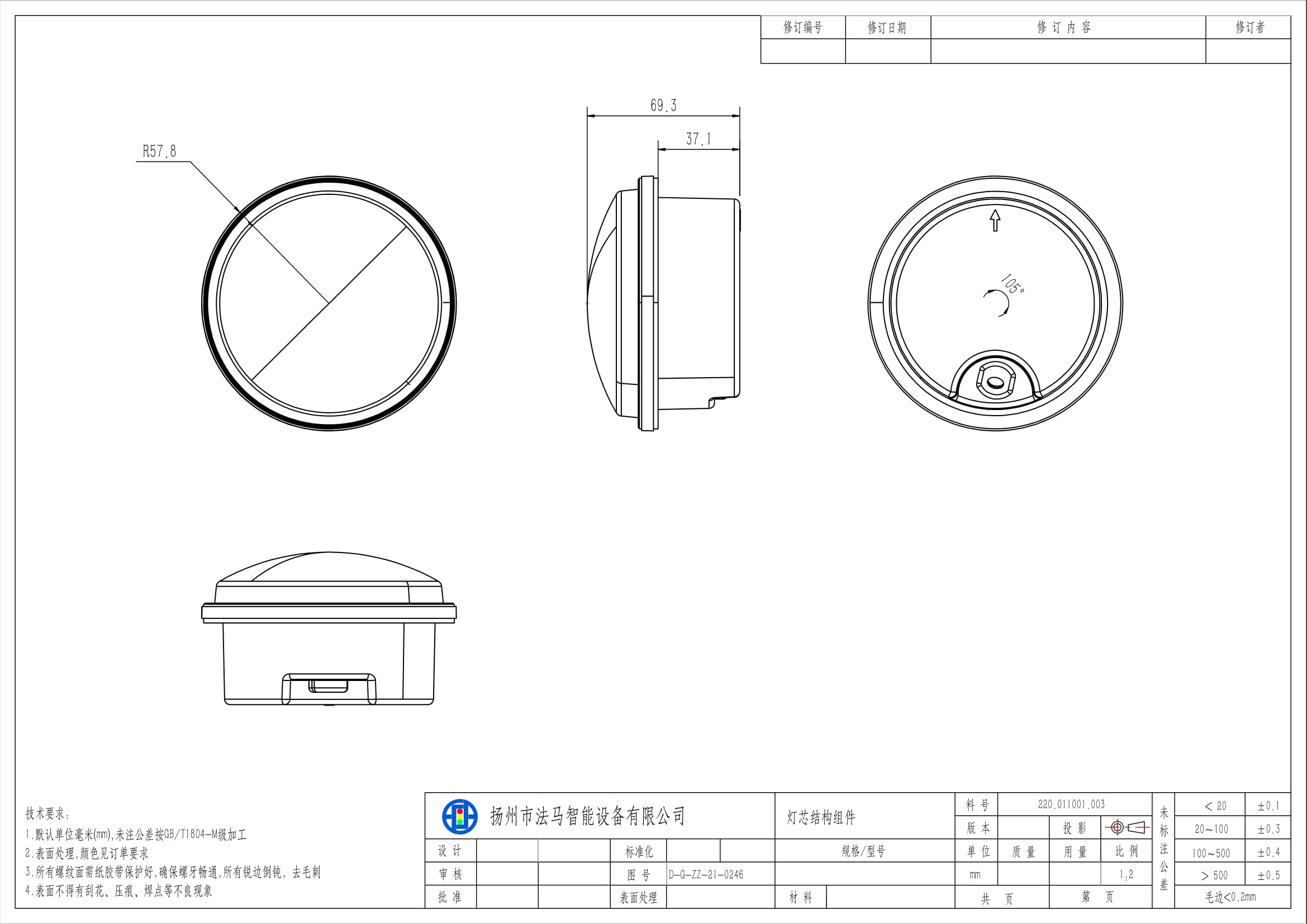

Structural Components
