Low Power Pedestrian Traffic Light Module

Overview

Product Introduction:

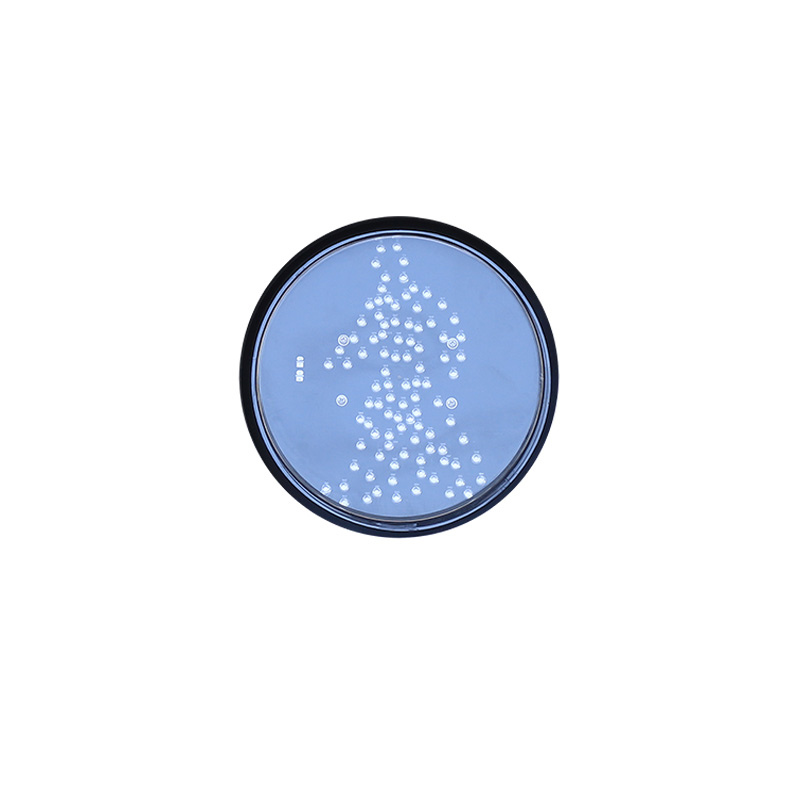

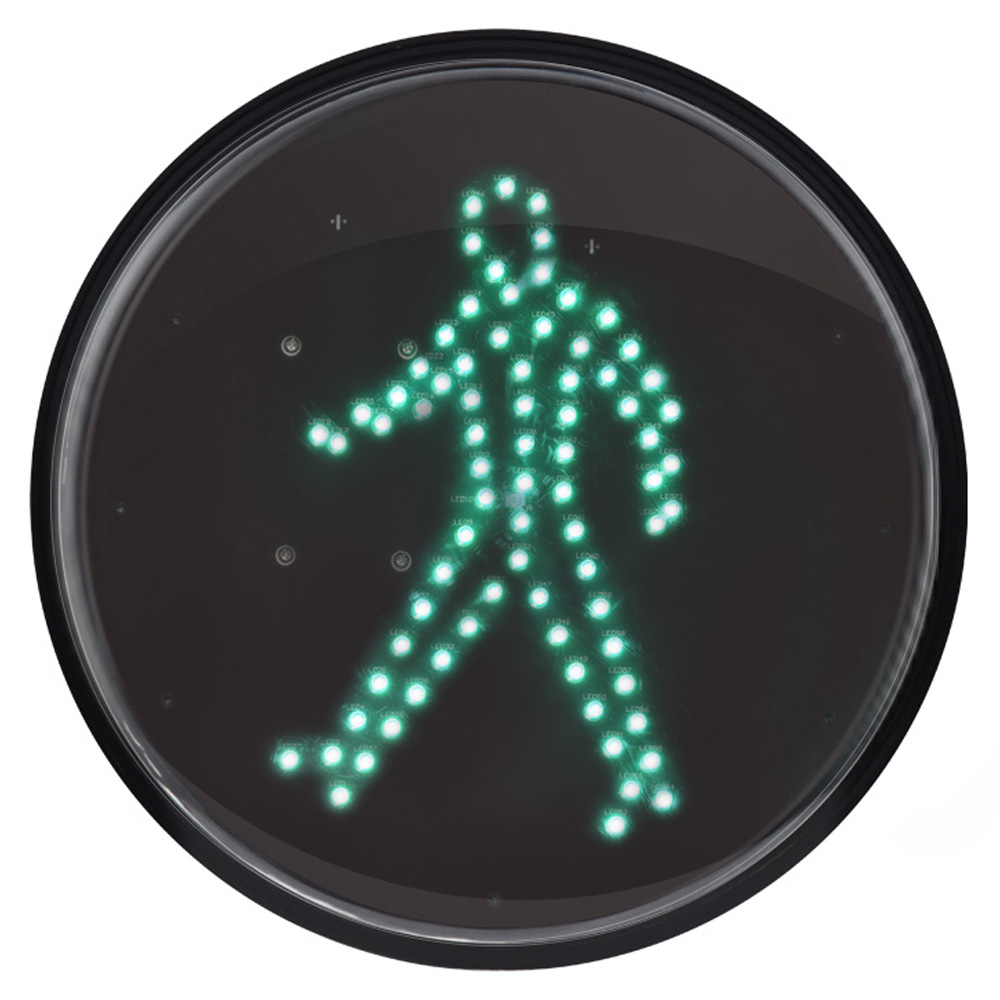

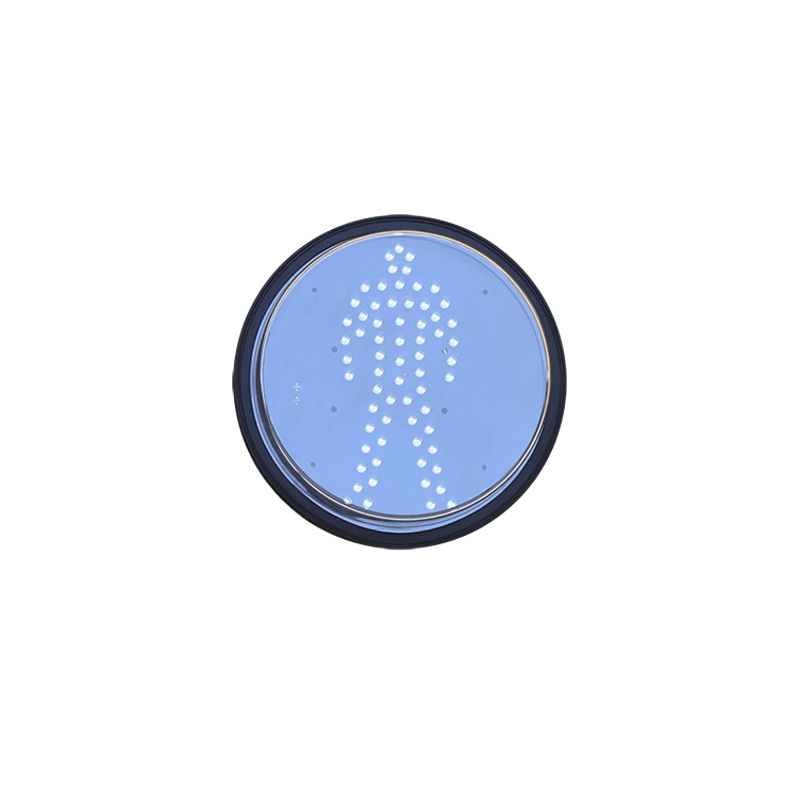

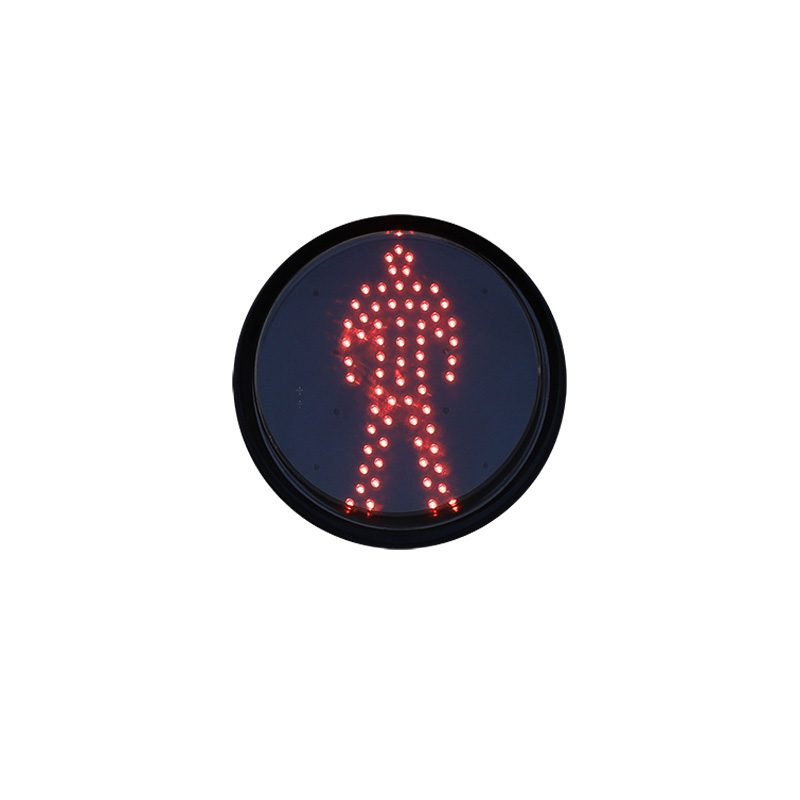

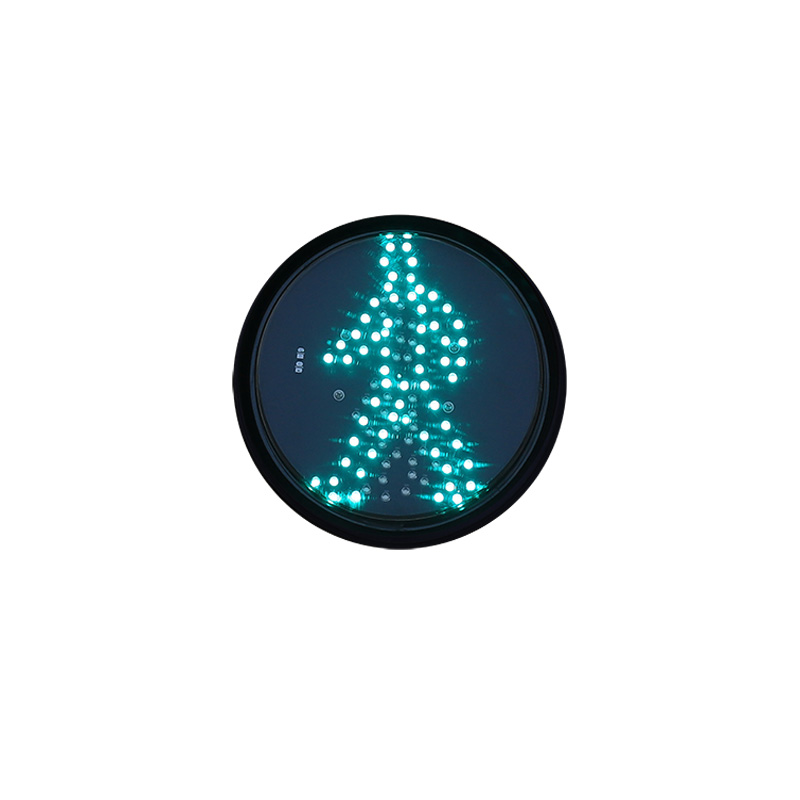

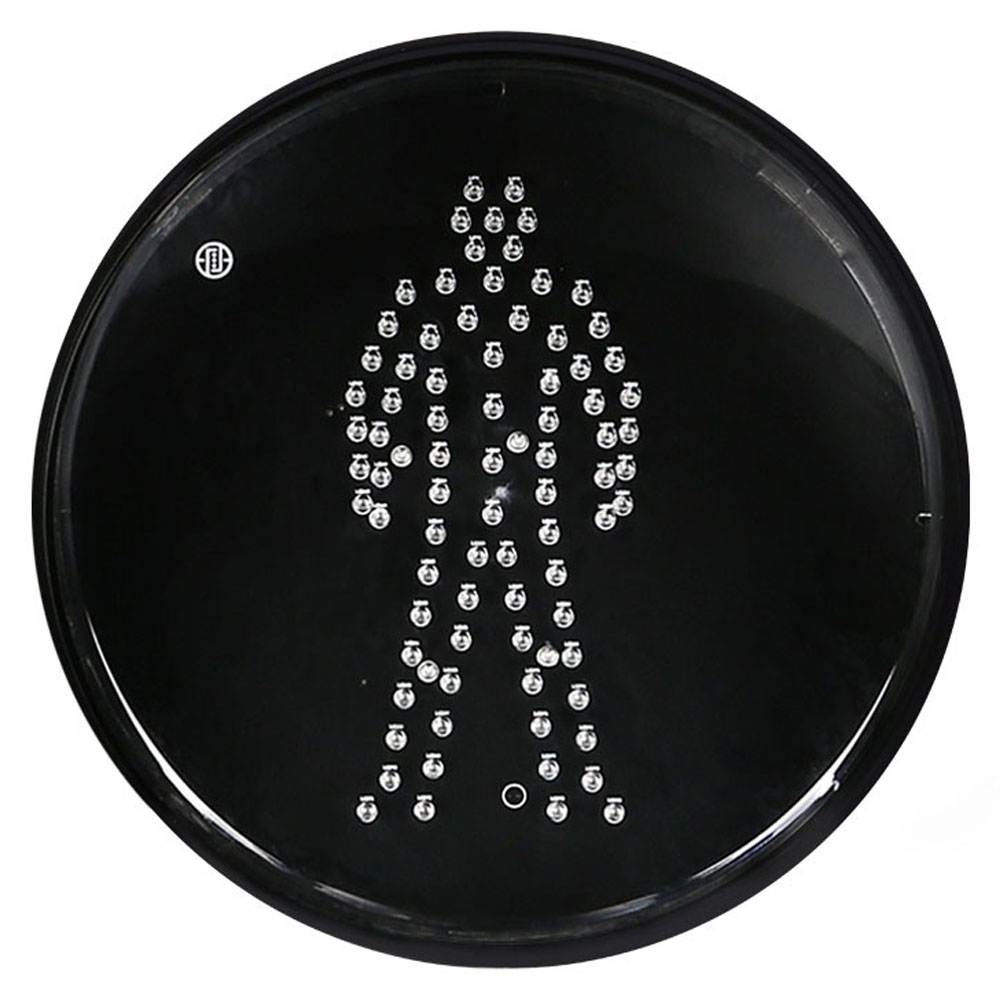

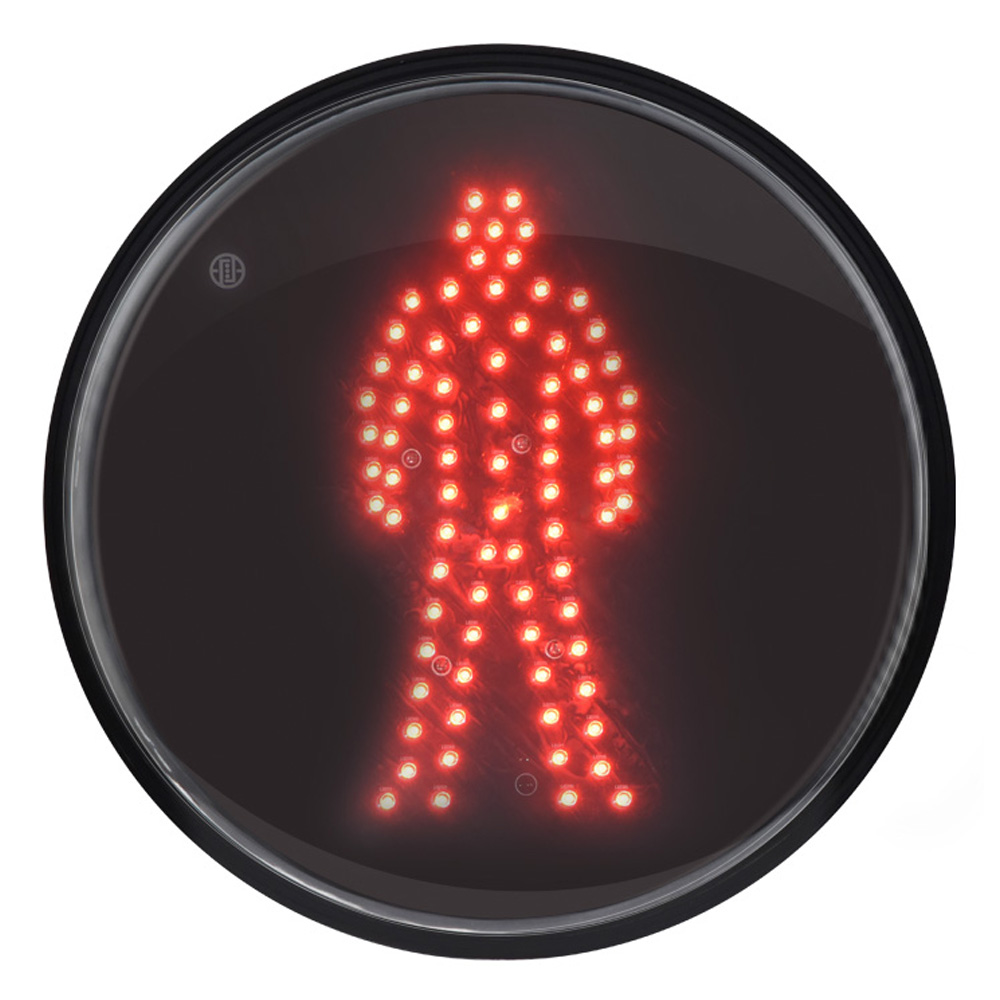

The Low Power Pedestrian Traffic Light Module consists of a light board, lens, power supply, lamp bowl, and other structural components. It is applicable to traffic signal control intersections designed for pedestrian crossings.

Add the to your project

Contact us to order

Functional Features

Mesh circuit design ensures stable product operation:

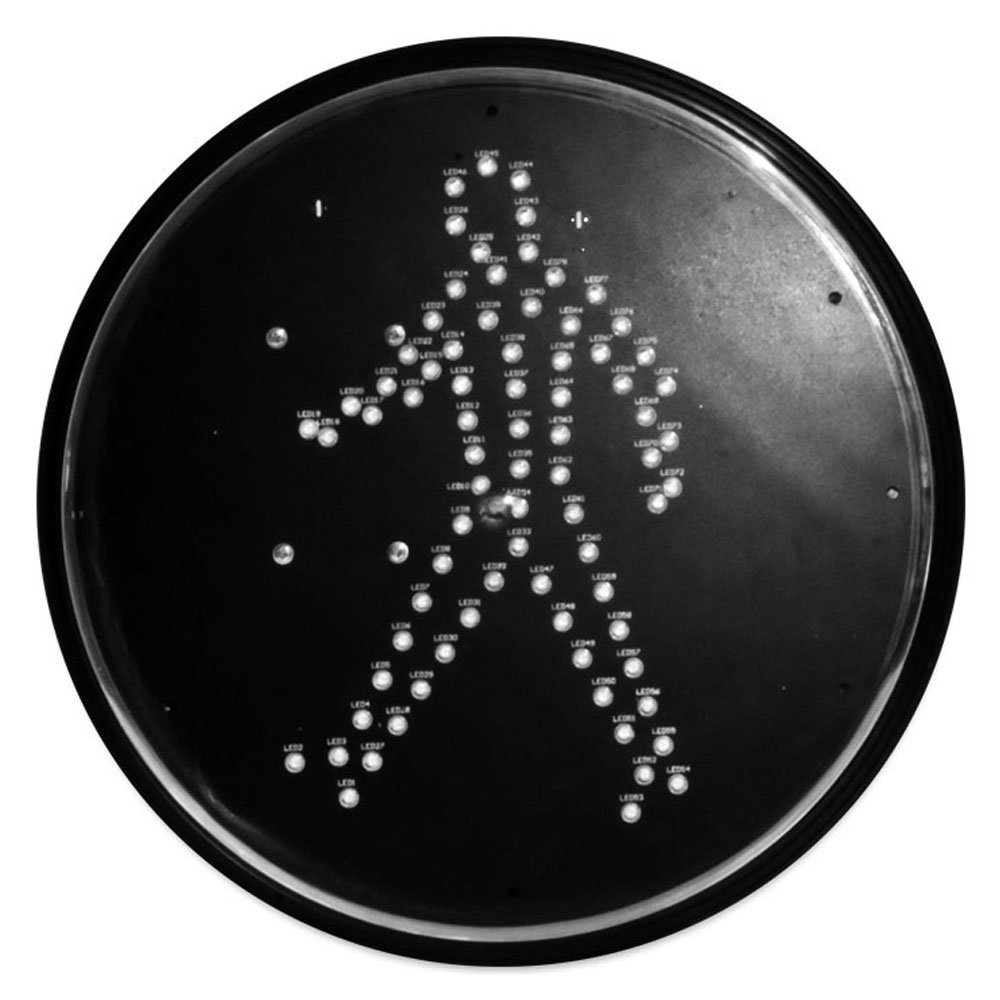

The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.
European standard power supply, more energy-efficient and environmentally friendly:
It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
Constant current drive design, with long service life and low maintenance:
It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
Excellent electromagnetic compatibility, enhancing device stability:
It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.

At a glance

Model	DXRX200-3-FMR1A DXRX200-3-FMG1A	DXRX300-3-FMR1A DXRX300-3-FMG1A
Light-Emitting Surface (LES) Size	200mm	300mm
Housing Material	Polycarbonate housing	Polycarbonate housing
Signal Light Color	□Red □Green	□Red □Green
Mask Color	Transparent	Transparent
Mask Shape	Round/Square	Round/Square
Operating Voltage	AC85V~264V/47HZ~63HZ	AC85V~264V/47HZ~63HZ
LED Quantity	G: 96pcs；R: 66pcs；	G: 78pcs；R: 80pcs；
Lamp Power Consumption	Static red pedestrian light ≤ 6 W Dynamic green pedestrian light ≤ 5 W Static green pedestrian light ≤ 5 W	Static red pedestrian light ≤ 7 W Dynamic green pedestrian light ≤ 6 W Static green pedestrian light ≤ 6 W
LED Wavelength	Red: 625 ± 5 nm Green: 505 ±5 nm	Red: 625 ± 5 nm Green: 505 ± 5 nm
Luminous Intensity	5000~15000cd/m²	5000~15000cd/m²
Insulation Resistance	＞2MΩ	＞2MΩ
LED Lifespan	≥100,000 hours	≥100,000 hours
Operating Temperature	-40℃ to +80℃	-40℃ to +80℃
Relative Humidity	≤97%RH	≤97%RH
Protection Grade	IP53	IP53
Visual Distance	≥300m	≥300m
Packaging Specifications	10 piece per box, Size: 104 × 23 × 25 cm, Weight: 6.65 ± 0.5 kg	5 piece per box, Size: 62 × 32 × 35 cm, Weight: 6.65 ± 0.5 kg

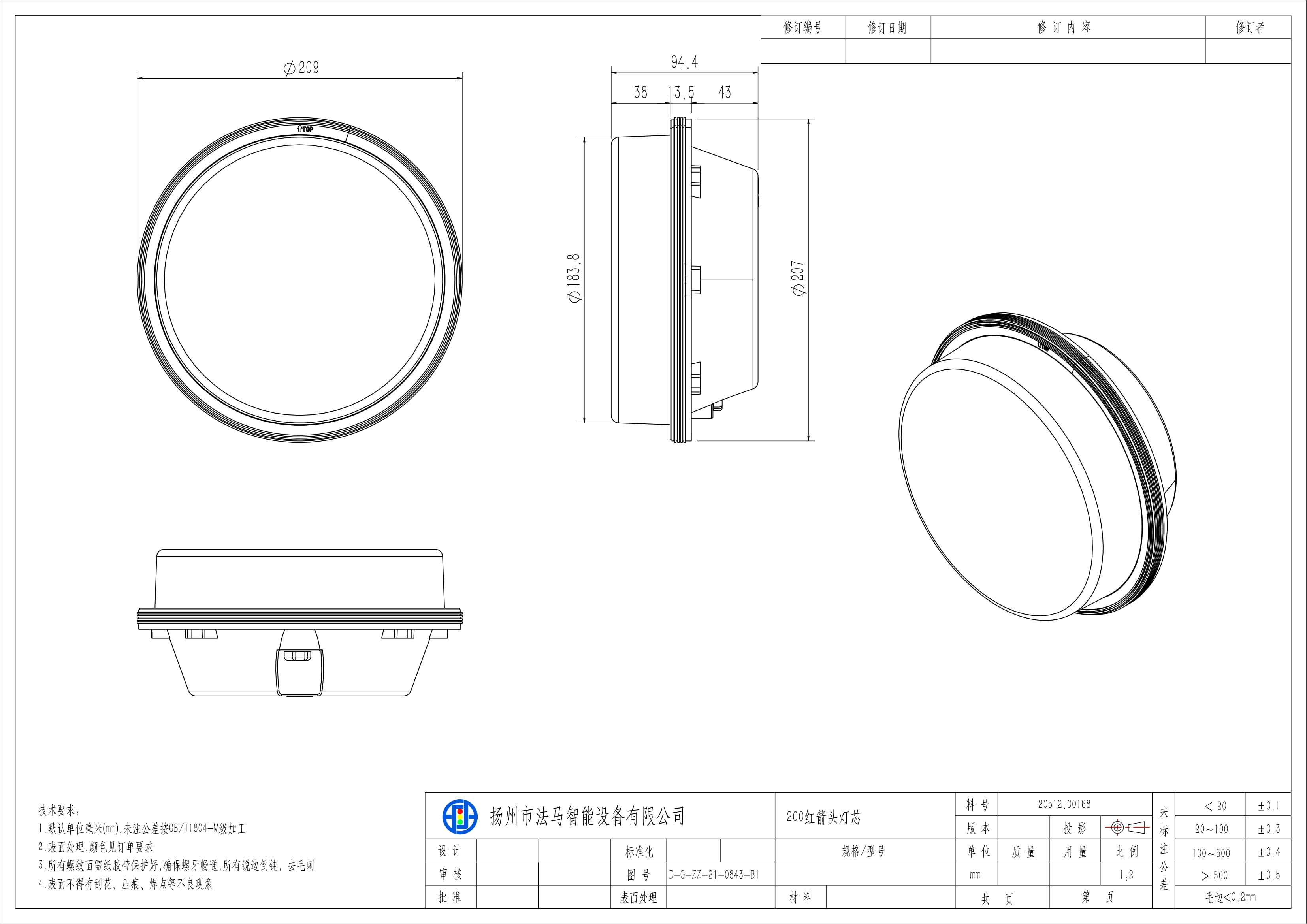

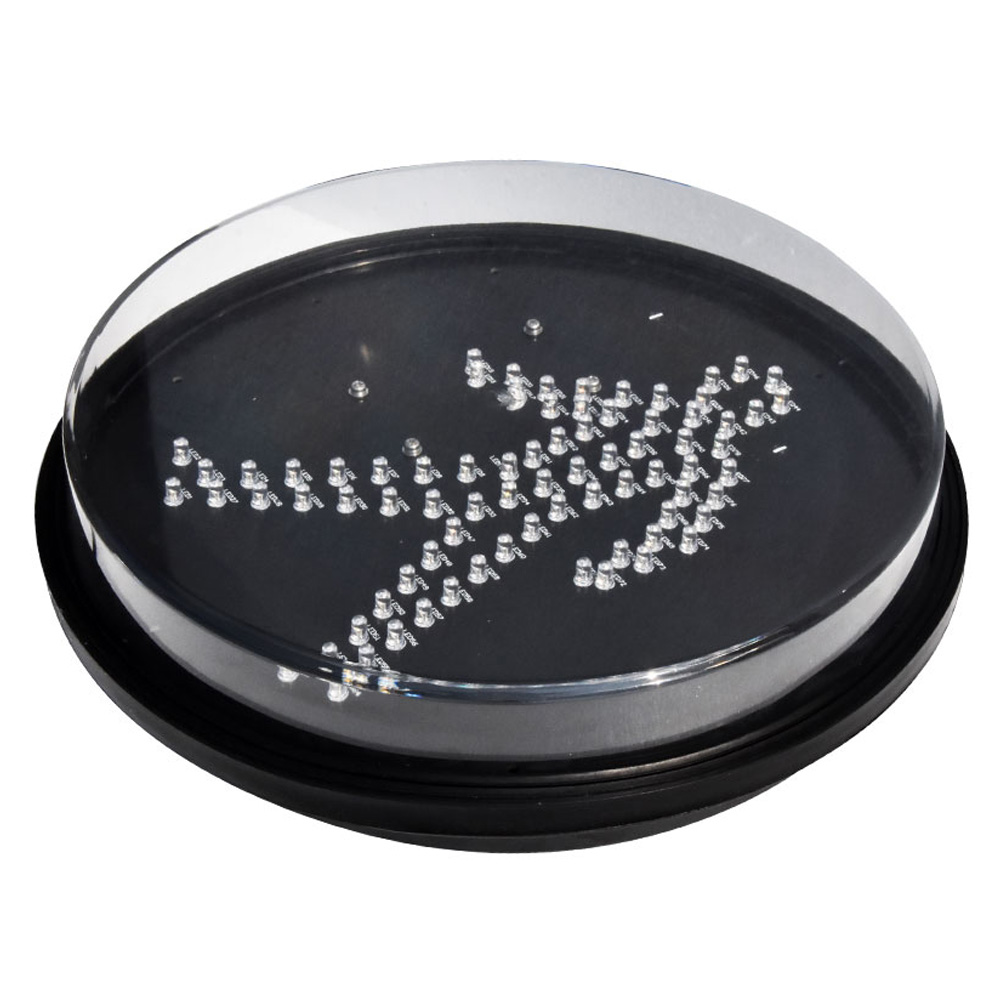

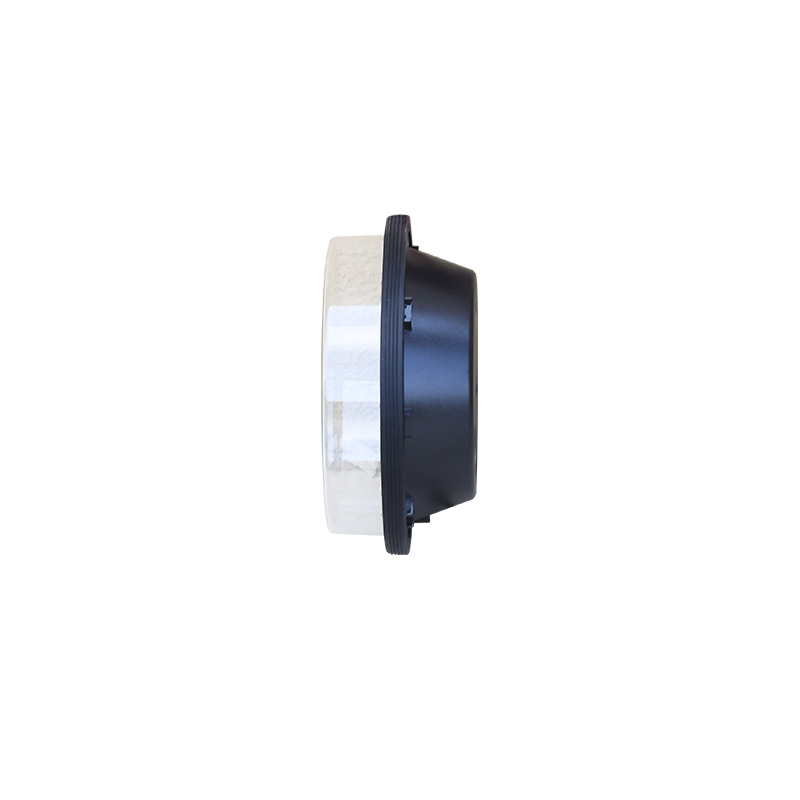

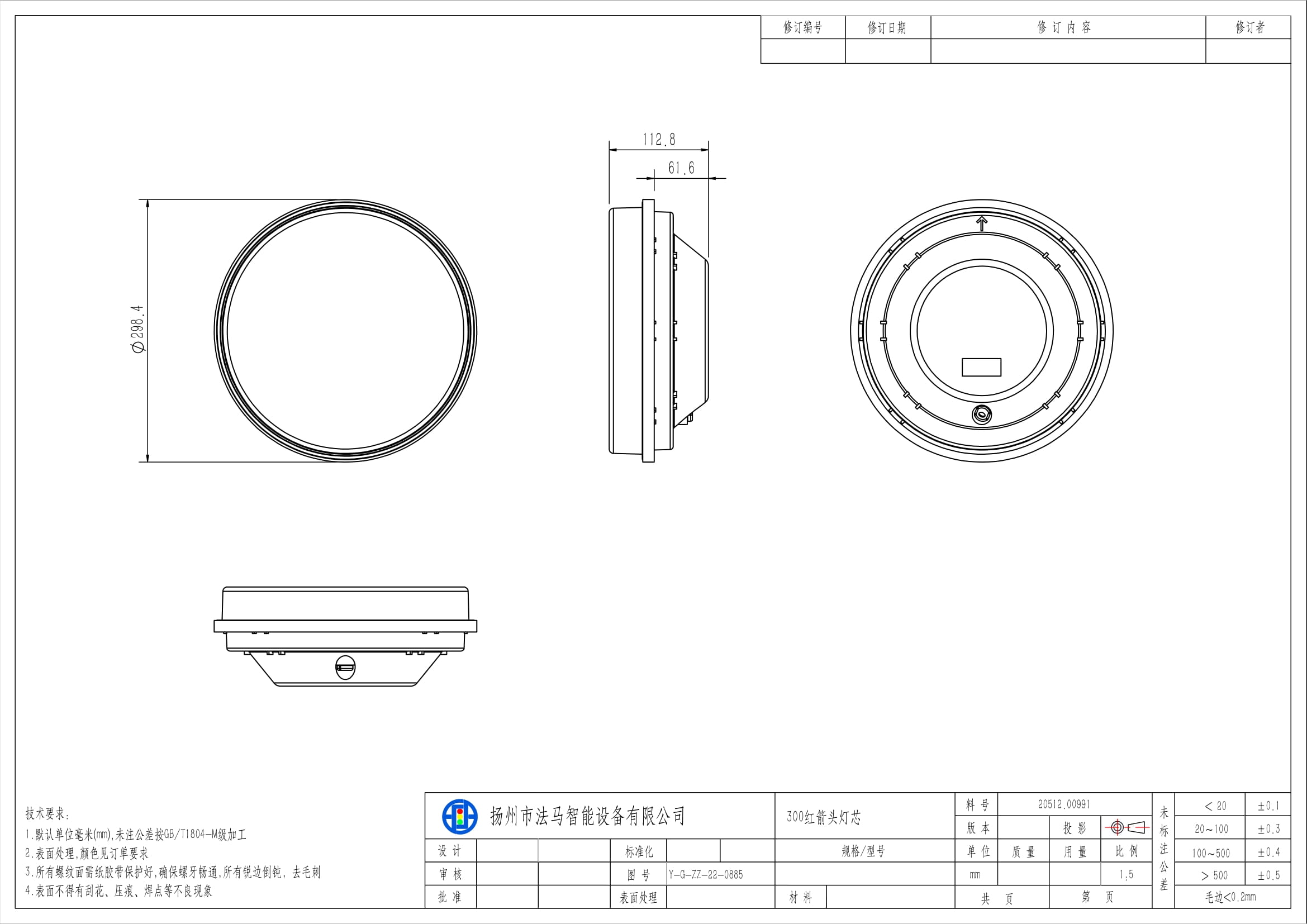

Structural Components
