High Flux Full Ball Traffic Light Module

Overview

Product Introduction:

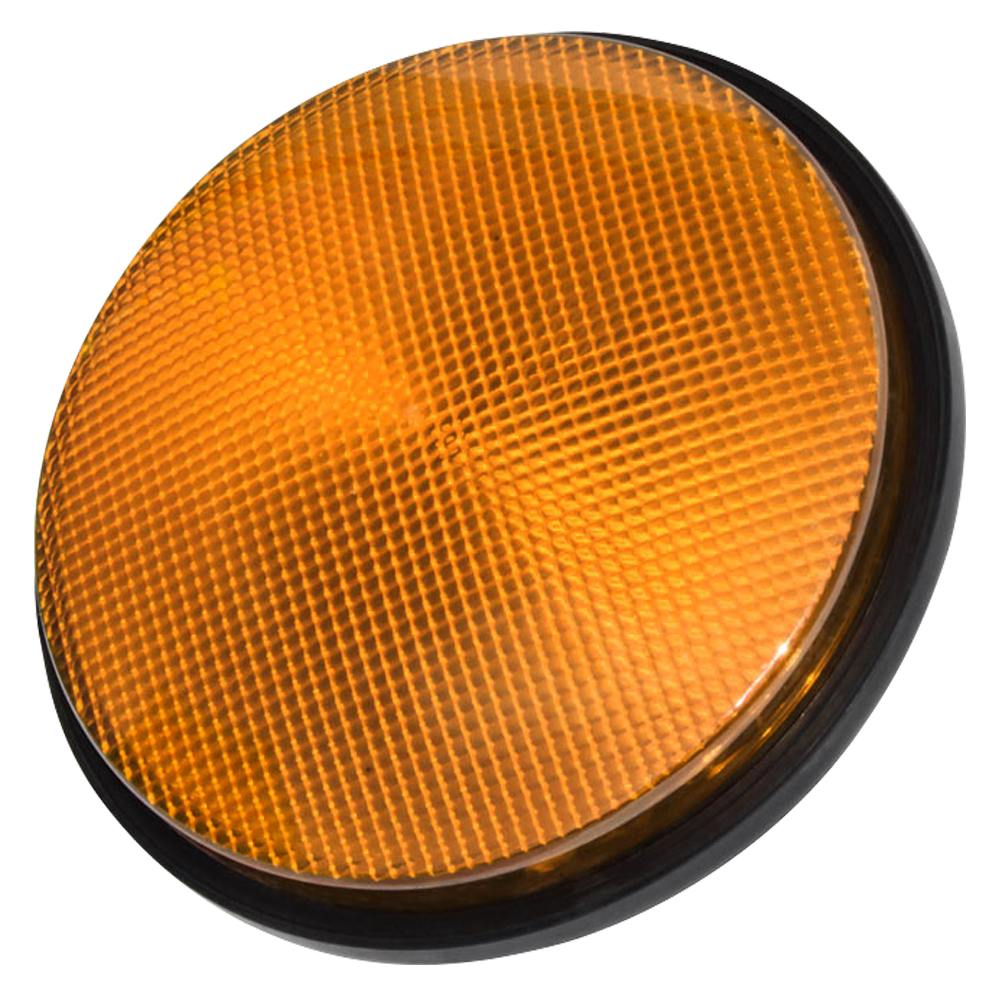

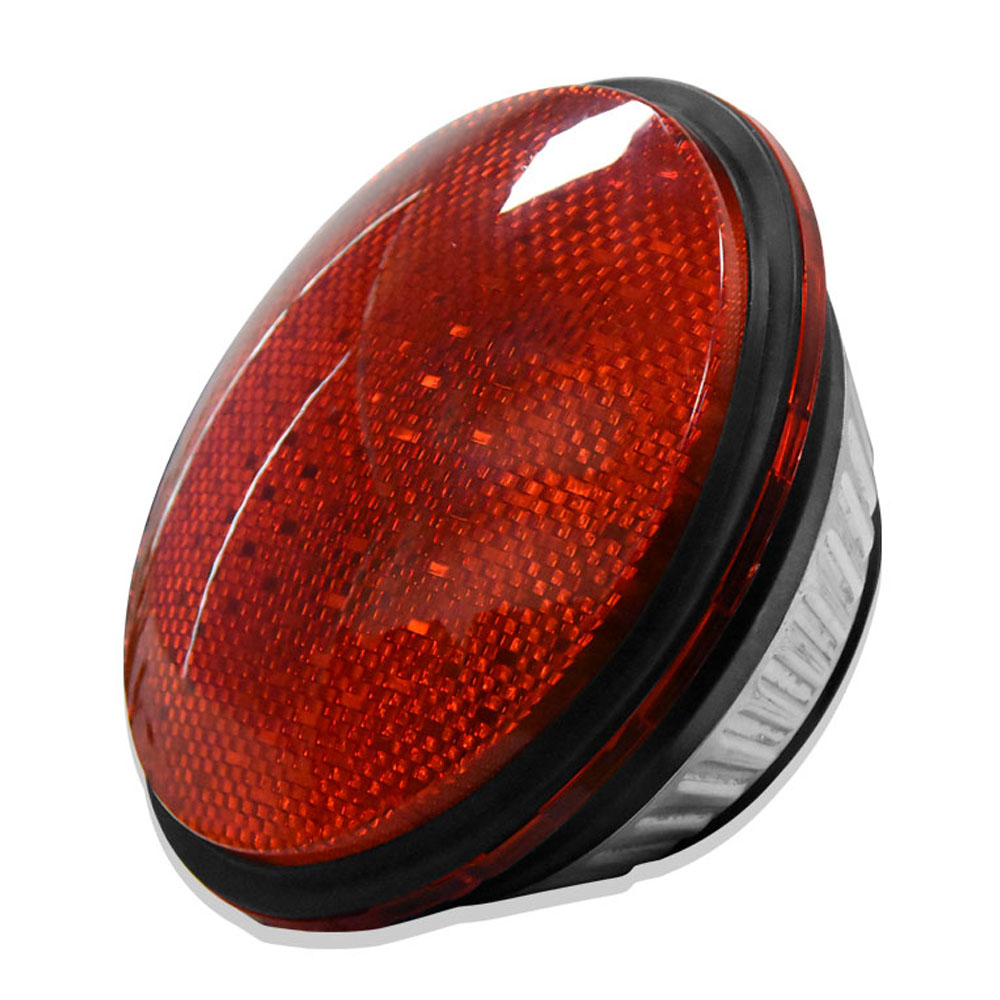

The High Flux Full Ball Traffic Light Module is an integrated assembly consisting of large-sized light sources, a three-layer optical lens system, power modules, a lamp bowl, and external heat dissipation components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It is applicable to a wide range of traffic signal control intersections.

Add the to your project

Contact us to order

Functional Features

Product Selling Points:

1. Three-layer optical processing - Eliminating glare and reducing light pollution

The high flux full ball traffic light adopts triple optical processing technologies including secondary lens, Fresnel lens and optical mask to achieve uniform surface lighting and output light patterns that comply with international standards. It effectively eliminates glare caused by direct emission from conventional point light sources, thereby significantly mitigating light pollution.

2. Three core technologies – Effectively extending service life

Through the integrated application of external heat dissipation technology to improve heat dissipation efficiency, wide-voltage and high-surge-protection (AC 90–264V / 4000V) constant-current power supply technology to ensure stable system operation, and large-sized LED chips featuring low light attenuation and high luminous efficiency, these three core technologies collectively ensure the product's exceptional reliability and an extended service life.

At a glance

Model	DXJD100-3-FMR4A DXJD100-3-FMY4A DXJD100-3-FMG4A	DXJD200-3-FMR4A DXJD200-3-FMY4A DXJD200-3-FMG4A	DXJD300-3-FMR4A DXJD300-3-FMY4A DXJD300-3-FMG4A	DXJD400-3-FMR4A DXJD400-3-FMY4A DXJD400-3-FMG4A
Light-Emitting Surface (LES) Size	100mm	200mm	300mm	400mm
Housing Material	Polycarbonate housing	Polycarbonate housing	Polycarbonate housing	Polycarbonate housing
Signal Light Color	□Red □Yellow □Green	□Red □Yellow □Green	□Red □Yellow □Green	□Red □Yellow □Green
Mask Color	Coloured	Coloured	Coloured	Transparent
Mask Shape	Arc-shaped	Arc-shaped	Arc-shaped	Flat surface
LED Quantity	R/Y/G:1 Pcs	R/Y/G:2 Pcs	R/Y/G:4 Pcs	R/Y/G:7 Pcs
Lamp Power Consumption	Red full ball ≤ 3W Yellow full ball ≤ 3W Green full ball ≤ 3W	Red full ball ≤ 7W Yellow full ball ≤ 7W Green full ball ≤ 9W	Red full ball ≤ 11W Yellow full ball ≤ 13W Green full ball ≤ 13W	Red full ball ≤13W Yellow full ball ≤16W Green full ball ≤15W
Luminous Intensity	Red full ball intensity ≥ 100cd Yellow full ball intensity ≥ 100cd Green full ball intensity ≥ 100cd	Red full ball intensity ≥ 250cd Yellow full ball intensity ≥ 360cd Green full ball intensity ≥ 550cd	Red full ball intensity ≥ 450cd Yellow full ball intensity ≥ 580cd Green full ball intensity ≥ 860cd	Red full ball intensity ≥ 800cd Yellow full ball intensity ≥ 1000cd Green full ball intensity ≥ 1000cd
LED Wavelength	Red: 616-628 nm Yellow: 589-592 nm Green: 500-510 nm	Red: 616-628 nm Yellow: 589-592 nm Green: 500-510 nm	Red: 616-628 nm Yellow: 589-592 nm Green: 500-510 nm	Red: 616-628 nm Yellow: 589-592 nm Green: 500-510 nm
LED Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Operating Voltage / Frequency	AC85~264V/47-63Hz	AC85~264V/47-63Hz	AC85~264V/47-63Hz	AC85~264V/47-63Hz
Operating Temperature	-40℃ to +80℃	-40℃ to +80℃	-40℃ to +80℃	-40℃ to +80℃
Relative Humidity	≤97%RH	≤97%RH	≤97%RH	≤97%RH
Protection Grade	IP53	IP53	IP53	IP53
Visual Distance	≥300m	≥300m	≥300m	≥300m
Packaging Specifications	Weight: 2.8 ± 0.5 kg/12 pcs Size: 39 × 26 × 18 cm	Weight: 7.2 ± 0.5 kg/10 pcs Size: 110 × 28 × 24 cm	Weight: 8.65 ± 0.5 kg/5 pcs Size: 83 × 33 × 34 cm	5 piece per box, Weight: 8.5 ± 0.5 kg, Size: 83 × 33 × 34 cm

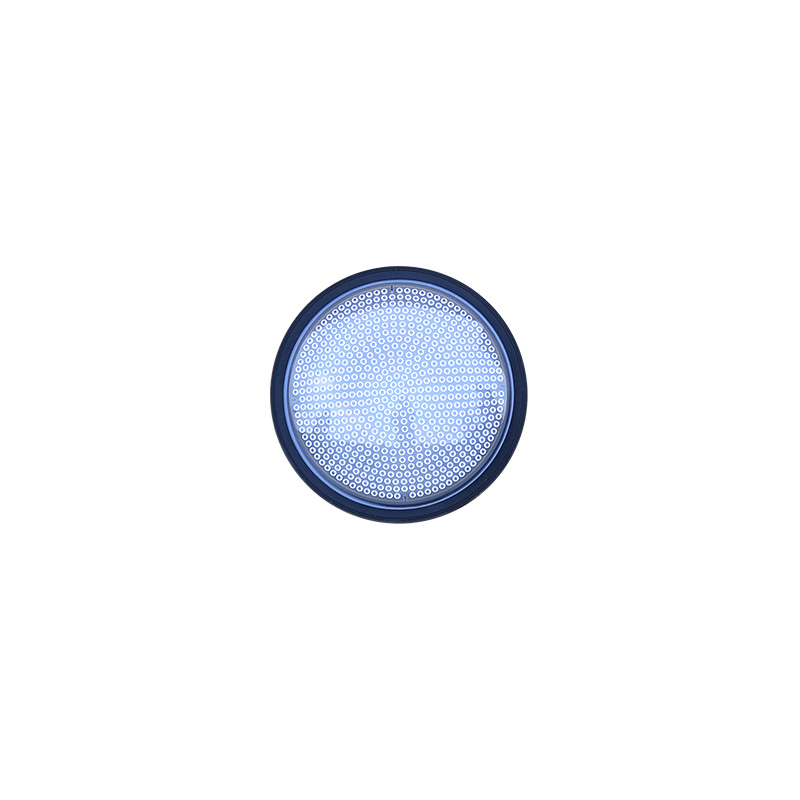

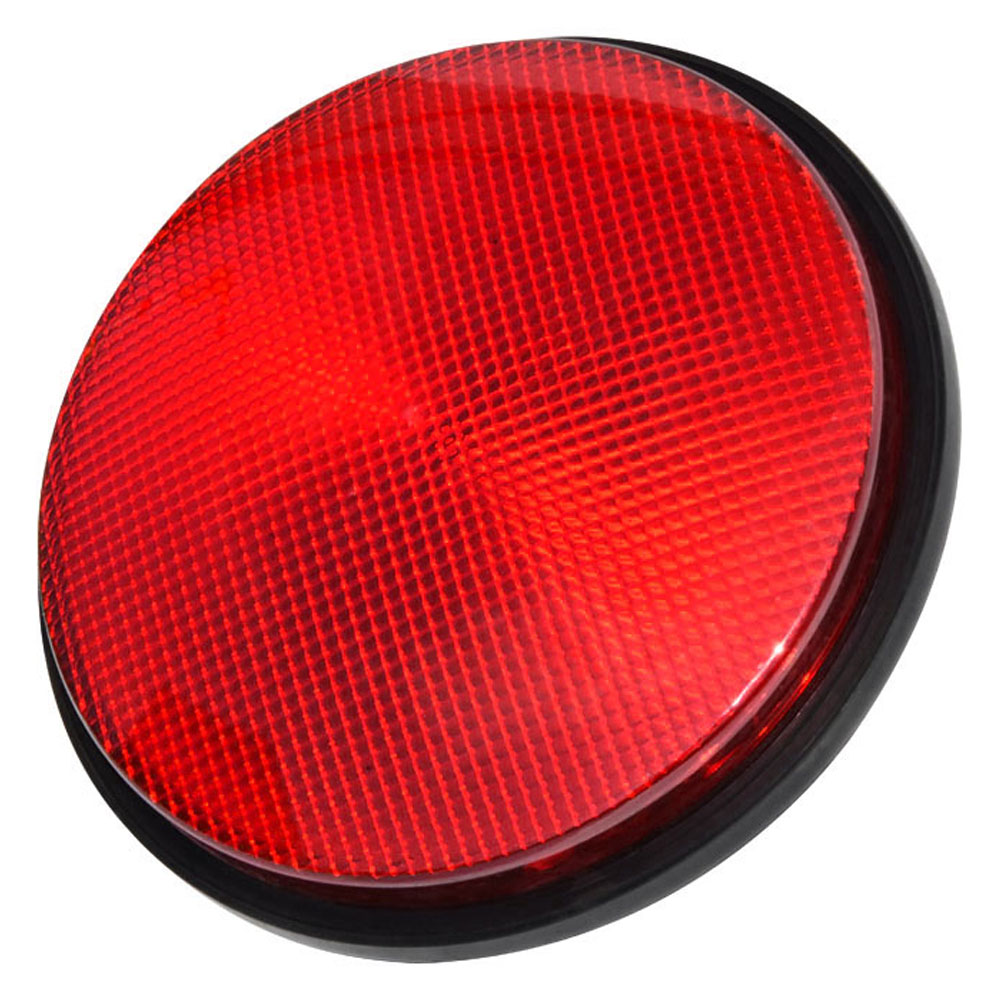

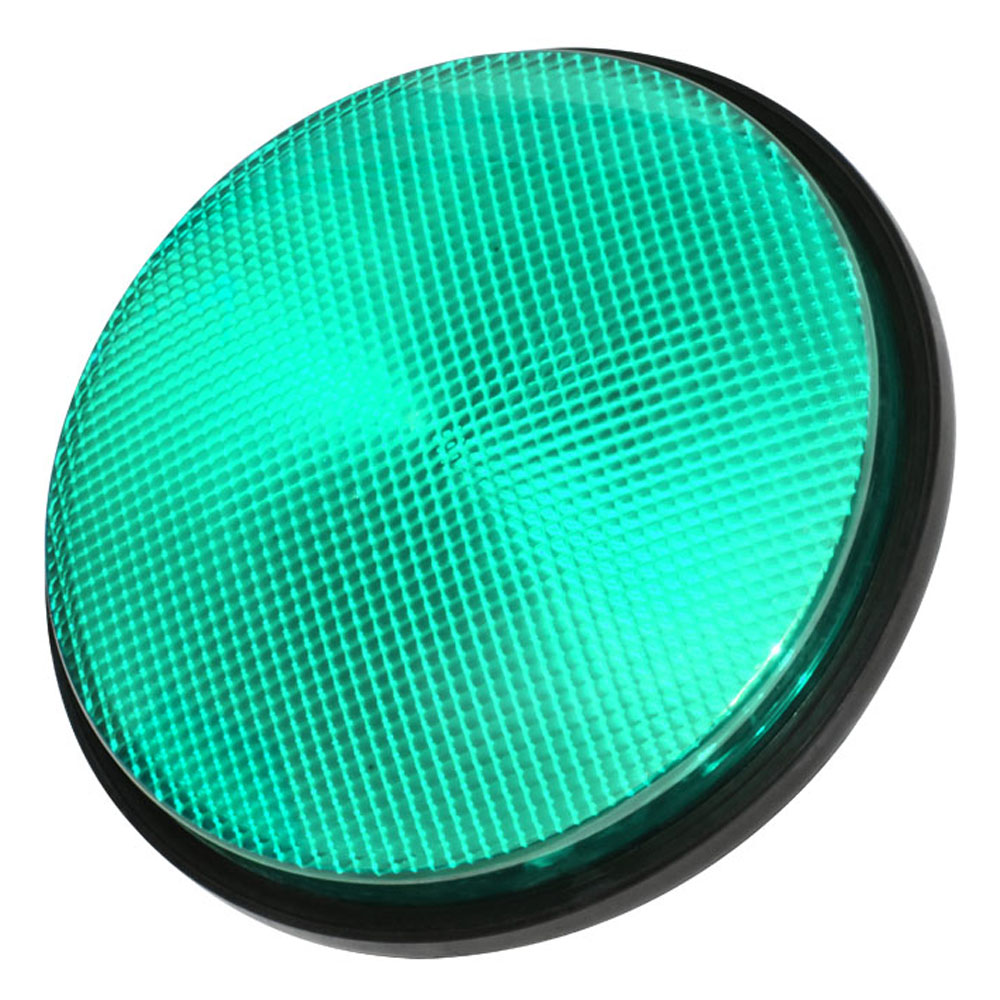

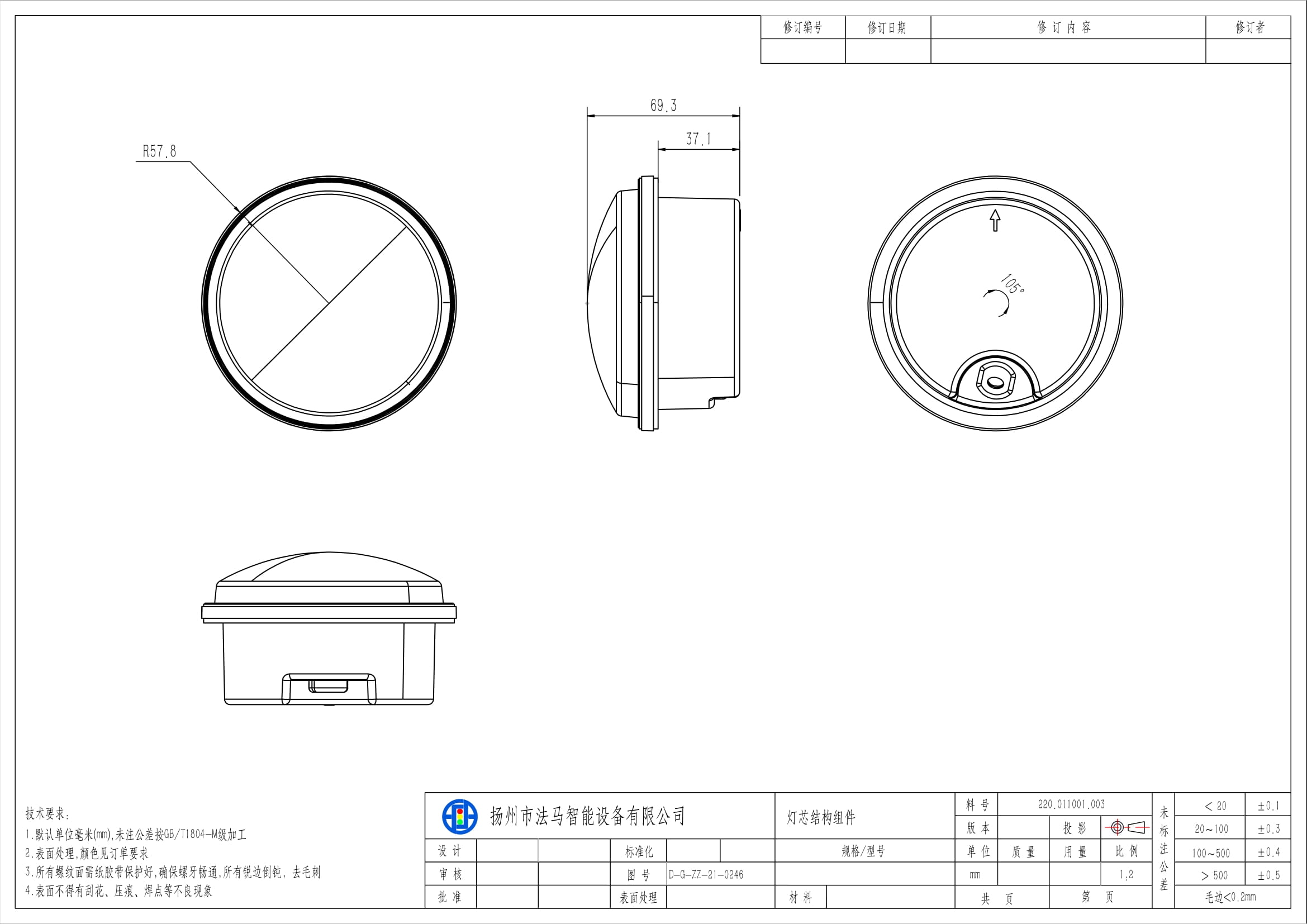

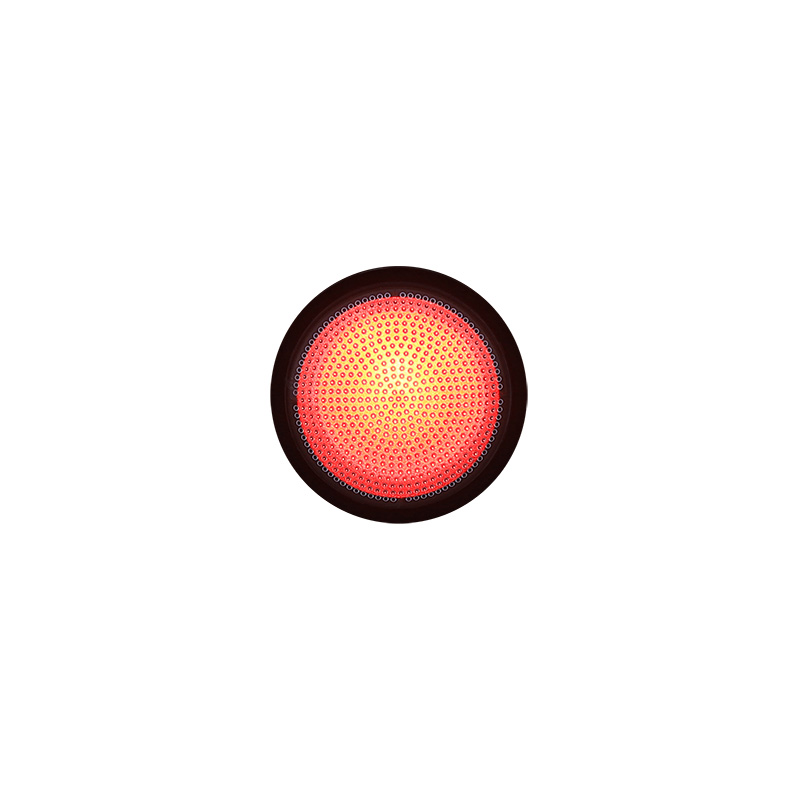

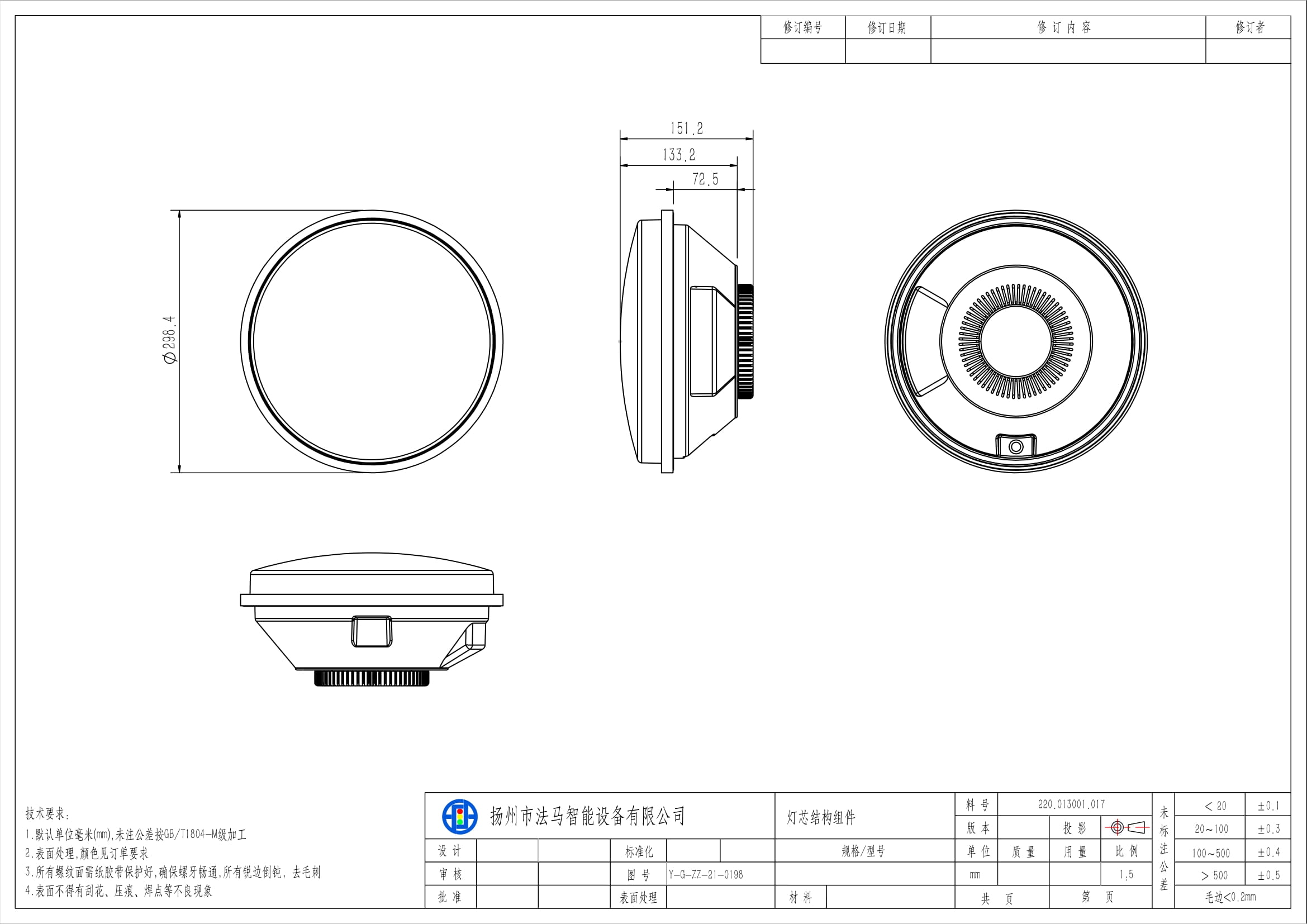

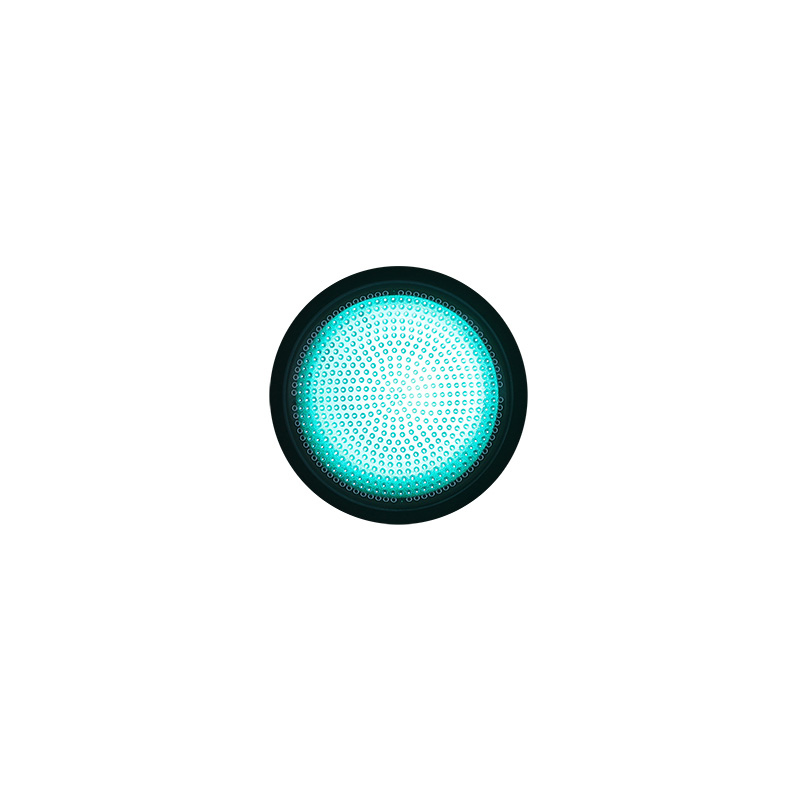

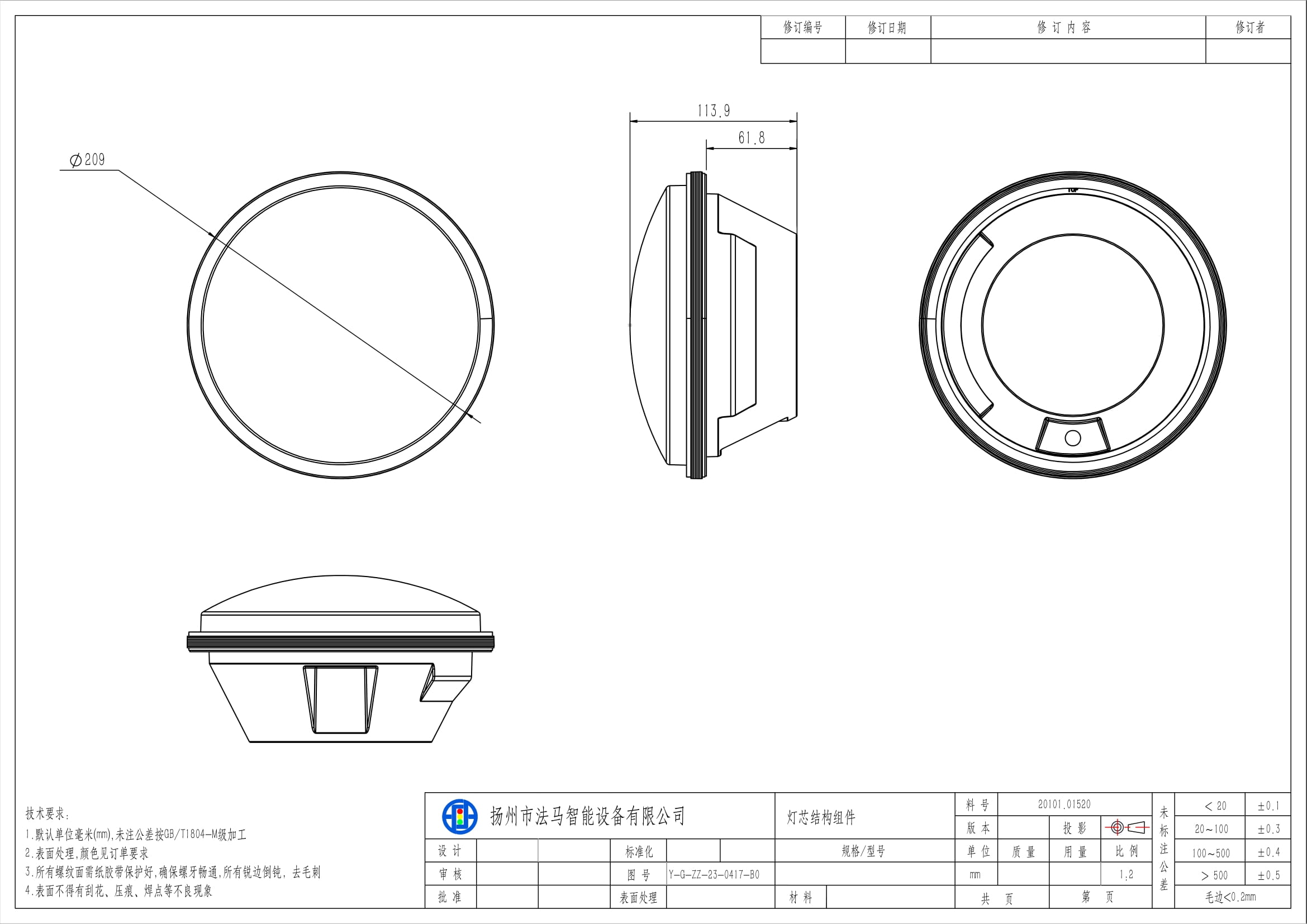

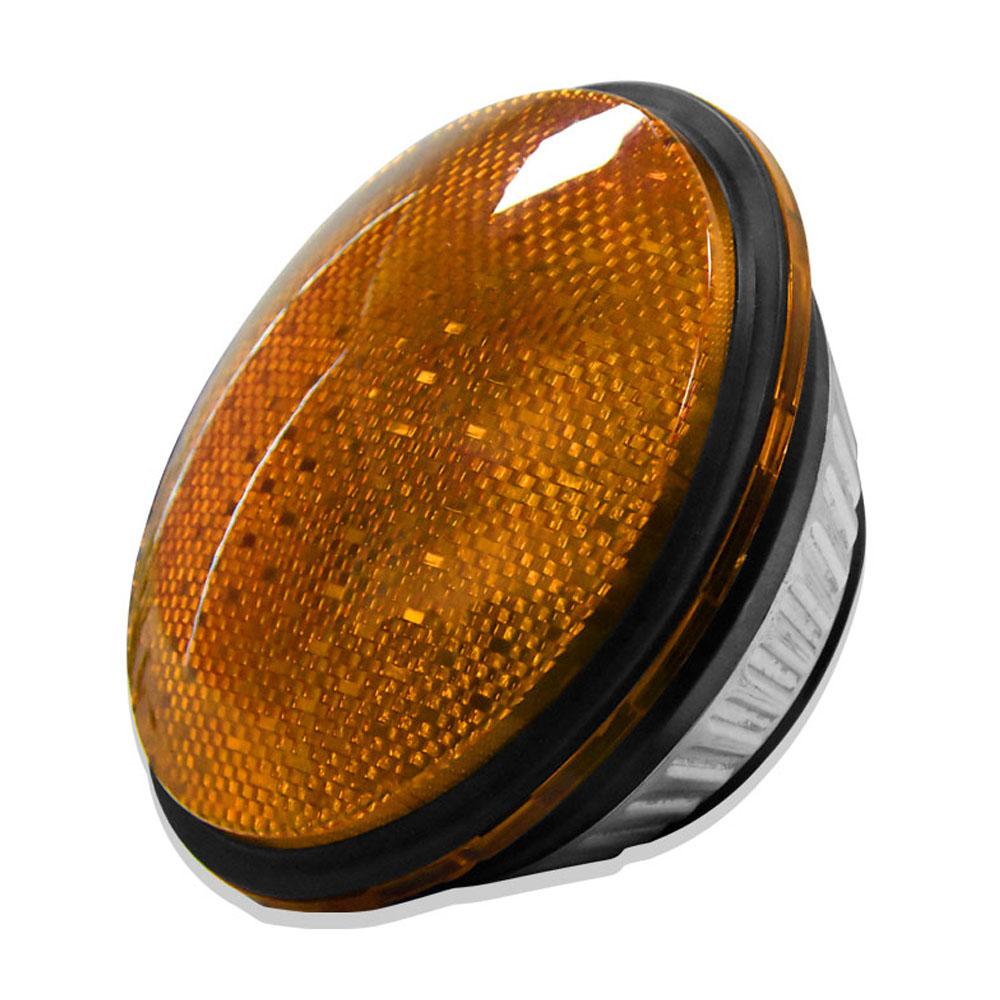

Structural Components

High Flux Full Ball Traffic Light Module -

High Flux Full Ball Traffic Light Module
-
