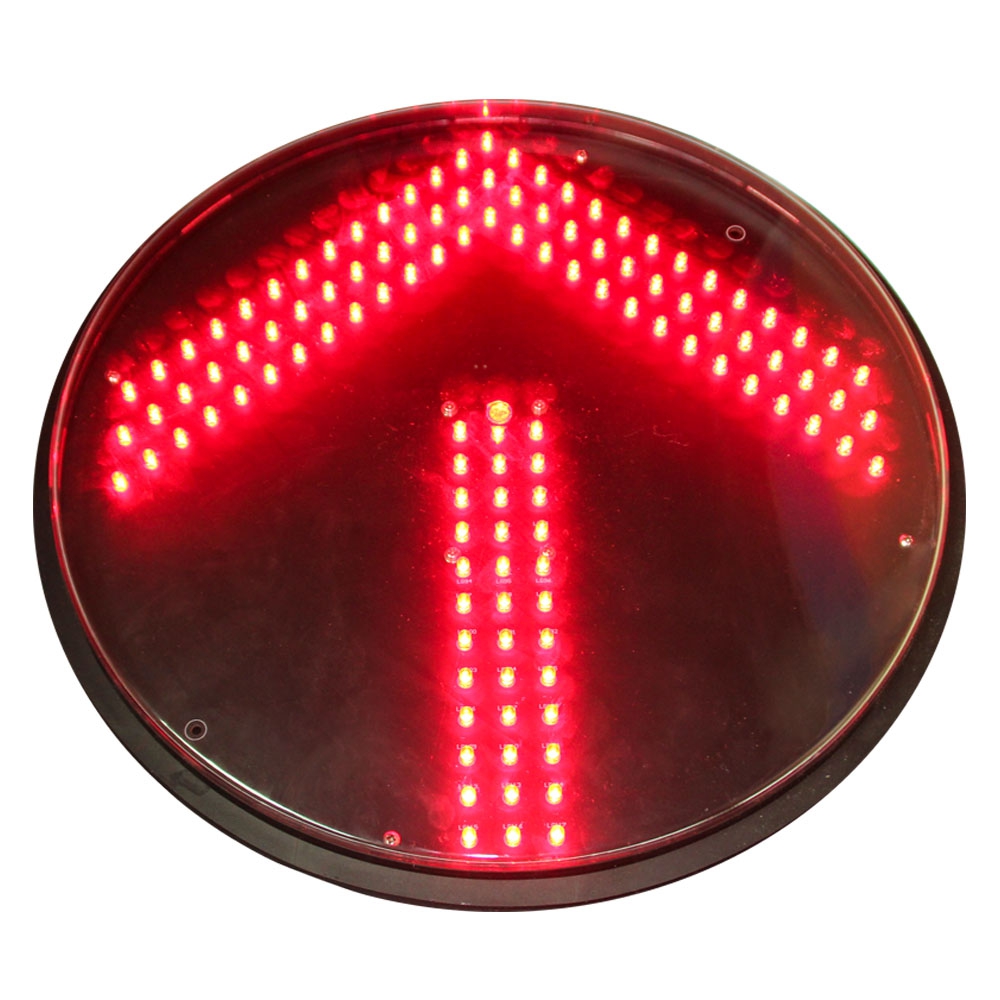

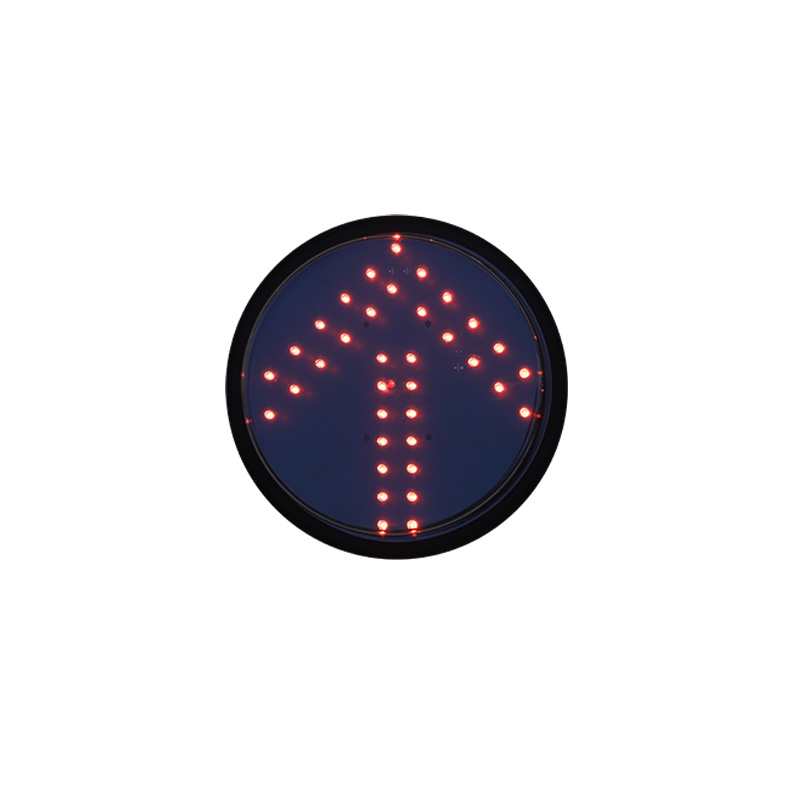

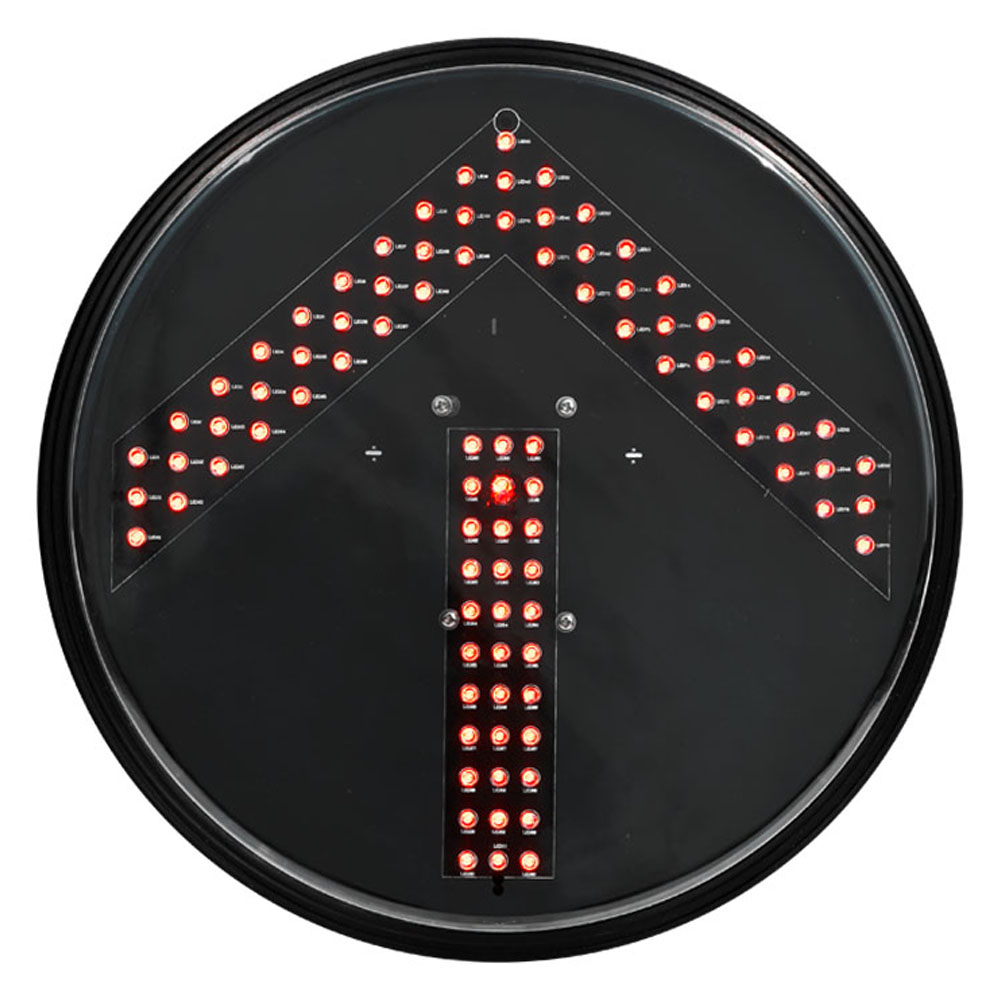

Low Power Arrow Traffic Light Module
-
Model:

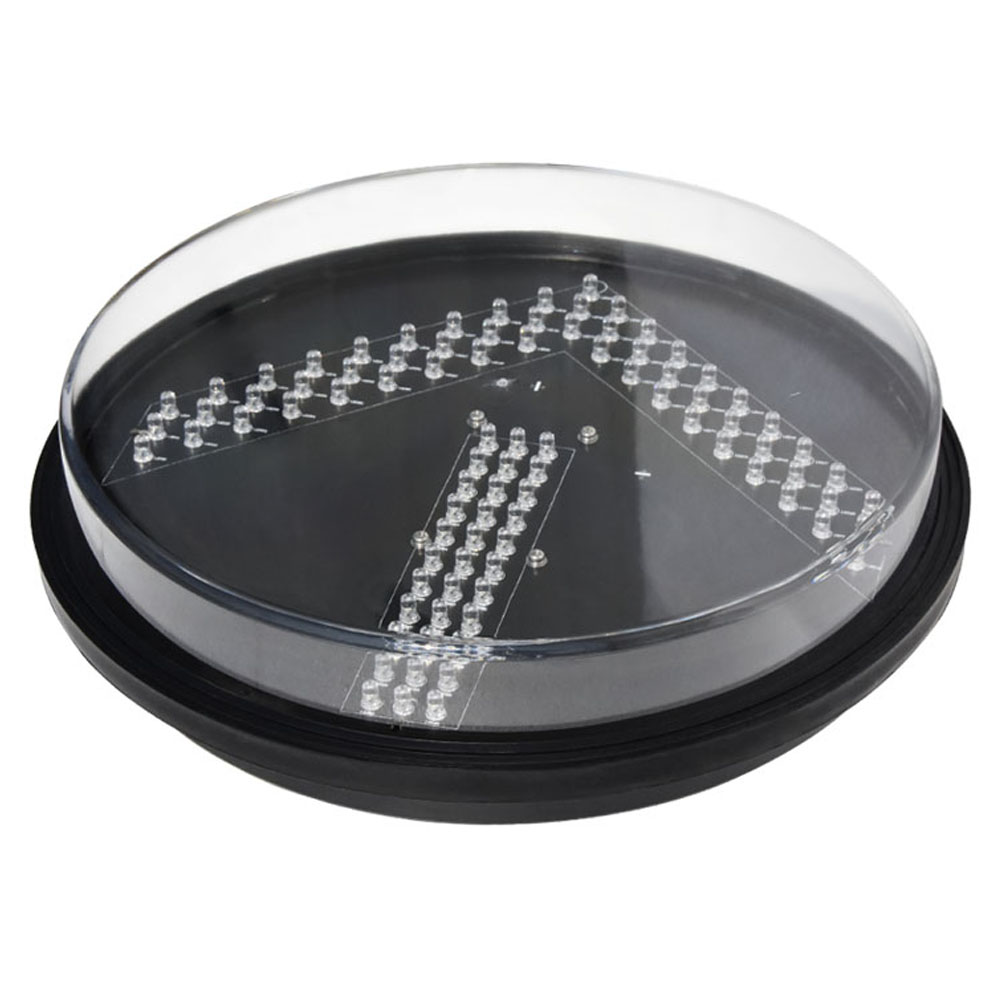

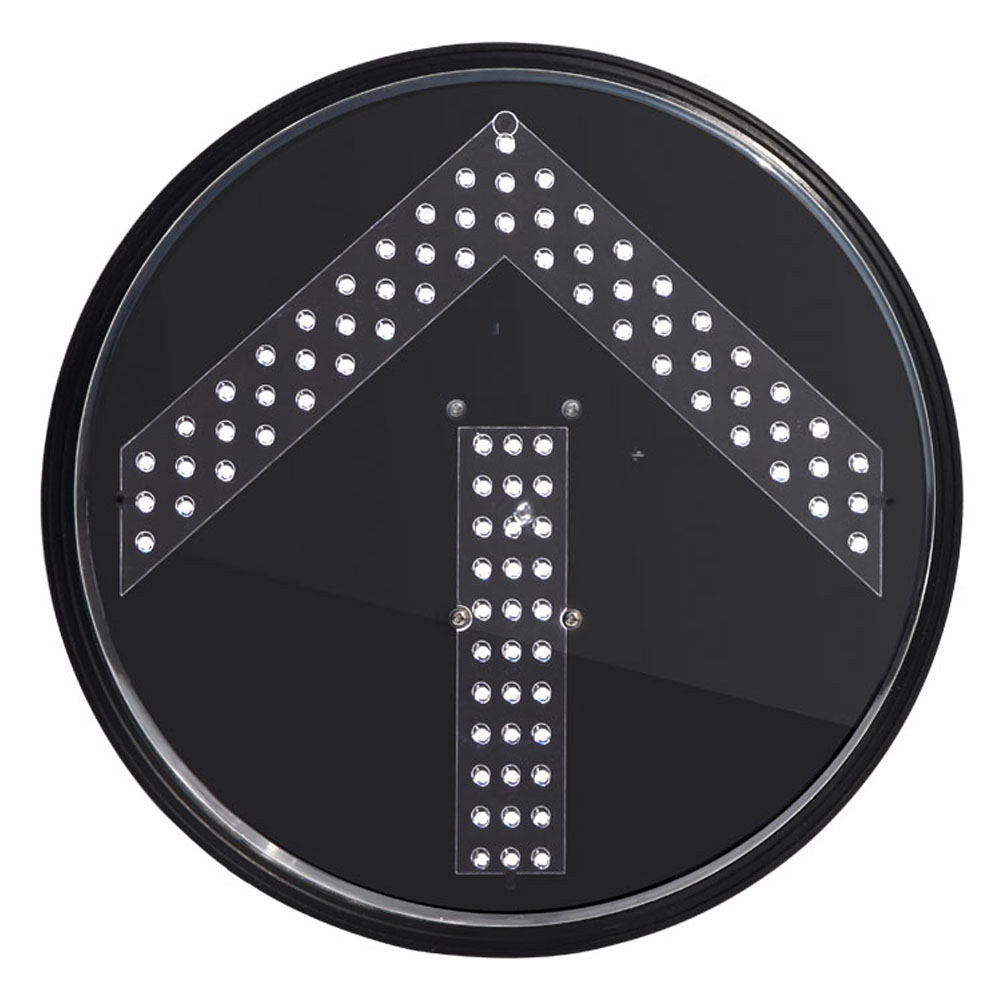

The Low Power Arrow Traffic Light Module consists of a light board, lens, power supply, lamp bowl, and other structural components.It is applicable to a wide range of traffic signal control intersections.
Overview
Product Introduction:
The Low Power Arrow Traffic Light Module consists of a light board, lens, power supply, lamp bowl, and other structural components.It is applicable to a wide range of traffic signal control intersections.
Add the to your project
Functional Features
Product Selling Points:
1. Mesh circuit design ensures stable product operation:
The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.
2. European standard power supply, more energy-efficient and environmentally friendly:
It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
3. Constant current drive design, with long service life and low maintenance:
It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
4. Excellent electromagnetic compatibility, enhancing device stability:
It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.
At a glance
| Model | DXFX200-3-FMR1A DXFX200-3-FMY1A DXFX200-3-FMG1A | DXFX300-3-FMR1A DXFX300-3-FMY1A DXFX300-3-FMG1A | DXFX400-3-FMR1A DXFX400-3-FMY1A DXFX400-3-FMG1A |
| Light-Emitting Surface (LES) Size | 200mm | 300mm | 400mm |
| Housing Material | Polycarbonate housing | Polycarbonate housing | Polycarbonate housing |
| Signal Light Color | □Red □Yellow □Green | □Red □Yellow □Green | □Red □Yellow □Green |
| Mask Color | Transparent | Transparent | Transparent |
| Mask Shape | Round | Round | Round |
| LED Quantity | |||
| Lamp Power Consumption | Red arrow ≤ 5W Yellow arrow ≤ 5W Green arrow ≤ 5W | Red arrow ≤ 7W Yellow arrow ≤ 7W Green arrow ≤ 7W | Red arrow ≤ 9W Yellow arrow ≤ 9W Green arrow ≤ 8W |
| LED Wavelength | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm |
| Luminous Intensity | 5000~15000cd/m² | 5000~15000cd/m² | 5000~15000cd/m² |
| Insulation Resistance | ＞2MΩ | ＞2MΩ | ＞2MΩ |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Operating Voltage | AC85~264V | AC85~264V | AC85~264V |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH | ≤97%RH |
| Protection Grade | IP53 | IP53 | IP53 |
| Visual Distance | ≥300m | ≥300m | ≥300m |
| Packaging Specifications | 10 piece per box, Size: 104 × 23 × 25 cm, Weight: 6.5 ± 0.5 kg | 5 piece per box, Size: 62 × 32 × 35 cm, Weight: 6 ± 0.5 kg | 5 piece per box, Size: 66 × 44 × 45 cm, Weight: 8.0 ± 0.5 kg |

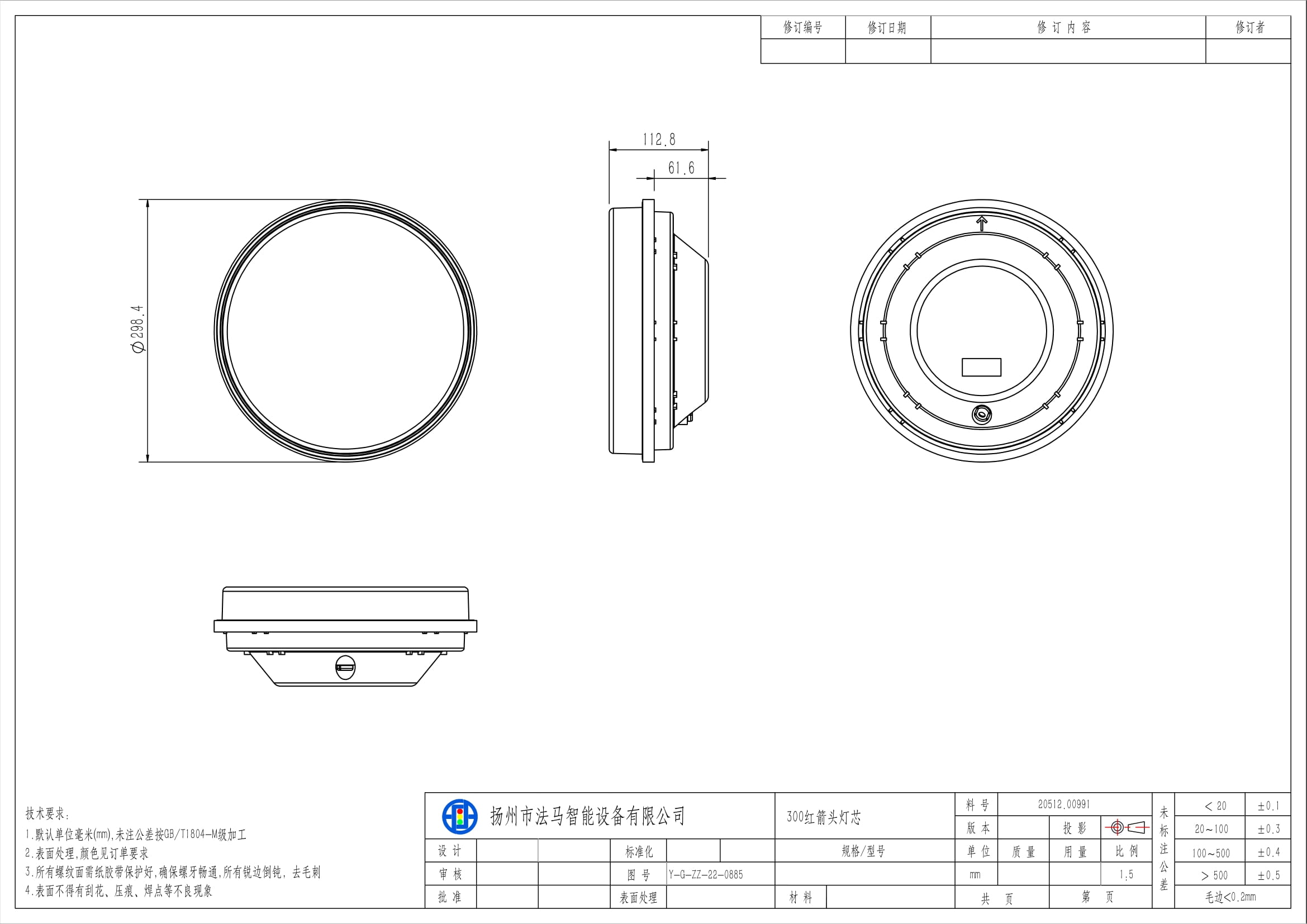

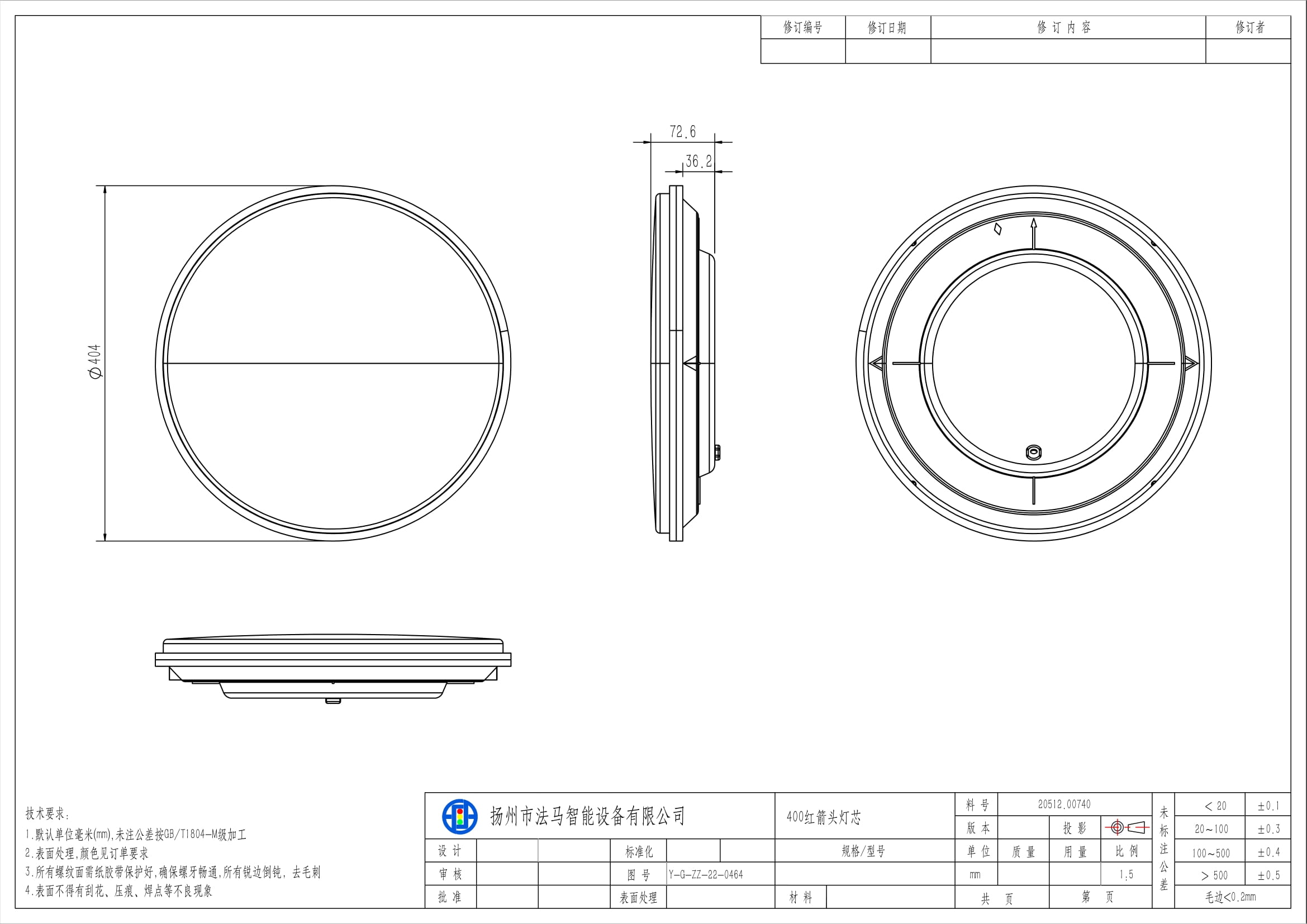

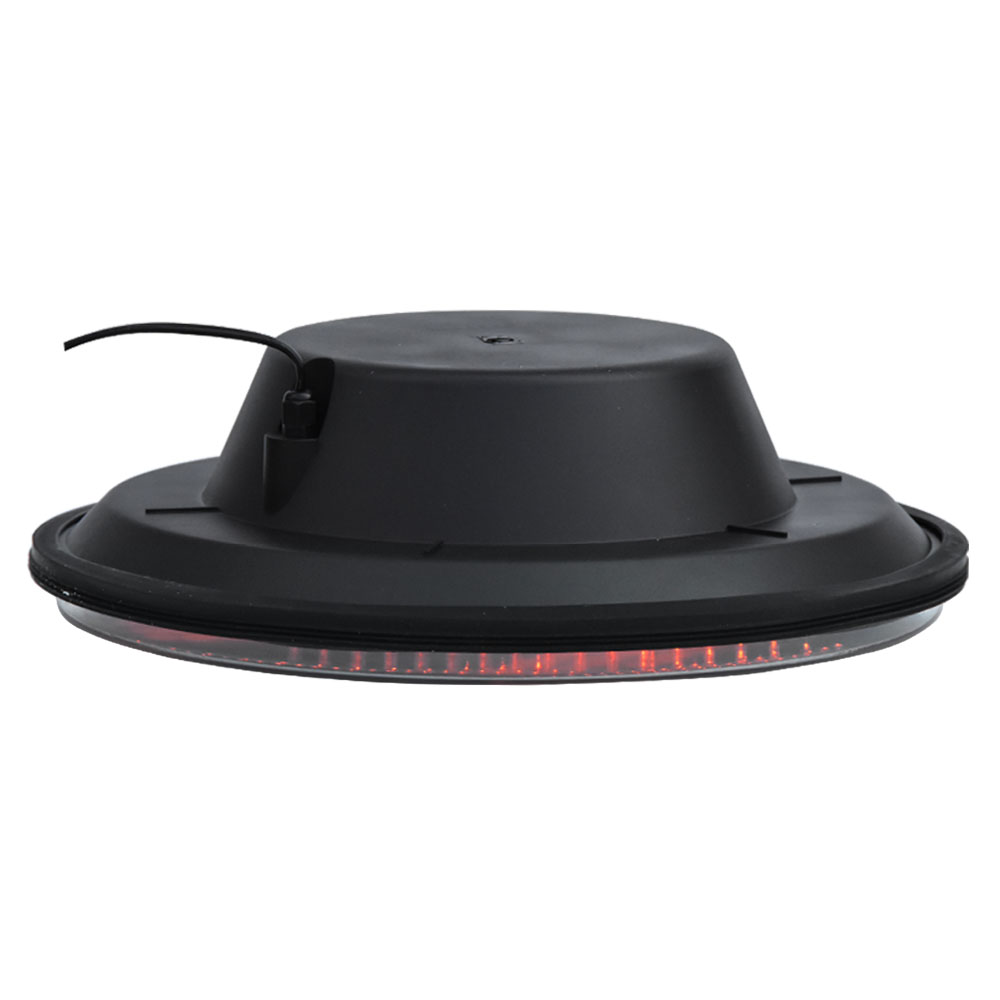

Structural Components
