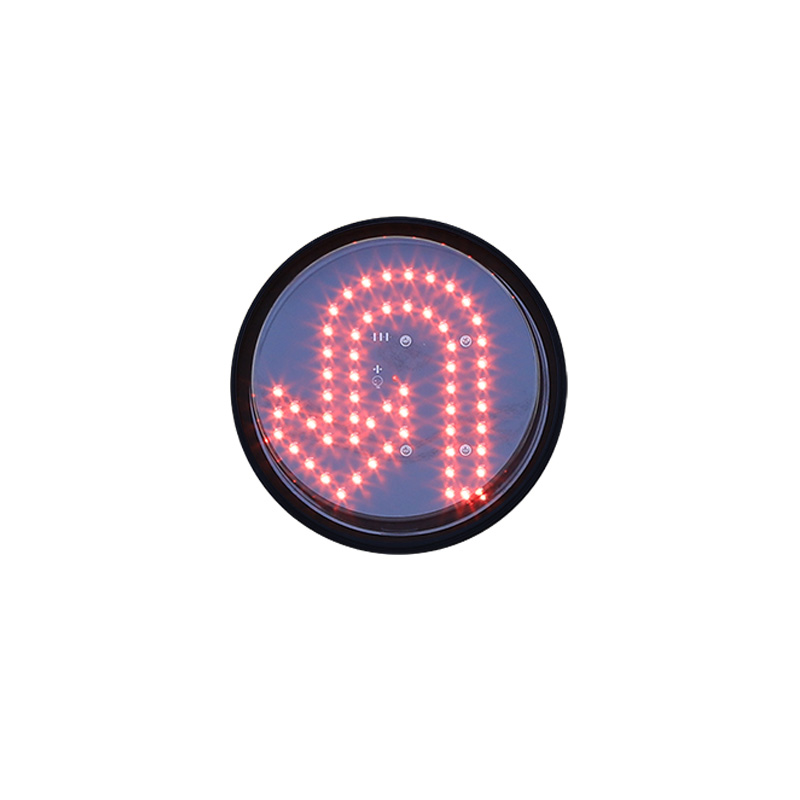

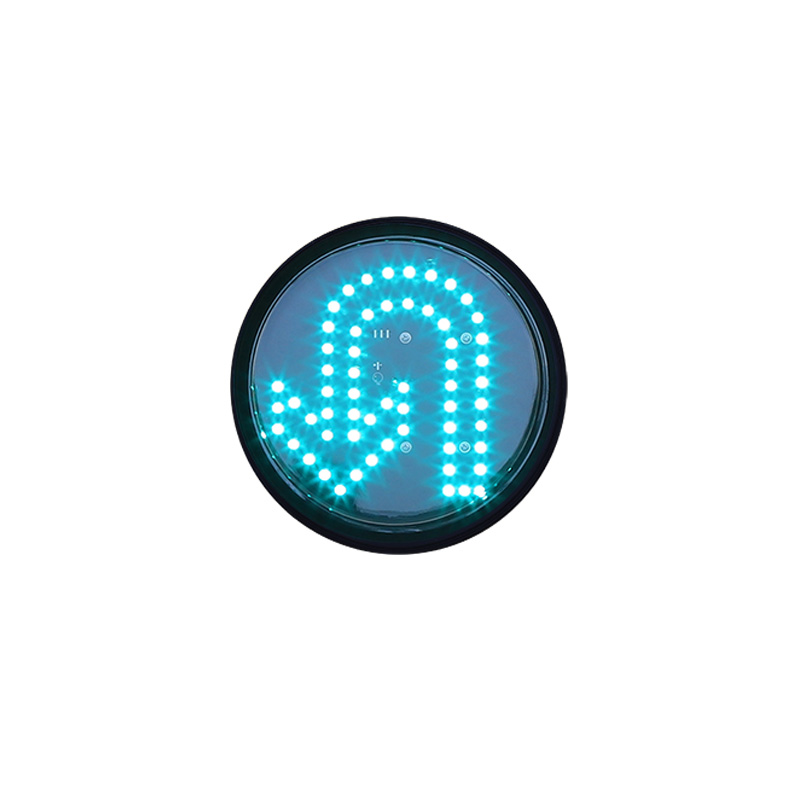

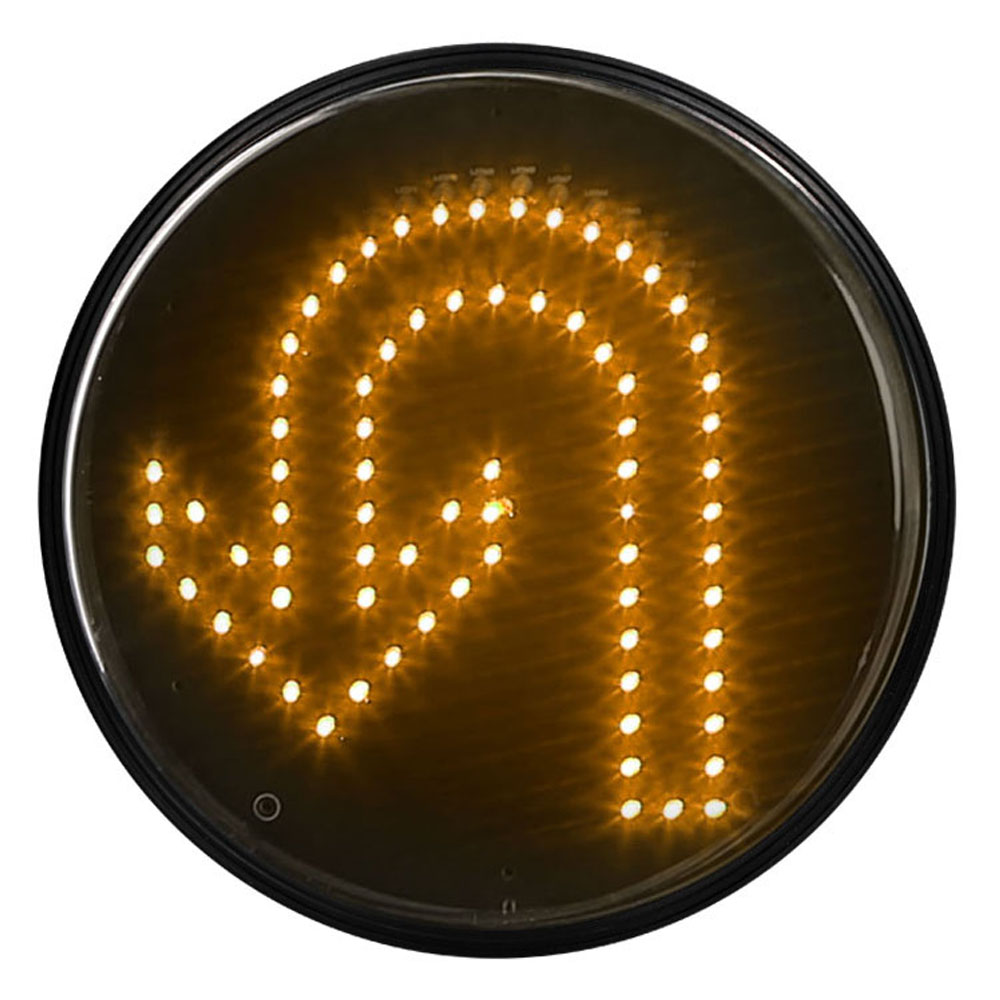

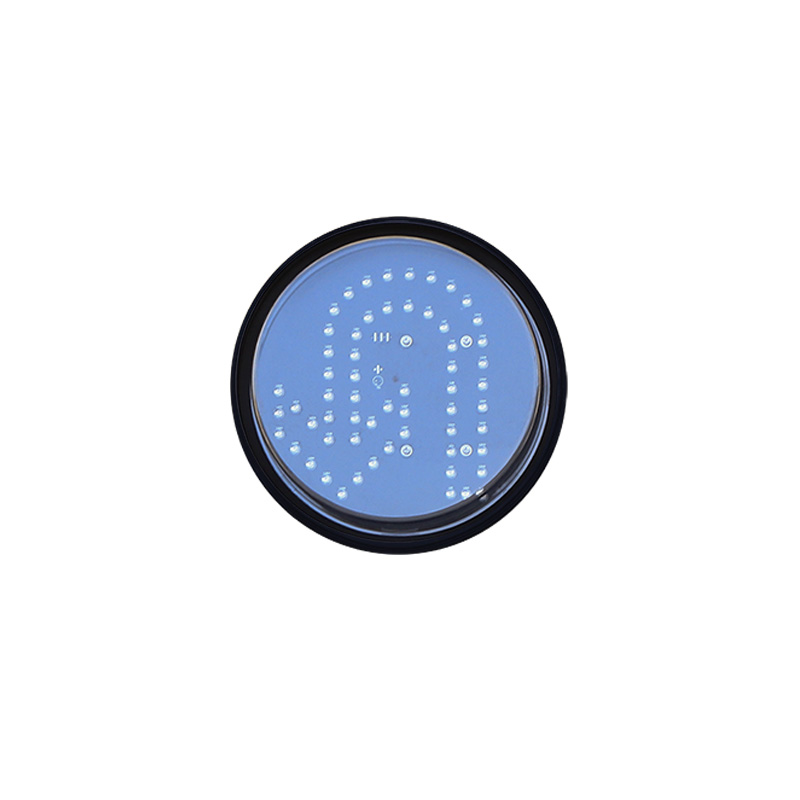

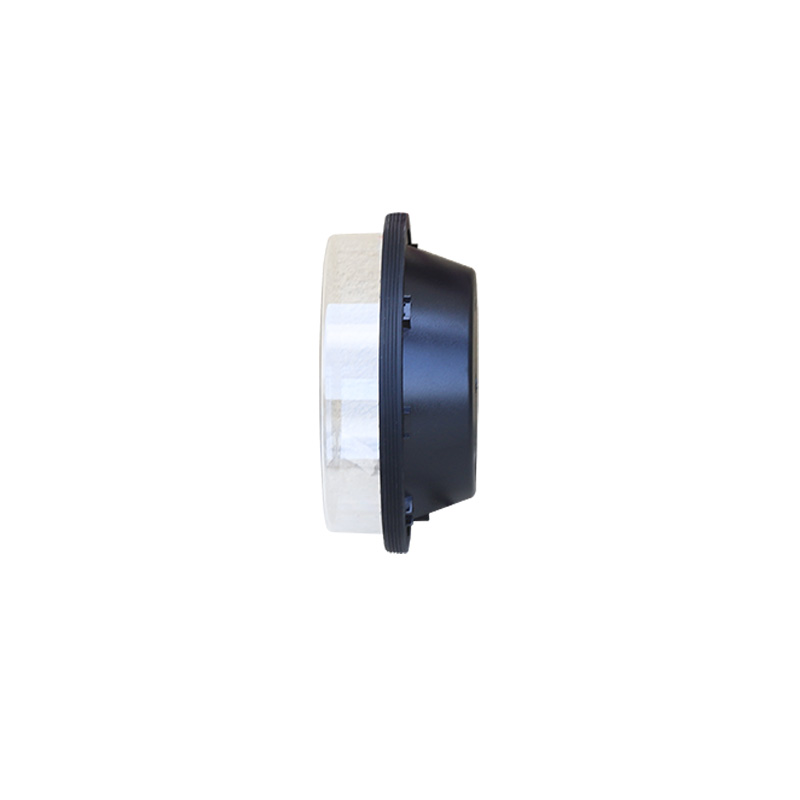

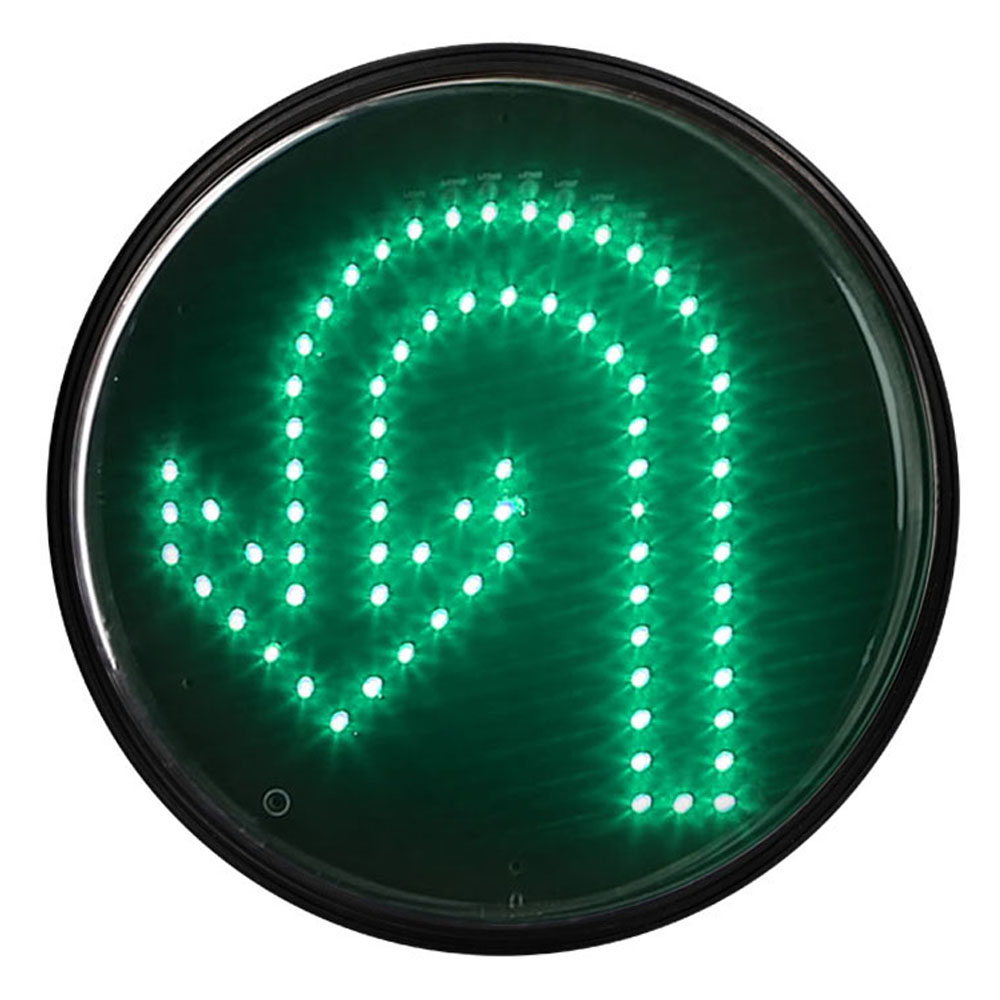

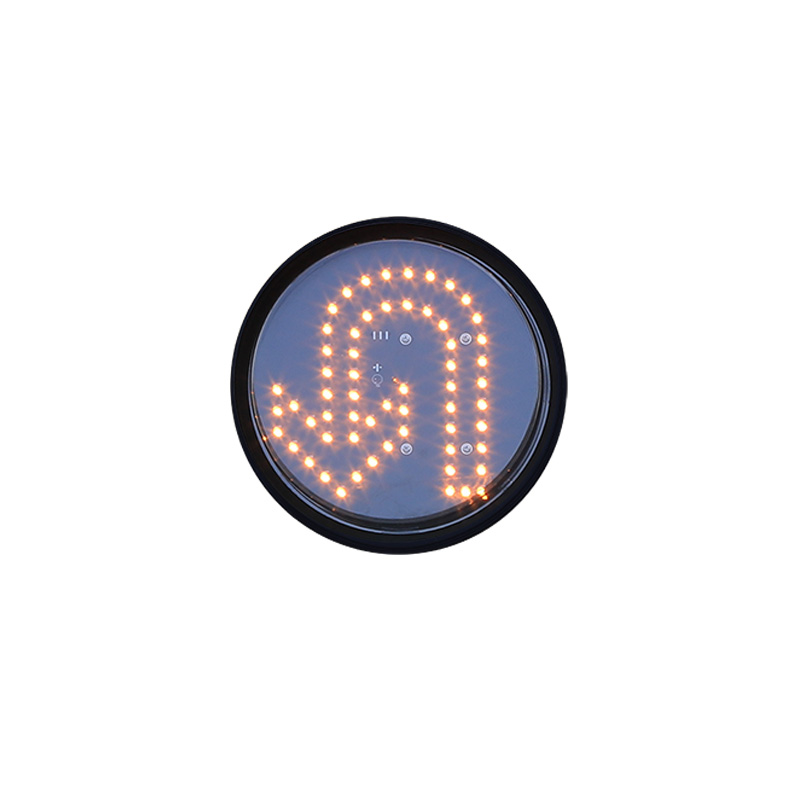

Low Power U Turn Traffic Light Module

Overview

Product Introduction:

The Low Power U Turn Traffic Light Module consists of a light board, lens, power supply, lamp bowl, and other structural components. It is applicable to a wide range of traffic signal control intersections.

Add the to your project

Contact us to order

Functional Features

Mesh circuit design ensures stable product operation:

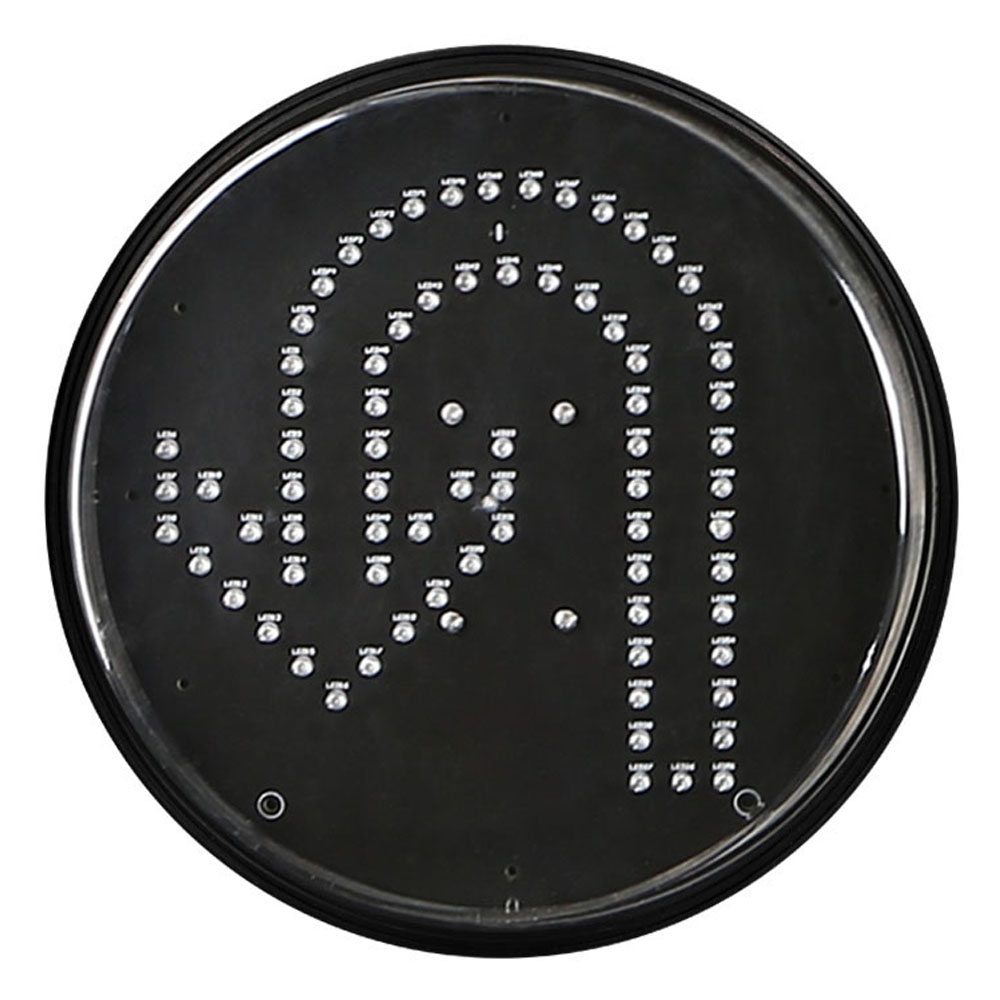

The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.
European standard power supply, more energy-efficient and environmentally friendly:
It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
Constant current drive design, with long service life and low maintenance:
It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
Excellent electromagnetic compatibility, enhancing device stability:
It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.

At a glance

Model	DXDT200-3-FMR1A DXDT200-3-FMY1A DXDT200-3-FMG1A	DXDT300-3-FMR1A DXDT300-3-FMY1A DXDT300-3-FMG1A
Light-Emitting Surface (LES) Size	200mm	300mm
Housing Material	Polycarbonate housing	Polycarbonate housing
Signal Light Color	□Red □Yellow □Green	□Red □Yellow □Green
Mask Color	Transparent	Transparent
Mask Shape	Round	Round
Operating Voltage	AC85V~264V/47HZ~63HZ	AC85V~264V/47HZ~63HZ
LED Quantity	R/Y/G: 45 pcs	R/Y/G: 75 pcs
Lamp Power Consumption	Red U Turn ≤ 5 W Yellow U Turn ≤ 5 W Green U Turn ≤ 4 W	Red U Turn ≤ 6 W Yellow U Turn ≤ 6 W Green U Turn ≤ 5 W
LED Wavelength	Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm	Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm
Luminous Intensity	5000~15000cd/m²	5000~15000cd/m²
Insulation Resistance	＞2MΩ	＞2MΩ
LED Lifespan	≥100,000 hours	≥100,000 hours
Operating Temperature	-40℃ to +80℃	-40℃ to +80℃
Relative Humidity	≤97%RH	≤97%RH
Protection Grade	IP53	IP53
Visual Distance	≥300m	≥300m
Packaging Specifications	10 piece per box, Size: 104 × 23 × 25 cm, Weight: 6.65 ± 0.5 kg	5 piece per box, Size: 62 × 32 × 35 cm, Weight: 6.65 ± 0.5 kg

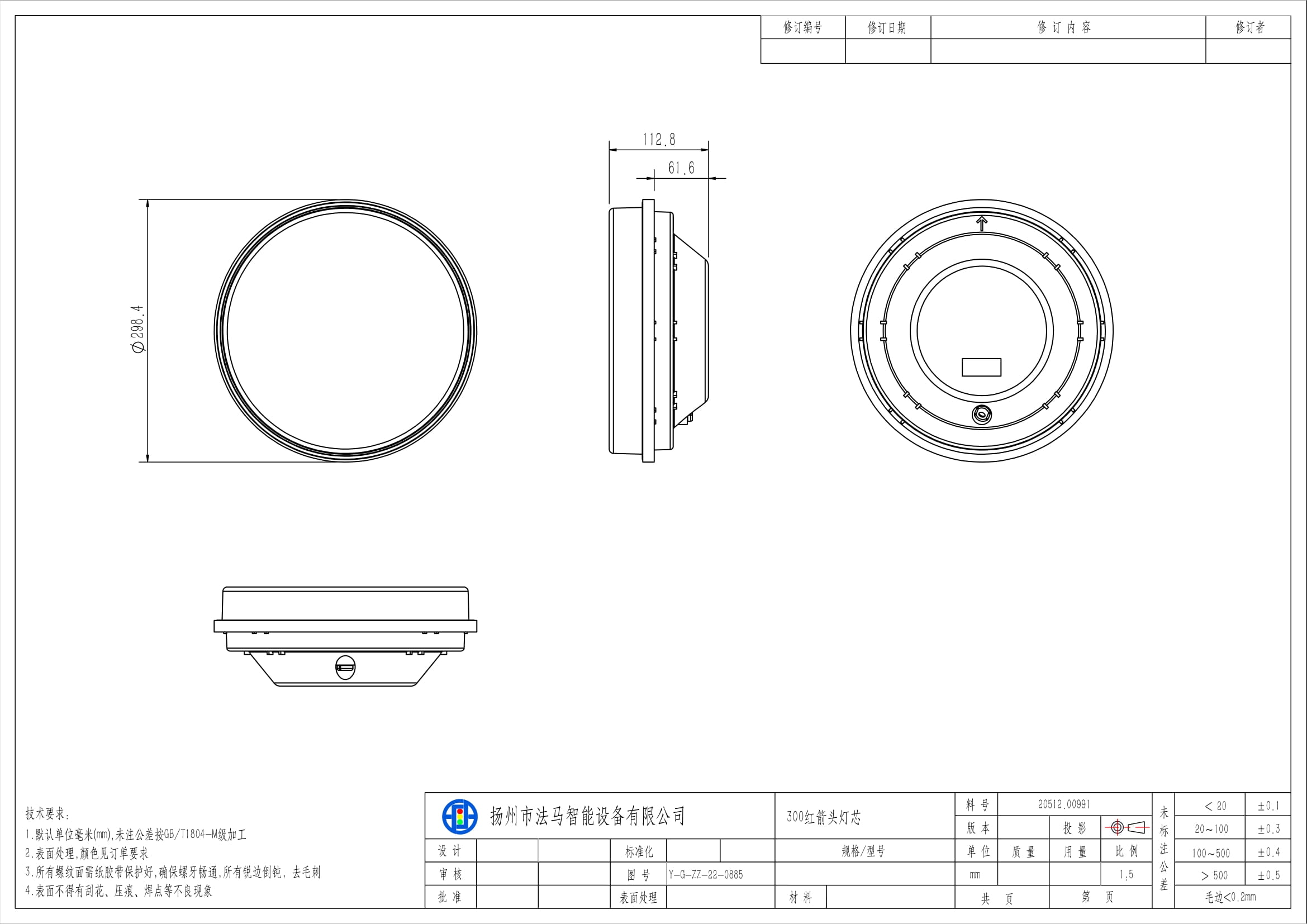

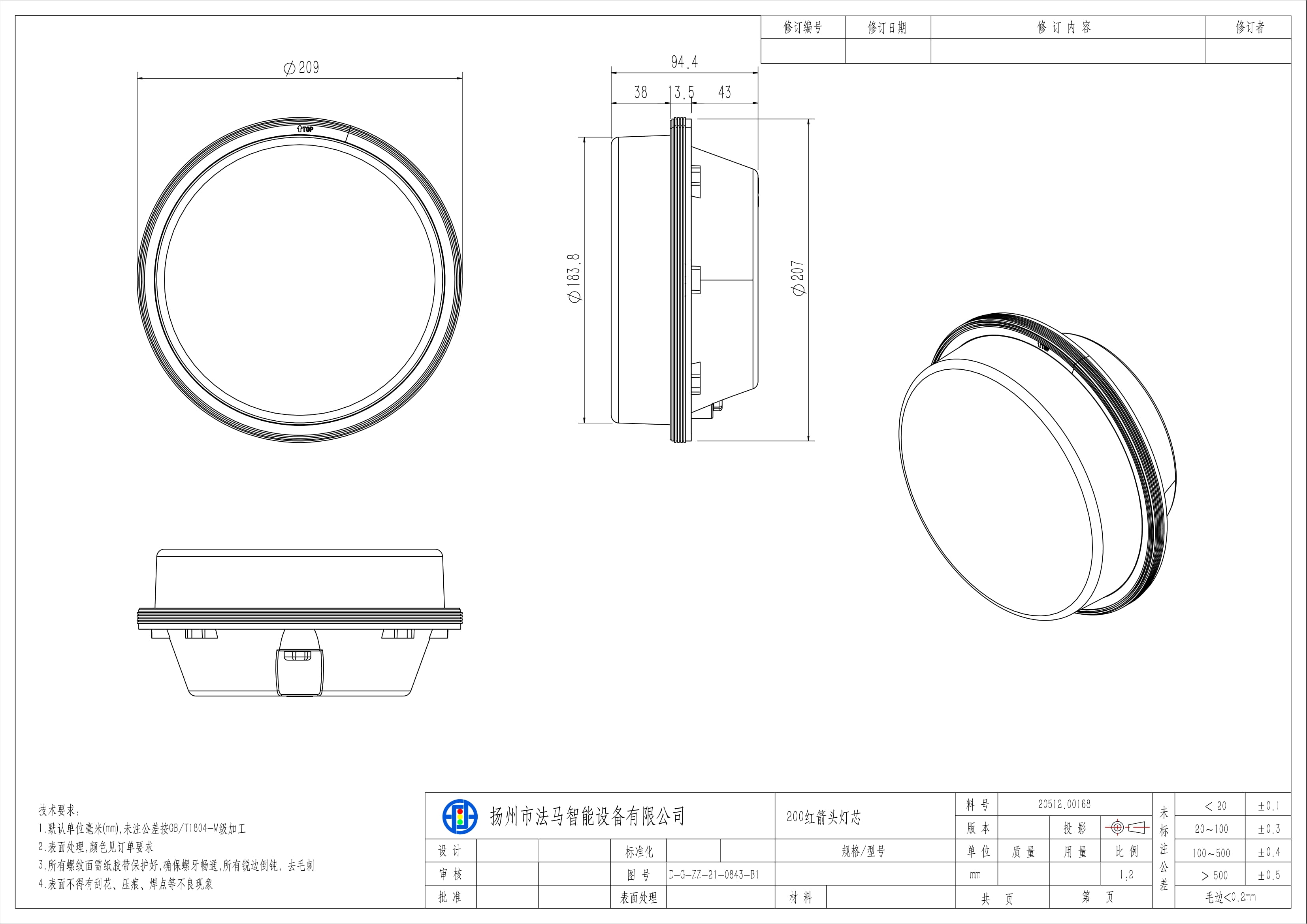

Structural Components

Low Power U Turn Traffic Light Module -

Low Power U Turn Traffic Light Module
-
