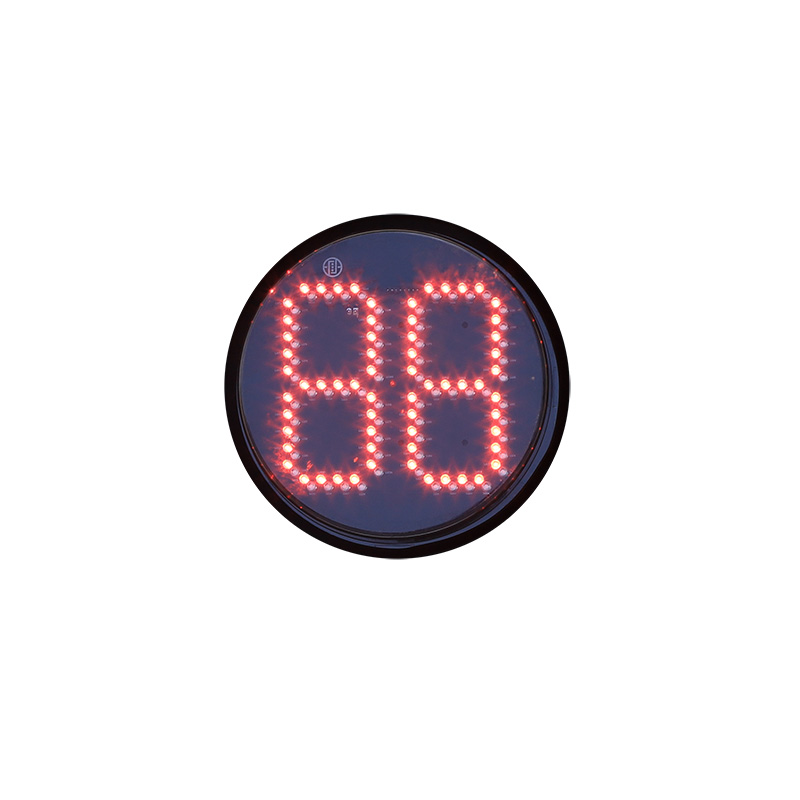

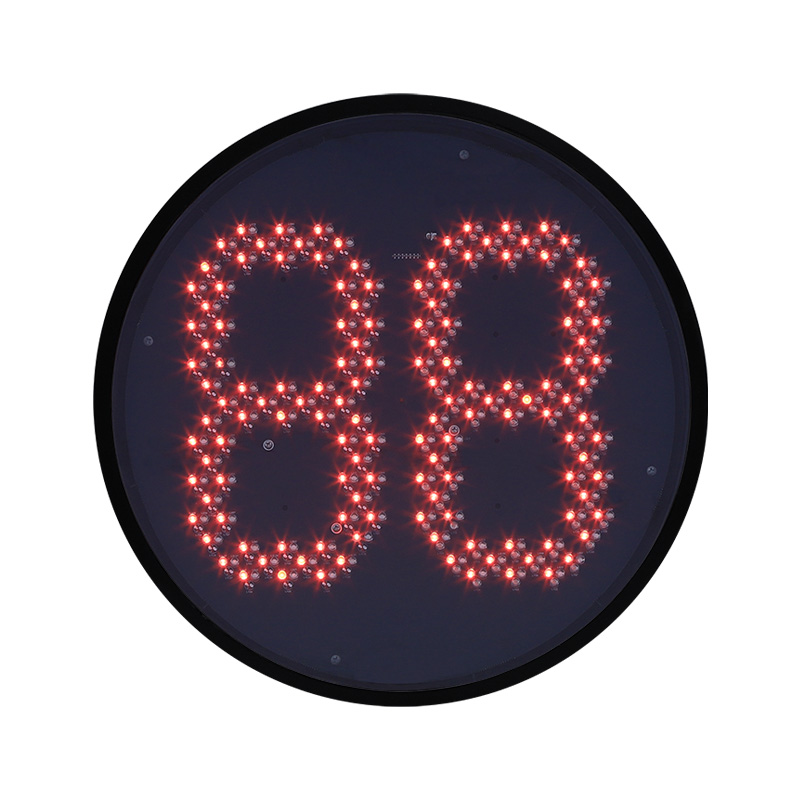

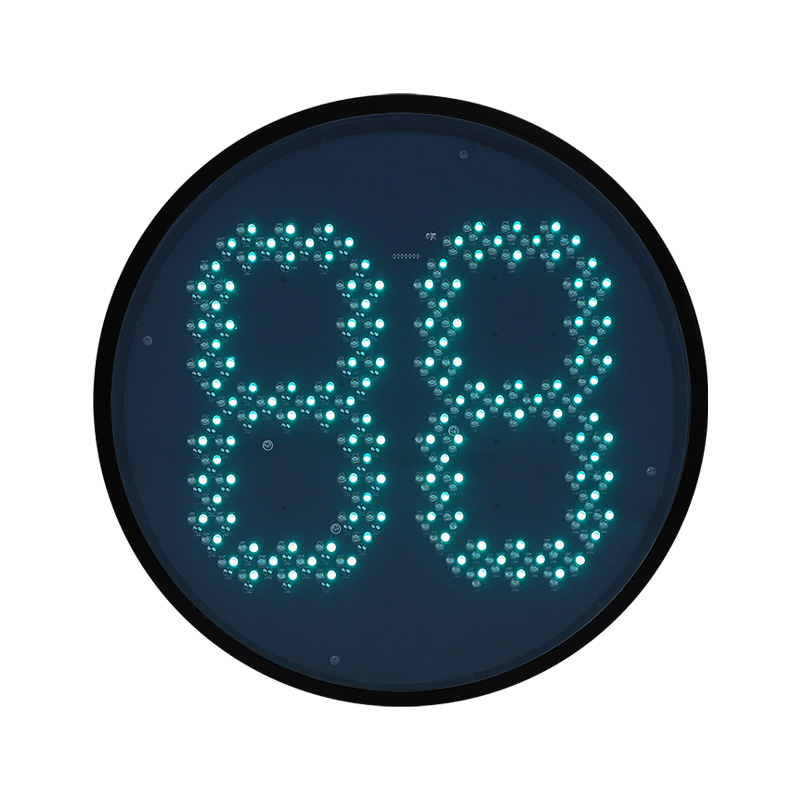

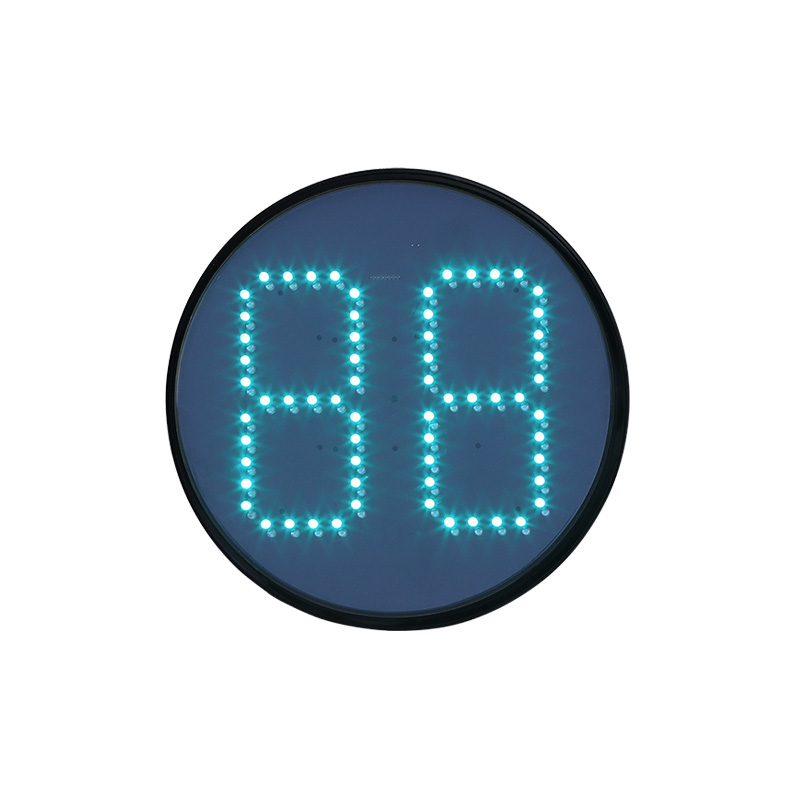

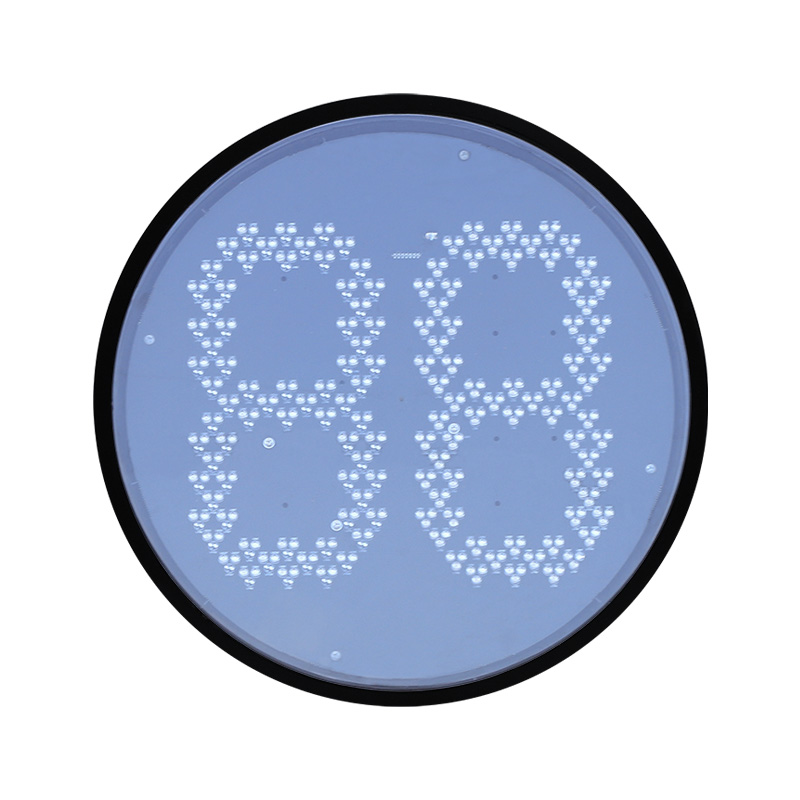

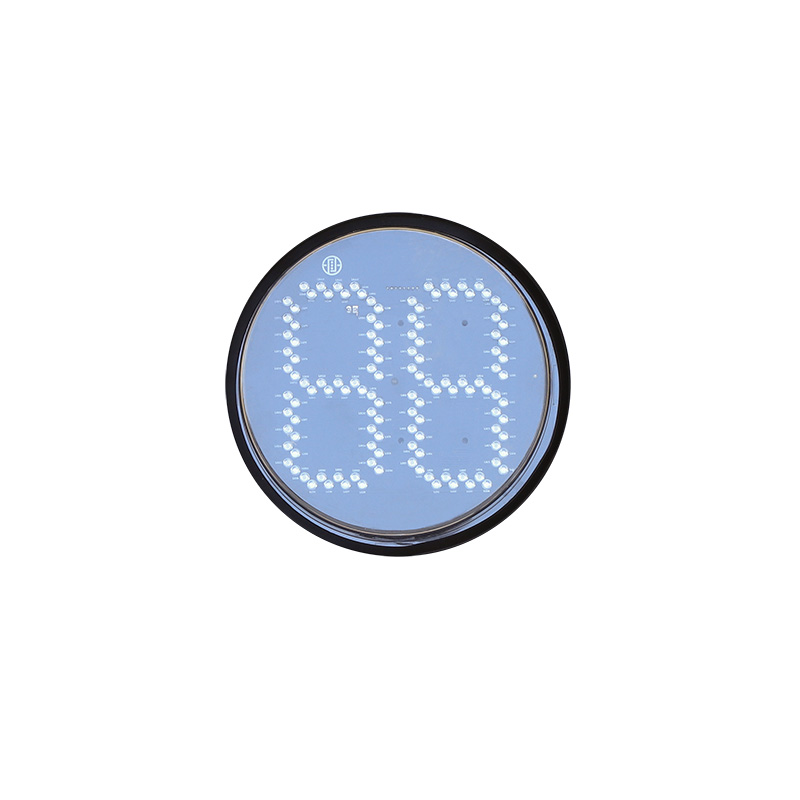

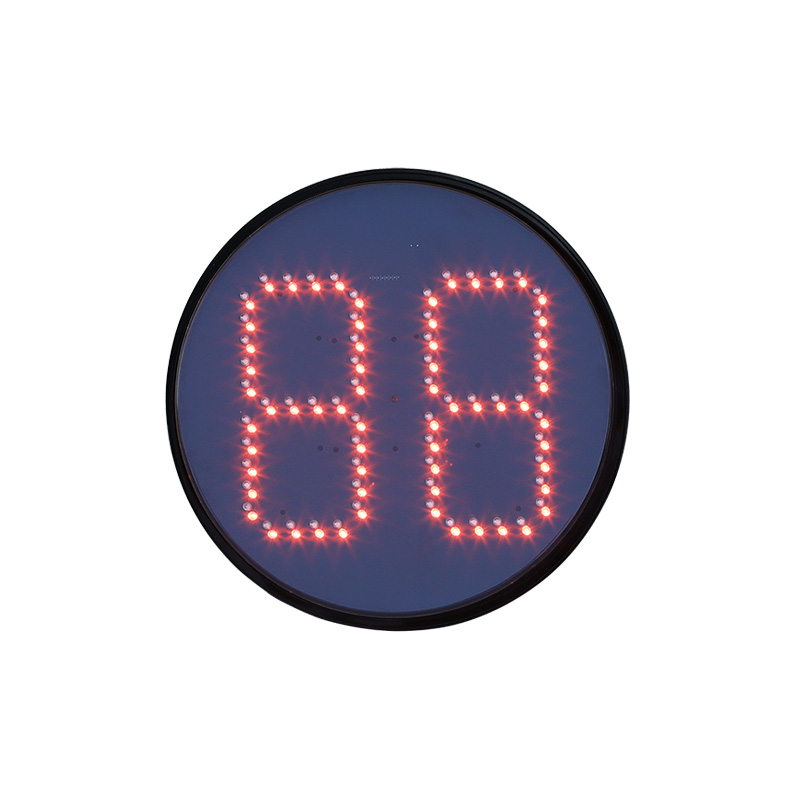

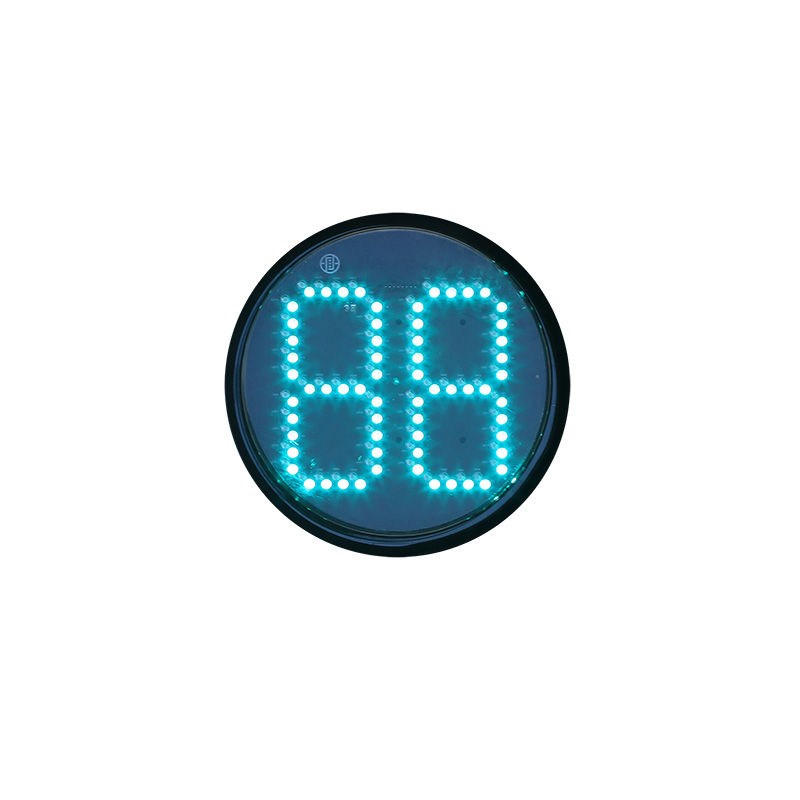

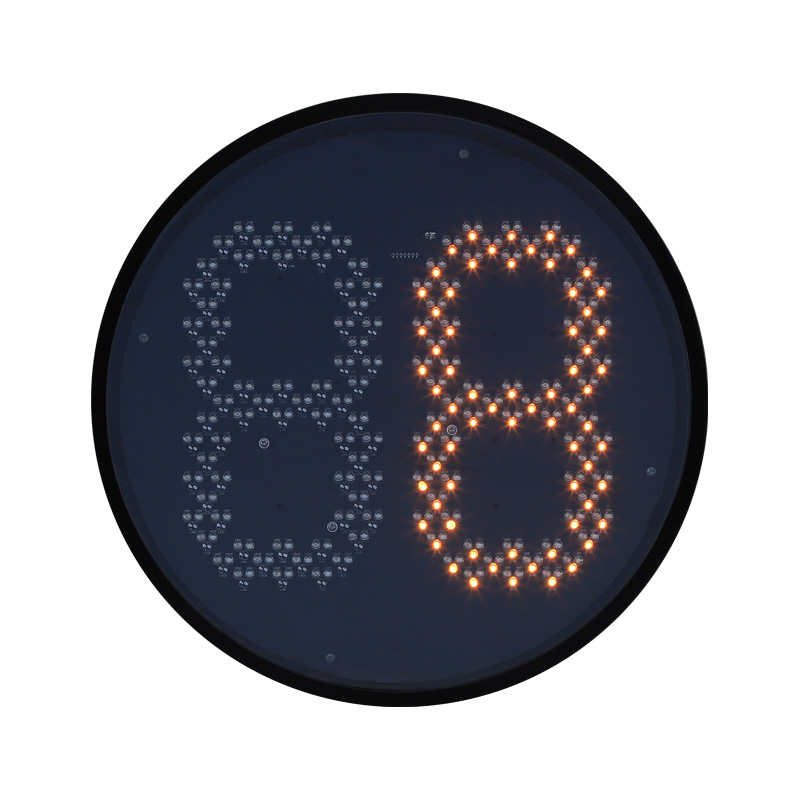

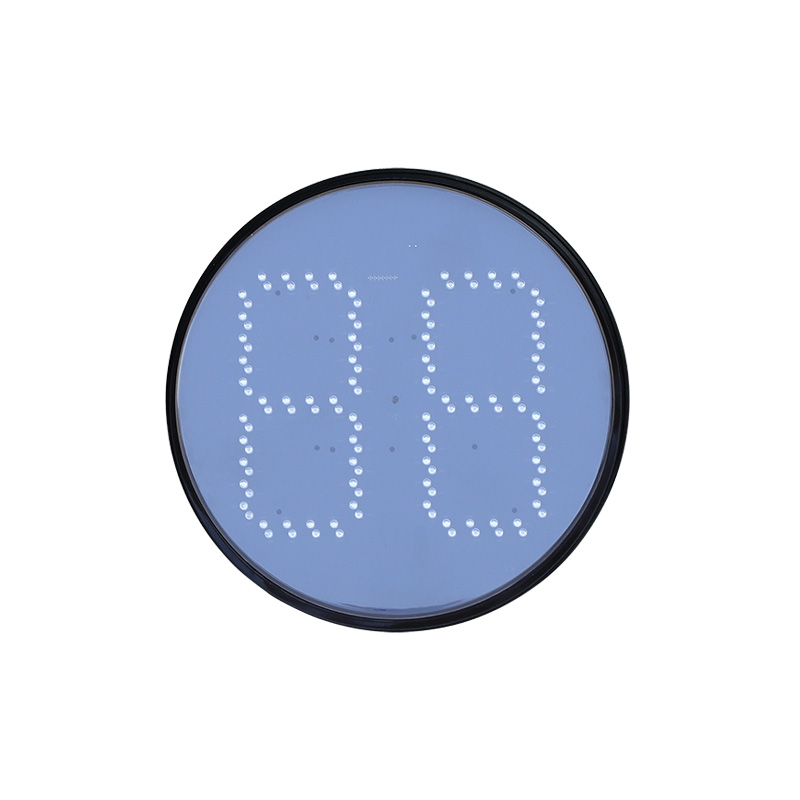

Countdown Traffic Light Module
-
Model:
The Countdown Traffic Light Module consists of a optical lens, light board, control board, waterproof ring , and lamp bowl. It is applicable to a wide range of traffic signal control intersections.
Overview
Product Introduction:
The Countdown Traffic Light Module consists of a optical lens, light board, control board, waterproof ring , and lamp bowl. It is applicable to a wide range of traffic signal control intersections.
Add the to your project
Functional Features
Product Selling Points:
1. Universal compatibility for streamlined operations and maintenance
The device supports three adaptive operating modes, ensuring compatibility with over 99% of major domestic and international traffic signal control systems. This design reduces both installation complexity and post-installation commissioning efforts, thereby improving overall operational and maintenance efficiency.
2. Adaptive detection for reliable performance
Incorporating a patented countdown detection circuit with adaptive detection capabilities, the product can automatically match input voltage levels, dynamically adjust operational thresholds, and effectively filter out external electrical interference. This ensures stable and synchronized performance across diverse power environments.
3. Dual surge protection for reduced maintenance costs
Both the power input and communication interfaces are equipped with professional-grade surge protection mechanisms. These safeguards effectively mitigate damage caused by lightning strikes and high-voltage surges, improve equipment stability, substantially reduce failure rates, and effectively decrease maintenance costs by over 50%.
4. Visual and flexible configuration to meet diverse market needs
The device supports remote configuration via a PC-based upper-level control system. System parameters can be adjusted online without requiring hardware replacement, enabling rapid adaptation to varying project requirements and significantly improving deployment and maintenance efficiency.
At a glance
| Product Model | DXDX200-3-FMG1A | DXDX-3-G-1-FMG1A | DXDX-3-T-1-FMG1A |
| Light-Emitting Surface (LES) Size | 200mm | 300mm | 400mm |
| Housing Material | Polycarbonate housing | Polycarbonate housing | Polycarbonate housing |
| Signal Light Color | □Red □Green | □Red □Green | □Red □Yellow □Green |
| Mask Color | Transparent | Transparent | Transparent |
| Visors | Φ216x205mm | 780x361mm | 1060x460mm |
| Mask Shape | Round | Round | Round |
| Executive Standard | GAT 508-2014 | GAT 508-2014 | GAT 508-2014 |
| Operating Voltage | AC85V~264V/47HZ~63HZ | AC85V~264V/47HZ~63HZ | AC85V~264V/47HZ~63HZ |
| Operating Mode | □ Learning Mode □ Trigger Mode □ Communication Mode □ Compatible Mode | □ Learning Mode □ Trigger Mode □ Communication Mode □ Compatible Mode | □ Learning Mode □ Trigger Mode □ Communication Mode □ Compatible Mode |
| Display Range | 0~99s | 0~99s | 0~99s |
| LED Quantity | R/G: 64 pcs | R/G: 64 pcs | R/G: 140 pcs Y: 70 pcs |
| Lamp Power Consumption | Red/Green countdown timer ≤ 10 W | Red/Green countdown timer ≤ 10 W | Red/Yellow/Green countdown timer ≤ 10 W |
| LED Wavelength | Red: 625 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm |
| Luminous Intensity | 5000~15000cd/m² | 5000~15000cd/m² | 5000~15000cd/m² |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH | ≤97%RH |
| Protection Grade | IP53 | IP53 | IP53 |
| Visual Distance | ≥300m | ≥300m | ≥300m |
| Packaging Specifications | 10 piece per box, Size: 103 × 22 × 25cm, Weight: 8 ± 0.5 kg | 5 piece per box, Size: 62 × 32 × 35cm, Weight: 6.8 ± 0.5 kg | 5piece per box, Size: 46 × 46 × 20 cm, Weight: 8.5 ± 0.5 kg |

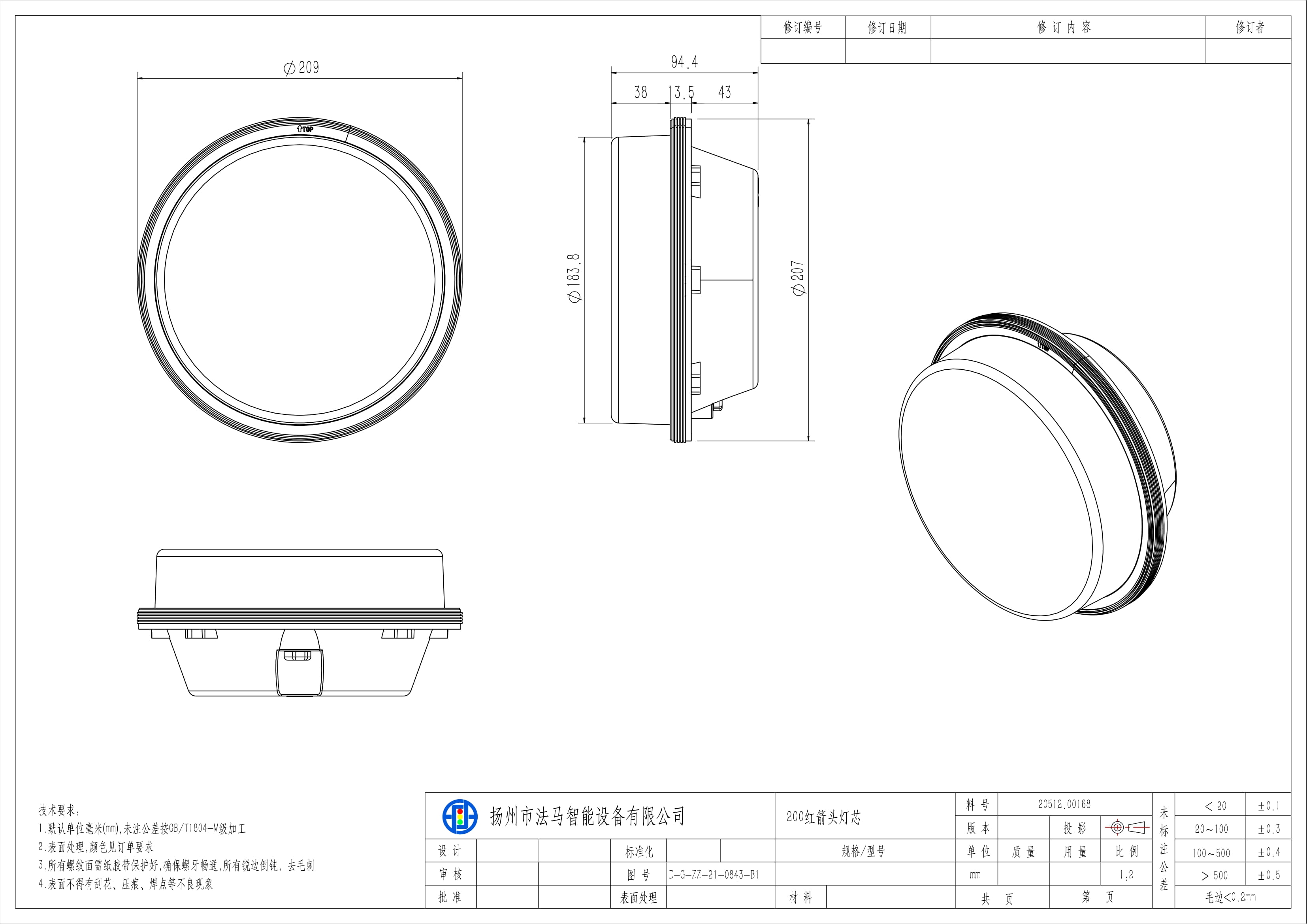

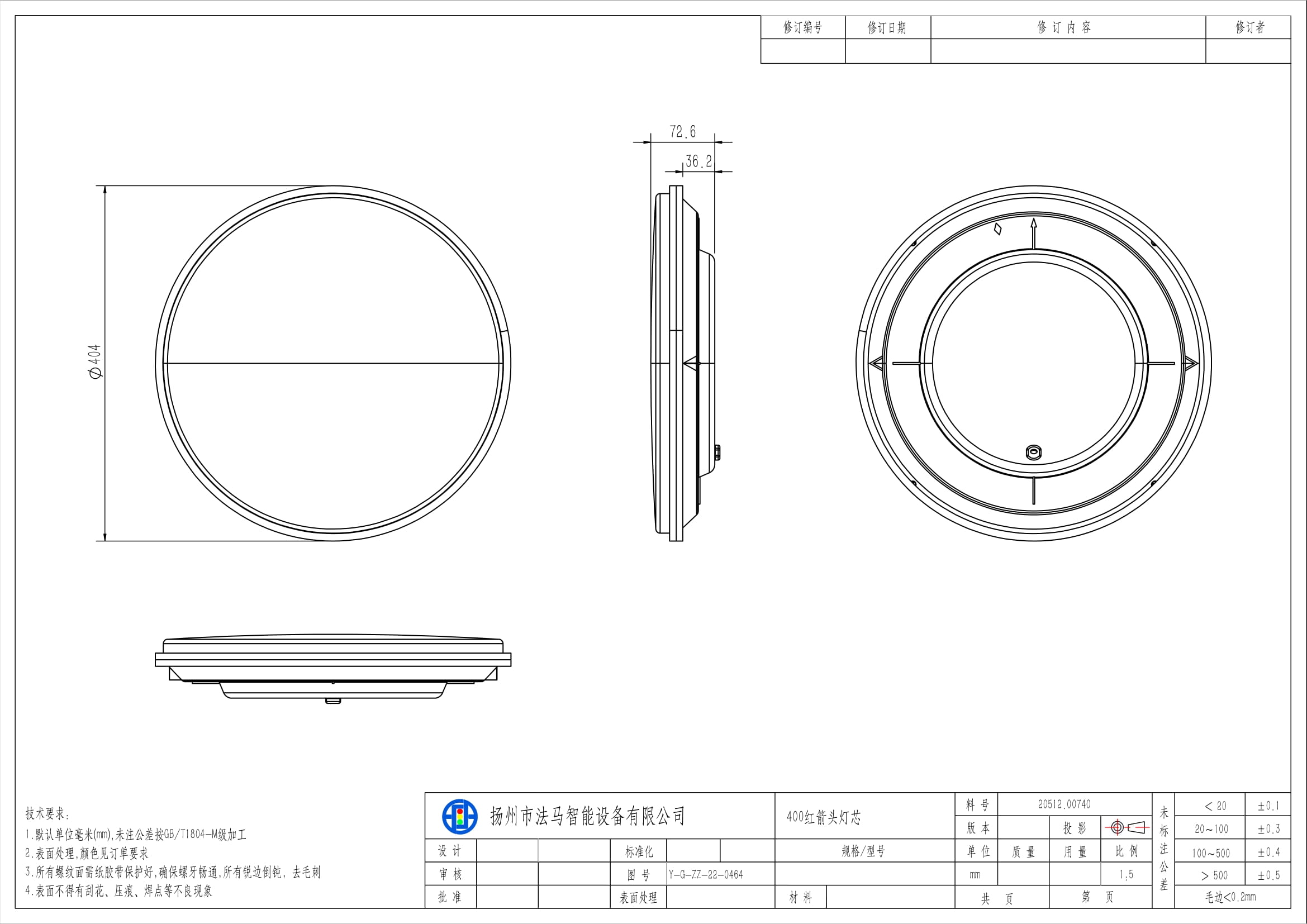

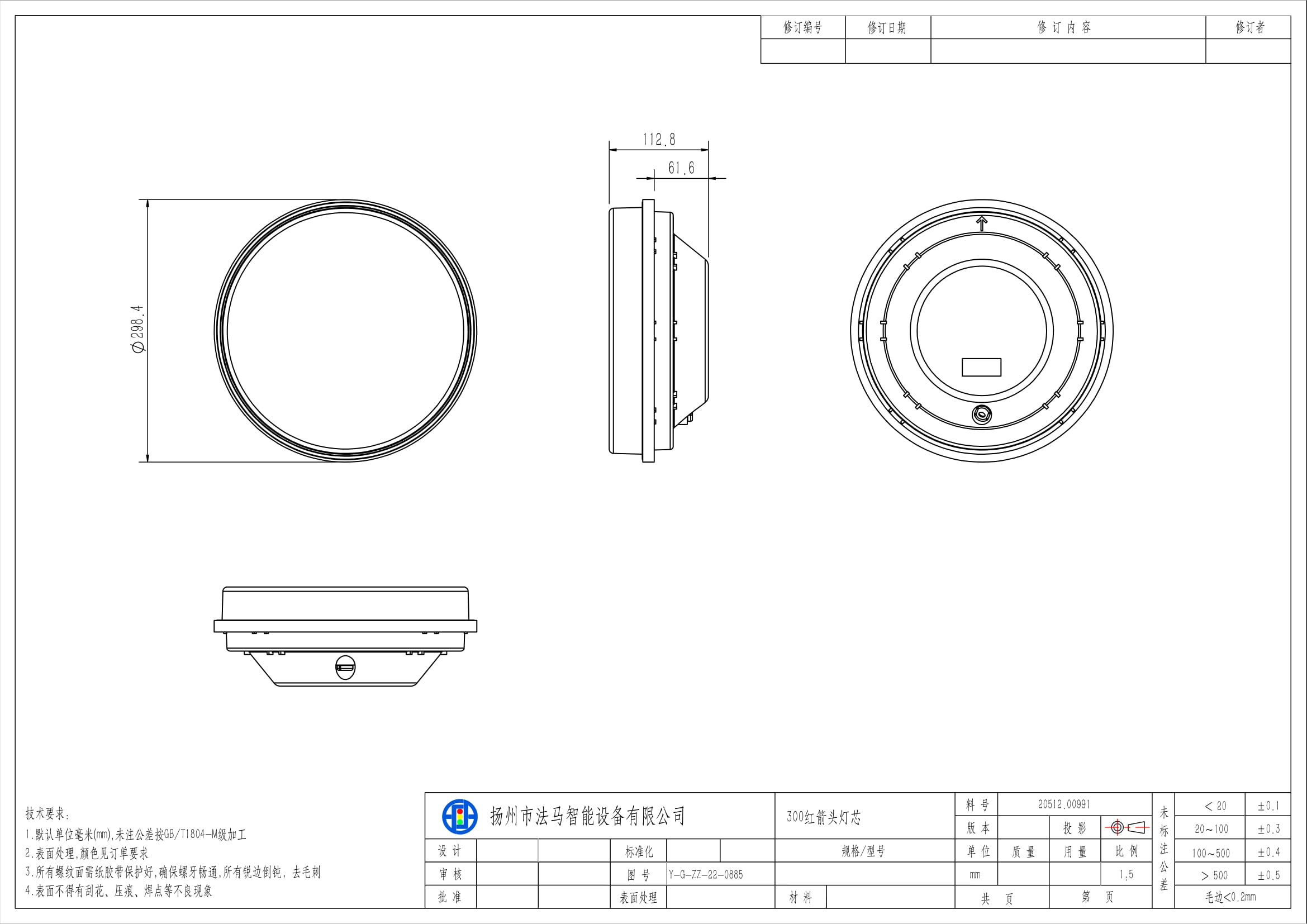

Structural Components
