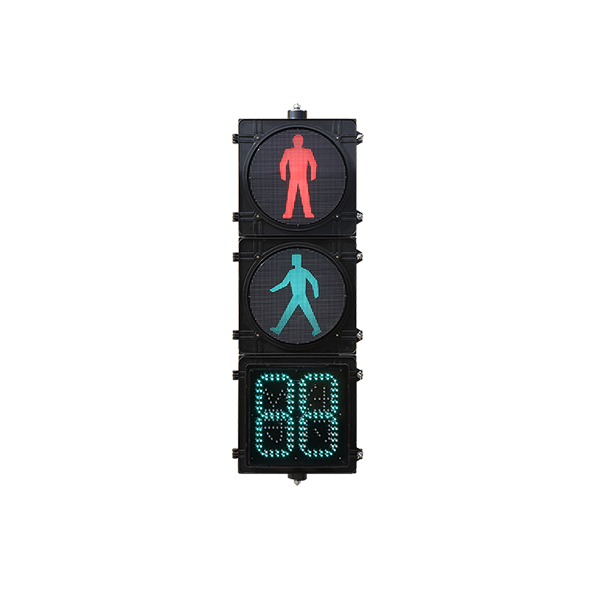

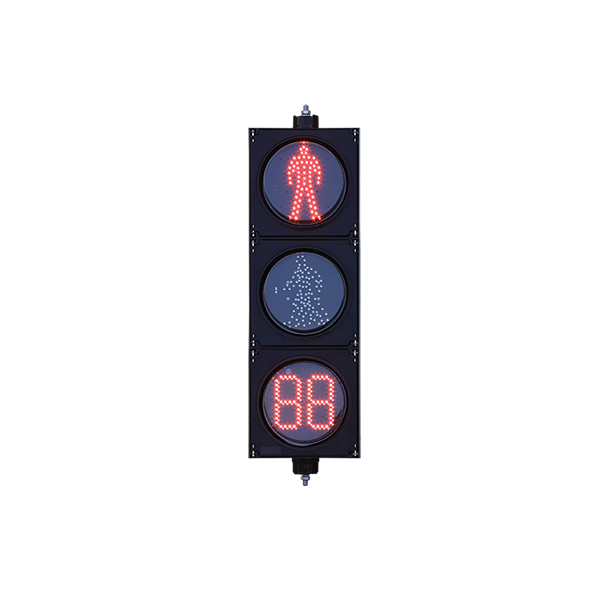

Low Power Pedestrian Traffic Light with Countdown Timer
Read more

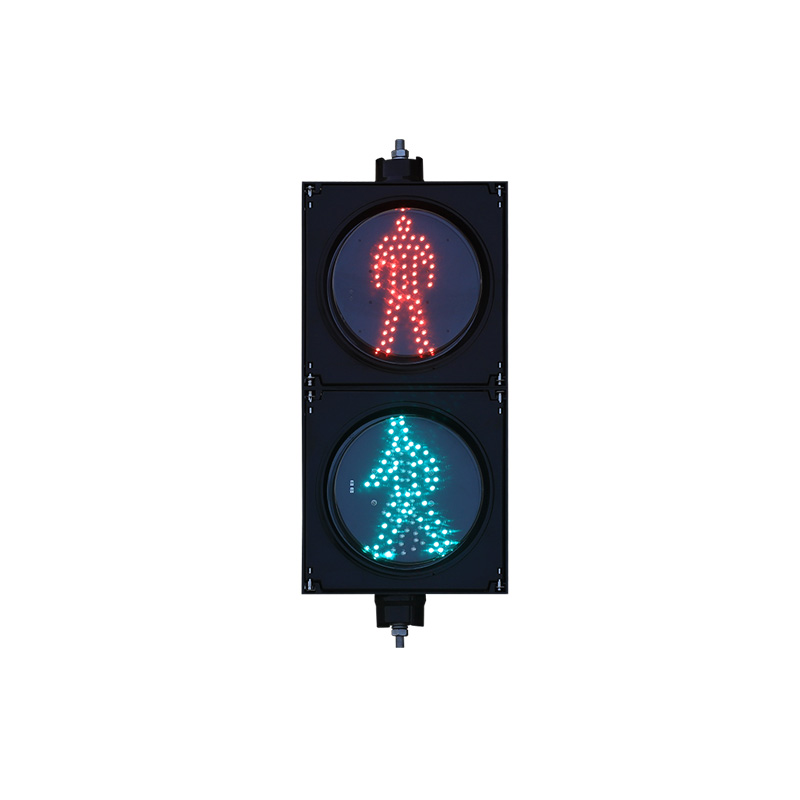

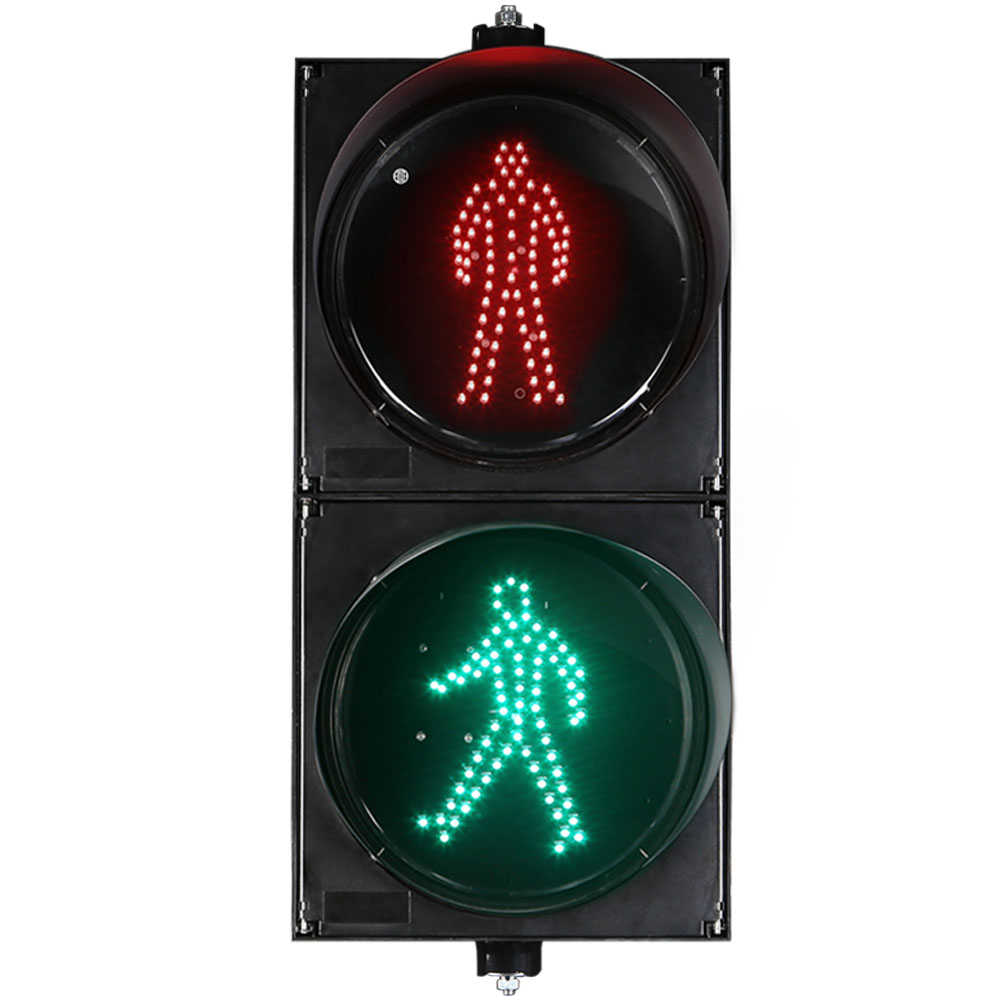

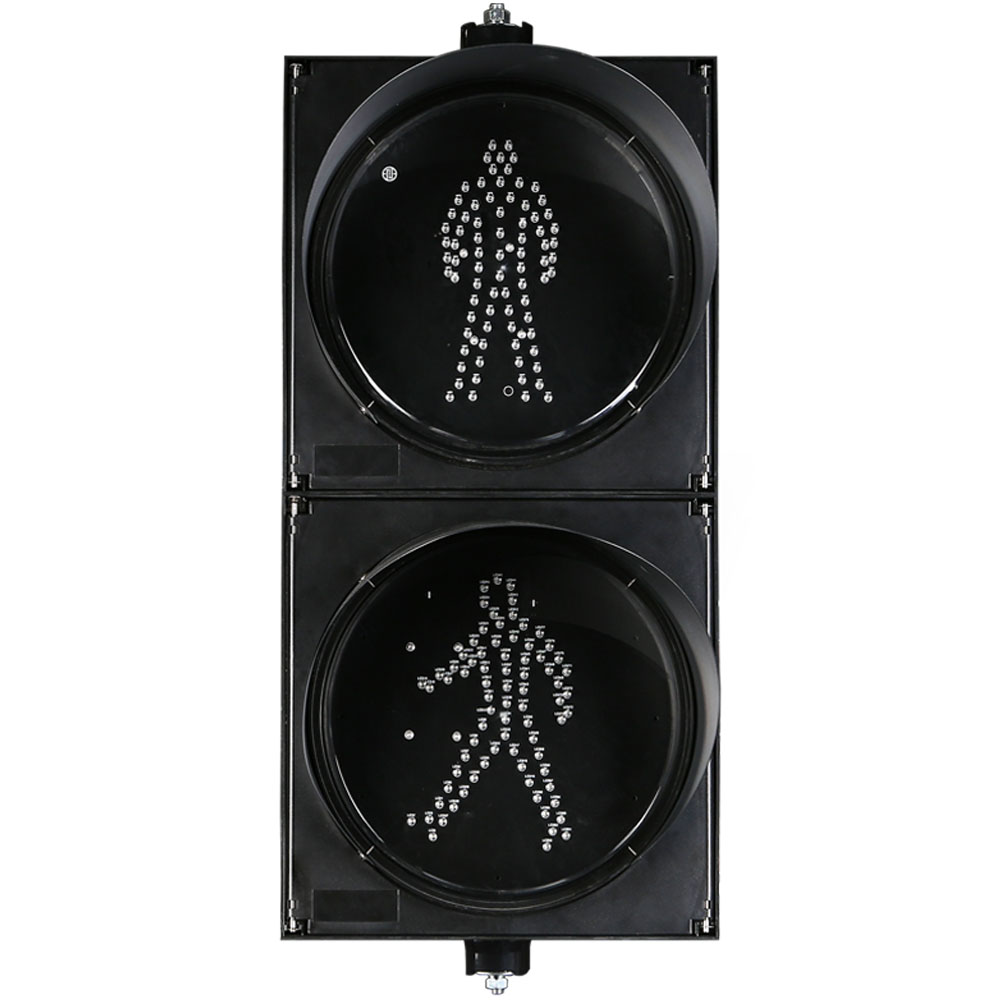

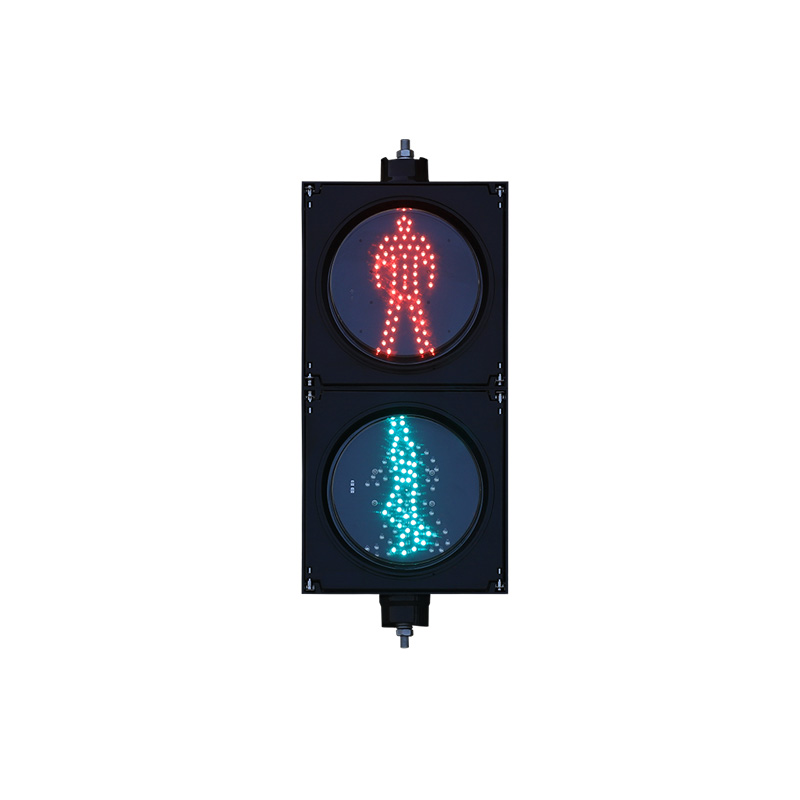

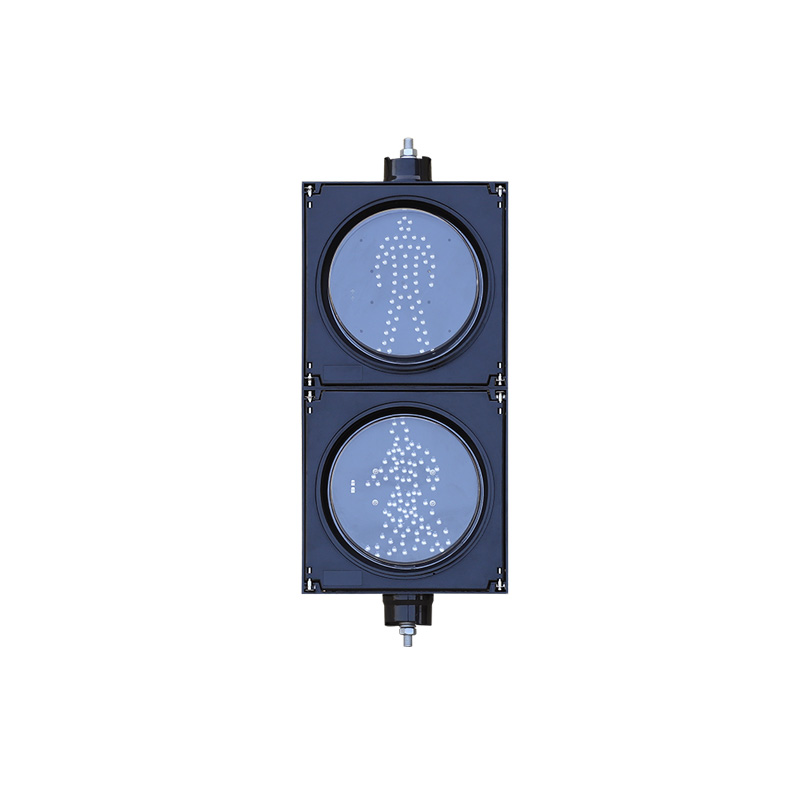

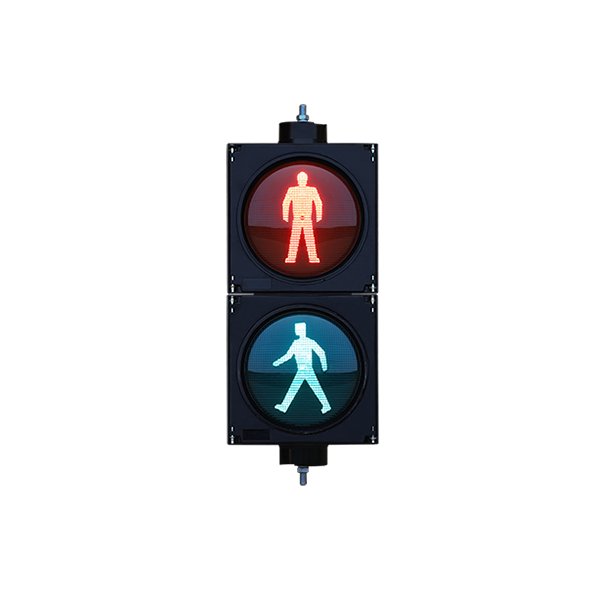

Low Power Pedestrian Traffic Light
-
Model:
The Low Power Pedestrian Traffic Light is a two-unit assembly. The lamp core consists of the the lamp board, lens, power supply, lamp bowl, and other structural components. It is applicable to traffic signal control intersections designed for pedestrian crossings.
Overview
Product Introduction:
The Low Power Pedestrian Traffic Light is a two-unit assembly. The lamp core consists of the the lamp board, lens, power supply, lamp bowl, and other structural components. It is applicable to traffic signal control intersections designed for pedestrian crossings.
Add the to your project
Functional Features
Mesh circuit design ensures stable product operationThe light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.- European standard power supply, more energy-efficient and environmentally friendlyIt uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
- Constant current drive design, with long service life and low maintenanceIt adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
- Excellent electromagnetic compatibility, enhancing device stabilityIt strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.
At a glance
| Product Model | RX200-3-FM21 | RX300-3-FM21 |
| Light-Emitting Surface (LES) Size | 200mm | 300mm |
| Operating Voltage | AC85~264V | AC85~264V |
| Housing Material | Polycarbonate housing | Polycarbonate housing/Aluminum housing |
| Mask Color | Transparent | Transparent |
Visors | Φ216x205mm | 754.9x220x0.6mm |
| Shape of LES | Round | Round |
LED Quantity | Dynamic green pedestrian light 93 LED Static red pedestrian light 66 LED | Static green pedestrian light 78 LED Static red pedestrian light 80 LED |
| Lamp Power Consumption | Static red pedestrian light ≤ 7 W Dynamic green pedestrian light ≤ 6 W | Static red pedestrian light ≤ 8 W Static green pedestrian light ≤ 6 W |
| LED Wavelength | Red: 625 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Green: 505 ± 5 nm |
| Luminous Intensity | 5000~15000cd/m² | 5000~15000cd/m² |
| Insulation Resistance | ＞2MΩ | ＞2MΩ |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH |
| Protection Grade | IP55 | IP55 |
| Visual Distance | ≥300m | ≥300m |
| Packaging Specifications | 1 piece per box, Size: 66 × 31 × 23 cm, Weight: 5.2 ± 0.5 KG | 1 piece per box, Size: 87 × 40 × 20 cm, Weight: 6.6 ± 0.5 KG |

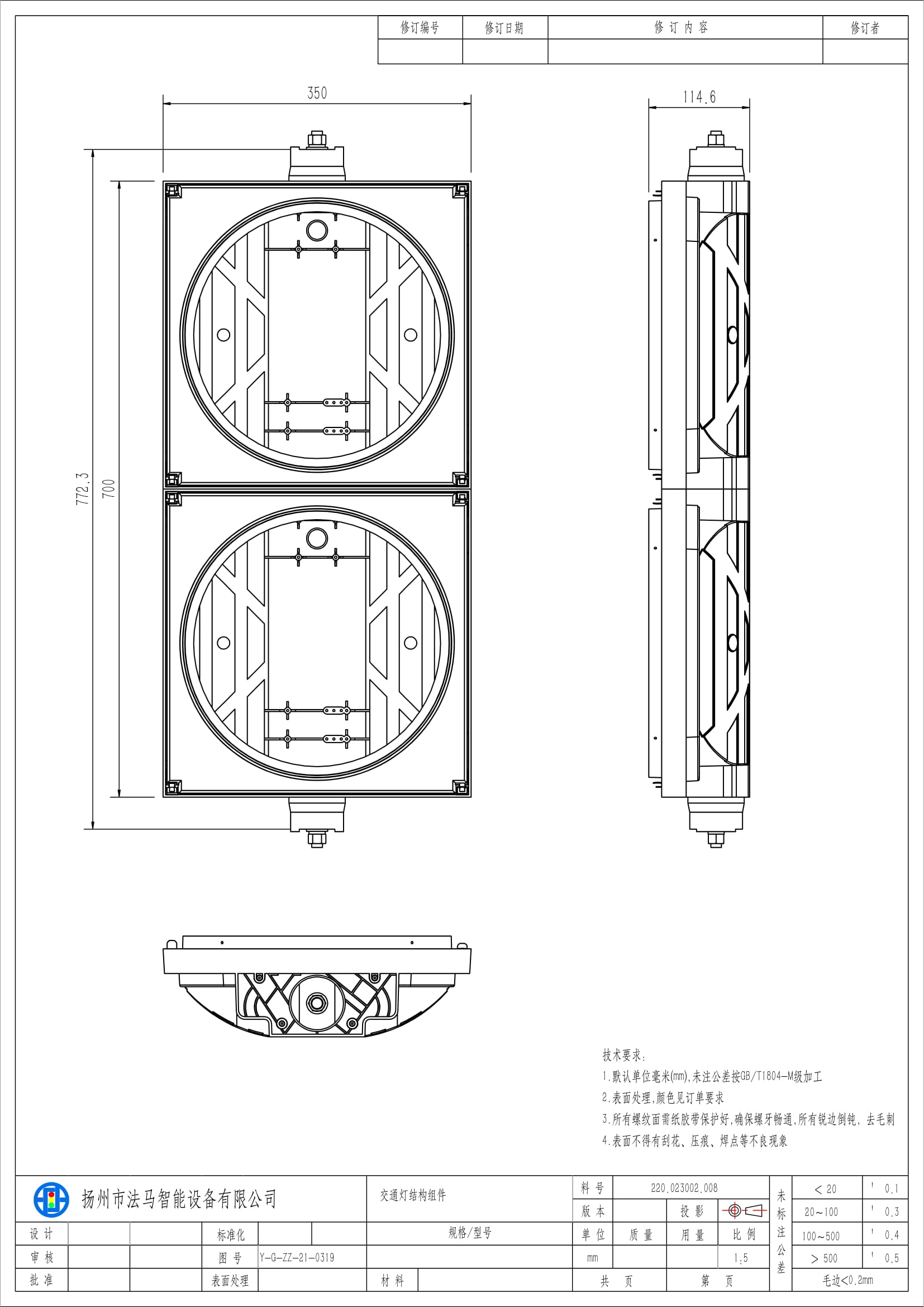

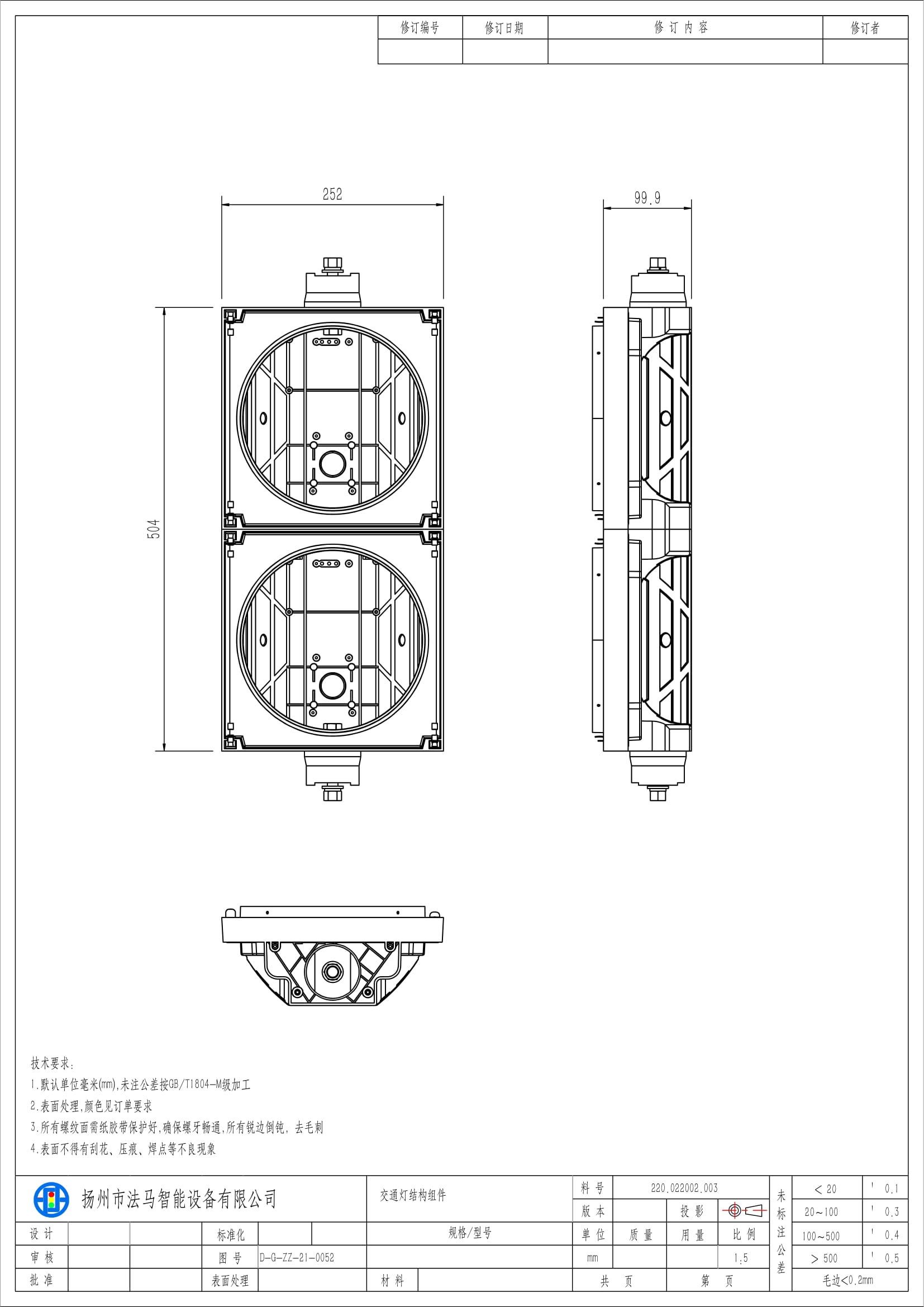

Structural Components
