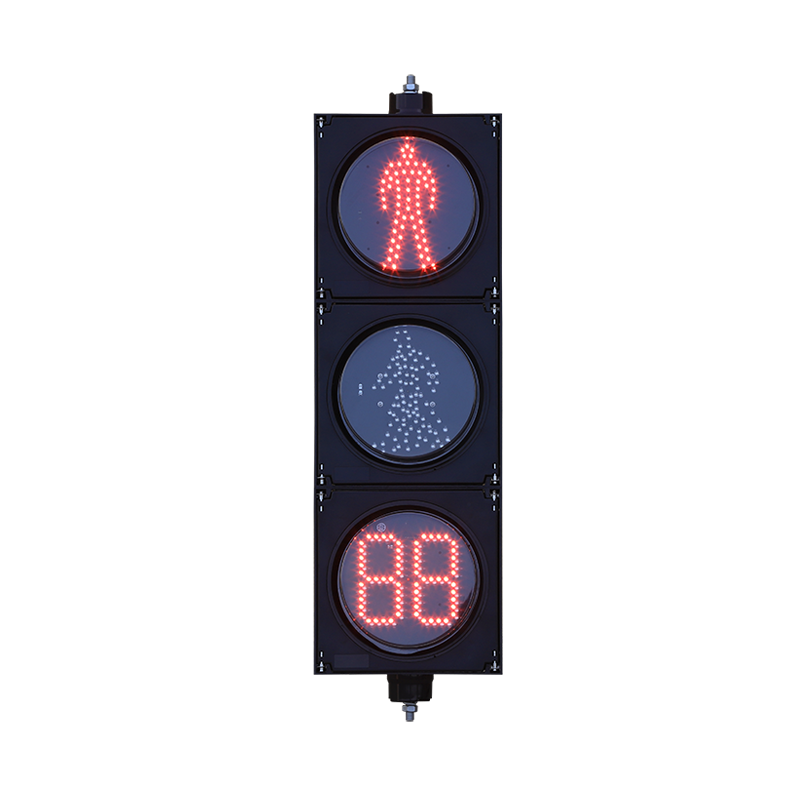

Low Power Pedestrian Traffic Light with Countdown Timer
Read more

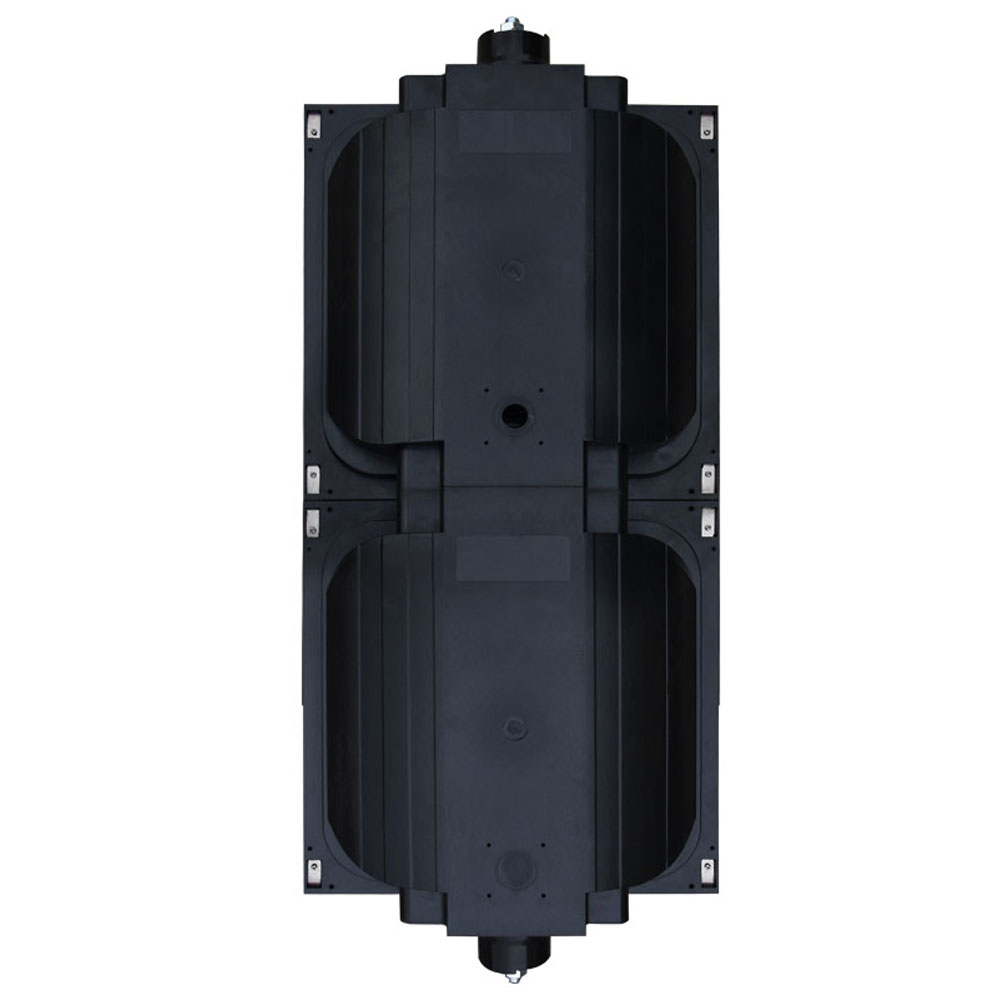

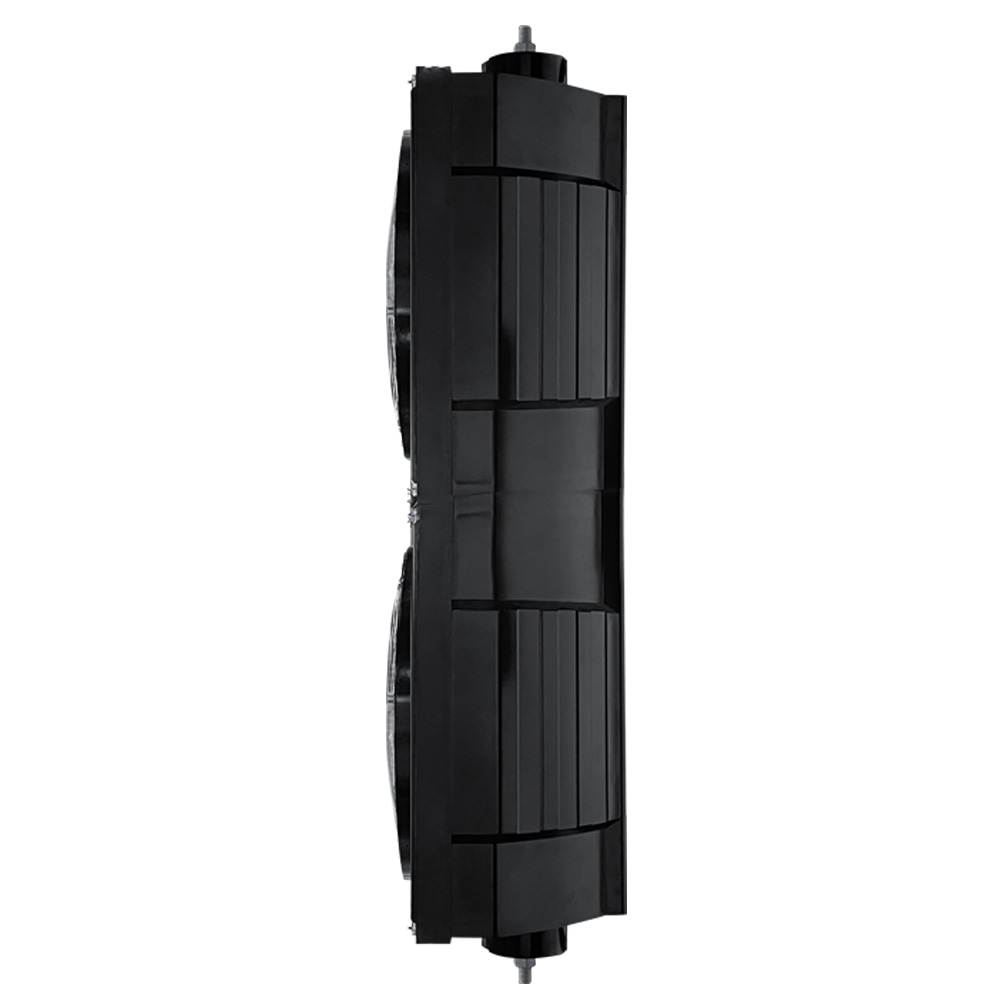

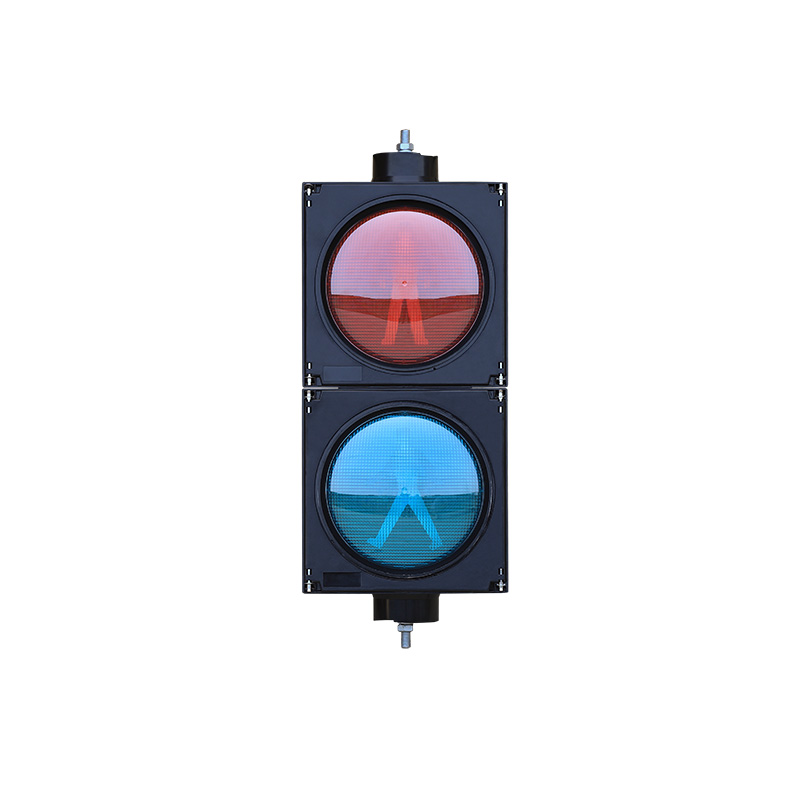

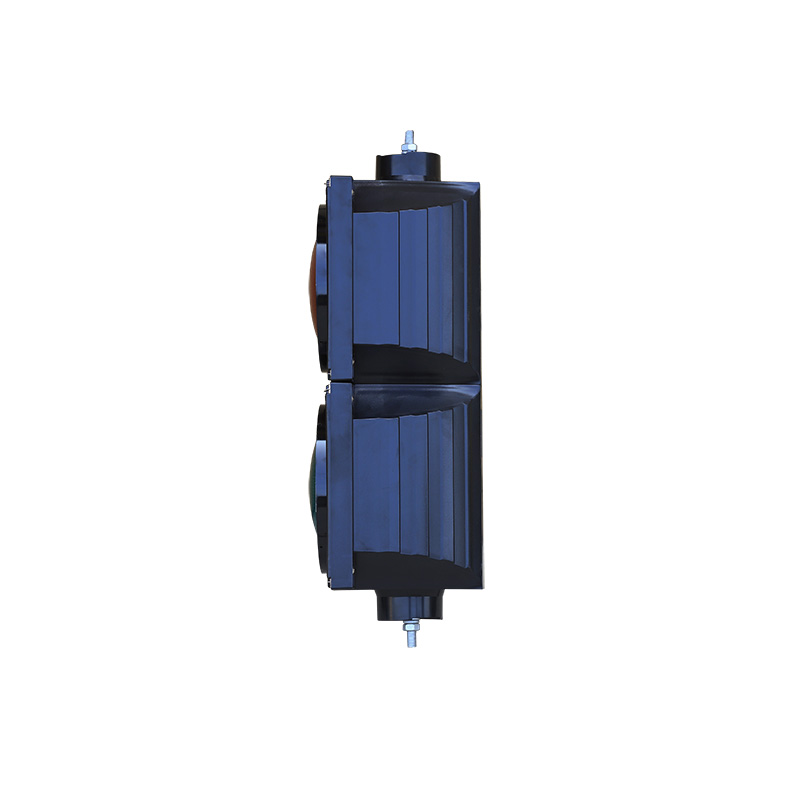

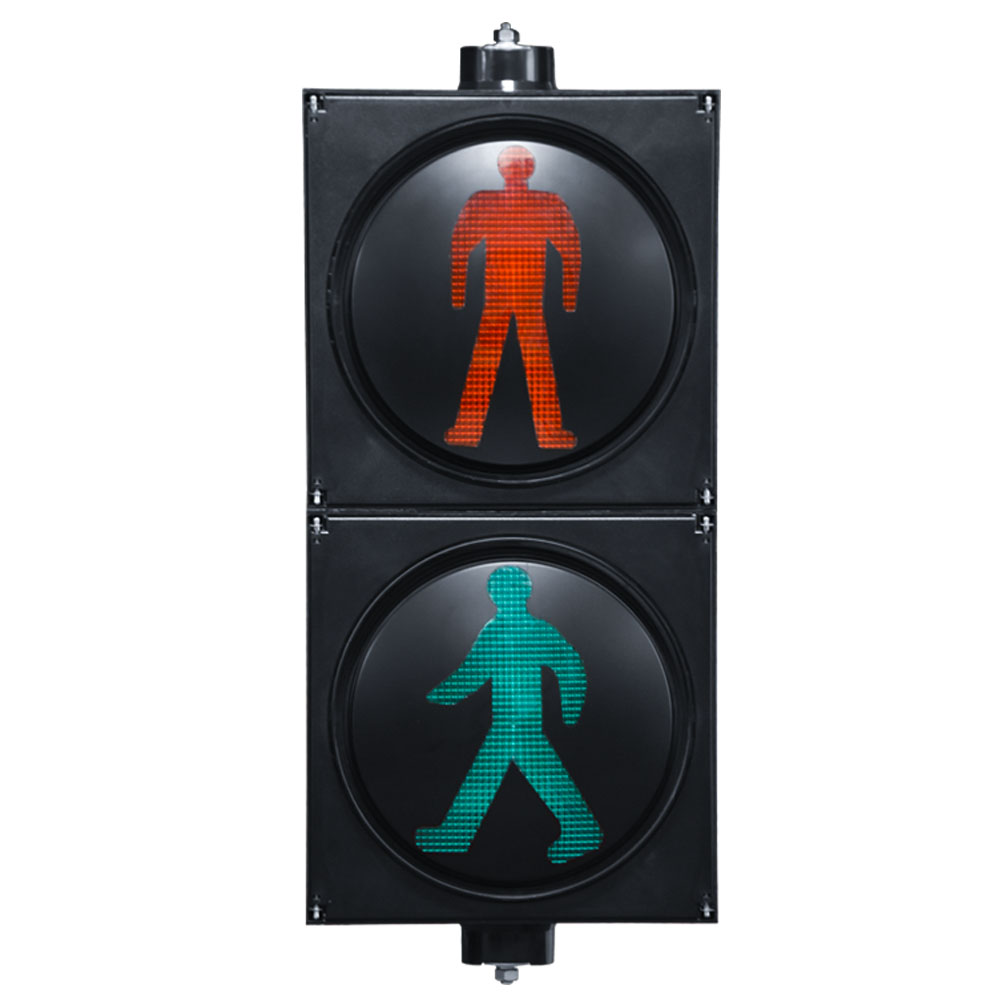

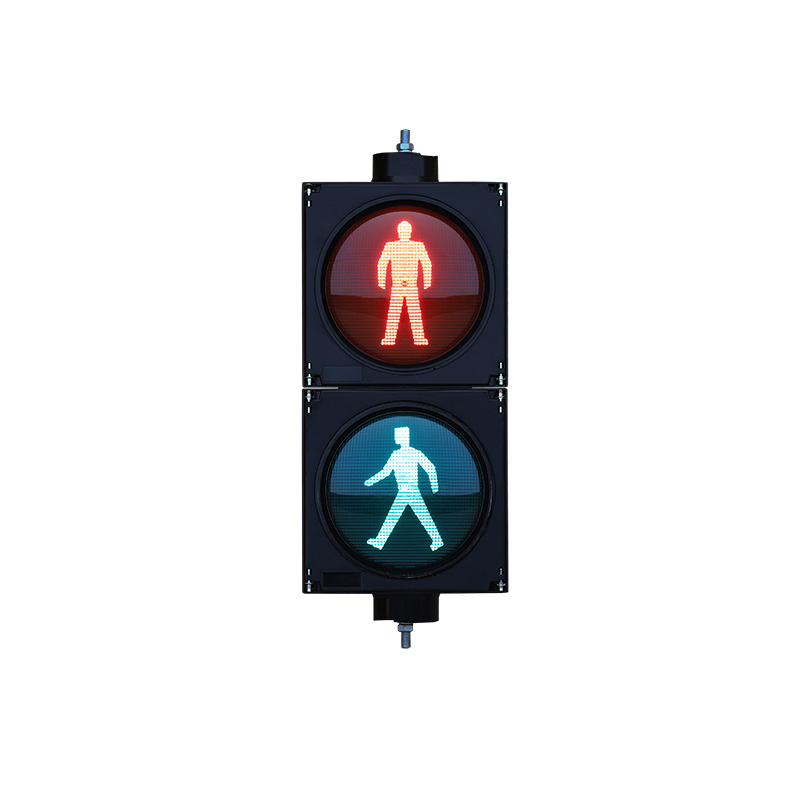

High Flux Pedestrian Traffic Light
-
Model:
The High Flux Pedestrian Traffic Light is a two-unit assembly. The lamp core consists of the large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components.
Overview
Product Introduction:
The High Flux Pedestrian Traffic Light is a two-unit assembly. The lamp core consists of the large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It is applicable to traffic signal control intersections designed for pedestrian crossings.
Add the to your project
Functional Features
Product Selling Points:
1. Three-layer optical processing - Eliminating glare and reducing light pollution
The high flux full ball traffic light adopts triple optical processing technologies including secondary lens, Fresnel lens and optical mask to achieve uniform surface lighting and output light patterns that comply with international standards. It effectively eliminates glare caused by direct emission from conventional point light sources, thereby significantly mitigating light pollution.
2. Three core technologies – Effectively extending service life
Through the integrated application of external heat dissipation technology to improve heat dissipation efficiency, wide-voltage and high-surge-protection (AC 90–264V / 4000V) constant-current power supply technology to ensure stable system operation, and large-sized LED chips featuring low light attenuation and high luminous efficiency, these three core technologies collectively ensure the product's exceptional reliability and an extended service life.
At a glance
| Product Model | RX200-3-FM35 | RX300-3-FM35 |
| Light-Emitting Surface (LES) Size | 200mm | 300mm |
| Operating Voltage / Frequency | AC85~264V/47-63Hz | AC85~264V/47-63Hz |
| Housing Material | Polycarbonate housing | Polycarbonate housing |
| Mask Color | Coloured | Coloured |
| Mask Shape | Arc-shaped | Arc-shaped |
| LED Quantity | R/G: 2 Pcs | R/G:4 Pcs |
| Lamp Power Consumption | Static red pedestrian light ≤ 7 W Static green pedestrian light ≤ 9 W | Static red pedestrian light ≤ 15 W Static green pedestrian light ≤ 13 W |
| LED Wavelength | Red: 625 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Green: 505 ± 5 nm |
| Luminous Intensity | 5000~15000cd/m² | 5000~15000cd/m² |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours |
| Insulation Resistance | ＞2MΩ | ＞2MΩ |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH |
| Protection Grade | IP65 | IP65 |
| Visual Distance | ≥300m | ≥300m |
| Packaging Specifications | 1 piece per box, Size: 66 × 32 × 28 cm, Weight: 6 ± 0.5 KG | 1 piece per box, Size: 85 × 42 × 31 cm, Weight: 9 ± 0.5 KG |

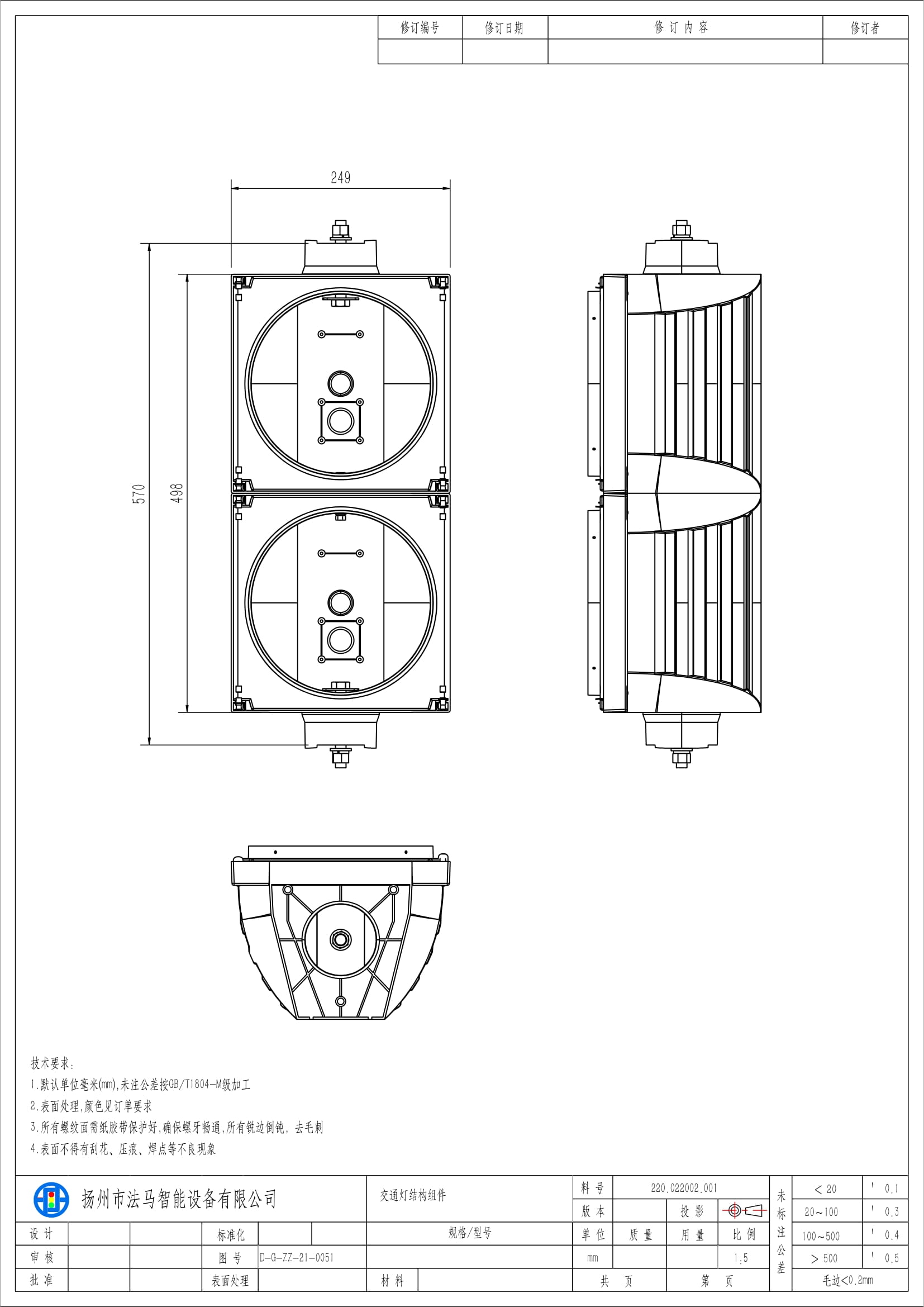

Structural Components
