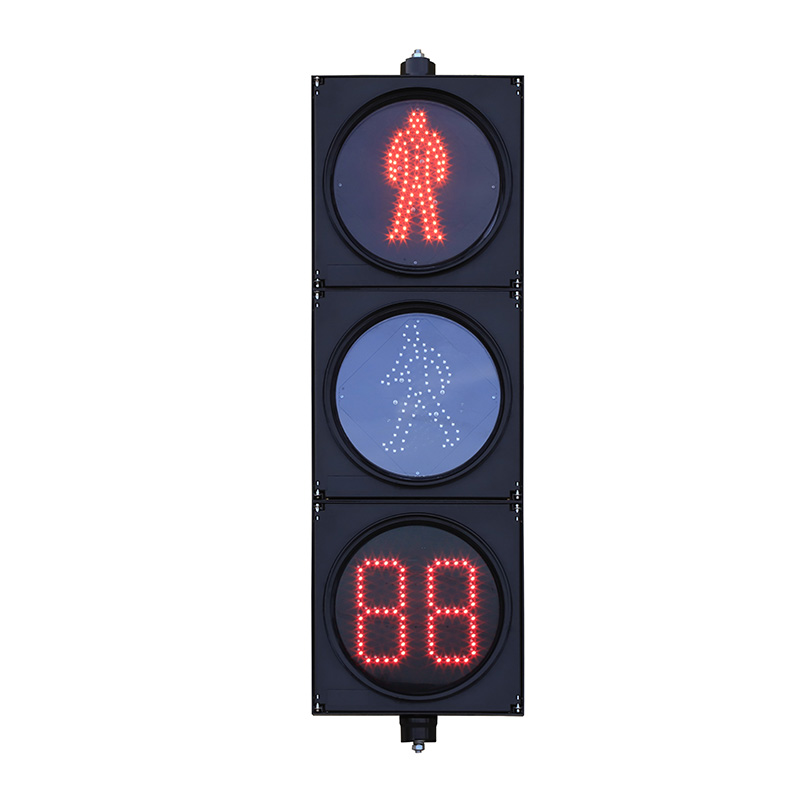

Low Power Pedestrian Traffic Light with Countdown Timer

Overview

Product Introduction:

The Low Power Pedestrian Traffic Light with Countdown Timer is a three-unit assembly. The lamp core consists of the the lamp board, lens, power supply, lamp bowl, and other structural components.The countdown display adopts a segmented-digit design. It is applicable to traffic signal control intersections designed for pedestrian crossings.

Add the to your project

Contact us to order

Functional Features

Mesh circuit design ensures stable product operation
The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.
European standard power supply, more energy-efficient and environmentally friendly
It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
Constant current drive design, with long service life and low maintenance
It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
Excellent electromagnetic compatibility, enhancing device stability
It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.
Compatibility design for enhanced maintenance efficiency
The built-in countdown timer supports three adaptive operating modes: communication mode, trigger mode, and learning mode. Designed to be compatible with over 99% of mainstream domestic and international traffic signal controllers, this feature significantly reduces installation and post-installation commissioning efforts, thereby enhancing overall equipment maintenance efficiency.

At a glance

Product Model	RX200-3-FM21	RX300-3-FM21
Light-Emitting Surface (LES) Size	200mm	300mm
Operating Voltage	AC85~264V	AC85~264V
Housing Material	Polycarbonate housing	Polycarbonate housing
Mask Color	Transparent	Transparent
Visors	Φ216x205mm	754.9x220x0.6mm
Shape of LES	Round	Round
LED Quantity	Dynamic green pedestrian light 96 pcs Static red pedestrian light 66 pcs Red/Green countdown, 64 pcs each	Dynamic green pedestrian light 129 pcs Static red pedestrian light 80 pcs Red/Green countdown, 64 pcs each
Lamp Power Consumption	Static red pedestrian light ≤ 7 W Dynamic green pedestrian light ≤ 6 W Countdown ≤ 10 W	Static red pedestrian light ≤ 8 W Dynamic green pedestrian light ≤ 8 W Dual 8 Red/Green countdown ≤ 15 W
LED Wavelength	Red: 625 ± 5 nm Green: 505 ± 5 nm	Red: 625 ± 5 nm Green: 505 ± 5 nm
Luminous Intensity	5000~15000cd/m²	5000~15000cd/m²
Insulation Resistance	＞2MΩ	＞2MΩ
LED Lifespan	≥100,000 hours	≥100,000 hours
Operating Temperature	-40℃ to +80℃	-40℃ to +80℃
Relative Humidity	≤97%RH	≤97%RH
Protection Grade	IP55	IP55
Visual Distance	≥300m	≥300m
Packaging Specifications	1 piece per box, Size: 91 × 29.5 × 20.5 cm, Weight: 7.4 ± 0.5 KG	1 piece per box, Size: 122 × 40 × 20 cm, Weight: 11.05 ± 0.5 KG

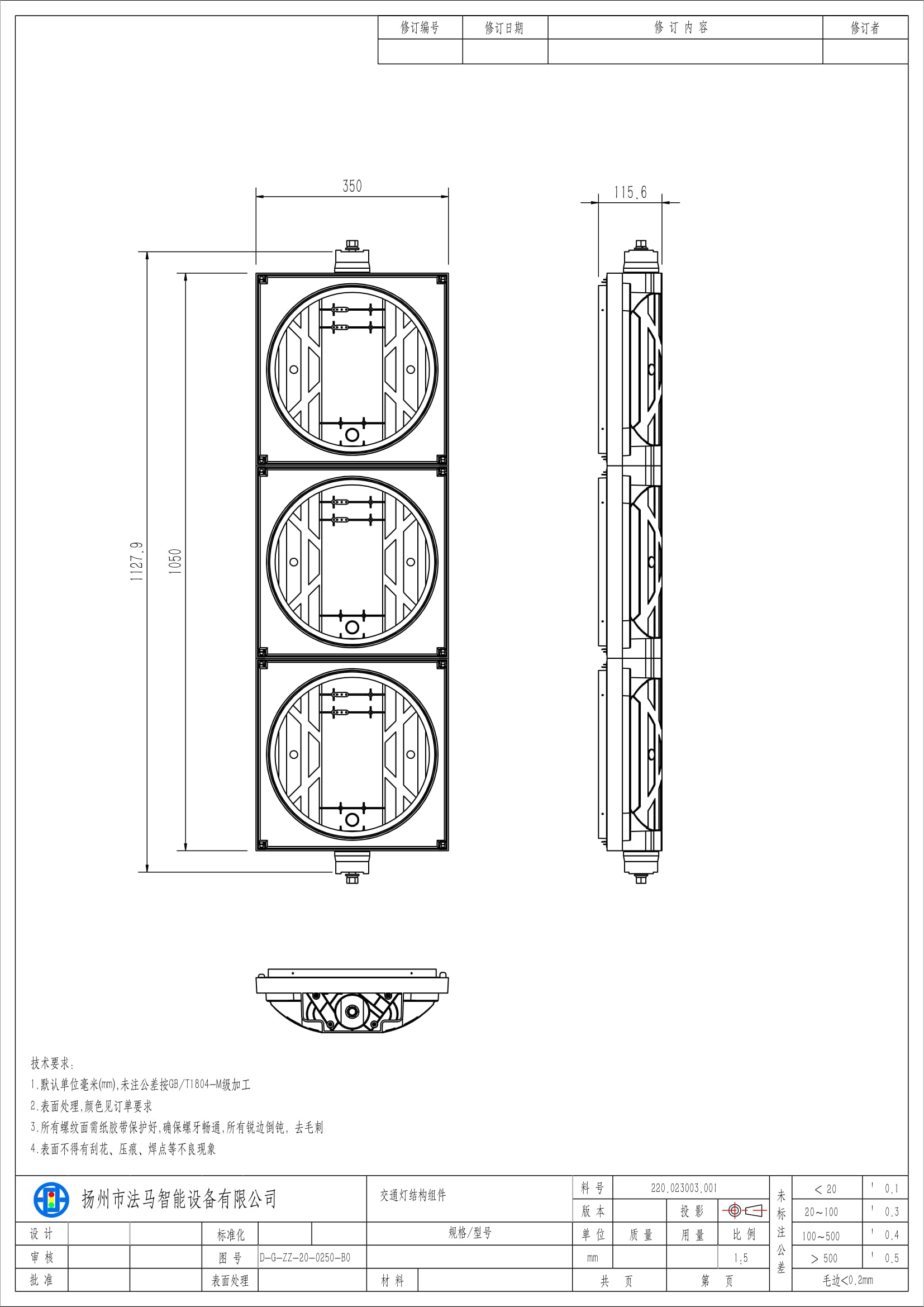

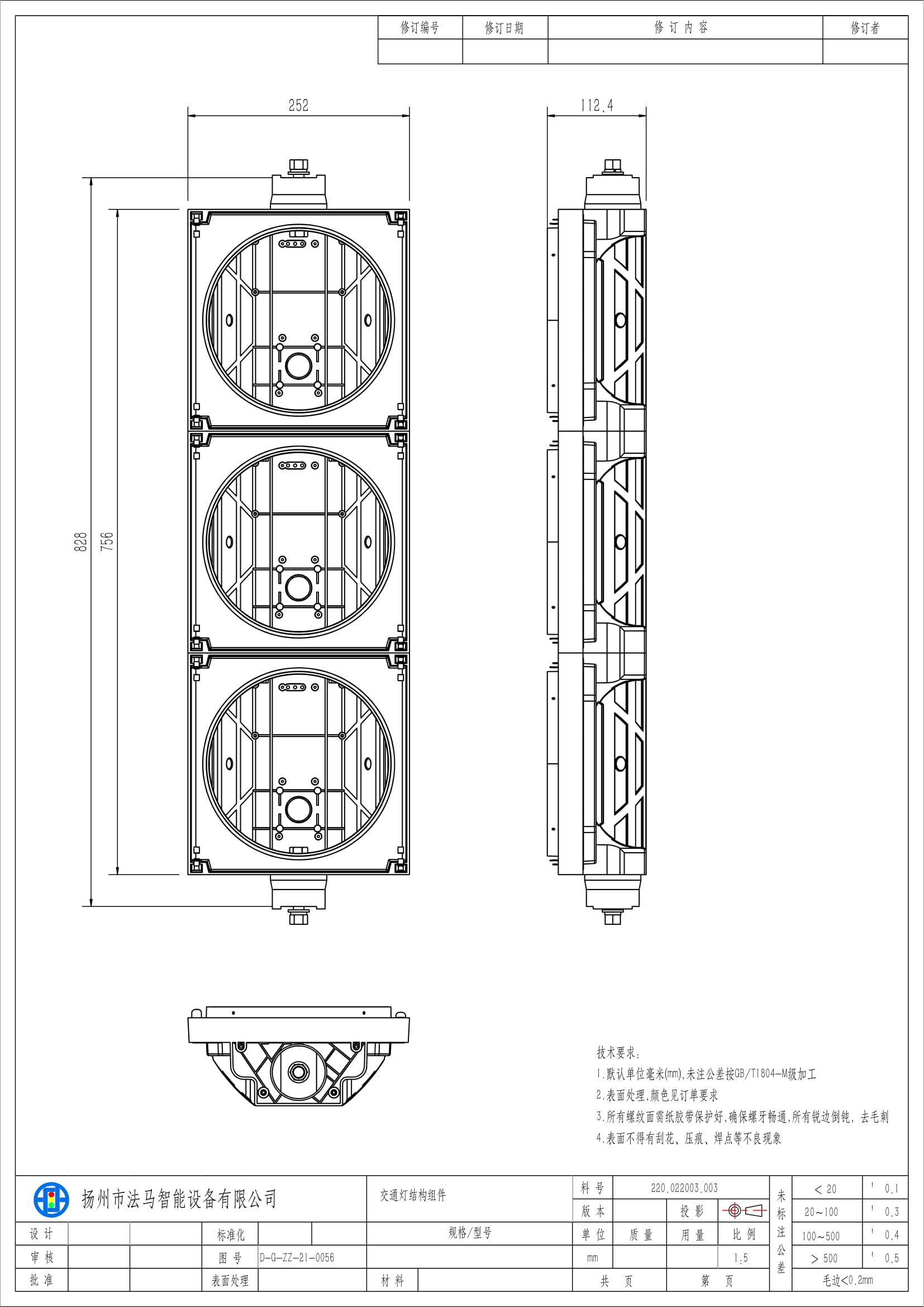

Structural Components

Low Power Pedestrian Traffic Light with Countdown Timer -

Low Power Pedestrian Traffic Light with Countdown Timer
-
