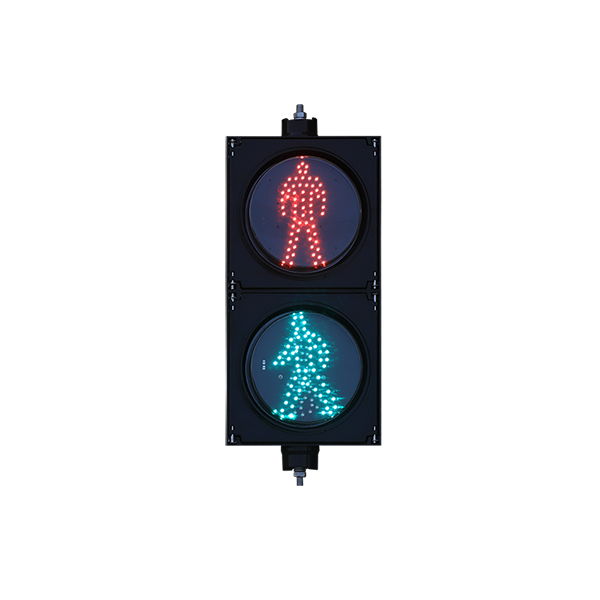

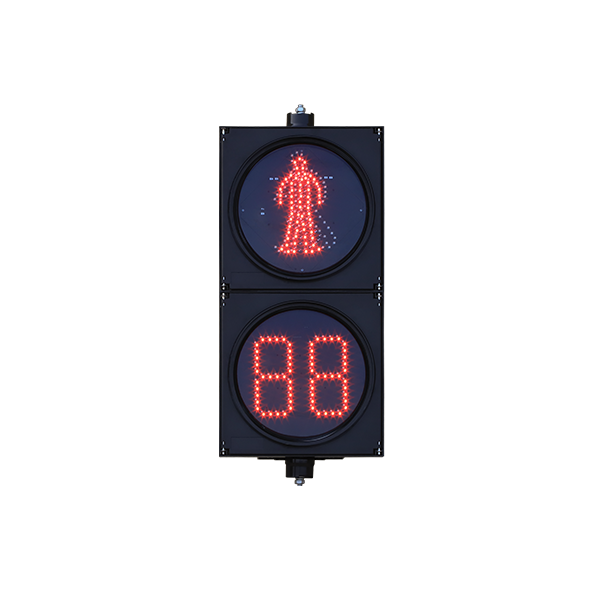

Low Power Pedestrian Traffic Light
Read more

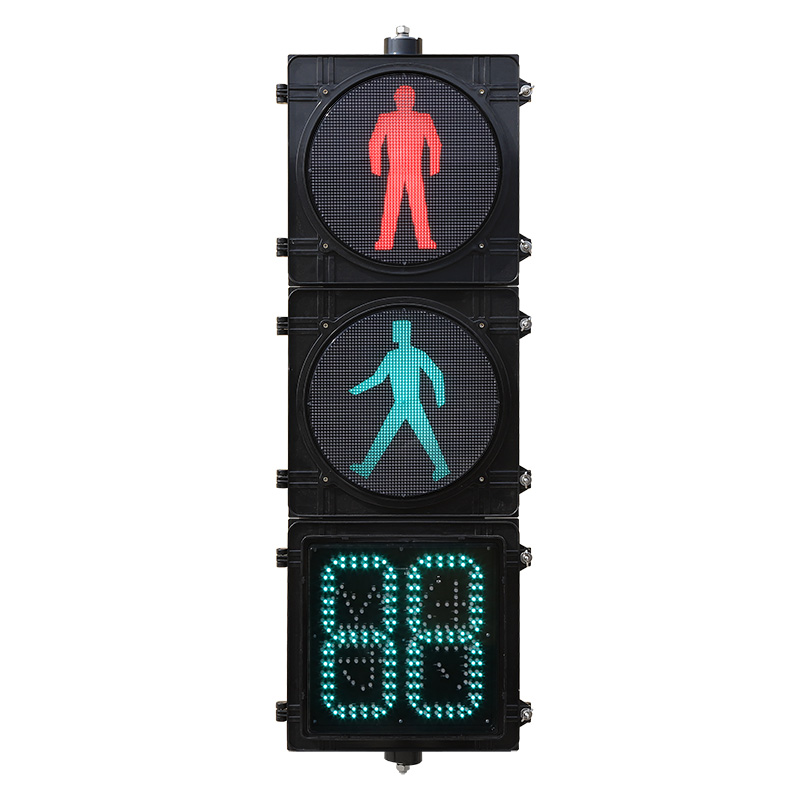

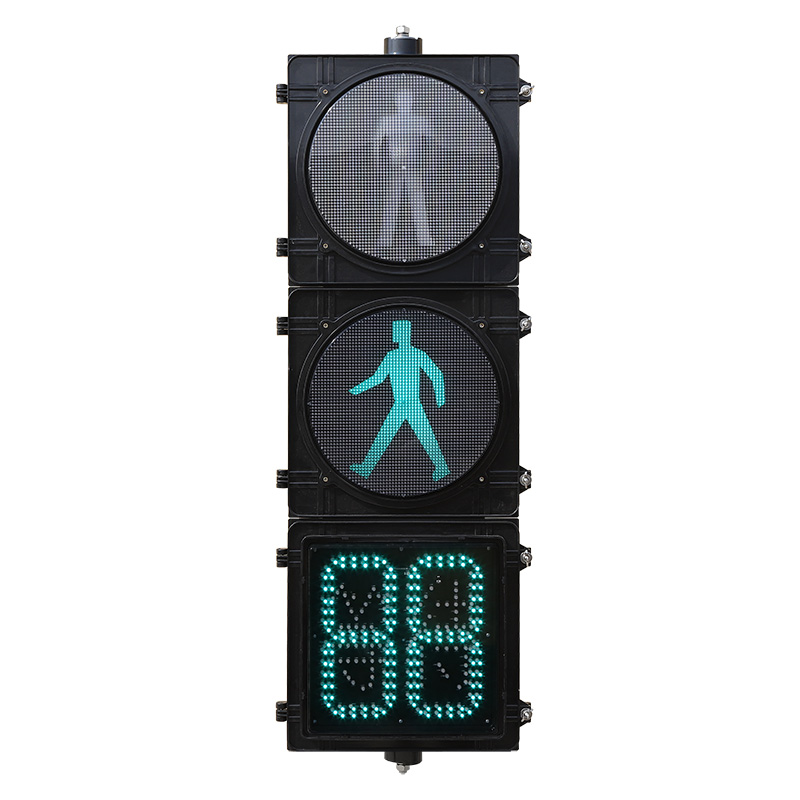

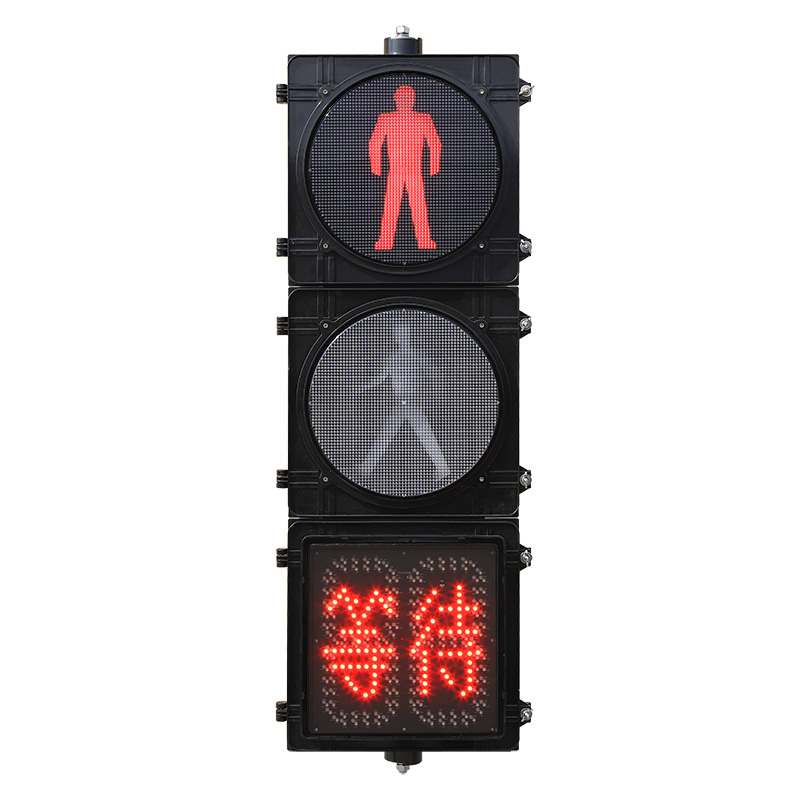

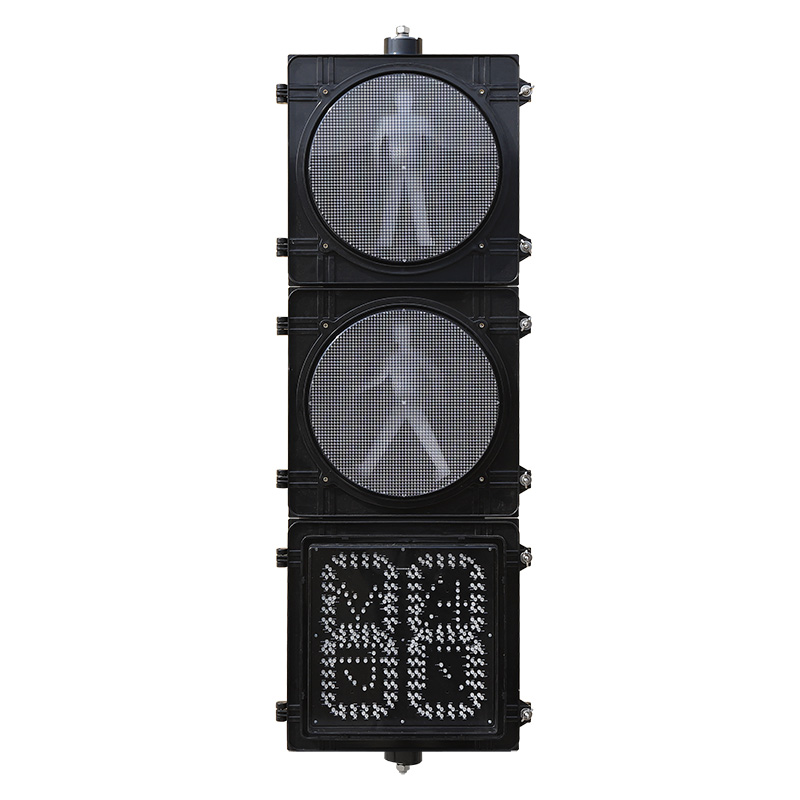

High Flux Pedestrian Traffic Light with Countdown Timer
-
Model:
The High Flux Pedestrian Traffic Light with Countdown Timer is is a three-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components.
Overview
Product Introduction:
The High Flux Pedestrian Traffic Light with Countdown Timer is is a three-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. The countdown display adopts a segmented-digit design. It is applicable to traffic signal control intersections designed for pedestrian crossings.
Add the to your project
Functional Features
Product Selling Points:
1. Three-layer optical processing - Eliminating glare and reducing light pollution
The high flux full ball traffic light adopts triple optical processing technologies including secondary lens, Fresnel lens and optical mask to achieve uniform surface lighting and output light patterns that comply with international standards. It effectively eliminates glare caused by direct emission from conventional point light sources, thereby significantly mitigating light pollution.
2. Three core technologies – Effectively extending service life
Through the integrated application of external heat dissipation technology to improve heat dissipation efficiency, wide-voltage and high-surge-protection (AC 90–264V / 4000V) constant-current power supply technology to ensure stable system operation, and large-sized LED chips featuring low light attenuation and high luminous efficiency, these three core technologies collectively ensure the product's exceptional reliability and an extended service life.
3. Compatibility design for enhanced maintenance efficiency:
The built-in countdown timer supports three adaptive operating modes: communication mode, trigger mode, and learning mode. Designed to be compatible with over 99% of mainstream domestic and international traffic signal controllers, this feature significantly reduces installation and post-installation commissioning efforts, thereby enhancing overall equipment maintenance efficiency.
At a glance
| Product Model | RX300-3-FM35 |
| Operating Voltage | AC85~264V |
| Light-Emitting Surface (LES) Size | 300mm |
| Housing Material | Polycarbonate housing |
| Mask Color | Transparent |
| Shape of LES | Round |
| LED Quantity | Static green pedestrian light 5 pcs Static red pedestrian light 5 pcs Dual 8 Red/Green countdown, 64 pcs each |
| Lamp Power Consumption | Static red pedestrian light ≤ 8 W Static green pedestrian light ≤ 10 W Dual 8 Red/Green countdown ≤ 10 W |
| LED Wavelength | Red: 625 ± 5 nm Green: 505 ± 5 nm |
| Luminous Intensity | 5000cd/m~15000cd/m； |
| LED Lifespan | ≥100,000 hours |
| Insulation Resistance | ＞2MΩ |
| Operating Temperature | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH |
| Protection Grade | IP55 |
| Visual Distance | ≥300m |
| Packaging Specifications | 1 piece per box, Size: 101 × 41 × 31 cm, Weight: 12.3 ± 0.5 KG |

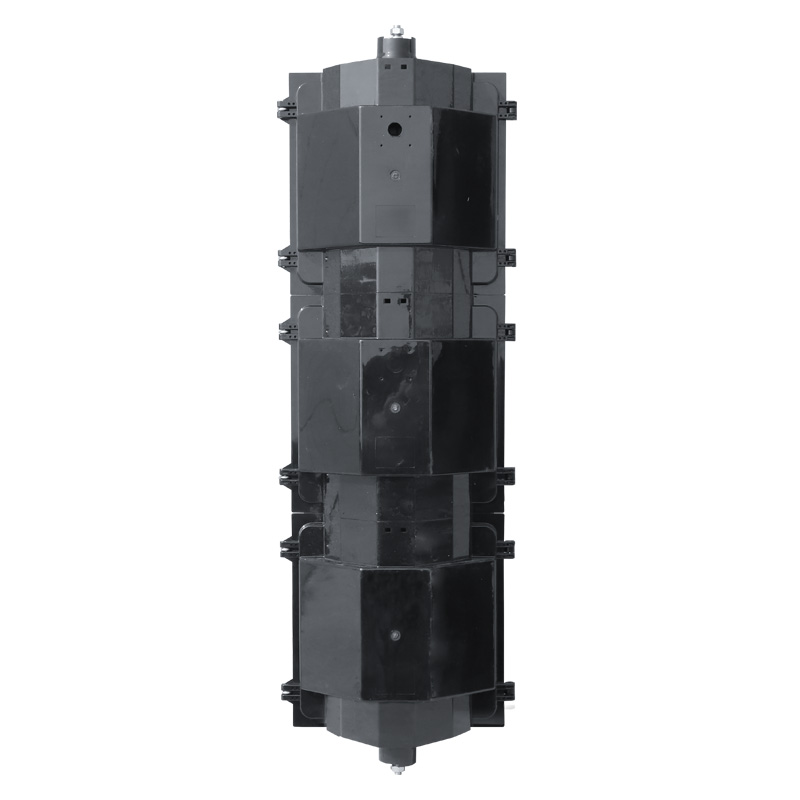

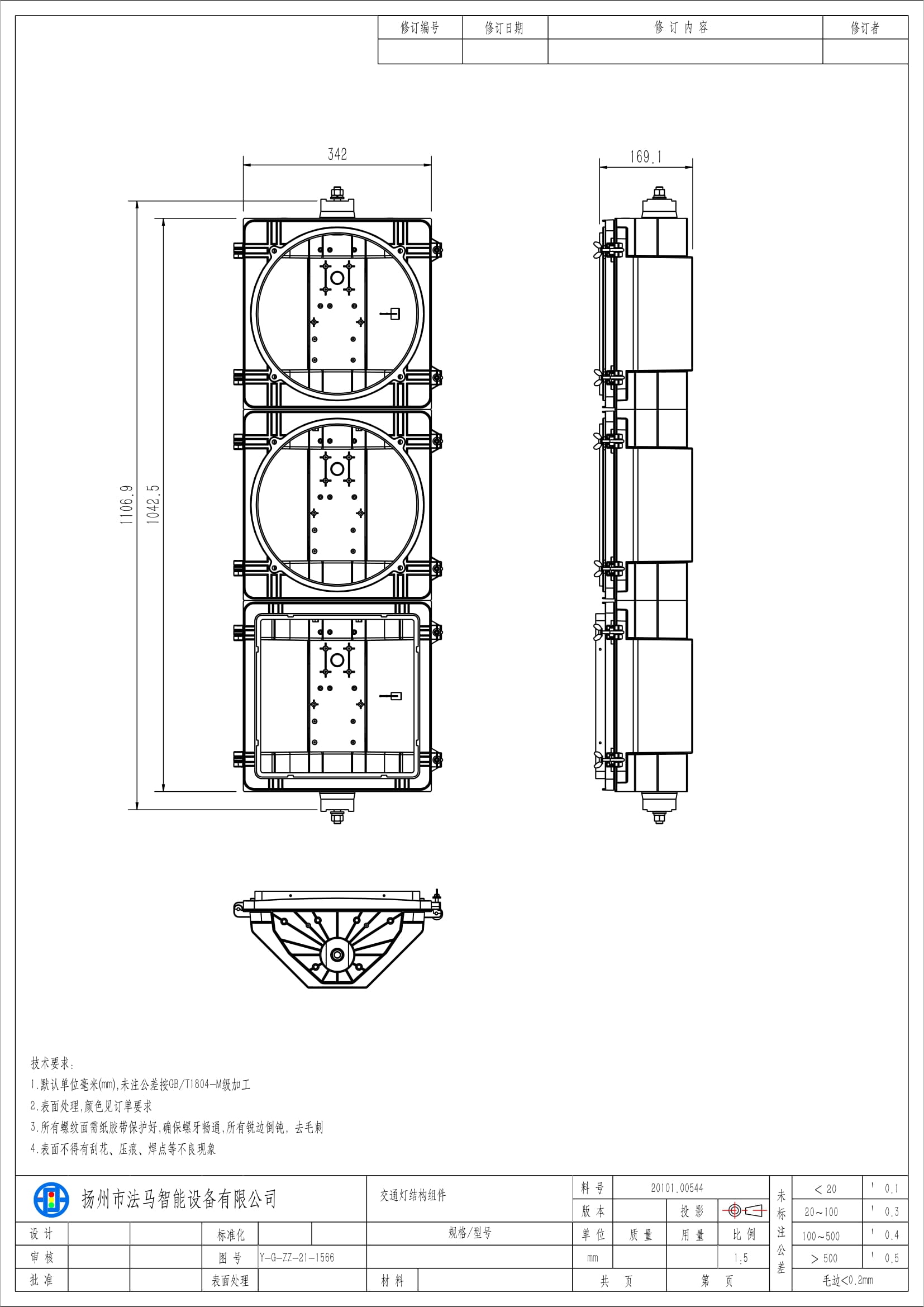

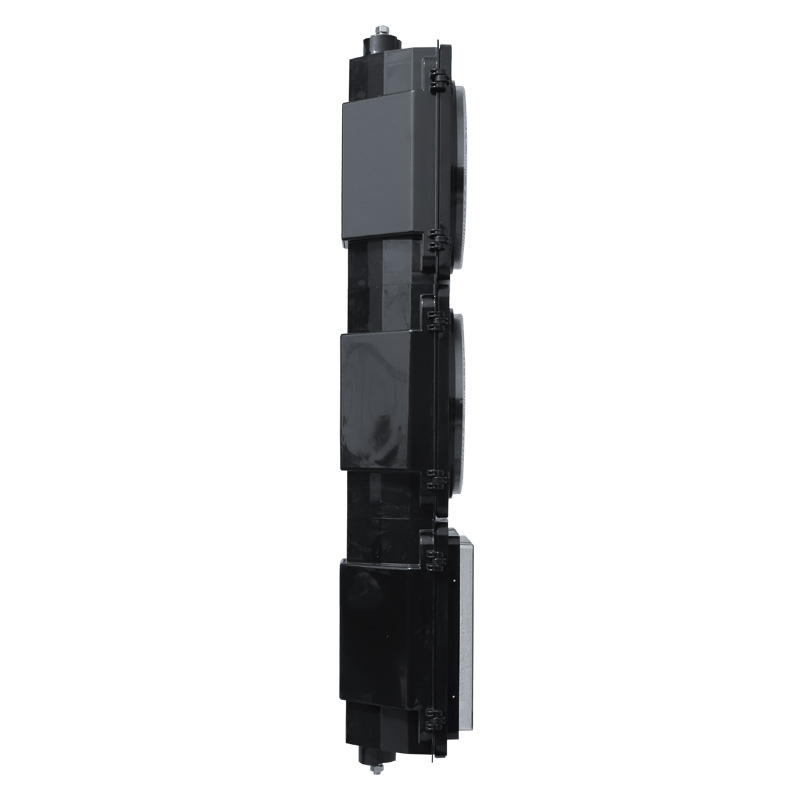

Structural Components
