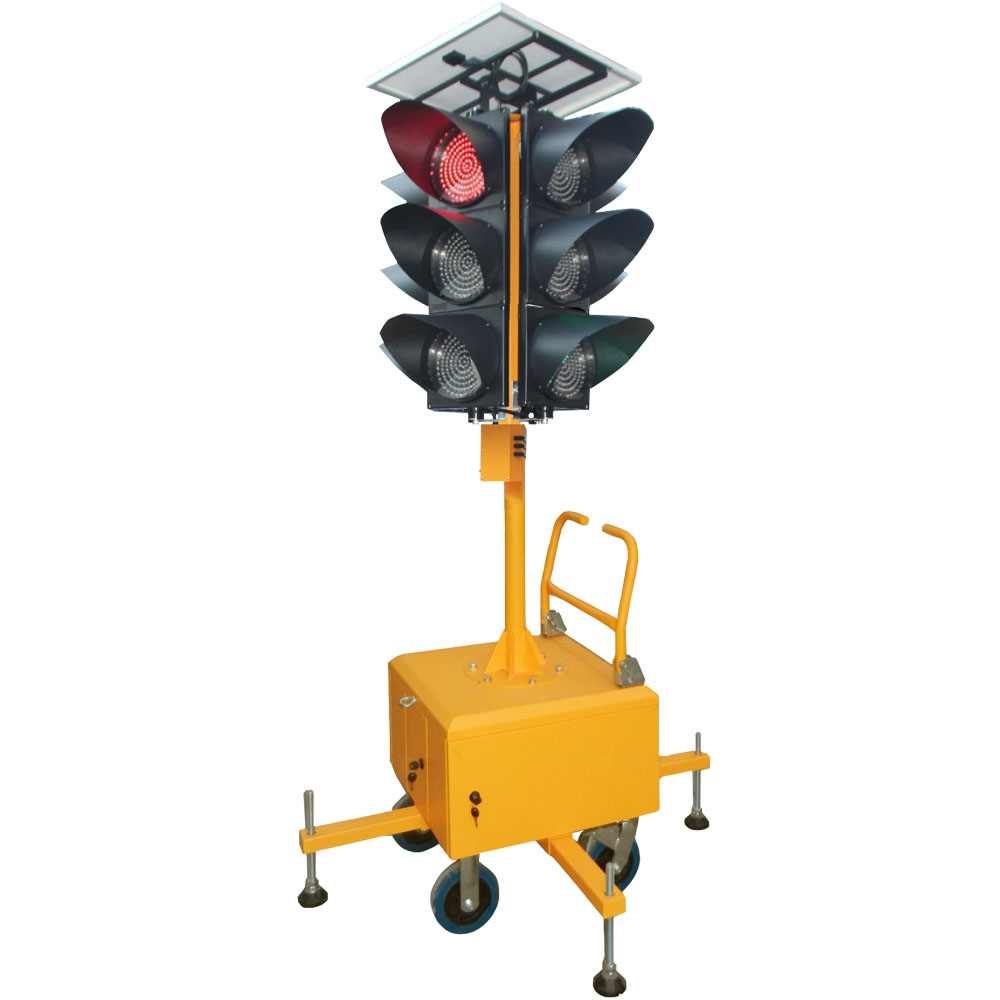

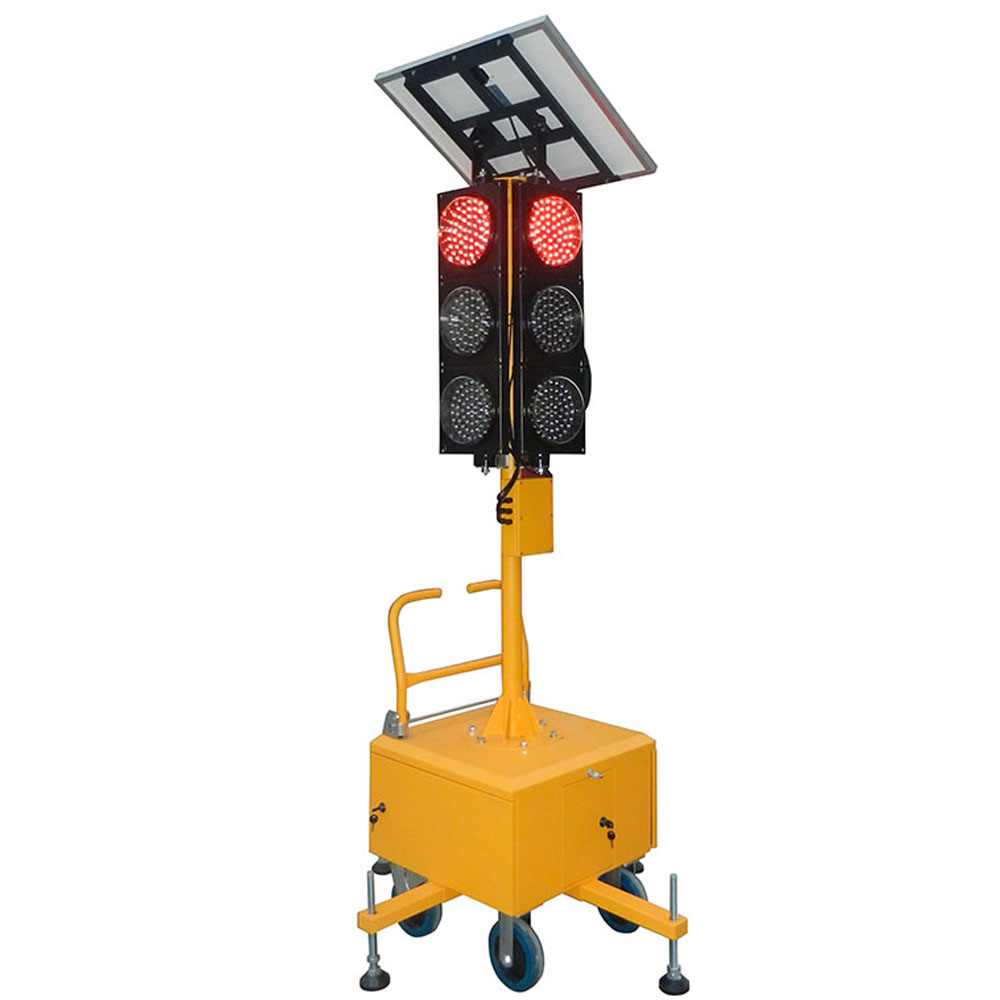

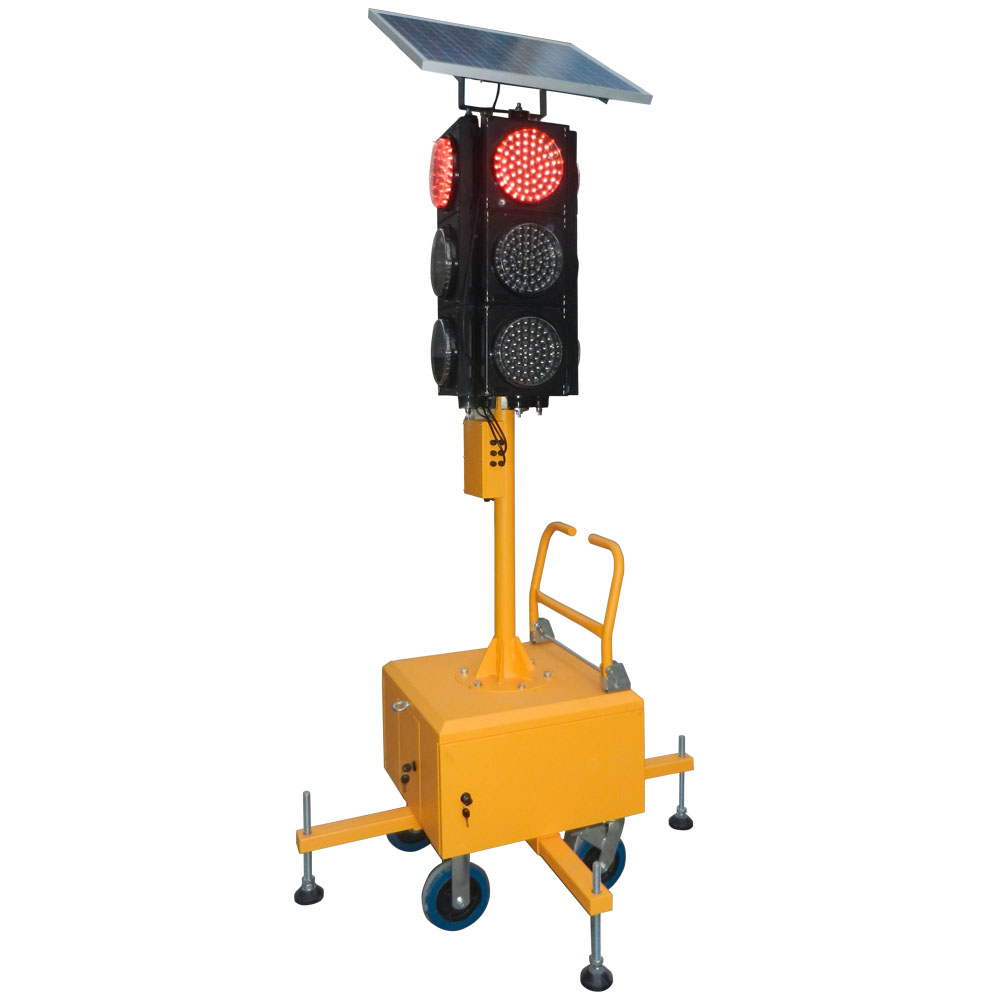

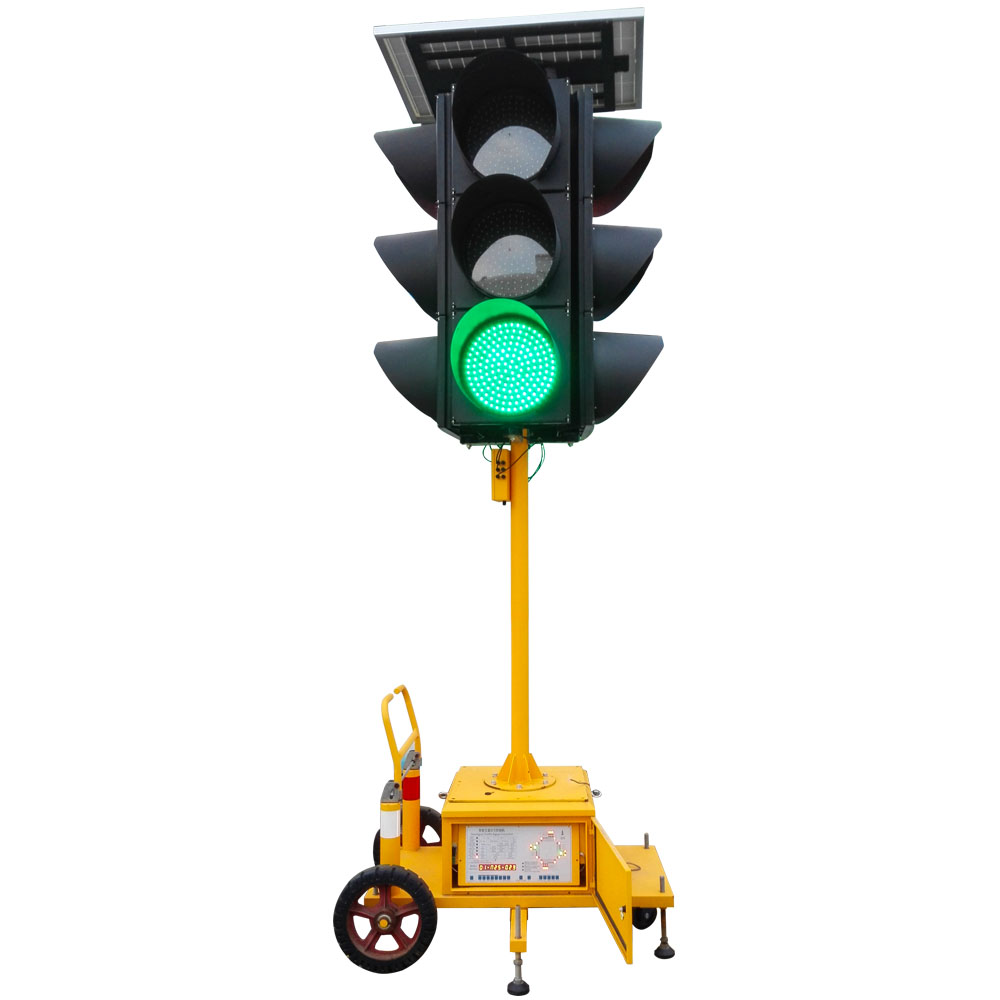

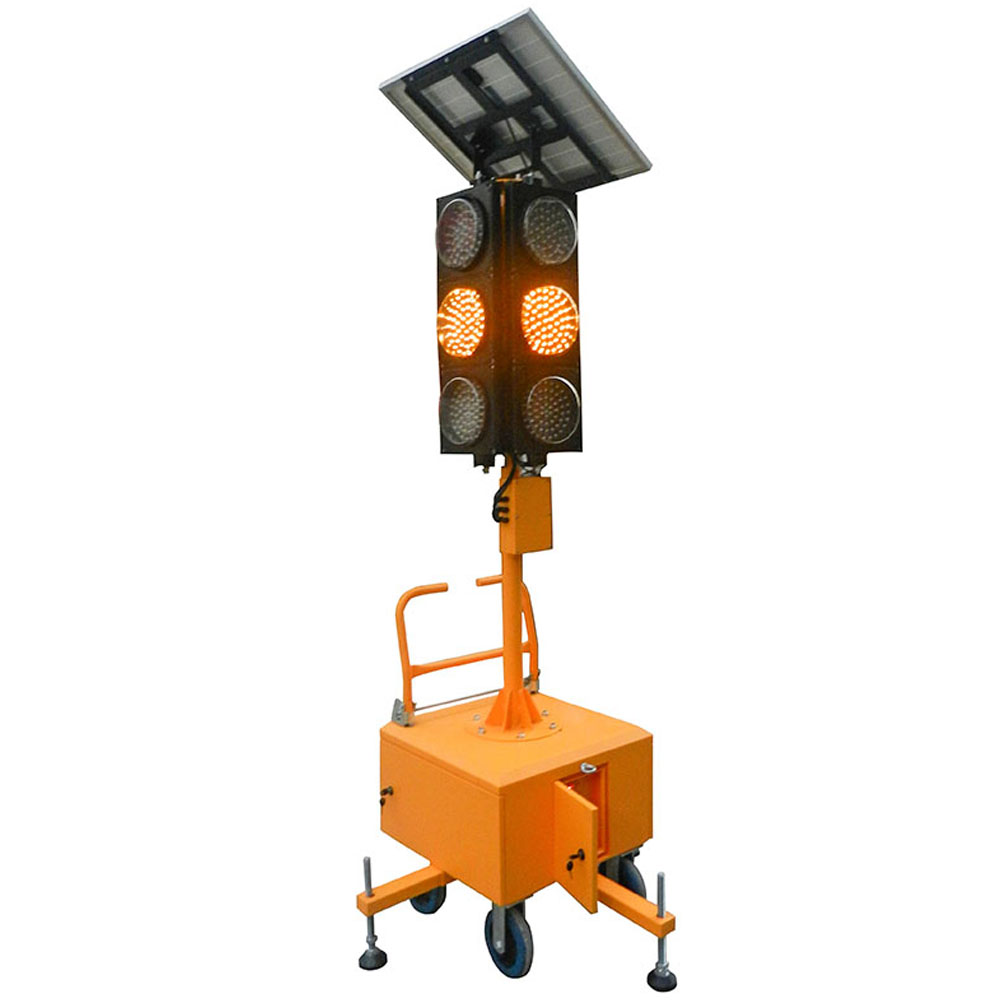

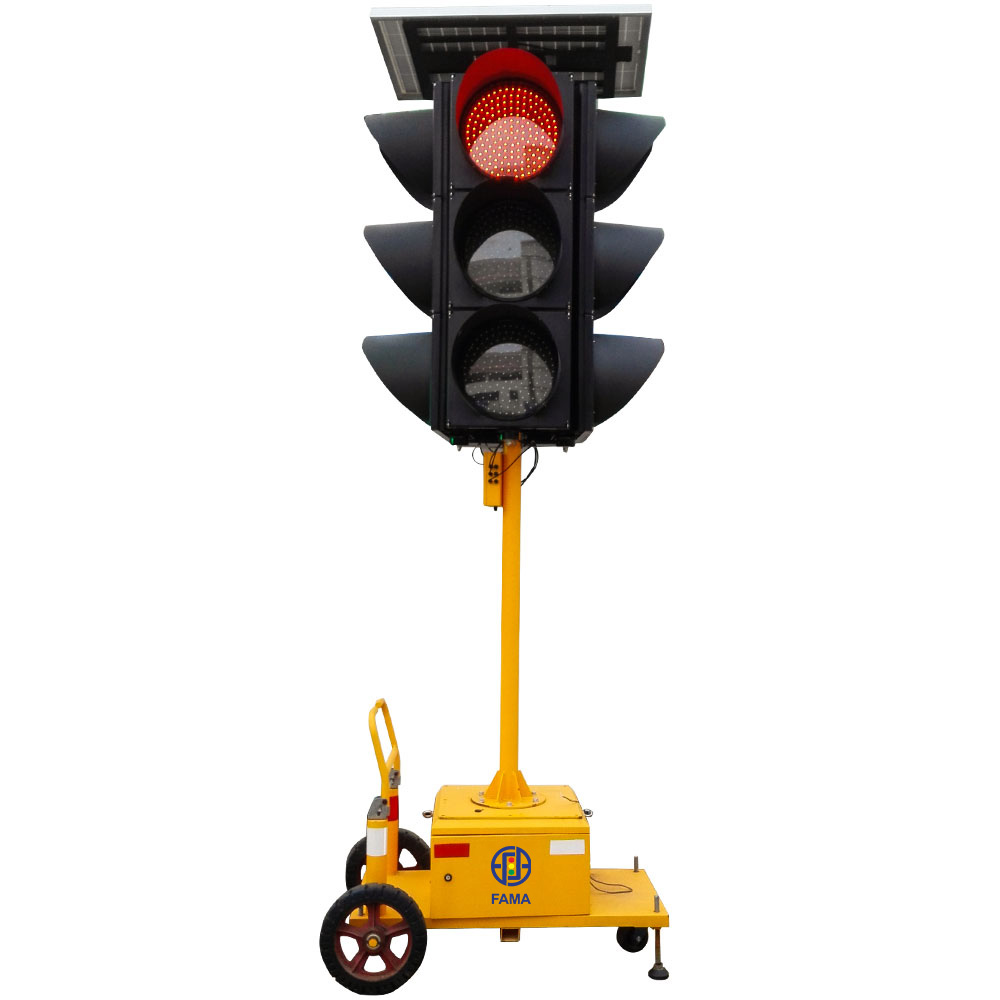

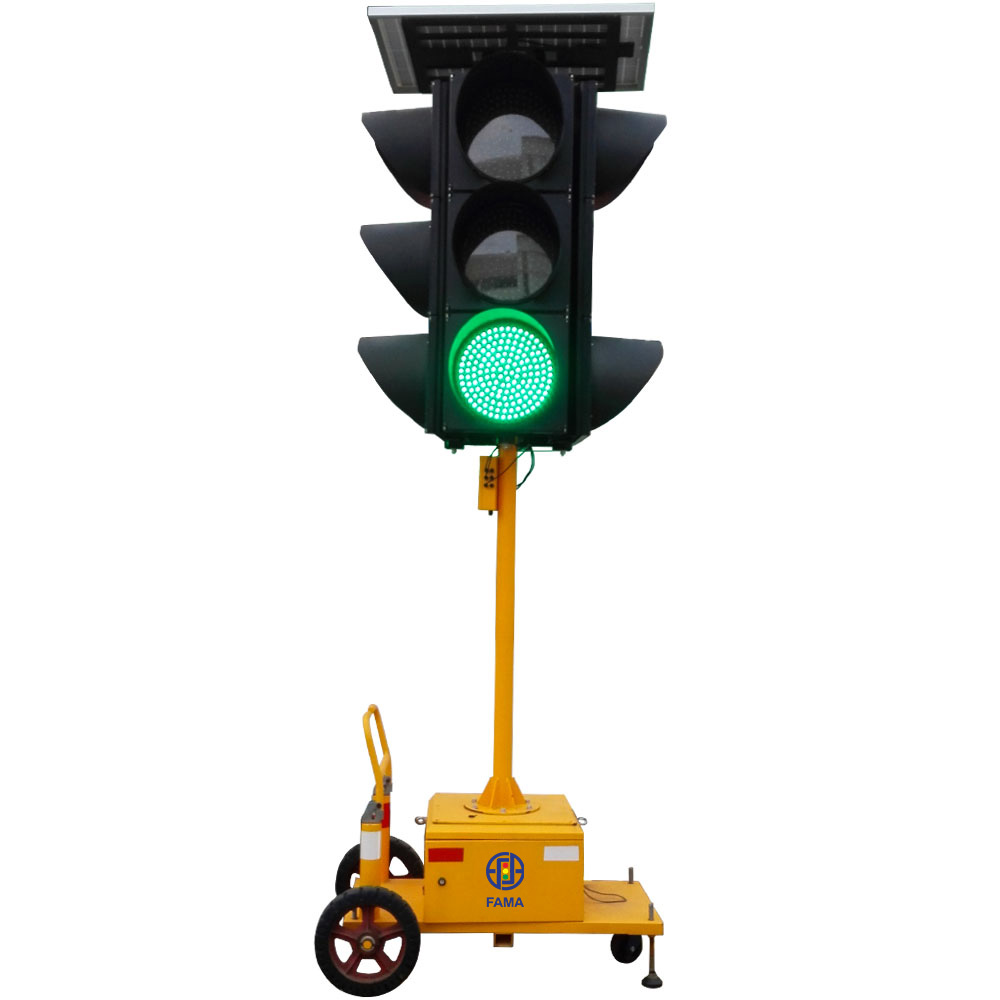

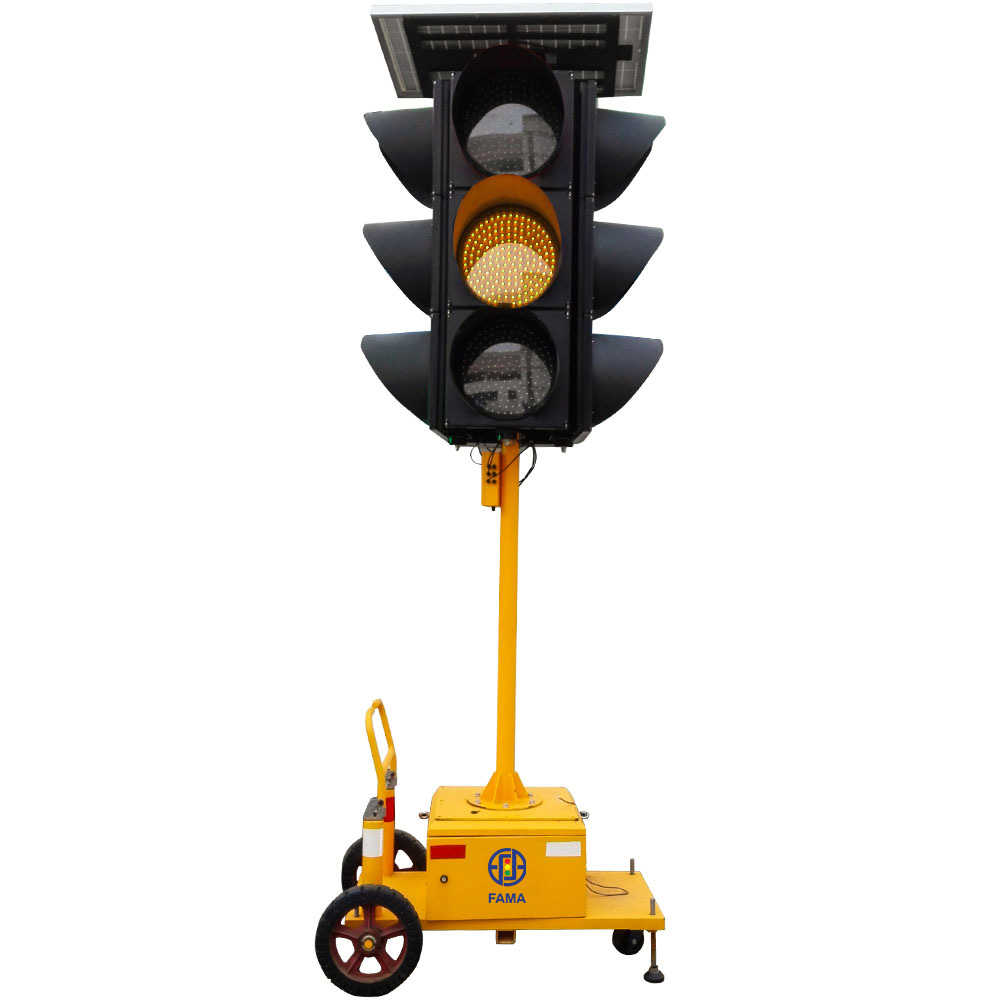

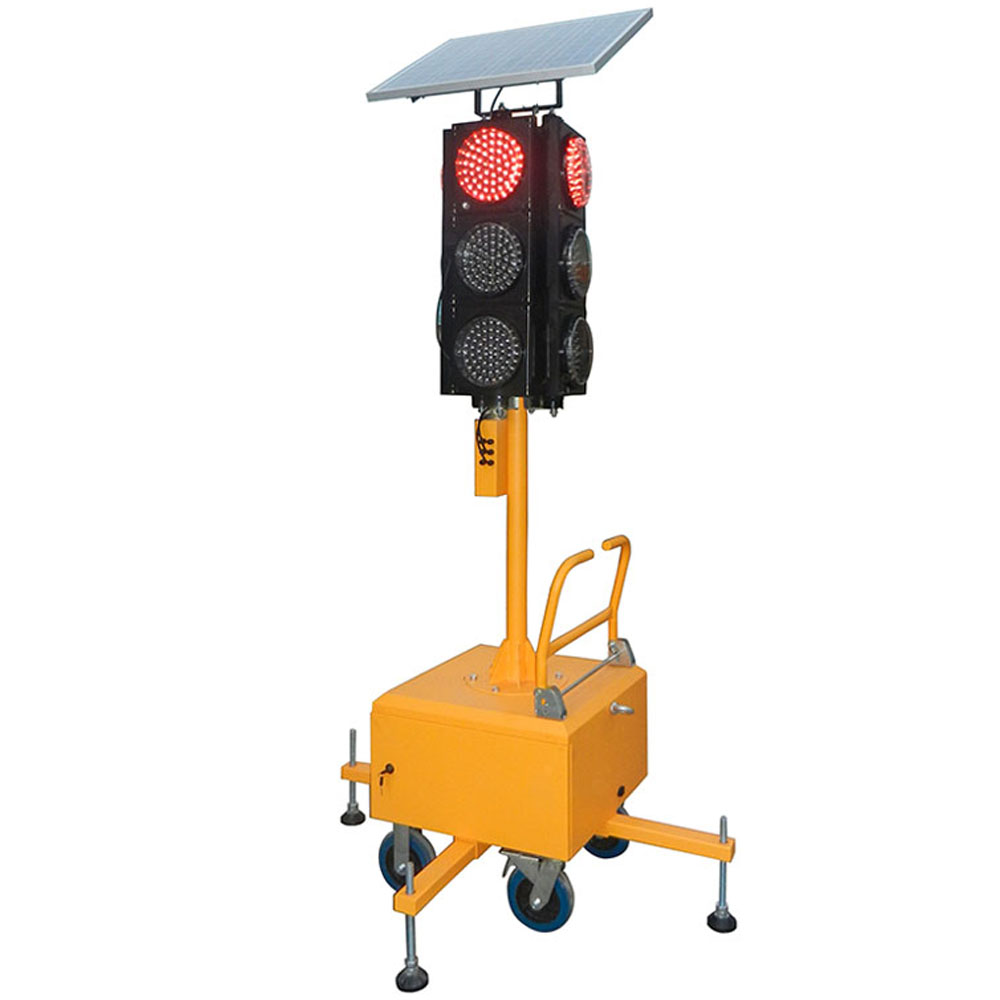

Solar-Powered Mobile Integrated Traffic Light
-
Model:
Fama Solar-Powered Mobile Integrated Traffic Light is an intelligent traffic control solution that integrates a dual-charging system combining solar energy and power grid, an elevating lamp pole, and multi-period control functionality. This system is specifically designed for temporary traffic management and construction zone signal control applications.
Overview
Product Introduction:
Fama Solar-Powered Mobile Integrated Traffic Light is an intelligent traffic control solution that integrates a dual-charging system combining solar energy and power grid, an elevating lamp pole, and multi-period control functionality. This system is specifically designed for temporary traffic management and construction zone signal control applications.
Add the to your project
Functional Features
Product Selling Points:
1. Dual power supply mode for extended operational duration:
Supports simultaneous or independent charging via solar panels or power grid. Ensures continuous operation for more than 155 hours in the absence of sunlight.
2. Dual technology assurance for enhanced system stability:
Features maintenance-free sealed gel batteries and built-in dual protection circuits against overcharging and overdischarging, significantly improving operational safety and system reliability.
3. Intelligent dimming for energy efficiency and environmental sustainability:
Utilizes constant-current drive dimming technology. Automatically reduces brightness to 50% at night, achieving over 30% improvement in energy efficiency.
4. Multi-period control for improved traffic flow management:
Equipped with an intelligent control system that supports pre-programmed traffic plans for weekdays and weekends, with automatic switching between modes. Offers expandable custom configuration options to accurately meet diverse traffic control requirements, thereby enhancing overall traffic efficiency.
At a glance
| Product Model | YDSJD200-3-FM3P2501 | YDSJD300-3-FM3P3001 |
| Overall Dimensions | 1200x920x2592mm | 610 × 610 × 3000 mm |
| Visors Size | Φ216x205mm | 754.9 × 220 × 0.6 mm |
| Executive Standard | GB/14887-2011 | GB/14887-2011 |
| Product Height | 2.5m | 2.5 m + 0.5 m (lifting height) |
| Light-Emitting Surface (LES) Size | 200mm | 300mm |
| Housing Material | Galvanized sheet | Galvanized sheet |
| Operating Voltage | DC12V | DC12V |
| Motor Parameters | / | Lift height: 500mm ± 0.5mm Lift speed: 20 mm/s ± 5% Rated power: 60 W |
| LED Quantity | R/Y/G:90 pcs | R/Y/G:81 pcs |
| Lamp Power Consumption | Red full ball≤7W； Yellow full ball≤7W； Green full ball≤6W ； | Red full ball ≤ 3 W Yellow full ball ≤ 3 W Green full ball ≤ 2 W |
| Maximum Power Consumption of the Whole Machine | ≤10W； | ≤12W； |
| Solar Panel (W) | 75W/18V | 50W/18V |
| Storage Battery (AH) | 100AH/12V | 100AH/12V |
| LED Wavelength | Red：625±5nm Yellow：590±5nm Green：505±5nm | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤95%RH | ≤95%RH |
| Protection Grade | IP55 | IP55 |
| Visual Distance | ≥300m | ≥300m |

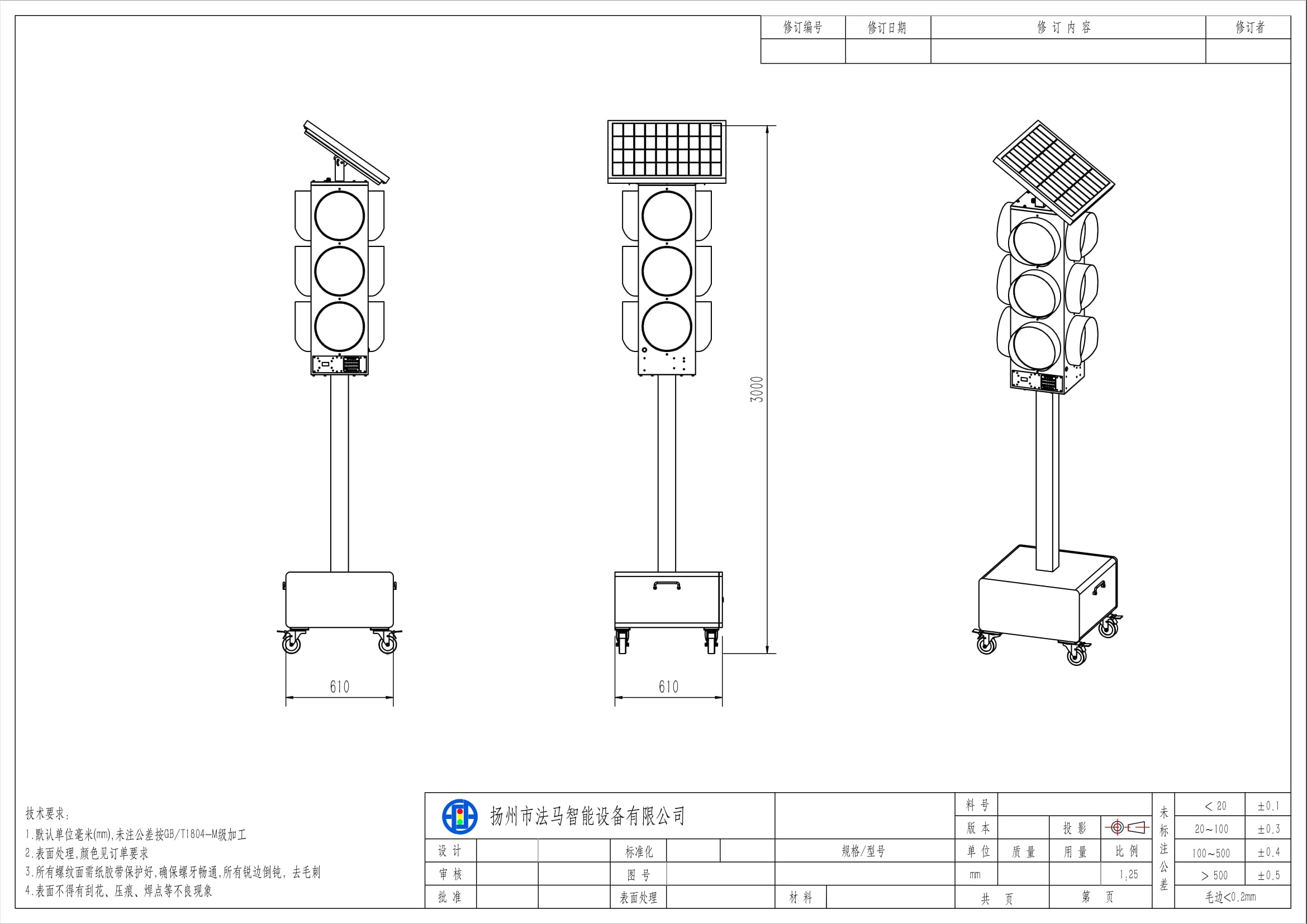

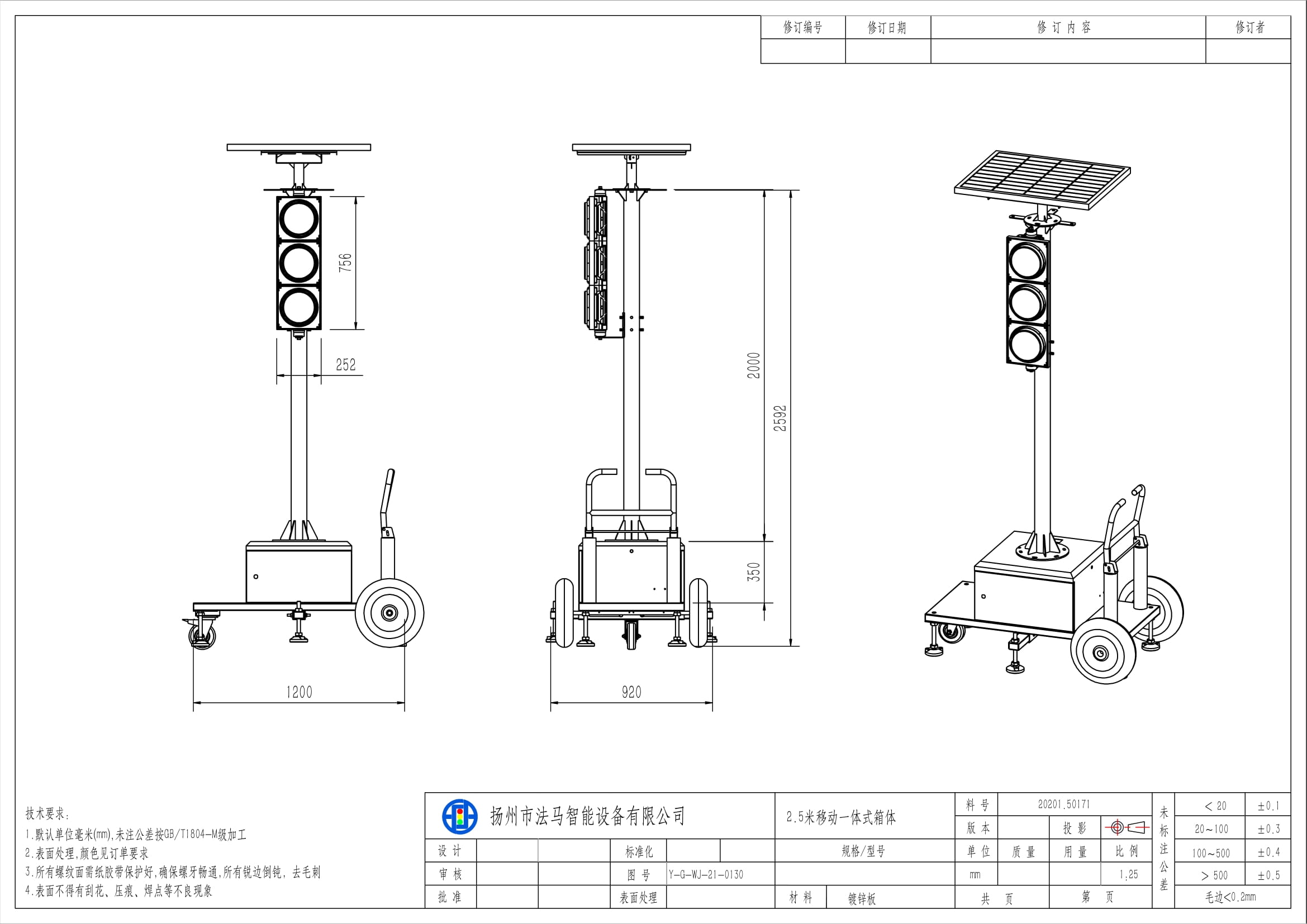

Structural Components
