Smart Integrated Traffic Light with Pedestrian Detection for Efficient Urban Intersections

Overview

Product Introduction:

Fama Intelligent Pedestrian Detection Integrated Traffic Light is a "6-in-1" traffic control device that integrates pedestrian signal control, red-light violation capture, real-time information dissemination, voice alert, countdown display via LED light bars, and intelligent interaction capabilities. Leveraging advanced deep learning algorithms, high-definition video acquisition, and multi-source sensor fusion technologies, the system enables precise identification of pedestrian behavior and automated evidence collection for traffic violations, thereby significantly improving pedestrian safety and traffic efficiency at intersections.

Add the to your project

Contact us to order

Functional Features

Automated remote evidence collection:
The system operates continuously 24/7, eliminating management blind spots and overcoming spatial and temporal constraints. It effectively addresses the challenges of insufficient police resources and difficulties in on-site evidence collection, ensuring timely detection, documentation, correction, and deterrence of pedestrian red-light violations.
Intelligent algorithm analysis:
The system employs image feature-based and machine learning-driven algorithms capable of performing reliable detection in complex environments. It effectively minimizes false positives caused by factors such as shadows and camera vibrations. By analyzing pedestrian motion, color, and contour characteristics, the system automatically identifies and records illegal crossing behaviors.
Audio-visual warning system:
Upon detecting a violation, the system not only activates a loud voice alert but also displays the violation on a high-brightness outdoor LED screen for clear visual feedback. During green light intervals, the screen can also be used to broadcast public service announcements and traffic safety messages, thereby promoting civic awareness and responsible behavior.

At a glance

Product Model	YTRX300-FM3G3501
Overall Dimensions	L × W × H: 500 × 250 × 3500 mm
Visors Size‌	754.9 × 220 × 0.6 mm
Executive Standard	GB 14887-2011
Light-Emitting Surface (LES) Size	300mm
Housing Material	Galvanized sheet
Operating Voltage / Frequency	AC85 ~ 264V/47-63Hz
System Core	CPU: RK3399 + 4 × RK1808 processor RAM: 4G + 16G Linux system Positioning system: Dual-mode Beidou and GPS Integration
Device Interface	Wired Connectivity: Dual network ports (Gigabit Ethernet + 100Mbps Ethernet) (WAN + LAN) Wireless Connectivity: 4G full network support + dual-band WiFi (2.4G / 5G) RS485 × 3 HDMI × 1 Type-C × 1 USB 3.0 × 4 + USB 2.0 × 4 SATA 3.0 hard disk interface × 1
37-inch High-Luminance LCD Display	Resolution: 1920 × 540 Backlight brightness: ≥ 1000 cd/㎡ Operating voltage: DC12 V ± 0.5 V Power consumption: ≤ 8 0W
Pedestrian Video Detection System	Dimensions: 198 × 152 × 98 mm Resolution: 8 Megapixels Sensor: 1-inch global shutter CMOS Functions: Pedestrian Detection and Capture, Facial Detection, Triple Video Stream Output (Main Stream / Auxiliary Stream / Snapshot Stream) Focal length: 4.8 - 120 mm (25 x optical zoom) Infrared illumination distance: 30 - 100 meters (intelligent dual filter switching, no red glow) Temperature range: -20℃ to +70℃ Rated power: 6 W
LED Quantity	Static red pedestrian light: 65 pcs Static green pedestrian light: 81 pcs Red/Green single 8 countdown: 70 pcs
Maximum Power Consumption of the Whole Machine	<160W
LED Wavelength	Red: 625 ± 5 nm Green: 505 ± 5 nm
Optical Brightness	5000~15000cd/m²
Insulation Resistance	＞2MΩ
LED Lifespan	≥100,000 hours
Operating Temperature	-40℃ to +80℃
Relative Humidity	≤95%RH
Protection Grade	IP55
Visual Distance	≥300m

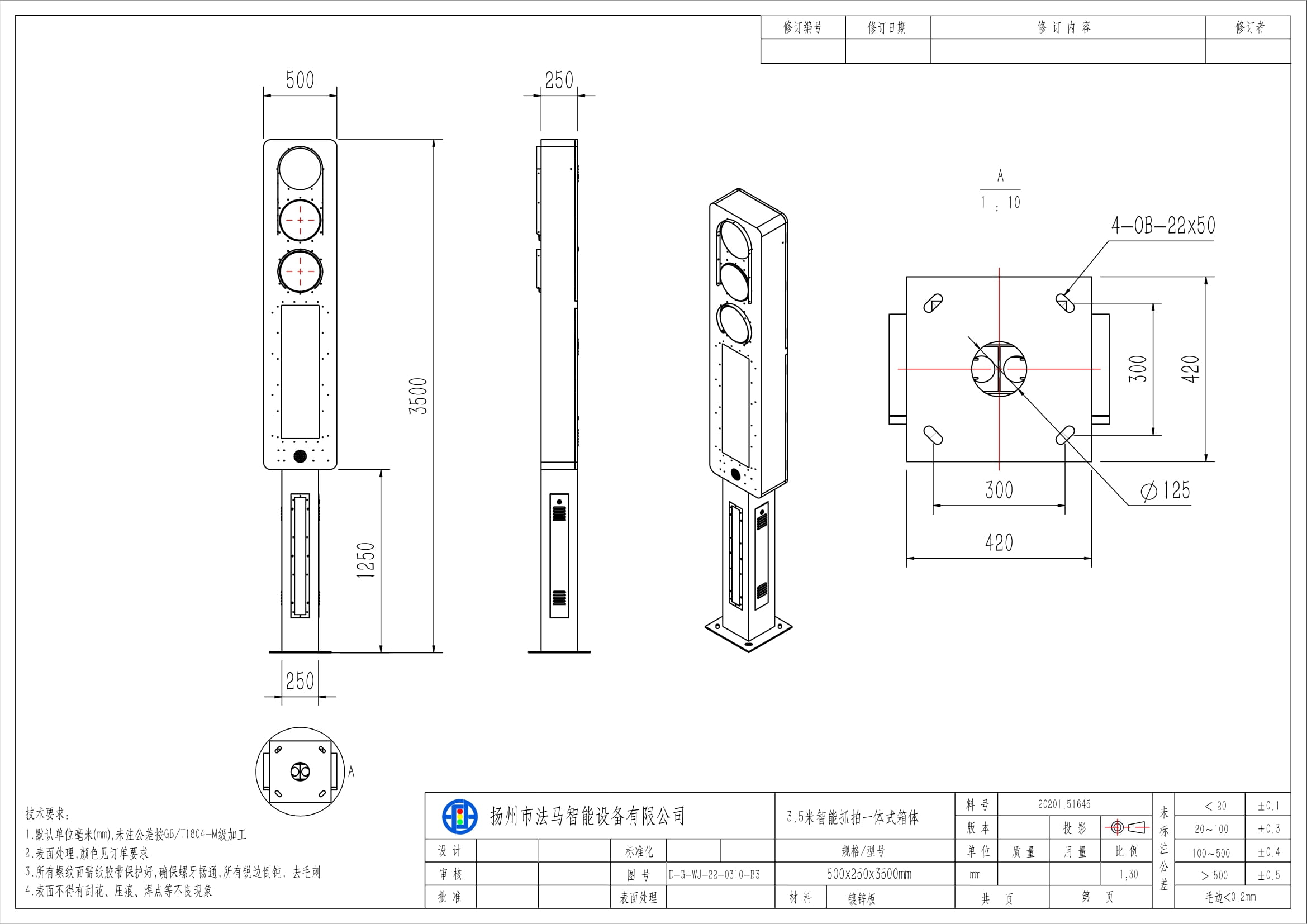

Structural Components

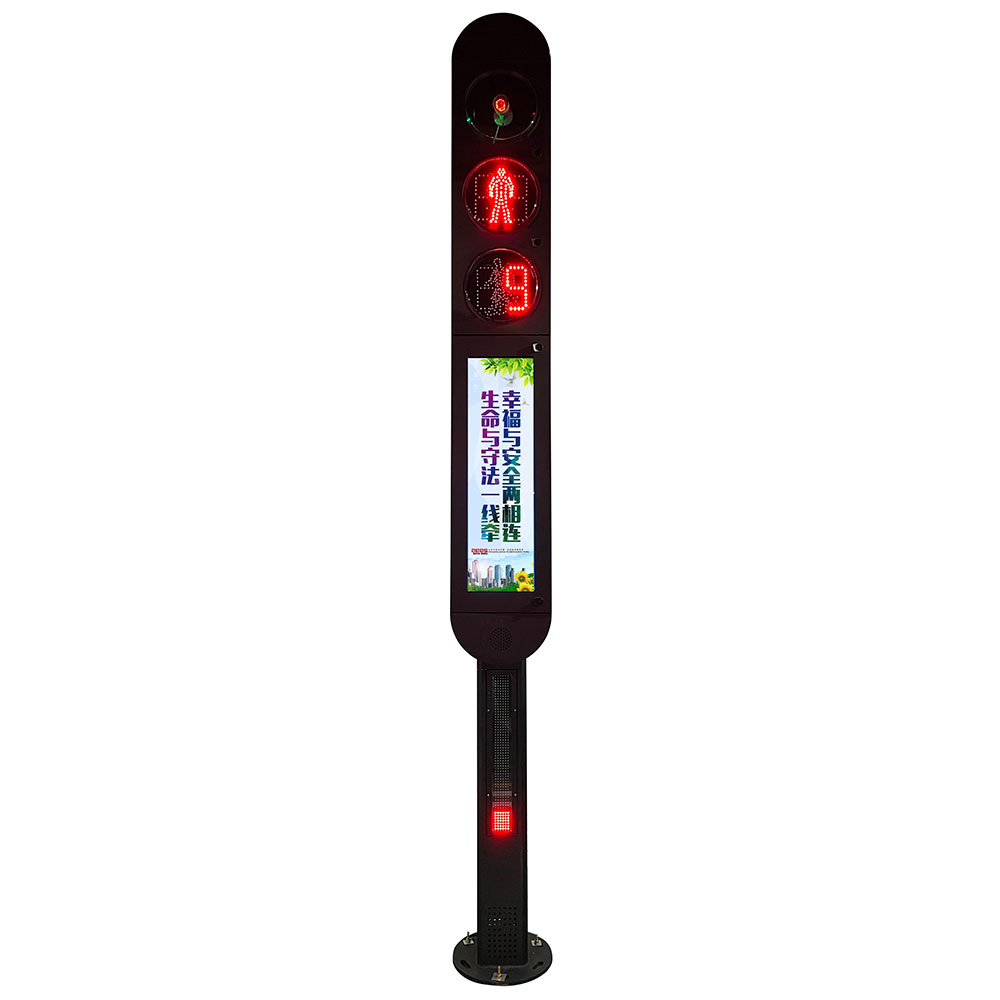

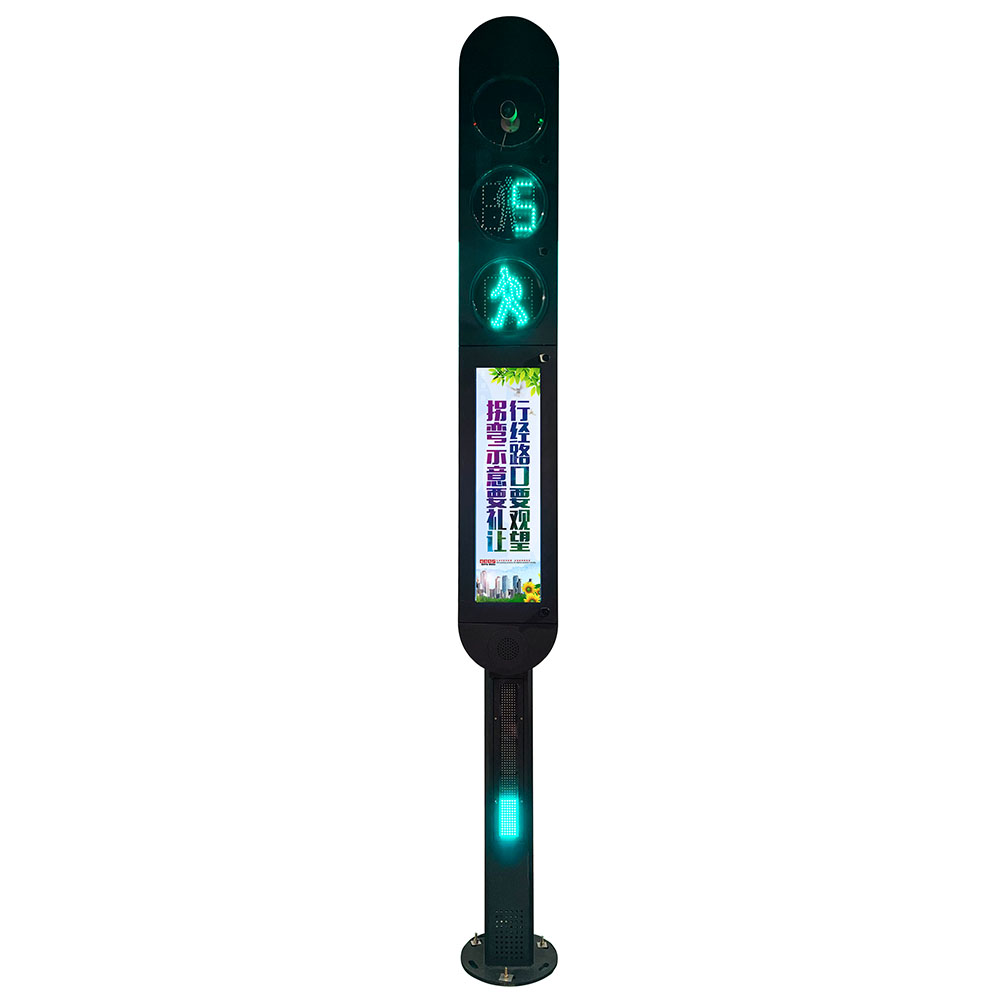

Intelligent Pedestrian Detection Integrated Traffic Light -

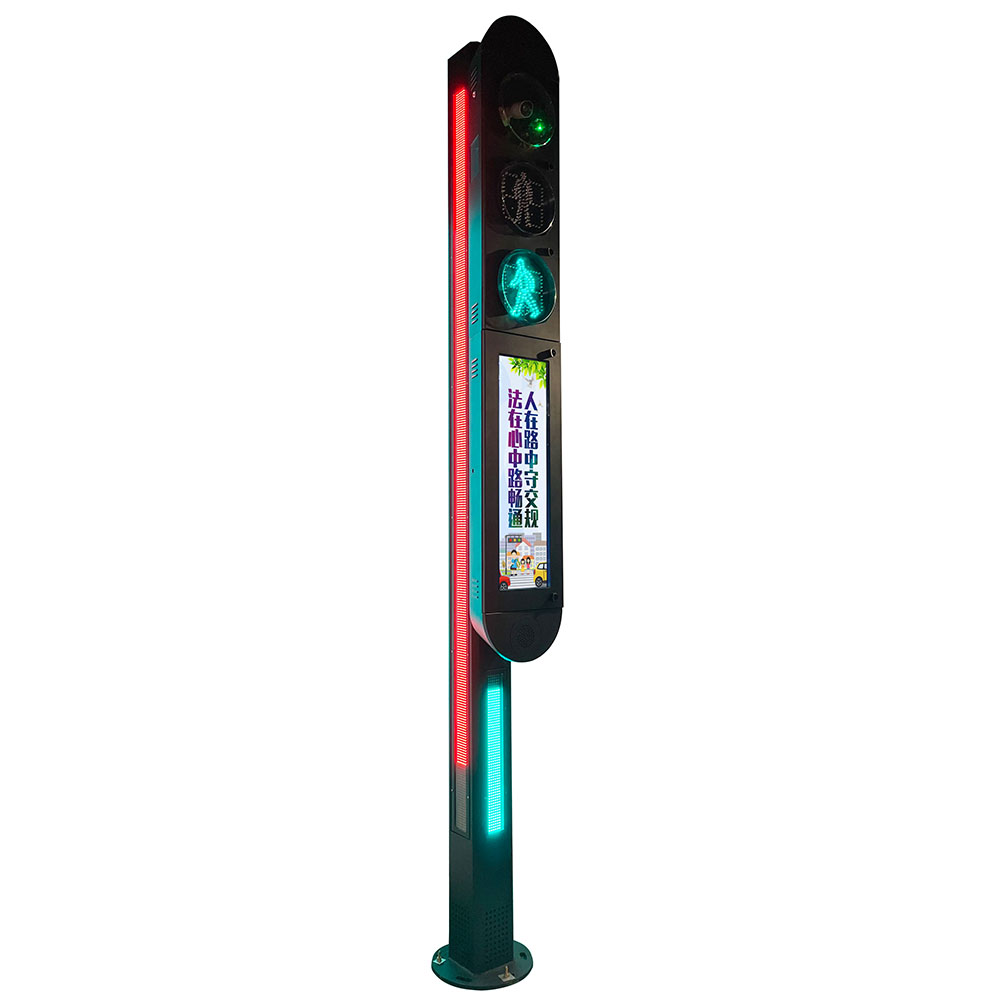

Intelligent Pedestrian Detection Integrated Traffic Light
-
