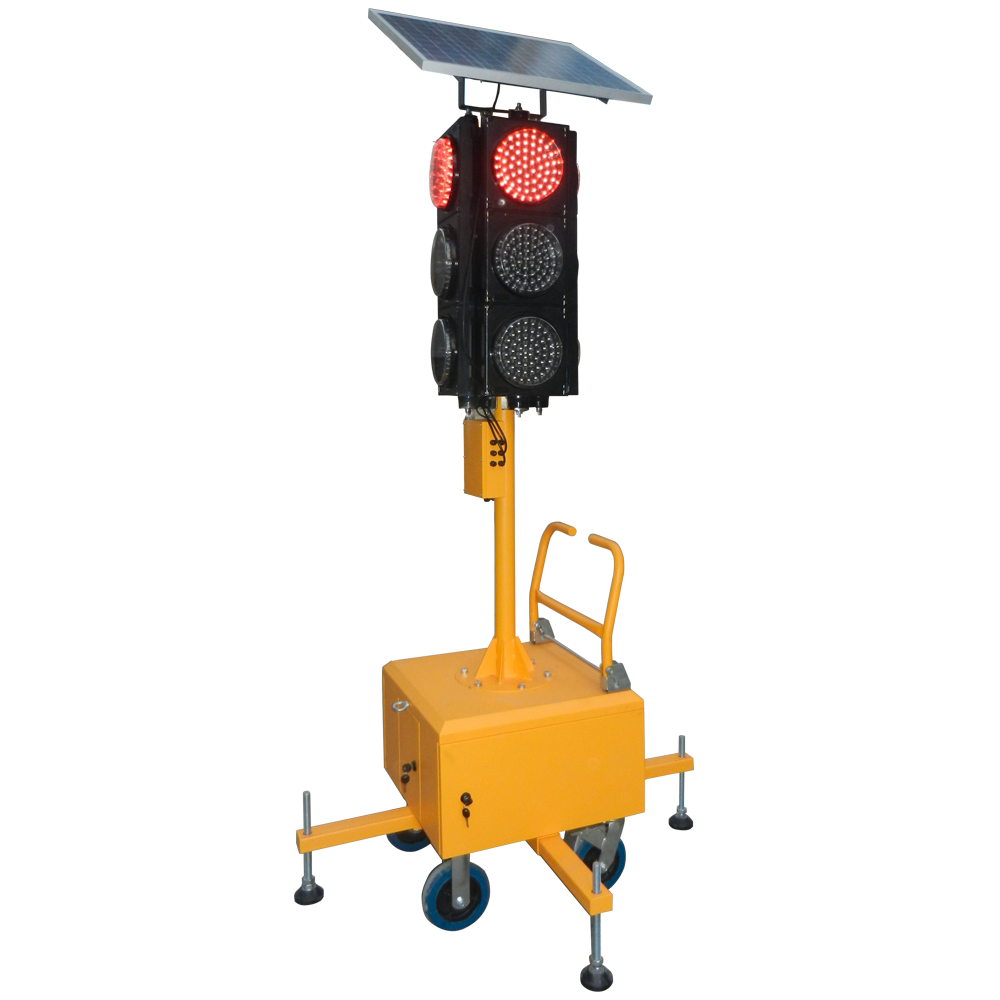

3m Height Moveable Four-side LED Solar Traffic Light
Read more

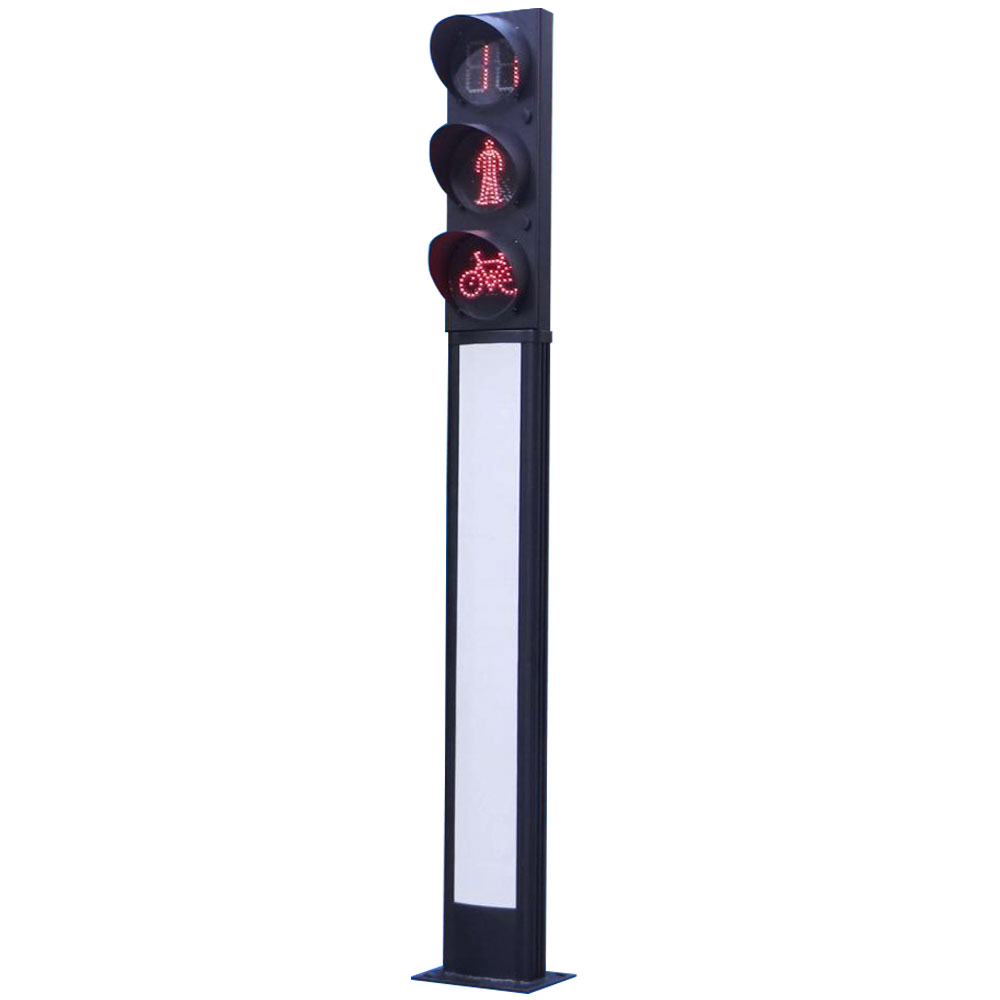

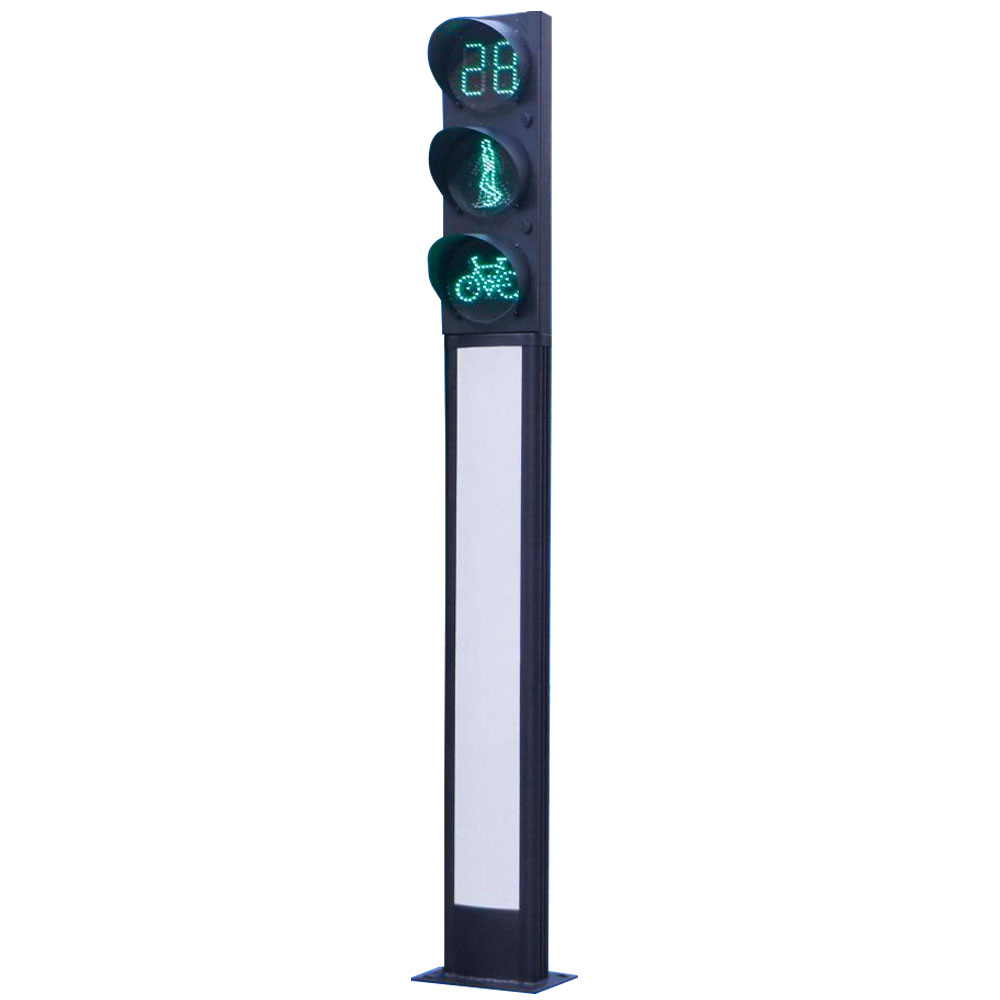

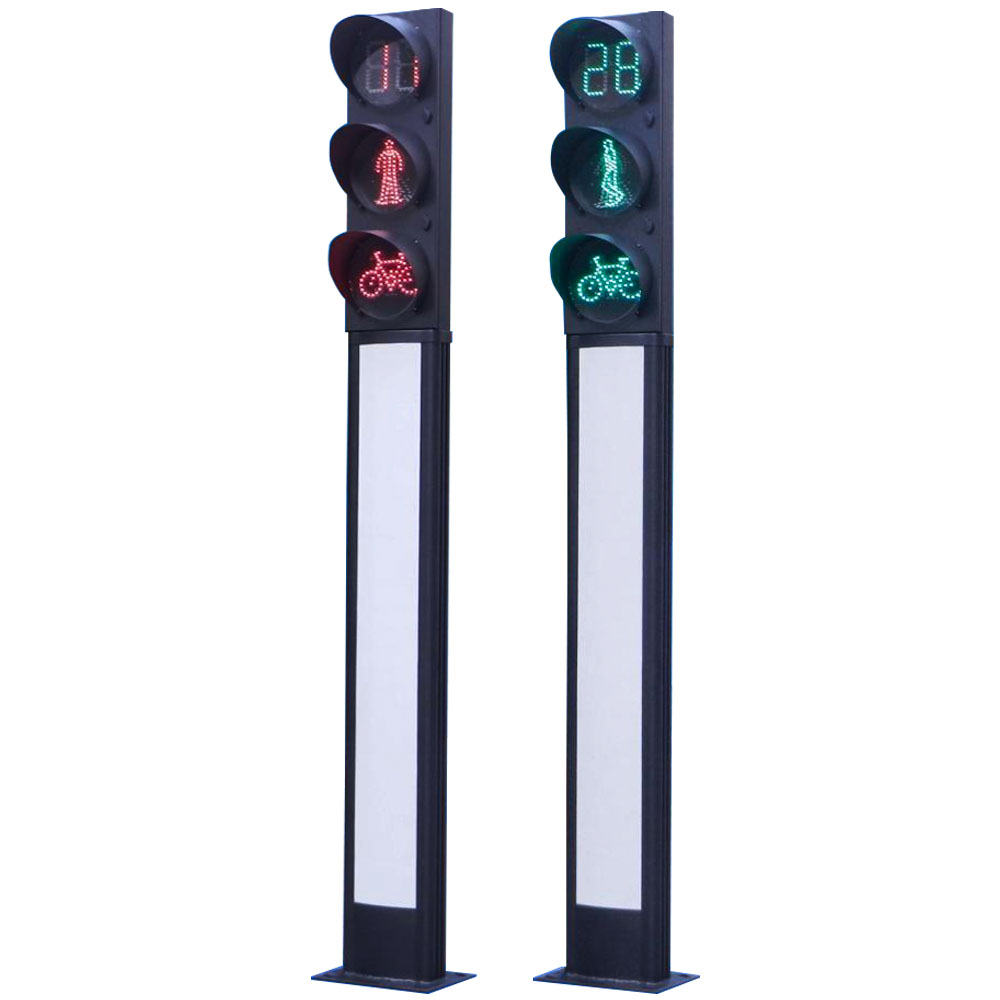

Integrated Traffic Light
-
Model:
Fama Integrated Traffic Light is a modern traffic management terminal that combines signal display and intelligent control. Through highly integrated design, it provides efficient, safe and energy-saving solutions for small urban traffic intersections, effectively simplifying intersection facilities and enhancing management efficiency. It is suitable for small traffic signal control intersections.
Overview
Product Introduction:
Fama Integrated Traffic Light is a modern traffic management terminal that combines signal display and intelligent control. Through highly integrated design, it provides efficient, safe and energy-saving solutions for small urban traffic intersections, effectively simplifying intersection facilities and enhancing management efficiency. It is suitable for small traffic signal control intersections.
Add the to your project
Functional Features
Product Selling Points:
1. Highly integrated design for labor cost reduction
By eliminating the traditional discrete installation approach (separate signal lights and poles), the system significantly reduces construction time and associated labor costs. It also minimizes disruption to traffic during installation, further enhancing cost efficiency.
2. Robust construction for enhanced durability and reliability
The system features a high-grade sheet metal enclosure with superior structural integrity. Designed to be waterproof, dustproof, corrosion-resistant, shock-resistant, and immune to electromagnetic interference, it ensures stable and reliable operation under diverse environmental conditions, thereby significantly extending service life.
At a glance
| Product Model | YTRX300-3-FM2P3031 |
| Overall Dimensions | 380 × 128 × 3000 mm |
| Executive Standard | GB/14887-2011 |
| Light-Emitting Surface (LES) Size | 300mm |
| Housing Material | Galvanized sheet |
| Visors Size | 754.9 × 220 × 0.6 mm |
| Operating Voltage / Frequency | AC：85~264V/47-63Hz |
| LED Quantity | Static red pedestrian light: 80 pcs Dynamic green pedestrian light: 117 pcs |
| Lamp Power Consumption | <30W |
| LED Wavelength | Red: 625 ± 5 nm Green: 505 ± 5 nm |
| Luminous Intensity | 5000~15000cd/m² |
| Insulation Resistance | ＞20MΩ |
| LED Lifespan | ≥100,000 hours |
| Operating Temperature | -40℃ to +80℃ |
| Relative Humidity | ≤95%RH |
| Protection Grade | IP55 |
| Visual Distance | ≥300m |

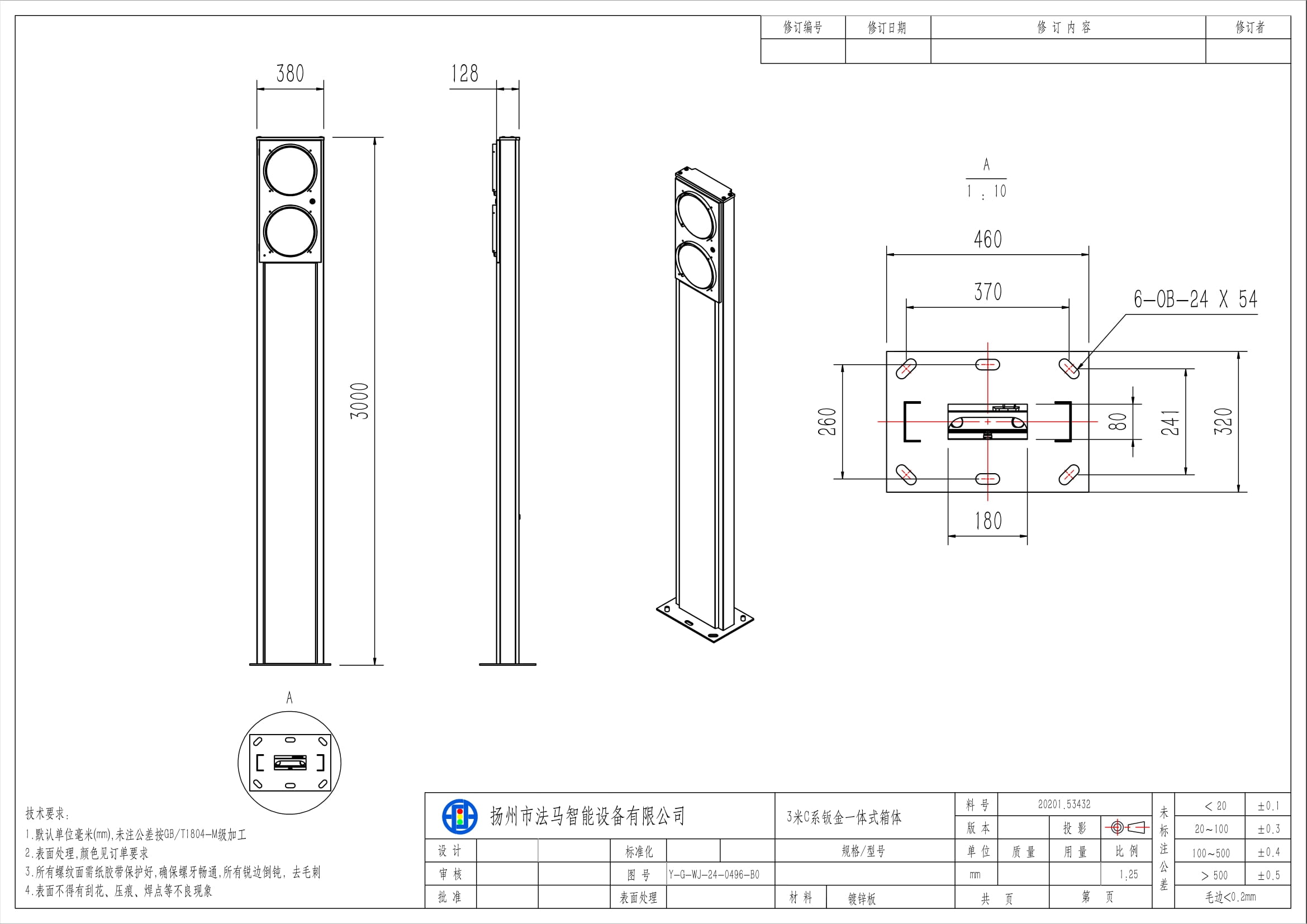

Structural Components
