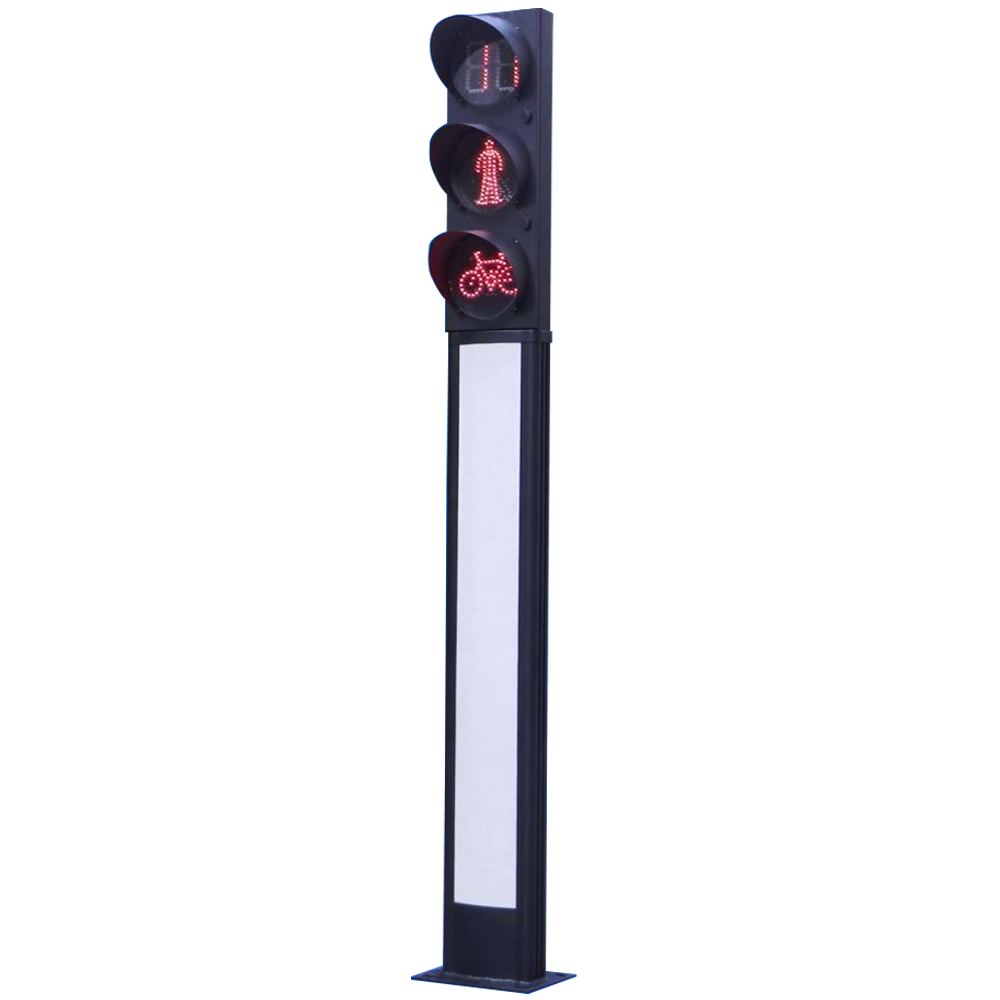

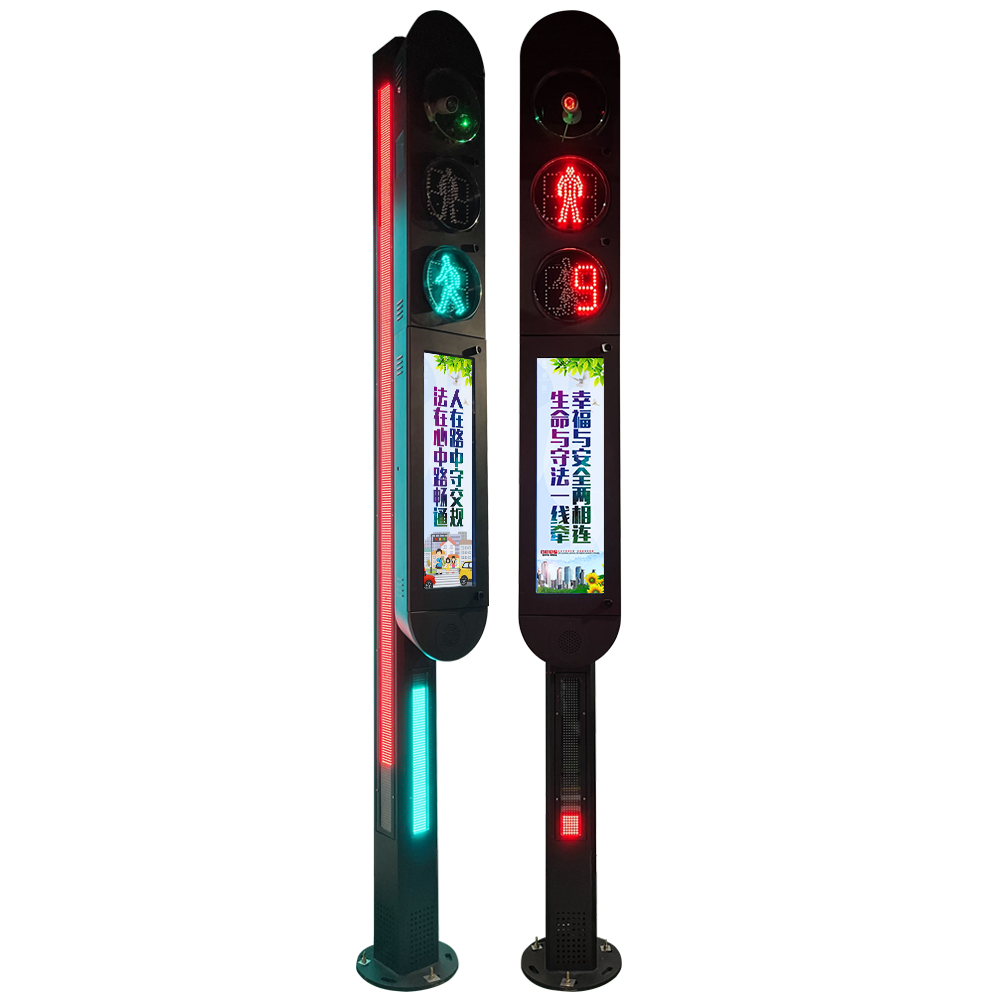

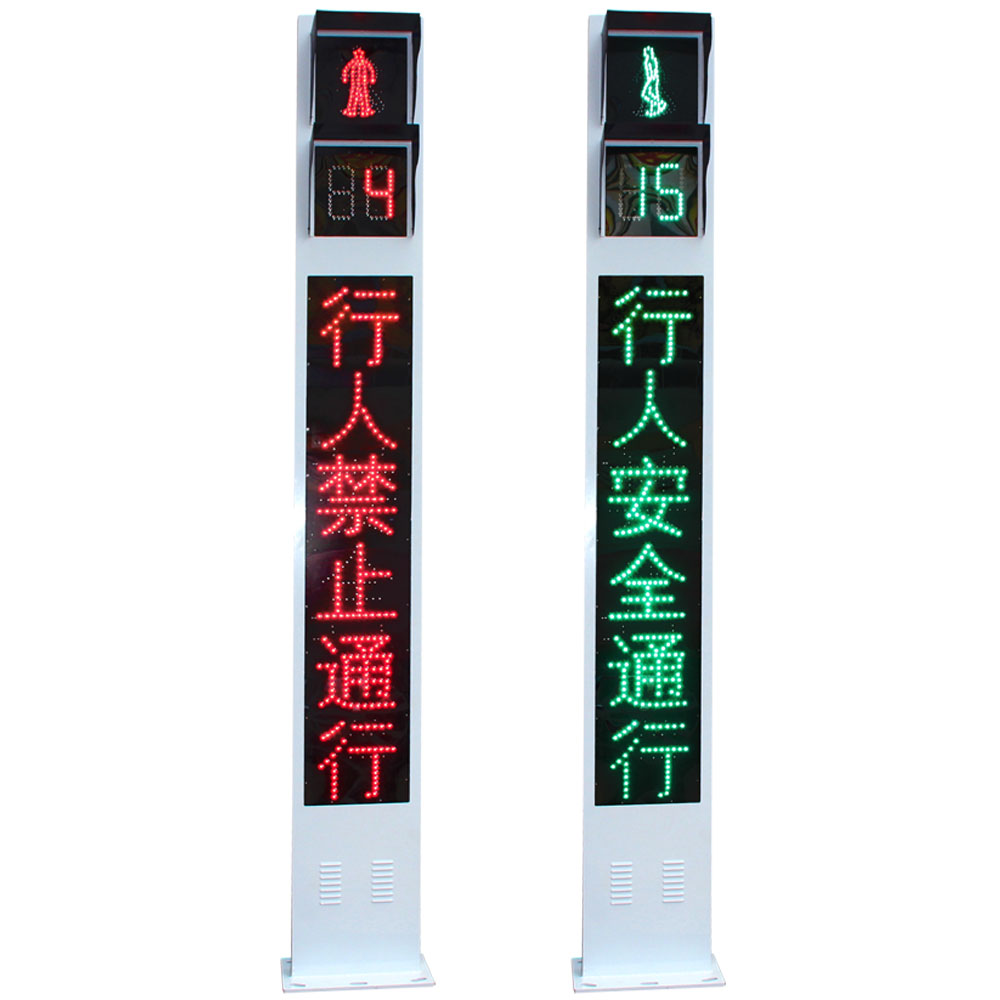

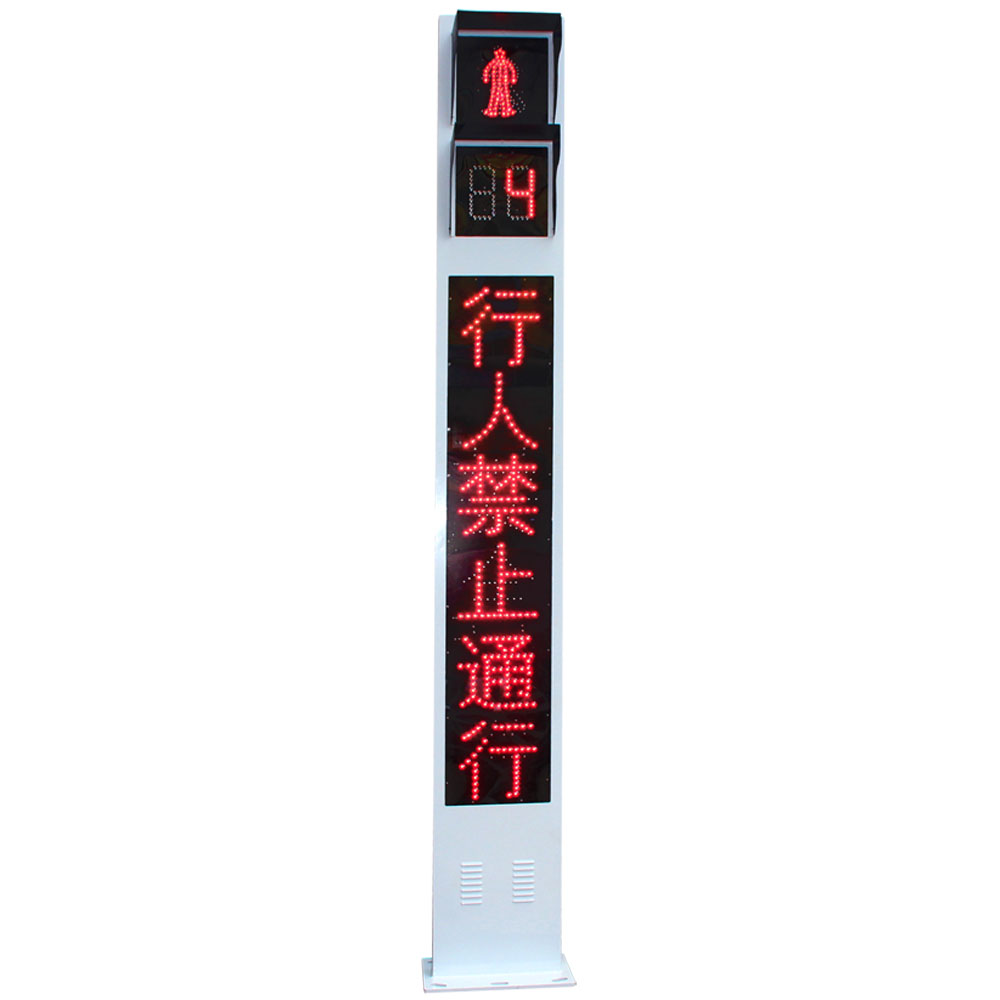

Integrated Traffic Light with Module Screen
-
Model:
Fama Integrated Traffic Light with Module Screen is a modern traffic management terminal that combines signal display functionality, intelligent control systems, and integrated display modules into a single unit. Through highly integrated design, it provides efficient, safe and energy-saving solutions for small urban traffic intersections, effectively simplifying intersection facilities and enhancing management efficiency. It is suitable for small traffic signal control intersections.
Overview
Product Introduction:
Fama Integrated Traffic Light with Module Screen is a modern traffic management terminal that combines signal display functionality, intelligent control systems, and integrated display modules into a single unit. Through highly integrated design, it provides efficient, safe and energy-saving solutions for small urban traffic intersections, effectively simplifying intersection facilities and enhancing management efficiency. It is suitable for small traffic signal control intersections.
Add the to your project
Functional Features
Product Selling Points:
1. Highly integrated design for labor cost reduction
By eliminating the traditional discrete installation approach (separate signal lights and poles), the system significantly reduces construction time and associated labor costs. It also minimizes disruption to traffic during installation, further enhancing cost efficiency.
2. Robust construction for enhanced durability and reliability
The system features a high-grade sheet metal enclosure with superior structural integrity. Designed to be waterproof, dustproof, corrosion-resistant, shock-resistant, and immune to electromagnetic interference, it ensures stable and reliable operation under diverse environmental conditions, thereby significantly extending service life.
3. Intelligent display with real-time synchronization
Integrated with an editable display module, it supports the display of text, images, and simple animations. The displayed content intelligently follows the real-time switching of traffic signal phases, achieving precise synchronization.
At a glance
| Product Model | YTRX300-3-FM3G3514 |
| Overall Dimensions | 400 × 175 × 3500 mm |
| Executive Standard | GB 14887-2011 |
| Light-Emitting Surface (LES) Size | 300mm |
| Visors Size | 754.9 × 220 × 0.6 mm |
| Housing Material | Galvanized sheet |
| Operating Voltage / Frequency | AC85~264V/47-63Hz |
| Operating Mode | □ Learning Mode □ Trigger Mode □ Communication Mode |
| P10 Outdoor Red and Green Bi-Color LED Display | Module size (W × H): 320 mm × 160 mm Red LED wavelength: 620 – 625 nm Green LED wavelength: 520 – 530 nm Pixel pitch: 10 mm Brightness: > 4500 cd/m² |
| LED Quantity | Static red pedestrian light: 80 pcs; Dynamic green pedestrian light: 129 pcs; Red/Green countdown: 64 pcs; |
| Maximum Power Consumption of the Whole Machine | <400W |
| LED Wavelength | Red: 625 ± 5 nm Green: 505 ± 5 nm |
| Optical Brightness | 5000~15000cd/m² |
| Insulation Resistance | ＞20MΩ |
| LED Lifespan | ≥100,000 hours |
| Operating Temperature | -40℃ to +80℃ |
| Relative Humidity | ≤95%RH |
| Protection Grade | IP55 |
| Visual Distance | ≥300m |

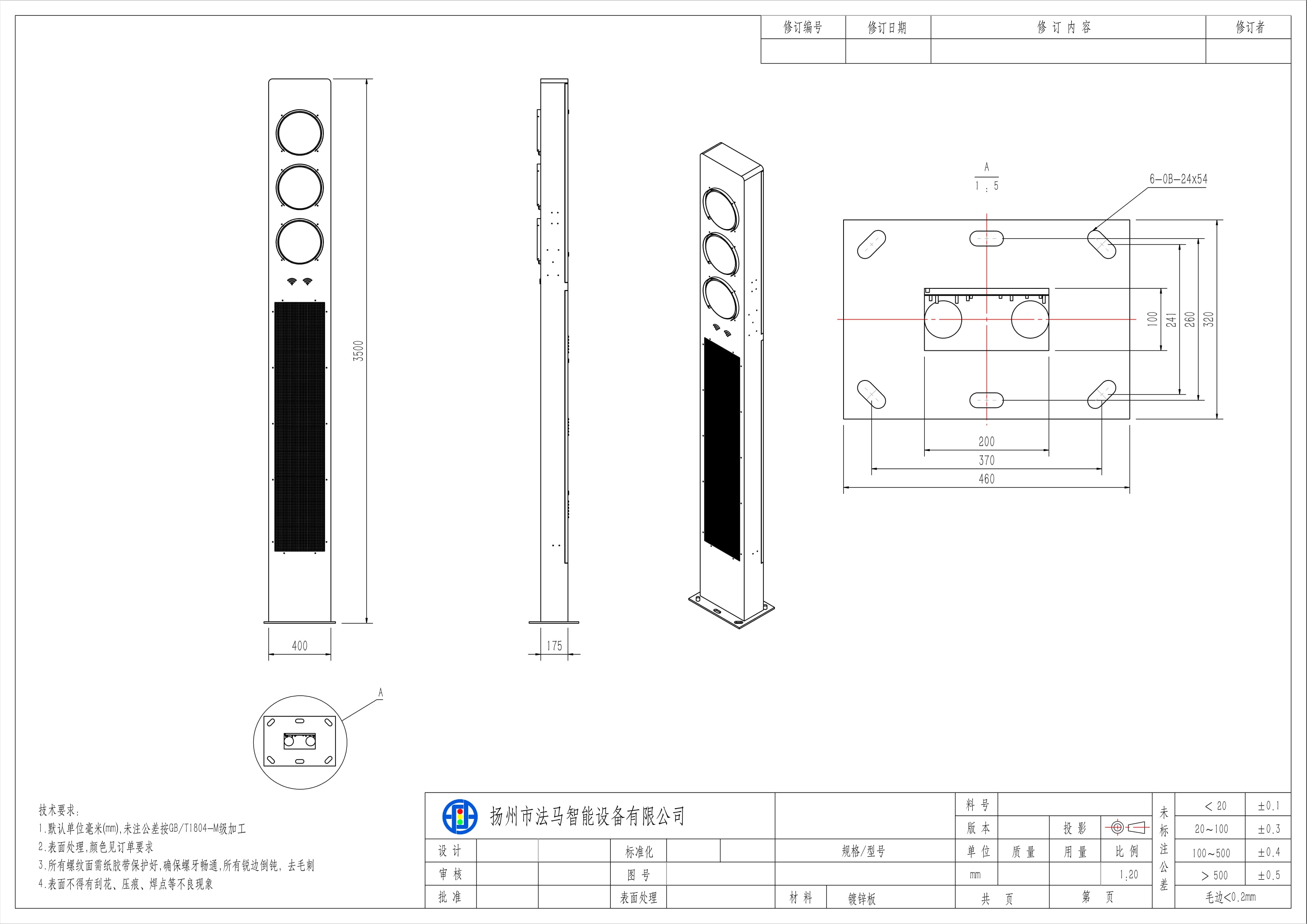

Structural Components
