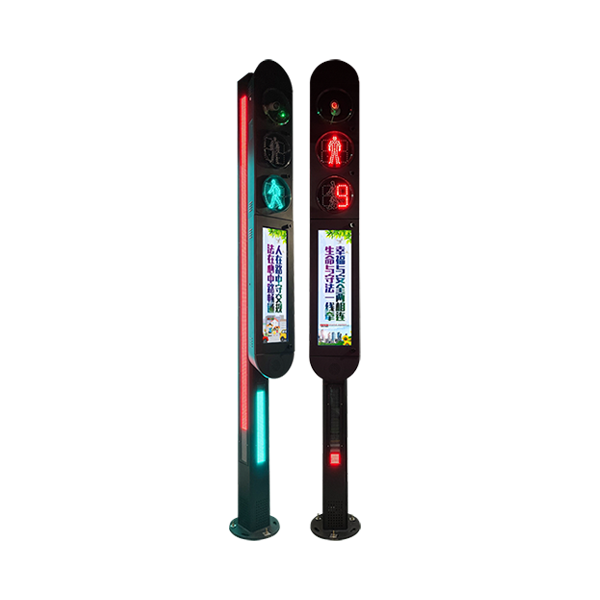

1.25m all-in-one traffic light
-Aluminum

Model:YTJD200-3-FM2P1201
Integrated cabinet, with simple and generous appearance, strong three-dimensional effect, high mechanical strength;good rust resistance and long life;Low power consumption, using high-brightness LED;long visual distance: ≥300m,long LED life:≥100000 hours;With PFC (PFC>0.9) corrected isolated switching power supply, surge protection voltage ≥4000V, and CE certification
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
Overview
to protect the safety of pedestrians, to give pedestrians the right toactively control the timing of crossing the street, to reduce the confict between pedestrians and vehicles, to enhance theconvenience of pedestrians crossing the street, especially in the case of larger traffic flow or fewer pedestrians, optimisingtraffic fow helps to rationally allocate the right of way, improve the overall capacity of the road, reminding vehicle drivers topay attention to the needs of pedestrians to cross the street, to improve the alertness of the traffic and safety.
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
  • 1.25m all-in-one traffic light
Add the YTJD200-3-FM2P1201 to your project
Functional Features
  • The working logic is divided into 3 stages
    Pedestrian red light ... wait for pedestrian to turn green after pressing the button---pedestrian green light
  • Precise, Rapid Testing
    Pedestrian red light stage redman backlight lit, support voice broadcast, slow ticking sound, 9s countdown prompt voice,can be optional through the software;
  • Built-in whether to enable the broadcast
    Voice announcement supports Chinese female voice, Chinese male voiceEnglish female voice, English male voice and other customised voices, 9s countdown voice is only valid in communicationand trigger mode, and the green light release time should be more than 9s, invalid in learning mode.
  • Large Spot Illumination
    Waiting for the pedestrian light to turn green stage after pressing the button supports voice announcement and slow ticking, at this time the vellow indicator board around the button flashes.
  • Multi-Size Sample Cells
    Pedestrian green light stage green backlight lit, support voice announcement, fast ticking, 9s countdown voice, can beconfigured through the software whether to enable, Voice announcement supports Chinese female voice, Chinese malevoice, English female voice, English male voice and other customised voices, 9s countdown voice is valid in communication,trigger and learning modes;

Red LED

Brightness of each LED:4000~6000mcd, wavelengthλd:625±5nm, Viewing angle: 50°

Green LED

Brightness of each LED:3200~5500mcd, wavelengthλd:505±5nm, Viewing angle: 50°

Red full ball

61pcs LEDs,intensity:>230cd,power consumption:≤5W

Green full ball

61pcs LEDs, intensity:>160cd,power consumption:≤4W

Red LED panel

225pcs LEDs, intensity:>480cd,power consumption:≤13W

Green LED panel

225pcs LEDs, intensity:>720cd,power consumption:≤11W

Pole Height

1250mm

Input

DC11V-30V

Temperature

-40℃~+80℃

Wave Length

Red (625±5nm), Green(505±5nm)

IP grade

IP53

Working Voltage

85-265VAC 50HZ/60HZ

Temperature

-40℃~+80℃

Certifications

CE(LVD, EMC) , EN12368, ISO9001, ISO14001, IP55

Structural Components
Recommended
If there is a custom demandor have questions about our services,Please contact us
