Low Power Pedestrian Traffic Light Module for Reliable Crossings

A pedestrian traffic light has a straightforward job: provide a clear and continuous indication of when people can cross. The engineering behind that indication, however, becomes more important as a signal spends years operating outdoors at busy intersections. A failed LED can affect the appearance of the signal, unstable drive current can place unnecessary stress on LED components, and inefficient power conversion adds operating cost over thousands of hours. Frequent component failures also mean more inspections, maintenance visits, and replacement work around active roads.

For traffic engineers, road infrastructure buyers, and intelligent transportation system integrators, the relevant question is therefore not simply how bright a pedestrian traffic light is when it leaves the factory. It is how the module behaves when individual components age or fail, how efficiently it uses electrical power, and how well it operates alongside other equipment at an intersection.

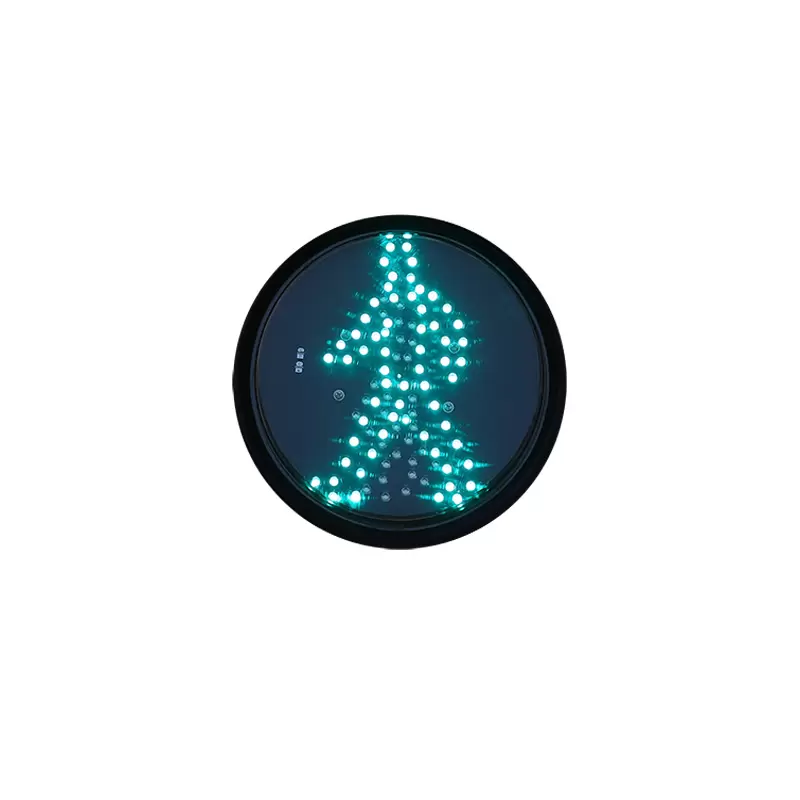

FAMA's Low Power Pedestrian Traffic Light Module is designed around these practical considerations. The assembly includes a light board, lens, power supply, lamp bowl, and related structural components for pedestrian crossing signal applications. The module is available in 200 mm and 300 mm configurations and uses LED illumination for pedestrian signal display.

The table provides a more useful basis for preliminary selection than a general claim such as "energy-saving traffic light." Actual energy consumption in a project will still depend on operating mode, signal timing, installation conditions, and the number of installed units.

Mesh Circuit Design: Why Is LED Fault Isolation Important?

A conventional LED array can become a maintenance concern when a local component failure affects a larger section of the display. For a pedestrian signal, even a relatively small abnormal area can make the illuminated walking or standing figure look less uniform.

The Low Power Pedestrian Traffic Light Module takes a different approach with a mesh circuit design. According to the product design, when an individual LED lamp bead fails, the circuit automatically isolates the fault point so that the remaining LED beads can continue operating. The purpose is not to claim that a failed LED becomes invisible; rather, it limits the electrical impact of the failure and helps preserve the overall display.

This matters because pedestrian signals are installed in locations where replacing a module is not always a simple workshop task. A maintenance team may need to access equipment beside a live roadway, arrange traffic control, and schedule work outside peak periods. If a localized LED failure does not immediately require replacement of the complete light board, the practical maintenance burden can be lower.

From a maintenance perspective, the mesh circuit design provides several practical advantages:

• A single LED lamp bead failure is isolated instead of automatically affecting the remaining LED beads.

• The majority of the light board can continue operating after a localized failure.

• The overall pedestrian symbol can retain a more stable display effect.

• Maintenance teams can distinguish localized LED faults from broader power or driver failures.

• The risk of replacing an entire light board solely because of one failed LED can be reduced.

The same design principle also helps answer a common question: Why is LED fault isolation important in a pedestrian traffic light? Reliability is not only about preventing failures. It is also about controlling the consequences when a component eventually fails.

For an intersection operator, that distinction can influence lifecycle maintenance. A signal that continues to provide a stable visual indication after an isolated LED failure may offer more practical fault tolerance than one in which a small component failure causes a much larger display problem.

Power Efficiency Starts With the Driver, Not Just the LED

For an intersection operating continuously over long periods, small differences in electrical performance accumulate. This is why the power supply and LED driver deserve as much attention as the LED itself.

The FAMA module uses an independently designed Euro standard power supply with a power factor of up to 0.98. It also adopts constant current drive technology to maintain a controlled working current for the LED array.

Three electrical characteristics are particularly relevant when evaluating the module:

• Power supply efficiency: reduces unnecessary energy losses during AC-to-DC power conversion.

• Power factor up to 0.98: indicates a favorable relationship between real power and apparent power under the specified operating conditions.

• Constant current drive: regulates LED operating current instead of allowing the LED load to depend directly on uncontrolled current variation.

These parameters should not be treated as interchangeable. A high power factor does not mean that the lamp consumes only 2% of its rated power, and it should not be presented as a direct 98% energy-saving figure. Actual electricity consumption must be evaluated from the lamp's operating power and the intersection's operating schedule.

FAMA provides specific power ratings for its pedestrian modules. The 200 mm version is specified at ≤6 W for static red, ≤5 W for dynamic green, and ≤5 W for static green. The corresponding figures for the 300 mm version are ≤7 W, ≤6 W, and ≤6 W respectively.

This gives procurement teams a measurable starting point for calculating expected operating consumption across multiple intersections.

Why Is Constant Current Driving Important?

LED output and electrical stress are closely related to operating current. A constant-current driver is designed to regulate the current supplied to the LED load rather than simply allowing current to vary with changing electrical conditions.

For a pedestrian traffic light, this provides a more controlled operating environment for the LED array. FAMA specifies constant current drive as part of the module's design to maintain stable working current, support LED service life, and reduce later maintenance requirements.

The product specification lists an LED lifespan of ≥100,000 hours. This should be understood as the manufacturer's specified LED lifespan rather than a guarantee that every complete traffic light assembly will operate for exactly 100,000 hours without maintenance. Actual field life can depend on temperature, electrical conditions, installation, environmental exposure, and other factors.

That distinction is important when comparing pedestrian traffic light suppliers. A long LED lifespan is useful only when the electrical and mechanical design provides an appropriate operating environment for the LEDs.

THD and EMC Matter at a Real Intersection

A pedestrian traffic light does not operate in electrical isolation. A modern intersection can contain vehicle signal heads, pedestrian signals, countdown displays, traffic signal controllers, detection equipment, communication devices, and other electronic systems.

This makes electromagnetic compatibility an engineering consideration rather than a secondary specification.

FAMA states that the Low Power Pedestrian Traffic Light Module follows European electromagnetic compatibility requirements and specifies total harmonic distortion below 10%. The stated design objective is to reduce interference with the power grid and other equipment at the intersection.

How does electromagnetic compatibility affect traffic signal reliability?

In practical terms, good EMC performance helps an electronic device coexist with other equipment without creating or becoming excessively vulnerable to unwanted electrical interference. Lower harmonic distortion can also help reduce non-ideal current components introduced into the supply system.

For an intersection with multiple electronic devices sharing the same electrical infrastructure, controlling these characteristics can be useful for maintaining a predictable operating environment. It does not mean that THD below 10% alone guarantees an interference-free installation. Final EMC performance also depends on wiring, grounding, power quality, nearby equipment, installation practices, and the system-level design.

This is particularly relevant for intelligent transportation system integrators. When pedestrian signals, vehicle signals, controllers, detectors, communication equipment, and other devices are installed together, electrical compatibility becomes part of overall system reliability.

From a Product Specification to a Project-Level Decision

The value of a pedestrian traffic light becomes clearer when viewed across the complete operating cycle.

A procurement decision should therefore consider more than the initial unit price. The following questions are often more useful during technical evaluation:

• What happens if one LED lamp bead fails?

• How is the LED working current regulated?

• What is the actual lamp power under different signal states?

• What power factor and THD values does the driver achieve?

• How will the module interact with the electrical environment at the intersection?

• Can maintenance teams replace or service the module without unnecessary intervention?

FAMA's project portfolio provides examples of its traffic signal equipment being applied in different infrastructure environments. Its Peru LED Traffic Light project, for example, included traffic lights together with a solar system, wireless controllers, and poles. The project description highlights LED technology, optical performance, environmental protection, and integration with the broader traffic infrastructure.

This illustrates why a pedestrian traffic light module should not be evaluated independently from its intended installation environment. Power supply, controller compatibility, environmental exposure, optical performance, and maintenance access all influence the final system.

For buyers evaluating pedestrian traffic light signs and modules, FAMA's project portfolio provides examples of traffic infrastructure applications, while its Traffic Light Module product range covers different modular signal configurations.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry combines these product-level designs with broader traffic signal and intelligent transportation solutions.

Common Questions About Low Power Pedestrian Traffic Lights

What is a low power pedestrian traffic light?

It is a pedestrian signal designed to provide the required visual indication with relatively low electrical consumption. FAMA's Low Power Pedestrian Traffic Light Module uses LED illumination, an independently designed power supply, constant current drive, and a mesh circuit design. Its published lamp power varies according to module size and signal state.

How does a pedestrian traffic light module reduce energy consumption?

Energy consumption is influenced by the LED load, driver efficiency, operating schedule, and electrical design. The FAMA module combines low lamp power with a Euro standard power supply and a power factor of up to 0.98. These characteristics should be evaluated together rather than treating any single parameter as the complete energy-saving measure.

What happens when an LED fails?

The mesh circuit design is intended to automatically isolate the failed LED point, allowing the remaining LED beads to continue operating and helping maintain the overall display effect.

How long does a pedestrian traffic light last?

FAMA specifies an LED lifespan of ≥100,000 hours for this module. Complete system service life can differ because the power supply, housing, environmental conditions, installation quality, and other components also influence field performance.

Why is constant current driving important?

Constant current driving regulates the LED working current and provides a more controlled electrical operating condition. This supports stable operation and helps avoid unnecessary current variation that could place additional electrical stress on the LED array.

How does electromagnetic compatibility affect traffic signal reliability?

Traffic signals operate alongside other electronic equipment. A design with controlled harmonic distortion and appropriate EMC characteristics can help reduce unwanted electrical interaction. FAMA specifies THD below 10% for this module, while actual system-level EMC performance also depends on installation and the surrounding electrical environment.

What Should Buyers Compare Before Selecting a Pedestrian Signal Module?

A Low Power Pedestrian Traffic Light Module should not be selected solely by comparing initial purchase prices. For long-term road infrastructure projects, the more meaningful comparison is between the electrical architecture, fault behavior, operating consumption, component stress, EMC characteristics, and expected maintenance requirements.

The mesh circuit design addresses what happens when an individual LED fails. The Euro standard power supply and power factor up to 0.98 address electrical efficiency characteristics. Constant current drive provides controlled LED operating current, while THD below 10% and the stated EMC design address compatibility with the wider electrical environment.

Taken together, these characteristics provide a more complete basis for evaluating a pedestrian traffic light for long-term deployment. For traffic engineers, procurement teams, and intelligent transportation system integrators, the goal is not simply to purchase a low-cost signal. It is to select a module whose electrical and circuit design can support stable pedestrian indications while keeping energy use, fault consequences, and maintenance requirements under control throughout its operating life.
