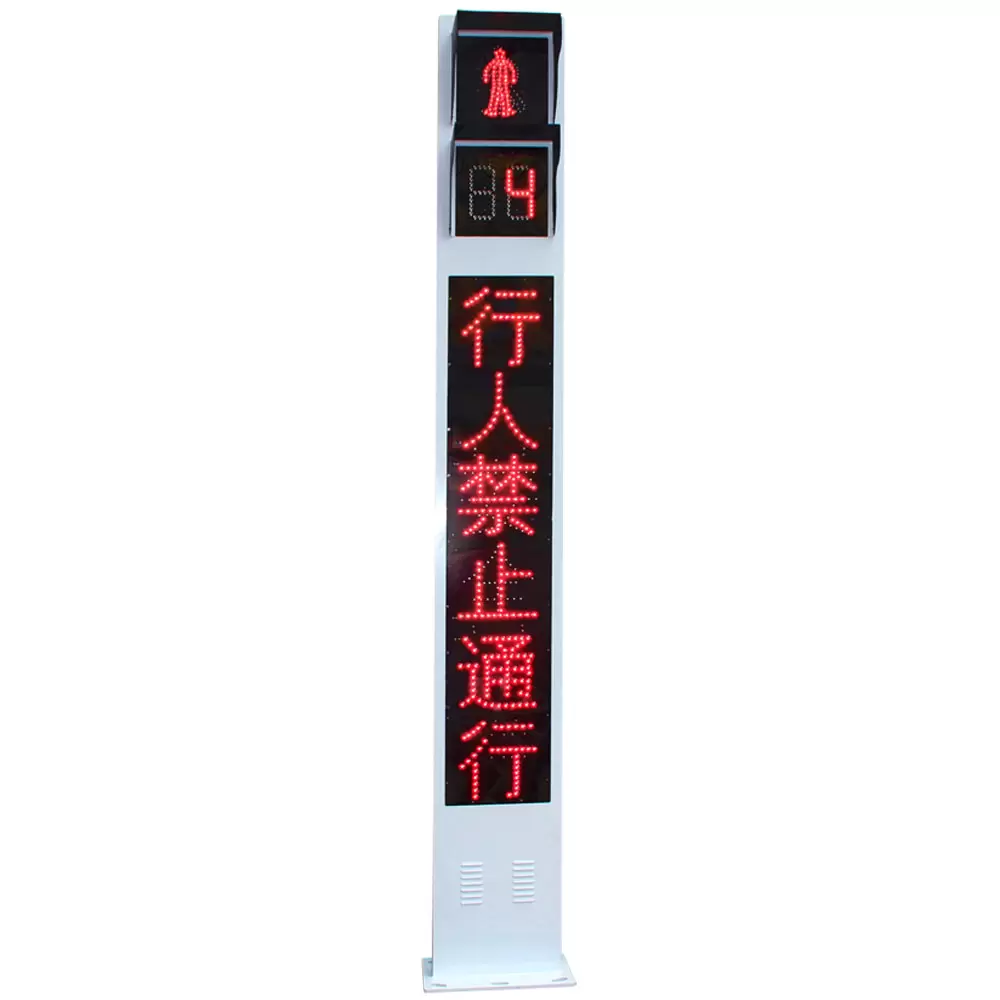

How an Integrated Traffic Light with Module Screen Simplifies Small Intersection Installation

A traffic signal installation is rarely just a matter of mounting signal lights. Traditional intersections often require separate signal heads, poles, brackets, controllers, cables, and additional display equipment. Each component has to be positioned, wired, tested, and maintained independently. On a small urban intersection, this approach can increase installation labor, extend construction time, occupy more roadside space, and make later troubleshooting more complicated.

An Integrated Traffic Light with Module Screen addresses this problem by bringing signal indication, intelligent control connectivity, and information display into a more concentrated terminal. Instead of adding a separate information screen to an already crowded traffic signal installation, the display function becomes part of the traffic management equipment itself.

For small traffic signal control intersections, this design can be particularly useful where installation space is limited and the project needs both conventional signal indication and additional information delivery. FAMA's integrated traffic light product line is specifically positioned for small urban traffic intersections, with integrated designs intended to simplify intersection facilities and installation.

Why integrate the traffic signal and display module?

The main difference between an integrated traffic signal and a conventional traffic light is not simply the external appearance. It is the way multiple functions are arranged within the installation.

A conventional traffic signal may use separate equipment for signal indication and information display. When additional equipment is introduced, contractors may need extra mounting points, brackets, cables, power connections, and commissioning procedures.

An Integrated Traffic Light with Module Screen instead combines key functions within one terminal. The basic configuration can include:

• Red, yellow, and green signal indication

• Intelligent control and communication interfaces

• An editable Module Screen

• Integrated structural and electrical connections

This reduces the need to treat every function as a separate roadside installation. The result is fewer physical devices to position and fewer independent connections to coordinate.

The cost advantage should therefore be evaluated as total installation cost, rather than simply comparing the purchase prices of two signal products. Labor for mounting, cable routing, electrical connection, testing, traffic control during construction, and subsequent maintenance can all affect the project budget.

FAMA describes its integrated design as a way to eliminate the traditional discrete installation approach and reduce construction time and associated labor requirements. The product is also designed to reduce disruption to traffic during installation.

This becomes more relevant at small intersections, where installing several independent devices may require additional structural space without providing proportional functional value.

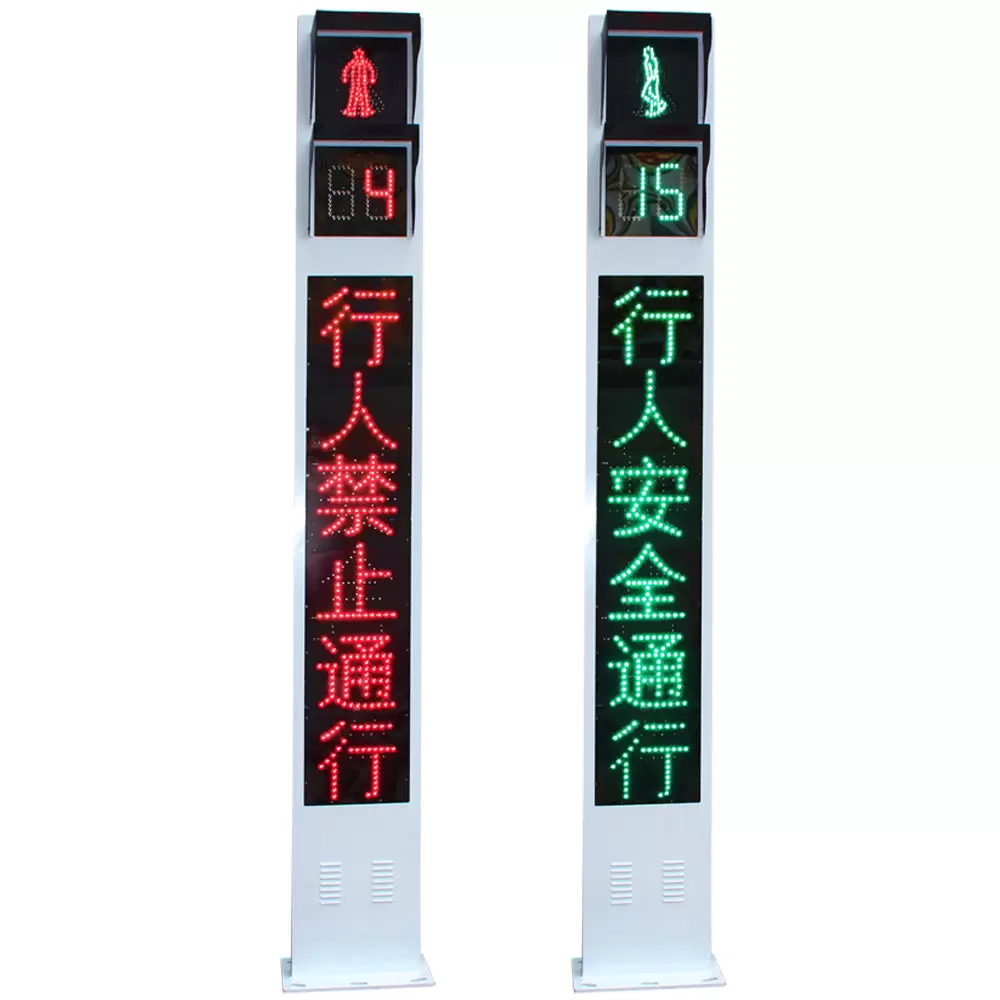

How the Module Screen works with traffic signal phases

A conventional traffic light mainly communicates the current traffic phase through red, yellow, or green illumination. An editable display module provides another layer of communication.

The Module Screen can be configured to display text, images, and simple animations. When integrated with the traffic signal control logic, the displayed content can follow the changing signal phases. For example, different information can be associated with red, green, or other programmed signal states, allowing the screen content to change as the traffic phase changes.

The practical value is not that every intersection needs animated information. Rather, the display gives traffic managers an additional communication channel without requiring a completely separate roadside display.

For a small intersection, possible applications can include phase-related instructions, short traffic messages, directional information, or other simple visual prompts. The exact content and synchronization method depend on the control architecture and project configuration, so the display should be specified together with the required signal controller and communication interface rather than treated as an independent screen.

This answers an increasingly common procurement question: Why add a display module to a traffic signal?

The answer is mainly about information density. A conventional signal tells road users the current traffic status. An integrated signal with a programmable display can provide the signal status while also communicating additional information through the same physical terminal.

FAMA's broader product range includes traffic signal controllers, vehicle and pedestrian signals, countdown timers, integrated traffic lights, and traffic light modules, allowing project designers to select equipment according to the control and signal requirements of a particular intersection.

Outdoor protection matters as much as integration

For equipment installed beside a road, integration alone does not guarantee reliable operation. The enclosure has to protect electrical and electronic components against the environmental conditions expected at the installation site.

FAMA specifies a high-grade sheet metal enclosure for its integrated traffic light design, with protection characteristics including waterproofing, dust resistance, corrosion resistance, shock resistance, and electromagnetic interference resistance. These properties address different failure risks rather than representing one general durability claim.

Water and dust protection are important because moisture and particulate contamination can affect electrical connections and electronic components over long outdoor service periods. Corrosion resistance becomes more relevant in humid environments or locations where the equipment is exposed to corrosive atmospheric conditions. Shock resistance provides structural protection against mechanical impacts that can occur during transportation, installation, or roadside operation.

EMI resistance is also relevant because traffic signal equipment contains electronic control and communication components. Reducing susceptibility to electromagnetic interference helps maintain stable communication and control behavior in environments where electrical equipment and communication systems operate nearby.

The available FAMA integrated traffic light specifications provide a useful example of the type of engineering information buyers should examine. The listed model uses galvanized sheet housing, operates from AC 85–264 V at 47–63 Hz, has an IP55 protection grade, and is specified for operation from -40°C to +80°C with relative humidity up to 95% RH. The same product page lists a 300 mm light-emitting surface and LED lifespan of at least 100,000 hours.

These figures should be considered product-specific specifications rather than universal characteristics of every integrated traffic light. For procurement, the actual model, environmental conditions, protection requirements, and applicable local standards should be checked before final selection.

Integrated Traffic Light vs. traditional traffic light

The difference becomes clearer when the two approaches are considered from an installation perspective.

The integrated approach does not mean that every traditional traffic signal installation should be replaced. Large and complex intersections may still require distributed controllers, multiple signal heads, pedestrian equipment, detection systems, and other specialized infrastructure.

Its strongest case is where several functions can reasonably be consolidated without compromising the traffic control architecture.

Where does an integrated traffic light make sense?

Small urban intersections are the most direct application because they often have fewer lanes, more limited roadside space, and a stronger need to control the amount of equipment installed around the junction.

Other potential applications depend on the project's traffic control requirements and local regulations. When evaluating a solution, project engineers should consider signal configuration, mounting position, controller compatibility, communication requirements, display content, power supply, environmental conditions, and maintenance access together.

FAMA's project portfolio provides examples of integrated and related traffic signal applications. Its domestic project listings include an Integrated Traffic Light project in Changsha, Hunan, as well as integrated pedestrian signal and streetlight-pole consolidation projects. International examples include traffic signal projects in Peru, Mongolia, and other regions.

For buyers evaluating actual deployments rather than relying only on product descriptions, the FAMA project portfolio provides a useful reference for reviewing the company's traffic signal applications.

Integrated street light and the broader move toward infrastructure integration

The idea behind an integrated traffic signal is part of a wider change in roadside infrastructure. An integrated street light can combine lighting with additional roadside functions, while an integrated traffic signal concentrates signal indication, control connectivity, and information display.

The two products should not be treated as identical. A street light is primarily designed around illumination and the infrastructure of the lighting pole, while an Integrated Traffic Light is centered on traffic signal control and road-user communication.

Their common design principle is the reduction of unnecessary standalone equipment. FAMA's domestic project portfolio, for example, includes a Yinchuan Streetlight Pole Consolidation Case Study, alongside integrated traffic signal projects.

For infrastructure owners, this type of consolidation can make particular sense where several roadside functions need to coexist but available installation space is limited. However, integration should always be evaluated against maintenance access, electrical separation, control compatibility, environmental protection, and local installation requirements.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

FAMA's product portfolio covers traffic signal controllers, vehicle traffic lights, pedestrian signals, bicycle signals, countdown timers, integrated traffic lights, traffic light modules, and related accessories. Its traffic light module range is designed for vehicle, pedestrian, arrow, and countdown-related applications, supporting different signal configurations and system requirements.

For procurement teams comparing integrated traffic signal solutions, the FAMA product portfolio can be used to review the available traffic signal, control, module, and related equipment categories rather than evaluating an integrated terminal in isolation.

Frequently asked questions

What is an integrated traffic light?

An integrated traffic light combines multiple traffic management functions into a more concentrated equipment structure. Depending on the model, these functions can include signal indication, intelligent control connectivity, countdown or directional indication, and information display. FAMA positions its integrated traffic light solutions primarily for small urban traffic intersections.

What are the benefits of an integrated traffic signal system?

The main benefits are related to installation and system organization. Combining functions can reduce the number of independent devices, mounting operations, wiring routes, and roadside installation points. When a Module Screen is included, the same terminal can also provide programmable information without requiring a separate display installation.

How does an integrated traffic light reduce installation costs?

It can reduce installation costs by consolidating equipment that would otherwise be installed separately. Fewer mounting points and connections can mean less installation labor and a shorter on-site construction process. The actual savings depend on the intersection layout, existing infrastructure, labor rates, cable routing, and project requirements, so a fixed percentage should not be assumed without a project-level cost comparison.

How does the Module Screen synchronize with traffic signals?

The display module follows the programmed traffic signal logic or control interface so that its content can change with the relevant signal phases. Text, images, and simple animations can be configured for different states. The exact synchronization method depends on the controller, communication interface, and system configuration.

Where are integrated street light systems suitable for use?

Integrated street light systems are generally considered where road lighting needs to coexist with other roadside functions and reducing separate infrastructure is desirable. Suitable applications can include urban roads, public spaces, industrial areas, campuses, and other planned lighting environments, subject to the specific lighting and infrastructure requirements of the project.

Selecting an Integrated Traffic Light with Module Screen should ultimately be based on more than the initial equipment quotation. Signal control compatibility, display synchronization, installation method, enclosure protection, environmental conditions, maintenance access, and the amount of roadside infrastructure required all affect the real project value. For a small traffic signal control intersection, a well-designed integrated terminal can be a practical alternative to installing several separate devices—provided its technical configuration matches the actual traffic control requirements.
