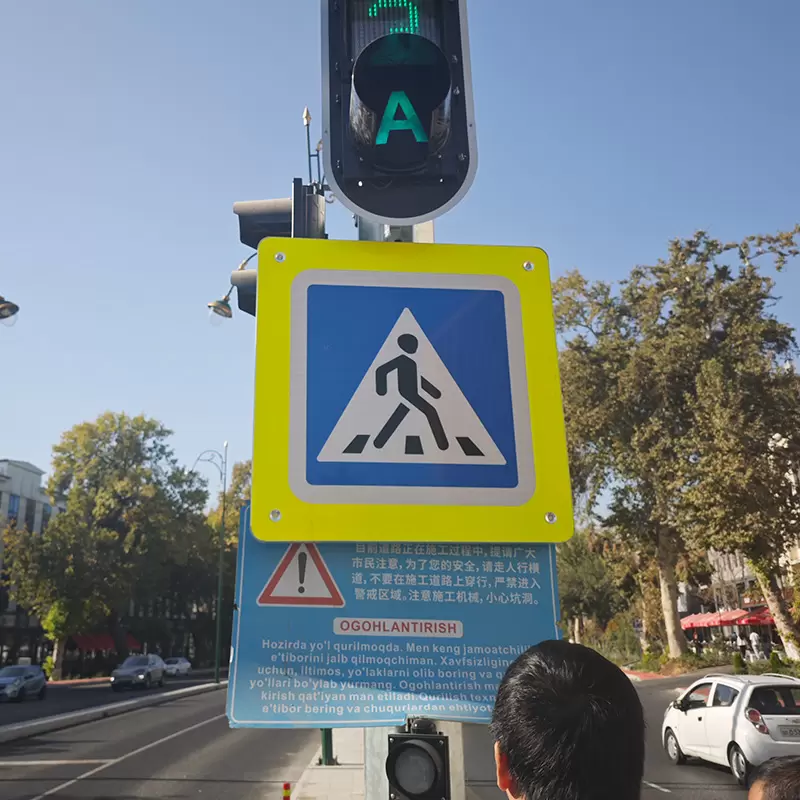

Internally Luminous Pedestrian Crossing Signs for Safer Nighttime Crossings

For traffic engineers and municipal road authorities, a pedestrian crossing sign has to do more than meet a basic signage requirement. At night, in rain or fog, or at a busy urban intersection filled with vehicle headlights and commercial lighting, a conventional sign can become less distinct from its surroundings. A fixed-volume audible prompt creates another problem: it may be difficult to hear when traffic noise rises, yet unnecessarily intrusive when the surrounding area becomes quiet.

This is where an internally illuminated pedestrian crossing sign light can take a more practical approach. Instead of depending only on reflected light, the sign uses an internal light source to illuminate the panel itself. When combined with directional audio, automatic volume adjustment and configurable operating modes, the sign becomes a more adaptable crossing guidance device rather than simply a passive road sign.

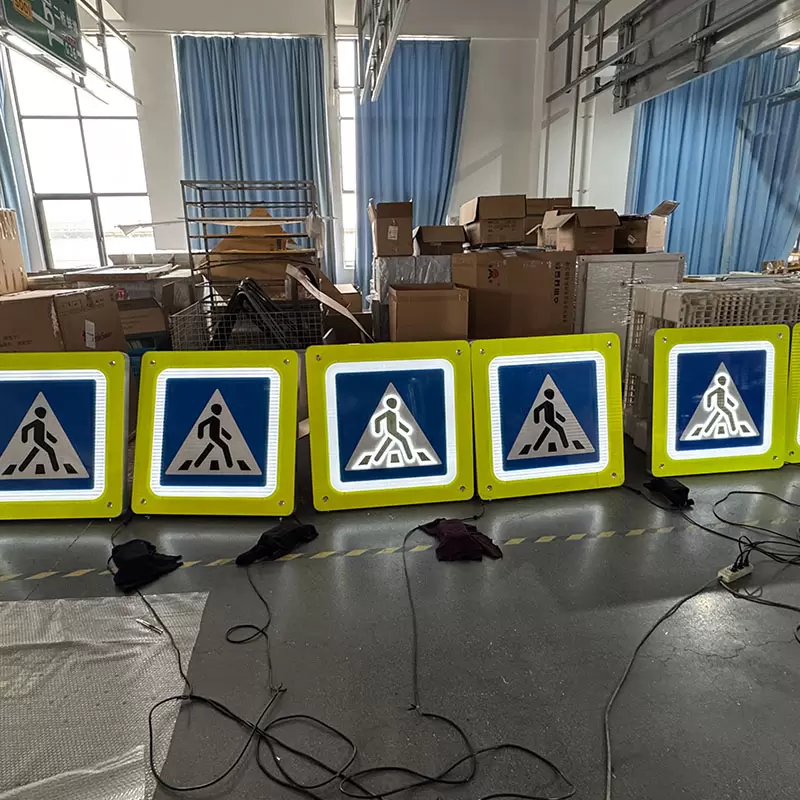

FAMA's Internally Luminous Pedestrian Crossing Signs are designed around this combination of visual and audible guidance. The current product specification uses a semi-transparent panel with directional internal projection, four LED point light sources around the sign and an aluminum-and-PC composite construction. The listed standard sign size is 900 × 900 mm, with an overall semi-transparent sign thickness of no more than 60 mm.

How the internal lighting structure changes nighttime visibility

What are internally luminous pedestrian crossing signs? The basic difference is where the illumination comes from. A conventional reflective pedestrian sign relies primarily on an external light source—such as vehicle headlights—to make its markings visible. An internally luminous sign has its own light source inside the sign structure, allowing the information surface to produce a visible illuminated effect.

FAMA's design uses a semi-transparent front panel and built-in directional light projection. The light is directed toward the front surface rather than simply exposed as a collection of bright points. This creates a panel illumination effect intended to make the key information easier to distinguish. Four LED point light sources are also arranged around the sign as part of the lighting system.

The construction is equally important. The sign uses an aluminum plate and PC composite material. The product specification lists a 2 mm 1100H14 aluminum alloy plate and a 2.5 mm PC alloy light-transmitting material for the luminous section. The PC material is specified with light transmittance above 90%, while the product page also identifies high surface flatness as a factor in achieving uniform illumination.

This combination matters particularly at locations where a sign must remain recognizable against changing background conditions. FAMA specifies a nighttime dynamic viewing distance of at least 210 m and static viewing distance of at least 250 m for this product. These are product specifications rather than a universal performance guarantee; actual recognition distance will also depend on installation height, viewing angle, ambient lighting and weather conditions.

The sign is also specified with IP55 dust and water resistance and an operating temperature range of -20°C to +55°C. The use of a reflective film alongside internal illumination provides two different visibility mechanisms rather than relying on only one.

Directional sound is about location, not simply loudness

Visual information is only one part of a pedestrian crossing system. For pedestrians who depend more heavily on auditory information, an audible prompt must answer a basic question: Where should I go?

A conventional speaker that broadcasts sound broadly can make the presence of a crossing signal obvious without necessarily making its direction equally obvious. At a complex intersection, reflected sound, moving vehicles and multiple crossing points can make directional interpretation more difficult.

The directional sound beam used in this pedestrian crossing sign is designed to focus the auditory prompt toward the designated crossing direction. This reduces unnecessary sound dispersion and helps make the intended direction easier to identify. FAMA describes the system as reducing auditory confusion and the risk of directional misinterpretation.

Automatic volume adjustment addresses a different problem. A fixed output level cannot respond to changing conditions. At a busy intersection, engine noise, buses and horns can raise the acoustic background considerably. During quieter periods, especially at night, the same output level may be unnecessarily intrusive.

The automatic volume control monitors the ambient noise condition and adjusts the prompt volume accordingly. The objective is straightforward: provide sufficient audibility when background noise rises while avoiding excessive sound output when the surrounding environment is quieter.

For municipal projects, this distinction is important. The question is not whether a pedestrian crossing sign should simply be “louder.” It is whether the audio system can provide an appropriate level of guidance for the actual acoustic environment.

Weather resistance has to be considered as a system

Outdoor traffic signs are exposed to more than occasional rain. Long-term sunlight, ultraviolet exposure and repeated temperature changes can affect materials and electronic components. FAMA describes this product as having industrial-grade protection against extreme temperatures and ultraviolet exposure.

The product specification also identifies IP55 protection, a -20°C to +55°C operating range, an aluminum structural plate and a PC light-transmitting section.

For procurement teams, these details are more useful than a generic “weather-resistant” label because they provide specific points to verify during technical evaluation. Installation conditions should still be assessed individually, particularly where local climate, solar exposure or mounting conditions fall outside the stated product parameters.

Bluetooth configuration can simplify site-specific operation

A crossing beside a school may need different operating settings from one located on a commercial arterial road. Nighttime noise conditions can also differ substantially from daytime traffic conditions.

The sign supports Bluetooth connectivity and mobile application integration. According to the product specification, users can configure parameters including volume levels, weekday and holiday operation modes, and voice prompt content.

This provides a practical advantage during commissioning and maintenance. Instead of treating every installation as a fixed configuration, the operating behavior can be adapted to the requirements of the individual crossing.

For example, a project team may need to establish different audio schedules for regular weekdays and holidays, or adjust the prompt volume to suit a particular intersection. The ability to configure these settings through a mobile interface can make such changes more convenient, provided the specific deployment and local operating requirements support them.

Where FAMA's project experience fits into the evaluation

Product specifications are only one part of a traffic infrastructure procurement decision. Project experience can help engineers and buyers evaluate how a supplier approaches different road environments and intelligent transportation requirements.

FAMA maintains a project portfolio covering Africa, Asia, Europe, the Middle East, North America, South America and domestic projects. Its project page includes examples such as traffic light projects in Chile, Peru, Brazil, Argentina, Colombia, Paraguay, Ecuador and Uruguay.

The wider product range also includes smart traffic signs, pedestrian traffic lights, audible pedestrian signals, pedestrian crossing push buttons and pedestrian-oriented lighting products. This allows buyers evaluating a crossing project to examine the Internally Luminous Pedestrian Crossing Signs alongside related traffic-control equipment rather than viewing the sign as an isolated component.

For more product information, the FAMA product portfolio includes the Internally Luminous Pedestrian Crossing Signs and other traffic-management equipment. The FAMA project portfolio provides a broader view of its traffic infrastructure applications.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

What should buyers look for in a pedestrian crossing sign light?

The purchase price is only one part of the evaluation. For an urban crossing that operates outdoors for years, engineers and procurement teams should look at how the complete system performs under the conditions in which it will actually be used.

The key points include:

• Lighting structure: whether the sign produces a consistent illuminated panel rather than relying only on external headlights.

• Material construction: whether the aluminum and PC combination provides the required structural and optical characteristics.

• Audio direction: whether sound is concentrated toward the intended crossing path.

• Volume control: whether the system can respond to changing ambient noise instead of using one fixed output level.

• Environmental resistance: whether the stated temperature, UV and ingress protection ratings match the installation environment.

• Configuration: whether volume, schedules and voice prompts can be adapted without redesigning the physical sign.

A well-designed pedestrian crossing sign light therefore needs to be evaluated as a combination of optical performance, acoustic guidance, material engineering and operational flexibility. Internally Luminous Pedestrian Crossing Signs are particularly relevant where nighttime recognition, changing noise conditions and long-term outdoor exposure all need to be considered together. For transportation projects, that broader evaluation is often more meaningful than comparing pedestrian crossing signs on purchase price alone.
