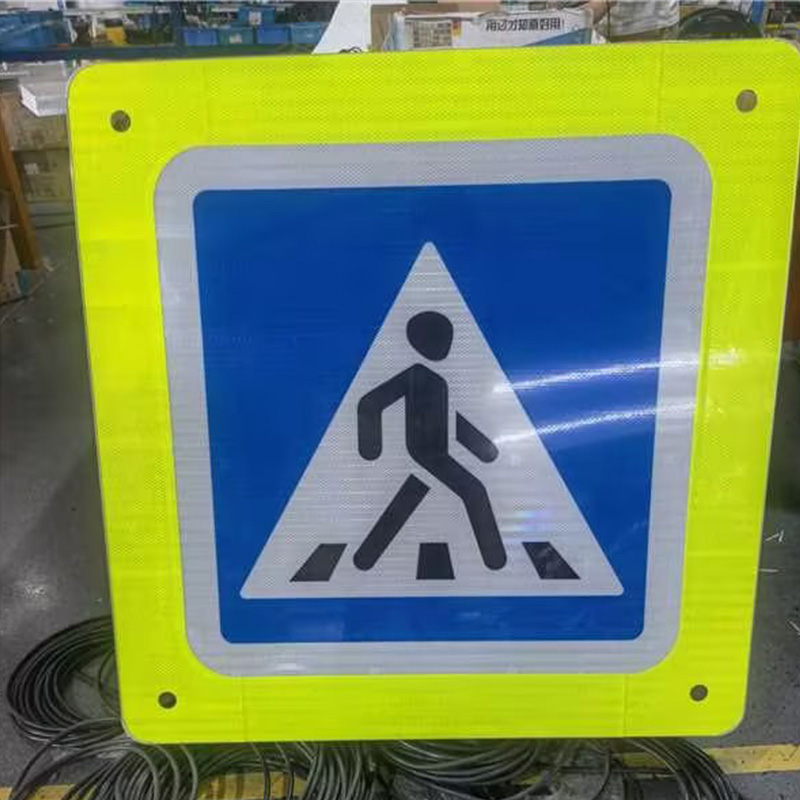

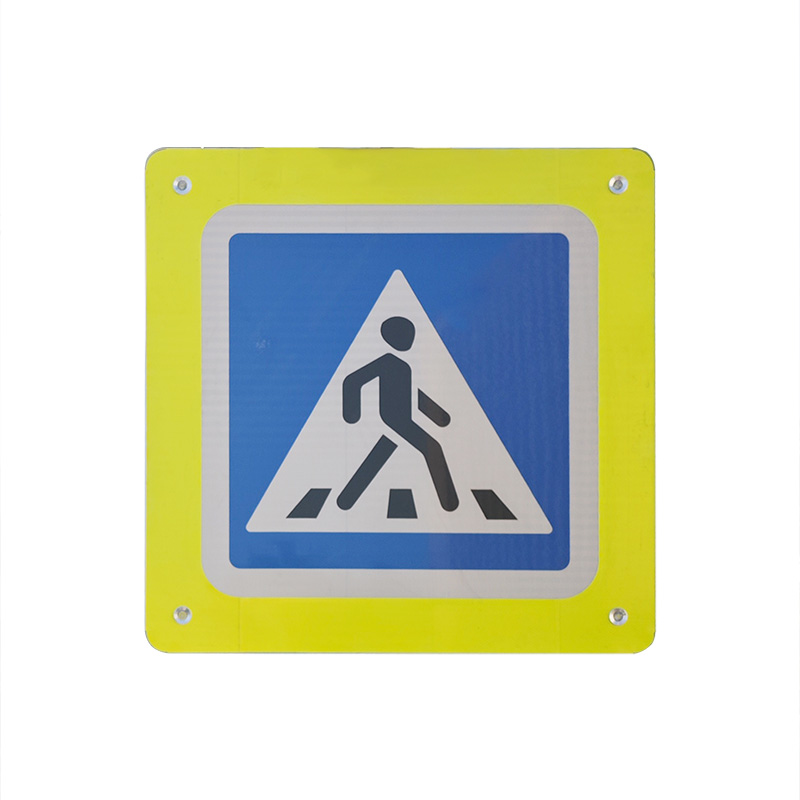

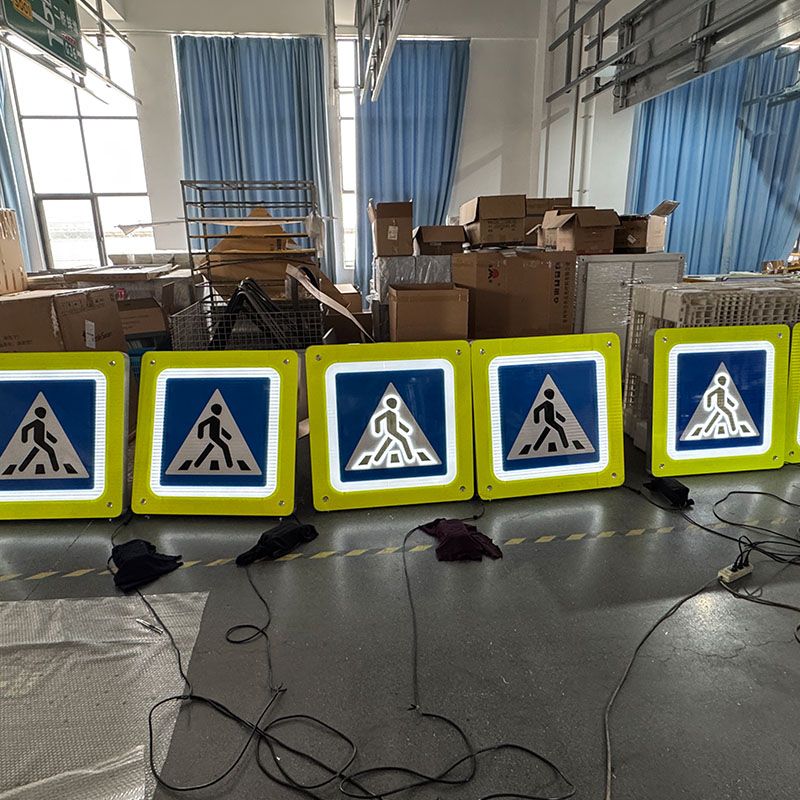

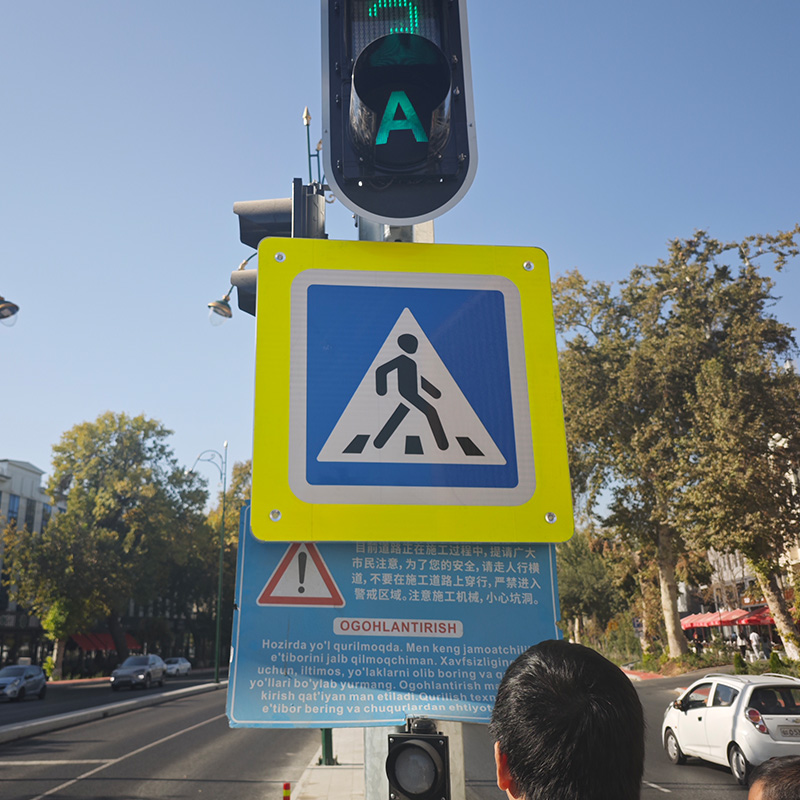

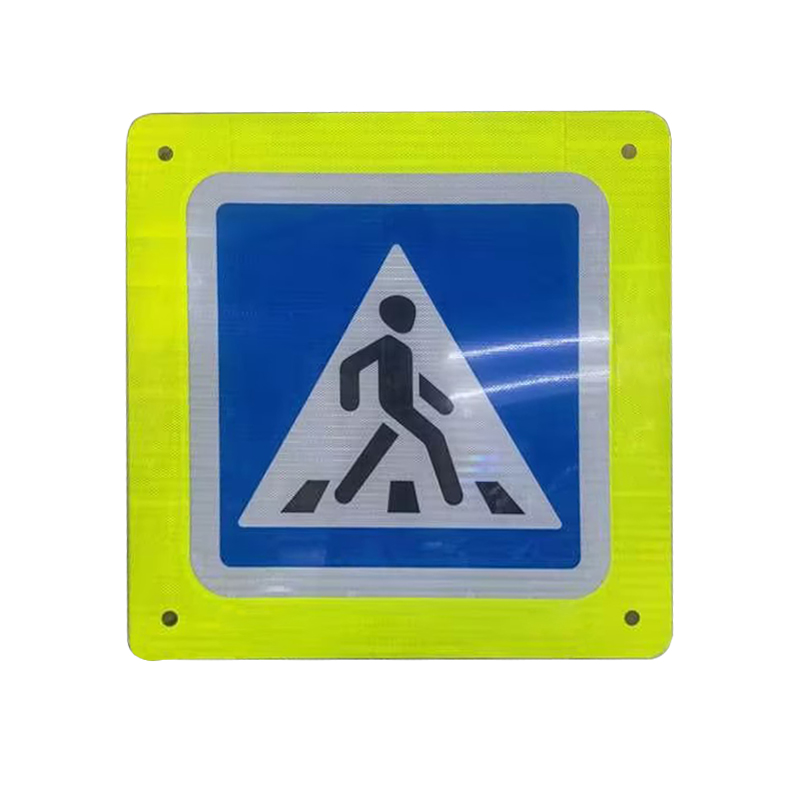

Active Luminous Pedestrian Crossing Signs
-
Model:
Active luminous pedestrian crossing signs board is made of aluminum alloy plates, aluminum alloy profiles, etc. through welding/riveting. The overall thickness of the semi-transparent active luminous sign is ≤60mm.
Overview
Product Introduction:
Luminous form: Semi-transparent, built-in light source directional projection on the front, so that the surface forms a panel active lighting effect, key information is clear+Point light source (four LED lights around).
Panel material: Aluminum plate + PC composite material, with good strength and weather resistance, high surface flatness, ensuring uniform light.
Add the to your project
Functional Features
Precise sound guidance for enhanced directional awareness:The device employs directional sound beam technology to focus auditory prompts toward the designated crossing direction. This minimizes auditory confusion and significantly reduces the risk of directional misinterpretation.- Intelligent volume control for reduced environmental noise impact:Fitted with an automatic volume adjustment system, the device dynamically adapts the prompt volume according to ambient noise levels. This ensures optimal audibility in high-noise environments while minimizing disturbance during quieter periods, effectively balancing usability with community noise considerations.
- Industrial-grade durability for reliable performance:Designed with industrial-grade protection, the device is resistant to extreme temperatures and ultraviolet exposure, ensuring long-term reliability and performance under challenging weather and environmental conditions.
- Customizable configuration to support diverse use cases:The device supports Bluetooth connectivity and mobile application integration, enabling users to customize settings such as volume levels, weekday and holiday operation modes, and voice prompt content. This flexibility allows tailored configurations to meet a wide range of operational and environmental requirements.
At a glance
| Name | Specification | Technical Parameters |
| Active luminous pedestrian crossing signs | 900*900 mm | The Sign board is made of aluminum alloy plates, aluminum alloy profiles, etc. through welding/riveting. The overall thickness of the semi-transparent active luminous sign is ≤60mm |
| Luminous form | / | Semi-transparent, built-in light source directional projection on the front, so that the surface forms a panel active lighting effect, key information is clear+Point light source (four LED lights around) |
| Panel material | / | Aluminum plate + PC composite material, with good strength and weather resistance, high surface flatness, ensuring uniform light |
| Aluminum plate | 2mm (±0.2) | Made of 1100H14 aluminum alloy plate |
| PC board | 2.5mm (±0.2) | The luminous part is made of PC alloy light-transmitting material with a light transmittance of more than 90%, tensile yield strength ≥60MPa, Shore hardness ≥80D, thermal deformation temperature (1.8MPa) ≥135℃, linear expansion coefficient (-30℃～+30℃) ≤3.5*10 |
| Reflective film | 3M Super | The surface is made of 3M reflective film, which has good light transmittance and retroreflective properties |
| Light source | / | Diffuse reflection LED module, four LED lights flashing around |
| Operating voltage | / | Signage 12V, power supply 220V to 12V |
| Operating temperature | / | (-20℃～+55℃) |
| Dust and water resistance level | IP55 | IP55, good dust and water resistance, stable operation outdoors |
| Viewing distance | / | Nighttime dynamic vision ≥ 210 meters, static ≥ 250 meters |
| Content | / | Pedestrian left/Pedestrian right |
| Installation | / | Horizontal and vertical slide M12, with Complete Can clamp,The U-shaped chute can be installed horizontally or vertically. |
| Control box | / | ABS material (36W1 power supply, 1 photosensitive controller, 1 mainboard, and other auxiliary materials) including installation accessories |
| Power cord | 1m | 2*0.75 power cord |
Structural Components
