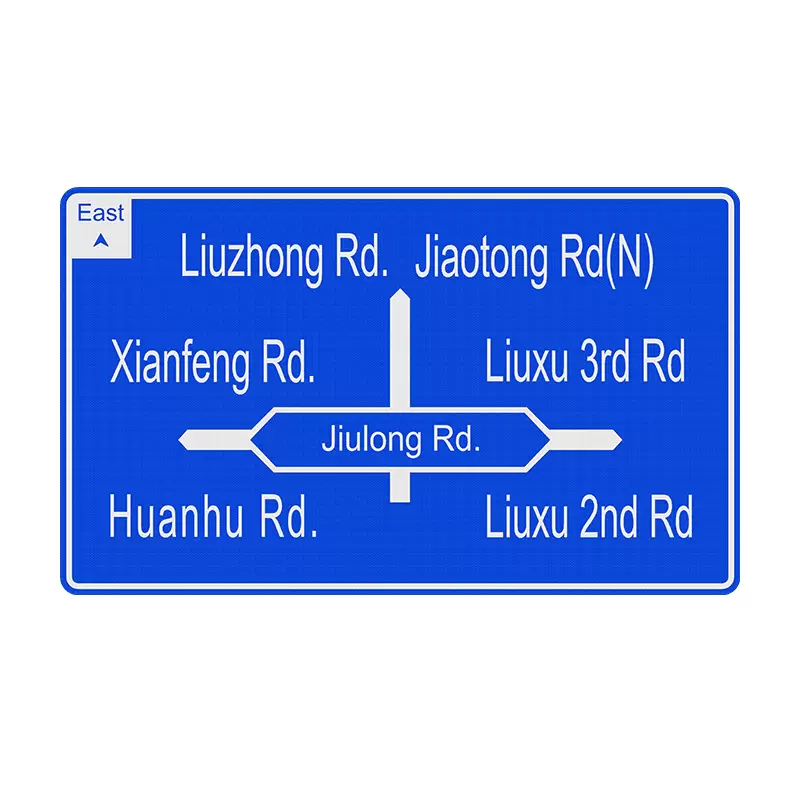

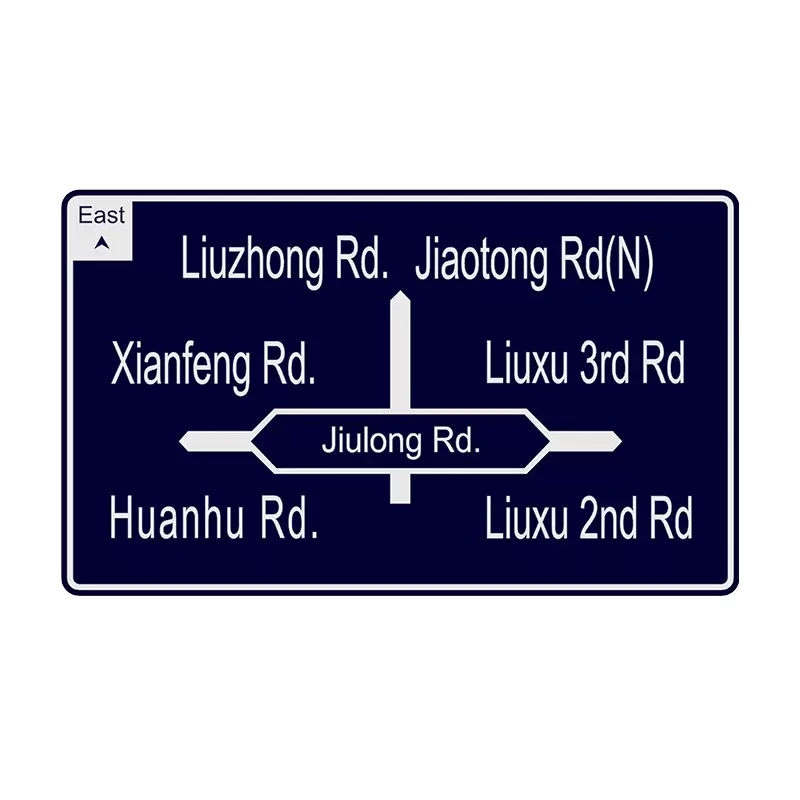

Cross Road Street Sign for Better Visibility in Night and Fog

For road traffic projects, a sign that is easy to read in daylight may not provide the same level of recognition after sunset, during heavy rain, or in fog. Traditional retroreflective signs depend largely on vehicle headlights to return light toward the driver. When the viewing distance increases or weather reduces contrast, the information on the sign can become harder to recognize early enough.

For road contractors, traffic facility buyers, and traffic safety engineers, the more relevant question is therefore not simply whether a sign is visible, but whether its message can be recognized consistently at the required approach distance. This is where an internally illuminated Cross Road Street Sign or Cross Road Traffic Light Sign can offer a different approach. Instead of relying only on reflected headlight illumination, an internally illuminated sign uses built-in LEDs to produce light through the sign panel.

FAMA's Large Internally Illuminated Sign is designed for urban roads, expressways, and highways. The manufacturer states that its active luminous design can provide a visible distance four times that of conventional signs in adverse conditions such as rain and fog. Its listed technical parameters include a visual range of ≥1,000 m, while actual recognition distance in a project will still depend on sign size, viewing angle, road geometry, ambient conditions, and installation position.

Why internally illuminated Cross Road Street Signs perform differently

What is an internally illuminated traffic sign? In practical terms, it is a traffic sign in which the light source is integrated inside the sign structure rather than depending exclusively on external illumination or vehicle headlights. FAMA's design uses an LED mixed-light aluminum-based light panel installed inside the sign box, with the light directed toward the rear of the retroreflective material.

The first technical advantage is uniform illumination. A conventional sign can appear sufficiently bright when directly illuminated by headlights, but illumination varies with the position of the vehicle, beam direction, distance, and weather. An internally illuminated panel creates its own light source across the sign, allowing the graphic and text areas to remain more consistently illuminated.

This matters particularly for a Cross Road Street Sign at an urban intersection. Drivers may approach from different lanes and angles, while surrounding streetlights, vehicle headlights, buildings, and commercial lighting create a complex visual background. A uniformly illuminated panel can make the sign information easier to distinguish from that background.

FAMA's published parameters specify white luminance of ≥300 cd/m², yellow ≥150 cd/m², red and green ≥45 cd/m², blue ≥30 cd/m², and a 175° LED viewing angle. These figures are useful procurement references because they give buyers measurable characteristics to compare rather than relying only on descriptions such as "high visibility."

Why LED uniform illumination matters in rain and fog

Are illuminated road signs better in fog and rain? They can provide an important visibility advantage because the sign is actively producing light rather than depending entirely on reflected light. However, no traffic sign can eliminate the optical effects of fog, rain, spray, or airborne particles. The practical benefit is that the sign maintains its own luminous output when external illumination conditions deteriorate.

For this reason, the relevant procurement comparison should be between the complete visibility systems rather than simply "LED versus reflective." Buyers should evaluate luminance, illumination uniformity, viewing angle, contrast, sign dimensions, installation height, road speed, and required recognition distance together.

The Large Internally Illuminated Sign uses an aluminum-based diffused-reflection waterproof lighting strip. According to the manufacturer's specification, the light panel is designed to provide heat dissipation and moisture resistance, helping protect the LED components during outdoor operation. The product is rated IP55 and specified for a working temperature range of -40°C to +60°C under Grade B conditions.

These details become particularly relevant on expressways and highways, where replacing a failed sign can require lane closures, traffic control, lifting equipment, and additional labor. A sign that is designed for straightforward maintenance can reduce the operational burden associated with servicing large roadside equipment.

Intelligent dimming: visibility without unnecessary power consumption

LED traffic signs reduce energy consumption primarily through the efficiency of LED light sources and, in this design, through control of the light output according to ambient brightness. The purpose of intelligent dimming is not simply to make the sign brighter. It is to provide an appropriate luminance level for the surrounding lighting conditions.

During daylight, the sign may require a higher output to remain distinguishable from the bright environment. At night, continuously operating the sign at the same maximum brightness can create unnecessary power consumption and excessive visual contrast. An intelligent control system can adjust luminance according to ambient light.

FAMA specifies both an ON/OFF operating mode and a dimming mode in which the illuminated sign adjusts luminance according to ambient brightness. The listed rated power is ≤100 W/m², with a 24 V working voltage.

For procurement teams, this means power consumption should be evaluated together with sign dimensions and operating strategy. Comparing only the wattage of two products without considering their illuminated area or control mode can produce a misleading result.

Material and thermal design are not secondary considerations

A large illuminated sign is an outdoor electrical and structural assembly, so material selection directly affects long-term operation.

The product uses 6063 aluminum alloy for the back panel, with an average thickness of ≥2.5 mm according to the published specification. Aluminum provides a relatively lightweight structural solution while also supporting heat transfer away from internal components. The listed overall dimensions are 4000 × 2400 mm, with an overall thickness of ≤60 mm excluding support components.

The aluminum-based light panel is also significant. LEDs generate heat during operation, and excessive heat can accelerate component degradation. The manufacturer's design uses an aluminum-based diffused-reflection waterproof lighting strip to combine optical diffusion, moisture resistance, and heat dissipation.

The published specification gives a light-panel lifespan of ≥30,000 hours, light attenuation of ≤5% per year, and a stated lamp life of 7–10 years. These should be treated as manufacturer-declared specifications rather than a guarantee of identical field life under every installation condition. Actual service life depends on operating temperature, duty cycle, power quality, environmental exposure, installation, and maintenance.

Cross Road Traffic Light Sign applications at intersections and major roads

A Cross Road Traffic Light Sign is most useful when sign information needs to work together with traffic signal control and intersection geometry. At urban intersections, the sign may need to remain identifiable against multiple light sources and changing traffic conditions. On highways and expressways, greater approach speeds increase the importance of early information recognition.

The distinction between a Cross Road Street Sign and a Cross Road Traffic Light Sign should therefore be based on the traffic-control application rather than simply the wording on the sign.

A Cross Road Street Sign can be considered where the primary requirement is clear identification of a road, direction, route, or intersection-related information. A Cross Road Traffic Light Sign is more appropriate where sign information is positioned within a signalized intersection or forms part of a broader traffic-control environment.

The final selection should consider road classification, vehicle speed, sign mounting position, viewing distance, lane arrangement, ambient lighting, weather exposure, and whether the sign needs to operate continuously at night.

FAMA's project portfolio provides examples of traffic-light deployments across regions including Chile, Peru, Brazil, Argentina, Colombia, Paraguay, Ecuador, Uruguay, Guatemala, and other markets. These project references can be reviewed alongside the manufacturer's product range when evaluating supplier experience and application coverage.

What should buyers compare before purchasing?

For a road project, the following parameters are more useful than generic claims about quality:

A useful procurement process should also ask suppliers to clarify whether quoted visibility figures are laboratory measurements, manufacturer specifications, or field-tested project results. For example, FAMA publishes a visual range of ≥1,000 m for its Large Internally Illuminated Sign and separately states a four-times visibility claim under rain and fog compared with conventional signs. Buyers should request the test conditions and comparison methodology when these figures are used as project acceptance criteria.

How to choose a Cross Road Street Sign for a specific project

The correct Cross Road Street Sign is not necessarily the brightest model. The better choice is the configuration that provides the required recognition performance without creating unnecessary energy consumption or maintenance complexity.

For urban roads, uniform illumination and intelligent dimming can be particularly valuable because ambient lighting changes significantly between daytime, nighttime, and built-up areas. For expressways and highways, visibility distance, viewing angle, environmental protection, structural design, and maintenance access become more important because vehicle speeds are higher and roadside intervention is more difficult.

The same principle applies when selecting a Cross Road Traffic Light Sign. Procurement teams should evaluate the sign as part of the complete intersection environment rather than as an isolated illuminated panel.

For buyers evaluating FAMA's internally illuminated traffic sign technology, the manufacturer's [Large Internally Illuminated Sign product information]Large Internally Illuminated Sign provides the detailed specifications, while the [FAMA project portfolio]FAMA Project Portfolio can be used to review its traffic-light and traffic infrastructure project experience. The broader [FAMA product range]FAMA Product Range also includes smart traffic signs and traffic signal equipment.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

For road infrastructure procurement, the value of an internally illuminated sign ultimately comes down to measurable performance: adequate visibility distance, consistent LED brightness, controlled power consumption, environmental resistance, thermal management, structural durability, and a maintenance strategy that works in the actual road environment.

An internally illuminated Cross Road Street Sign or Cross Road Traffic Light Sign is therefore not simply a brighter replacement for a conventional reflective sign. It is a different visibility system. When the project requires reliable information recognition during nighttime operation and adverse weather, buyers should compare the complete optical, electrical, structural, environmental, and maintenance specifications rather than selecting a product based on brightness alone.
