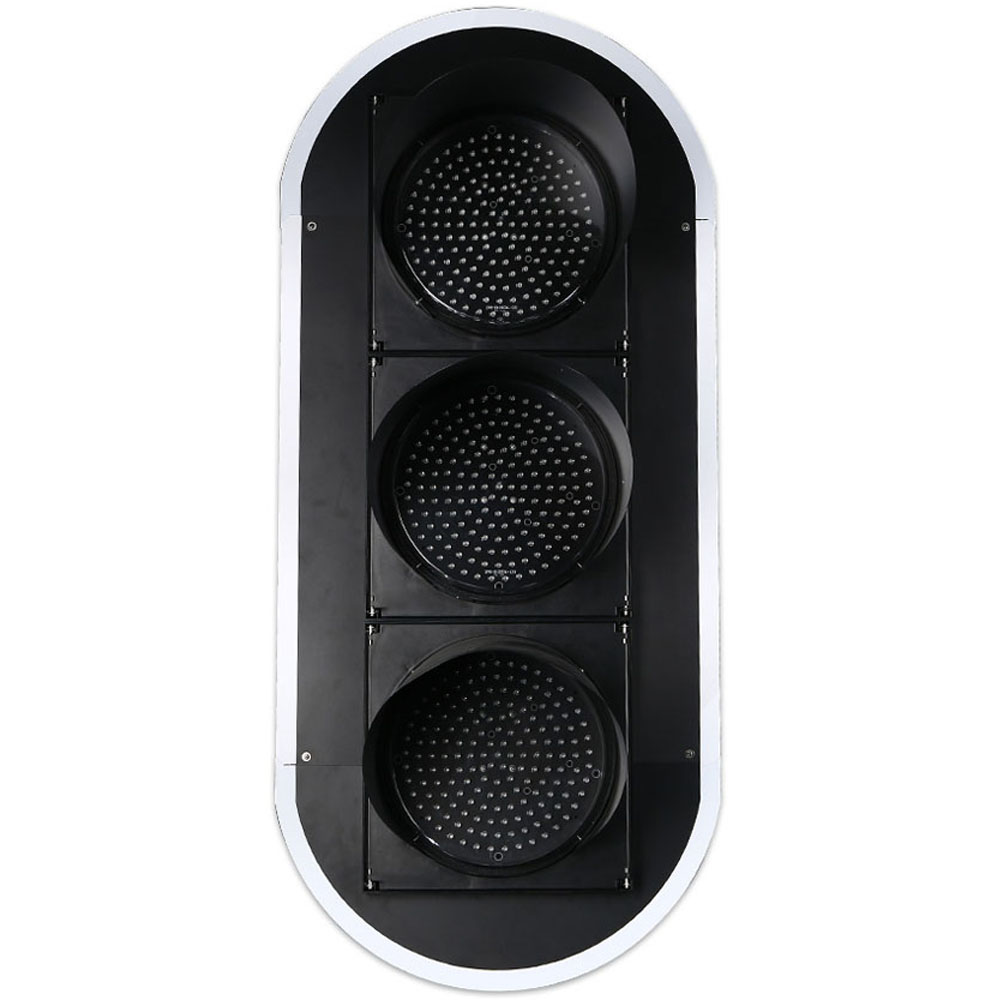

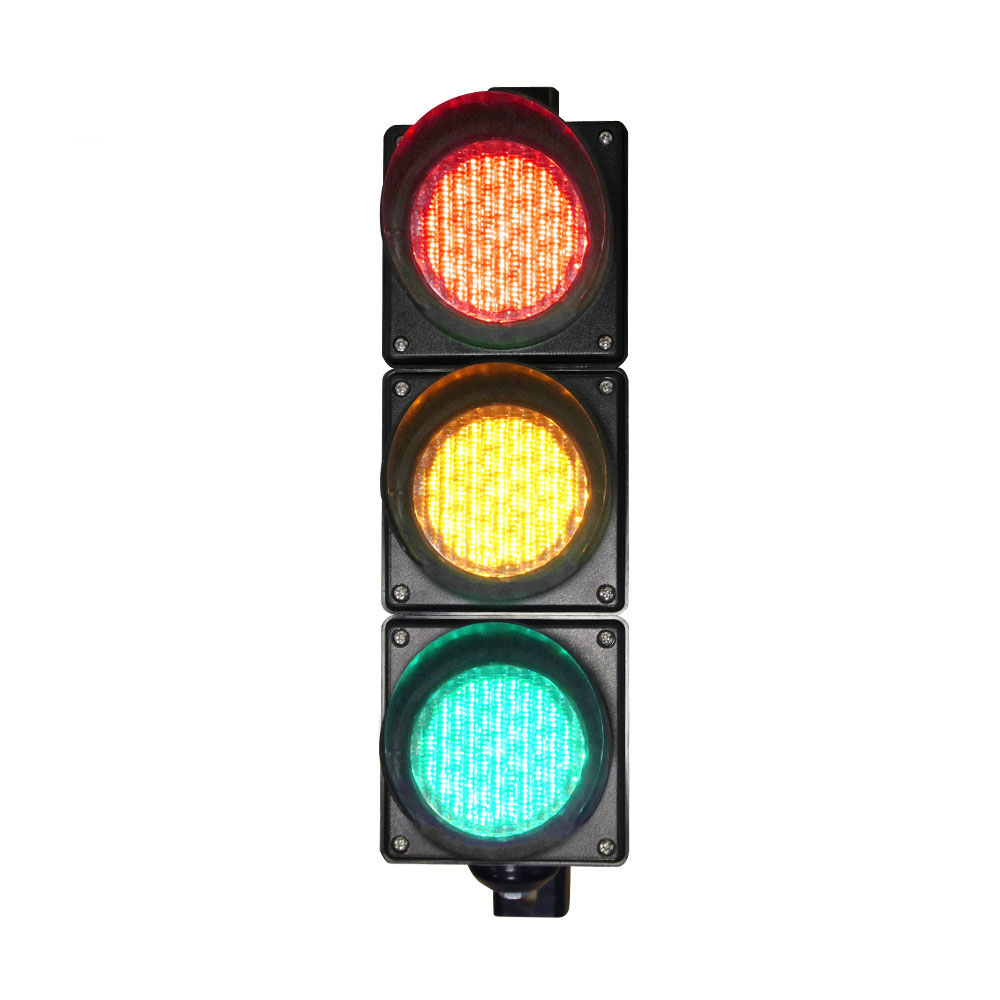

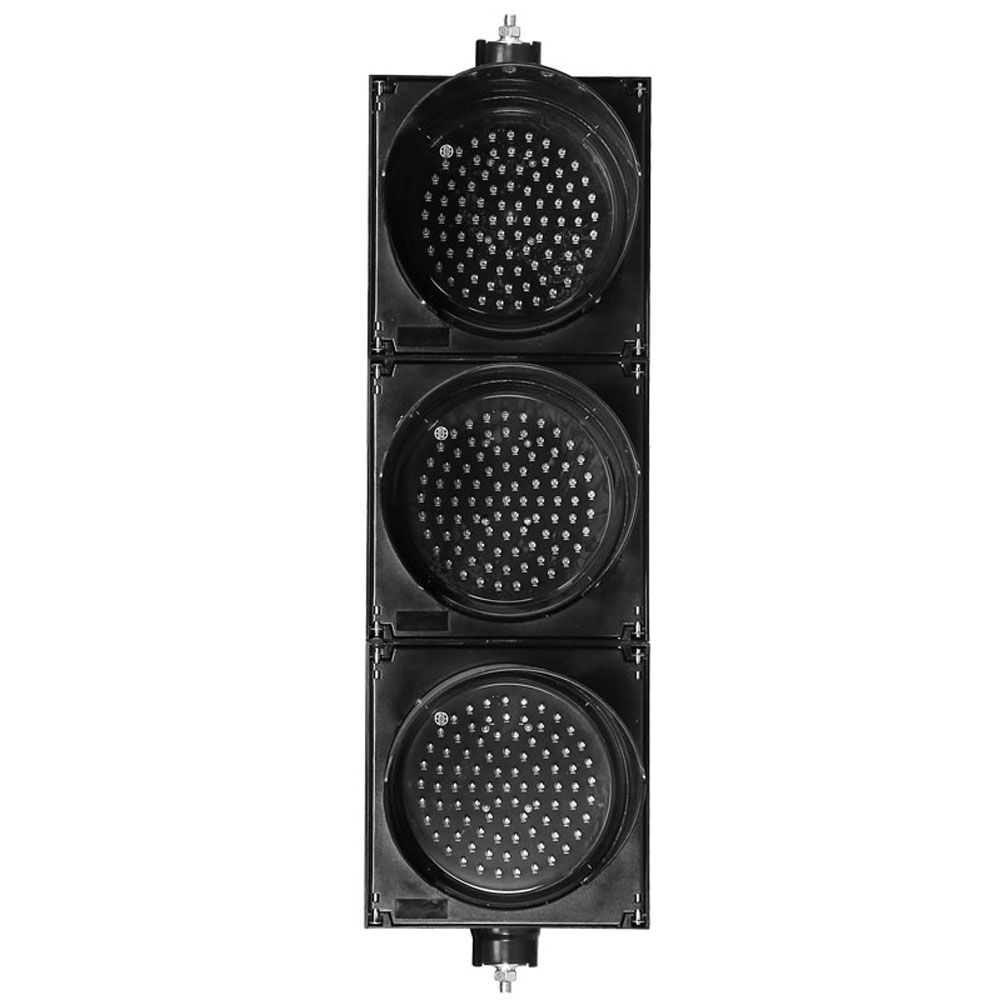

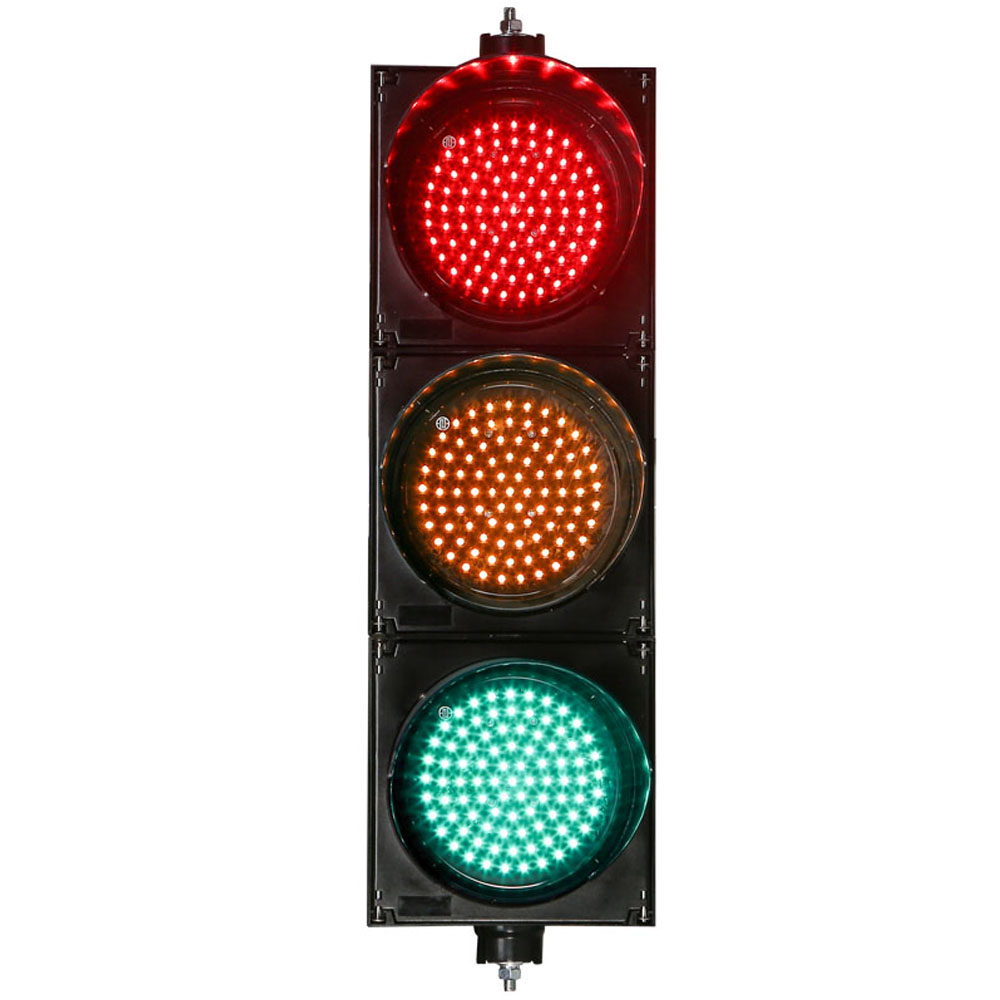

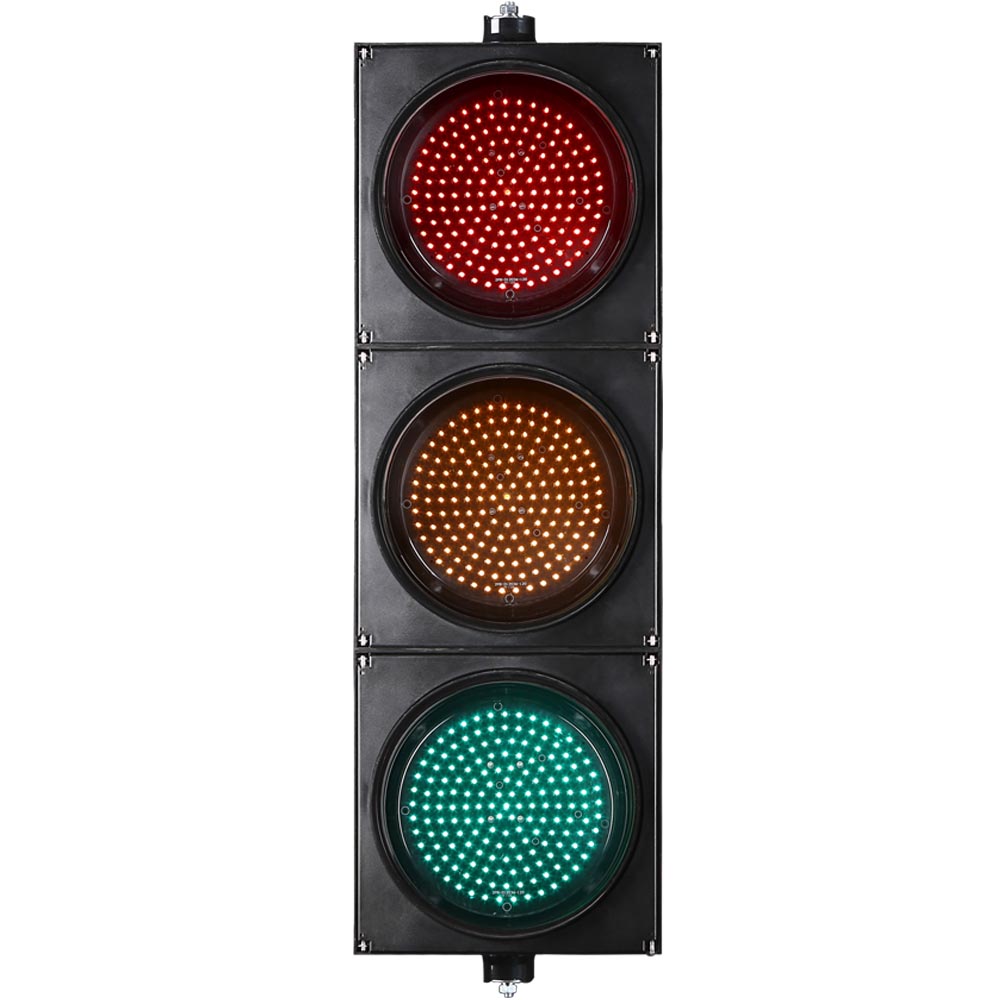

Low Power Red/Yellow/Green Full Ball Traffic Light
-

Model:

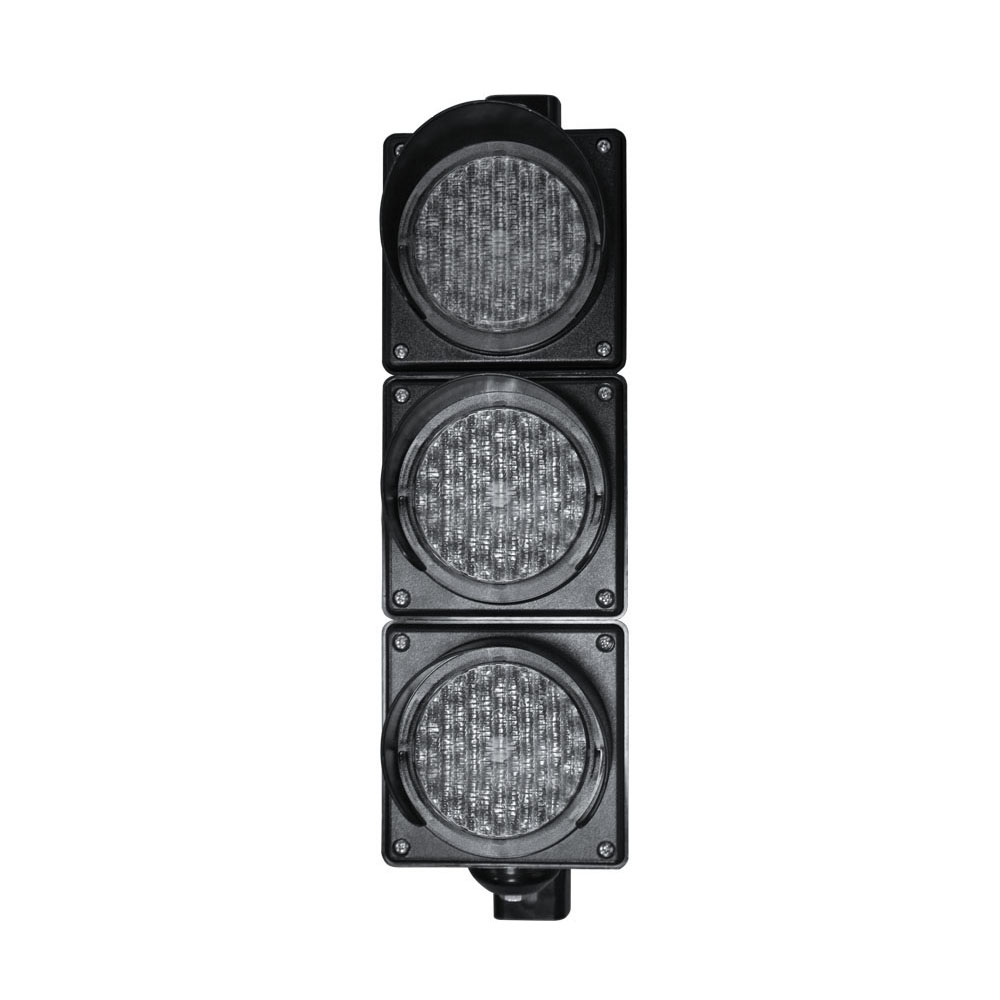

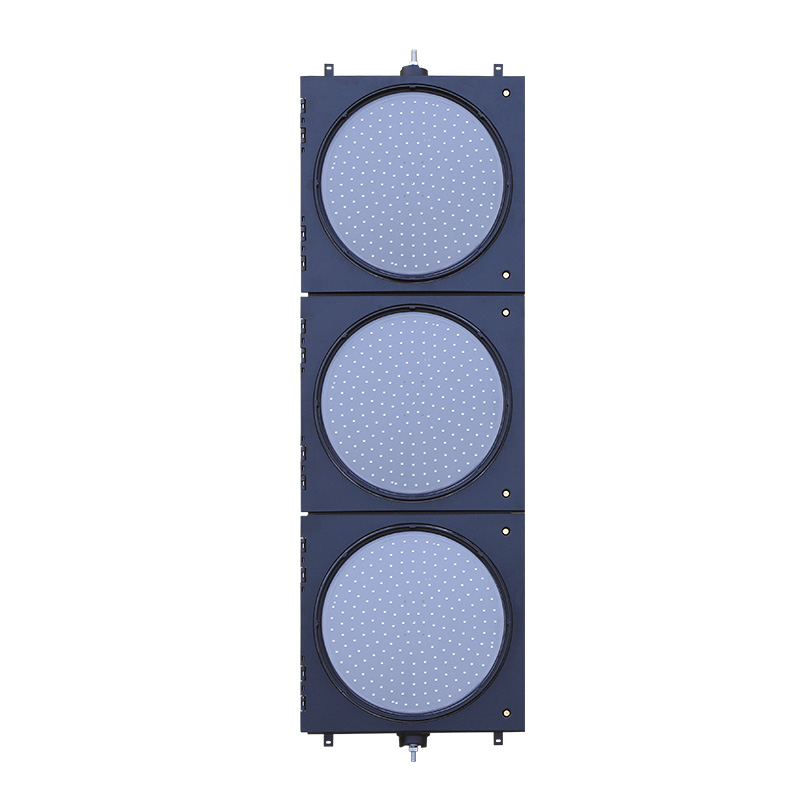

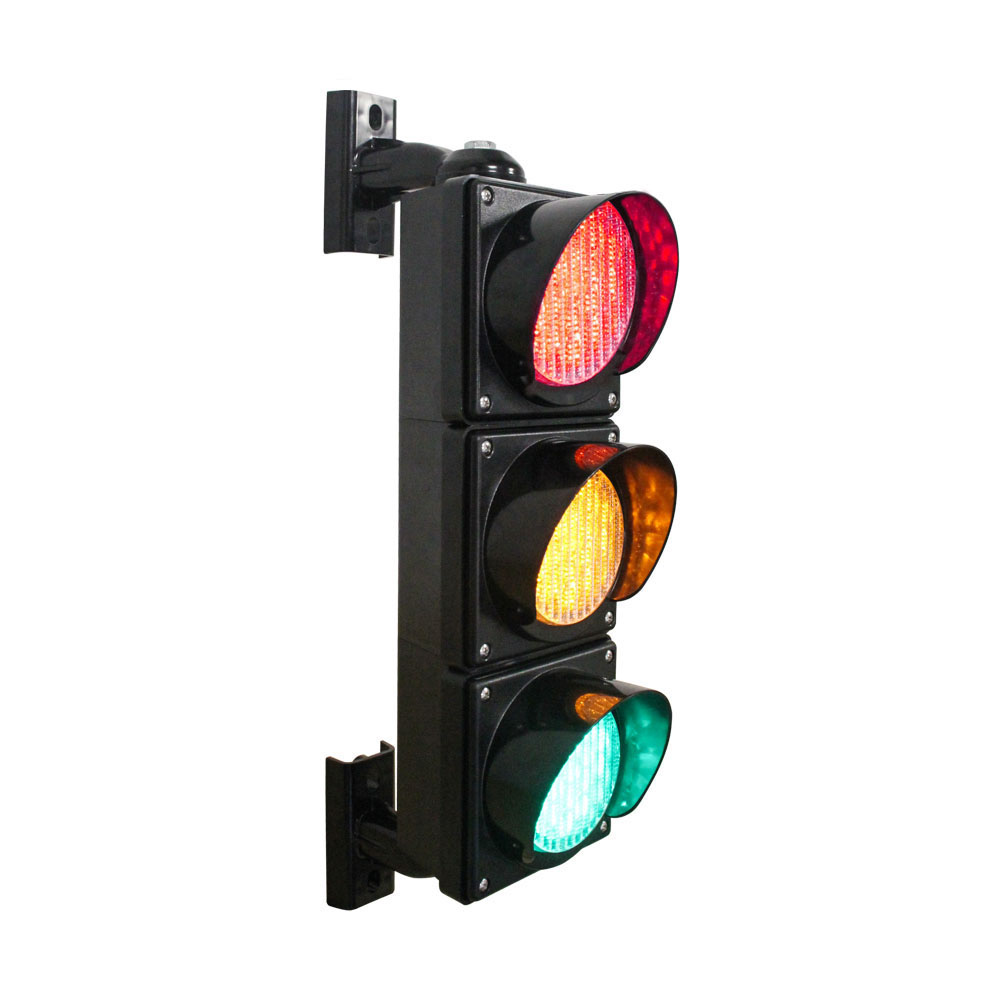

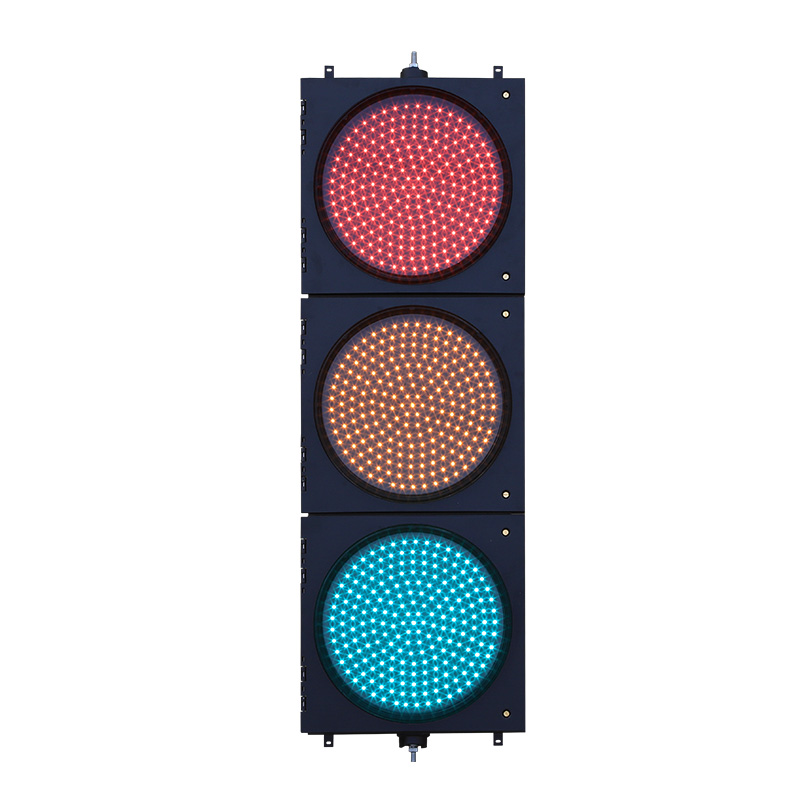

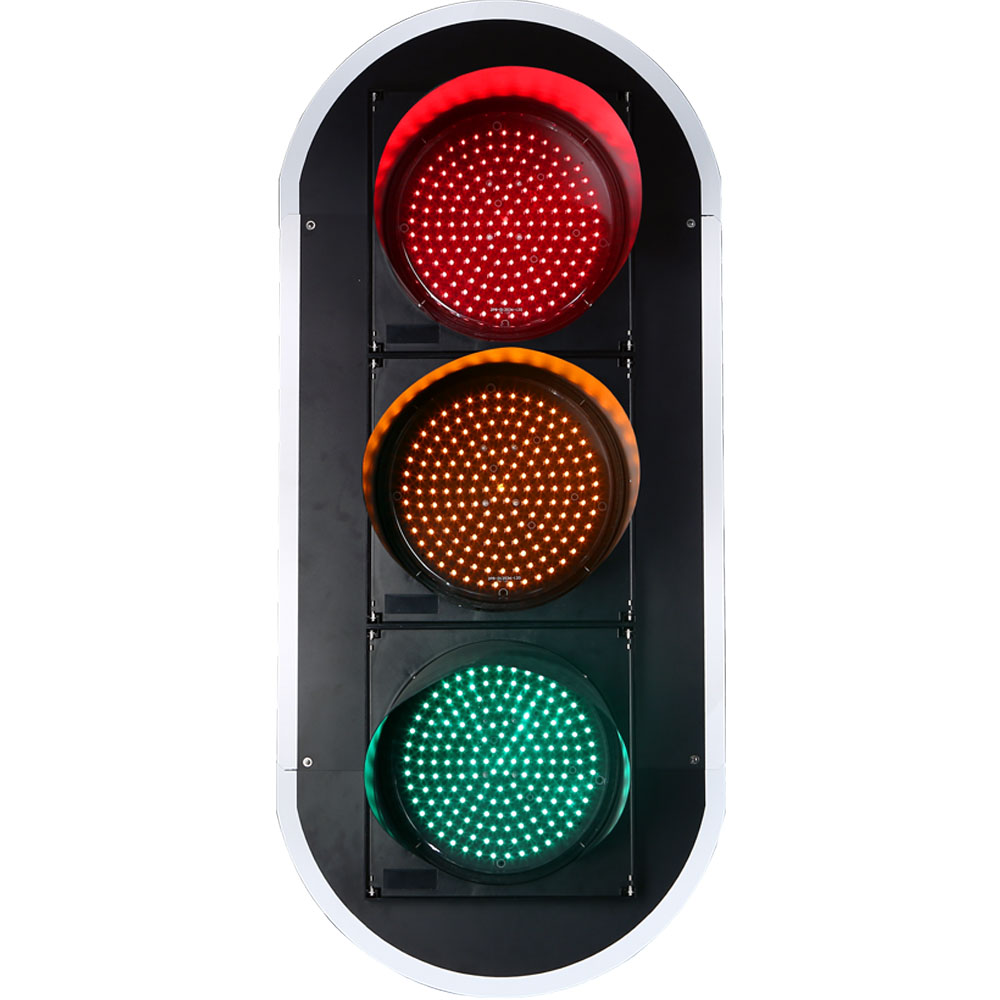

The Low Power Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly. The lamp core consists of key components including the lamp board, optical lens, power supply module, and lamp bowl. This product is suitable for use at various traffic signal-controlled intersections.
  • Low Power Red/Yellow/Green Full Ball Traffic Light
  • Low Power Red/Yellow/Green Full Ball Traffic Light
  • Low Power Red/Yellow/Green Full Ball Traffic Light
  • Low Power Red/Yellow/Green Full Ball Traffic Light
  • Low Power Red/Yellow/Green Full Ball Traffic Light
  • Low Power Red/Yellow/Green Full Ball Traffic Light
  • Low Power Red/Yellow/Green Full Ball Traffic Light
  • Low Power Red/Yellow/Green Full Ball Traffic Light
  • Low Power Red/Yellow/Green Full Ball Traffic Light
  • Low Power Red/Yellow/Green Full Ball Traffic Light
Overview

Product Introduction:

The Low Power Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly. The lamp core consists of key components including the lamp board, optical lens, power supply module, and lamp bowl. This product is suitable for use at various traffic signal-controlled intersections.


Add the to your project
Functional Features
  • Mesh circuit design ensures stable product operation
    The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.
  • European standard power supply, more energy-efficient and environmentally friendly
    It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
  • Constant current drive design, with long service life and low maintenance
    It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
  • Excellent electromagnetic compatibility, enhancing device stability
    It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.

Product ModelJD100-3-FM31JD200-3-FM31JD300-3-FM31JD400-3-FM31
Light-Emitting Surface (LES)  Size100mm200mm300mm400mm
Housing MaterialPolycarbonate housingPolycarbonate housingPolycarbonate housingPolycarbonate housing
Lamp Color□Red  □Yellow  □Green□Red  □Yellow  □Green□Red  □Yellow  □Green□Red  □Yellow  □Green
Mask ColorTransparentTransparentTransparentTransparent
VisorsΦ130x68mmΦ216x205mm754.9x220x0.6mm1060x460x0.6mm
Shape of  LESRoundRoundRoundRound
Operating Voltage / FrequencyAC85~264V/47-63HzAC85~264V/47-63HzAC85~264V/47-63HzAC85~264V/47-63Hz
LED QuantityR/Y/G:  45pcsR/Y/G:  90pcsR/Y/G:  168pcsR/Y/G:  205pcs
Lamp Power Consumption

Red full ball ≤ 5 W

Yellow full ball ≤ 5 W

Green full ball ≤ 4 W

Red full ball ≤ 7 W

Yellow full ball ≤ 7 W

Green full ball ≤ 6 W

Red full ball ≤ 11 W

Yellow full ball ≤ 11 W

Green full ball ≤ 9 W

Red full ball ≤ 13 W

Yellow full ball ≤ 13 W

Green full ball ≤ 11 W

LED Wavelength

Red: 616 - 628 nm

Yellow: 589 - 592 nm

Green: 500 - 510 nm

Red: 616 - 628 nm

Yellow: 589 - 592 nm

Green: 500 - 510 nm

Red: 616 - 628 nm

Yellow: 589 - 592 nm

Green: 500 - 510 nm

Red: 616 - 628 nm

Yellow: 589 - 592 nm

Green: 500 - 510 nm

Luminous Intensity110cd~200cd230cd ~350cd400cd~1000cd400cd~1000cd
LED Lifespan≥100,000 hours≥100,000 hours≥100,000 hours≥100,000 hours
Insulation Resistance>2MΩ>2MΩ>2MΩ>2MΩ

Operating Temperature

-40℃ to +80℃-40℃ to +80℃-40℃ to +80℃-40℃ to +80℃
Relative Humidity≤97%RH≤97%RH≤97%RH≤97%RH
Protection GradeIP55IP55IP55IP55

Visual Distance

≥300m≥300m≥300m≥300m
Packaging Specifications1 piece per box, Size: 65 × 22 × 26 cm, Weight: 3.5 ± 0.5 kg1 piece per box, Size: 92 × 30 × 22 cm, Weight: 7 ± 0.5 kg1 piece per box, Size: 112 × 39 × 28 cm, Weight: 10 ± 0.5 kg1 piece per box, Size: 162 × 54 × 22 cm, Weight: 17.7 ± 0.5 kg

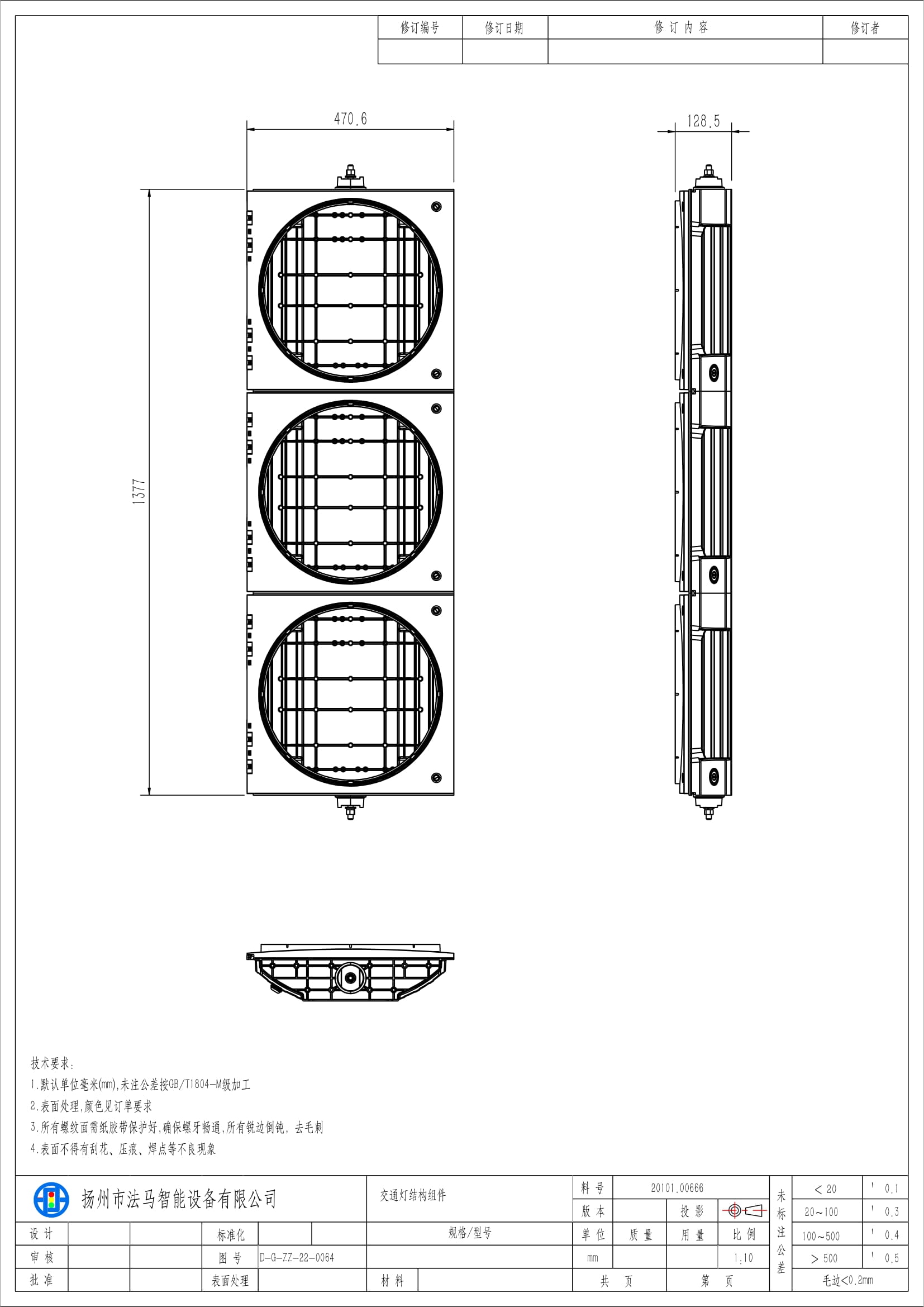

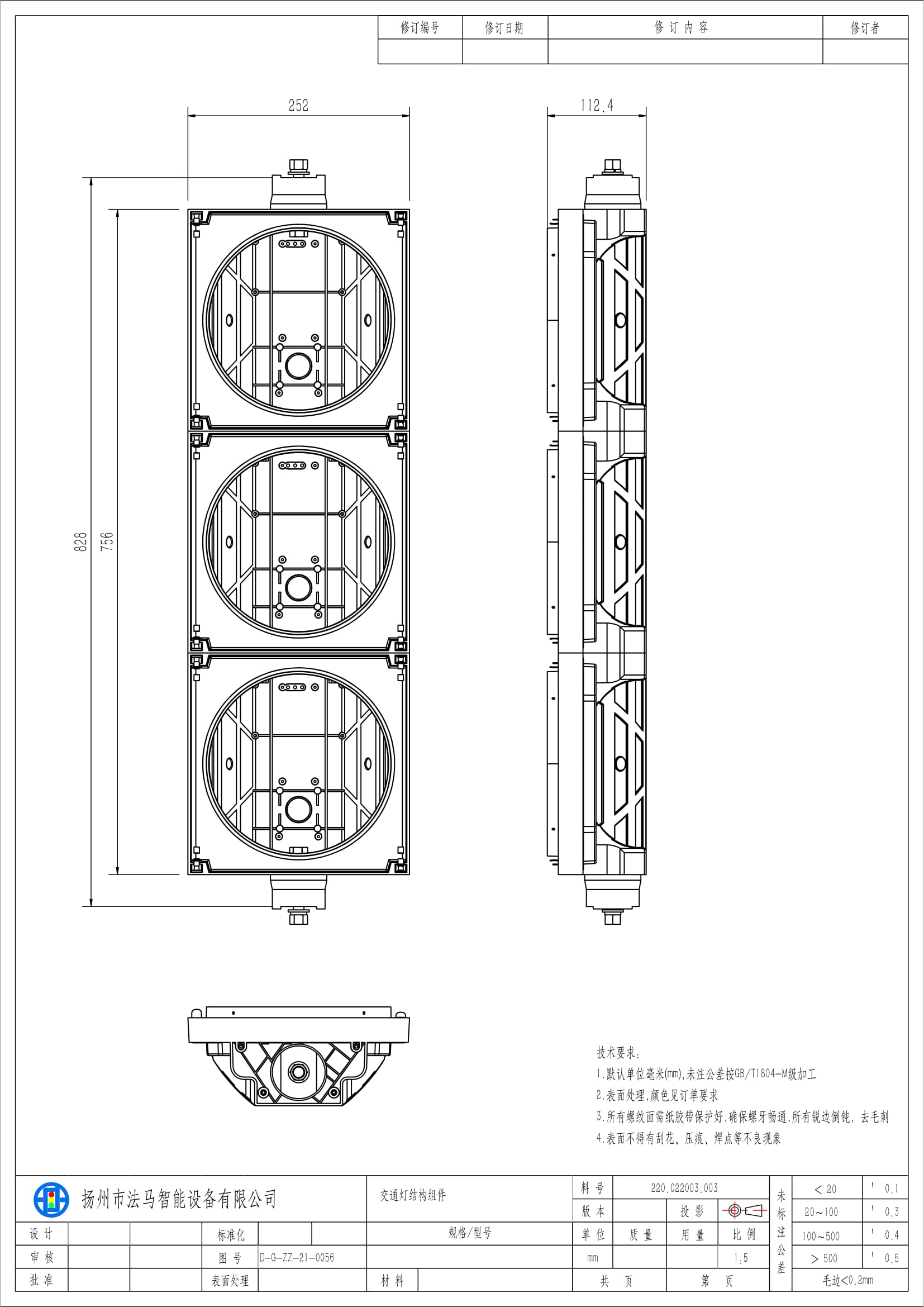

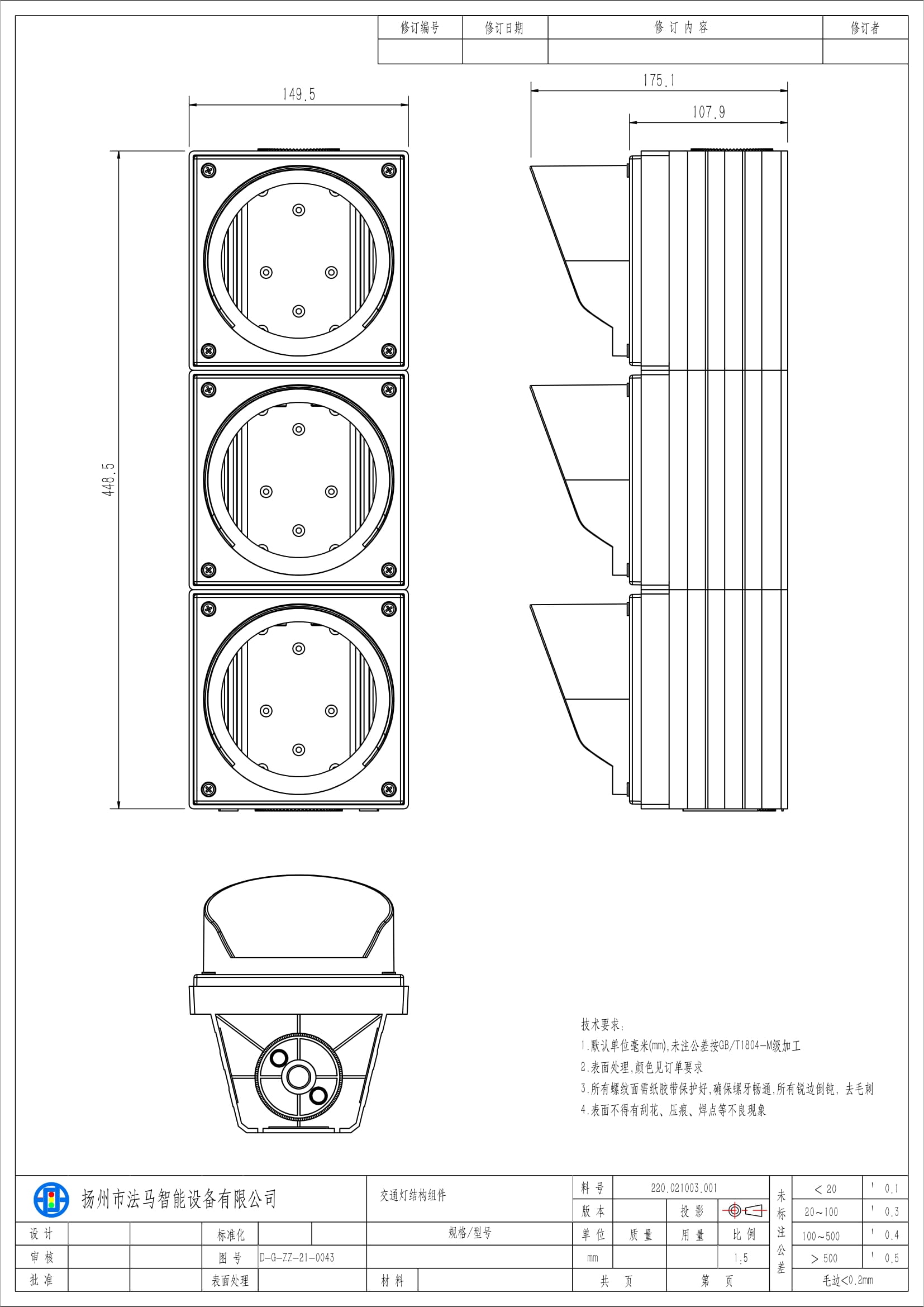

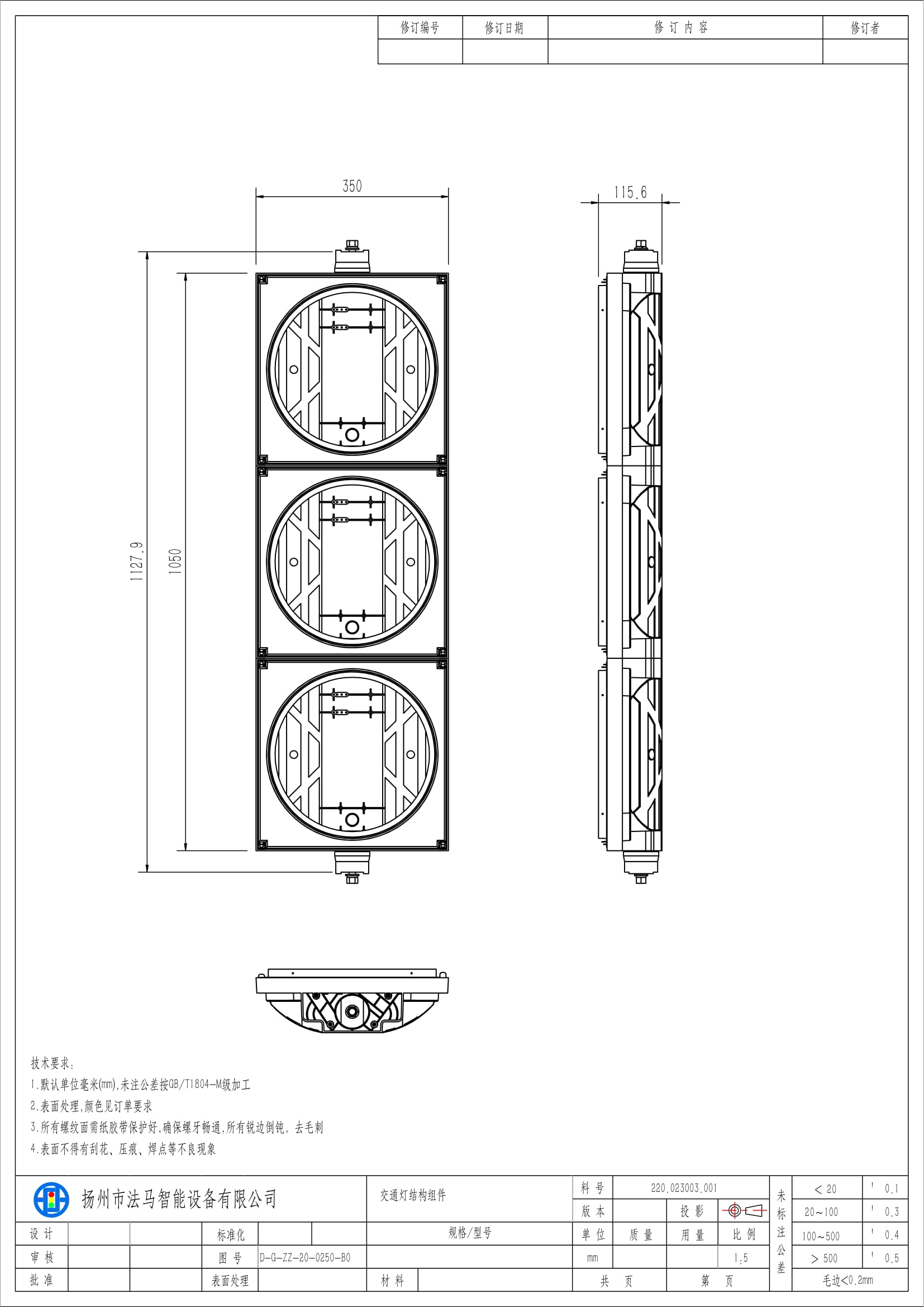

Structural Components

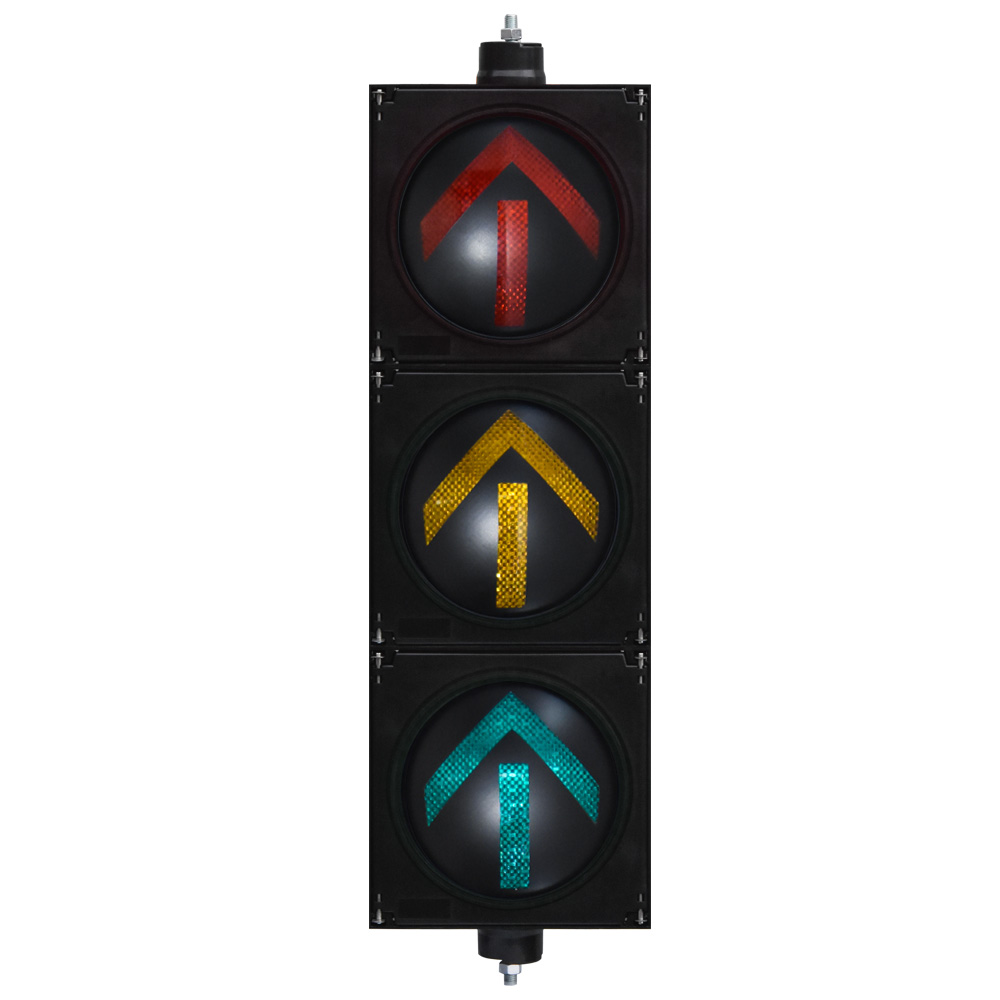

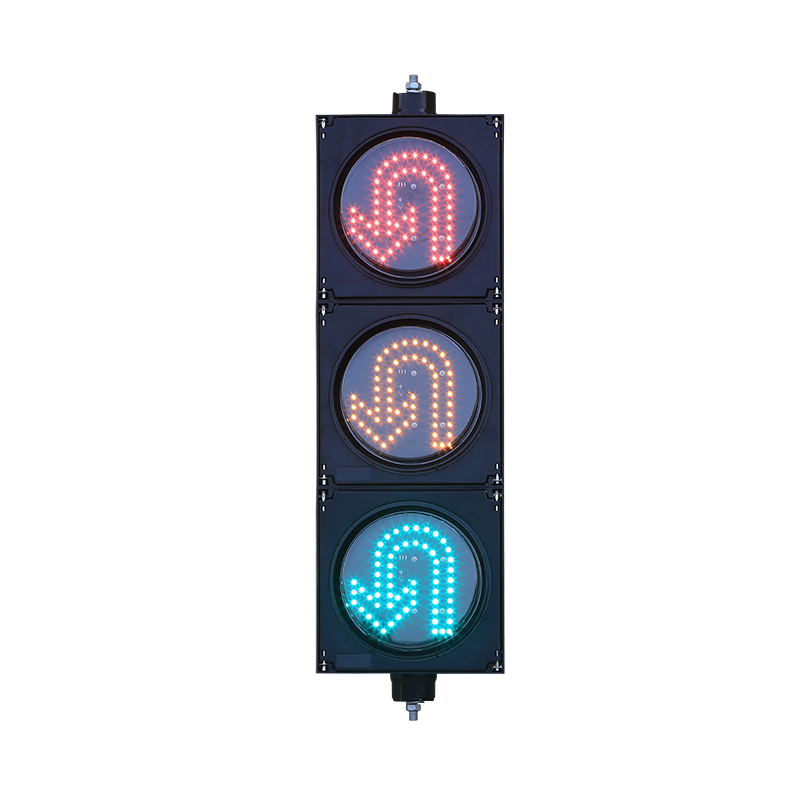

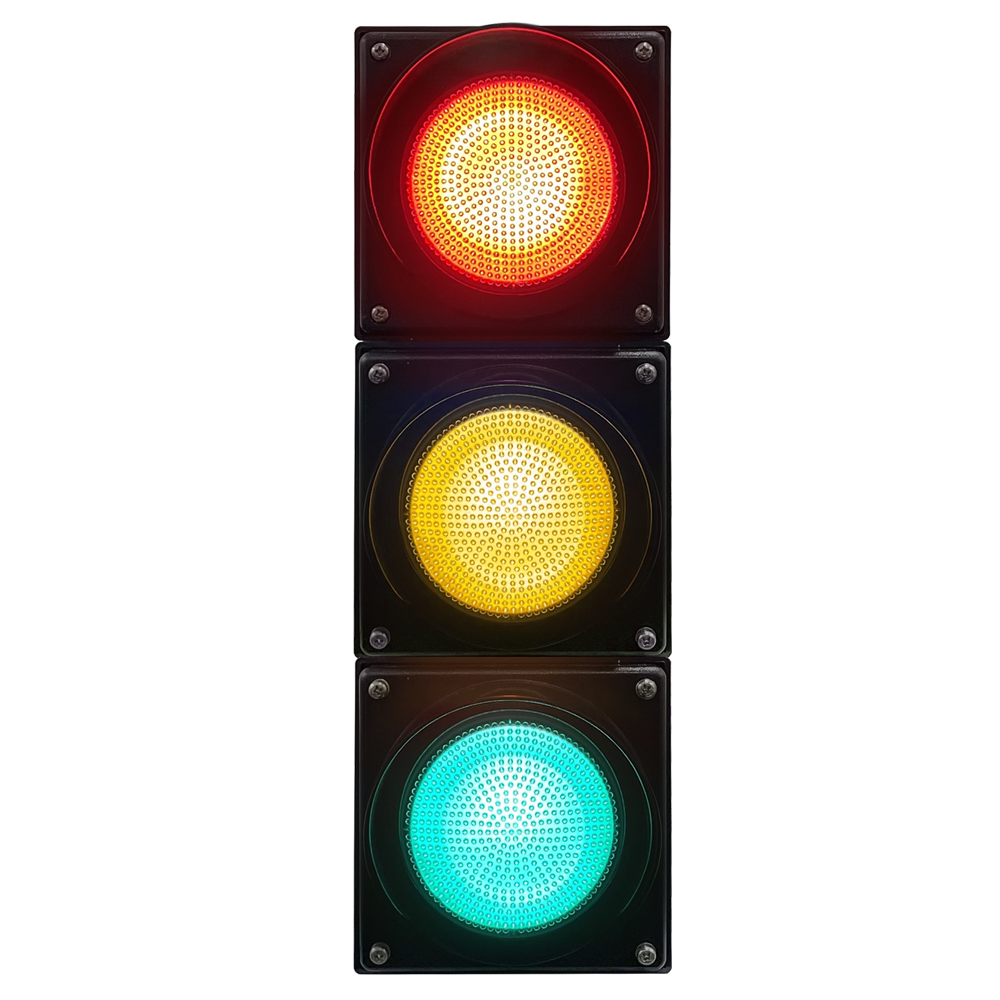

Recommended
