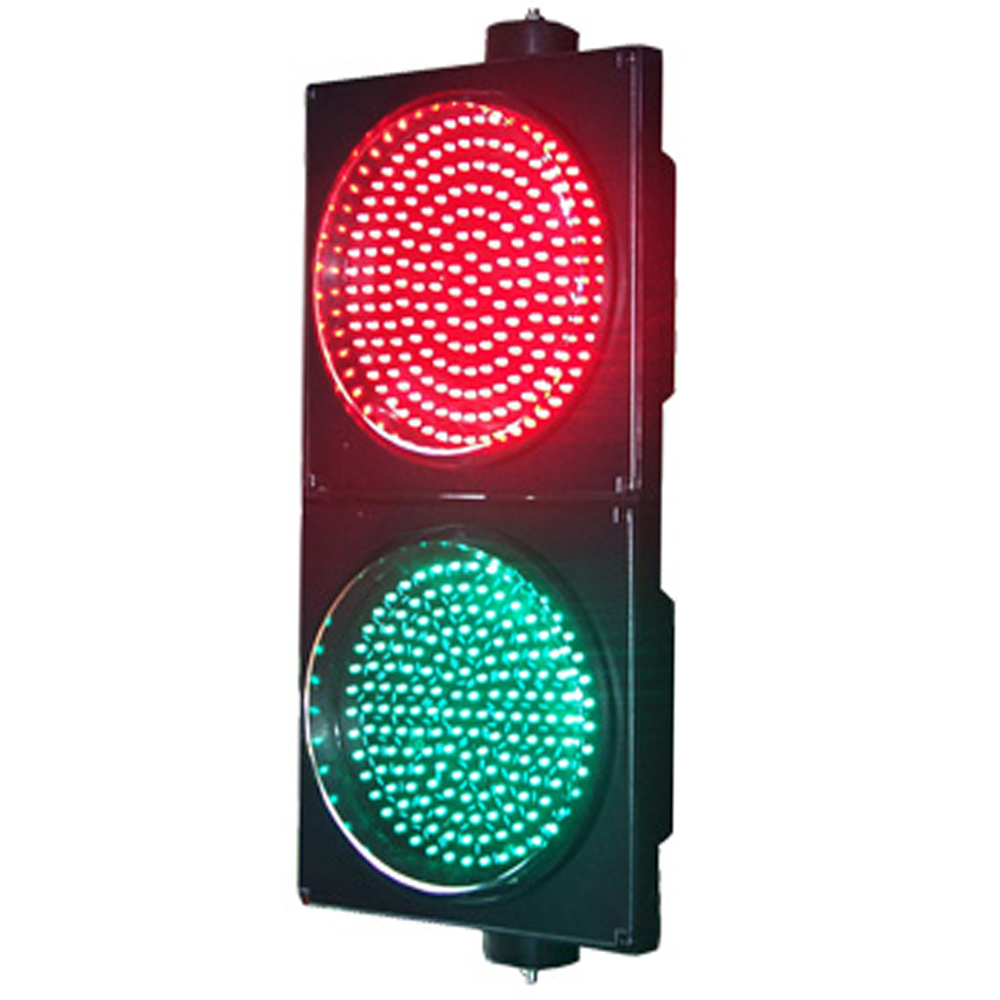

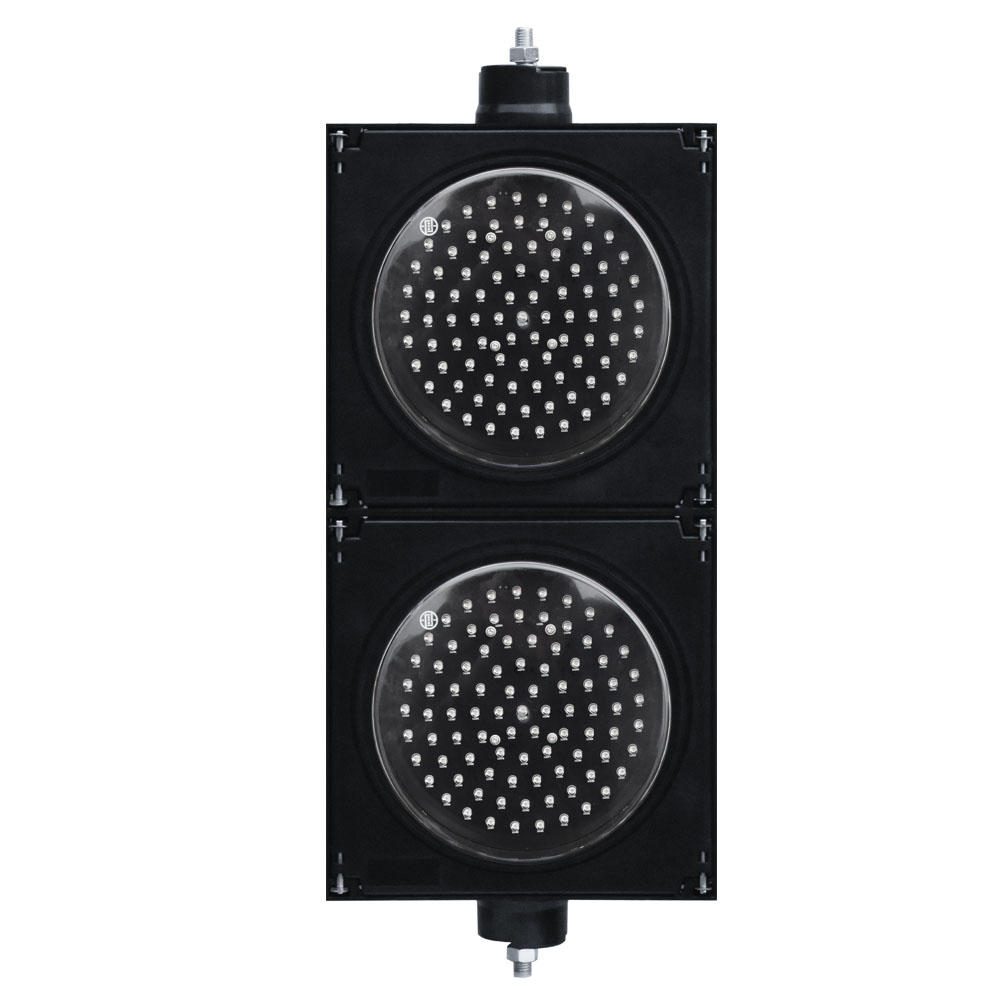

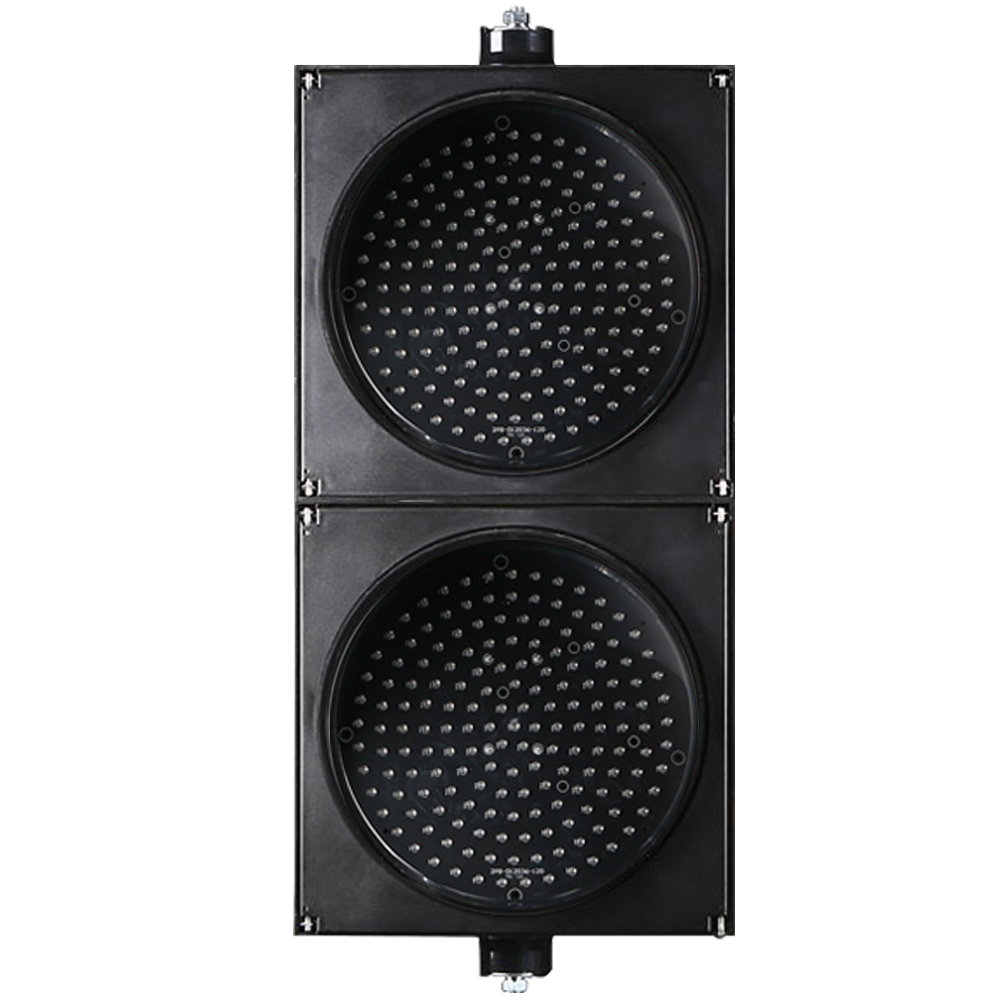

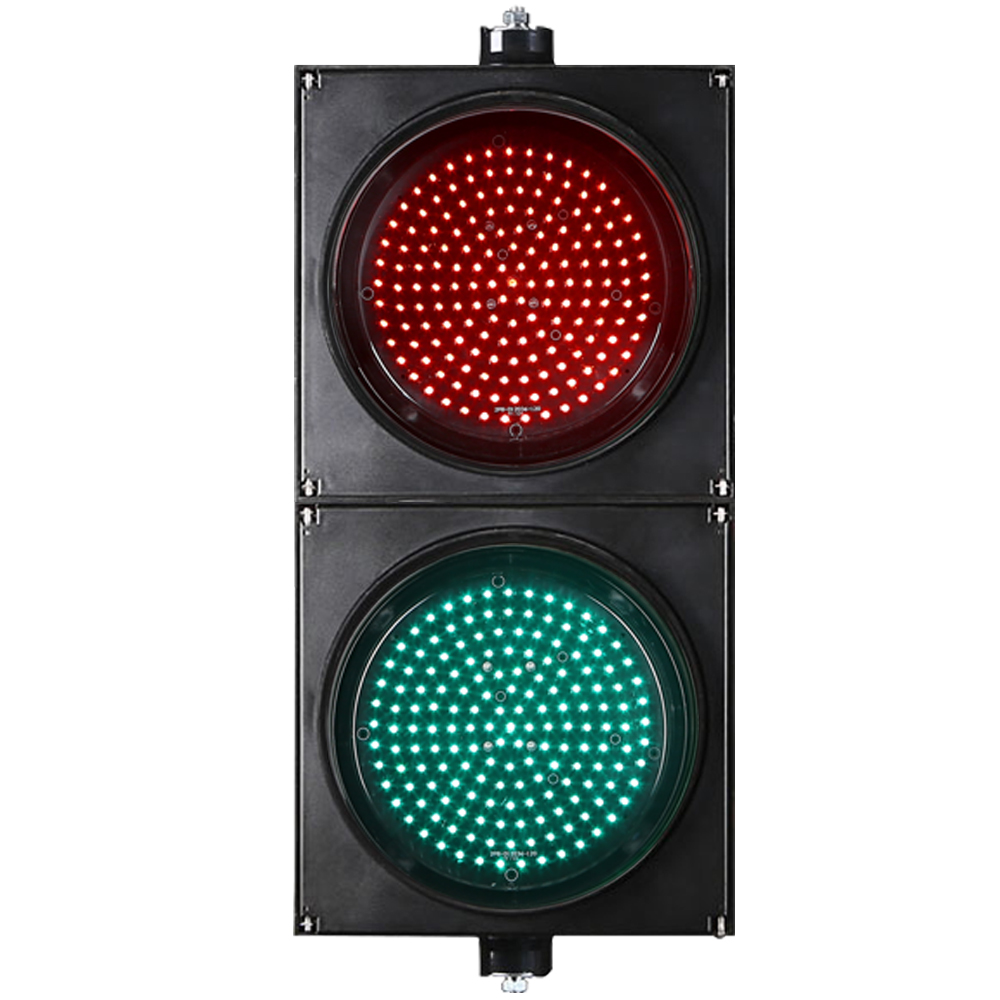

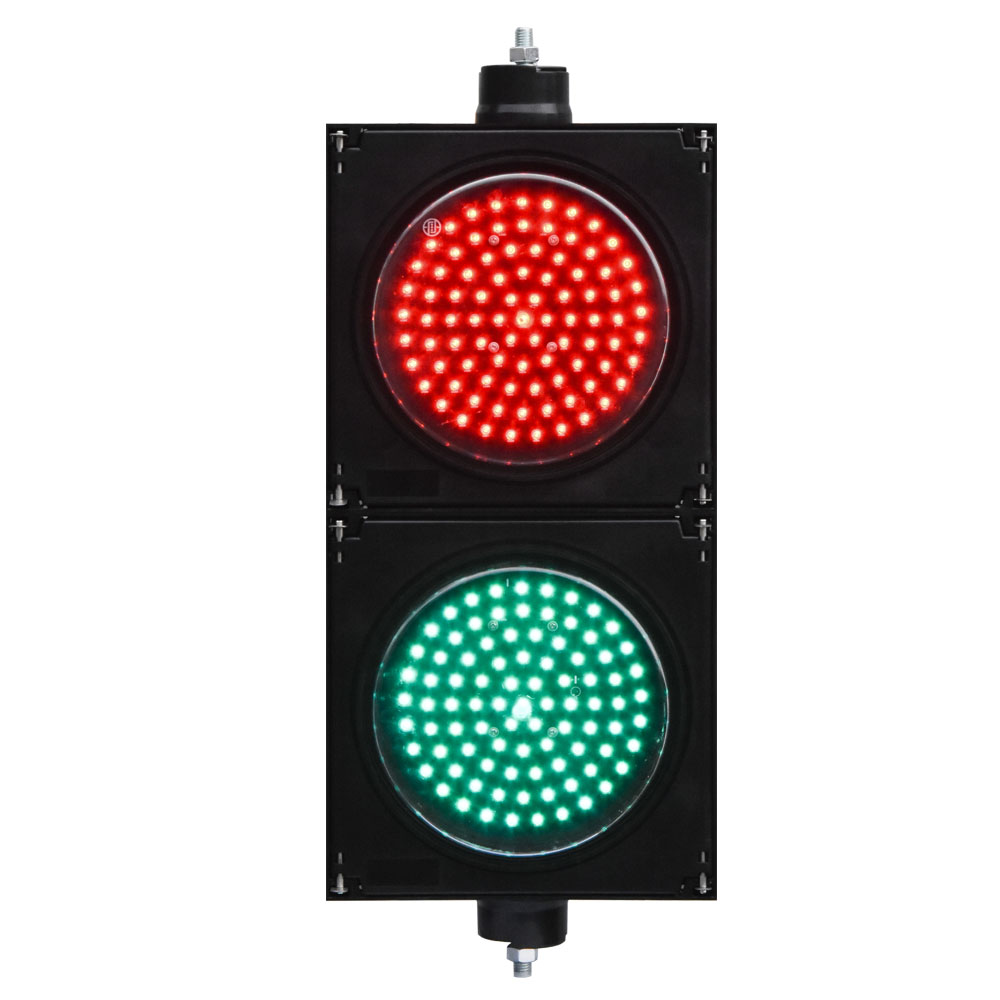

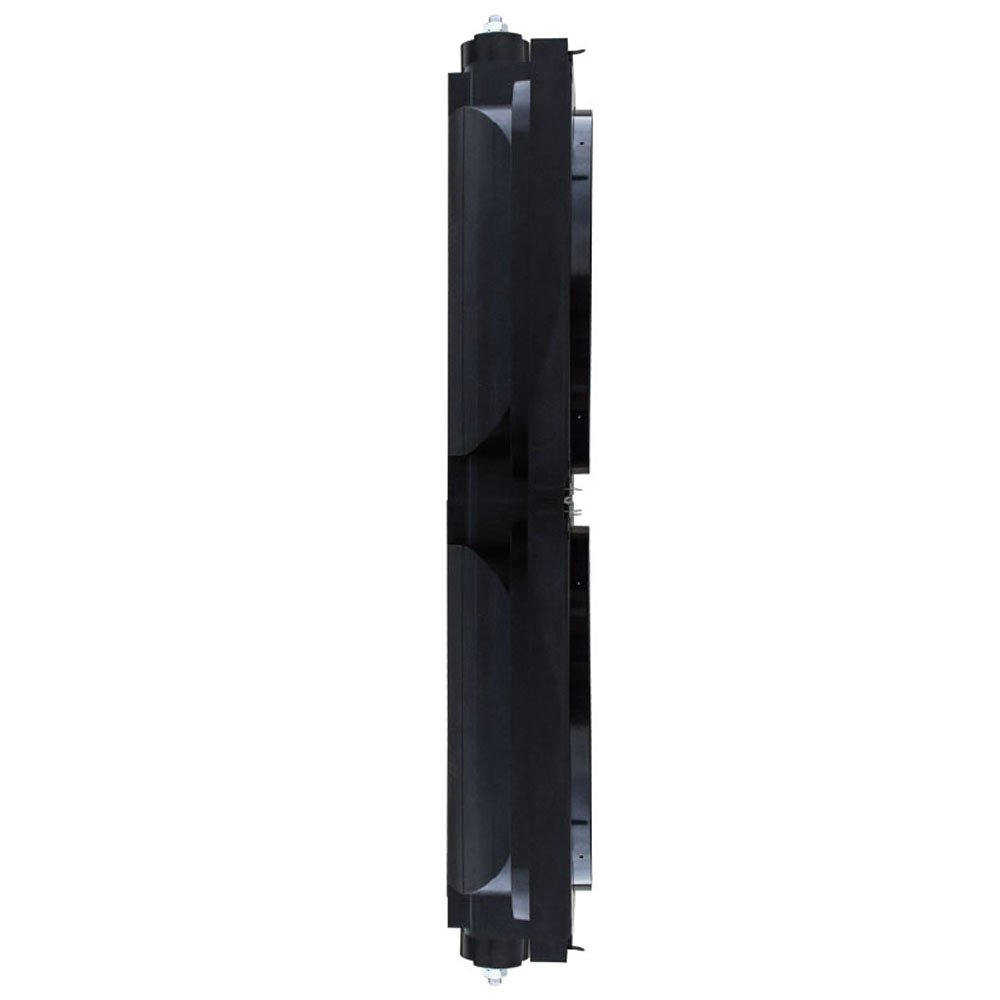

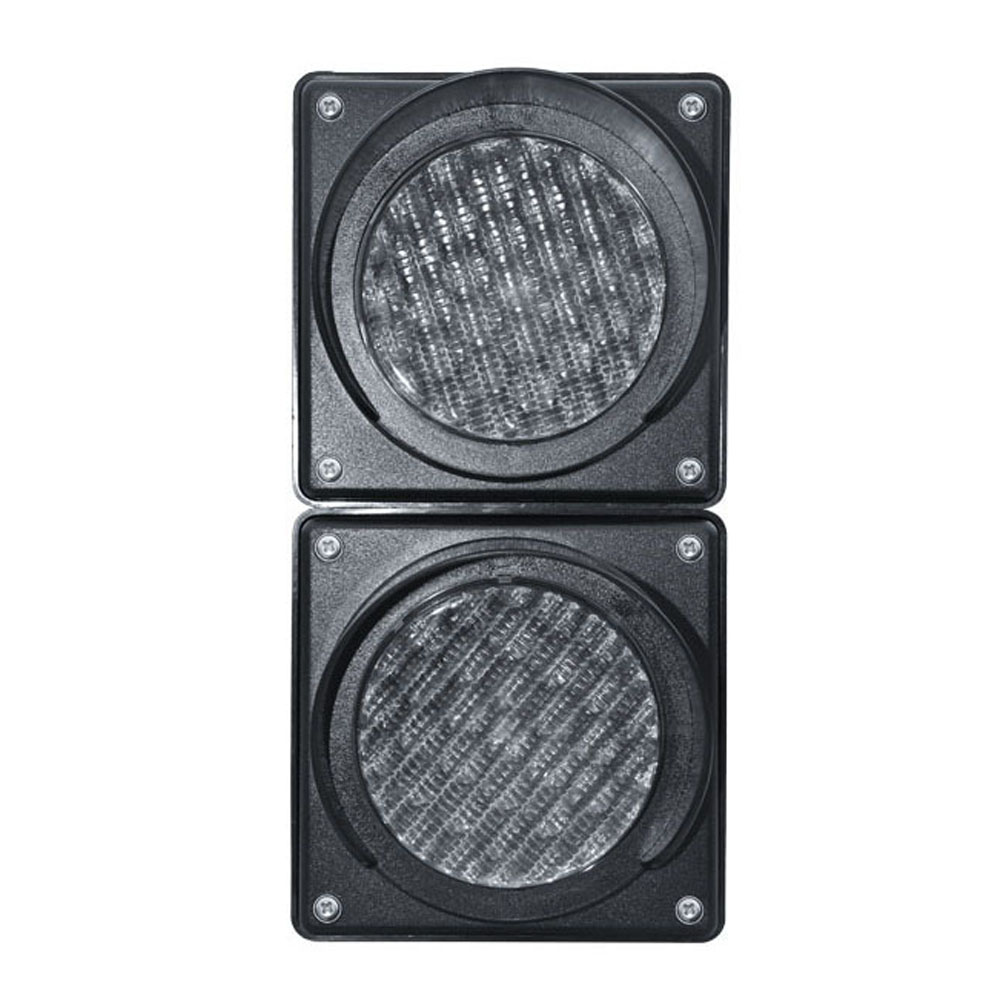

Low Power Red/Green Full Ball Traffic Light(two-unit)
-

Model:

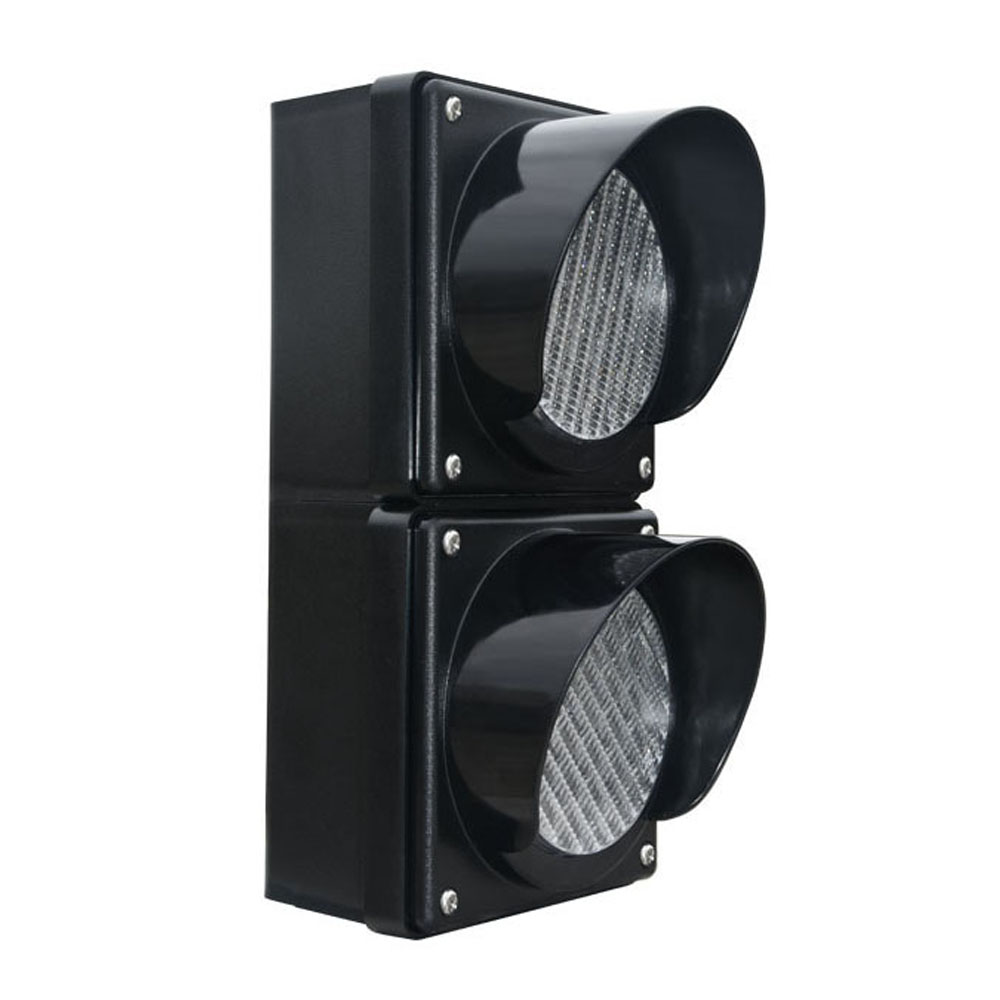

The Low Power Red/Green Full Ball Traffic Light is a two-unit assembly. The lamp core comprises key components, including the lamp board, optical lens, power supply module, and lamp bowl. It can be applied to various scenarios such as gateways or entrances and exits of parking lots.
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
  • Low Power Red/Green Full Ball Traffic Light(two-unit)
Overview

Product Introduction:

The Low Power Red/Green Full Ball Traffic Light is a two-unit assembly. The lamp core comprises key components, including the lamp board, optical lens, power supply module, and lamp bowl. It can be applied to various scenarios such as gateways or entrances and exits of parking lots.


Add the to your project
Functional Features

Product Selling Points:

1. Mesh circuit design ensures stable product operation:

The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.

2. European standard power supply, more energy-efficient and environmentally friendly:

It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.

3. Constant current drive design, with long service life and low maintenance:

It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.

4. Excellent electromagnetic compatibility, enhancing device stability:

It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.


Product ModelJD100-3-FM21JD200-3-FM21JD300-3-FM21
Light-Emitting Surface (LES)  Size100mm200mm300mm
Housing MaterialPolycarbonate housingPolycarbonate housingPolycarbonate housing
Lamp Color□Red    □Green□Red    □Green□Red    □Green
Mask ColorTransparentTransparentTransparent
VisorsΦ130x68mmΦ216x205mm754.9x220x0.6mm
Shape of  LESRoundRoundRound
Operating Voltage / FrequencyAC85~264V/47-63HzAC85~264V/47-63HzAC85~264V/47-63Hz
LED QuantityR/G:  45pcsR/G:  90pcsR/G:  168pcs
Lamp Power ConsumptionRed full ball ≤ 5 W
Green full ball ≤ 4 W
Red full ball ≤7 W
Green full ball ≤ 6 W
Red full ball ≤ 11 W
Green full ball ≤ 9 W
LED WavelengthRed: 625 ± 5 nm
Green: 505 ± 5 nm
Red: 625 ± 5 nm
Green: 505 ± 5 nm
Red: 625 ± 5 nm
Green: 505 ± 5 nm
Luminous Intensity110cd~200cd230cd ~350cd400cd~1000cd
LED Lifespan≥100,000 hours≥100,000 hours≥100,000 hours
Insulation Resistance>2MΩ>2MΩ>2MΩ
Operating Temperature-40℃ to +80℃-40℃ to +80℃-40℃ to +80℃
Relative Humidity≤97%RH≤97%RH≤97%RH
Protection GradeIP53IP53IP53
Visual Distance≥300m≥300m≥300m
Packaging Specifications1 piece per box, Size: 50 × 22 × 26cm, Weight: 2.2 ± 0.5 kg1 piece per box, Size: 67 × 30 × 21 cm, Weight: 5 ± 0.5 kg1 piece per box, Size: 88 × 39 × 20 cm, Weight: 7.6 ± 0.5 kg

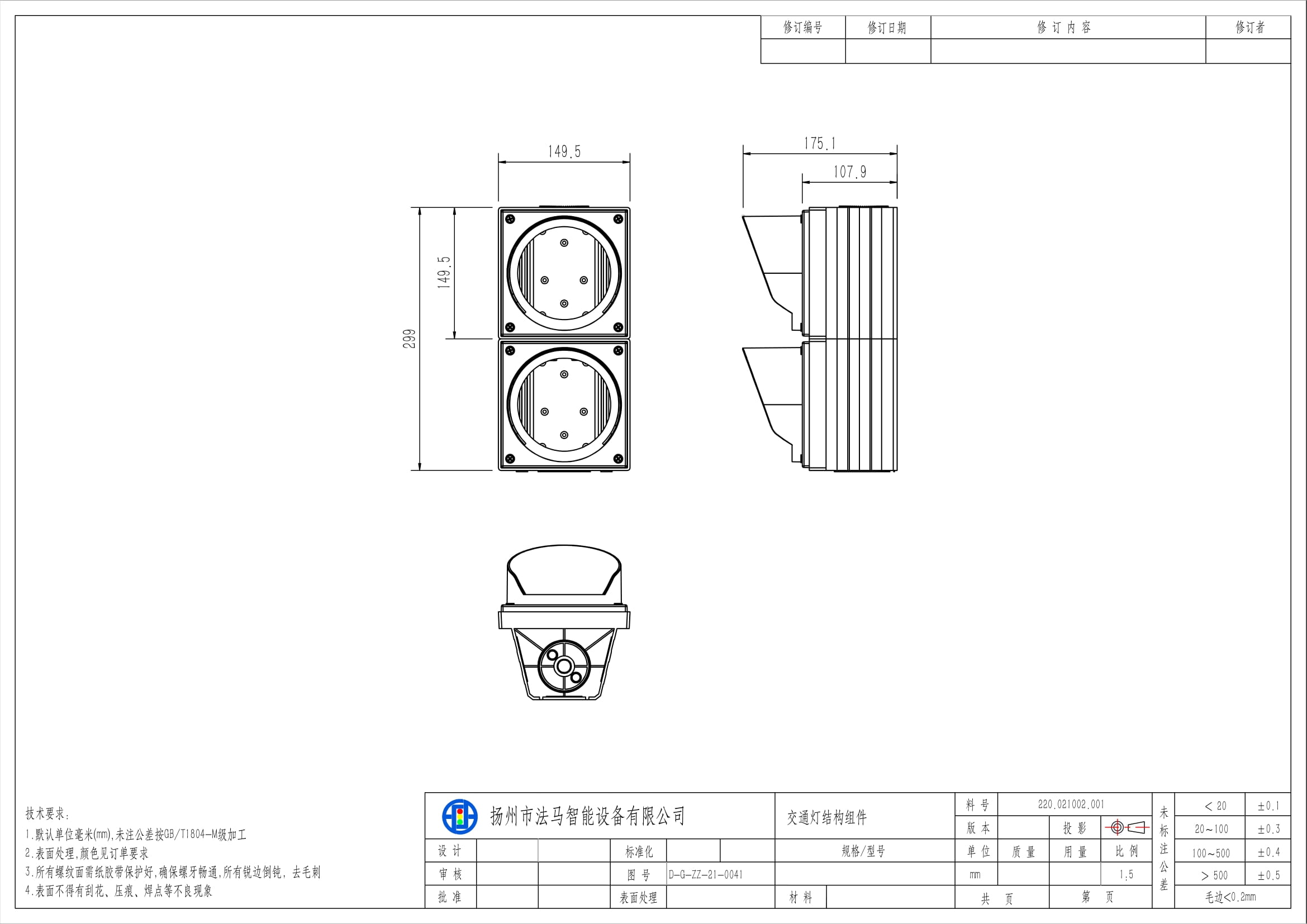

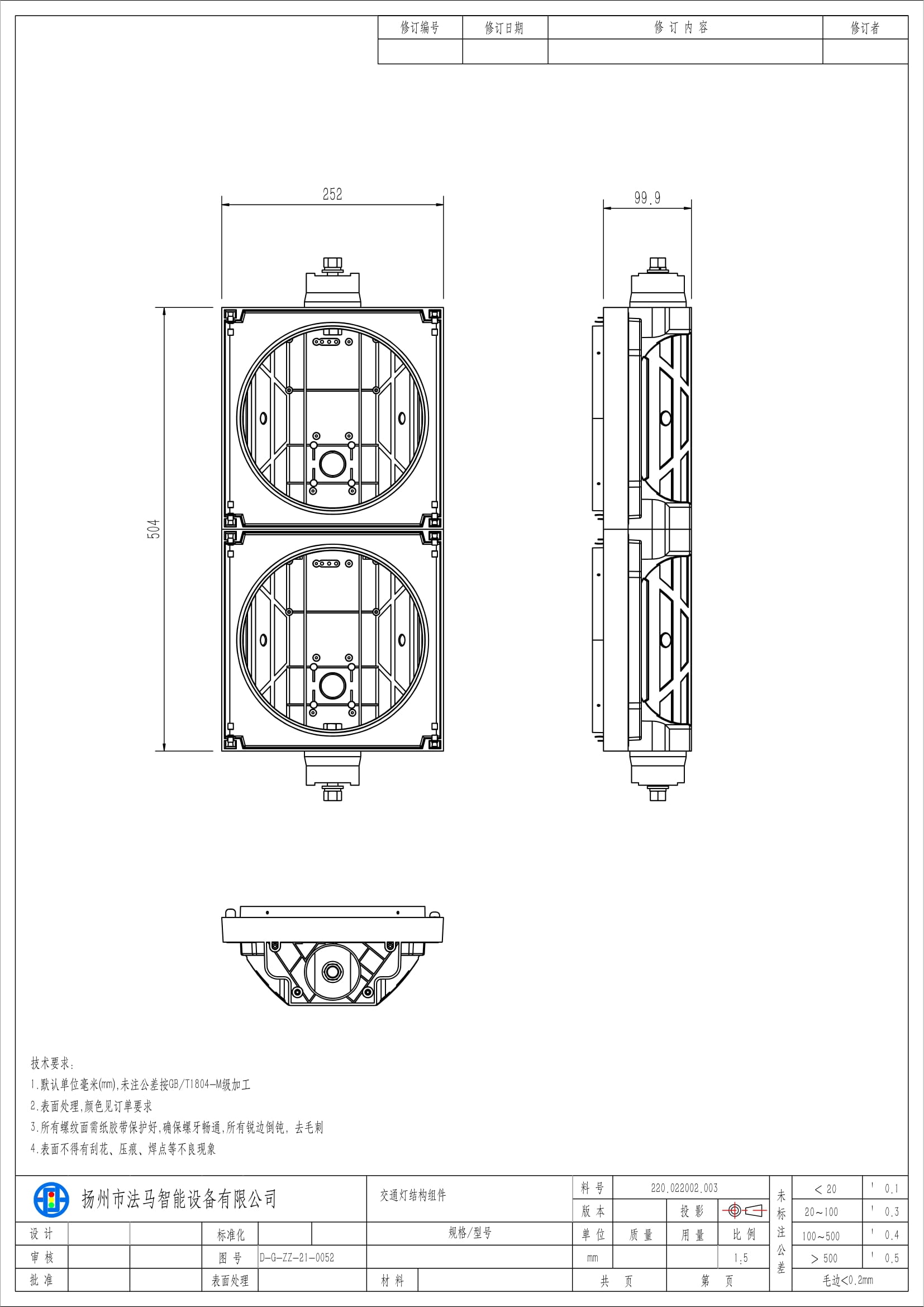

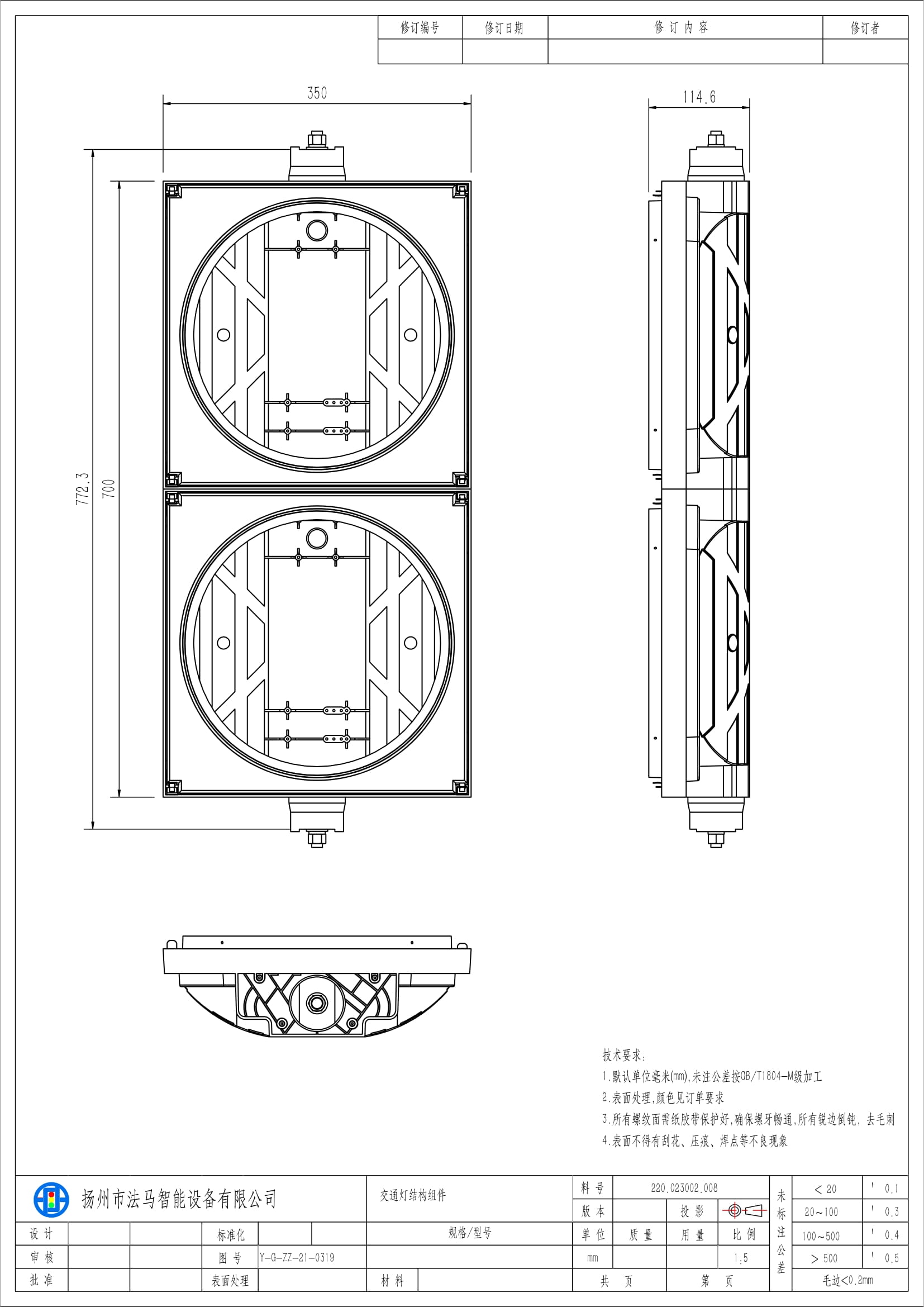

Structural Components
