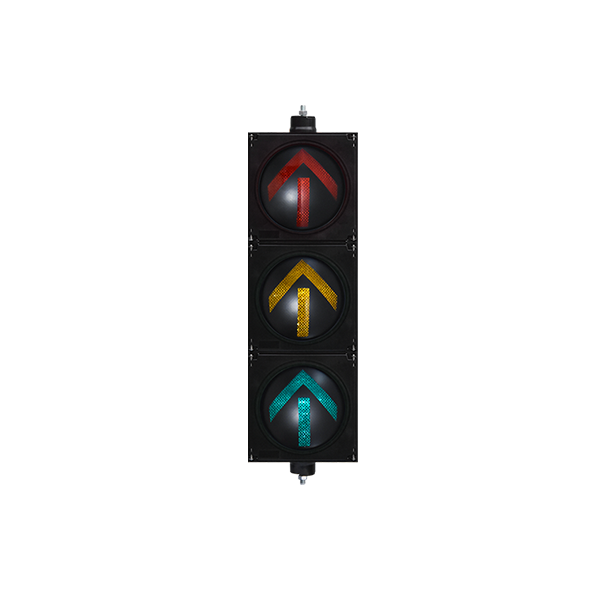

Low Power Red/Yellow/Green Arrow Traffic Light
Read more

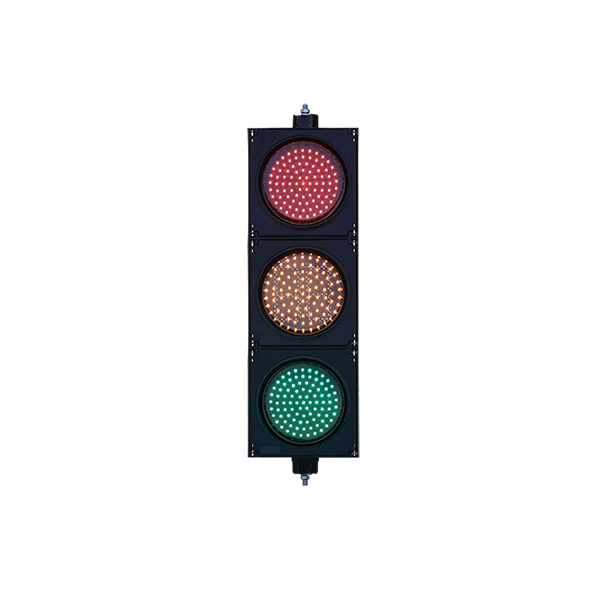

Low Power Full Ball Traffic Light (single-unit)
-
Model:
The Low Power Full Ball Traffic Light is a single-unit assembly. The lamp core comprises key components, including the lamp board, optical lens, power supply module, and lamp bowl. It can be applied to various scenarios such as gateways or entrances and exits of parking lots.
Overview
Product Introduction:
The Low Power Full Ball Traffic Light is a single-unit assembly. The lamp core comprises key components, including the lamp board, optical lens, power supply module, and lamp bowl. It can be applied to various scenarios such as gateways or entrances and exits of parking lots.
Add the to your project
Functional Features
Mesh circuit design ensures stable product operation: The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.- European standard power supply, more energy-efficient and environmentally friendly: It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
- Constant current drive design, with long service life and low maintenance: It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
- Excellent electromagnetic compatibility, enhancing device stability: It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.
At a glance
| Product Model | JD200-3-FM11 | JD300-3-FM11 |
| Light-Emitting Surface (LES) Size | 200mm | 300mm |
| Housing Material | Polycarbonate housing | Polycarbonate housing |
| Lamp Color | □Red | □Green |
| Mask Color | Transparent | Transparent |
| Visors | Φ216x205mm | 780x361x0.6mm |
| Shape of LES | Round | Round |
| Operating Voltage / Frequency | AC85~264V/47-63Hz | AC85~264V/47-63Hz |
| LED Quantity | R: 90 pcs | G: 168 pcs |
| Lamp Power Consumption | Red full ball ≤ 7 W | Green full ball ≤ 9 W |
| LED Wavelength | Red: 625 ± 5 nm | Green: 505 ± 5 nm |
| Luminous Intensity | 230cd ~350cd | 400cd~1000cd |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours |
| Insulation Resistance | ＞2MΩ | ＞2MΩ |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH |
| Protection Grade | IP55 | IP55 |
| Visual Distance | ≥300m | ≥300m |
| Packaging Specifications | 1 piece per box, Size: 42 × 32 × 23 cm, Weight: 3.5 ± 0.5 kg | 1 piece per box, Size: 53 × 41 × 21 cm, Weight: 5 ± 0.5 kg |

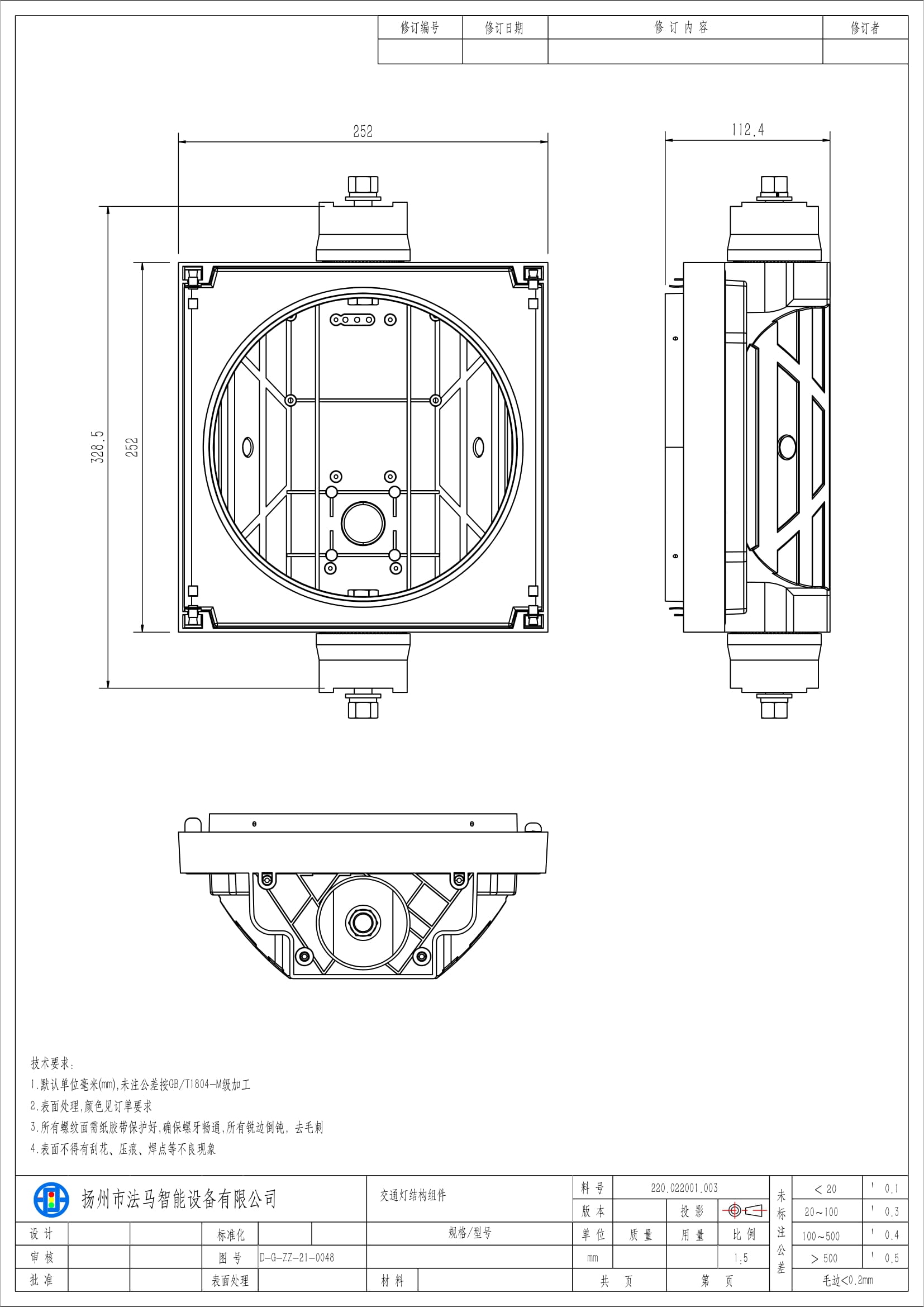

Structural Components
