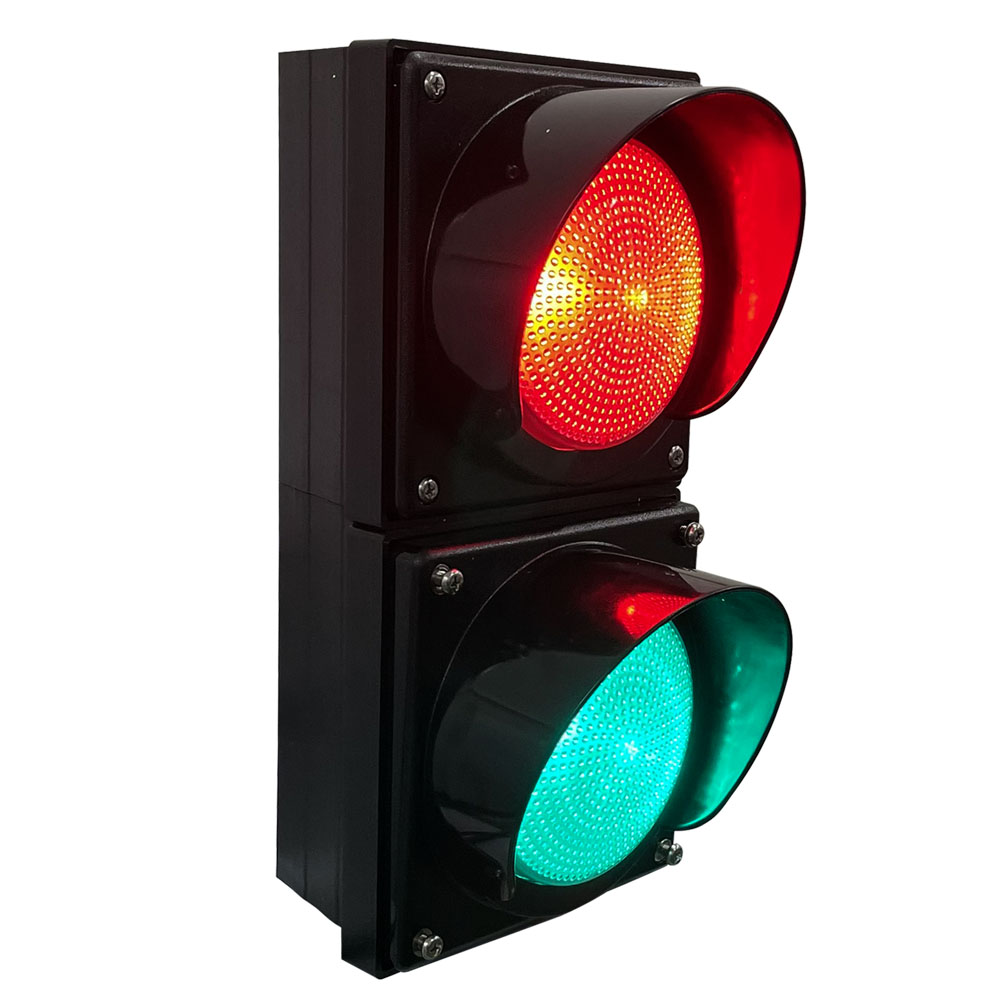

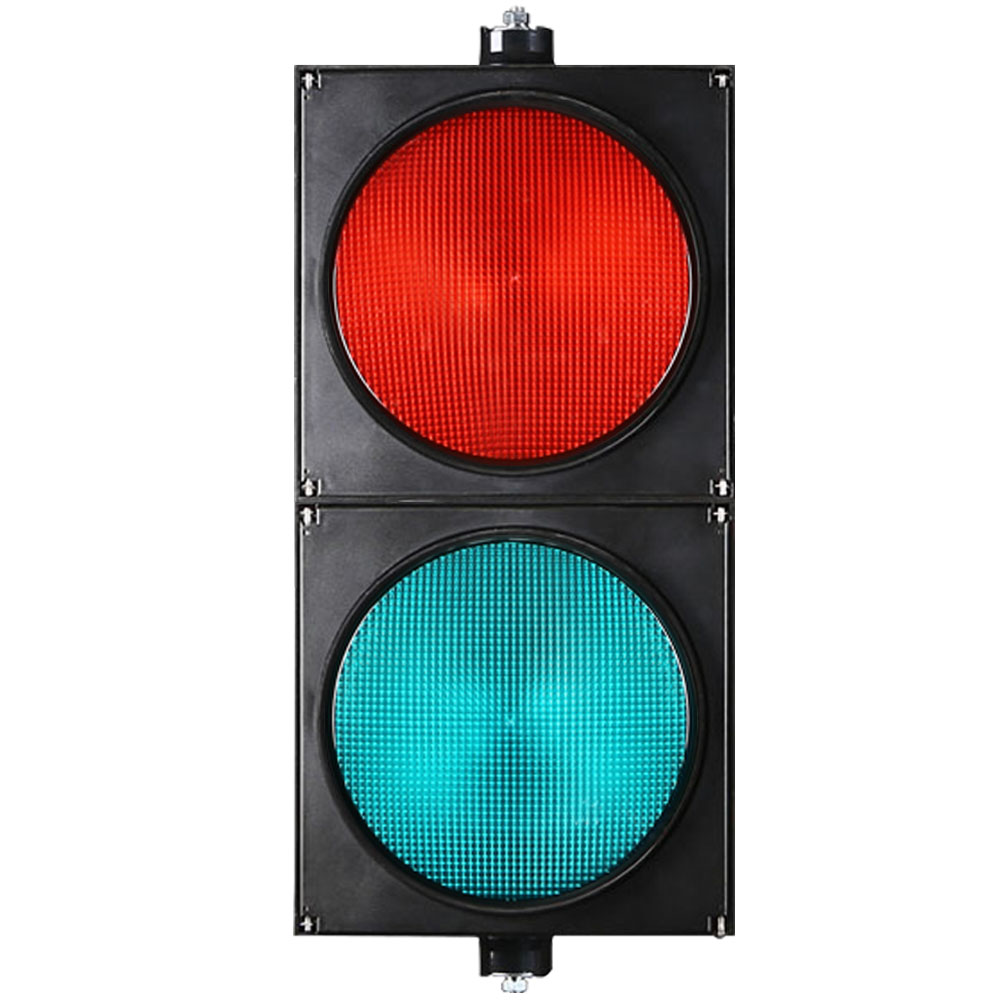

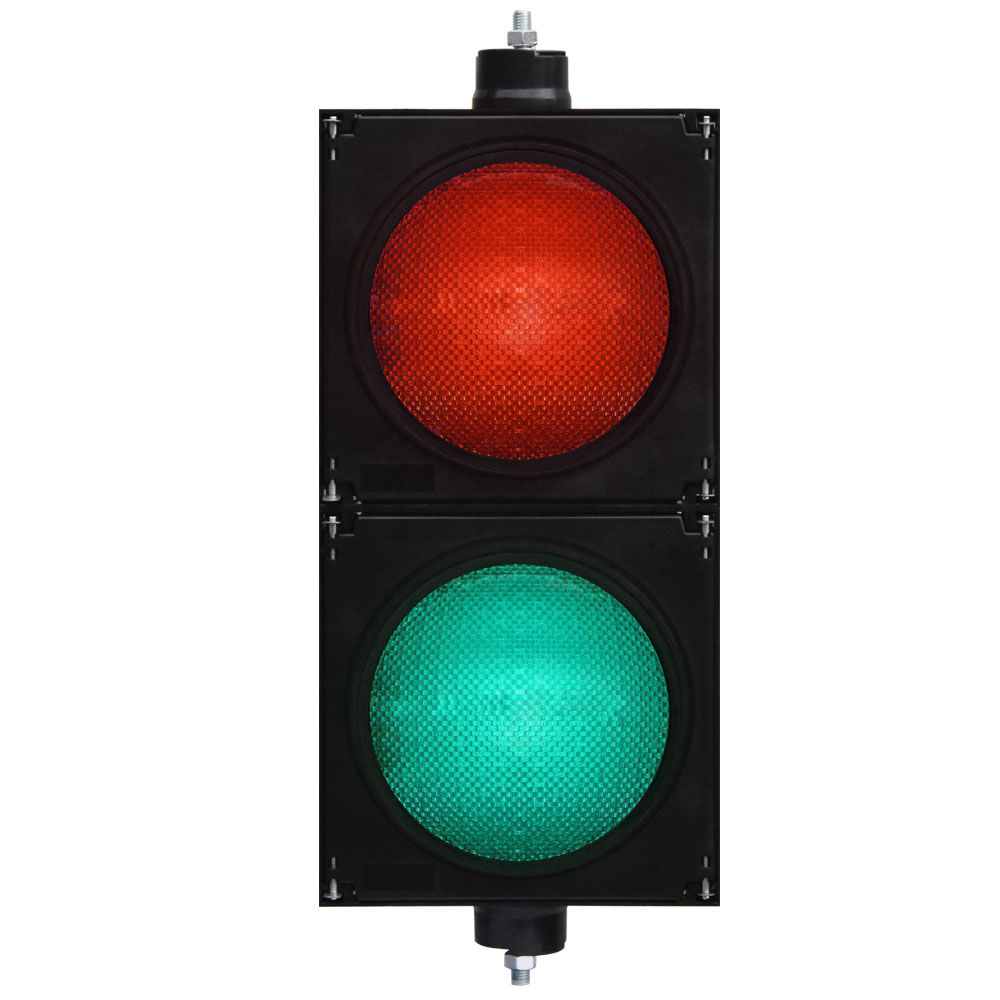

High Flux Red/Green Full Ball Traffic Light(two-unit)
-
Model:
The High Flux Red/Green Full Ball Traffic Light is a two-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components.
Overview
Product Introduction:
The High Flux Red/Green Full Ball Traffic Light is a two-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It can be applied to various scenarios such as gateways or entrances and exits of parking lots.
Add the to your project
Functional Features
Product Selling Points:
1. Three-layer optical processing - Eliminating glare and reducing light pollution
The high flux full ball traffic light adopts triple optical processing technologies including secondary lens, Fresnel lens and optical mask to achieve uniform surface lighting and output light patterns that comply with international standards. It effectively eliminates glare caused by direct emission from conventional point light sources, thereby significantly mitigating light pollution.
2. Three core technologies – Effectively extending service life
Through the integrated application of external heat dissipation technology to improve heat dissipation efficiency, wide-voltage and high-surge-protection (AC 90–264V / 4000V) constant-current power supply technology to ensure stable system operation, and large-sized LED chips featuring low light attenuation and high luminous efficiency, these three core technologies collectively ensure the product's exceptional reliability and an extended service life.
At a glance
| Product Model | JD100-3-FM25 | JD200-3-FM25 | JD300-3-FM25 |
| Light-Emitting Surface (LES) Size | 100mm | 200mm | 300mm |
| Housing Material | Polycarbonate housing | Polycarbonate housing | Polycarbonate housing |
| Mask Color | Transparent | Transparent | Transparent |
| Shape of LES | Round | Round | Round |
| Operating Voltage / Frequency | AC85~264V/47-63Hz | AC85~264V/47-63Hz | AC85~264V/47-63Hz |
| LED Quantity | R/G: 1pcs | R/G: 2pcs | R/G: 4pcs |
| Lamp Power Consumption | Red full ball ≤ 3 W Green full ball ≤ 3 W | Red full ball ≤ 7 W Green full ball ≤ 9 W | Red full ball ≤ 11 W Green full ball ≤ 13 W |
| Luminous Intensity | 110cd~200cd | 230cd~350cd | 400cd~1000cd |
| LED Wavelength | Red: 616 - 628 nm Green: 500 - 510 nm | Red: 616 - 628 nm Green: 500 - 510 nm | Red: 616 - 628 nm Green: 500 - 510 nm |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Insulation Resistance | ＞2MΩ | ＞2MΩ | ＞2MΩ |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH | ≤97%RH |
| Protection Grade | IP55 | IP55 | IP55 |
| Visual Distance | ≥300m | ≥300m | ≥300m |
| Packaging Specifications | 1 piece per box, Size: 49 × 21 × 25 cm, Weight: 2.1 ± 0.5 KG | 1 piece per box, Size: 66 × 30 × 23 cm, Weight: 5.3 ± 0.5 KG | 1 piece per box, Size: 86 × 42 × 30 cm, Weight: 11.5 ± 0.5 KG |

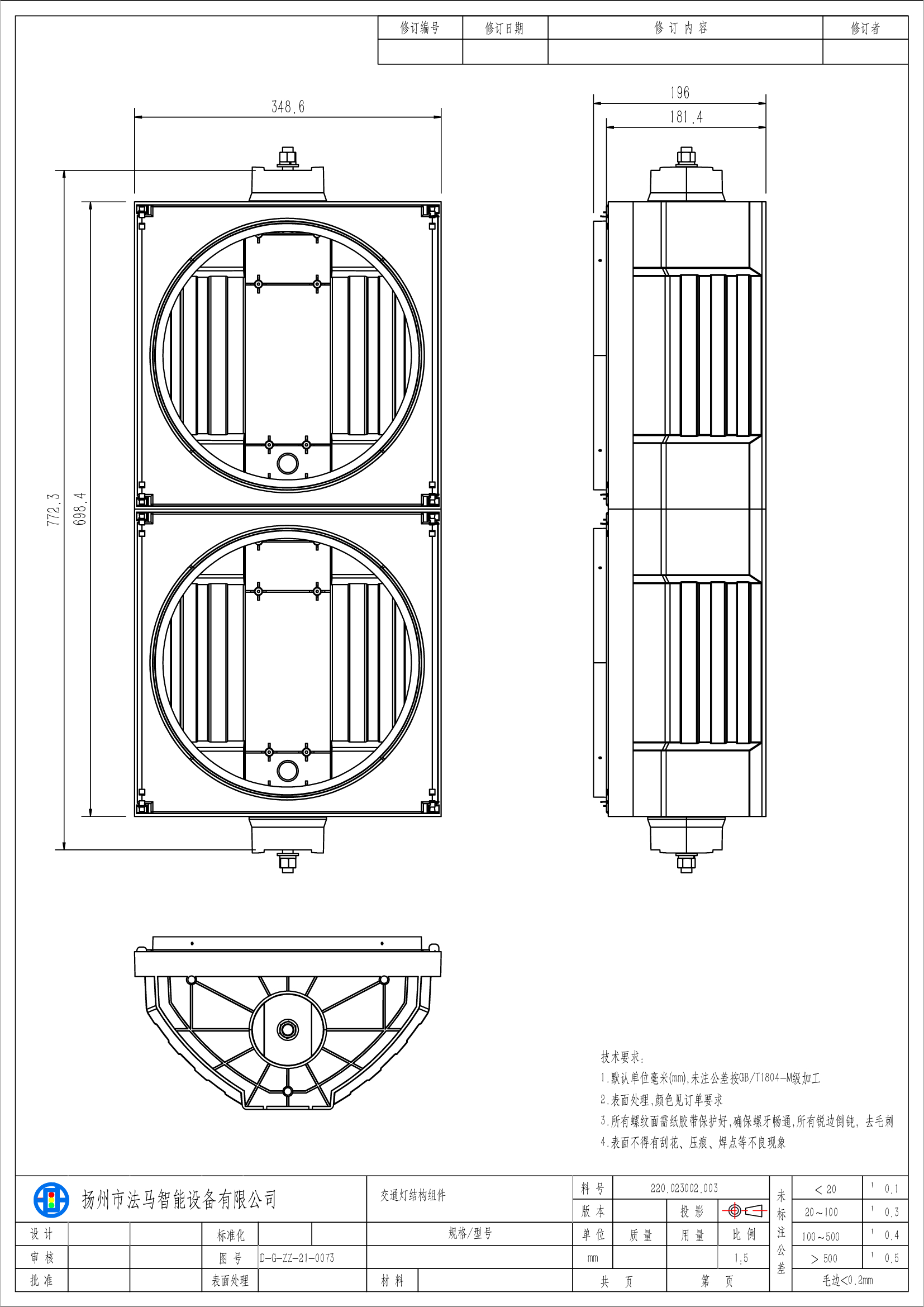

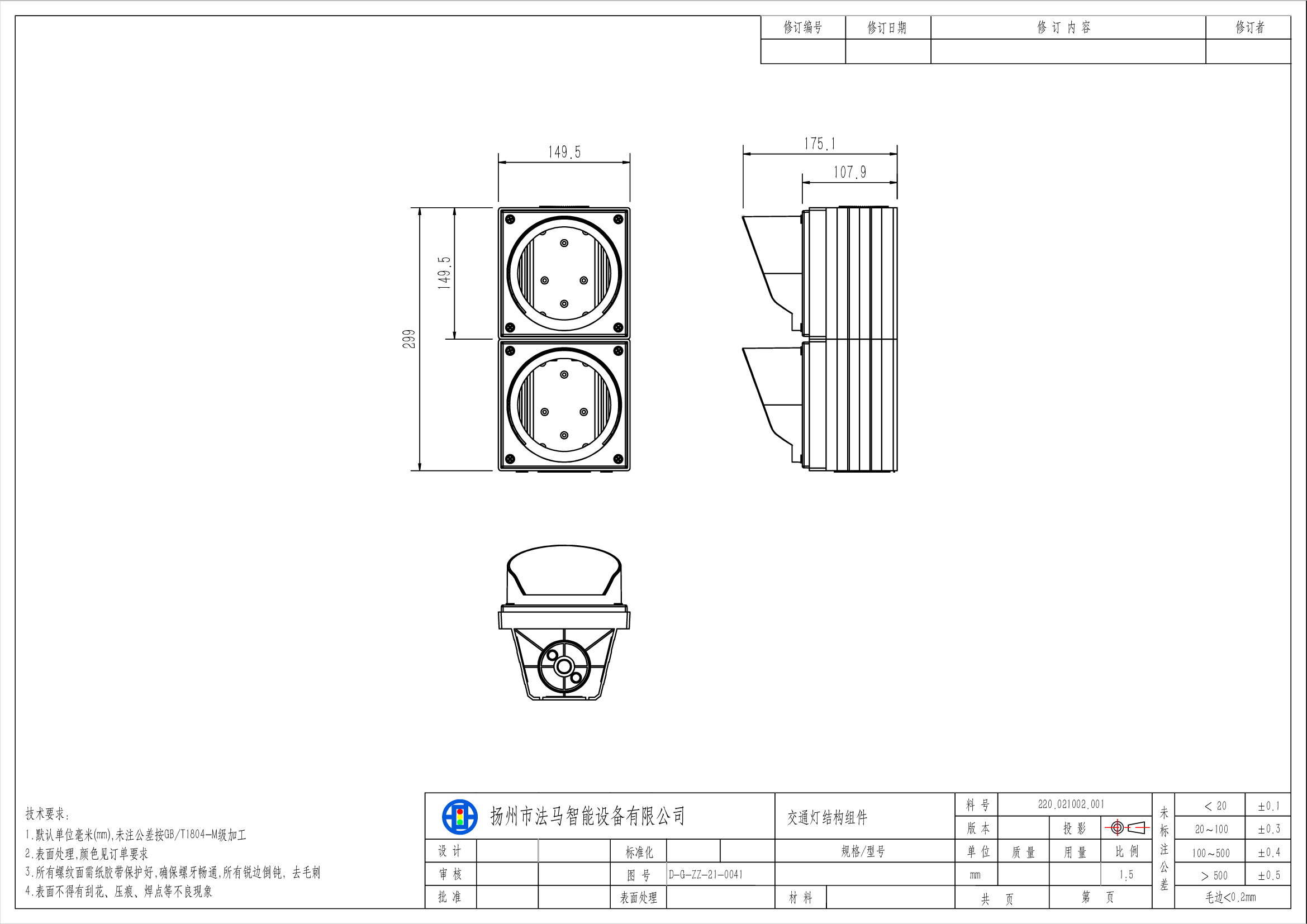

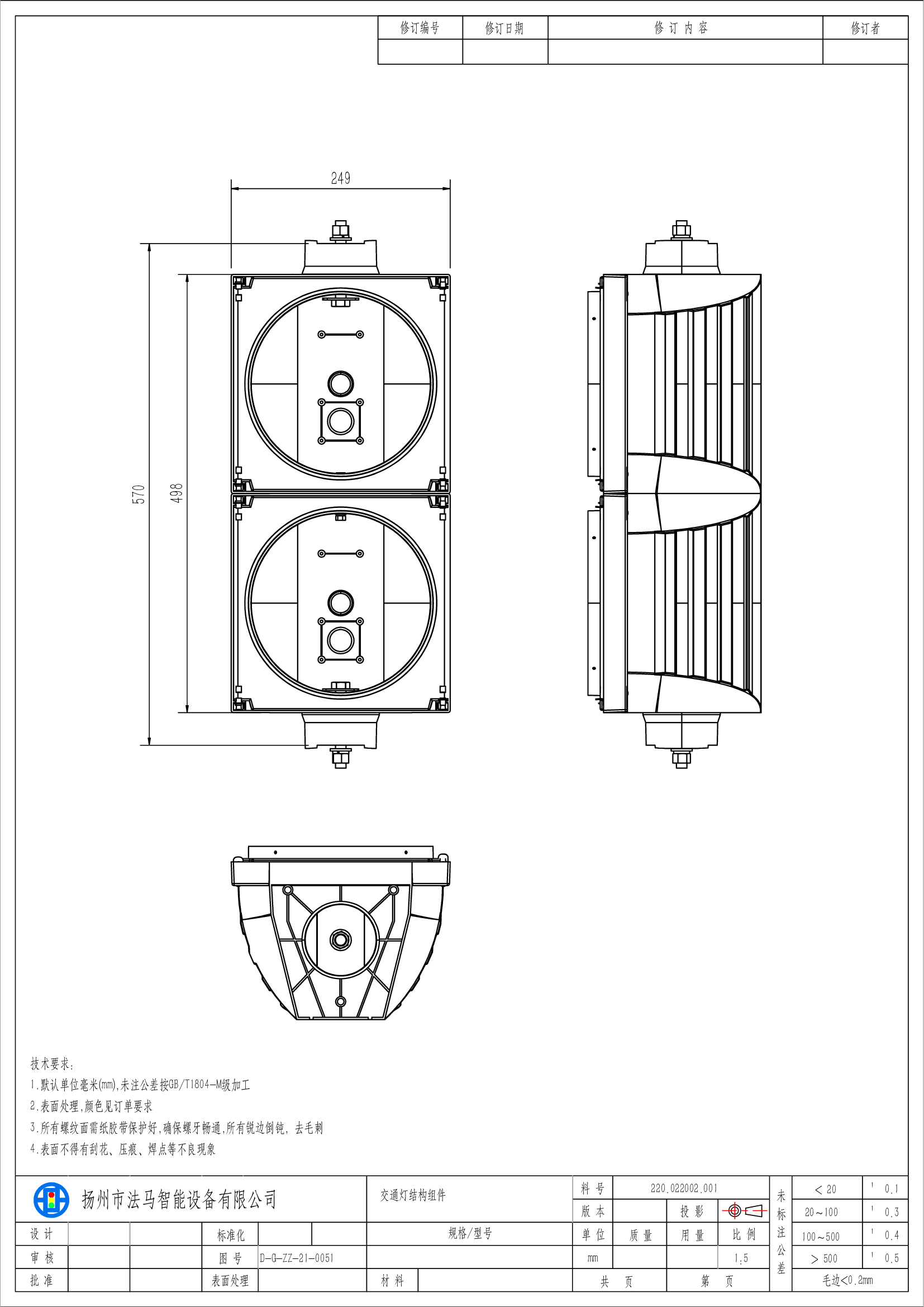

Structural Components
