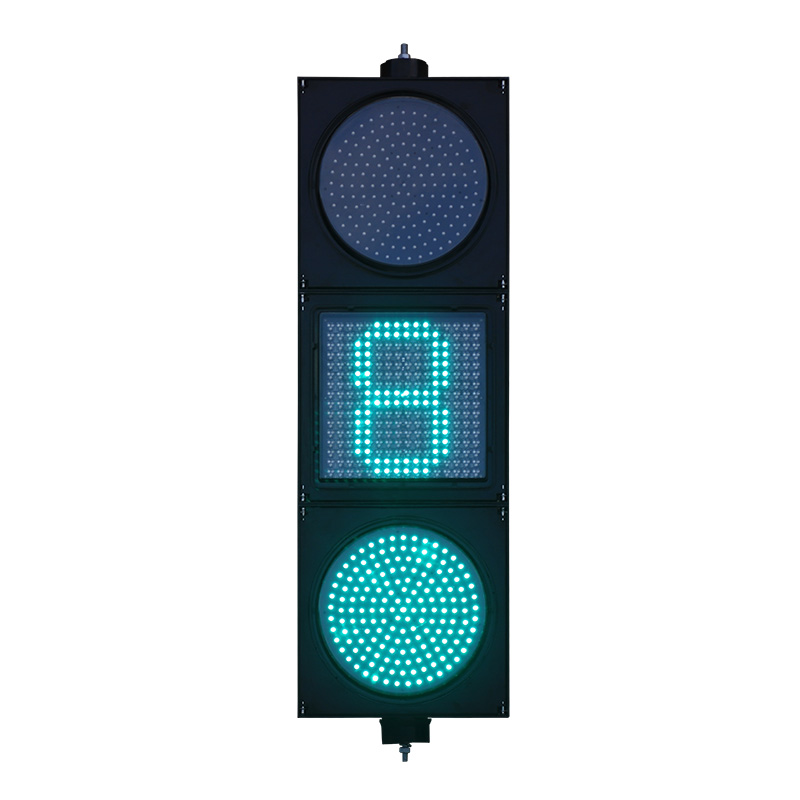

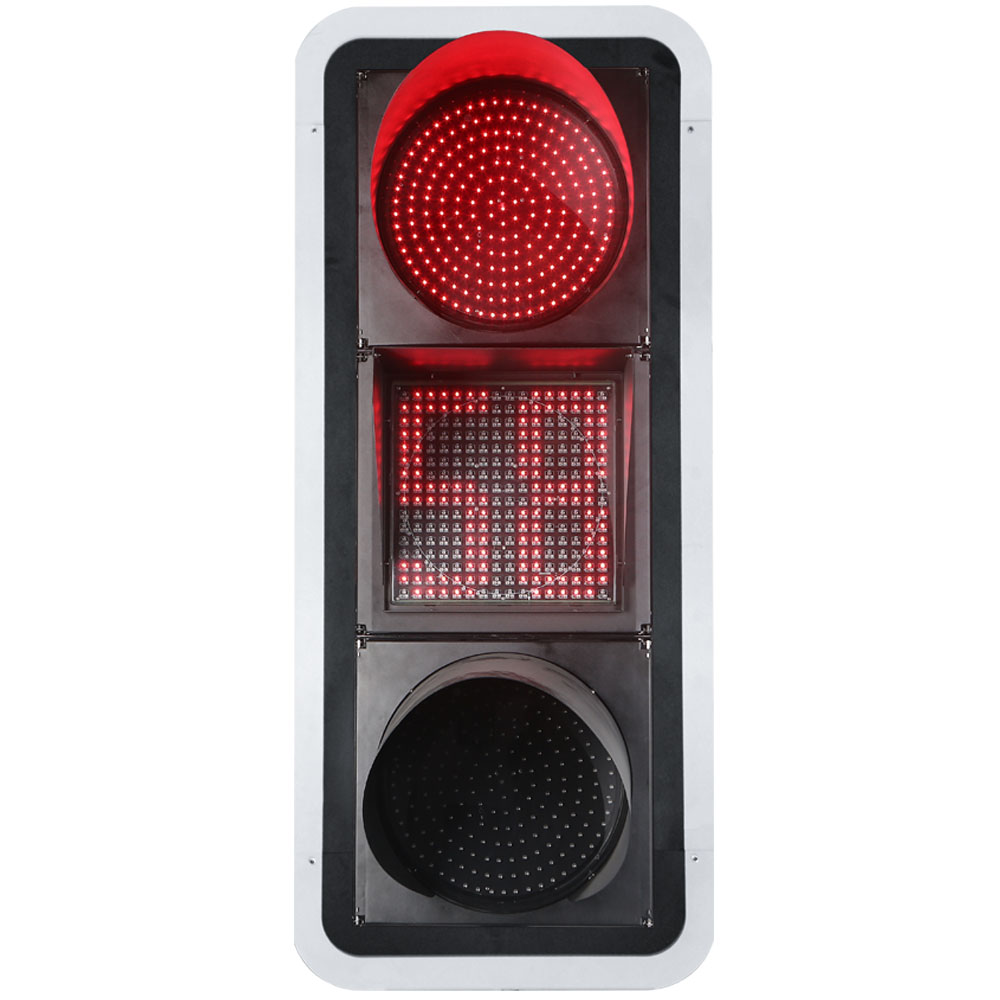

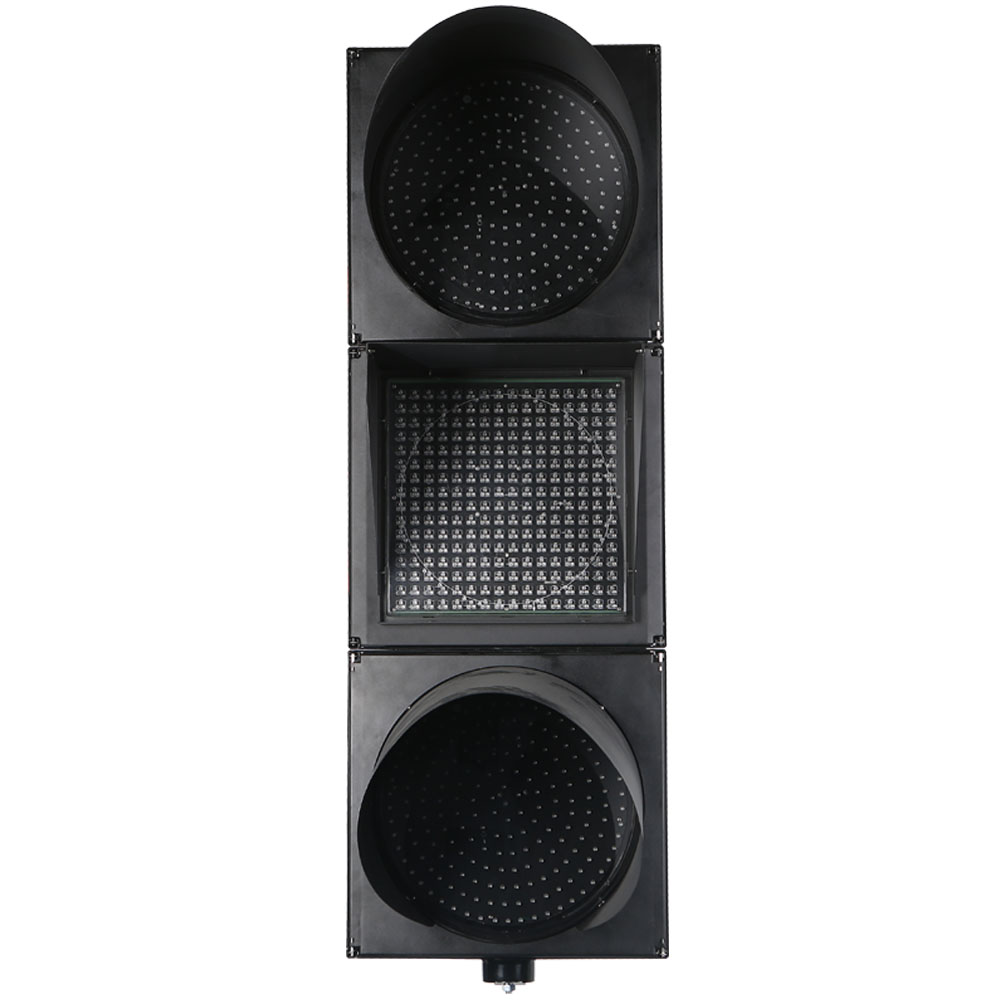

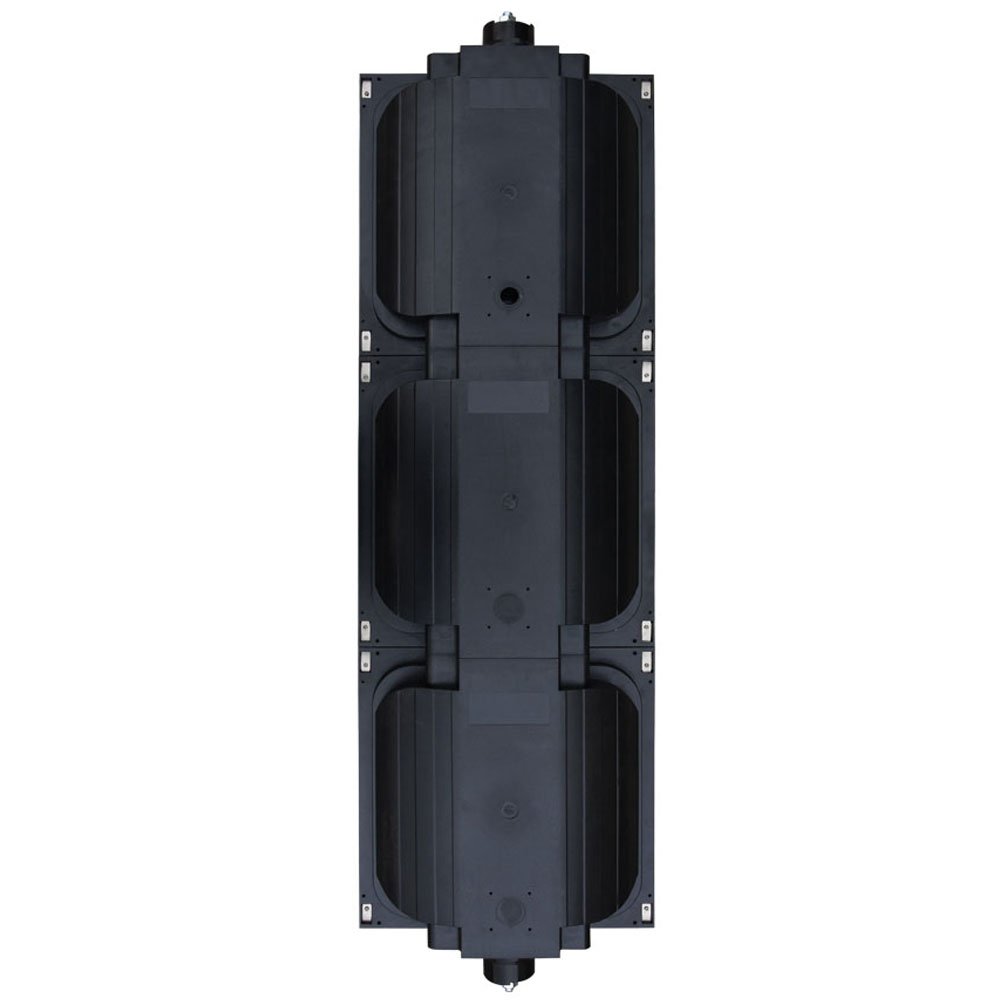

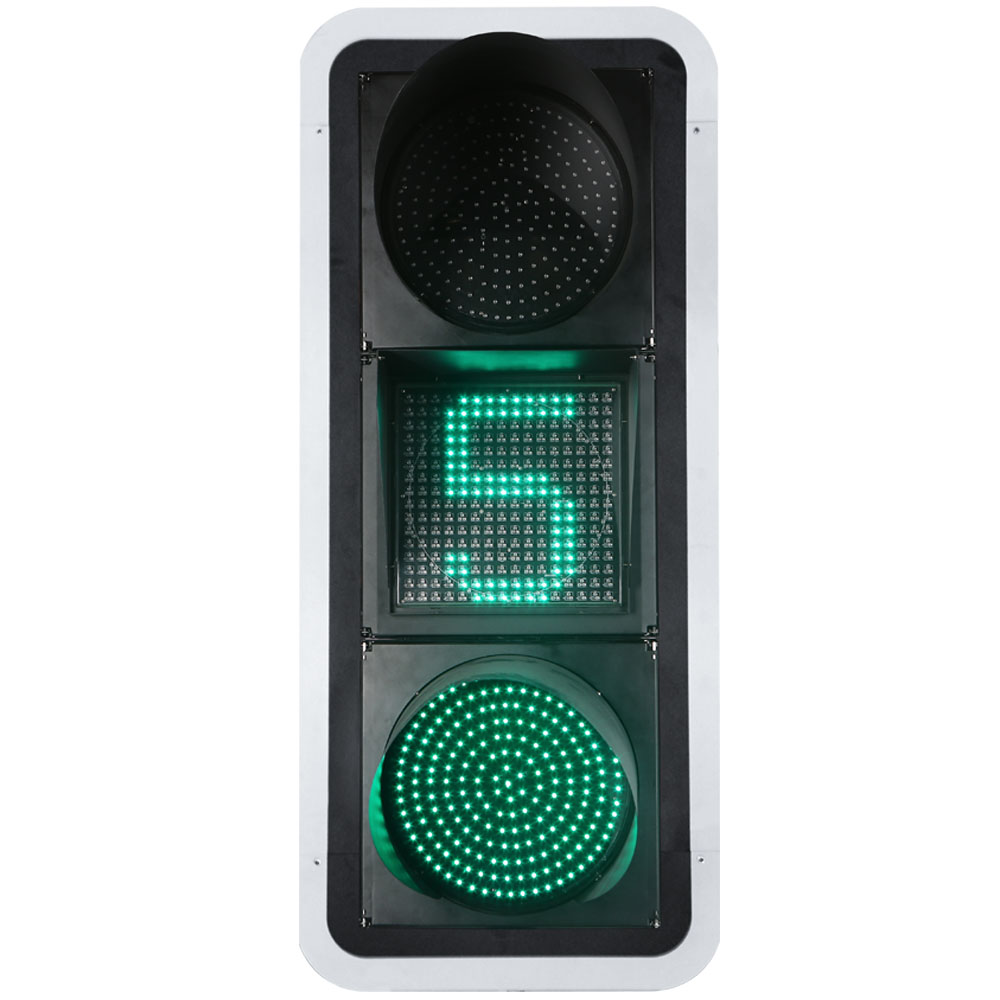

Low Power Red/Yellow/Green Full Ball Traffic Light with Dot Matrix Countdown

Overview

Product Introduction:

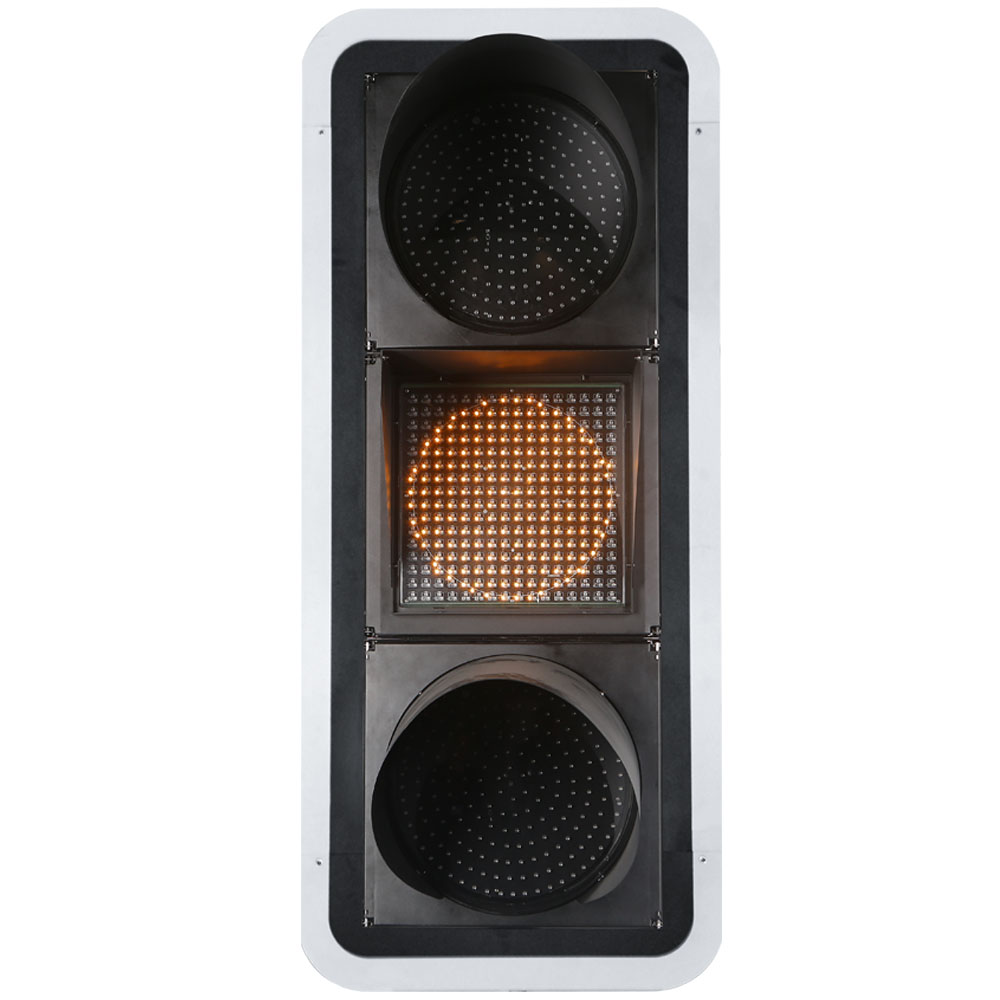

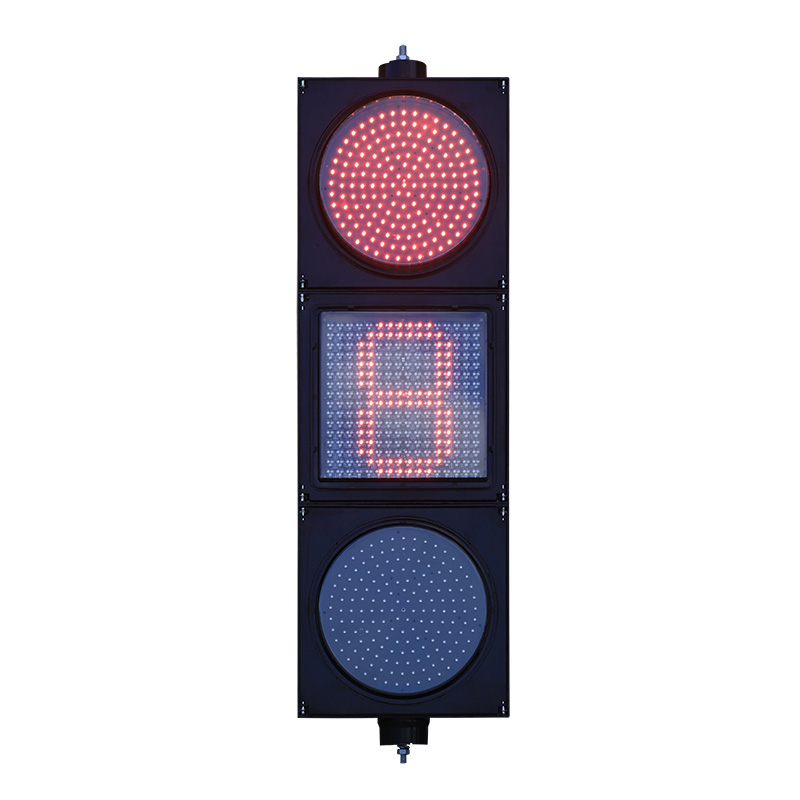

The Low Power Red/Yellow/Green Full Ball Traffic Light with Dot Matrix Countdown is a three-unit assembly. The red and green full ball lamp cores consist of key components including light boards, optical lenses, power supply modules, and lamp bowls. The yellow full ball unit incorporates a countdown function and comprises a dot matrix countdown light board, optical lens, control board, and lamp bowl. This product is suitable for deployment at various traffic signal-controlled intersections.

Add the to your project

Contact us to order

Functional Features

Mesh circuit design ensures stable product operation
The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.
European standard power supply, more energy-efficient and environmentally friendly
It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
Constant current drive design, with long service life and low maintenance
It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
Excellent electromagnetic compatibility, enhancing device stability
It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.
Compatibility design for enhanced maintenance efficiency
The built-in countdown timer supports three adaptive operating modes: communication mode, trigger mode, and learning mode. Designed to be compatible with over 99% of mainstream domestic and international traffic signal controllers, this feature significantly reduces installation and post-installation commissioning efforts, thereby enhancing overall equipment maintenance efficiency.

At a glance

Product Model	JD300-3-FM31	JD400-3-FM31
Light-Emitting Surface (LES) Size	300mm	400mm
Housing Material	Polycarbonate housing	Polycarbonate housing
Lamp Color	□Red □Yellow □Green	□Red □Yellow □Green
Mask Color	Transparent	Transparent
Visors	302x281x218mm	357.4x300x0.8mm
Shape of LES	Round	Round
Operating Voltage / Frequency	AC85~264V/47-63Hz	AC85~264V/47-63Hz
Countdown Range	0~99s	0~99s
Countdown LED Quantity	R/G: 256pcs	R/G: 256pcs
Full ball LED Quantity	R/G: 168pcs,Y: 256pcs	R/G: 205pcs，Y: 224pcs
Lamp Power Consumption	Red /Green full ball ≤ 13 W Yellow full ball ≤ 16 W Dual 8 Red/Green countdown ≤ 10 W	Red full ball ≤ 16 W Yellow full ball ≤ 20 W Green full ball ≤ 13 W Dual 8 Red/Green countdown ≤ 10 W
LED Wavelength	Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm	Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm
Luminous Intensity	Full ball R/Y/G: 400cd - 1000cd Countdown: 5000 - 15000cd/m²	Full ball R/Y/G: 400cd - 1000cd Countdown: 5000 - 15000cd/m²
Insulation Resistance	＞2MΩ	＞2MΩ
LED Lifespan	≥100,000 hours	≥100,000 hours
Operating Temperature	-40℃ to +80℃	-40℃ to +80℃
Relative Humidity	≤97%RH	≤97%RH
Protection Grade	IP55	IP55
Visual Distance	≥300m	≥300m
Packaging Specifications	1 piece per box, Size: 123 × 40 × 19 cm, Weight: 12.2 ± 0.5 KG	1 piece per box, Size: 162 × 54 × 22 cm, Weight: 18.7 ± 0.5 KG

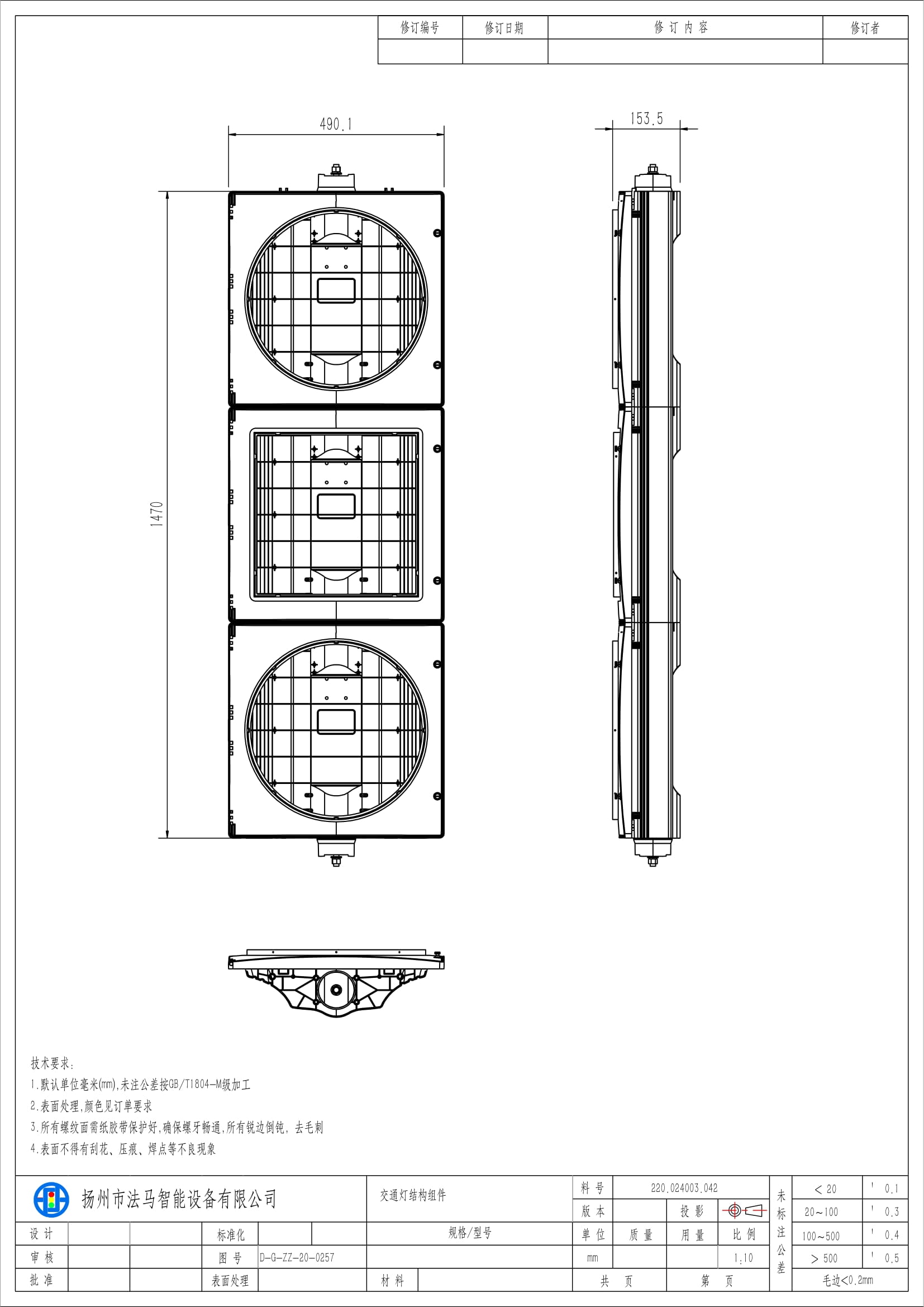

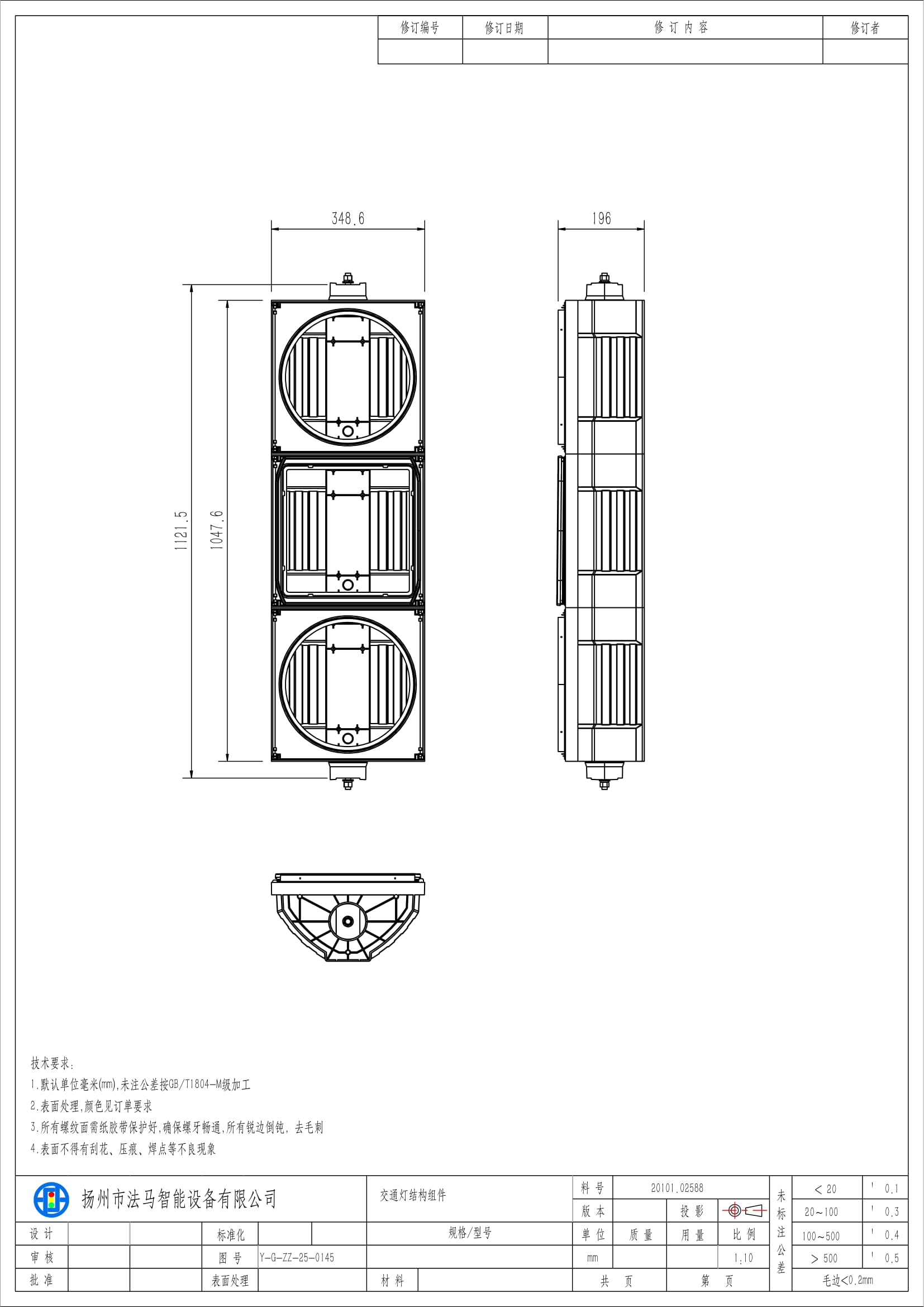

Structural Components

Low Power Red/Yellow/Green Full Ball Traffic Light with Dot Matrix Countdown -
