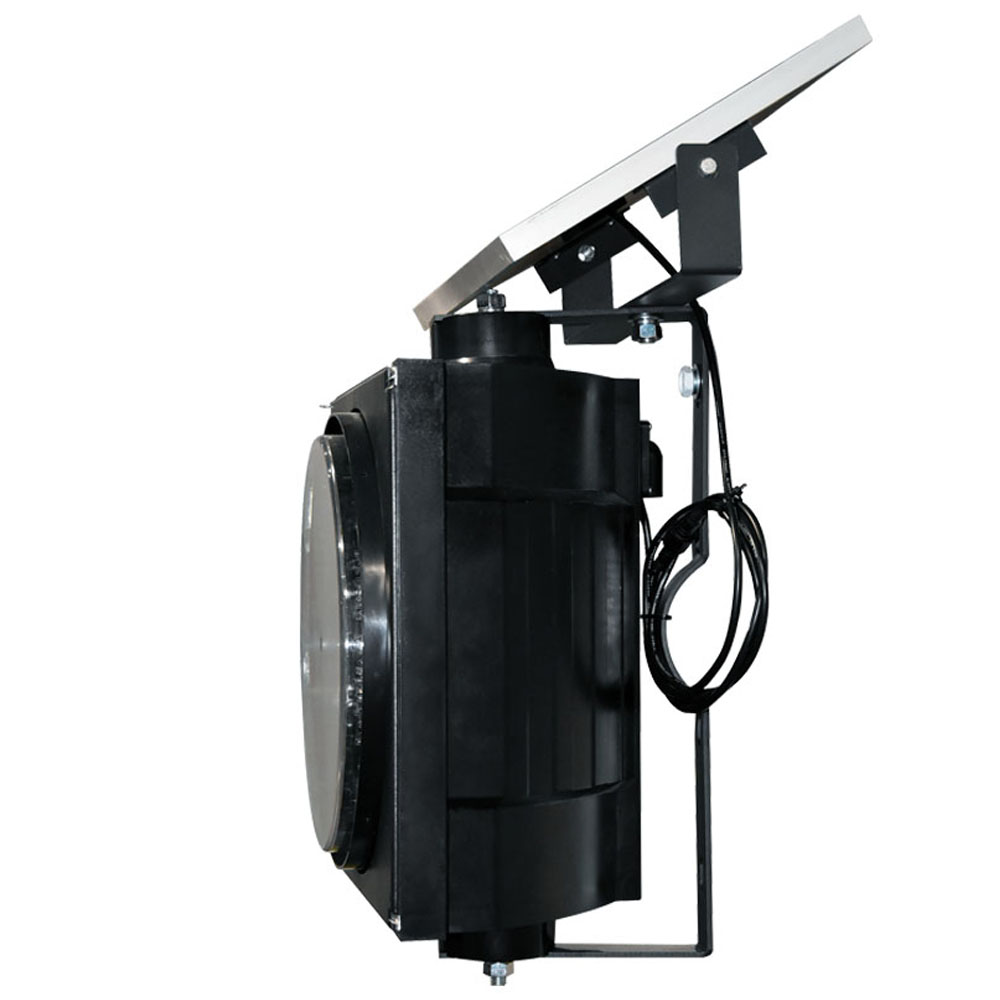

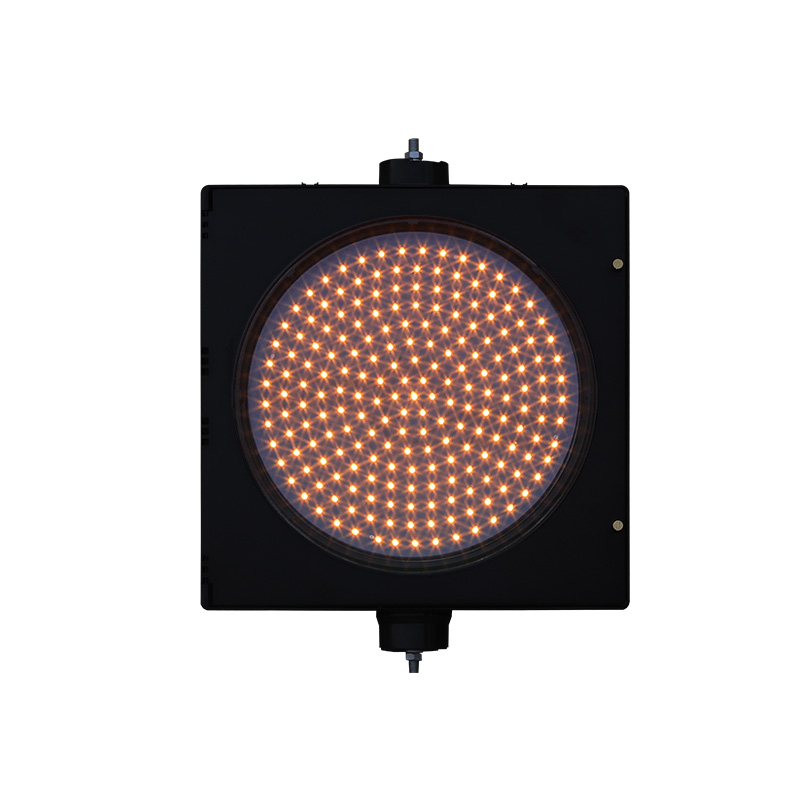

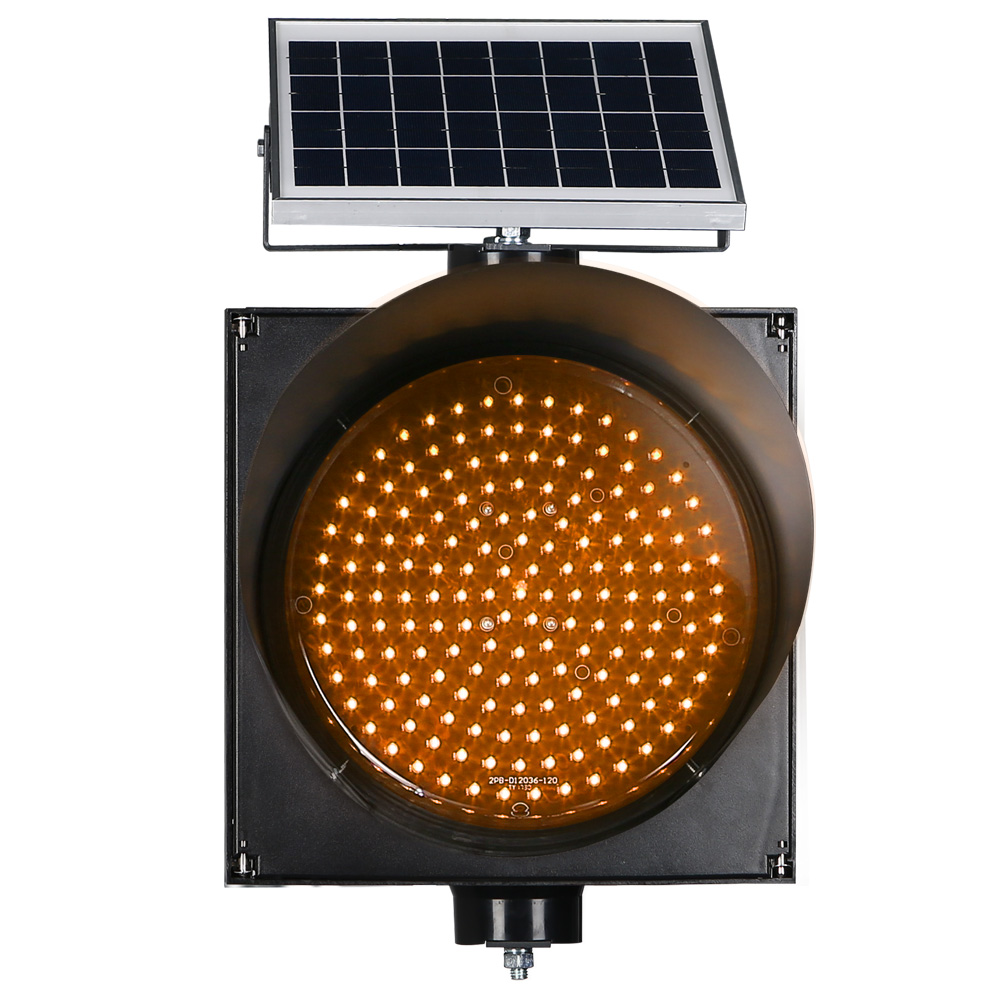

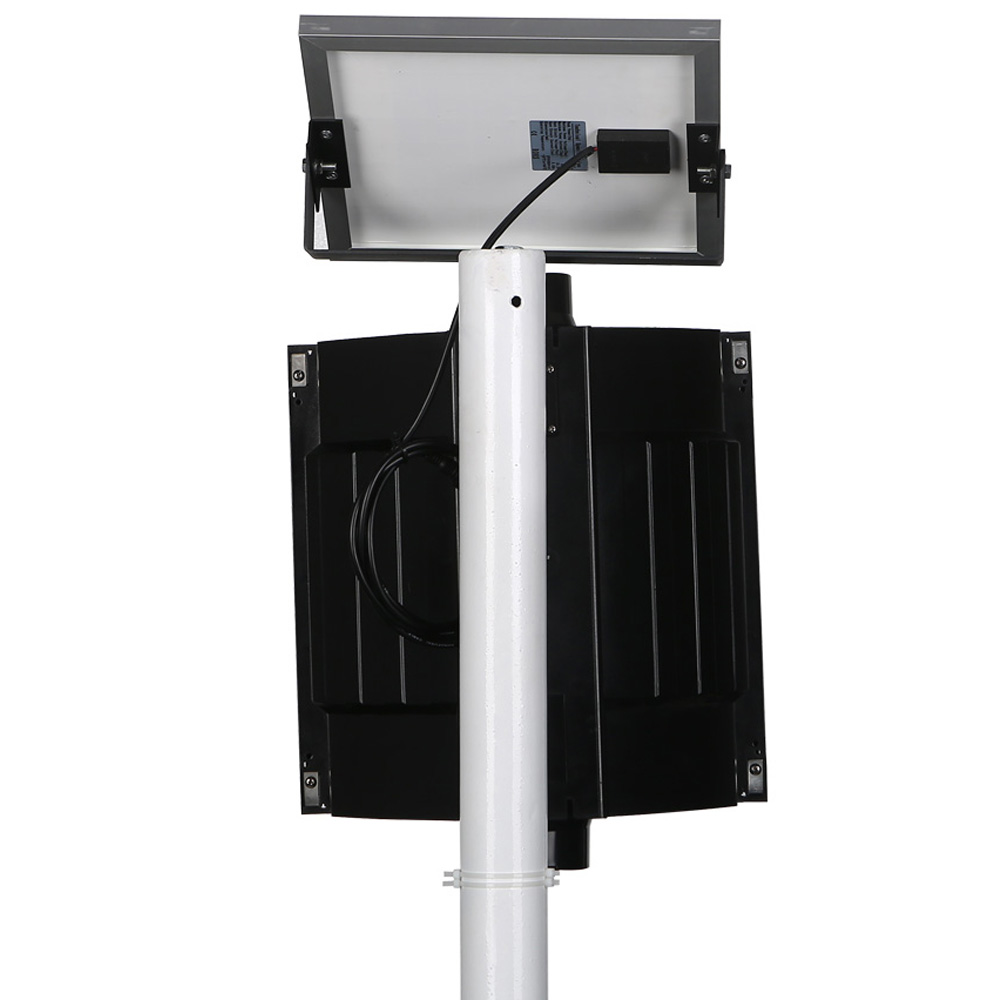

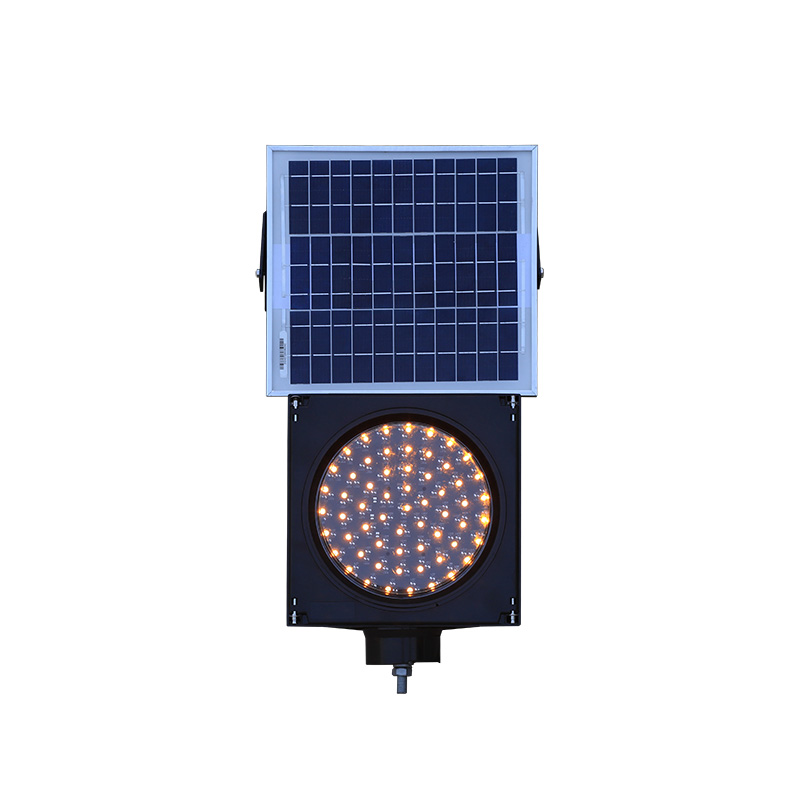

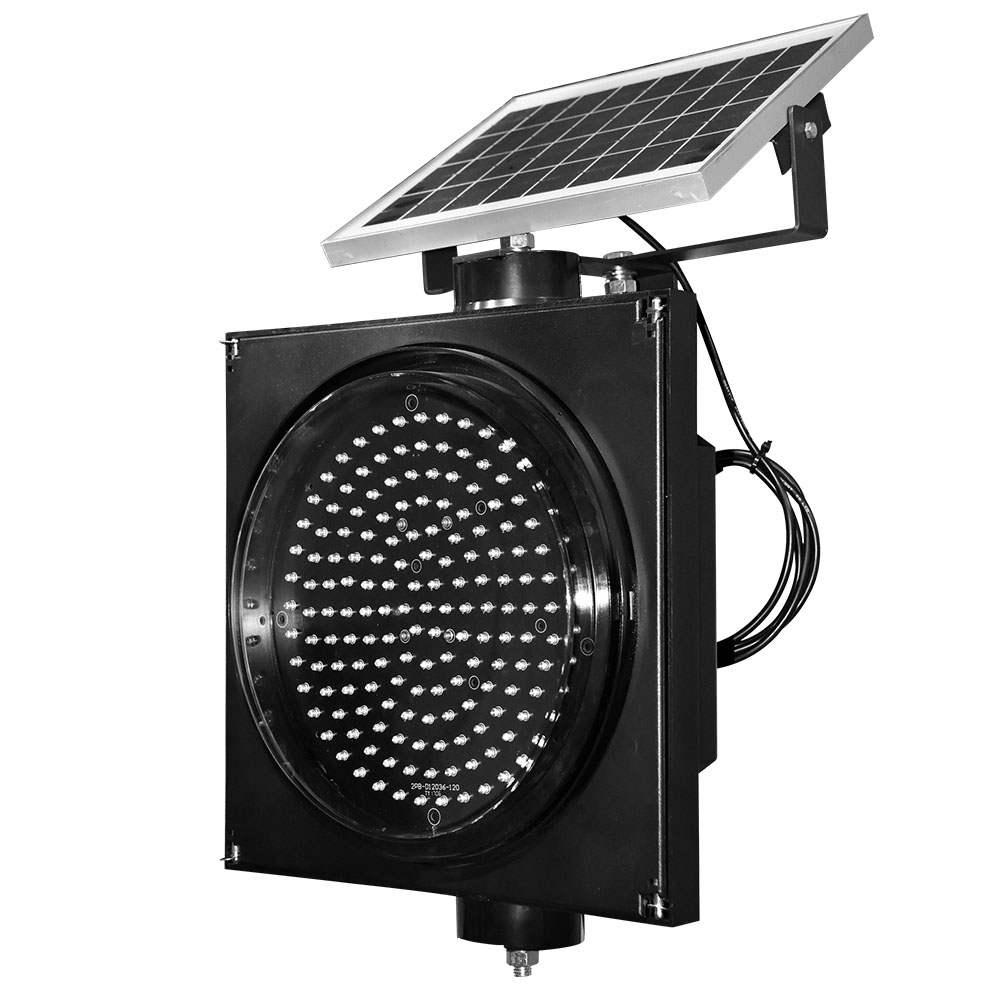

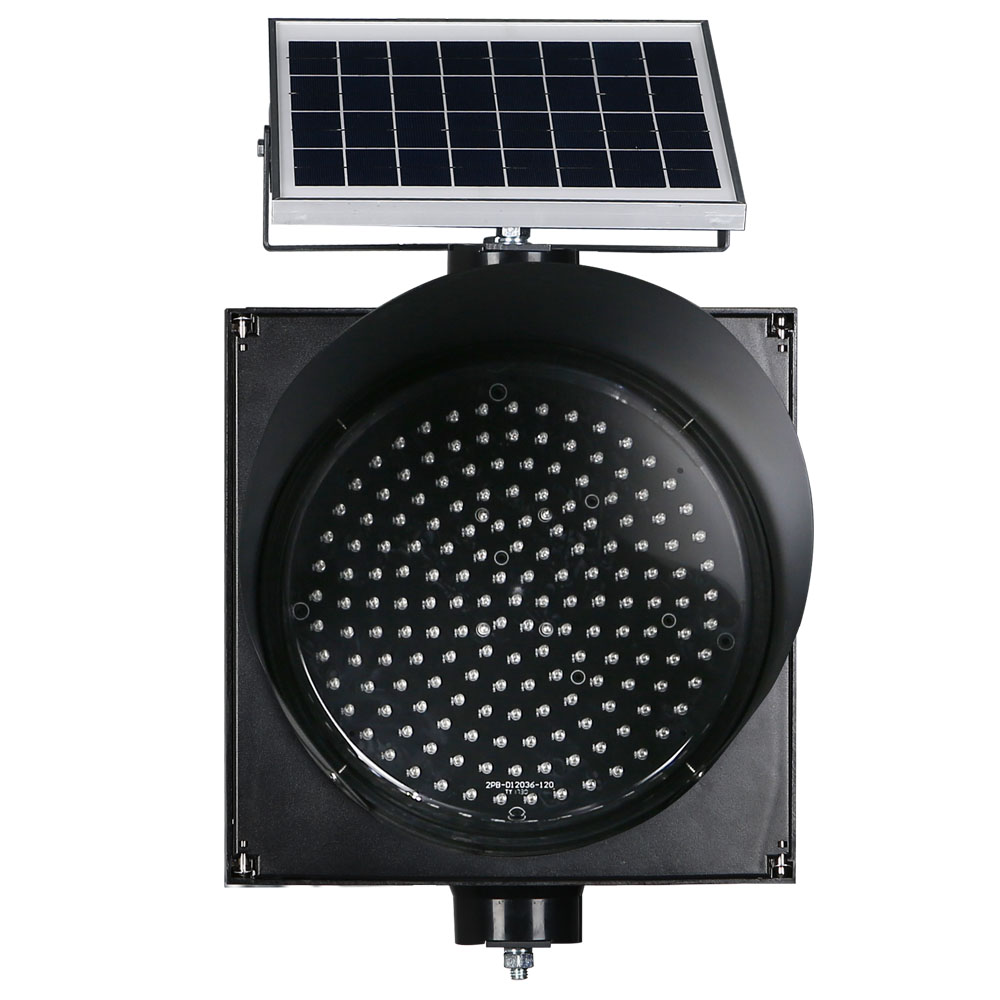

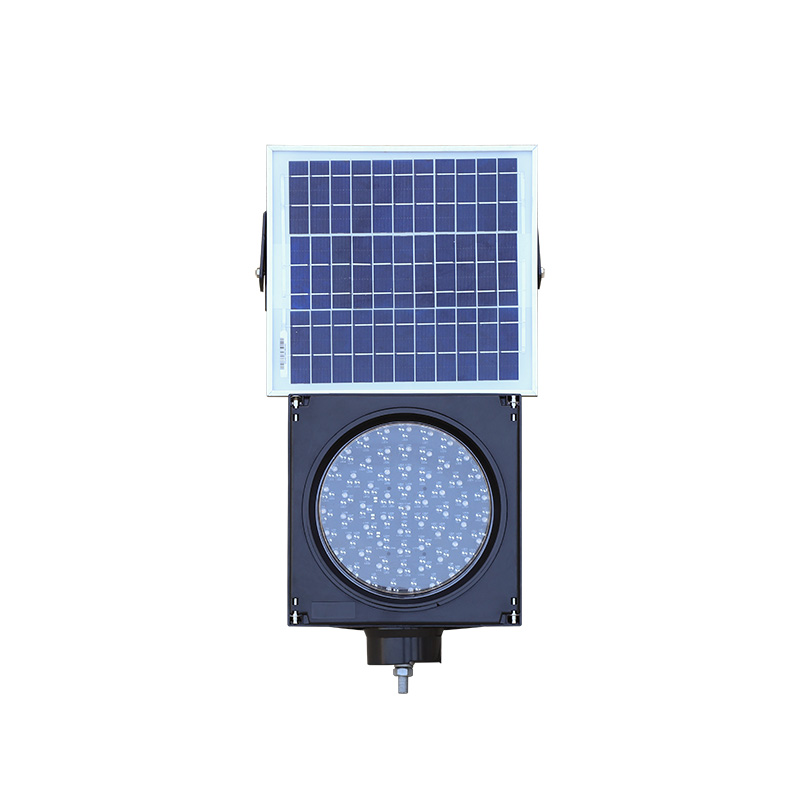

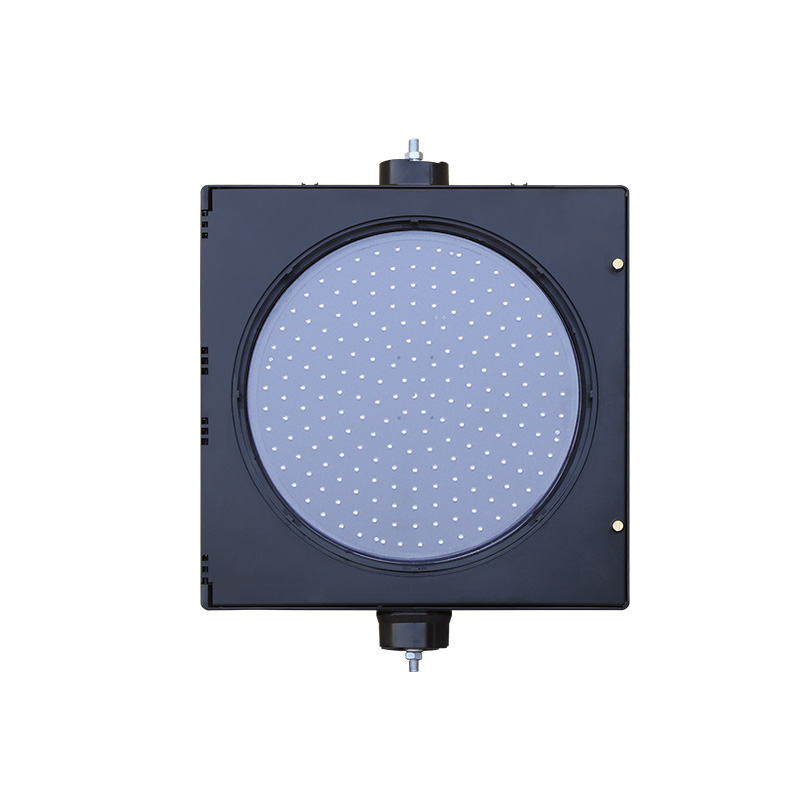

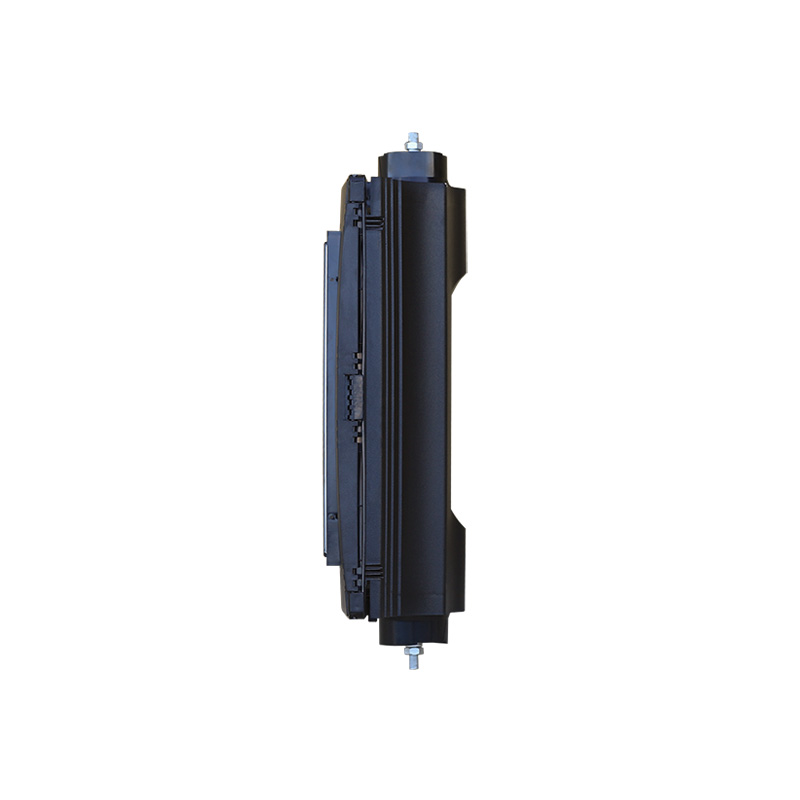

Solar-Powered Yellow Flashing Light
-
Model:
The Solar-Powered Yellow Flashing Light is a traffic warning device designed specifically for road intersections, road turns, bridges, and accident-prone sections of roads. It integrates an efficient solar-powered system, eliminating the need for external electrical connections and enabling immediate deployment upon installation.
Overview
Product Introduction:
The Solar-Powered Yellow Flashing Light is a traffic warning device designed specifically for road intersections, road turns, bridges, and accident-prone sections of roads. It integrates an efficient solar-powered system, eliminating the need for external electrical connections and enabling immediate deployment upon installation. With its energy-efficient design, high-visibility warning capabilities, and robust reliability, the device delivers continuous 24/7 safety assurance under all weather conditions.
Add the to your project
Functional Features
Product Selling Points:
1.High Protection Grade:
Constructed with high-strength polycarbonate or die-cast aluminum housing, the device offers superior dustproof, waterproof, and flame-retardant performance, ensuring a service life of more than nine years.
2. Extended Standby with Advanced Solar Technology:
Fitted with high-efficiency solar panels and high-capacity battery modules, the system can operate continuously for 7 to 10 days on a full charge, maintaining reliable performance even during prolonged periods of overcast or rainy weather.
3. High-Visibility Optical Performance:
Utilizing high-luminosity LED technology, the signal light delivers exceptional optical penetration and warning effectiveness. It remains clearly visible under adverse weather conditions, enabling drivers to recognize hazards in advance and respond by reducing speed safely.
At a glance
| Product Model | SSG200-3-FM11 | SSG300-3-FM11 | SSG400-3-FM11 |
| Light-Emitting Surface (LES) Size | 200mm | 300mm | 400mm |
| Operating Voltage | DC12V | DC12V | DC12V |
| Housing Material | Polycarbonate housing | Polycarbonate housing | Polycarbonate housing |
| Solar Panel | □ 8W/16V | □ 8W/16V | □ 15W/16V |
| Storage Battery | □ 3000MAH/12.8V | □ 3000MAH/12.8V | □ 6600MAH/11.1V |
| Flashing Frequency | □ 60 times per minute | □ 60 times per minute | □ 60 times per minute |
| Operating Mode | 24-hour flashing | 24-hour flashing | 24-hour flashing |
| Battery Life | 5 days | 5 days | 5 days |
| Mask Color | Transparent | Transparent | Transparent |
| LED Quantity | 60 pcs | 99 pcs | 168 pcs |
| Lamp Power Consumption | Yellow full ball ≤ 2 W | Yellow full ball ≤ 3 W | Yellow full ball ≤ 5 W |
| LED Wavelength | Yellow: 590 ± 5 nm | Yellow: 590 ± 5 nm | Yellow: 590 ± 5 nm |
| Luminous Intensity | |||
| LED Lifespan | ≥ 100,000 hours | ≥ 100,000 hours | ≥ 100,000 hours |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH | ≤97%RH |
| Protection Grade | IP55 | IP55 | IP55 |
| Visual Distance | ≥300m | ≥300m | ≥300m |
| Packaging Specifications | 1 piece per box, Size: 41 × 32 × 37 cm, Weight: 6.3±0.5kg | 1 piece per box, Size: 50 × 41 × 34 cm, Weight: 8.4 ± 0.5 kg | 1 piece per box, Size: 55 × 65 × 29 cm, Weight: 9.1 ± 0.5 kg |

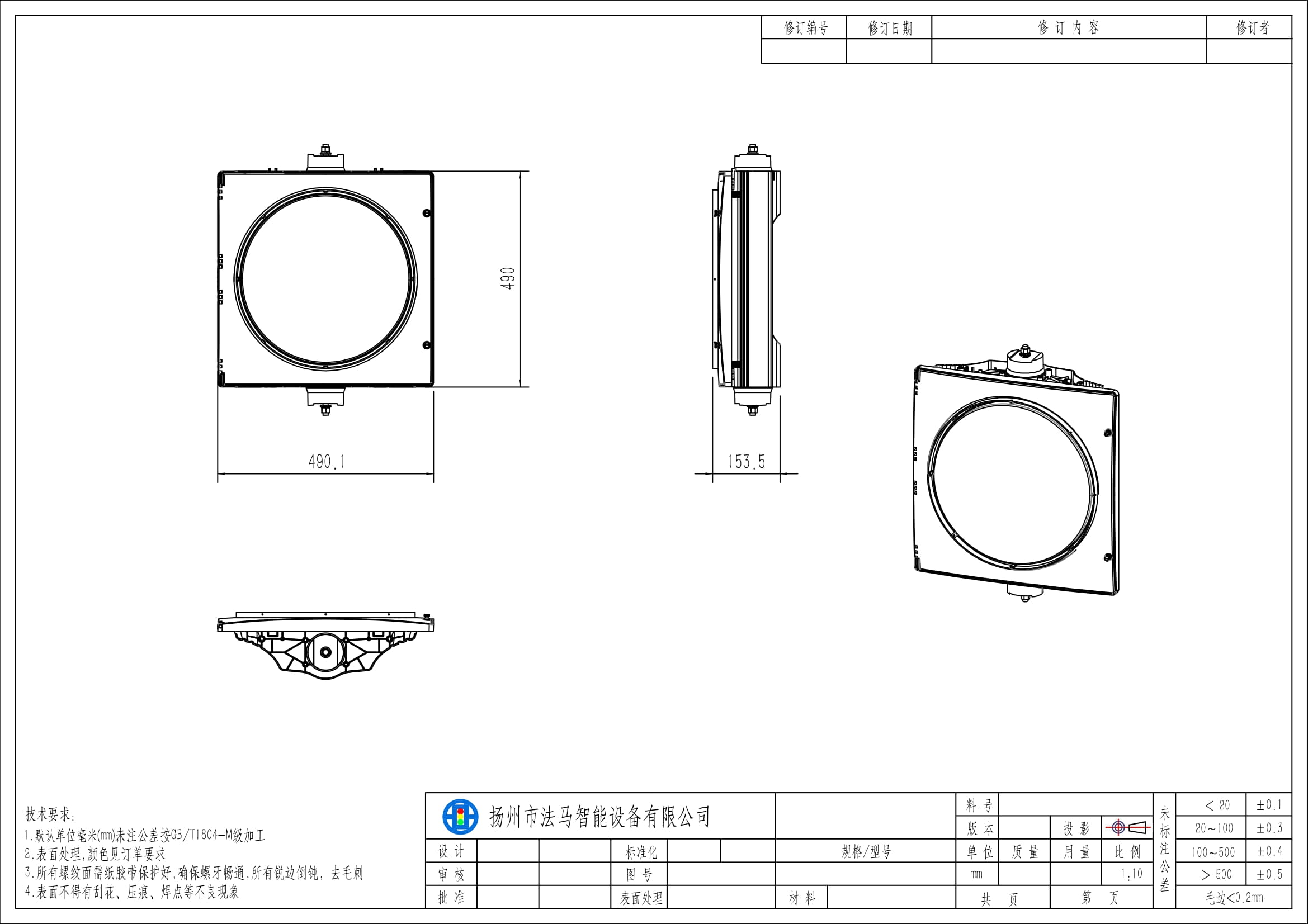

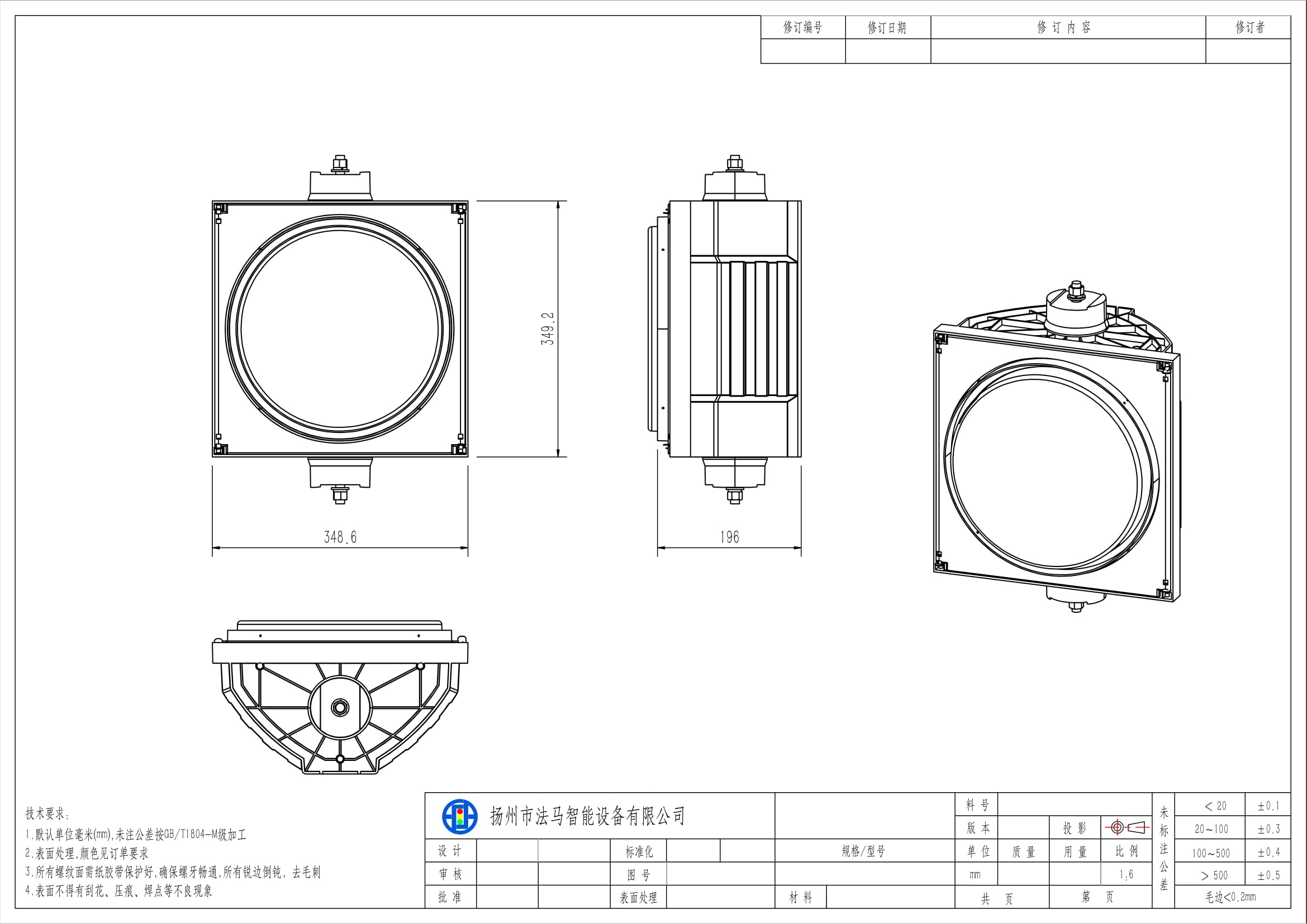

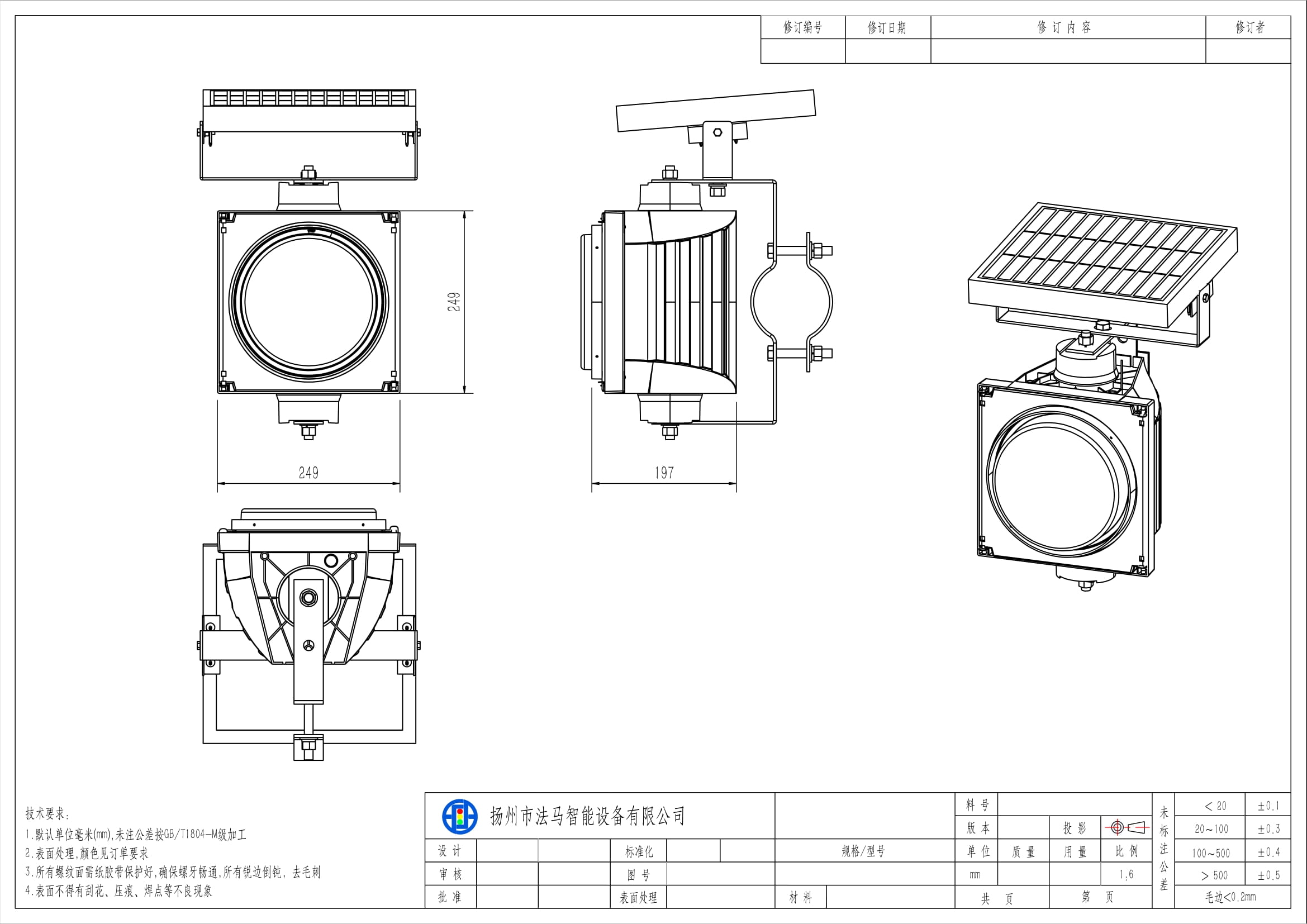

Structural Components
