Pedestrian Light Pole with Modular Screen
-
Model:

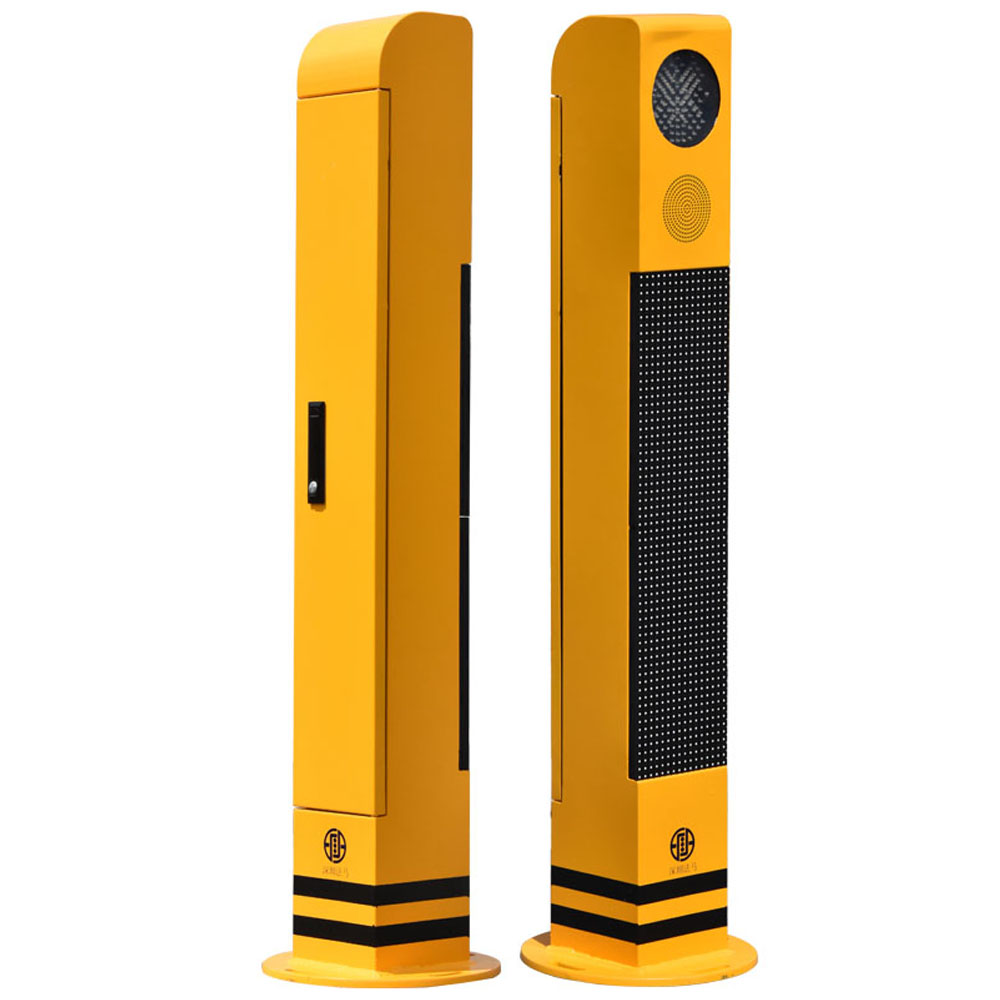

The Pedestrian Light Pole with Modular Screen is an intelligent safety guidance terminal designed for installation at both ends of pedestrian crossings. It features a main pole and auxiliary pole collaborative configuration, and utilizes dual intervention mechanisms—visual warnings and voice prompts—to provide real-time guidance to pedestrians, ensuring compliance with traffic signals and promoting safe and orderly passage.
Overview
Product Introduction:
The Pedestrian Light Pole with Modular Screen is an intelligent safety guidance terminal designed for installation at both ends of pedestrian crossings. It features a main pole and auxiliary pole collaborative configuration, and utilizes dual intervention mechanisms—visual warnings and voice prompts—to provide real-time guidance to pedestrians, ensuring compliance with traffic signals and promoting safe and orderly passage. As a key auxiliary facility, it significantly enhances pedestrian safety at intersections. The system is also integrated with a modular display screen that supports customizable text editing, enabling flexible adaptation to various application scenarios.
Add the to your project
Functional Features
Product Selling Points:
1. Intelligent sensing with real-time warning capability:
Integrated with high-precision infrared beam sensors, the system continuously monitors pedestrian movements and detects red-light violations. Upon identifying a pedestrian crossing the stop line during a red signal, it instantly activates a voice alert to proactively deter such unsafe behavior.
2. Dual-mode safety guidance system:
By combining visual and auditory intervention strategies, the device encourages pedestrians to comply with traffic regulations and cultivate responsible travel habits. This dual guidance mechanism contributes to a significant reduction in pedestrian-related traffic incidents.
3. Smart display for customized communication:

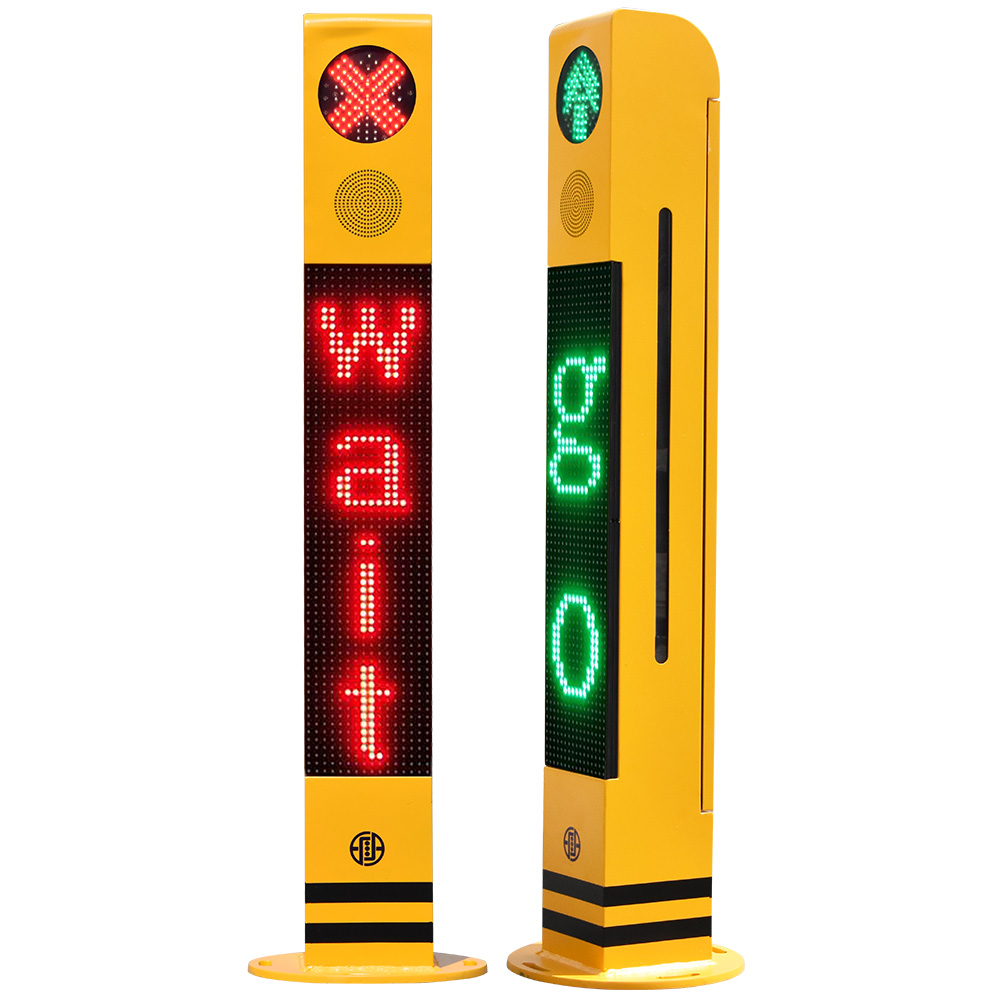

The built-in high-definition interactive screen supports user-defined text input, allowing for the display of context-specific messages tailored to the characteristics of the location—such as schools, hospitals, or commercial zones—thereby enhancing the effectiveness of public safety messaging.
At a glance
| Product Model | KH-DJ-FM03 |
| Overall Dimensions | 1200 × 180 × 180 mm (Single pole) |
| Operating Voltage / Frequency | AC 85V~264V/47-63Hz |
| Housing Material | Galvanized sheet |
| P10 Red and Green Module | Pixel pitch: P10 mm Module size: 320 mm × 160 mm LED wavelength: Red light 625 ± 5 nm; Green light 520 ± 5 nm LED intensity: Red ≥ 2000 cd/㎡; Green ≥ 5000 cd/㎡ Power consumption: ≤ 60W (at maximum brightness) |
| Machine Power Consumption | < 100W (Main pole plus auxiliary pole) |
| LED Quantity | Red cross: 57 pcs Green arrow: 51 pcs |
| LED Wavelength | Red: 625 ± 5 nm Green: 505 ± 5 nm |
| LED Intensity | R：3500~5000mcd G:7000~10000mcd |
| LED Lifespan | ≥ 100,000 hours |
| Insulation Resistance | ＞2MΩ |
| Operating Temperature | -40℃ to +80℃ |
| Relative Humidity | ≤95%RH |
| Protection Grade | IP55 |
| Infrared Detection Range | ≤10m |
| Visual Distance | ≥50 m (Daytime visual identification capability) |
| Packaging Specifications | Wooden Crate Dimensions: 123 × 51.5 × 35 cm (Containing 1 Main Unit and 1 Slave Unit) Weight: 37.7 ± 0.5 kg (Including 4.1 kg for the Wooden Crate) |

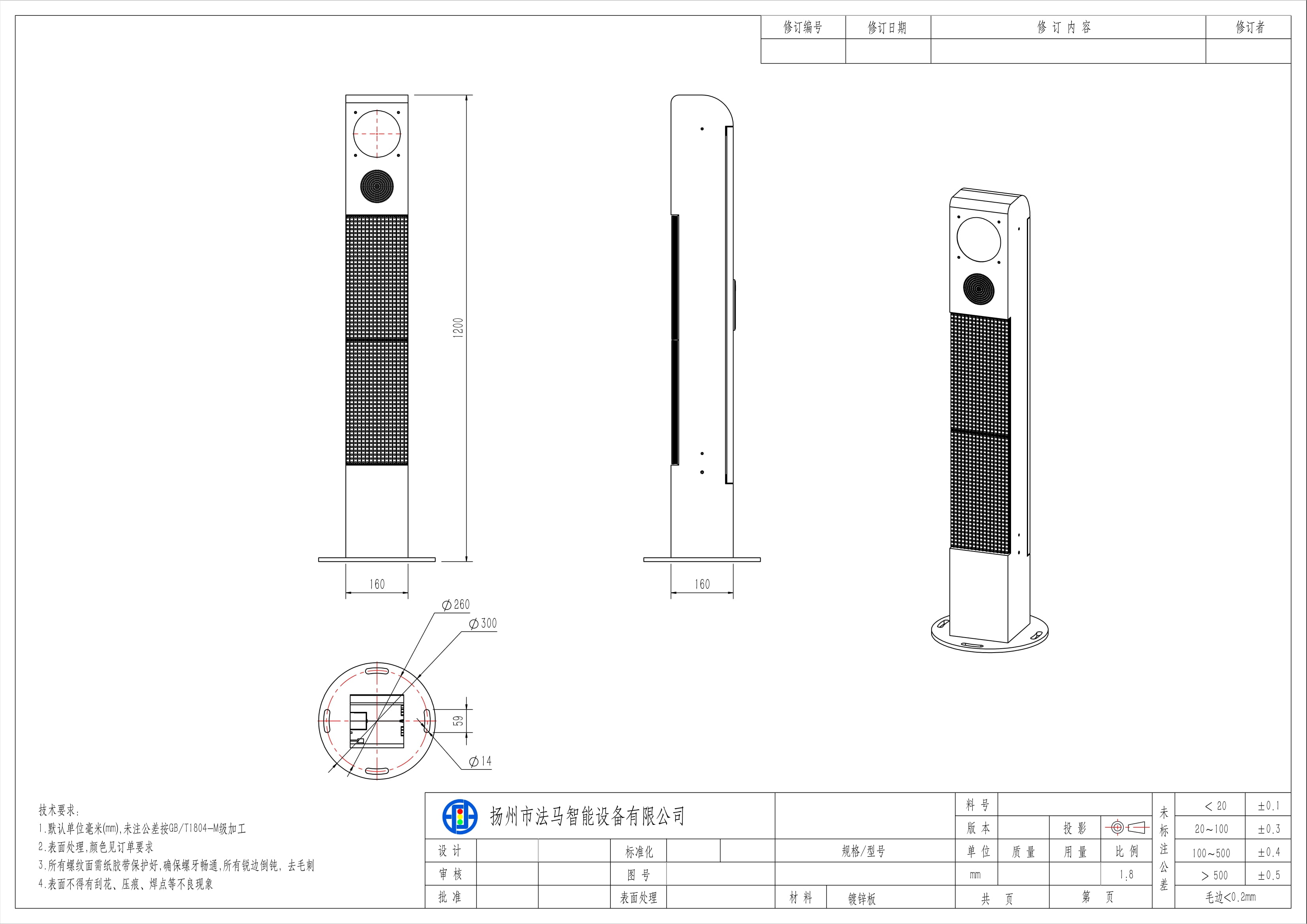

Structural Components
