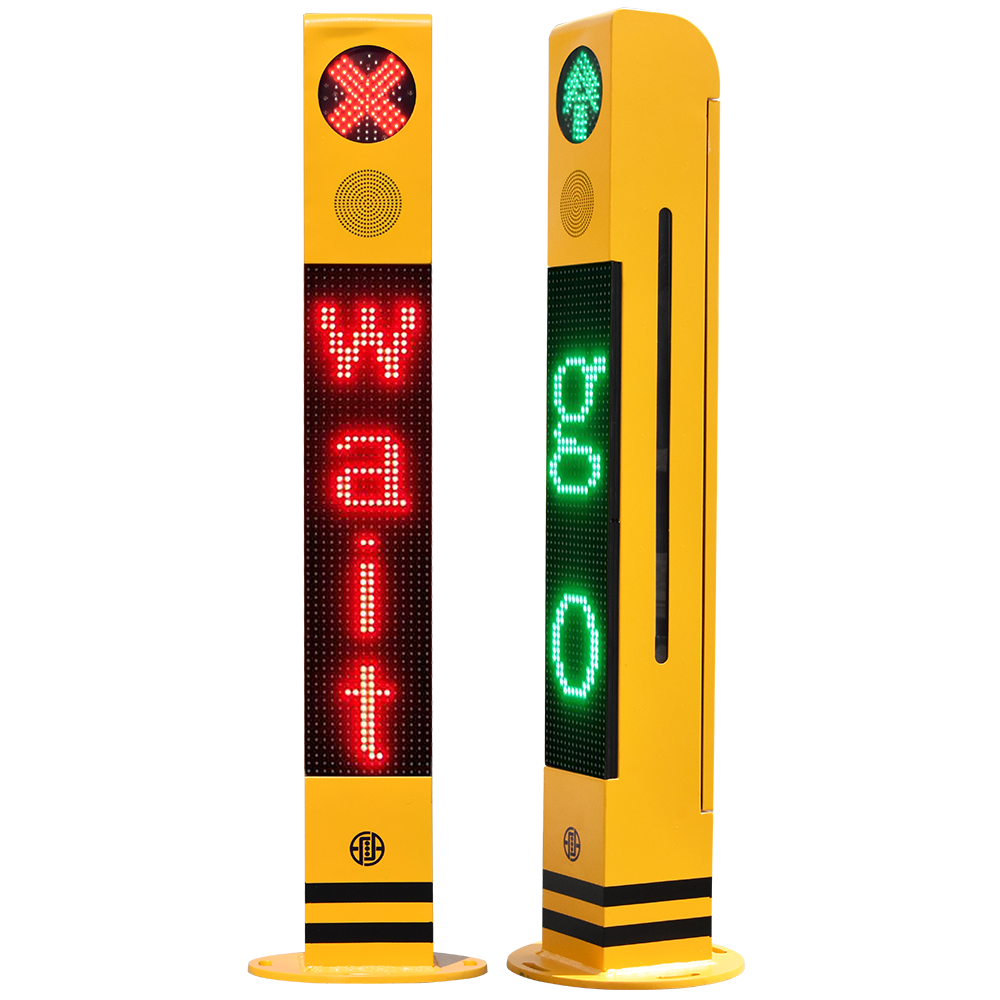

Pedestrian Light Pole with Modular Screen
Read more
Pedestrian Light Pole
-
Model:

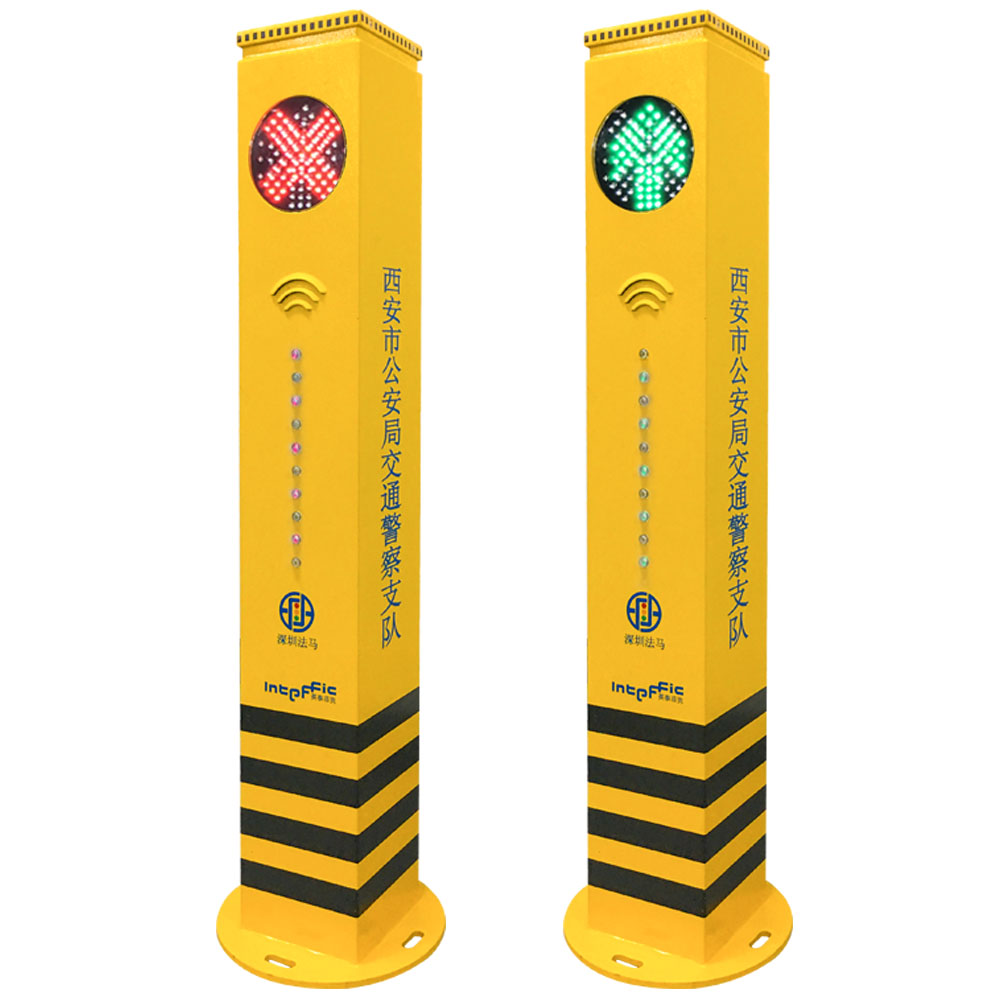

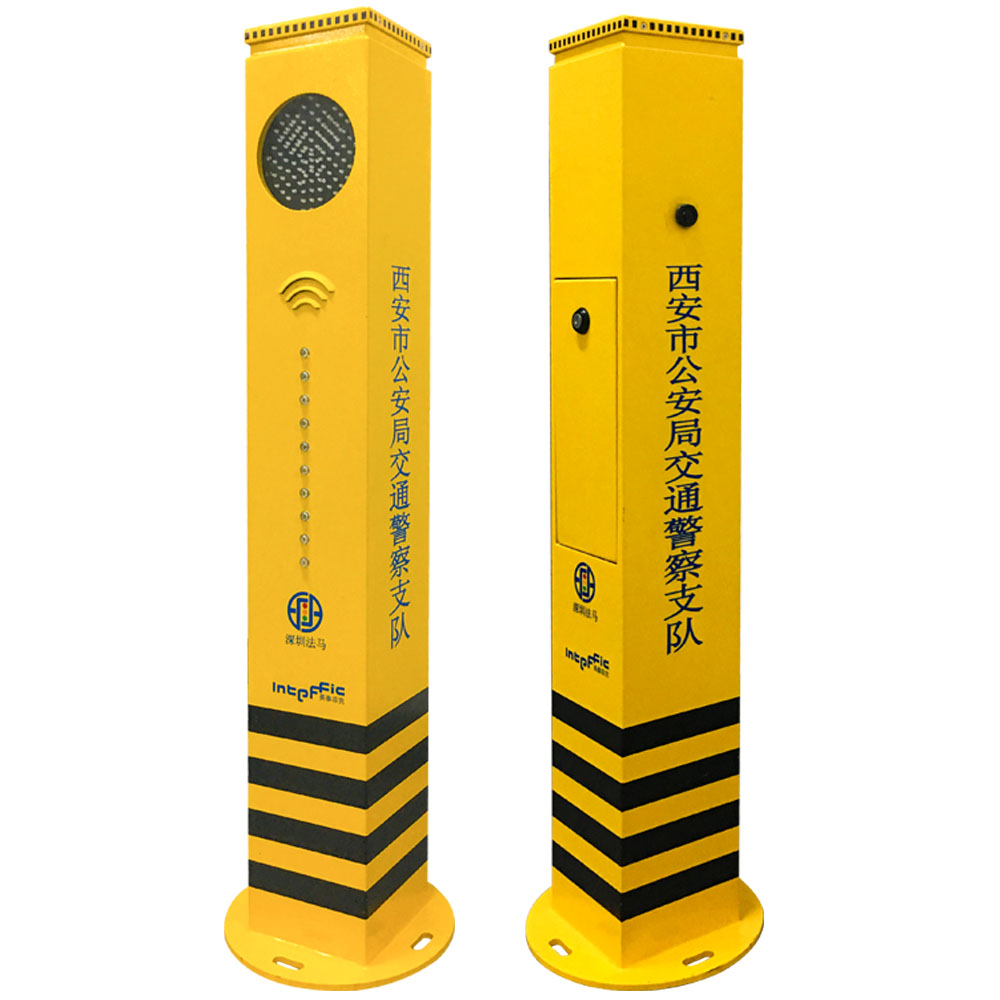

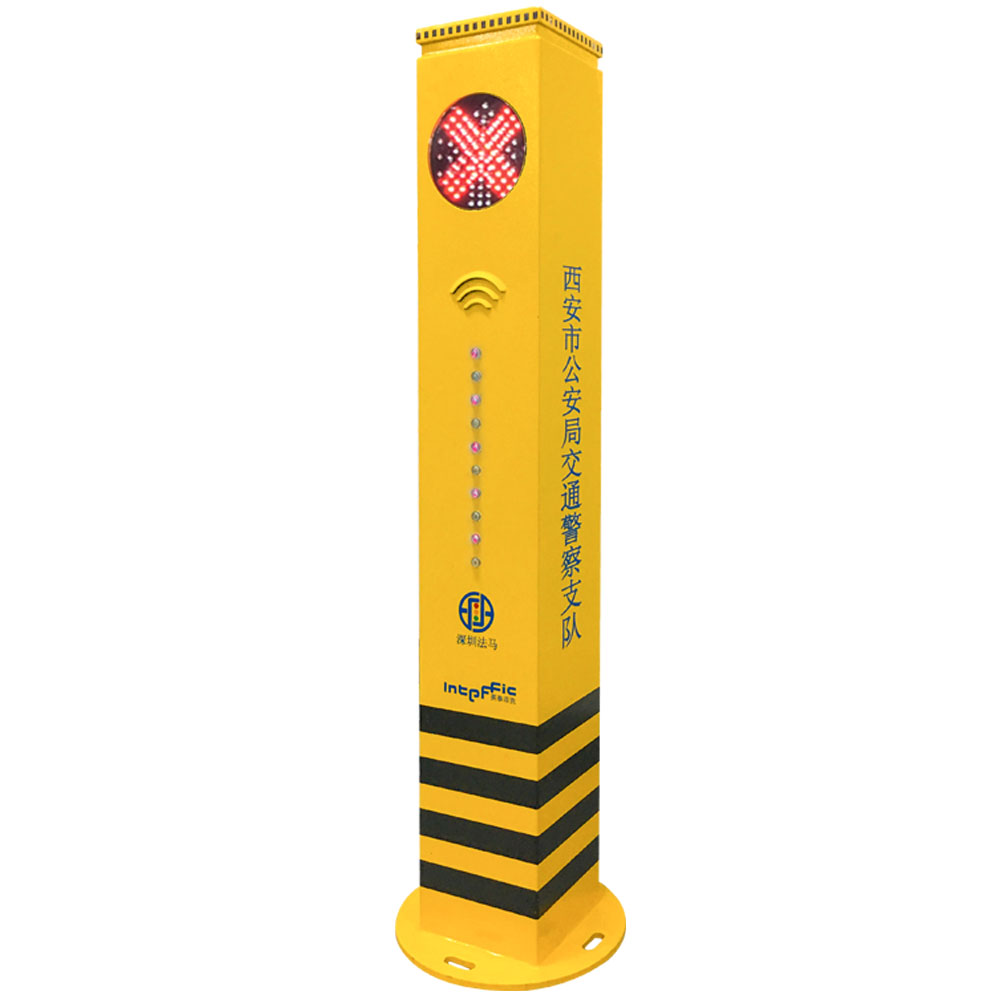

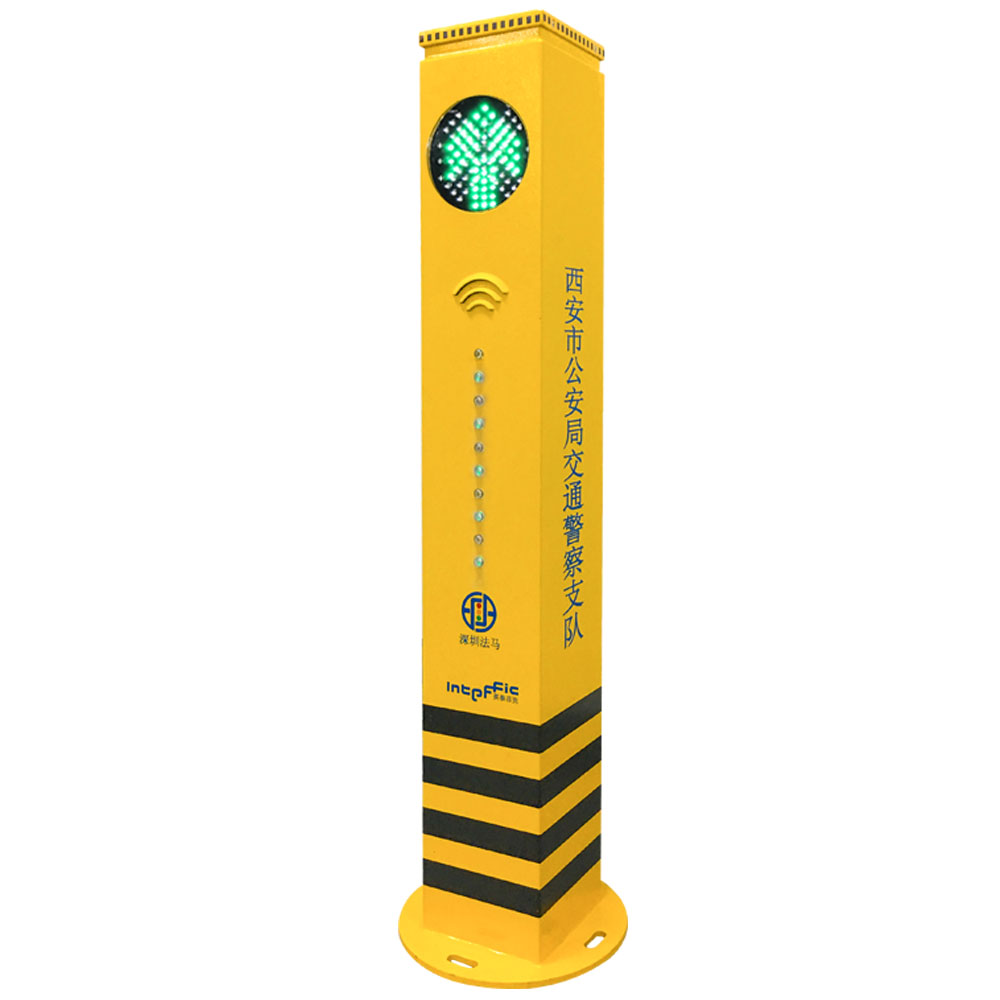

The Pedestrian Light Pole is an intelligent safety guidance terminal installed at both ends of pedestrian crosswalks. Featuring a coordinated main-and-auxiliary pole design, it delivers dual-mode intervention through visual alerts and voice prompts to provide real-time reminders for pedestrians, ensuring compliance with traffic signal instructions and facilitating safe, orderly passage.
Overview
Product Introduction:
The Pedestrian Light Pole is an intelligent safety guidance terminal installed at both ends of pedestrian crosswalks. Featuring a coordinated main-and-auxiliary pole design, it delivers dual-mode intervention through visual alerts and voice prompts to provide real-time reminders for pedestrians, ensuring compliance with traffic signal instructions and facilitating safe, orderly passage. As a critical auxiliary facility, it plays a vital role in enhancing pedestrian safety at road intersections.
Add the to your project
Functional Features
Product Selling Points:
1. Intelligent sensing with real-time warning capability:
Integrated with high-precision infrared beam sensors, the system continuously monitors pedestrian movements and detects red-light violations. Upon identifying a pedestrian crossing the stop line during a red signal, it instantly activates a voice alert to proactively deter such unsafe behavior.
2. Dual-mode safety guidance system:
By combining visual and auditory intervention strategies, the device encourages pedestrians to comply with traffic regulations and cultivate responsible travel habits. This dual guidance mechanism contributes to a significant reduction in pedestrian-related traffic incidents.
At a glance
| Product Model | MZ-Y-FM02 |
| Overall Dimensions | 1200 × 180 × 180 mm (Single pole) |
| Operating Voltage / Frequency | AC 85V~264V/47-63Hz |
| Housing Material | Galvanized sheet |
| Product Model | MZ-Y-FM02 |
| LED Quantity | Red cross: 57 pcs Green arrow: 60 pcs |
| Machine Power Consumption | < 50W (Main pole plus auxiliary pole) |
| LED Wavelength | Red: 625 ± 5 nm Green: 505 ± 5 nm |
| LED Lifespan | ≥ 100,000 hours |
| Insulation Resistance | ＞2MΩ |
| Operating Temperature | -40℃ to +80℃ |
| Relative Humidity | ≤95%RH |
| Protection Grade | IP55 |
| Infrared Detection Range | ≤10m |
| Visual Distance | ≥50 m (Daytime visual identification capability) |
| Packaging Specifications | Wooden Crate Dimensions: 123 × 51.5 × 35 cm (Containing 1 Main Unit and 1 Slave Unit) Weight: 37.7 ± 0.5 kg (Including 4.1 kg for the Wooden Crate) |

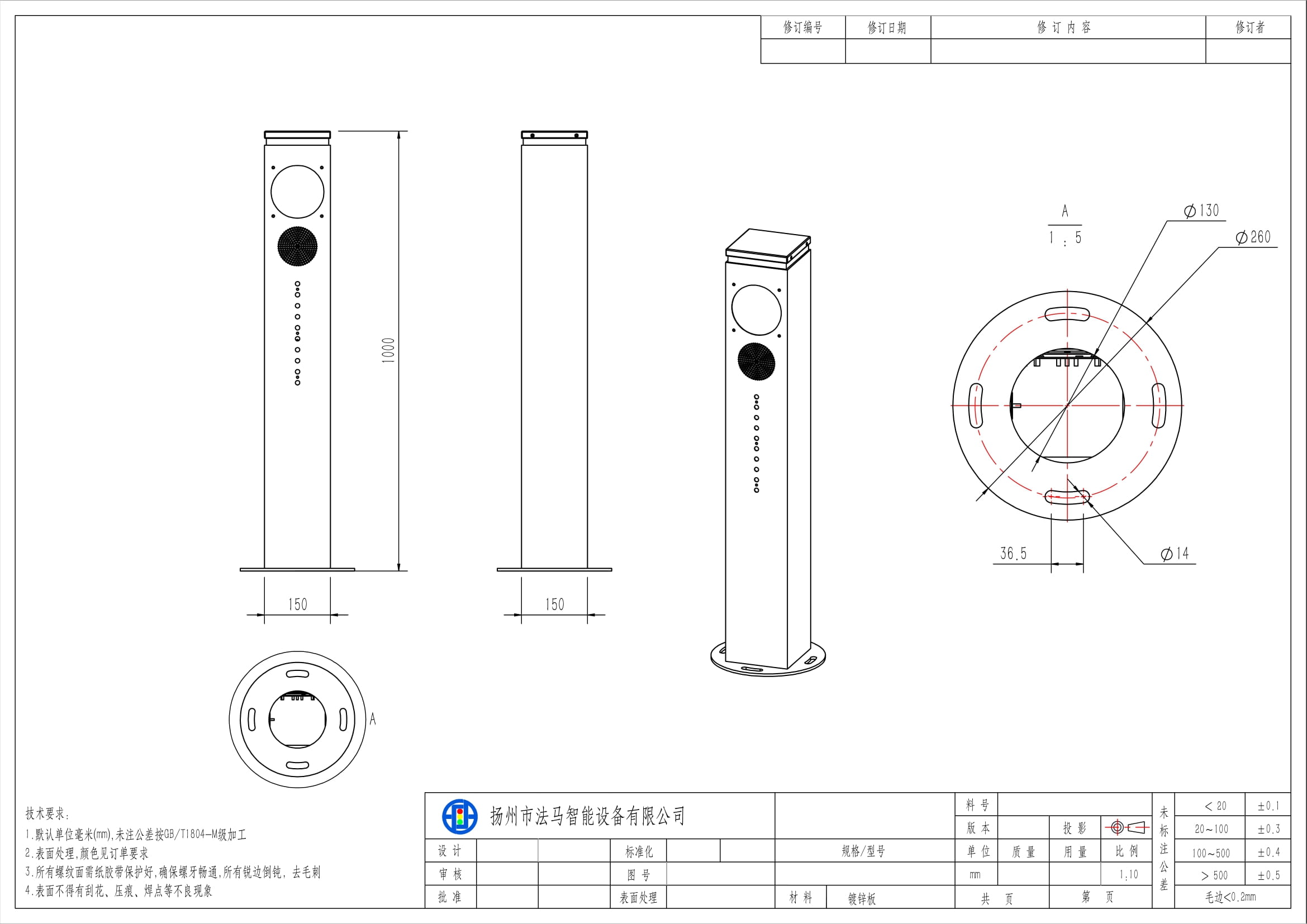

Structural Components
