Traffic Light Countdown Timer for Car: Dot Matrix Countdown for Better Synchronization

Introduction: What Traffic Signal Projects Need to Consider Beyond Countdown Display

A countdown display at a signalized intersection has a straightforward purpose: it shows drivers the remaining time associated with the current signal phase. However, the performance of a traffic light countdown timer for car depends on more than whether numerical digits can be displayed.

In actual road traffic projects, procurement teams and traffic system integrators need to consider several technical factors at the same time. The countdown digits must remain sufficiently distinguishable at the intended observation distance, the displayed value needs to remain synchronized with the traffic signal controller, and the countdown unit must be able to work with the control method used at the intersection. Electrical interference, voltage variation, lightning and surge events can also affect equipment operation, particularly in outdoor installations.

Traditional segment-type countdown displays use predefined illuminated segments to form numerical characters. While this approach is established in traffic signal applications, project requirements may call for larger numerical structures and a more concentrated display area. A Dot Matrix Type Countdown Traffic Light uses an LED dot matrix display integrated into the lamp housing, providing another approach to numerical display design.

For traffic signal buyers, road engineering contractors and intelligent transportation system integrators, the important question is therefore not simply whether a countdown signal can display numbers. The more relevant questions are how the display is constructed, how the countdown signal is detected and synchronized, how the unit interfaces with different control systems, and how it behaves under changing electrical conditions.

Dot Matrix Display Design: Why Display Structure Matters for a Traffic Light Countdown Timer for Car

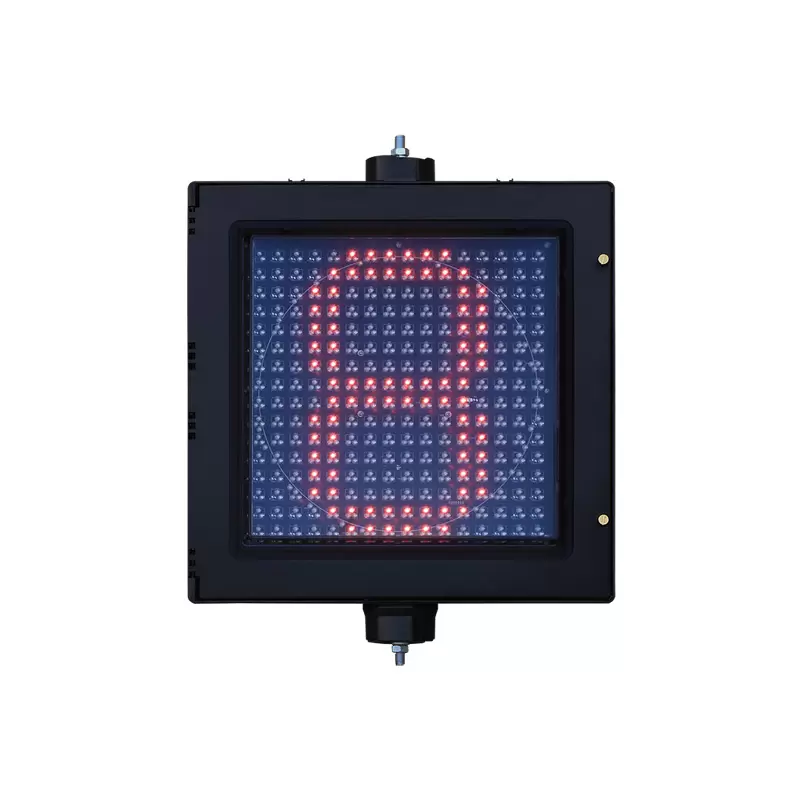

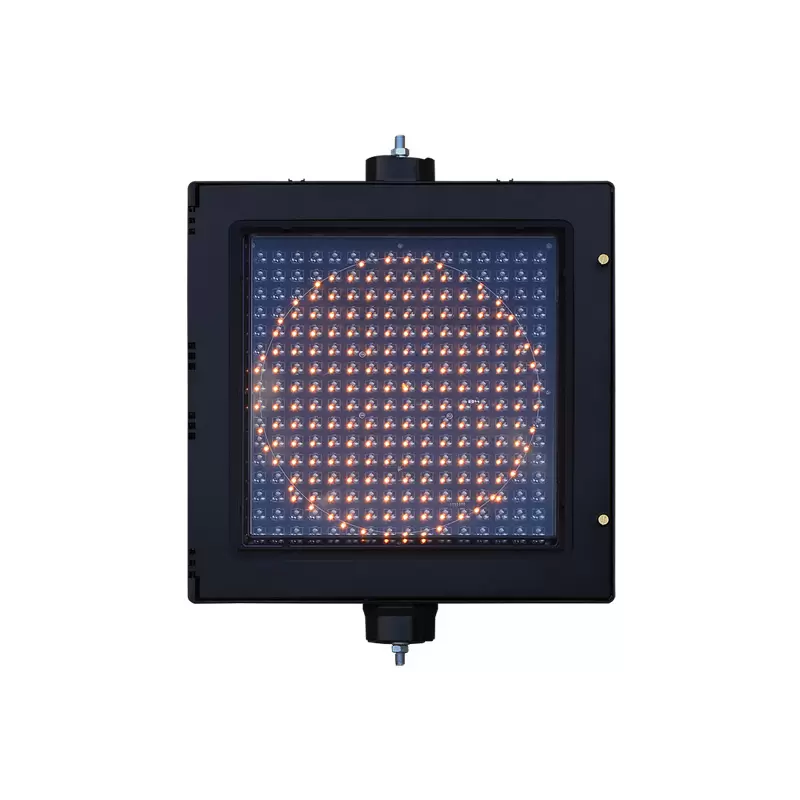

A Dot Matrix Type Countdown Traffic Light integrates an LED dot matrix display directly into the lamp housing. Instead of forming digits through a fixed set of conventional segments, the numerical characters are created through a matrix of LED points.

This structure allows the numerical display to be designed with a larger and more centralized visual area. For a traffic light countdown timer for car, this is particularly relevant because drivers do not normally observe a signal display from a fixed distance under controlled lighting conditions. Viewing distance, daylight conditions, surrounding traffic, roadside equipment and the driver's attention can all affect how quickly the remaining time is recognized.

Dot Matrix Countdown Display vs. Traditional Segment-Type Display

The principal difference is the way the numerical characters are constructed.

A traditional segment-type countdown display uses dedicated segments to form each number. Its display geometry is therefore closely related to the predefined segment structure. A dot matrix display forms characters through multiple LED points arranged in a matrix, allowing the numerical display to occupy a more concentrated and potentially larger visual area within the lamp housing.

For traffic signal projects, several characteristics are worth evaluating:

This does not mean that a dot matrix display automatically performs better in every installation. The actual viewing result also depends on LED configuration, optical design, brightness management, lamp housing structure and installation position. These factors should be evaluated together when selecting a countdown signal for a particular intersection.

For a vehicle-oriented countdown application, the objective is to make the remaining time information easy to identify without requiring the driver to interpret a complicated visual structure. A larger, concentrated numerical display can therefore be useful when the project requires the countdown information to remain distinguishable from a greater observation distance.

The Dot Matrix Type Countdown Traffic Light is designed around this requirement by integrating the LED dot matrix display into the lamp housing and concentrating the numerical information within the signal head.

Countdown Synchronization and Compatibility with Traffic Signal Control Systems

Display visibility is only one part of countdown signal performance. A clearly visible countdown number is of limited value if the displayed value does not correspond correctly with the traffic signal phase.

For this reason, countdown synchronization is a critical consideration when selecting a traffic light countdown timer for car.

The countdown unit needs to receive or detect the relevant signal information from the traffic control system and convert that information into the corresponding countdown display. Differences between signal controllers, output methods and electrical conditions can make this interface more complicated than simply connecting a display to a power source.

Three Operating Modes for Different Control Requirements

The Dot Matrix Type Countdown Traffic Light supports three operating modes:

l Communication mode

l Trigger mode

l Learning mode

These modes provide different approaches for obtaining and processing countdown-related control information.

In communication mode, the countdown unit can work through a communication-based interface with the relevant traffic control system. This approach is applicable where the project uses a compatible communication method between the controller and countdown equipment.

Trigger mode provides another control method in which the countdown operation responds to the relevant trigger signal. This can be useful for projects where countdown information is obtained through electrical signal changes rather than a dedicated communication process.

Learning mode is intended to help the device adapt to the signal characteristics of the installed control system. Instead of requiring the same control configuration for every intersection, the operating approach can be selected according to the actual project conditions.

The product information provided by FAMA states that these three adaptive operating modes allow compatibility with more than 99% of major domestic and international traffic signal control systems. For project procurement, this capability is relevant because compatibility affects not only initial installation but also commissioning time and future replacement or maintenance work.

However, compatibility should always be confirmed against the specific traffic signal controller and project interface before deployment. A general compatibility statement does not replace project-level electrical and communication verification.

What Does an Adaptive Countdown Detection Circuit Do?

Stable countdown operation depends heavily on how the incoming signal is detected.

Traffic signal equipment may operate under different voltage conditions, while outdoor electrical environments can also contain interference caused by switching equipment, long cable runs and other electrical devices. If the detection threshold is fixed and unsuitable for the actual input conditions, the countdown signal may have difficulty correctly identifying the intended signal state.

The Dot Matrix Type Countdown Traffic Light uses a patented adaptive countdown detection circuit designed to address this requirement.

According to the provided product specifications, the circuit can:

1. Automatically match the input voltage level.

2. Dynamically adjust the operating threshold.

3. Filter external electrical interference.

The significance of this design is that countdown detection is not treated as a fixed electrical input with only one predetermined threshold. The detection mechanism is designed to adapt to the incoming signal conditions.

This matters because input signal detection is directly connected to countdown synchronization. If the input signal cannot be detected consistently, the countdown value may not correspond correctly to the traffic signal phase. Adaptive detection therefore functions as part of the synchronization mechanism rather than simply being an independent electrical feature.

For traffic engineering projects, this distinction is important. When evaluating a countdown signal, buyers should look beyond the numerical display itself and examine how the equipment detects the control signal, what operating modes are available, and how the device responds to voltage variation and electrical interference.

Dual Surge Protection for Power and Communication Interfaces

Outdoor traffic signal equipment is exposed to electrical conditions that are different from those found in controlled indoor environments. Lightning events, voltage surges and transient disturbances can affect both power circuits and communication interfaces.

The Dot Matrix Type Countdown Traffic Light incorporates surge protection at both the power input and communication interface.

This dual-protection arrangement addresses two different paths through which surge energy can potentially reach the equipment. Protecting only the power input does not necessarily address disturbances entering through a communication connection.

For an installed traffic signal system, this is relevant to long-term maintenance because a countdown unit can be connected to both the electrical power network and the signal control or communication network. Protection should therefore be considered across the complete interface structure rather than from the power side alone.

The supplied product information states that this dual surge protection is designed to reduce damage caused by lightning strikes and high-voltage surges and can reduce maintenance costs by more than 50%. This figure should be understood as a product-specific stated performance claim rather than a universal maintenance-cost reduction applicable to every traffic project. Actual results depend on installation conditions, local electrical environments, protection architecture and maintenance practices.

From an engineering perspective, the more important point is that surge protection is incorporated into both major external interfaces, helping reduce the potential impact of transient electrical events on the countdown equipment.

Remote Configuration and the Practical Impact on Maintenance

Traffic signal projects are not always identical. Different intersections may use different control parameters, signal configurations or commissioning requirements. If every adjustment requires physical replacement of hardware, project deployment and maintenance become more time-consuming.

The Dot Matrix Type Countdown Traffic Light supports remote configuration through a PC-based upper-level control system. System parameters can be adjusted online without replacing the hardware.

This approach changes the maintenance process in several ways.

During commissioning, engineers can configure relevant parameters according to the actual intersection control requirements. If a parameter needs to be adjusted later, the change can be performed through the upper-level system instead of requiring the countdown hardware to be replaced.

For contractors managing multiple intersections, this can reduce unnecessary physical intervention during parameter adjustment. For traffic management departments, it can also simplify certain maintenance operations where the required change is software- or parameter-related rather than caused by a hardware failure.

Remote configuration therefore works together with system compatibility rather than existing separately from it:

Multiple operating modes → broader controller adaptation → remote parameter configuration → simpler commissioning and maintenance

This is particularly relevant for projects where the same countdown product needs to be deployed across intersections with different operating requirements.

How Buyers Should Evaluate a Countdown Traffic Light for Actual Road Projects

When selecting a traffic light countdown timer for car or a Dot Matrix Type Countdown Traffic Light, buyers should evaluate the complete operating chain rather than focusing on one specification.

1. Evaluate the actual display structure

Check the numerical display size, LED matrix configuration, brightness distribution and lamp housing design. The question is not simply whether the digits are bright, but whether the displayed information remains distinguishable under the project's expected viewing conditions.

2. Verify countdown synchronization

Confirm how the countdown unit receives the signal from the traffic controller and how the displayed countdown corresponds to the actual signal phase. Synchronization should be evaluated together with the detection method and operating mode.

3. Confirm controller compatibility

Determine whether the project requires communication mode, trigger mode or learning mode. The specific controller interface should be verified before installation rather than relying solely on general compatibility statements.

4. Examine input signal detection

An adaptive detection mechanism can be particularly relevant where input voltage conditions vary or where electrical interference may affect signal recognition. The buyer should understand how the equipment identifies the control signal and maintains stable detection.

5. Check protection at external interfaces

Power input and communication interfaces should both be considered when evaluating surge protection. This is especially important for outdoor traffic signal installations exposed to lightning and transient voltage conditions.

6. Consider commissioning and maintenance procedures

Remote configuration can reduce the need for hardware replacement when system parameters need to be adjusted. For multi-intersection projects, this can have a practical impact on installation and maintenance workflows.

Integrating Countdown Display with Intelligent Traffic Control

A countdown signal is not an isolated display device. It forms part of the larger traffic signal control system.

Yangzhou FAMA Intelligent Equipment Co., Ltd. (FAMA) provides integrated intelligent transportation solutions covering smart signal control, smart traffic safety and 5G multifunctional smart poles. In smart signal control applications, FAMA works with technologies including coils, geomagnetism, RFID, radar and visual identification to support real-time monitoring of traffic flow and pedestrian flow at intersections.

This broader system perspective is relevant when selecting countdown equipment because the countdown display needs to work within the actual traffic control architecture. Display technology, signal detection, controller compatibility and configuration capability should therefore be considered as connected elements rather than separate product features.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

For buyers evaluating actual project applications, FAMA's project portfolio and product range provide additional context for understanding its traffic signal equipment and intelligent transportation solutions.

FAMA Project Portfolio

FAMA Product Range

Conclusion: Selecting a Countdown Signal Based on the Complete Technical Chain

The selection of a traffic light countdown timer for car should not be based solely on whether the displayed numbers appear clear during a basic inspection. For professional traffic signal projects, the more meaningful evaluation covers the entire operating chain.

A Dot Matrix Type Countdown Traffic Light combines LED dot matrix display technology with a lamp housing designed for concentrated numerical presentation. Its communication mode, trigger mode and learning mode provide different approaches for adapting to traffic signal control systems. The adaptive countdown detection circuit addresses input voltage variation and external electrical interference, while dual surge protection covers both power and communication interfaces. Remote PC-based configuration further supports project commissioning and parameter adjustment.

These technologies are interconnected. Display visibility determines how easily the remaining time can be recognized; input signal detection determines whether the countdown receives the correct control information; synchronization determines whether the displayed value corresponds to the actual signal phase; system compatibility affects installation and commissioning; and surge protection and remote configuration influence the practical maintenance requirements after deployment.

For overseas traffic signal buyers, road engineering contractors, traffic management departments and intelligent transportation system integrators, evaluating these factors together provides a more practical basis for selecting countdown equipment for specific intersection requirements.
