Red Right Arrow Traffic Light: High Flux LED and Three-Layer Optical Processing

Introduction: Why Arrow Traffic Light Design Requires More Than a Bright LED

For a traffic signal, the arrow pattern is not simply a graphic displayed by an LED light source. At a busy intersection, drivers need to distinguish the direction of the signal quickly and accurately, sometimes from a considerable distance and under changing ambient conditions. This makes optical uniformity, arrow definition, light distribution, and electrical stability important factors when selecting a Red Right Arrow Traffic Light.

Conventional point-light-source designs can create several problems when the optical system does not adequately control the emitted light. Direct light from the LED can produce glare, while insufficient optical processing may result in uneven illumination across the arrow pattern. Excessive concentrated light can also increase unwanted light emission around the signal. At the same time, LED traffic lights operate continuously in outdoor environments, where heat accumulation, voltage fluctuations, and electrical surges can affect long-term operation.

A High Flux Red Arrow Traffic Light approaches these issues through the combined design of a large-sized LED light source, three-layer optical processing, constant-current power supply, surge protection, and external heat dissipation. Instead of treating brightness as the only performance criterion, the optical and electrical systems work together to control how light is generated, distributed, and maintained during operation.

Three-Layer Optical Processing for More Uniform Arrow Illumination

The optical system is one of the most important parts of a High Flux Red Arrow Traffic Light because the LED itself does not determine the final appearance of the arrow. The emitted point light must be processed before it reaches the viewing surface.

The High Flux Red/Yellow/Green Arrow Traffic Light uses a three-layer optical structure incorporating a Secondary Lens, Fresnel Lens, and Optical Mask. These components perform different stages of optical processing to diffuse and redirect the light generated by the large-sized LED light source.

How the Secondary Lens Processes the LED Point Source

The first stage uses a secondary lens to further process the light emitted by the LED source. A high-flux LED can generate concentrated light from a relatively small emitting area. If this light is allowed to travel directly toward the viewing surface, the result can be a concentrated luminous region rather than a uniformly illuminated arrow.

The secondary lens provides an additional optical stage for controlling this concentrated output. By redirecting and spreading the emitted light, it helps prepare the light distribution for the subsequent optical elements.

This is particularly important for an arrow signal because the objective is not simply to create a bright spot. The complete arrow shape needs to remain visually distinguishable, with the light distributed across the intended display area.

Fresnel Lens for Light Distribution and Refocusing

The Fresnel Lens forms another important part of the optical processing system. Its structure allows optical control without requiring the physical thickness associated with a conventional lens of comparable optical function.

In this traffic signal application, the Fresnel lens participates in the redistribution and refocusing of light after the initial optical processing stage. Rather than allowing the original point-source emission to remain concentrated, the optical system progressively modifies the light path so that the output can be distributed over the required viewing area.

For traffic signal procurement, this distinction matters. A suitable optical design should be evaluated by the resulting light distribution and surface uniformity, rather than by LED output alone. The Fresnel lens is therefore part of the overall optical mechanism that converts concentrated LED emission into a more controlled signal output.

Optical Mask for Arrow Pattern Control

The optical mask provides another stage of control over the final light pattern. Together with the secondary lens and Fresnel lens, it helps shape the processed light into the intended signal display.

The result is a more uniform surface light output rather than an arrow dominated by isolated bright points. This is particularly relevant to right-turn signals, where the arrowhead and shaft must remain visually distinguishable as a complete directional indication.

The three-layer optical processing system can therefore be understood as a sequence:

LED point source → secondary optical processing → Fresnel light distribution and refocusing → optical masking → uniform surface light output

This approach also helps reduce the glare associated with direct point-source emission. By processing the light before it reaches the viewing surface, the system can reduce concentrated direct emission and control unwanted light distribution, helping mitigate glare and light pollution.

Red Right Arrow Traffic Light: Light Source and Electrical System

For a Red Right Arrow Traffic Light, optical performance depends on more than the lens assembly. The LED source and power supply determine how consistently the optical system receives the electrical and luminous input required for operation.

The High Flux design uses a large-sized LED light source with low light attenuation and high luminous efficiency. The purpose is not simply to increase the nominal brightness of the signal. A suitable light source must work together with the optical structure so that the available luminous output can be effectively processed and distributed across the arrow display.

This creates an important distinction between a high-flux arrow signal and a conventional point-source signal. A conventional design may depend more heavily on concentrated emission from individual LED points, while the high-flux design described here combines a large-sized LED source with multiple optical processing stages.

For procurement teams, the relevant question is therefore not simply:

“How bright is the LED?”

A more useful evaluation is:

“How effectively is the LED output converted into a uniform and recognizable arrow pattern?”

This connects luminous efficiency directly with arrow visibility, light distribution, and intersection application.

AC 90–264V Wide-Voltage Constant-Current Power Supply

Traffic signals can operate in electrical environments where the supply voltage is not perfectly constant. The High Flux Arrow Traffic Light uses an AC 90–264V wide-voltage constant-current power supply.

The wide input-voltage range allows the power supply system to accommodate a broad range of AC input conditions within its specified operating range. The constant-current design is also important because LED characteristics are closely related to the current supplied to the light source.

For a traffic signal operating continuously at an intersection, maintaining controlled current is part of maintaining consistent electrical operation. It also allows the LED and optical system to operate as an integrated unit rather than treating the power supply as an independent component.

4000V Surge Protection

Outdoor traffic signal equipment can also be exposed to electrical transients. The specified 4000V surge protection provides a protection measure within the power supply design against high-voltage surge conditions.

This should not be interpreted as meaning that the traffic light is immune to every electrical event. Rather, the specified surge-protection capability is one part of the electrical protection architecture intended to improve operational stability under surge conditions within the product's design specifications.

For traffic engineering contractors and traffic management departments, surge protection is therefore a technical parameter worth checking alongside input-voltage range, constant-current operation, and the overall power-supply configuration.

Thermal Management: Why LED Traffic Lights Need Effective Heat Dissipation

LED efficiency does not eliminate the need for thermal management. During continuous operation, part of the electrical energy supplied to the LED system is converted into heat. If heat is not effectively transferred away from the light source and surrounding components, temperature can become an important factor in long-term operating conditions.

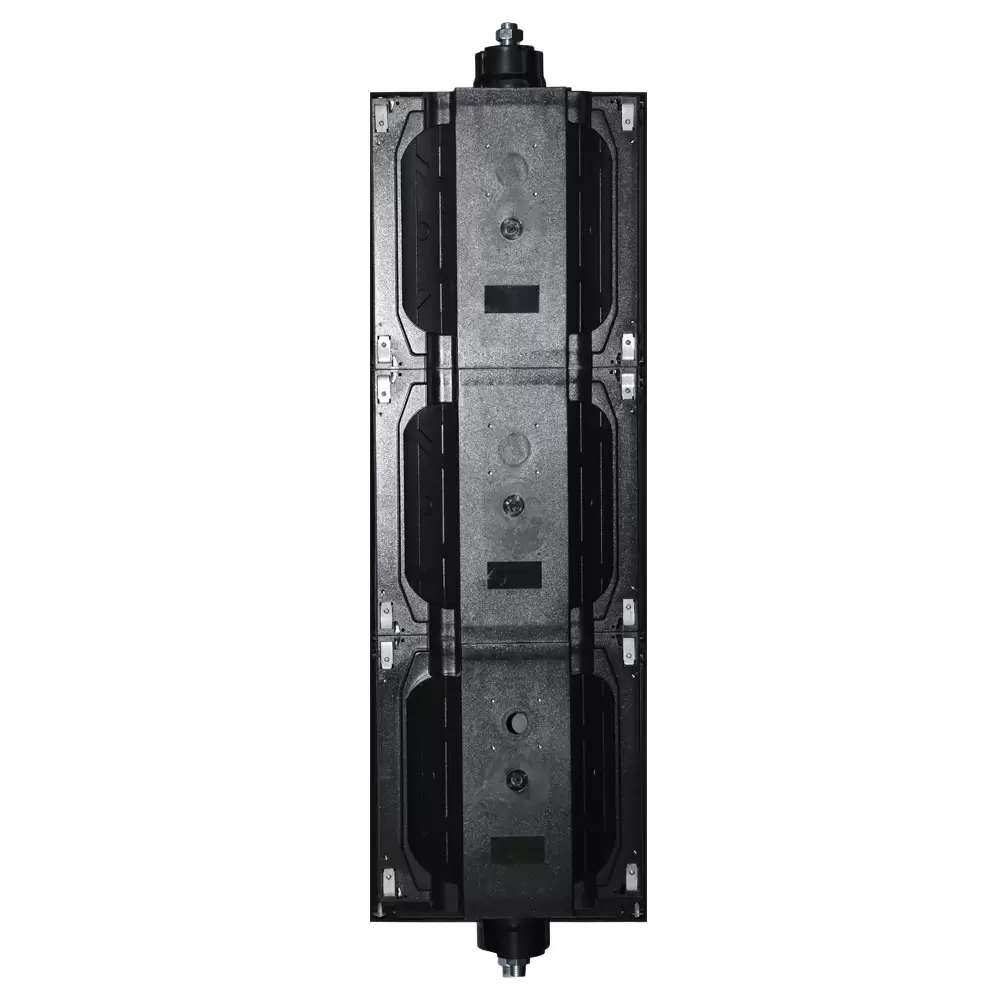

The High Flux Arrow Traffic Light incorporates an external heat dissipation module as part of its structural design.

The purpose of external heat dissipation is to improve the transfer of heat away from the internal light-source and power-related components. This creates a more appropriate thermal management path for a traffic signal intended for continuous outdoor operation.

Thermal management also needs to be considered together with the LED and power supply rather than evaluated separately.

The operating relationship can be summarized as:

Large-sized LED → controlled current → light generation and heat generation → external heat dissipation → more stable operating conditions

The optical system then determines how the available light is distributed across the arrow display.

This is why selecting an Arrow Traffic Light solely according to its LED specification can provide an incomplete picture. The light source, driver, optical components, and thermal structure form a connected system.

What Procurement Teams Should Evaluate When Selecting an Arrow Traffic Light

For overseas traffic signal buyers, road traffic engineering contractors, traffic management departments, and intelligent transportation system integrators, several technical parameters should be considered together.

1. Arrow Pattern Uniformity

The arrow should be evaluated as a complete illuminated pattern rather than as a collection of individual LED points. The relationship between the light source, secondary lens, Fresnel lens, and optical mask directly affects surface light uniformity.

2. Light Distribution

Light distribution determines how effectively the emitted light is spread across the intended display area. A concentrated point source may produce strong local brightness without necessarily producing a uniform arrow.

The optical system should therefore be assessed according to its final output pattern and intended intersection application.

3. Luminous Efficiency

Luminous efficiency should be considered together with optical utilization. A high-flux LED source is useful only when the optical system can effectively process and distribute its output.

4. Glare Control

Direct emission from concentrated point sources can produce glare. Secondary optical processing, Fresnel light distribution, and optical masking provide mechanisms for controlling concentrated emission and producing a more controlled surface output.

5. Thermal Management

External heat dissipation is particularly relevant for traffic signals intended for continuous operation. Buyers should examine how heat is transferred from the light source and associated components rather than looking only at the LED specification.

6. Input Voltage Range and Constant-Current Drive

The AC 90–264V input range and constant-current power supply should be considered when evaluating electrical compatibility and operating stability across different intersection power environments.

7. Surge Protection

The specified 4000V surge protection is another important electrical design parameter for outdoor traffic signal applications. Buyers should confirm the protection specification and understand what conditions it is designed to address.

Choosing Between a Red Right Arrow Traffic Light and High Flux Arrow Design

A Red Right Arrow Traffic Light needs to perform a very specific communication function: clearly indicate that right-turn movement is subject to the displayed traffic control condition.

For this reason, the evaluation should begin with the complete optical output rather than the LED component alone.

A High Flux Red Arrow Traffic Light combines a large-sized LED light source with three-layer optical processing to control the transition from point-source emission to surface light output. The Secondary Lens, Fresnel Lens, and Optical Mask work as an integrated optical system, while the external heat dissipation module, wide-voltage constant-current power supply, and specified surge protection address key electrical and thermal considerations.

This system-level approach is particularly relevant to intersections where traffic signals must operate continuously and maintain a recognizable directional indication under different environmental and electrical conditions.

For project-based procurement, buyers can also evaluate the manufacturer's completed traffic signal applications and product portfolio rather than relying only on isolated product specifications. FAMA provides traffic signal products and intelligent transportation solutions covering smart signal control and related traffic applications.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

For more information about FAMA's traffic signal products and project applications, buyers can review its product portfolio and project applications.

Conclusion: Evaluate the Complete Optical and Electrical System

The performance of an Arrow Traffic Light cannot be determined by LED brightness alone. Arrow recognition depends on how effectively the light source, optical structure, power supply, and thermal system work together.

For a Red Right Arrow Traffic Light, procurement teams should pay particular attention to arrow-pattern uniformity, light distribution, luminous efficiency, glare control, and application conditions. For a High Flux Red Arrow Traffic Light, the evaluation should additionally consider the relationship between the large-sized LED light source, three-layer optical processing, external heat dissipation, AC 90–264V constant-current power supply, and 4000V surge protection.

The practical selection process should therefore focus on measurable design characteristics and the actual application environment. By examining the complete optical, electrical, and thermal architecture, traffic signal buyers and engineering contractors can make a more technically grounded assessment of whether an Arrow Traffic Light is suitable for a specific intersection project.
