Low Power Pedestrian Traffic Light: Mesh Circuit, Constant Current and EMC

A pedestrian traffic light may appear to be a relatively simple LED device, but its performance becomes more demanding when it is installed at a signalized intersection and expected to operate continuously for years. An LED lamp bead failure can affect the visual consistency of a signal if the circuit is not designed to isolate the fault. Uncontrolled current variation can also affect LED operating conditions, while inefficient power conversion can increase electricity consumption over long operating periods. At intersections with multiple electronic devices, electromagnetic interference is another factor that needs to be considered during product selection.

For traffic signal purchasers, road engineering contractors, traffic management departments, and intelligent transportation system integrators, a Low Power Pedestrian Traffic Light should therefore be evaluated through more than its nominal wattage. LED circuit architecture, power supply, constant current drive, power factor, harmonic distortion, optical structure, environmental protection, and maintenance requirements all influence how the signal performs after installation.

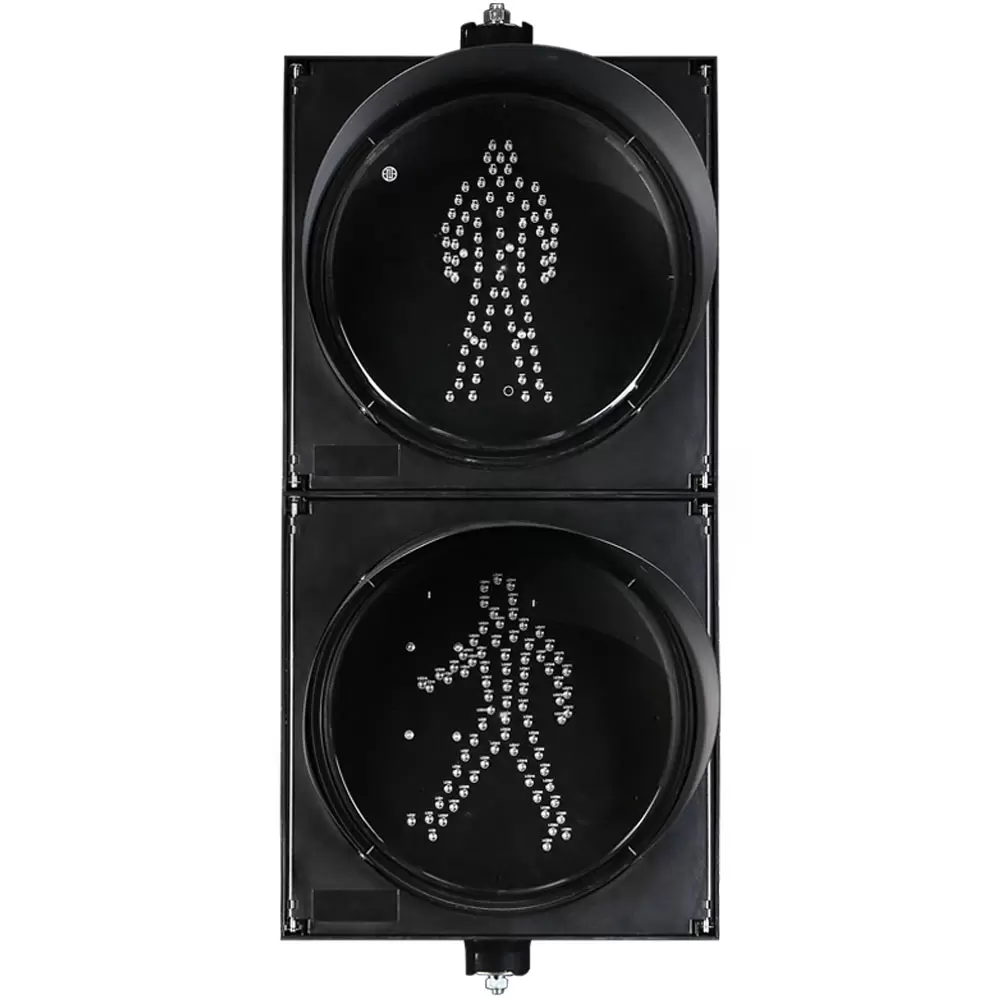

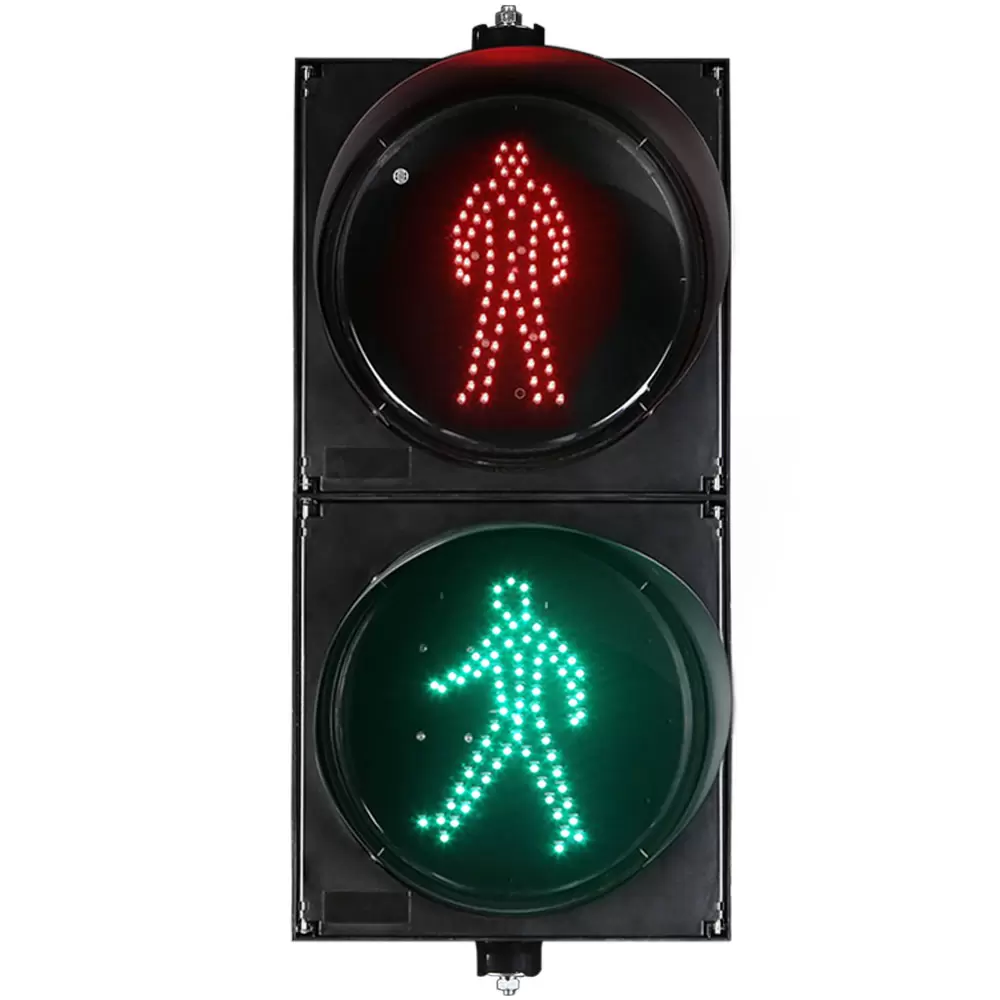

FAMA's Low Power Pedestrian Traffic Light is designed as a two-unit assembly for pedestrian crossing applications. Its lamp core incorporates the lamp board, lens, power supply, lamp bowl, and other structural components. The published product specifications include AC85–264V input, power factor up to 0.98, THD below 10%, and an LED lifespan specification of at least 100,000 hours. These parameters provide a measurable basis for evaluating the product rather than relying only on general descriptions such as “energy-saving” or “reliable.”

Why Mesh Circuit Design Matters in a Low Power Pedestrian Traffic Light

The LED lamp board is one of the most important components in a pedestrian signal because it determines how the LED lamp beads are electrically connected and how the display behaves when an individual component fails.

FAMA's Low Power Pedestrian Traffic Light uses a mesh circuit design. According to the product design, when an individual LED lamp bead fails, the circuit automatically isolates the fault point so that the remaining LED beads can continue operating. This is intended to maintain the overall display effect rather than allowing a localized LED failure to affect the remaining lamp beads.

This approach is particularly relevant to pedestrian signal applications. A signal installed beside a busy road is not always easy to access for immediate maintenance. Replacement may require maintenance personnel to work beside an active roadway, arrange appropriate traffic control, or schedule intervention during a suitable operating period.

With a mesh circuit architecture, an individual LED fault is treated as a localized electrical problem rather than automatically becoming a failure of the entire LED array.

From a procurement perspective, this creates several points worth checking:

• Fault isolation: whether an individual LED failure can be electrically isolated from the remaining LED circuit.

• Display continuity: whether the remaining LEDs continue to provide the intended pedestrian indication.

• Circuit architecture: whether the LED board is designed around localized fault tolerance rather than a simple series-dependent arrangement.

• Maintenance impact: whether a localized LED fault necessarily requires immediate replacement of the complete lamp board.

• Field troubleshooting: whether maintenance personnel can distinguish LED-level faults from driver or power-supply problems.

The purpose of fault isolation is not to claim that a failed LED becomes invisible. The failed component remains a fault. The engineering value is that its electrical impact can be contained so that the remaining LED lamp beads continue to operate.

For a traffic management department or contractor managing a large number of intersections, this distinction matters. Reliability is not only about preventing component failures; it also involves controlling the consequences when an individual component eventually fails.

Power Supply and Constant Current Drive Determine More Than Energy Consumption

Low power performance should not be judged by LED wattage alone. The power supply and LED driver determine how electrical power is converted and delivered to the lamp board.

FAMA's Low Power Pedestrian Traffic Light uses an independently designed Euro standard power supply with a power factor of up to 0.98. The product also uses constant current drive technology to maintain a stable working current for the LED array.

These specifications describe different aspects of electrical performance.

Power supply design affects how efficiently input electrical energy is converted for the LED system. FAMA's published specifications list lamp power consumption of no more than 6 W for static red, 5 W for dynamic green, and 5 W for static green on the 200 mm version. For the 300 mm version, the corresponding figures are no more than 7 W, 6 W, and 6 W.

These figures are more useful to a purchaser than an unsupported percentage claim because they can be incorporated into a project-level energy calculation based on the actual number of signal units and operating schedule.

Power factor should also be understood correctly. A power factor of up to 0.98 does not mean the traffic light consumes only 2% of its rated power, nor does it represent a 98% energy-saving rate. It describes the relationship between real power and apparent power under the relevant operating conditions. Actual electricity consumption still needs to be evaluated from the product's operating power, operating state, signal timing, and installation quantity.

Why Constant Current Drive Is Important for LED Signals

LEDs are sensitive to operating current, making current control an important part of LED driver design.

A constant current driver regulates the current supplied to the LED load instead of allowing the operating current to fluctuate without controlled regulation. For a pedestrian traffic light, this creates a more controlled electrical operating condition for the LED lamp beads.

FAMA identifies constant current drive as a functional feature of the Low Power Pedestrian Traffic Light and states that the design is intended to maintain stable working current, support LED service life, and reduce later maintenance requirements. The published specification lists an LED lifespan of ≥100,000 hours.

The 100,000-hour figure should be interpreted as the manufacturer's specified LED lifespan rather than a guarantee that the complete traffic signal assembly will operate for exactly that period without maintenance. Power supply performance, operating temperature, installation conditions, environmental exposure, and other components can all affect actual field service life.

This is why buyers should evaluate LED lamp beads + driver + power supply + thermal and environmental conditions as one electrical system rather than selecting LEDs based only on a nominal lifespan figure.

THD and EMC: Why Electrical Compatibility Matters at an Intersection

A pedestrian traffic light does not operate independently. A modern signalized intersection may include vehicle signal heads, pedestrian signals, traffic controllers, detectors, communication equipment, countdown displays, and other electronic devices.

As a result, electromagnetic compatibility needs to be considered as part of the complete traffic signal system.

FAMA specifies THD below 10% for its Low Power Pedestrian Traffic Light and describes the product as having electromagnetic compatibility designed to reduce interference with the power grid and other equipment at the intersection.

Total harmonic distortion is relevant because non-linear electronic loads can introduce harmonic components into the current waveform. Controlling harmonic distortion can contribute to a more predictable electrical environment when multiple electronic devices share the same power infrastructure.

However, THD below 10% should not be interpreted as a guarantee that an entire intersection will be free from electromagnetic interference. System-level EMC performance is also affected by power quality, wiring, grounding, installation practices, connected equipment, and the characteristics of the overall electrical system.

For an intelligent transportation system integrator, this distinction is important. The pedestrian signal is one component within a larger system. Its power supply and EMC characteristics need to be compatible with the traffic controller and other equipment rather than being evaluated in isolation.

The relationship can therefore be understood as:

Power Supply → LED Driver → LED Circuit → Optical Display → Intersection Electrical Environment

Each stage affects the next. A technically suitable pedestrian traffic light should provide controlled electrical characteristics while maintaining the required visual indication.

Selecting a Pedestrian Traffic Light Sign for Real Intersection Applications

A Pedestrian Traffic Light Sign needs to be selected according to the intersection layout and pedestrian crossing requirements rather than simply by appearance or nominal size.

FAMA's Low Power Pedestrian Traffic Light is a two-unit assembly designed for traffic signal control intersections serving pedestrian crossings. Its lamp core includes the lamp board, lens, power supply, lamp bowl, and associated structural components. The published product range includes 200 mm and 300 mm light-emitting surface configurations.

Each component has a specific role.

Lamp board:
The lamp board carries the LED lamp beads and defines the electrical architecture of the display. Its circuit design directly affects fault isolation and display continuity.

LED lamp beads:
The LED source determines the basic light output of the pedestrian indication. LED quantity and configuration need to be considered together with the required optical performance rather than viewed as an isolated specification.

Lens:
The lens forms part of the optical structure and influences how the emitted light is presented to pedestrians and other road users.

Power supply:
The power supply converts and manages the incoming electrical power required by the LED system. Input voltage range, power consumption, power factor, and electrical compatibility should be checked against the project requirements.

Lamp bowl and housing structure:
The structural components protect and support the internal optical and electrical elements. Material, sealing, installation configuration, and environmental requirements should be considered according to the actual roadside application.

This component-level evaluation is especially useful when comparing different pedestrian traffic light signs. Two products may appear similar externally while using different LED circuit structures, driver technologies, power supplies, and internal layouts.

What Should Procurement Teams Check Before Selecting a Low Power Pedestrian Traffic Light?

For overseas traffic signal buyers and road engineering contractors, a technical specification sheet should provide enough information to compare products on measurable criteria.

1. Lamp power consumption

Check power consumption separately for different signal states instead of relying on a general “low power” description. FAMA's published 200 mm and 300 mm configurations provide separate power limits for static red, dynamic green, and static green operation.

2. LED circuit architecture

Ask how the LED lamp beads are interconnected and what happens when one LED fails. A mesh circuit design with localized fault isolation can limit the electrical effect of an individual LED failure.

3. Constant current drive

Confirm whether the LED driver provides controlled constant current and how the driver is integrated with the power supply and LED board.

4. Power factor

A power factor of up to 0.98 can be used as a measurable electrical parameter when evaluating the power supply. It should be considered alongside actual lamp power rather than treated as an independent energy-saving percentage.

5. THD and EMC

For installations containing multiple electronic devices, check the stated THD and EMC characteristics. FAMA specifies THD below 10% for this Low Power Pedestrian Traffic Light.

6. Environmental operating conditions

FAMA's published specifications for the product include an operating temperature range of -40°C to +80°C, relative humidity up to 97% RH, and an IP53 protection grade. These specifications belong to the listed product configuration and should be checked against the environmental requirements of the actual project.

7. Maintenance requirements

The purchaser should consider what happens after an LED fault, driver fault, or power-supply problem. Fault isolation can affect whether a localized LED problem requires immediate replacement of the complete lamp board.

8. Intersection integration

The signal should be assessed within the intended traffic control system. Electrical characteristics, signal configuration, installation method, controller interface, environmental conditions, and maintenance access should all be confirmed before final selection.

Low Power Does Not Mean Selecting the Lowest Wattage

For traffic signal procurement, choosing the product with the lowest nominal wattage is not necessarily the correct approach.

A pedestrian signal must still provide an appropriate visual indication for the installation environment. Therefore, the evaluation should connect electrical consumption with LED configuration, optical design, signal size, operating state, viewing requirements, and environmental conditions.

For example, FAMA's published Low Power Pedestrian Traffic Light has 200 mm and 300 mm configurations with different LED quantities and power consumption specifications. The 200 mm model lists 66 red or 96 green LEDs depending on configuration, while the 300 mm model lists 80 red or 78 green LEDs for the specified variants.

This demonstrates why comparing products only by total wattage can be misleading. The correct question is whether the selected configuration provides the required signal display while meeting the project's electrical and maintenance requirements.

For large-scale road projects, buyers can then calculate the expected operating cost using the actual rated power, number of installed units, operating hours, and project service period.

How FAMA Approaches Pedestrian Signal and Intelligent Transportation Projects

Yangzhou FAMA Intelligent Equipment Co.,Ltd. (FAMA) positions itself as a provider of integrated intelligent transportation solutions, with a corporate mission centered on making travel safer and smarter.

FAMA Traffic provides solutions in smart signal control, smart traffic safety, and 5G multifunctional smart poles, while also providing services including traffic signal timing optimization and operation and maintenance.

In smart signal control applications, FAMA integrates technologies such as coils, geomagnetism, RFID, radar, and visual identification to monitor traffic and pedestrian flow and support traffic signal control strategies. This broader system perspective is relevant when a pedestrian traffic light is deployed as part of an intelligent intersection rather than as an isolated lamp.

For purchasers who need to review actual product configurations, FAMA provides its Traffic Light Product Range with pedestrian traffic lights and other traffic signal equipment. Its Project Portfolio can also be reviewed when evaluating the company's traffic infrastructure experience.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

For a Low Power Pedestrian Traffic Light, the important specifications are not limited to lamp wattage. Mesh circuit design determines how an individual LED fault is contained. Constant current drive controls the LED operating current. Power supply design and power factor affect electrical performance. THD and EMC characteristics become relevant when the signal shares an electrical environment with other intersection equipment. The lamp board, LED lamp beads, lens, power supply, and lamp bowl then need to function as one complete product assembly.

For overseas traffic signal purchasers, road engineering contractors, traffic management departments, and intelligent transportation system integrators, these parameters provide a more practical basis for selecting a pedestrian traffic light sign. Instead of relying on general claims such as “energy-saving” or “high quality,” procurement decisions can be based on measurable electrical characteristics, fault-handling design, environmental specifications, display requirements, and lifecycle maintenance considerations.
