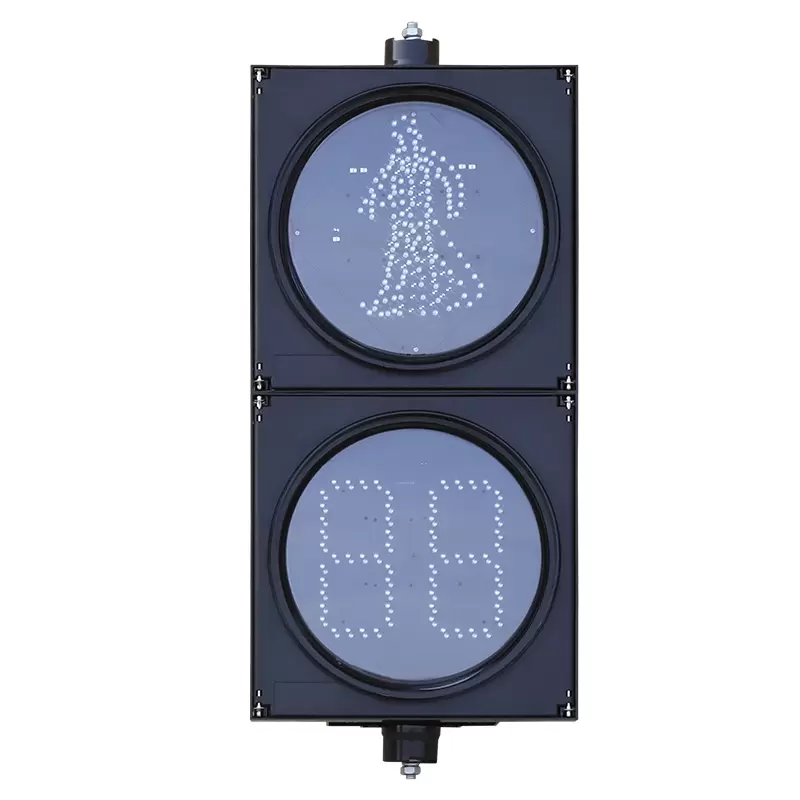

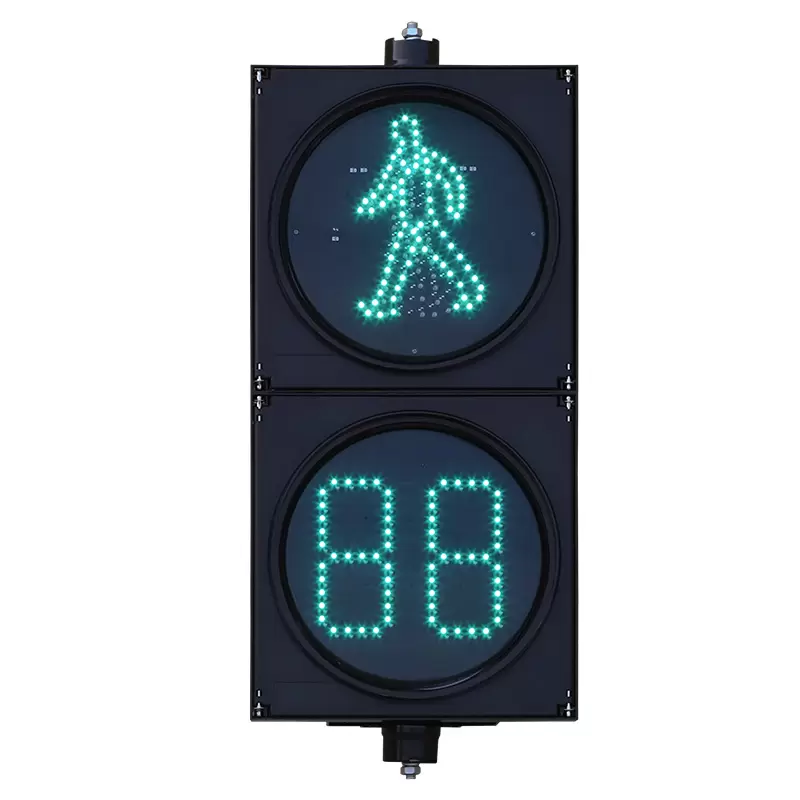

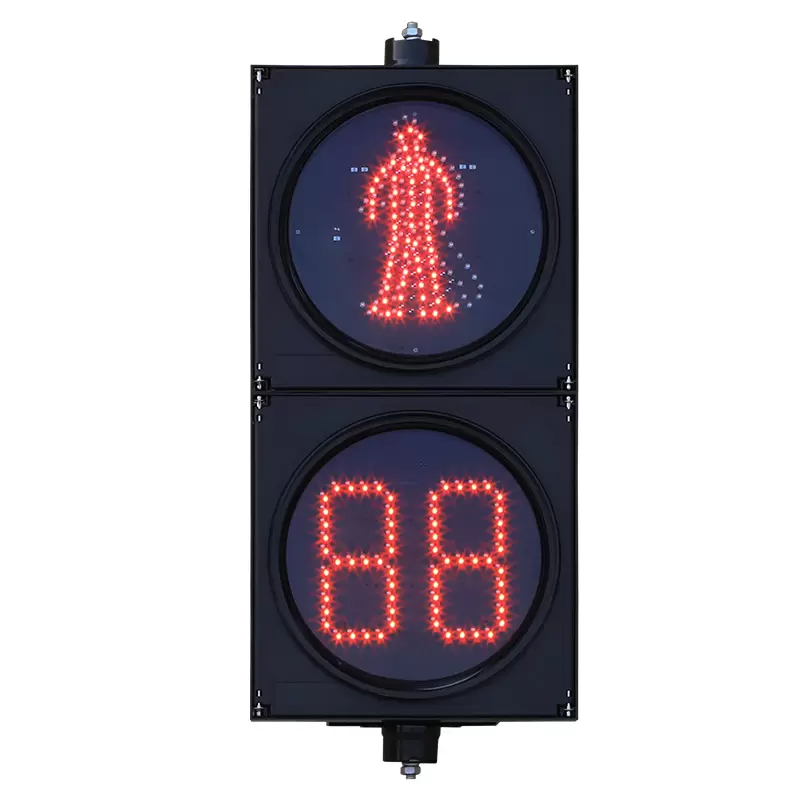

Low Power Pedestrian Traffic Light with Countdown Timer: A Buyer’s Guide

For municipal traffic projects, a pedestrian signal is not simply an LED display installed beside a crosswalk. It is a continuously operating roadside device that must remain visible, synchronized with the traffic controller, and stable under changing outdoor conditions. When hundreds or thousands of pedestrian signals operate throughout a city, even relatively small differences in power consumption, LED performance, maintenance frequency, and service life can affect the total cost of ownership.

Traditional pedestrian traffic lights can also create practical challenges when the configuration is not matched to the intersection. Excessive power consumption increases operating costs, while an unclear countdown display can make it difficult for pedestrians to judge the remaining crossing time. Strong sunlight, rain, dust, temperature changes, and long operating cycles place additional demands on the optical and electrical design.

For procurement teams evaluating a Low Power Pedestrian Traffic Light, the right question is therefore not simply whether the product consumes less power. The more useful question is whether its low-power LED design, optical performance, countdown function, synchronization method, environmental protection, and expected maintenance requirements are appropriate for the project.

Low-power LED performance and what it means for long-term operation

The light source is one of the first areas procurement teams should examine. FAMA's pedestrian traffic light product range uses high-brightness LED modules, while its low-power pedestrian signal with countdown timer uses a three-unit configuration with a lamp board, lens, power supply, lamp bowl, and a segmented-digit countdown display. The product is intended for intersections controlled by pedestrian crossing traffic signals.

Low power consumption should not be evaluated independently from visibility. A pedestrian signal has to produce sufficient optical output for its intended observation distance and environment while keeping electrical consumption under control. In practice, this means comparing the lamp's rated power with its luminous intensity, LED configuration, optical design, and actual operating schedule rather than choosing the lowest wattage specification alone.

FAMA's published high-flux pedestrian traffic light with countdown timer provides a useful example of how these parameters can be specified together. Its listed configuration includes a 300 mm light-emitting surface, separate power consumption limits for the red and green pedestrian indications and countdown display, luminous intensity of 5,000–15,000 cd, a stated visual distance of at least 300 m, and an LED lifespan of at least 100,000 hours. Its listed operating temperature is -40°C to +80°C and its protection grade is IP55. These are product-specific specifications and should not be assumed to apply to every FAMA pedestrian signal model.

This distinction matters during procurement. A 200 mm signal, a 300 mm signal, and a larger signal cannot necessarily be compared only by total wattage. Light-emitting surface size, viewing distance, installation height, LED quantity, optical structure, and required brightness all influence the appropriate configuration.

Energy savings should also be calculated from actual operating conditions. A basic annual energy calculation is:

Annual electricity consumption = operating power × daily operating hours × operating days per year

For example, if two products operate continuously but one has a lower measured operating power under the same signal configuration, the difference can be multiplied across the number of intersections and years of operation. This gives a more defensible basis for comparing energy performance than using an unsupported percentage of “energy savings.”

The same principle applies to maintenance. A long-life LED source can reduce the frequency of replacement, but the actual maintenance benefit also depends on the power supply, heat management, enclosure, installation environment, and accessibility of the signal. FAMA's high-flux pedestrian signal, for example, combines external heat dissipation, a wide-voltage constant-current power supply, surge protection, and large LED chips as part of its reliability-oriented design.

Visibility is a system parameter, not simply a brightness claim

For pedestrian signals, visibility has to be considered from the pedestrian's actual viewing position.

At a dense urban intersection, a signal may be viewed from a relatively short distance but surrounded by buildings, vehicles, advertising signs, and other light sources. On a wide arterial road, the required viewing distance may be considerably greater. Around a school, the signal may need to remain easy to interpret for pedestrians approaching from different directions.

The key parameters to compare include light-emitting surface size, luminous intensity, LED wavelength, optical uniformity, character dimensions for countdown displays, viewing distance, and the ability to maintain contrast under strong ambient light.

FAMA's published high-flux pedestrian model specifies red and green LED wavelengths of 625 ± 5 nm and 505 ± 5 nm respectively, together with a listed luminous intensity range of 5,000–15,000 cd. Again, these figures belong to that particular model and should be checked against the exact configuration being quoted for a project.

The Peru LED Traffic Light project documented by FAMA also identifies high-efficiency and long-life LEDs, bright illumination, uniform optical output, moisture and dust resistance, and anti-washout performance among the project features. This provides a practical reference for how optical performance and environmental resistance can become project-level requirements rather than isolated product claims.

This is especially important when evaluating a Low Power Pedestrian Traffic Light with Countdown Timer. Reducing power consumption should not mean reducing the signal's ability to communicate clearly. The better engineering approach is to optimize the relationship between LED efficiency, optical output, display size, viewing distance, and the actual lighting environment.

Countdown display and signal synchronization

A pedestrian countdown timer has a specific job: it communicates the remaining time associated with a pedestrian signal phase. The value of the countdown therefore depends on synchronization with the traffic signal system.

FAMA's low-power pedestrian traffic light with countdown timer uses a segmented-digit display, while its high-flux pedestrian model describes three adaptive countdown operating modes: communication mode, trigger mode, and learning mode. FAMA states that this design is intended to be compatible with more than 99% of mainstream domestic and international traffic signal controllers. Such a compatibility claim should be evaluated against the actual controller and interface used in a specific project rather than treated as universal compatibility with every controller.

So, does a countdown timer need an independent controller?

Not necessarily. In a properly designed traffic signal system, the countdown function can operate as part of the signal-control architecture. The critical requirement is that the displayed countdown corresponds to the actual signal phase and responds correctly when the controller changes the timing plan.

FAMA also offers traffic signal controllers designed to manage vehicle signals, pedestrian signals, countdown timers, and directional signals. Its coordinated controller supports functions including pedestrian crossing support, adaptive control, emergency priority, and multi-period schemes.

This system-level compatibility is important for intersections where signal timing is not static. If traffic conditions, pedestrian phases, emergency priority, or coordinated timing plans change, the countdown display must remain consistent with the controller's current signal state.

For procurement teams, the correct question is therefore not simply “Does the signal have a countdown?” It is:

How does the countdown receive, interpret, and update the signal timing information used by the intersection controller?

The answer should be confirmed during technical evaluation and commissioning.

Does low power reduce LED brightness?

Low power and high visibility are not inherently contradictory. The relationship depends on how efficiently electrical power is converted into useful optical output and how the optical system distributes that output.

A product using efficient LED chips and appropriate optical processing can target a lower electrical load without simply reducing the amount of visible signal information. FAMA's high-flux pedestrian signal, for example, uses three-layer optical processing to diffuse and refocus light from the source into a more uniform surface output. Its published design also combines large LED chips, thermal management, and constant-current power supply technology.

However, procurement teams should avoid comparing “watts” and “brightness” as isolated numbers. The correct evaluation should consider:

• Lamp power consumption

• Luminous intensity

• Light-emitting surface size

• LED quantity and configuration

• Optical structure

• Viewing distance

• Daylight conditions

• Signal installation height

• Countdown character size

This approach makes it easier to determine whether a low-power configuration is actually suitable for a particular road environment.

Outdoor conditions can determine long-term reliability

A pedestrian signal installed outdoors may operate continuously while being exposed to rain, humidity, dust, temperature fluctuations, and solar radiation. These conditions affect not only the housing but also the power supply, LED junction temperature, seals, connectors, and internal electronic components.

FAMA's published high-flux pedestrian signal specifies operation from -40°C to +80°C, relative humidity up to 97% RH, and an IP55 protection grade for that model. These specifications demonstrate why environmental parameters should be treated as part of the procurement specification rather than added after the product has been selected.

The appropriate protection level should still be selected according to the actual installation environment. A sheltered urban installation and an exposed roadside installation may have different environmental requirements.

For a project located in an area with frequent rainfall, coastal humidity, large temperature swings, or high dust exposure, procurement teams should review the complete environmental specification rather than relying on a general statement such as “weather resistant.”

Where Low Power Pedestrian Traffic Lights make practical sense

At a busy urban intersection, the priority is usually the combination of signal synchronization, viewing distance, countdown readability, and continuous operation. A low-power LED configuration becomes more valuable when a large number of signals are deployed and operated for long periods.

At a school crossing, visibility and intuitive signal information can be particularly important. The countdown display should be readable from the normal pedestrian approach path, while the signal timing must correspond accurately with the programmed crossing phase.

On public roads with dispersed intersections, maintenance and energy consumption become more significant at the network level. A small difference in power consumption or replacement frequency can become more meaningful when multiplied across many installations.

For projects that combine pedestrian signals with intelligent traffic management, the signal should also be evaluated as one component of a larger system. FAMA describes its intelligent transportation offering around smart signal control, smart traffic safety, and 5G multifunctional smart poles, with traffic and pedestrian flow monitoring technologies including coils, geomagnetism, RFID, radar, and visual identification.

This system perspective is particularly relevant when a municipality plans to move beyond fixed-time signal operation toward more responsive traffic management.

What determines pedestrian traffic light price?

There is no single price that applies to every pedestrian traffic light. Pedestrian traffic light price depends heavily on the physical configuration, optical requirements, control functions, environmental specifications, and project quantity.

The main cost factors normally include:

FAMA's product range illustrates this configuration-based approach. Its published pedestrian signal products include different signal sizes and countdown configurations, while its broader range includes pedestrian signals, countdown modules, traffic signal controllers, and integrated traffic lights.

For procurement teams, comparing quotations only by unit price can therefore be misleading. A lower-priced signal may have a different light size, countdown configuration, control interface, protection specification, or installation requirement.

A more useful comparison is:

Initial purchase cost + electricity cost + maintenance cost + replacement cost

This is particularly important for large municipal projects. If a signal operates continuously, the electricity component can accumulate over many years. If access to the installation location is difficult, maintenance labor and traffic-management costs can also become relevant.

How much does a pedestrian traffic light cost?

The answer depends on the specification rather than a universal market price. A basic pedestrian signal without a countdown display will generally have a different configuration from a larger signal with an integrated countdown, special optical requirements, enhanced environmental protection, or customized control interfaces.

For a project quotation, the buyer should provide at least the required lamp size, signal configuration, countdown requirement, operating voltage, controller compatibility, environmental conditions, installation method, applicable standards, quantity, and customization requirements.

This allows suppliers to provide a technically comparable quotation instead of comparing nominally similar products with different configurations.

How much power does a pedestrian traffic light use?

Power consumption varies by model, signal size, LED configuration, countdown function, and operating state.

For example, FAMA's published high-flux 300 mm pedestrian model lists static red pedestrian light consumption of ≤8 W, static green pedestrian light consumption of ≤10 W, and dual red/green countdown consumption of ≤10 W. These values are specific to the listed RX300-3-FM35 configuration and should not be generalized to every pedestrian signal.

For a project-level calculation, procurement teams should request the rated power for each signal state and calculate expected annual energy consumption based on the actual operating schedule.

What are the advantages of a low power pedestrian traffic light?

The primary advantage is the potential to reduce electricity consumption during long operating periods. At the network level, this can become more significant when many intersections operate continuously.

A low-power design can also be evaluated together with long-life LED technology and reliable power and thermal management. However, energy efficiency should not be considered separately from visibility and reliability. The correct product is one that meets the required optical and environmental performance while using power efficiently.

How does a pedestrian countdown timer work?

A countdown timer receives or detects the timing information associated with a pedestrian signal phase and converts the remaining time into a visible numeric display.

The implementation varies by system. FAMA's published countdown products support adaptive operating modes, including communication, trigger, and learning modes on certain models. Its countdown traffic light module includes an optical lens, light board, control board, waterproof ring, and lamp bowl.

For an actual project, the controller interface and timing logic should be verified during system integration and commissioning. The important requirement is that the displayed value remains consistent with the active signal phase.

How do I choose a pedestrian traffic light manufacturer?

For municipal and infrastructure projects, the manufacturer should be evaluated on more than product appearance or unit price.

Procurement teams should examine:

1. Technical specifications — power consumption, luminous intensity, LED configuration, viewing distance, countdown range, operating temperature, and protection grade.

2. Controller compatibility — whether the signal and countdown can integrate with the traffic control system used by the project.

3. Outdoor reliability — housing, sealing, temperature range, electrical protection, and long-term operating requirements.

4. Product range — whether the supplier can provide pedestrian signals, countdown modules, controllers, and related equipment when required.

5. Project experience — whether the manufacturer has completed comparable traffic signal deployments.

6. Customization capability — whether dimensions, signal configuration, interfaces, mounting arrangements, or other project requirements can be adapted.

7. Lifecycle cost — whether the quotation makes sense when energy consumption, maintenance, replacement, and commissioning are considered together.

FAMA's published project portfolio includes pedestrian and traffic signal deployments in different regions. Its project listings include pedestrian signal projects in China as well as traffic-light projects in South America and other markets. The Peru project, for example, involved traffic lights, a solar system, wireless controllers, and poles, demonstrating an equipment scope extending beyond a standalone signal lamp.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

For buyers evaluating a Low Power Pedestrian Traffic Light with Countdown Timer, the most appropriate selection should be based on the complete operating environment rather than one specification.

Power consumption determines part of the long-term energy cost. LED and optical design determine whether the signal remains recognizable at the required distance. Countdown technology determines whether remaining crossing time is communicated clearly. Signal synchronization determines whether that information corresponds with the actual traffic phase. Environmental protection and thermal management influence long-term stability. Finally, product configuration, customization, installation requirements, and project quantity all influence the actual pedestrian traffic light price.

For city intersections, school crossings, public roads, and larger intelligent transportation projects, these factors should be evaluated together. FAMA's pedestrian traffic light range, countdown products, traffic signal controllers, and project portfolio can be reviewed through its pedestrian traffic light product range and project portfolio to compare available configurations with the technical requirements of a specific project.
