Full Ball Traffic Light with Dot Matrix Countdown: Key Selection Factors for Road Traffic Projects

Traffic signal equipment is often evaluated from a distance, but the real engineering challenge is much more specific: can drivers and pedestrians identify the active signal quickly, can the remaining phase time be understood without ambiguity, and can the equipment continue operating under demanding outdoor conditions?

In busy urban intersections, a conventional signal arrangement may not provide enough information when visibility is affected by strong sunlight, rain, long viewing distances, or complex road geometry. A separate countdown device can also increase the number of components that need to be installed, powered, controlled, and maintained. For road contractors and traffic system integrators, this makes the selection of the signal head more than a matter of appearance or nominal LED brightness.

A Full Ball Traffic Light with Dot Matrix Countdown combines the traffic signal display with a countdown function in one equipment configuration. The value of this approach depends on several engineering factors, including the full-ball optical structure, LED performance, display size, countdown control method, signal synchronization, environmental protection, and compatibility with the intersection controller. FAMA's current product portfolio includes full-ball traffic lights, countdown timers, integrated traffic lights, vehicle traffic lights, pedestrian traffic lights, and traffic signal controllers, allowing these elements to be considered as part of a broader signal-control system rather than as isolated hardware.

Full Ball Traffic Light: Why the Display Structure Matters

A full-ball traffic light uses a circular light-emitting surface rather than an arrow-only signal pattern. For vehicle signal applications, the active red, yellow, or green indication is presented as a full circular signal, making the signal state immediately distinguishable when viewed from the approach lane.

The optical structure behind that circular display is more important than the shape itself. FAMA's High Flux Red/Yellow/Green Full Ball Traffic Light uses a large-sized light source, optical lenses, a power supply, lamp bowl, and external heat dissipation module. Its optical design uses secondary lens, Fresnel lens, and optical mask processing to distribute the light more uniformly across the emitting surface.

This matters because a traffic signal should not simply produce a strong point of light. The signal needs to present a recognizable and reasonably uniform visual field to road users. Uneven illumination, excessive glare, or an unsuitable viewing angle can make the signal harder to interpret, particularly when the signal is positioned at a considerable distance or when ambient light is high.

LED quantity and light-emitting surface size should therefore be considered together. FAMA's high-flux full-ball models are available with 100 mm, 200 mm, and 300 mm light-emitting surfaces. The listed LED quantities increase with the model size, from one LED per color on the 100 mm model to four LEDs per color on the 300 mm model. The corresponding listed luminous-intensity ranges are 110–200 cd, 230–350 cd, and 400–1000 cd respectively.

For procurement teams, this illustrates an important point: a larger signal head is not automatically the correct choice. The appropriate size should be matched to the intersection geometry, mounting position, expected viewing distance, road classification, and local specification requirements.

The same principle applies to LED color and optical characteristics. FAMA lists wavelength ranges for the red, yellow, and green LEDs on its high-flux full-ball models, while the product specifications also identify the LED lifespan as ≥100,000 hours. These figures should be evaluated together with the manufacturer's test conditions and applicable project standards rather than treated as standalone indicators of signal quality.

For an intersection exposed to strong daylight, for example, the procurement requirement should not simply state "high brightness." The technical review should consider luminous intensity, optical distribution, emitting-area uniformity, LED configuration, viewing distance, and whether the selected display remains distinguishable from the intended approach angle.

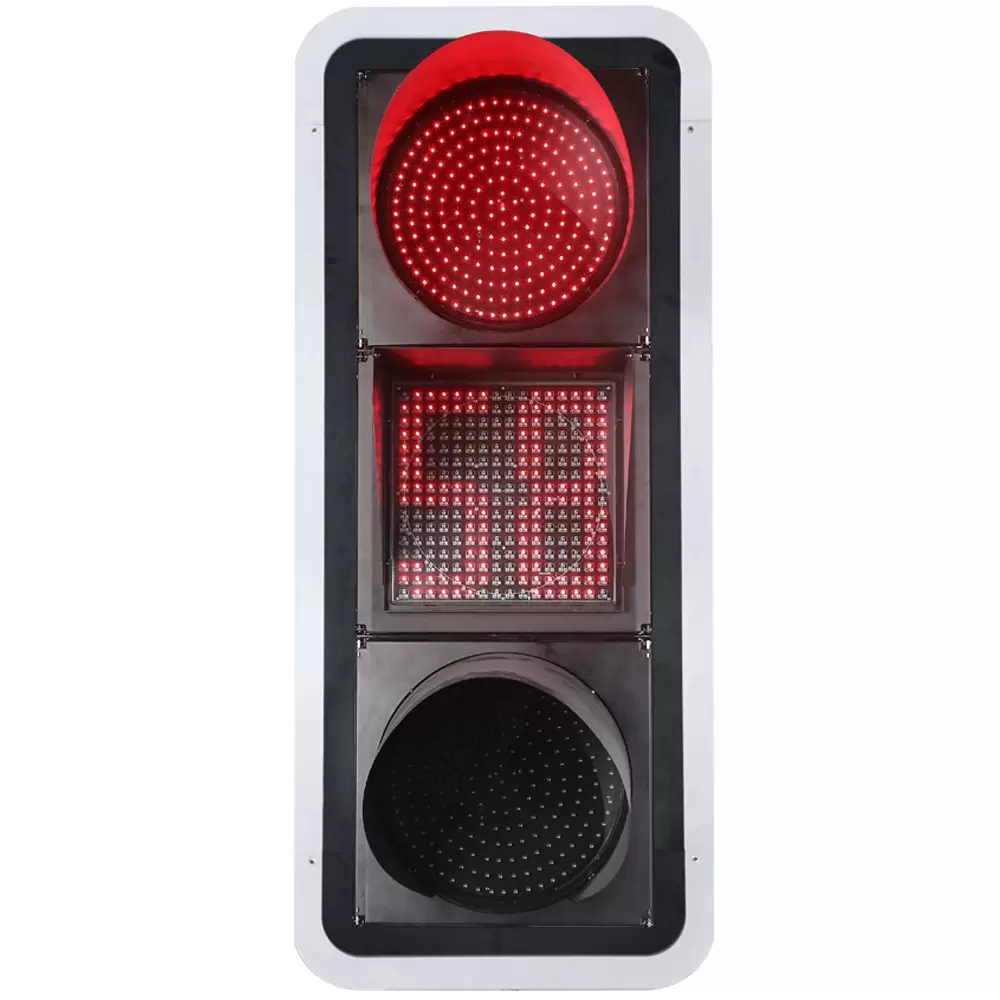

Full Ball Traffic Light with Dot Matrix Countdown: Integrating Signal and Time Information

The main difference between a standard full-ball signal and a Full Ball Traffic Light with Dot Matrix Countdown is that the latter adds remaining-time information to the signal equipment.

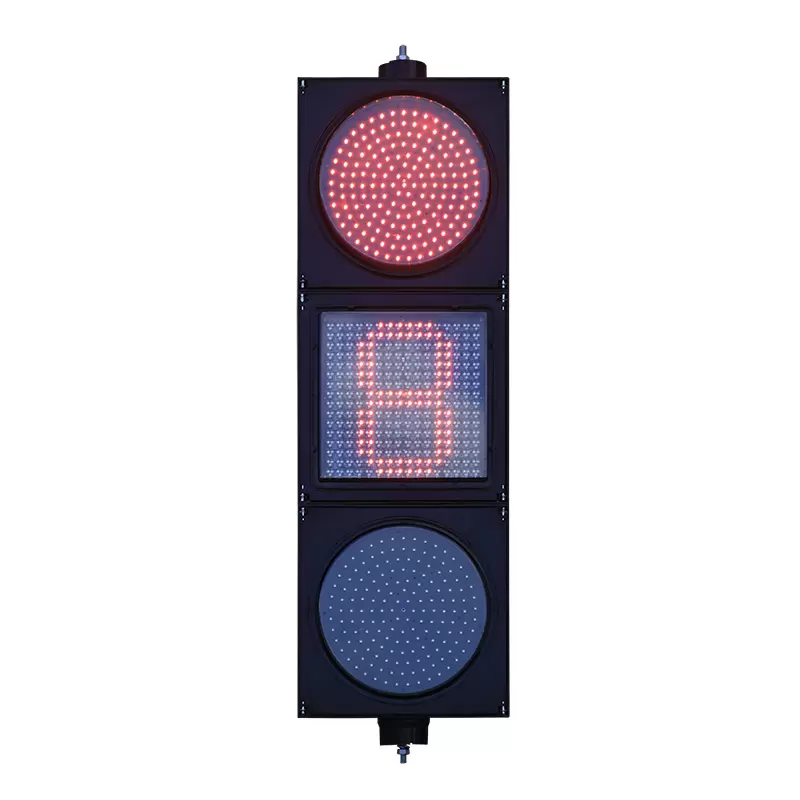

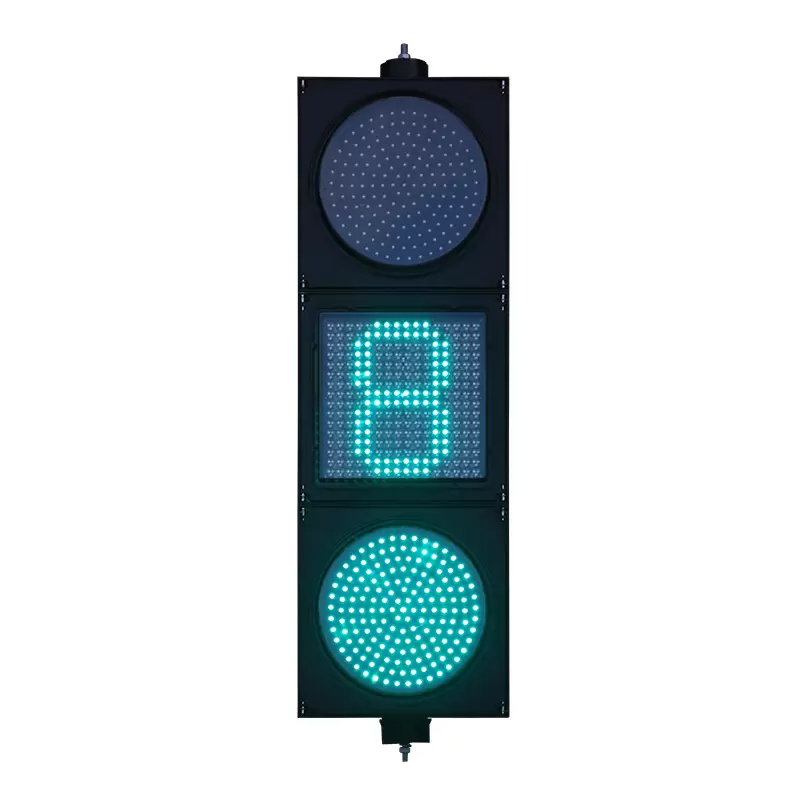

FAMA's Low Power Red/Yellow/Green Full Ball Traffic Light with Dot Matrix Countdown uses a three-unit configuration. The red and green units contain light boards, optical lenses, power supply modules, and lamp bowls, while the yellow unit incorporates a dot-matrix countdown light board, optical lens, control board, and lamp bowl.

The published JD300-3-FM31 and JD400-3-FM31 models have 300 mm and 400 mm light-emitting surfaces respectively. Both list a countdown range of 0–99 seconds, 256 countdown LEDs for the red/green countdown display, and a visual distance of ≥300 m under the manufacturer's stated specifications. The listed countdown luminous intensity is 5,000–15,000 cd/m², while the full-ball red/yellow/green signal intensity is listed as 400–1,000 cd.

These specifications provide a useful reference for project selection, but they should not be interpreted as universal viewing-distance guarantees. Actual recognition depends on installation height, viewing angle, ambient illumination, road alignment, weather, background contrast, and the applicable project requirements.

The advantage of an integrated configuration is therefore not simply that it "adds a timer." It puts signal-state information and remaining-time information into a coordinated equipment arrangement. At an urban intersection, this can help road users understand not only whether a signal is currently allowing or restricting movement, but also how much time remains in the relevant phase.

For pedestrian crossings, the same concept becomes particularly useful. FAMA separately offers pedestrian traffic lights with countdown functions. Its High Flux Pedestrian Traffic Light with Countdown Timer uses a three-unit assembly and a segmented-digit countdown display, with a 300 mm light-emitting surface, a stated countdown intensity of 5,000–15,000 cd/m², and a listed visual distance of ≥300 m.

This distinction is important when selecting equipment. A vehicle intersection and a pedestrian crossing do not necessarily require the same display architecture. The designer needs to consider whether the countdown is intended for drivers, pedestrians, or both, how far the display must be recognized, and whether the information needs to remain legible from different approach positions.

How Does a Dot Matrix Countdown Traffic Light Synchronize With the Signal?

A countdown display is only useful when its displayed time corresponds to the actual traffic phase. The key issue is therefore not the number of digits but the relationship between the countdown controller, signal controller, phase timing, and display.

In a practical system, the traffic signal controller determines or manages the signal phase. The countdown device then needs an appropriate method of obtaining the relevant phase information and translating it into the remaining-time display. Depending on the equipment and system architecture, this may involve communication, triggering, or learning-based operation.

FAMA states that the countdown function in its relevant products supports three adaptive operating modes: communication mode, trigger mode, and learning mode. The company also states compatibility with more than 99% of mainstream domestic and international traffic signal controllers for this product range.

For a procurement specification, however, "compatible" should not replace an actual integration test. The project team should confirm the controller manufacturer and model, interface method, signal phase logic, countdown operating mode, transition behavior, and commissioning procedure before deployment.

This is especially important where traffic signal timing is dynamically adjusted. If the intersection controller changes phase timing, the countdown equipment must receive or correctly infer the updated timing rather than simply continue displaying a fixed sequence.

For this reason, countdown synchronization should be evaluated as a system-level function rather than a display specification.

Choosing LED Brightness and Display Size for Different Road Environments

There is no single brightness or display size that is optimal for every road.

A smaller intersection with relatively short approach distances may have different requirements from a large arterial-road intersection where the signal needs to be recognized from farther away. Similarly, a pedestrian crossing located close to the stop line has different visual requirements from a vehicle signal installed above a wide intersection.

When comparing models, procurement teams should evaluate:

• Light-emitting surface size

• Luminous intensity or luminance, according to the type of display

• LED quantity and arrangement

• Optical lens structure

• Display uniformity

• Viewing distance

• Mounting height

• Viewing angle

• Daylight and nighttime conditions

• Applicable local traffic-signal standards

FAMA's full-ball range demonstrates this model-size approach with 100 mm, 200 mm, and 300 mm light-emitting surfaces, while its dot-matrix countdown full-ball models are listed in 300 mm and 400 mm configurations.

The important procurement principle is to avoid selecting a signal simply because its brightness specification is higher. Excessively strong or poorly distributed light can introduce glare, while insufficient luminance can reduce recognition under strong ambient light. Optical distribution and uniformity are therefore as important as the nominal intensity figure.

Outdoor Reliability: More Than an IP Rating

Traffic signals operate continuously in an environment where temperature, humidity, rain, electrical disturbances, and long-term exposure can affect electronic components.

FAMA's published full-ball and dot-matrix countdown products specify operating temperatures from -40°C to +80°C, relative humidity up to 97% RH, and IP55 protection. The high-flux full-ball models also specify a polycarbonate housing, while the product design incorporates external heat dissipation.

These specifications are relevant when a project is deployed in regions with significant temperature variation or high humidity. However, an IP rating alone does not describe every aspect of long-term outdoor reliability. Procurement teams should also review housing materials, sealing structure, drainage, heat dissipation, power supply design, surge protection, insulation, electrical compatibility, and maintenance accessibility.

FAMA's high-flux full-ball product specifies AC85–264V / 47–63Hz operation and describes a wide-voltage, high-surge-protection constant-current power supply, with the product page listing 4000V surge protection.

The dot-matrix countdown model similarly lists AC85–264V / 47–63Hz operation and uses a constant-current drive design. Its product description also identifies a mesh circuit design intended to isolate an individual LED failure point so that the remaining LEDs continue operating.

For project procurement, these details are more useful than a generic statement such as "built for harsh outdoor conditions" because they give engineers specific areas to verify during technical evaluation.

Installation and Control-System Compatibility Should Be Checked Before Ordering

Traffic signal installation is not an isolated mechanical task. The signal head has to work with the controller, power supply, mounting structure, communication or triggering interface, and the overall intersection configuration.

Before ordering a Full Ball Traffic Light with Dot Matrix Countdown, a project team should confirm:

1. The required light-emitting surface size and signal configuration.

2. Whether a full-ball, arrow, pedestrian, or combined configuration is required.

3. The required countdown range and display format.

4. The countdown synchronization method supported by the existing controller.

5. Operating voltage and frequency.

6. Environmental requirements for temperature, humidity, and water ingress.

7. Mounting dimensions and installation orientation.

8. Wiring and interface requirements.

9. Local traffic-signal standards and approval requirements.

10. Commissioning, testing, replacement, and maintenance procedures.

FAMA's product portfolio includes traffic signal controllers alongside vehicle traffic lights, pedestrian traffic lights, countdown timers, integrated traffic lights, and traffic light modules. This broader product range can be relevant when an integrator needs to evaluate signal equipment and control components as part of one project architecture.

How Do I Choose a Traffic Light Manufacturer?

For a traffic engineering project, selecting a Traffic Light Manufacturer should involve more than comparing unit prices.

The first consideration should be whether the manufacturer can provide the required optical and electrical performance. This includes LED configuration, luminous intensity, wavelength, optical processing, display uniformity, power supply design, and electrical protection.

The second is control-system compatibility. A manufacturer should be able to explain how the countdown communicates with or responds to the traffic signal controller and how synchronization is verified during commissioning. A specification that only says "compatible with controllers" is not enough for a complex project.

The third is environmental and quality control capability. Procurement teams should review operating-temperature specifications, protection grade, housing material, power-supply protection, insulation, LED performance, production testing, and relevant qualification documents.

The fourth is customization capability. Different projects may require different light-emitting surface sizes, countdown formats, signal combinations, mounting arrangements, colors, controller interfaces, or electrical specifications. A manufacturer that can adapt the equipment to documented project requirements is often more useful to system integrators than a supplier offering only fixed configurations.

Finally, examine project experience without assuming that the existence of a project automatically proves performance in every environment. FAMA's published project portfolio includes traffic-light projects in Chile, Peru, Brazil, Argentina, Colombia, Paraguay, Ecuador, Uruguay, Guatemala, and other markets. Reviewing these project references can help buyers understand the types of traffic-light applications the manufacturer has supplied, while the actual technical suitability still needs to be assessed against the requirements of the new project.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

For buyers evaluating FAMA's product range, the company's product catalog provides access to vehicle traffic lights, pedestrian traffic lights, countdown timers, integrated traffic lights, traffic signal controllers, and related traffic signal equipment. Its published project portfolio also provides examples from different international markets.

Frequently Asked Questions

What is a full ball traffic light?

A full ball traffic light is a traffic signal configuration in which the active red, yellow, or green indication is displayed as a full circular light-emitting area. FAMA's high-flux full-ball models use optical lenses and a light-source structure designed to produce a uniform surface-light output.

How does a dot matrix countdown traffic light work?

A dot matrix countdown traffic light uses an LED matrix to display the remaining time associated with a traffic signal phase. The countdown controller needs to obtain phase information through the supported control method, such as communication, triggering, or learning operation. FAMA's relevant models list all three operating modes.

What are the advantages of an integrated countdown traffic light?

An integrated configuration combines the traffic indication and countdown function within a coordinated signal assembly. This can reduce the need to treat the countdown display as an entirely separate roadside device and can simplify the overall equipment arrangement. The actual installation advantage depends on the project design and controller architecture.

How do I choose a traffic light manufacturer?

Compare manufacturers based on optical performance, LED configuration, electrical design, environmental protection, controller compatibility, synchronization methods, quality-control procedures, customization capability, installation requirements, and documented project experience. Price should be evaluated together with these technical factors rather than used as the only selection criterion.

What should I consider when buying a Full Ball Traffic Light?

Start with the road application and viewing conditions. Then define the required light-emitting surface, optical performance, LED configuration, visual distance, power supply, environmental conditions, protection grade, mounting arrangement, controller interface, and maintenance requirements. For countdown models, synchronization and controller compatibility should be confirmed before procurement.

For traffic engineers and procurement teams, the best Full Ball Traffic Light is therefore not simply the brightest or largest available model. The more important question is whether the complete signal assembly provides the required visual recognition, countdown information, control compatibility, environmental protection, and maintainability for the specific intersection. A technically appropriate selection begins with the road geometry and signal-control requirements, then works backward to the light-emitting surface, LED configuration, countdown architecture, power supply, housing, and manufacturer capabilities. FAMA's current product and project portfolios provide a practical starting point for comparing full-ball traffic lights, countdown configurations, and broader traffic-signal solutions against those project requirements.
