How to Choose a Low Power Pedestrian Traffic Light with Countdown Timer for Reliable Intersection Control

Introduction: Addressing the Practical Challenges of Pedestrian Signal Systems

Pedestrian signal equipment must operate consistently through daily traffic cycles, changing outdoor conditions, and long periods of continuous use. For traffic signal system integrators, municipal traffic authorities, and road infrastructure contractors, selecting a suitable pedestrian crossing light involves more than comparing the initial purchase price. Power consumption, LED display continuity, countdown control, controller compatibility, and long-term maintenance requirements all influence the total cost and performance of an installation.

Conventional signal equipment may require additional troubleshooting when LED components fail, existing controllers use different operating interfaces, or installation teams encounter configuration issues. These challenges can increase commissioning work and complicate maintenance across multiple intersections.

A Low Power Pedestrian Traffic Light with Countdown Timer addresses several of these concerns through its power supply design, constant-current drive technology, fault-isolating LED circuit, and adaptable countdown operating modes. However, its practical value depends on correct equipment selection, compatibility verification, and installation according to the requirements of the specific traffic control system.

For projects involving a pedestrian crossing light sign, buyers should also distinguish between an active illuminated pedestrian signal, a countdown display, and a passive traffic sign. Each serves a different function within the overall road environment.

1. Technical Features That Support Stable Operation and Efficient Power Use

Three-Unit Construction and Segmented Countdown Display

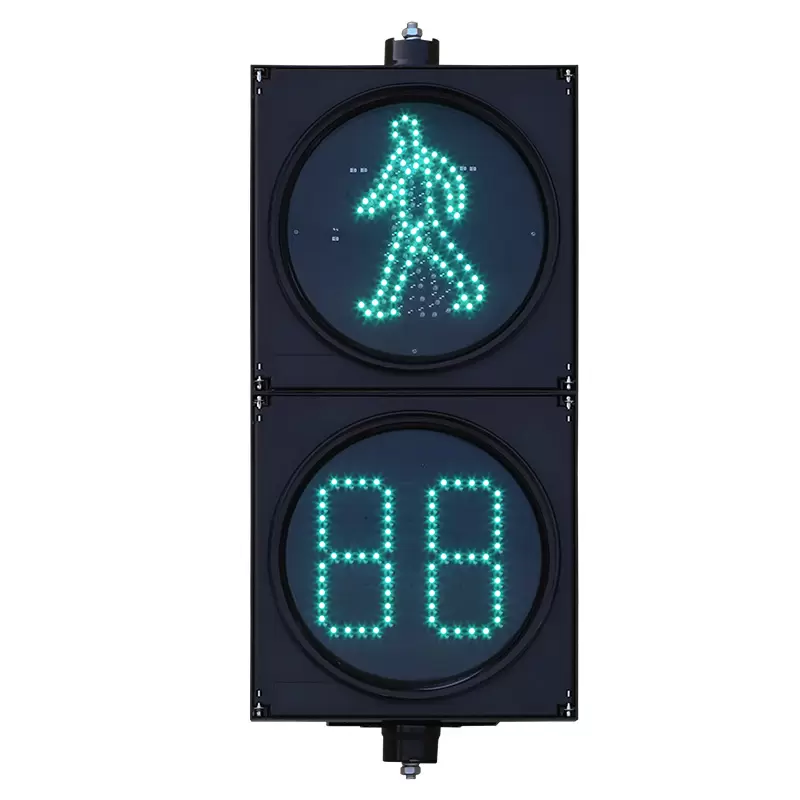

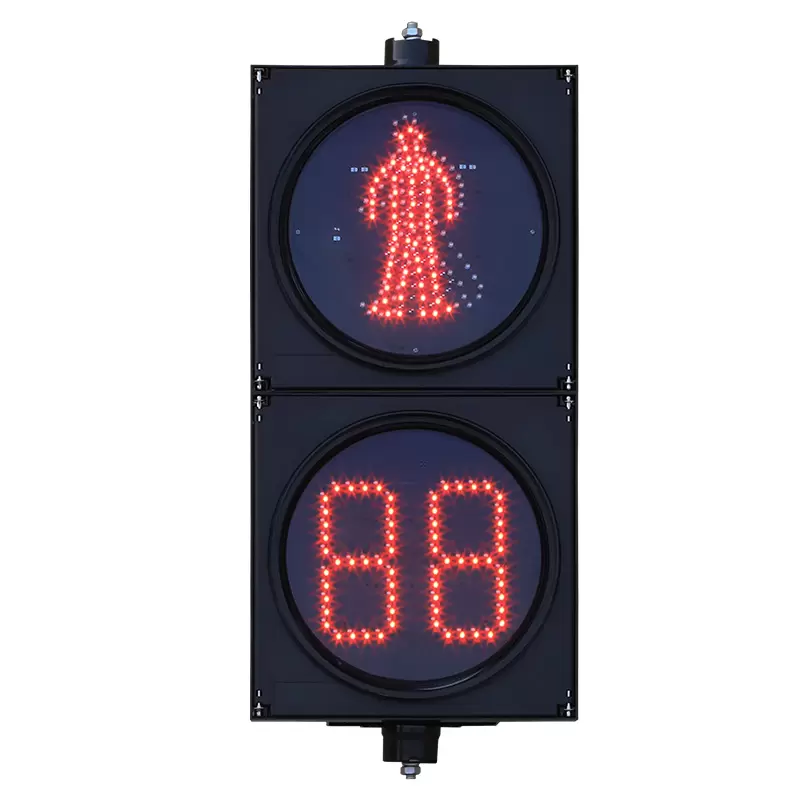

The Low Power Pedestrian Traffic Light with Countdown Timer is designed as a three-unit assembly. Its lamp core consists of the lamp board, lens, power supply, lamp bowl, and other structural components. The countdown display uses segmented digits to present numerical information to pedestrians.

This configuration brings the signal display and countdown function together in equipment intended for pedestrian-crossing intersections equipped with traffic signal control.

For project engineers, the first selection step is to confirm the required signal configuration, display arrangement, mounting dimensions, and electrical interface. These details should match the intersection design and the controller's operating logic rather than being selected solely on appearance.

Mesh Circuit Design and LED Fault Isolation

One important feature is the mesh circuit design used on the LED lamp board. According to the product specifications, when an individual LED lamp bead fails, the circuit automatically isolates the fault point so that the remaining LED beads can continue operating normally.

This design helps limit the effect of a localized component failure on the overall display. Without effective fault isolation, a failed LED or an electrical fault affecting a larger circuit section may cause a more noticeable deterioration in the displayed signal.

For municipal maintenance teams managing multiple intersections, limiting fault propagation can make inspections and fault diagnosis more manageable. It may also reduce the need to treat every individual LED failure as a complete display failure.

Nevertheless, fault isolation does not mean that the signal remains fully functional under every failure condition. Maintenance personnel should still inspect the affected unit, verify the displayed signal, and replace faulty components according to the manufacturer's procedures. The circuit design should be understood as a reliability measure, not a substitute for routine inspection.

European-Standard Power Supply and Power Factor

The product uses an independently designed European-standard power supply. Its specified power factor can reach 0.98, indicating that the supply is designed for effective utilization of electrical power.

Power factor is the ratio of real power to apparent power. A higher value generally means that less apparent power is required to deliver a given amount of real power under comparable operating conditions. For installations containing many signal units, this characteristic can be relevant to electrical system planning and power quality.

However, a power factor of 0.98 does not mean that the product consumes 98% less electricity. Actual energy consumption depends on operating power, signal configuration, operating duration, and other electrical characteristics. Buyers should request measured power consumption data when comparing competing products.

The supply is also specified with total harmonic distortion (THD) below 10%. Harmonic distortion describes how much the electrical waveform deviates from an ideal sinusoidal waveform. Lower distortion can help limit harmonic currents introduced into the electrical system, supporting power quality and reducing potential interference with other equipment.

The practical effect depends on the complete installation, including the supply network and other connected loads. The stated THD value should therefore be evaluated alongside the manufacturer's test conditions and applicable electromagnetic compatibility requirements.

Constant-Current Drive for Consistent LED Operation

LED performance depends on appropriate current regulation. The product uses constant-current drive technology to maintain a stable operating current for the LED lamp board.

This approach helps prevent unwanted current variation from directly affecting LED operation and supports consistent display performance. It is also intended to contribute to longer lamp service life and lower maintenance requirements.

For procurement teams, the distinction is important: constant-current drive is a technical design feature, not a guaranteed service-life figure. Actual service life depends on component quality, temperature, electrical conditions, environmental exposure, and operating practices. Buyers should request verified service-life data if a project specification requires a defined operating period.

Electromagnetic Compatibility and Intersection Stability

Traffic intersections often contain multiple electrical and electronic systems, including vehicle signal controllers, pedestrian displays, detectors, communication equipment, and monitoring devices. Electrical interference can complicate the operation of interconnected equipment.

The product is designed with electromagnetic compatibility in mind, with a stated THD below 10%. These characteristics are relevant to reducing electrical disturbance and supporting stable operation in a connected intersection environment.

However, THD and electromagnetic compatibility are different measurements. THD alone does not establish compliance with every EMC requirement. Project buyers should verify applicable emissions and immunity test results, declarations, and standards for the intended destination market.

2. Countdown Control, Controller Compatibility, and Field Applications

What Is a Low Power Pedestrian Traffic Light with Countdown Timer?

A Low Power Pedestrian Traffic Light with Countdown Timer combines a pedestrian signal display with a numerical countdown function. The signal communicates the pedestrian phase, while the segmented-digit display provides timing information associated with that phase.

For urban intersections, this information can help pedestrians understand the progress of a controlled crossing phase. The countdown must, however, follow the traffic controller's actual operating logic. A numerical display should never be assumed to provide accurate timing independently of the signal control system.

How Does a Pedestrian Crossing Light Countdown Timer Work?

The countdown display operates in coordination with the intersection's traffic signal control arrangement. The product supports three adaptive operating modes: communication mode, trigger mode, and learning mode.

• Communication mode: Intended for installations where the countdown unit exchanges relevant information with a compatible controller. The specific interface and protocol must be confirmed.

• Trigger mode: Intended for systems in which external triggering signals support countdown operation. The trigger signal characteristics and timing logic need to match the installation.

• Learning mode: Intended to support countdown operation by learning relevant signal timing behavior. Its suitability depends on the controller's output behavior and the manufacturer's implementation requirements.

These modes provide flexibility when integrating equipment into different traffic control environments. They do not establish universal compatibility with every controller or guarantee that all timing configurations will operate identically.

The manufacturer states that the built-in countdown timer is compatible with more than 99% of mainstream domestic and international traffic signal controllers. This is a product compatibility claim, not a guarantee for every controller model, firmware version, or communication protocol. Buyers should confirm the exact controller model, interface, signal output, and operating mode before ordering.

How Do You Choose a Compatible Pedestrian Crossing Light Sign?

The term pedestrian crossing light sign can refer broadly to pedestrian crossing signal equipment, but an active signal head and a passive road sign are not interchangeable. An illuminated pedestrian signal communicates a controlled traffic phase; a countdown display communicates timing information; a passive sign provides visual instructions or warnings without actively displaying a changing signal phase.

When selecting equipment, buyers should verify:

• Display configuration: Symbol or numerical display, lens arrangement, visibility requirements, and the required signal indications.

• Electrical requirements: Rated supply voltage, power consumption, wiring, grounding, and connection details.

• Control interface: Communication protocol, trigger input, learning-mode behavior, and controller compatibility.

• Installation environment: Mounting arrangement, exposure to rain, dust, sunlight, temperature variation, and maintenance access.

• Applicable standards: Requirements governing signal colors, optical performance, electrical safety, EMC, installation, and pedestrian signal timing in the destination jurisdiction.

For a new intersection, these requirements should be established during system design. For an existing intersection upgrade, engineers should document the installed controller and wiring before selecting a replacement signal unit.

Applying the Product to Different Road Projects

In an urban intersection retrofit, the primary concern is often integration with existing control equipment. Confirming the controller model and operating mode before delivery can help reduce avoidable on-site configuration work.

For new pedestrian crossing installations, project teams can define the signal display, mounting arrangement, power supply, and controller interface together. This allows equipment selection to follow the intersection design rather than forcing the system to accommodate an unsuitable component.

For existing signal system upgrades, the key considerations include wiring compatibility, countdown synchronization, commissioning procedures, and access to replacement parts. Field testing should verify that the displayed countdown follows the approved signal sequence before the intersection returns to normal operation.

Across all three scenarios, countdown displays should be configured and tested in accordance with the traffic authority's approved timing plan and applicable local requirements.

3. Procurement Considerations for Long-Term Project Value

The lowest initial quotation does not necessarily represent the lowest total cost of ownership. Procurement teams should evaluate the complete equipment specification and the work required to install, commission, inspect, and maintain the signal.

Display and electrical specifications should be confirmed first. Buyers need the correct signal configuration, dimensions, rated voltage, power consumption, and environmental protection requirements for the intended site. Where project specifications impose defined optical or EMC requirements, supporting test documentation should be requested.

Controller integration is equally important. Although the product is stated to support more than 99% of mainstream domestic and international controllers, compatibility should be confirmed against the actual controller model and protocol. For projects involving several intersections or multiple controller brands, representative testing can help identify interface differences before full deployment.

Commissioning and maintenance should also be included in the quotation review. Ask whether wiring diagrams, configuration instructions, troubleshooting guidance, and replacement components are available. A fault-isolating LED circuit may help contain certain component failures, while an appropriate drive design supports stable operation; neither removes the need for inspection and maintenance planning.

Finally, customization, order quantity, and commissioning requirements can affect the overall project cost. Non-standard displays, special mounting arrangements, interface adaptations, documentation requirements, and on-site testing may require additional engineering or labor. Buyers should request an itemized quotation that distinguishes standard equipment from customization, accessories, testing, and installation services.

Working with FAMA on Pedestrian Signal Projects

Yangzhou FAMA Intelligent Equipment Co., Ltd. (FAMA) provides integrated intelligent transportation solutions covering smart signal control, smart traffic safety, and 5G multifunctional smart poles, alongside services such as traffic signal timing optimization, operation and maintenance, and related support.

For buyers evaluating a Low Power Pedestrian Traffic Light with Countdown Timer or a pedestrian crossing light sign, the next step is to match the product specification to the project's control system, electrical requirements, and applicable traffic regulations.

Explore FAMA's product range to review available equipment and project examples for further context when assessing potential solutions. For a project-specific quotation, provide the controller model, required display configuration, operating environment, quantity, and destination market so that compatibility and specification requirements can be reviewed before procurement.
