Countdown Traffic Light Module Manual: Synchronization, Compatibility and Surge Protection for Car Timers

For a traffic signal countdown module, displaying numbers is only one part of the application. At an actual intersection, the countdown display must respond correctly to the traffic signal controller, recognize the required input signal, remain stable when electrical conditions change, and continue operating in an environment where lightning and voltage surges can occur. For traffic engineering contractors, system integrators and traffic equipment buyers, these requirements are often more important than the appearance of the countdown timer itself.

A practical Countdown traffic light module manual therefore needs to address installation, controller compatibility, signal detection, countdown synchronization, parameter commissioning and troubleshooting. At the same time, buyers evaluating a Traffic light countdown timer for car need to understand how the module handles different input conditions, electrical interference, surge protection and field configuration.

For FAMA, the countdown module is designed around these practical requirements rather than treating the countdown display as an isolated lighting component.

Understanding the Structure of a Countdown Traffic Light Module

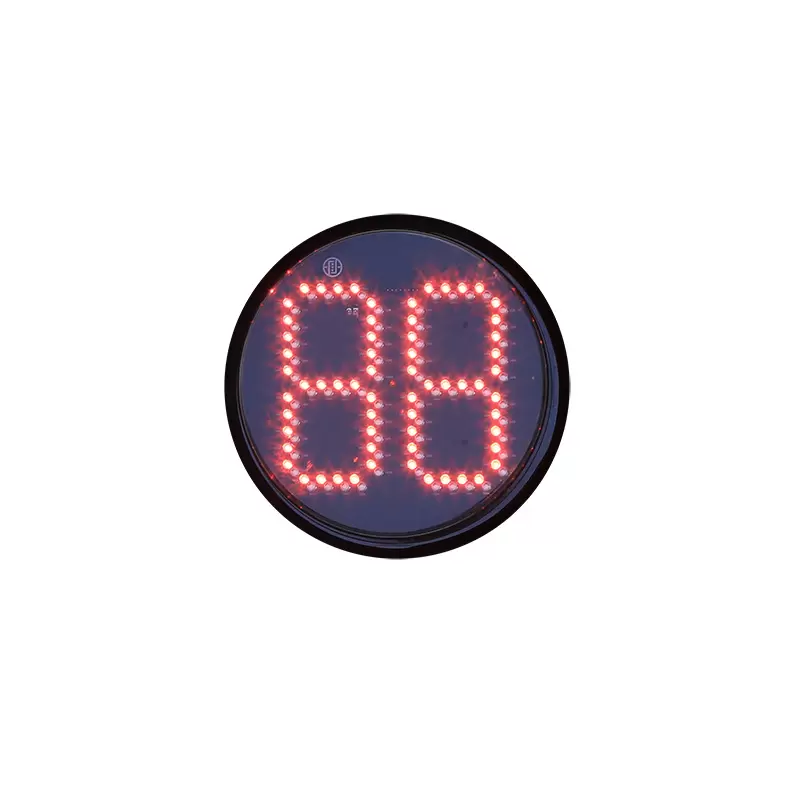

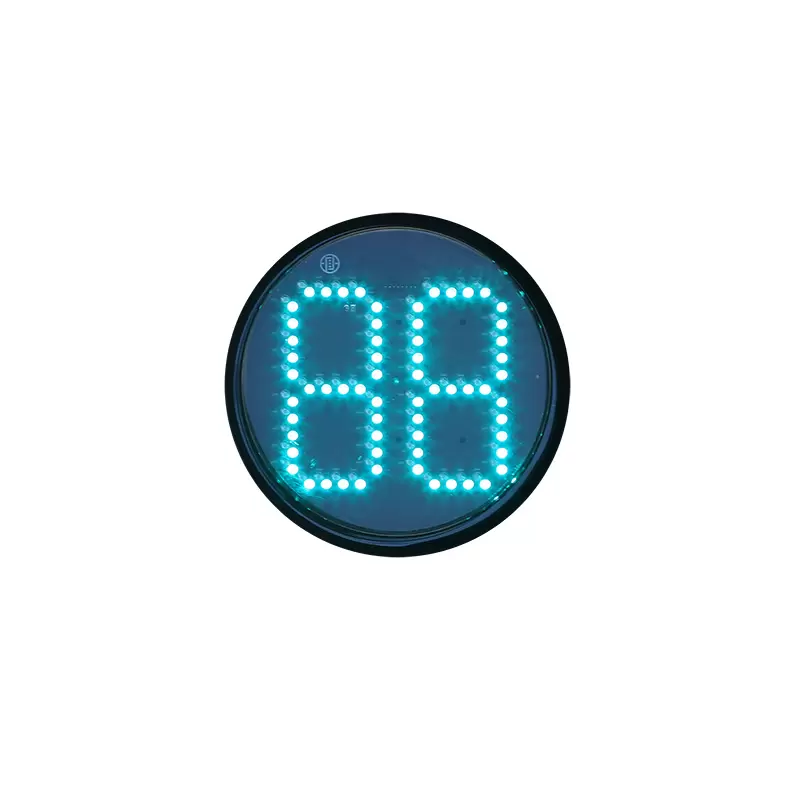

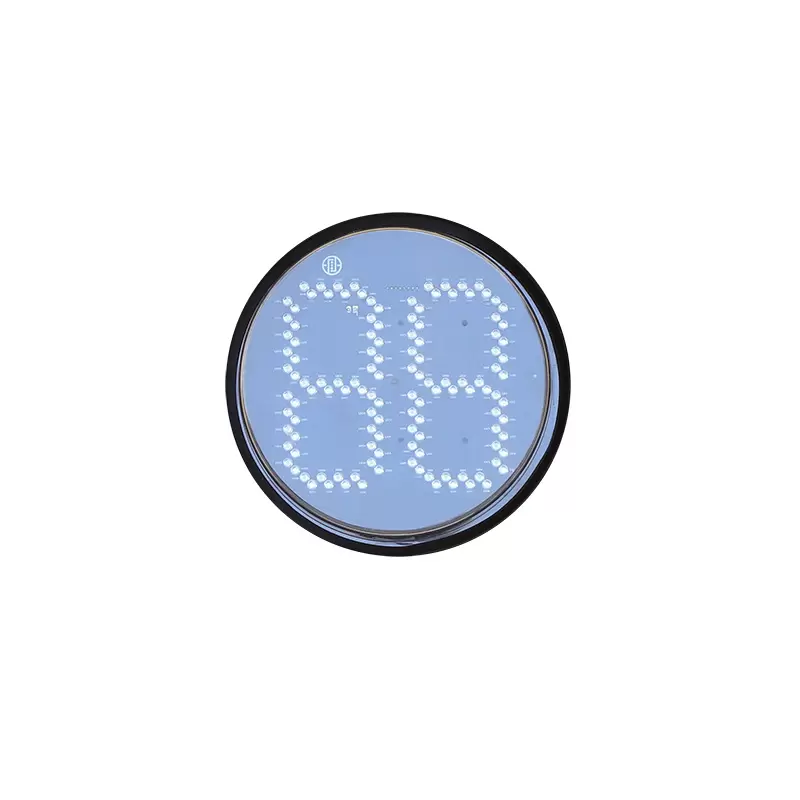

The Countdown Traffic Light Module consists of an optical lens, light board, control board, waterproof ring and lamp bowl. Each component contributes to the overall operation of the module, while the control board provides the key interface between the countdown display and the electrical signals associated with the traffic signal system.

The optical lens and light board are directly related to the visual presentation of the countdown information. The lamp bowl forms part of the module's physical structure, while the waterproof ring supports the enclosure and protection requirements of the installed assembly. The control board is particularly important when the module must detect and interpret the input associated with the traffic signal.

For procurement teams, this means that evaluating a countdown signal module should not be limited to LED display characteristics. The mechanical structure, electrical detection circuit and controller interface need to be considered as one system.

The relationship can be summarized as:

Traffic signal input → signal detection → control logic → countdown calculation/display → synchronized visual output

If the input signal is not correctly detected or interpreted, the countdown display can become inconsistent with the traffic signal even when the display hardware itself is functioning normally.

Adaptive Detection Is Central to Countdown Synchronization

One of the main technical requirements for a traffic signal countdown timer is the ability to deal with variations in the electrical environment.

FAMA's module uses a patented countdown detection circuit with adaptive detection capabilities. According to the provided product information, the circuit can automatically match different input voltage levels, dynamically adjust operating thresholds and filter external electrical interference.

This approach is important because the countdown module does not operate independently of the traffic signal controller. Its detection circuit must identify the relevant signal condition before the countdown can respond appropriately.

Automatic Input Voltage Matching

A countdown module may encounter different input conditions depending on the traffic signal control system used in a project. Instead of relying on one fixed detection condition, adaptive voltage detection allows the module to match the incoming signal level and establish an appropriate operating condition.

For an installation team, this makes input voltage compatibility an important item to confirm during commissioning.

The key questions are:

• What input signal does the traffic signal controller provide?

• Can the countdown module detect that signal correctly?

• Is the selected operating mode appropriate for the controller?

• Does the module respond consistently when the signal level changes within the applicable system conditions?

These questions should be confirmed before final deployment rather than being treated as troubleshooting issues after installation.

Dynamic Threshold Adjustment and Interference Filtering

Electrical interference can complicate signal detection. If a detection circuit responds too easily to unwanted electrical fluctuations, the countdown module may interpret interference as a valid signal condition.

The adaptive detection design addresses this through dynamic threshold adjustment and electrical interference filtering. Instead of using one unchanging detection threshold, the circuit can adjust its operating threshold according to the detected input condition.

For a traffic signal countdown module, the objective is not simply to detect voltage. It is to distinguish the intended traffic control signal from unwanted electrical interference so that the countdown remains synchronized with the actual signal state.

This is particularly relevant when a project contains multiple electrical devices, long wiring runs or other sources of electrical disturbance.

Traffic Light Countdown Timer for Car: Installation and System Compatibility

When selecting a Traffic light countdown timer for car, the first question should be compatibility with the existing traffic signal control system rather than the physical appearance of the display.

The module supports three adaptive operating modes. According to the supplied product information, these operating modes are designed to provide compatibility with more than 99% of major domestic and international traffic signal control systems.

This figure should be understood as a product performance description provided by FAMA, rather than as a universal industry statistic.

For an installation project, the appropriate operating mode should be determined according to the actual traffic signal controller and signal characteristics. The basic commissioning sequence should include:

1. Confirm the traffic signal controller and its output characteristics.

2. Confirm the required power input and communication interface.

3. Select the appropriate adaptive operating mode.

4. Connect the countdown module according to the project wiring requirements.

5. Check whether the module correctly detects the traffic signal input.

6. Verify that the displayed countdown corresponds to the actual red or green signal state.

7. Complete parameter commissioning before putting the intersection into normal operation.

A countdown module manual should therefore be treated as a commissioning reference, not merely an installation diagram.

What to Check When the Countdown Is Not Synchronized

If the countdown display is abnormal, cannot identify the input signal or becomes inconsistent with the traffic signal, replacing the module immediately is not necessarily the first step.

The installation team should first examine the relationship between the controller, input signal and module configuration.

Important checkpoints include:

Input signal:
Confirm that the traffic signal controller is providing the expected signal to the countdown module.

Input voltage:
Check whether the actual input condition is suitable for the selected detection mode.

Operating mode:
Confirm that one of the three adaptive operating modes has been selected correctly for the applicable control system.

Detection threshold:
Check whether the detection circuit is correctly recognizing the intended signal rather than electrical interference.

Communication interface:
Where communication is involved, verify the interface connection and configuration.

Countdown synchronization:
Compare the countdown display with the actual traffic signal state during commissioning. A functioning display does not automatically mean that the countdown is correctly synchronized.

This troubleshooting sequence helps separate an electrical input problem, configuration issue and actual hardware problem before unnecessary component replacement.

Dual Surge Protection for Traffic Signal Applications

Traffic signal equipment is installed outdoors, making protection against electrical surges an important consideration.

FAMA's module provides dual surge protection, covering both the power input and communication interface. The purpose is to reduce the impact of lightning strikes and high-voltage surges on the equipment.

For system integrators, this distinction matters. Protecting only the power input does not address potential surge exposure through a communication interface. A module that incorporates protection on both paths provides a broader protection design for the electrical interfaces used by the equipment.

According to the supplied product information, this design can reduce failure rates and decrease maintenance costs by over 50%. This should be treated specifically as FAMA's stated product performance description and should not be generalized as a guaranteed reduction for every project or installation environment.

For buyers, surge protection should therefore be evaluated together with the site's electrical environment, grounding design, installation conditions and overall traffic signal protection system.

Remote Configuration Without Replacing Hardware

Traffic projects do not always use identical control requirements. A module configured for one project may need different system parameters when deployed in another intersection or traffic signal environment.

The module supports remote configuration through a PC-based upper-level control system. System parameters can be adjusted online without replacing the hardware.

This provides a practical advantage during project commissioning and maintenance. Instead of removing the module simply because a configuration parameter needs to be changed, authorized technical personnel can adjust the relevant system parameters through the upper-level control system.

For contractors handling multiple intersections, this can simplify deployment where different project requirements need to be accommodated without changing the physical module.

Remote configuration should nevertheless be considered part of the commissioning process rather than a substitute for correct controller compatibility and signal wiring.

How Buyers Should Evaluate a Countdown Traffic Signal Module

For overseas traffic equipment buyers, a useful specification review should cover more than display size or appearance.

1. Traffic Signal Controller Compatibility

Confirm the module's compatibility with the controller and signal control architecture used by the project. Adaptive operating modes can be particularly important when the project involves different controller systems.

2. Input Voltage Detection

Confirm how the module detects the input signal and whether it can adapt to the applicable input voltage conditions.

3. Countdown Synchronization

The key question is whether the module can consistently detect the traffic signal state and keep the countdown display synchronized with the vehicle signal.

4. Electrical Interference Filtering

Ask how the detection circuit handles unwanted electrical interference. This is especially important when stable signal recognition is required in complex electrical environments.

5. Power and Communication Surge Protection

Check whether surge protection is provided for both the power input and communication interface rather than considering power protection alone.

6. Configuration and Commissioning

Confirm whether parameters can be configured remotely and whether the configuration process can be completed without replacing hardware.

7. Physical Protection and Maintenance

The optical lens, light board, control board, waterproof ring and lamp bowl should be considered as part of the complete module structure. Installation teams should also understand the applicable environmental and maintenance requirements before deployment.

FAMA's Approach to Traffic Signal Countdown Applications

Yangzhou FAMA Intelligent Equipment Co.,Ltd. (FAMA) provides integrated intelligent transportation solutions covering smart signal control, smart traffic safety and 5G multifunctional smart poles. Its traffic signal product portfolio includes traffic signal controllers, vehicle traffic lights, countdown timers and traffic light modules.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

FAMA's project portfolio also includes traffic signal and countdown timer projects across markets including Malaysia, Brazil, Tunisia, Chile, Peru, Argentina, Colombia, Paraguay, Ecuador and Uruguay.

For buyers evaluating a traffic signal countdown module, these project references can provide additional context when reviewing the manufacturer's product range and application experience. FAMA's product portfolio can be reviewed through its traffic signal product section, while its project pages provide examples of traffic signal deployments in different overseas markets.

Conclusion: What Matters in a Countdown Module

A traffic signal countdown module should be evaluated as part of the complete traffic control system rather than as a standalone display.

For a Countdown traffic light module manual, the critical areas are installation, controller connection, adaptive operating mode selection, input signal detection, voltage matching, threshold adjustment, countdown synchronization and parameter commissioning.

For a Traffic light countdown timer for car, buyers should additionally examine controller compatibility, communication interfaces, electrical interference filtering, dual surge protection, remote configuration and maintenance requirements.

The practical relationship between these functions is straightforward: correct signal compatibility enables detection; adaptive detection supports stable signal recognition; voltage matching and threshold adjustment help distinguish the intended signal from interference; accurate detection supports countdown synchronization; surge protection protects the electrical interfaces; and remote configuration can simplify commissioning and maintenance.

For traffic engineering companies, system integrators and infrastructure contractors, this technical chain is a more useful basis for selecting a traffic signal countdown module than display specifications alone.
