Induction Type Pedestrian Crossing Push Button
-

Model:
The Induction Type Pedestrian Crossing Push Button is a critical device that enables pedestrians to actively participate in traffic signal control and express their crossing needs. Its core function is to send a request to the signal controller, thereby triggering or adjusting the pedestrian green light phase at the appropriate time.
  • Induction Type Pedestrian Crossing Push Button
  • Induction Type Pedestrian Crossing Push Button
  • Induction Type Pedestrian Crossing Push Button
  • Induction Type Pedestrian Crossing Push Button
  • Induction Type Pedestrian Crossing Push Button
  • Induction Type Pedestrian Crossing Push Button
Overview

Product Introduction:

The Induction Type Pedestrian Crossing Push Button is a critical device that enables pedestrians to actively participate in traffic signal control and express their crossing needs. Its core function is to send a request to the signal controller, thereby triggering or adjusting the pedestrian green light phase at the appropriate time. Compared with traditional mechanical buttons, this induction type pedestrian crossing button has the advantages of more sensitive response, more humanized interaction, and a more fashionable appearance.


Add the to your project
Functional Features

Product Selling Points:

1. Five-in-one multi-functional design, making more powerful functionality:

The product integrates countdown display, audible pedestrian signal (for visually impaired users), mechanical pushbutton, touchless sensing, and pedestrian pattern, greatly simplifying the facilities at intersections and making the functions more powerful.

2. Multi-period control for meeting different scene requirements:

The product supports time-based configuration of audio volume and voice prompts, enabling optimized performance across various environments such as daytime, nighttime, industrial zones, and commercial districts.

3. User-friendly operation with global multi-region adaptive deployment capability:

Equipped with Bluetooth connectivity and a mobile application, the device allows for flexible customization of language options and broadcast content, facilitating deployment across international and multi-regional settings.

4. Features intelligent switching capability and superior product compatibility:

It adopts standard switch signal output and is compatible with the signal control machines of mainstream brands at home and abroad. It supports three operating  modes: learning, triggering and communication, and has an intelligent automatic switching function to ensure seamless collaborative operation with various systems.


Product ModelKH-AN-FM02

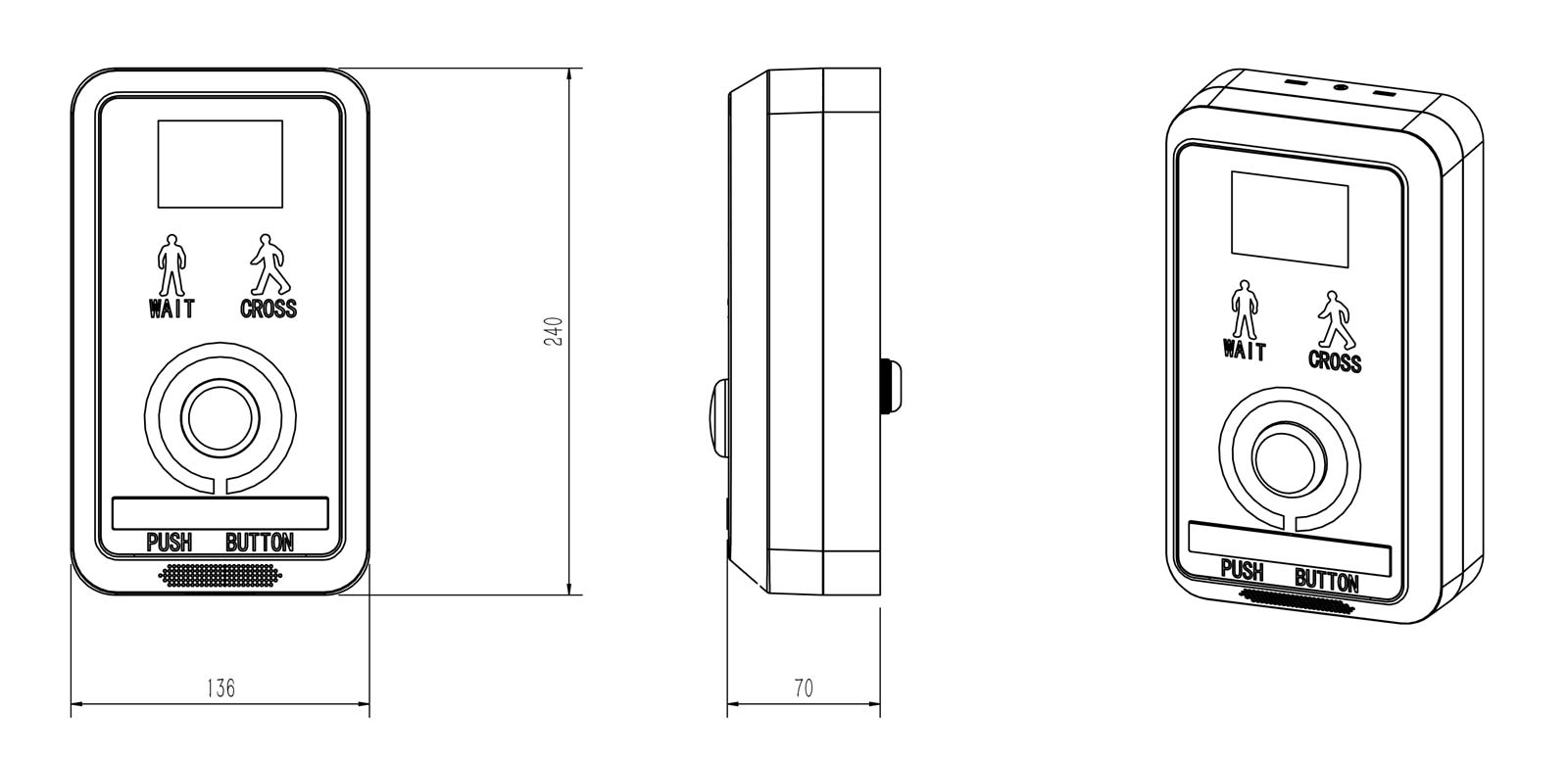

Overall Dimensions240 mm × 136 mm × 87.6 mm
Housing MaterialPolycarbonate housing
Operating VoltageAC85-264V /47-63HZ
Consumption≤2.4W
Volume Range0-90db
Operating ModePush-button type, Induction type
Debugging ModeBluetooth, Mobile phone APP, Computer software
Communication InterfaceRS 485
Service life≥100,000 cycles
Protection GradeIP55
Ambient Temperature Range-40℃ to +80℃
Ambient Humidity Range<95%
Countdown Operating ModeLearning Mode, Trigger Mode, Communication Mode, Compatible Mode
Countdown Communication ProtocolCompliant with GA/T 508-2014 Protocol

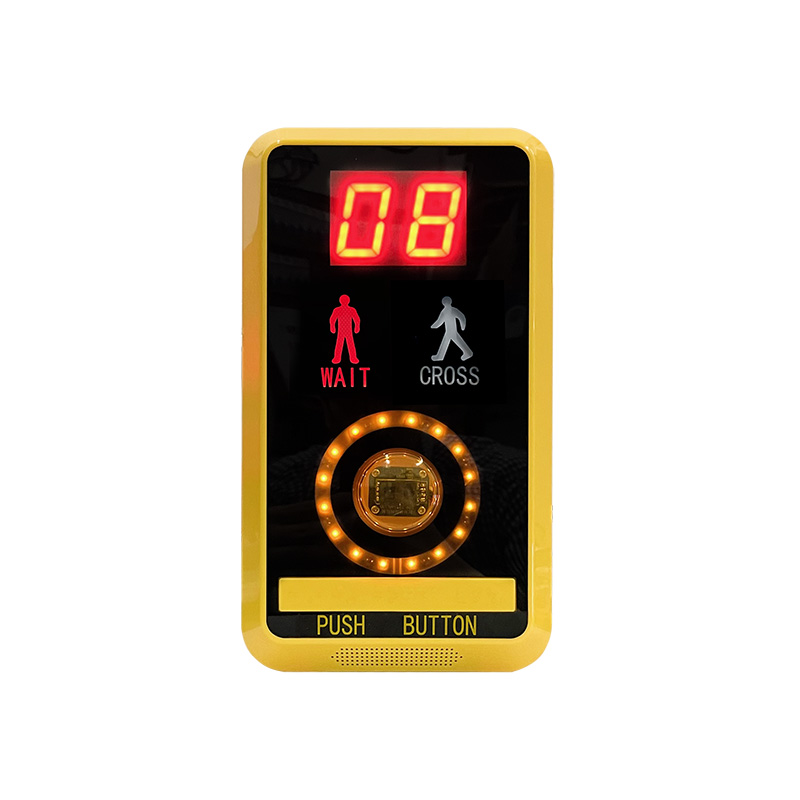

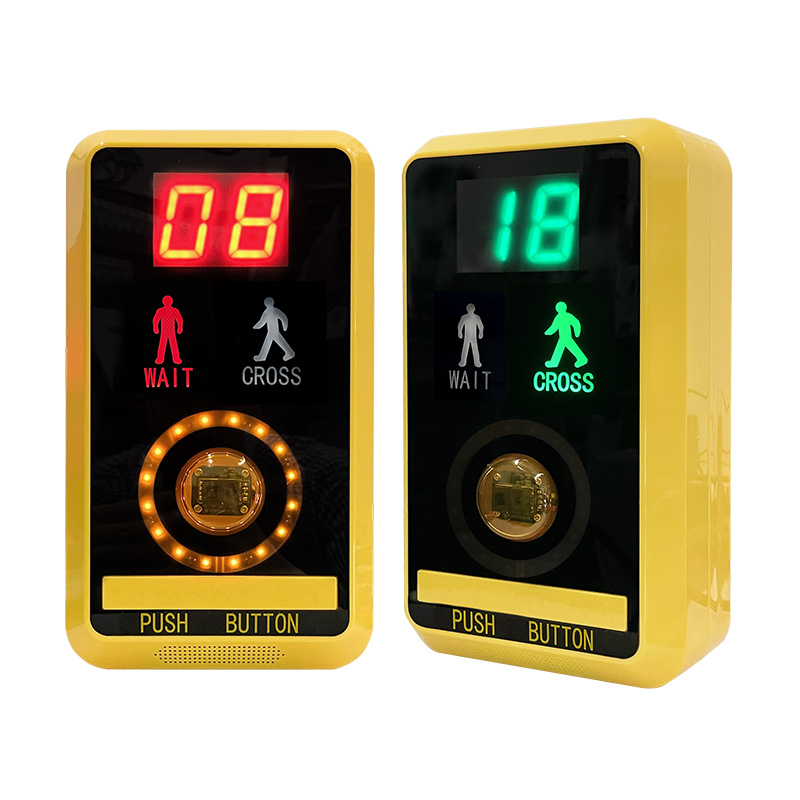

Display Statusa. Red and green countdown
b. Red pedestrian waiting pattern

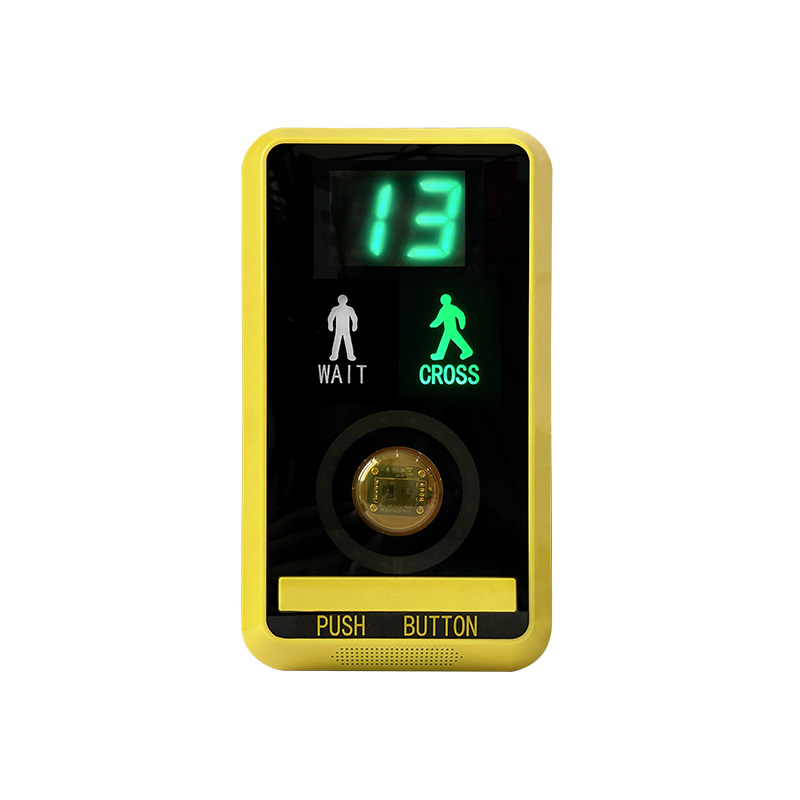

c. Green pedestrian pattern
d. Button activated, yellow light flashing
Packaging Specifications5 piece per box, Size: 60 x 29 x 18 cm, Weight: 7 ± 0.5 kg

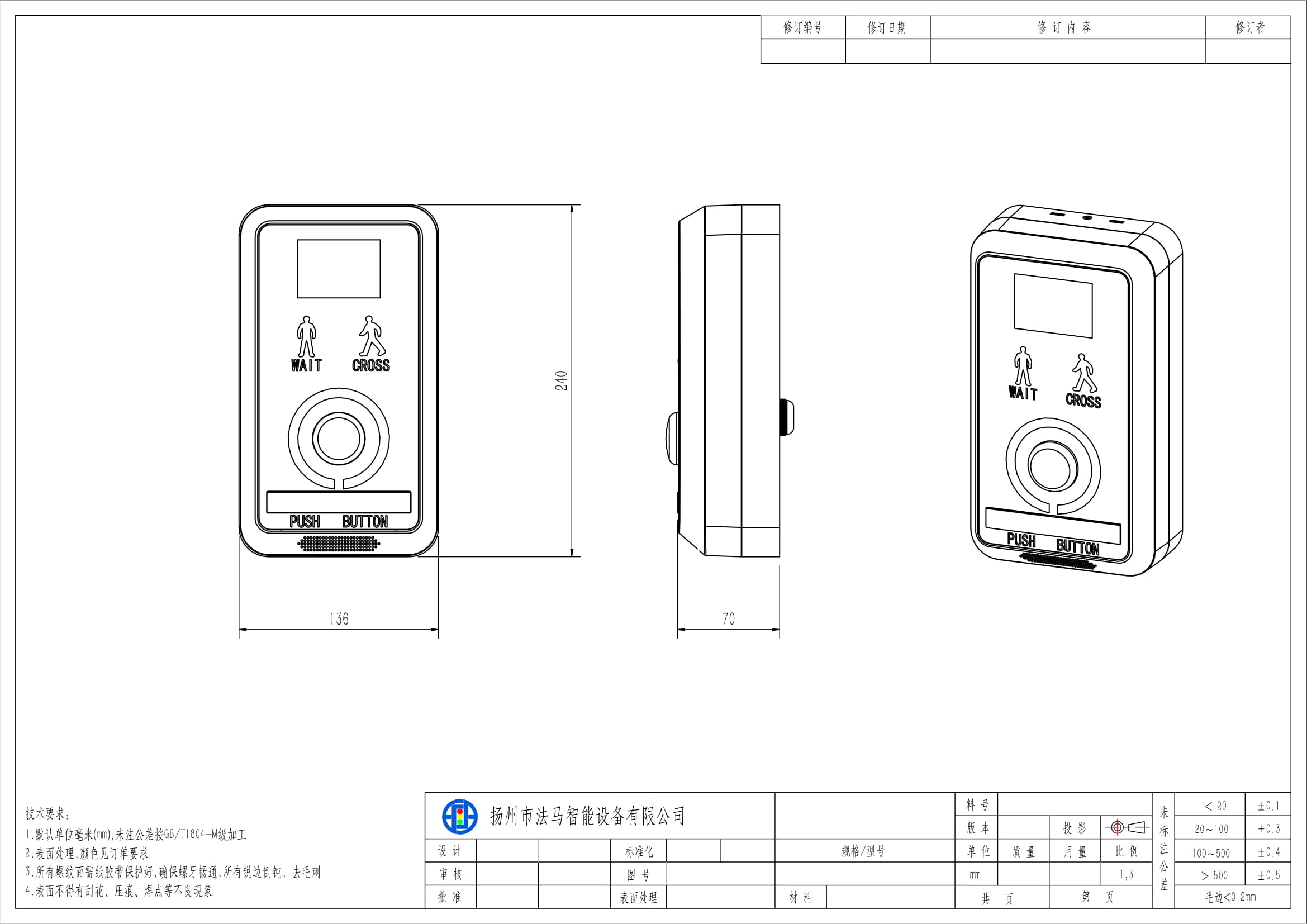

Structural Components
