Audible Pedestrian Signals with Plastic Housing
-
Model:
The Audible Pedestrian Signals with Plastic Housing is an intelligent intersection navigation device specifically developed for visually impaired individuals. Constructed from polycarbonate (PC) material, the device features an elegant and stylish design.
Overview
Product Introduction:
The Audible Pedestrian Signals with Plastic Housing is an intelligent intersection navigation device specifically developed for visually impaired individuals. Constructed from polycarbonate (PC) material, the device features an elegant and stylish design. Its primary function is to accurately convert visual traffic light signals into clear voice prompts, thereby enabling visually impaired individuals to cross intersections independently, confidently, and safely.
Add the to your project
Functional Features
Precise sound guidance for enhanced directional awareness:The device employs directional sound beam technology to focus auditory prompts toward the designated crossing direction. This minimizes auditory confusion and significantly reduces the risk of directional misinterpretation.- Intelligent volume control for reduced environmental noise impact:Fitted with an automatic volume adjustment system, the device dynamically adapts the prompt volume according to ambient noise levels. This ensures optimal audibility in high-noise environments while minimizing disturbance during quieter periods, effectively balancing usability with community noise considerations.
- Industrial-grade durability for reliable performance:Designed with industrial-grade protection, the device is resistant to extreme temperatures and ultraviolet exposure, ensuring long-term reliability and performance under challenging weather and environmental conditions.
- Customizable configuration to support diverse use cases:The device supports Bluetooth connectivity and mobile application integration, enabling users to customize settings such as volume levels, weekday and holiday operation modes, and voice prompt content. This flexibility allows tailored configurations to meet a wide range of operational and environmental requirements.
At a glance
| Product Model | MZ-Y-FM02 |

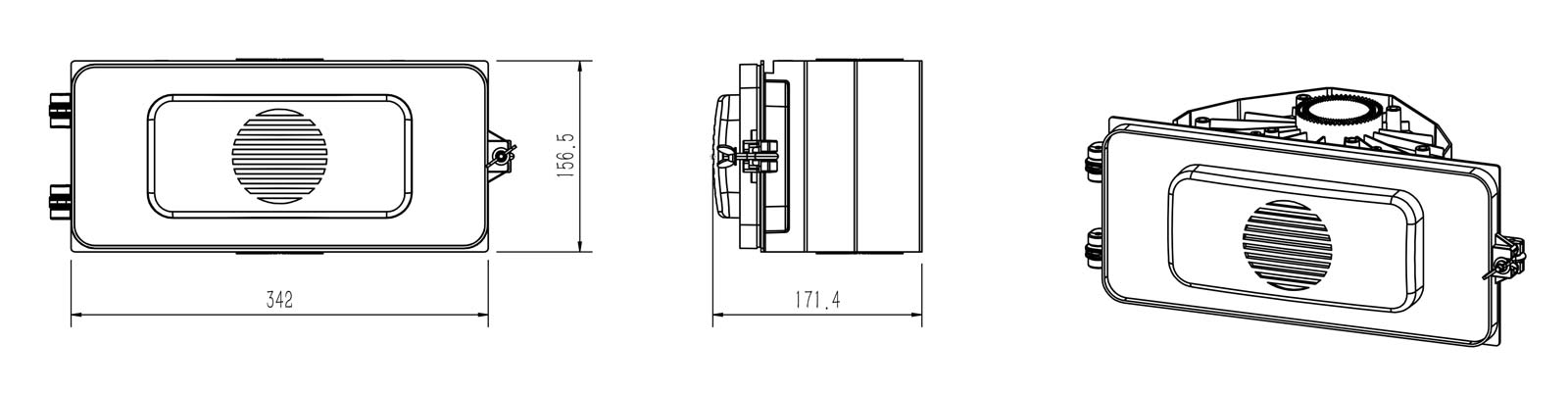

| Overall Dimensions | 349 × 142 × 157 mm |
| Lamp Box Housing Material | Polycarbonate housing |
| Operating Voltage | □ AC220V □ DC24V □ DC12V |
| Audio Output Mode | □ Voice □ Tick-tock |
| Box Color | Black |
| Operating Power | ≤18W |
| Setting Method | Bluetooth and mobile App debugging |
| Volume | 0-80dB |
| Annual Running Error | ＜2.5min |
| Ambient Temperature Range | -40℃ to +80℃ |
| IP Rating | IP55 |
| Packaging Specifications | Pending |

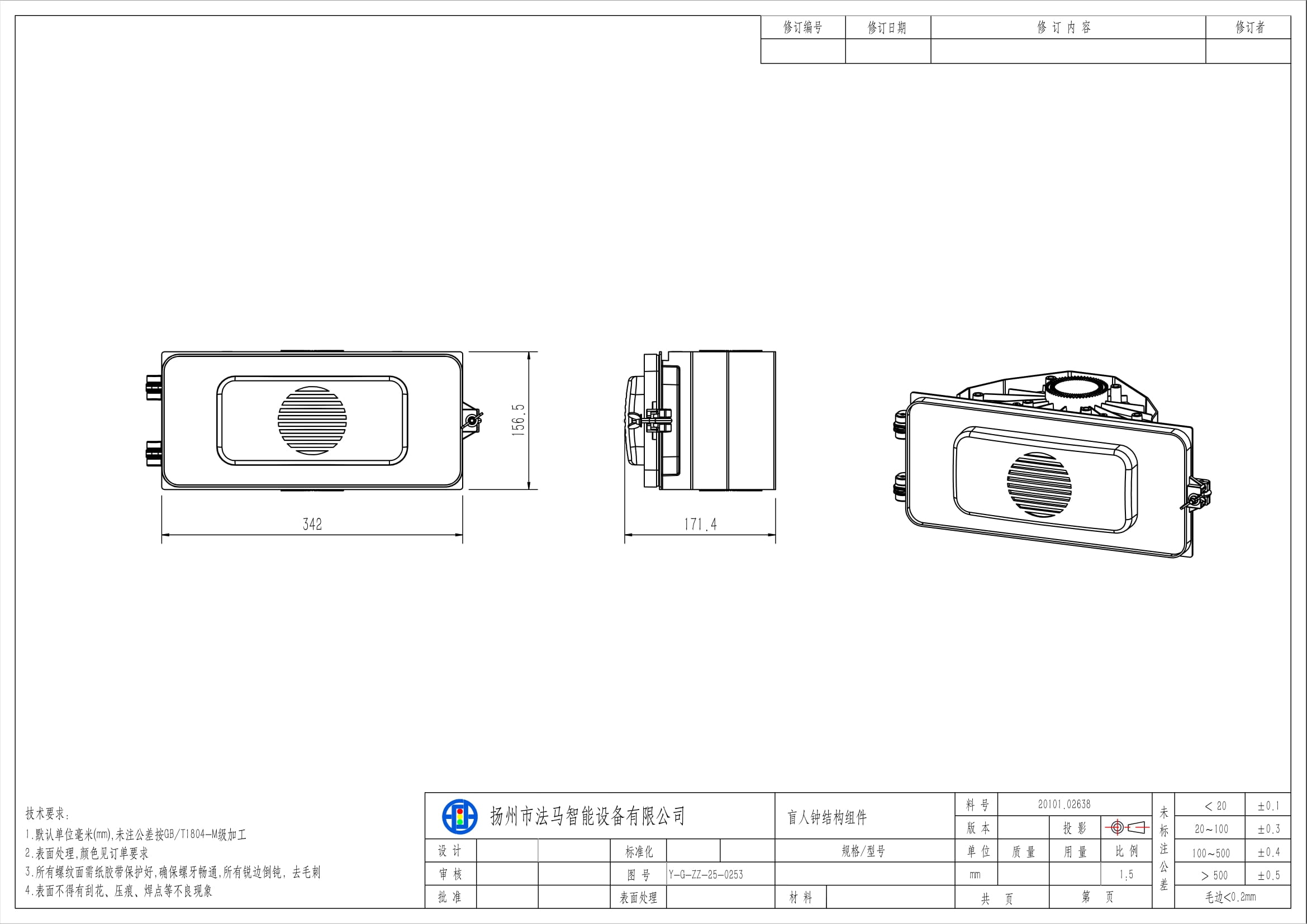

Structural Components
