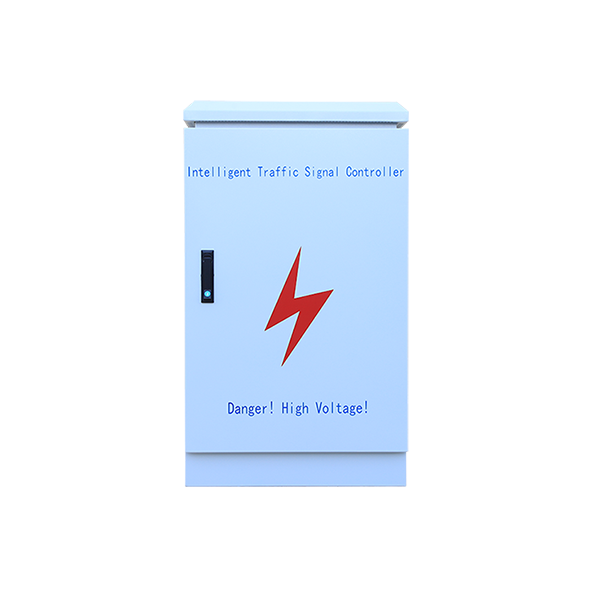

Single Point Traffic Signal Controller
Read more

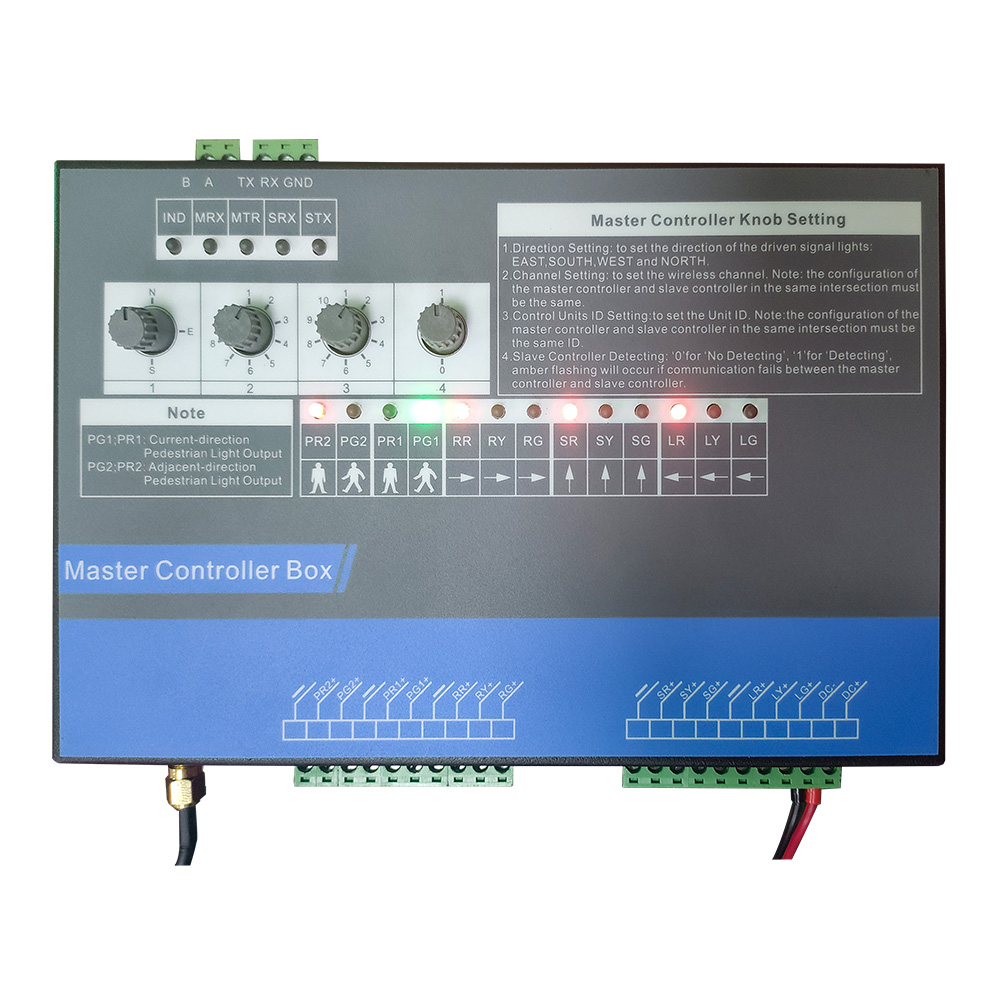

Wireless Traffic Signal Controller
-
Model:
The Wireless Traffic Signal Controller is an innovative low-voltage wireless transmission system designed for intelligent traffic control. This controller completely eliminates the need for traditional cable-based connections. At each direction of an intersection, the master and slave units are deployed separately, enabling seamless signal transmission through wireless communication.
Overview
Product Introduction:
The Wireless Traffic Signal Controller is an innovative low-voltage wireless transmission system designed for intelligent traffic control. This controller completely eliminates the need for traditional cable-based connections. At each direction of an intersection, the master and slave units are deployed separately, enabling seamless signal transmission through wireless communication. This approach significantly enhances construction efficiency while reducing both complexity and associated costs. Additionally, the system supports solar power supply, making it ideal for locations with abundant solar resources or where road excavation is impractical.
Add the to your project
Functional Features
Product Selling Points:
1. Safe and energy-efficient with flexible power supply options:
The controller operates on a safe low-voltage power supply(DC 10–30V), ensuring electrical safety at intersections. It is compatible with both mains and solar power, making it suitable for areas lacking access to grid electricity or where wiring is challenging.
2. Distributed architecture for reduced installation costs:
By deploying master and slave units across different directions of the intersection and utilizing wireless communication for signal transmission, the system streamlines installation processes, accelerates deployment, and lowers overall construction costs.
3. Intelligent and scalable with optional remote control capabilities:
An optional intelligent networking module enables remote backend management, allowing for real-time monitoring of intersection operations, remote configuration adjustments, and targeted signal control. This feature significantly enhances operational and maintenance efficiency.
At a glance
| Product Model | XHJ-BW-GB-FM1003 |

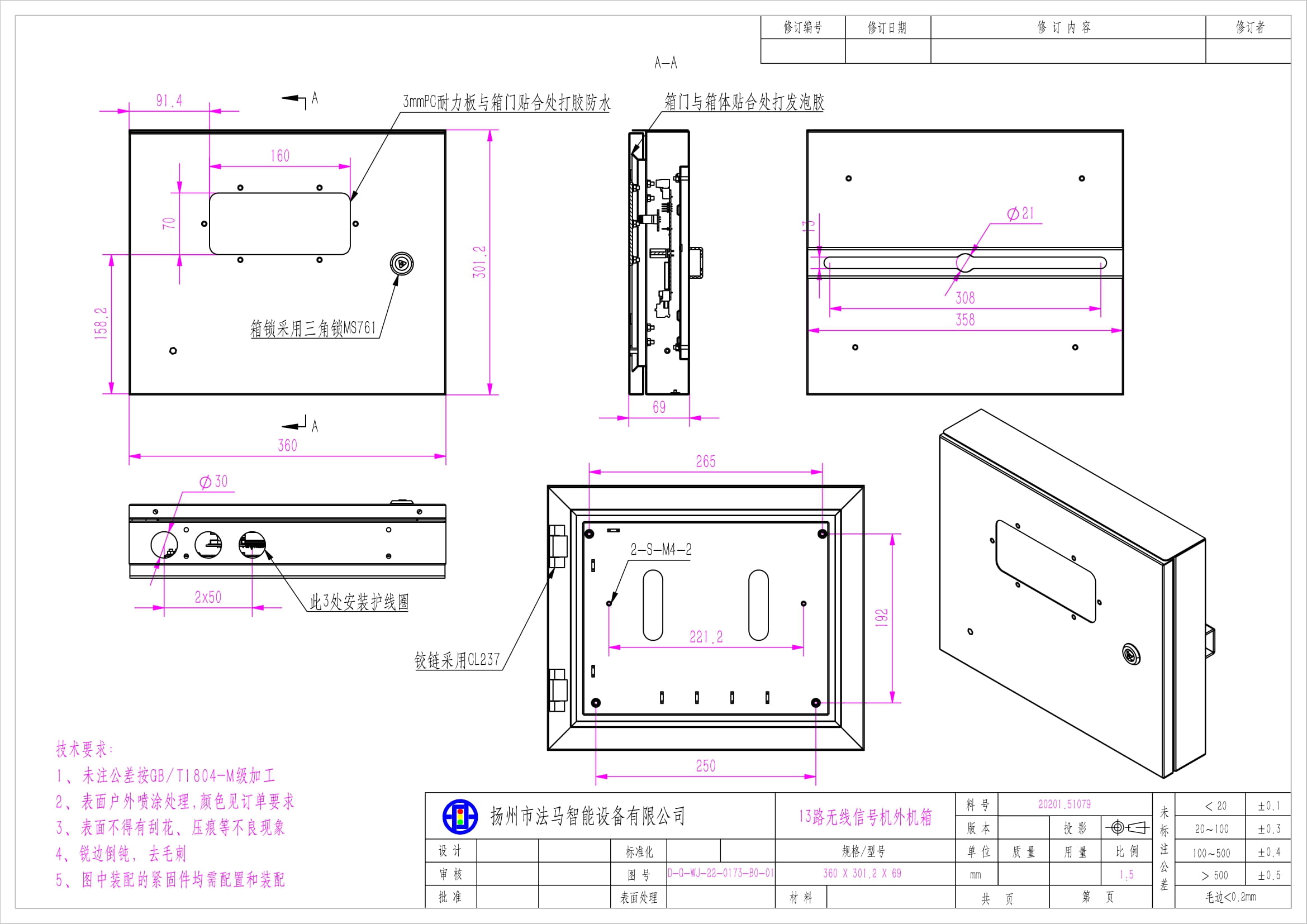

| Enclosure Dimensions | L × W × H: 360 × 69 × 301.2 mm |
| Operating Voltage | DC11-30V |
| Signal Output | 13-output |
| Number of Signal Phases | 5 phase |
| Master-Slave Communication Protocol | Wireless |
| Primary Frequency for Wireless Communication | 490MHZ |
| Wireless Communication Range | ＞600m |
| Standby Power Consumption of the Whole Machine | <1.5W |
| Overvoltage Protection Threshold | 35V±2V |
| Drive Current per Channel | 3A |
| Surge Impulse Current per Channel | 160A |
| Insulation Resistance | ≥20MΩ |
| Operating Temperature | -40℃ to +80℃ |
| Relative Humidity | ≤95%RH |
| Protection Grade | IP55 |
| Packaging Specifications | Dimensions (L × W × H): 42 × 15 × 37 cm, Weight: 6 ± 0.5 kg |

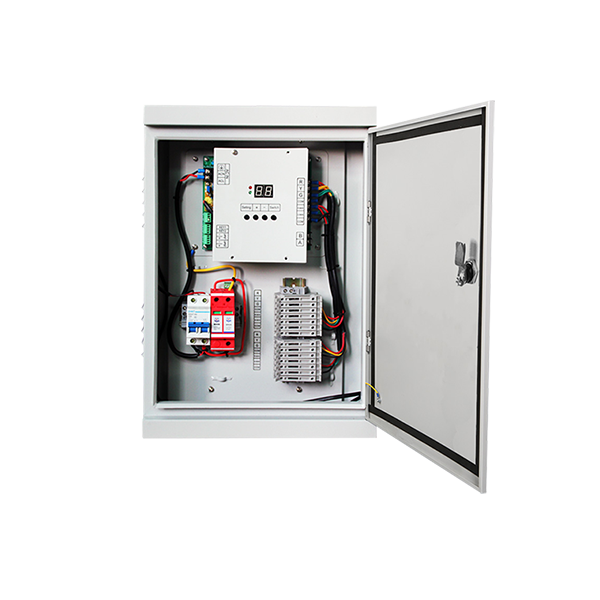

Structural Components
