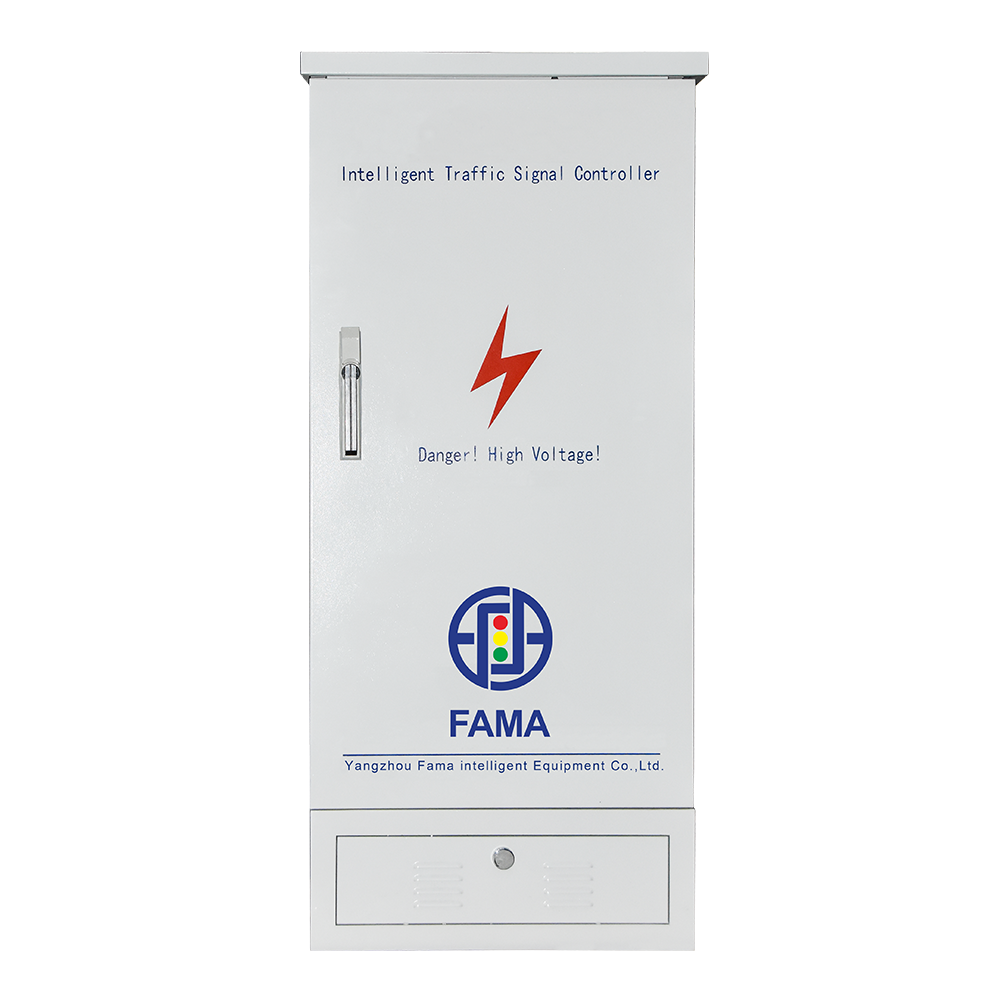

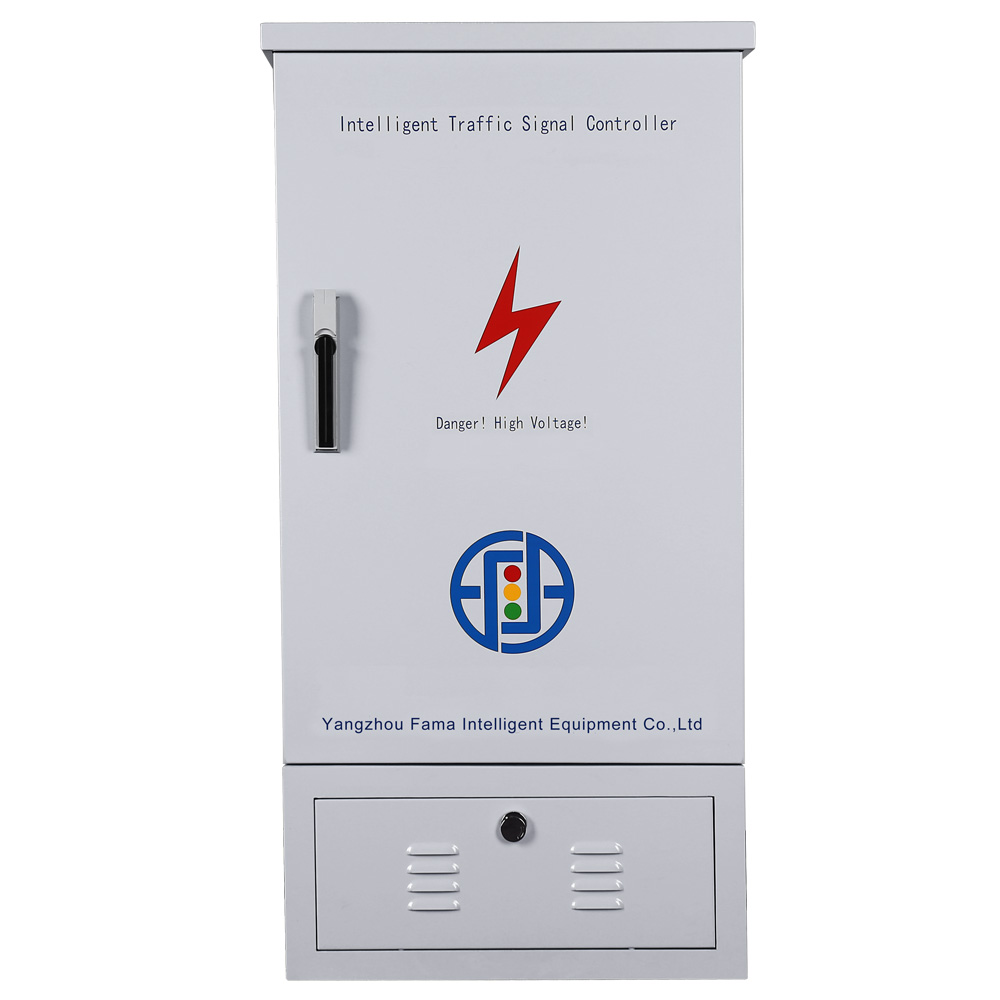

Networked Traffic Signal Controller
-
Model:
The Networked Traffic Signal Controller is a upgrade intelligent version of the single-point signal controller, offering support for up to 44 output channels. As the central component of regional traffic control systems, this controller accurately and automatically regulates signal light transitions based on pre-defined signal cycles and timing strategies, thereby enabling intelligent traffic management and optimization of intersection and regional traffic.
Overview
Product Introduction:
The Networked Traffic Signal Controller is a upgrade intelligent version of the single-point signal controller, offering support for up to 44 output channels. As the central component of regional traffic control systems, this controller accurately and automatically regulates signal light transitions based on pre-defined signal cycles and timing strategies, thereby enabling intelligent traffic management and optimization of intersection and regional traffic.
Add the to your project
Functional Features
Product Selling Points:
1. User-friendly and efficient operation to enhance maintenance performance:
Integrated with a multi-functional control interface, the product supports essential operational functions including date setting, plan modification, parameter adjustment, and manual control. On-site debugging can be completed without carrying debugging tools, enhancing maintenance efficiency.

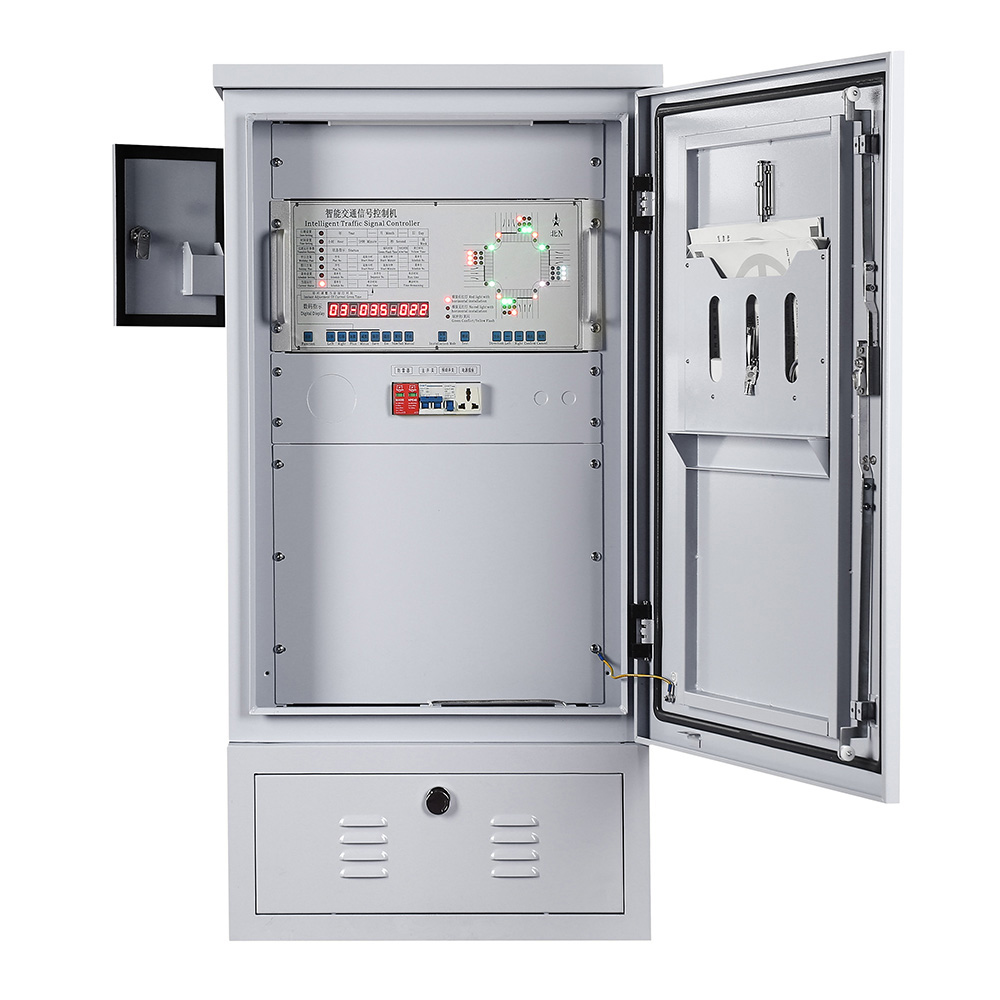

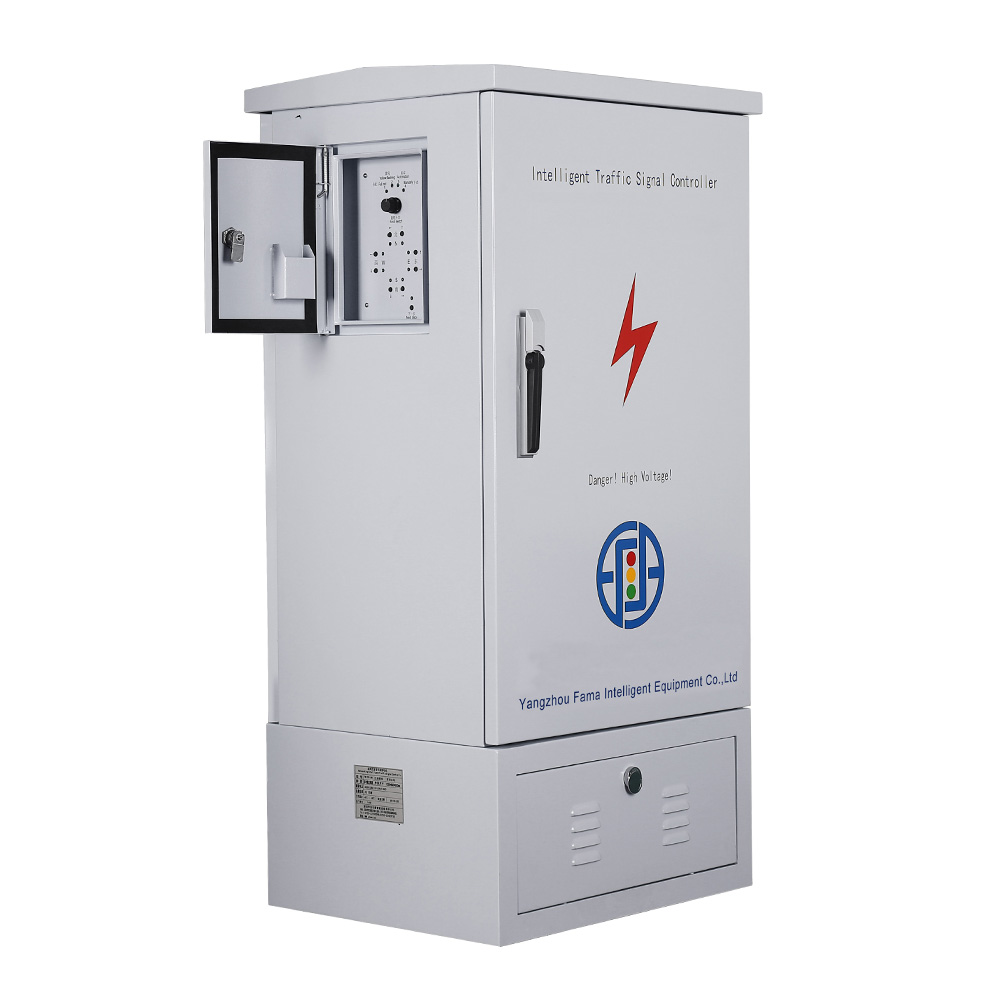

2. Side-mounted manual control interface to improve operational accessibility:
The controller features a side-mounted manual control panel with an intuitive button layout that simulates real-world crossroad scenarios. This design enables operators to perform control tasks more rapidly and accurately, thereby reducing the operational complexity and skill requirements.
3. Intelligent green wave coordination (optional) for enhanced traffic flow ：
As an optional feature, intelligent green wave coordination can be implemented by configuring phase differences and timing plans for main road intersections. This functionality facilitates continuous green wave progression along main roads, effectively minimizing vehicle stops and enhancing both traffic throughput and driver satisfaction.
At a glance
| Product Model | XHJ-BW-GA-FM2001 |
| Enclosure Dimensions | L × W × H: 630 × 500 × 1250 mm |
| Operating Voltage / Frequency | AC：85-264V /47Hz -63Hz |
| Signal Output | 44-output |
| Communication Interface | RJ45*1, RS232*1 |
| Number of Signal Phases | 16 phase |
| Machine Standby Power Consumption | ≤15W |
| Drive Current per Channel | 3A |
| Surge Impulse Current per Channel | 160A |
| Insulation Resistance | ≥20MΩ |
| Operating Temperature | -40℃ to +80℃ |
| Relative Humidity | ≤ 95% RH |
| Protection Grade | IP55 |
| Remote Control Distance | 100M |
| Packaging Specifications | Dimensions (L × W × H): 71 × 58 × 132 cm, Weight: 99 ± 0.5 kg |

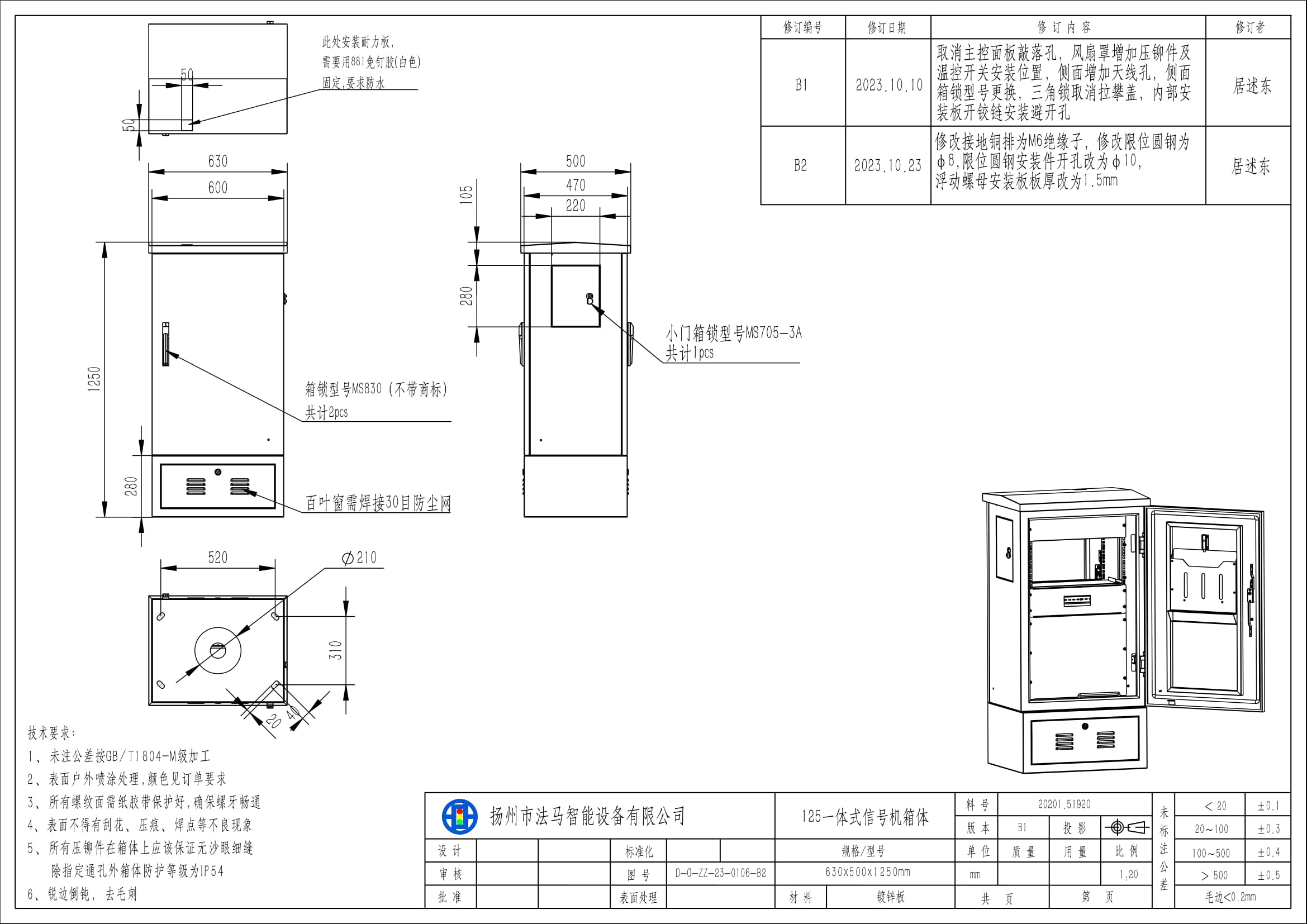

Structural Components
