Solar Powered Radar Speed Limit Sign
-
Model:

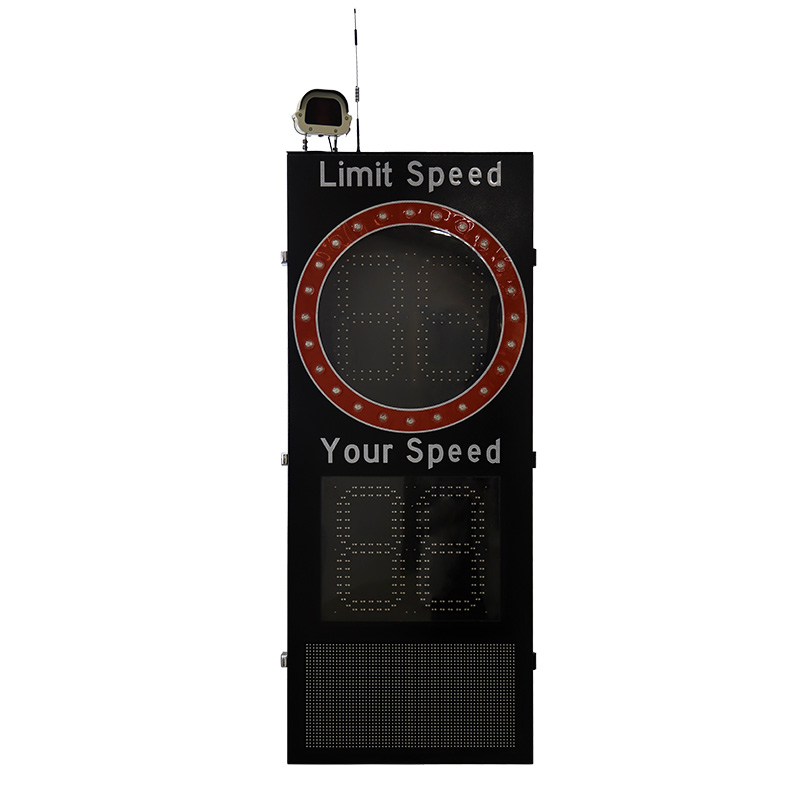

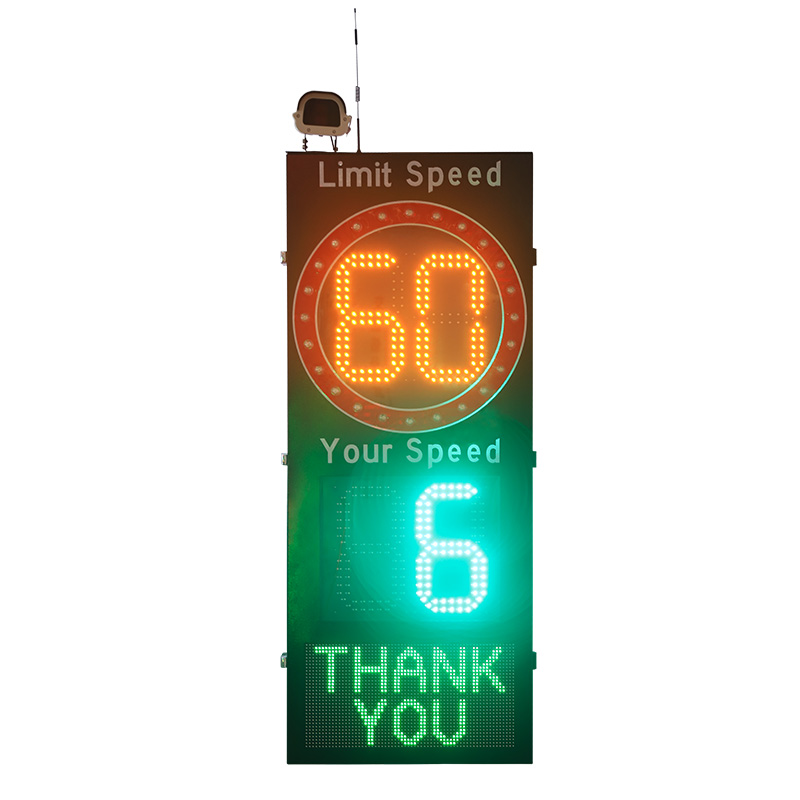

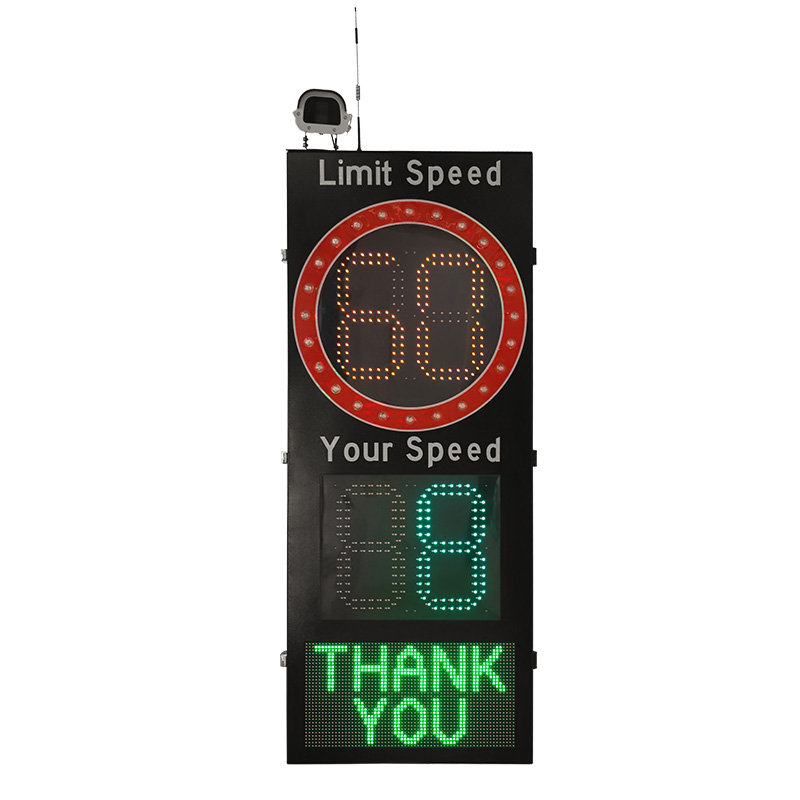

Solar Powered Radar Speed Limit Sign is a warning device that integrates millimeter-wave radar detection and multi-mode display functions. This product collects the real-time speed of vehicles through radar and, in conjunction with limit speed signs, dynamic speed display modules, and dual-color information screens, provides efficient and accurate speed indication and overspeed warnings.
Overview
Product Introduction:
Solar Powered Radar Speed Limit Sign is a warning device that integrates millimeter-wave radar detection and multi-mode display functions. This product collects the real-time speed of vehicles through radar and, in conjunction with limit speed signs, dynamic speed display modules, and dual-color information screens, provides efficient and accurate speed indication and overspeed warnings. It features instant response, wide coverage, and high-precision recognition, and can operate stably in complex outdoor environments, significantly enhancing traffic safety on limit speed sections. It is mainly applicable to traffic scenarios such as highway ramps, national and provincial trunk roads, and dangerous sections in urban and suburban areas.
Add the to your project
Functional Features
Adjustable limit speed settingsCustomizable settings adapt to varying traffic needs across road segments and time periods.- High-precision radar monitoringFeatures multi-target detection with wide coverage, high accuracy, and fast response.
- Dual-mode power supplyOperates on solar or mains power for reliable performance in diverse conditions.
- Triple-layer warning displayCombines limit speed sign, real-time speed feedback, and text messages in a clear, visible interface for comprehensive warnings.
At a glance
| Product Name | Solar Powered Radar Speed Limit Sign |

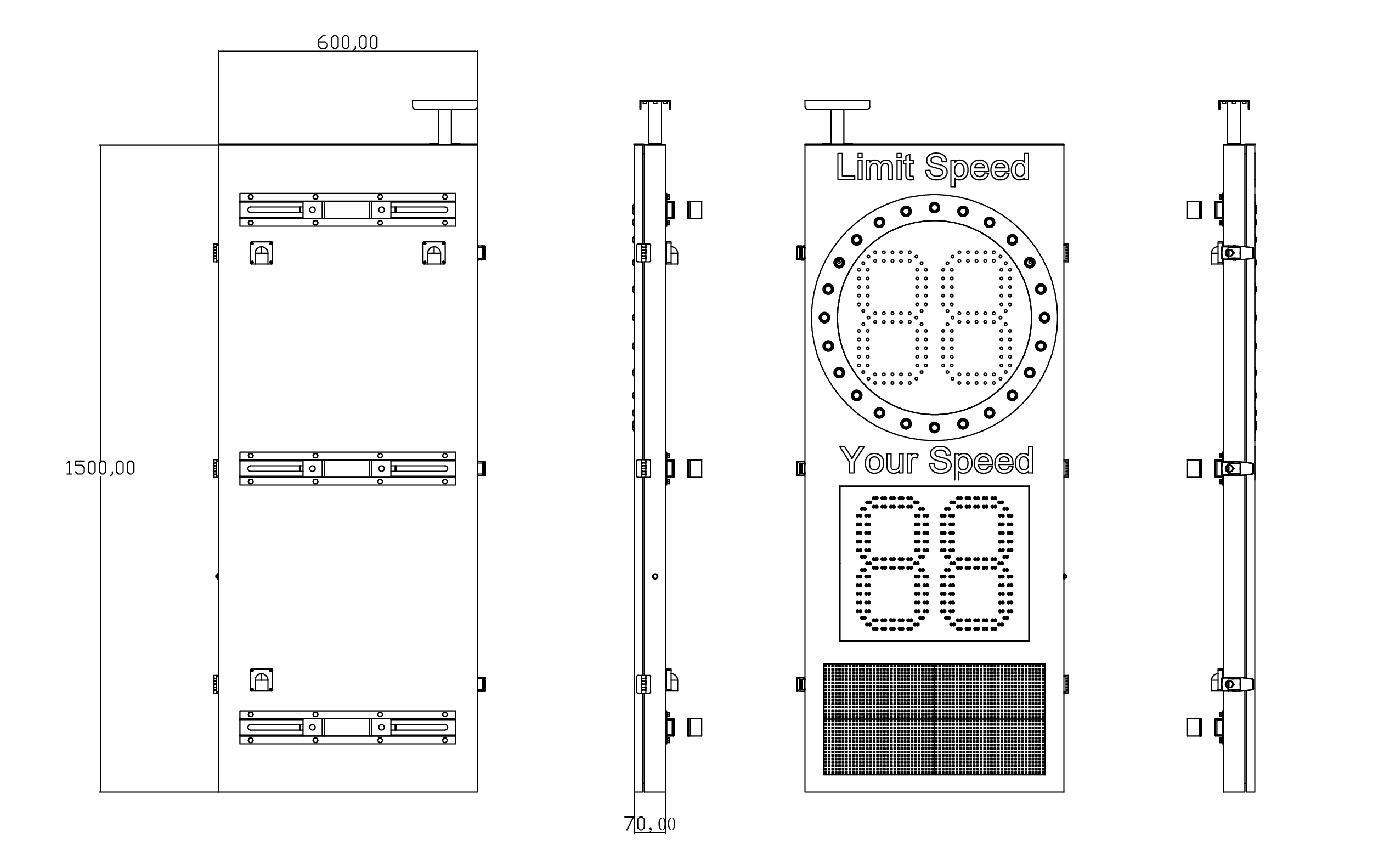

| Overall dimensions | 1500 × 600 × 70 mm (for overseas) |
| Panel | 1.5 mm galvanized sheet |
| Color | Black RAL9017 |
| Input voltage | DC 12 V |
| Radar parameter | Power supply: (5 - 26) VDC, Speed measurement range: (4 - 400) km/h, Number of lanes covered: 1 - 4 lanes, Coverage distance: > 80m |
| Reflective film | 3M super grade (type IV) special reflective sheeting |
| Solar panel | 150 W/18 V |
| Battery | 200AH (Battery provision optional for overseas customers) |
| Rated power | < 40 W |
| Weight | > 50 kg (including the clamp) |
| Size of the speed display light board | 440 x 360 mm |
| Size of the limit speed | φ 570 mm |
| P8 dual-color module | 512 x 256 mm (for text display) |
| Limit speed value | DIP switch customization |
| Working temperature | -20℃ to +70℃ |
| Protection level | ≥ IP 55 |
Structural Components
