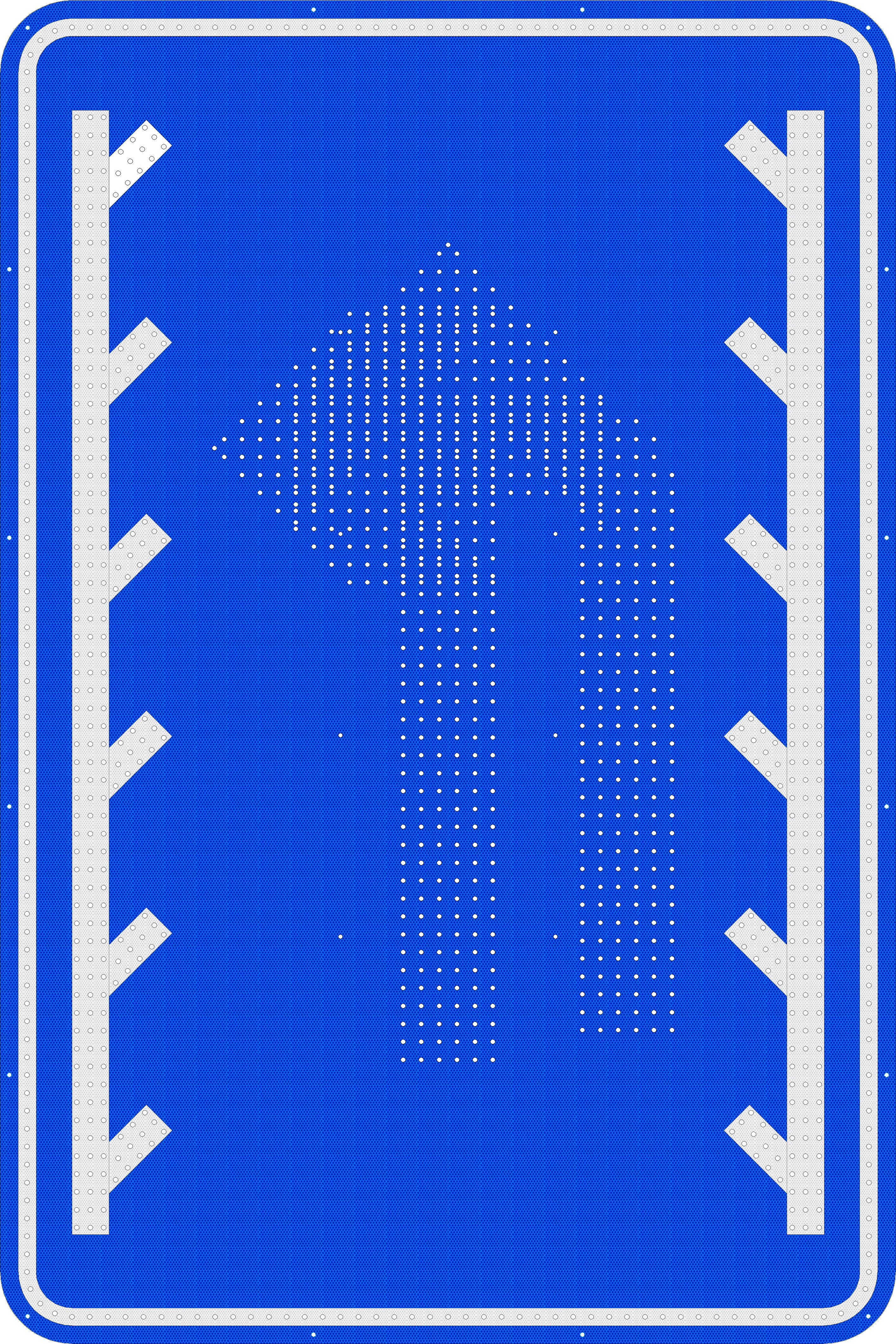

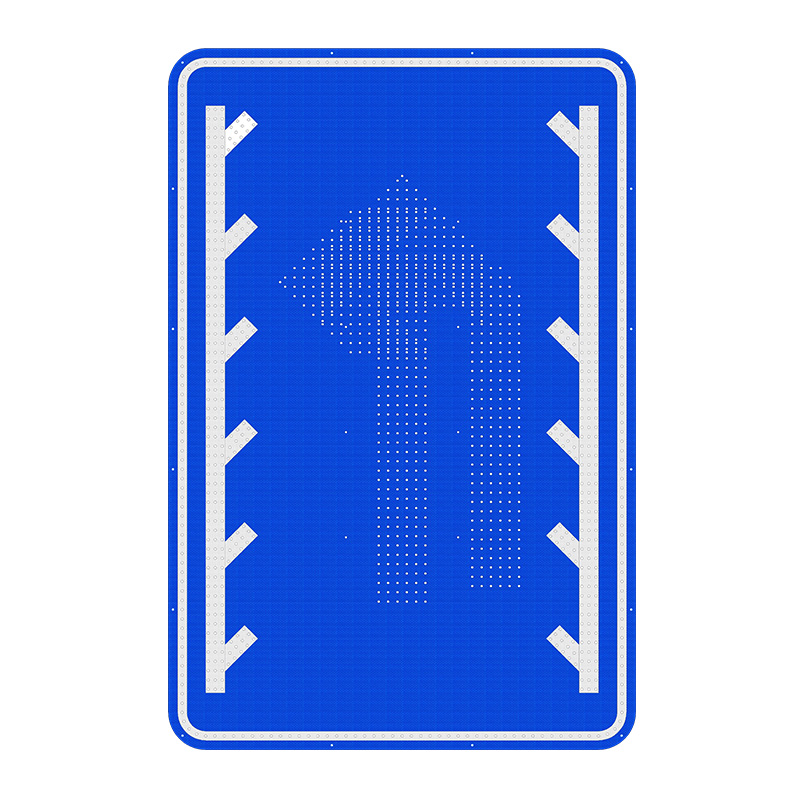

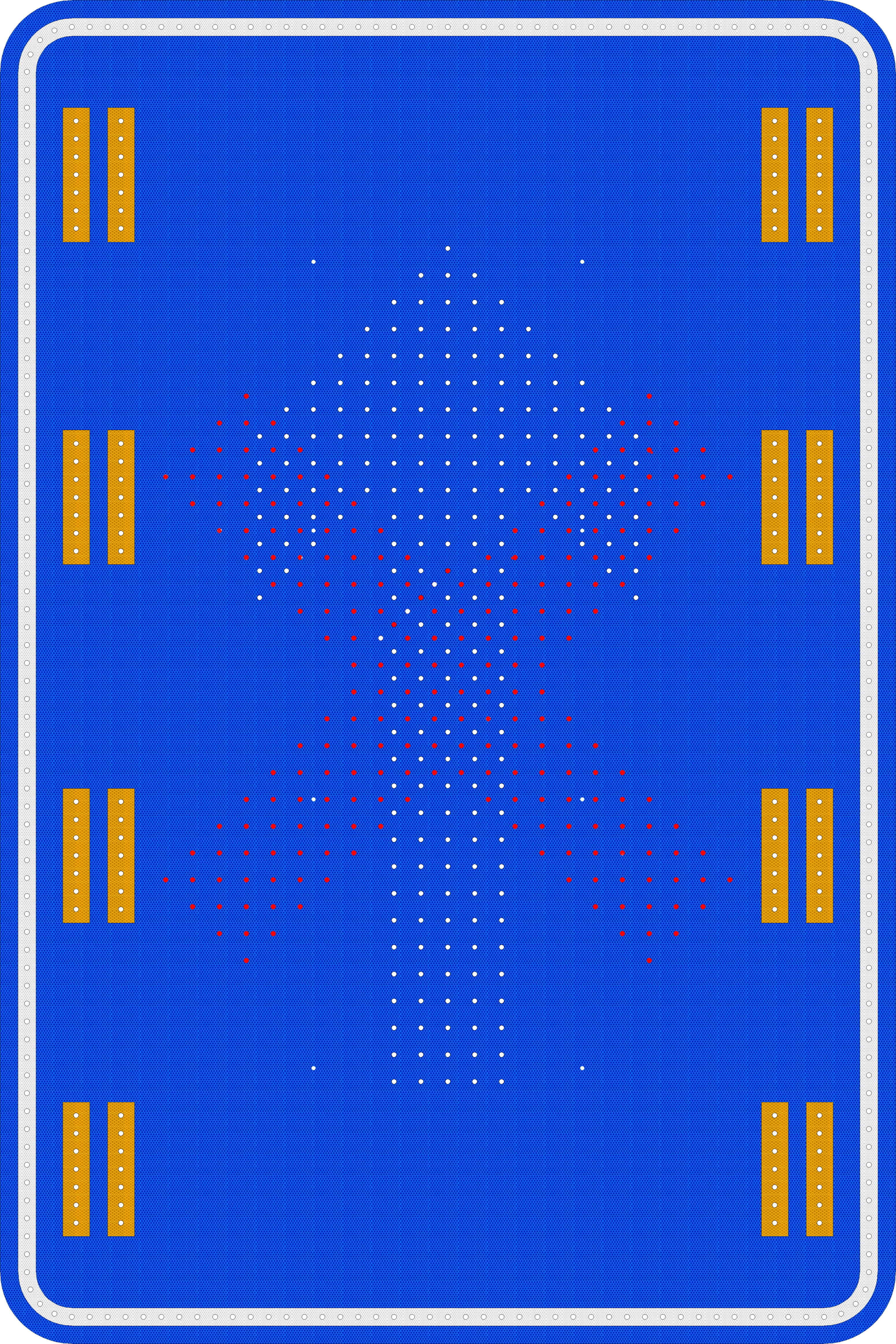

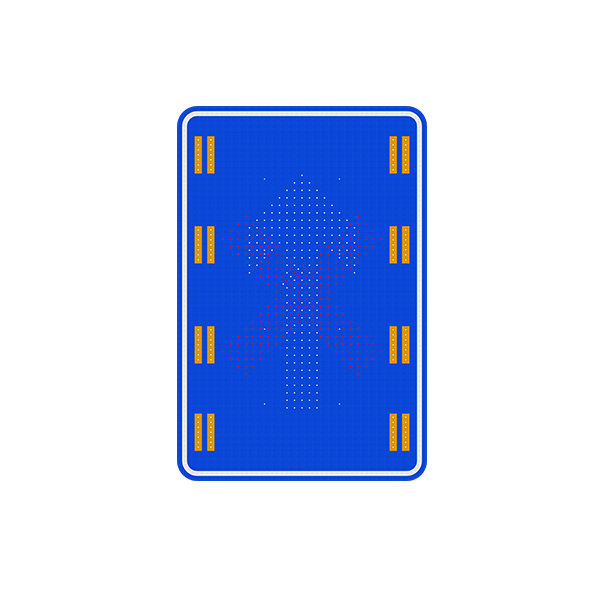

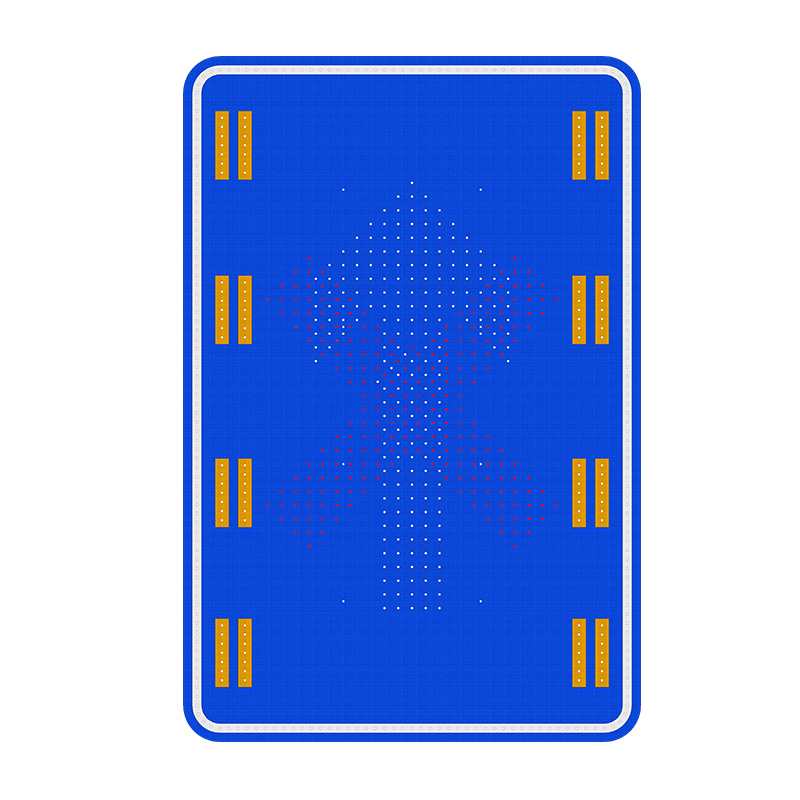

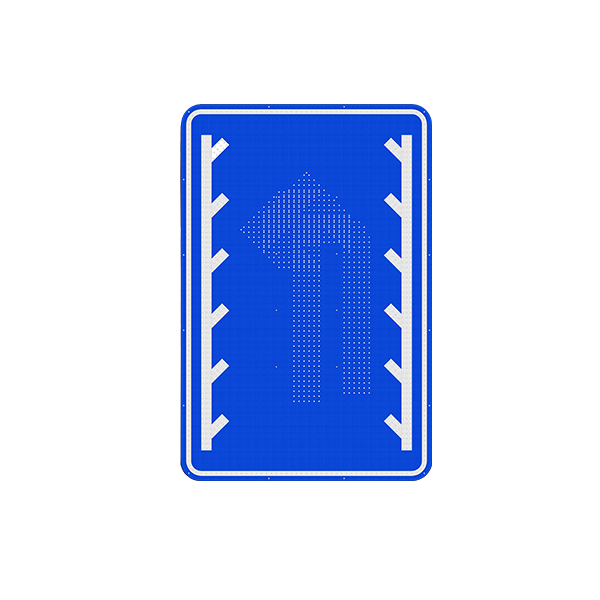

Lane Control Sign
-
Model:
Lane control signs are intelligent traffic facilities that, based on the layout of ground markings, dynamically switch the direction arrows or traffic status to achieve real-time regulation of lane functions. This equipment is mainly applicable to urban main roads, tidal lanes, and other sections where traffic flow has significant time-of-day characteristics. With its flexible and variable indication function, it significantly enhances the flexibility of road resource utilization and the refinement level of traffic control, achieving innovative traffic management in both "time" and "space" dimensions. As a terminal display device, it can also integrate vehicle flow detection and intelligent release analysis systems, supporting adaptive control of intersection traffic, further enhancing traffic operation efficiency.
Overview
Product Introduction:
Lane control signs are intelligent traffic facilities that, based on the layout of ground markings, dynamically switch the direction arrows or traffic status to achieve real-time regulation of lane functions. This equipment is mainly applicable to urban main roads, tidal lanes, and other sections where traffic flow has significant time-of-day characteristics. With its flexible and variable indication function, it significantly enhances the flexibility of road resource utilization and the refinement level of traffic control, achieving innovative traffic management in both "time" and "space" dimensions. As a terminal display device, it can also integrate vehicle flow detection and intelligent release analysis systems, supporting adaptive control of intersection traffic, further enhancing traffic operation efficiency.
Add the to your project
Functional Features
Fine-grained access control improves traffic efficiencyEnables dynamic lane management, boosting road resource use and traffic flow.- Intelligent adaptation regulates traffic dynamicallyIntegrates with signal systems to automatically optimize release strategies based on real-time traffic volume.
- Active lighting ensures clear visibilityArrows, text, and borders emit light, improving visibility at night and in poor weather.
- Customizable modes for flexible operationSupports multiple display and operation settings to meet varying intersection needs.
At a glance

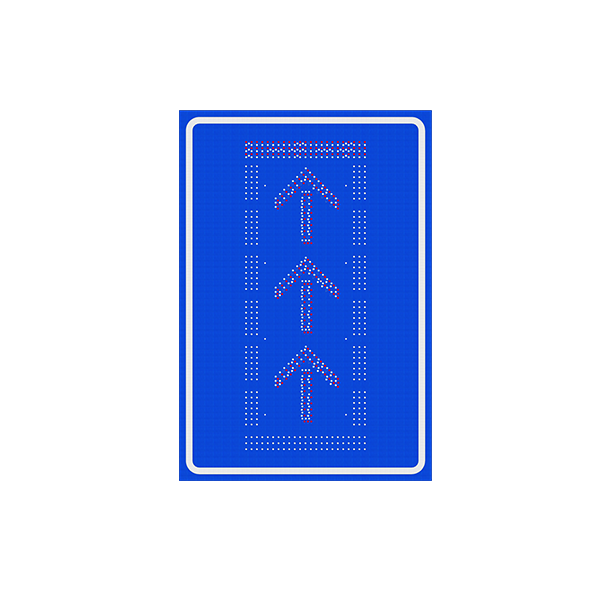

| Name | Variable lane sign | Tidal lane sign |
| Product size | 1000 x 1500 mm | 1000 x 1500 mm |
| Material | T = 2mm aluminum plate + 1.2mm galvanized sheet | T = 2mm aluminum plate + 1.2mm galvanized sheet |
| Power supply method | AC176-264V/47-63Hz | AC176-264V/47-63Hz |
| Rated power | ≤ 30 W | ≤ 30 W |
| Reflective material | 3M reflective sheeting type IV | 3M reflective sheeting type IV |
| Luminous unit spacing | Minimum spacing > 5mm; maximum spacing < 35mm | Minimum spacing > 5mm; maximum spacing < 35mm |
| Light control function | The border lines/ lane lines are off during the day and on at night. The arrow has three levels of brightness adjustment: 100%, 75%, and 50%. | The border lines/ lane lines are off during the day and on at night. The arrows/ red crosses have three levels of brightness adjustment: 100%, 75%, and 50%. |
| Luminance | Daytime mode ≥ 8000 cd/m²; (Automatic dimming) Nighttime mode ≤ 3000 cd/m² | Daytime mode ≥ 8000 cd/m²; (Automatic dimming) Nighttime mode ≤ 3000 cd/m² |
| Luminance uniformity | ≥ 90% | ≥ 90% |
| Beam angle | 30° | 30° |
| Viewing angle | Horizontal viewing angle ≥ 120°, vertical viewing angle ≥ 60° | Horizontal viewing angle ≥ 120°, vertical viewing angle ≥ 60° |
| Visual range | ≥ 800 meters (nighttime); ≥ 250 meters (daytime) | ≥ 800 meters (nighttime); ≥ 250 meters (daytime) |
| Electric strength | 1500 VAC/1 min | 1500 VAC/1 min |
| Workplace temperature | -25 ℃-70 ℃ | -25 ℃ - 70 ℃ |
| Relative humidity | 0~95% RH | 0~95%RH |
| Protection level | IP55, the LED part adopts potting processes. | IP55, the LED part adopts potting processes. |
| Wind resistance | ≥ 1.5 kN/m² | ≥ 1.5 kN/m² |
| Control mode | Controlled by signal machine | Controlled by signal machine or equipped with an independent control box |

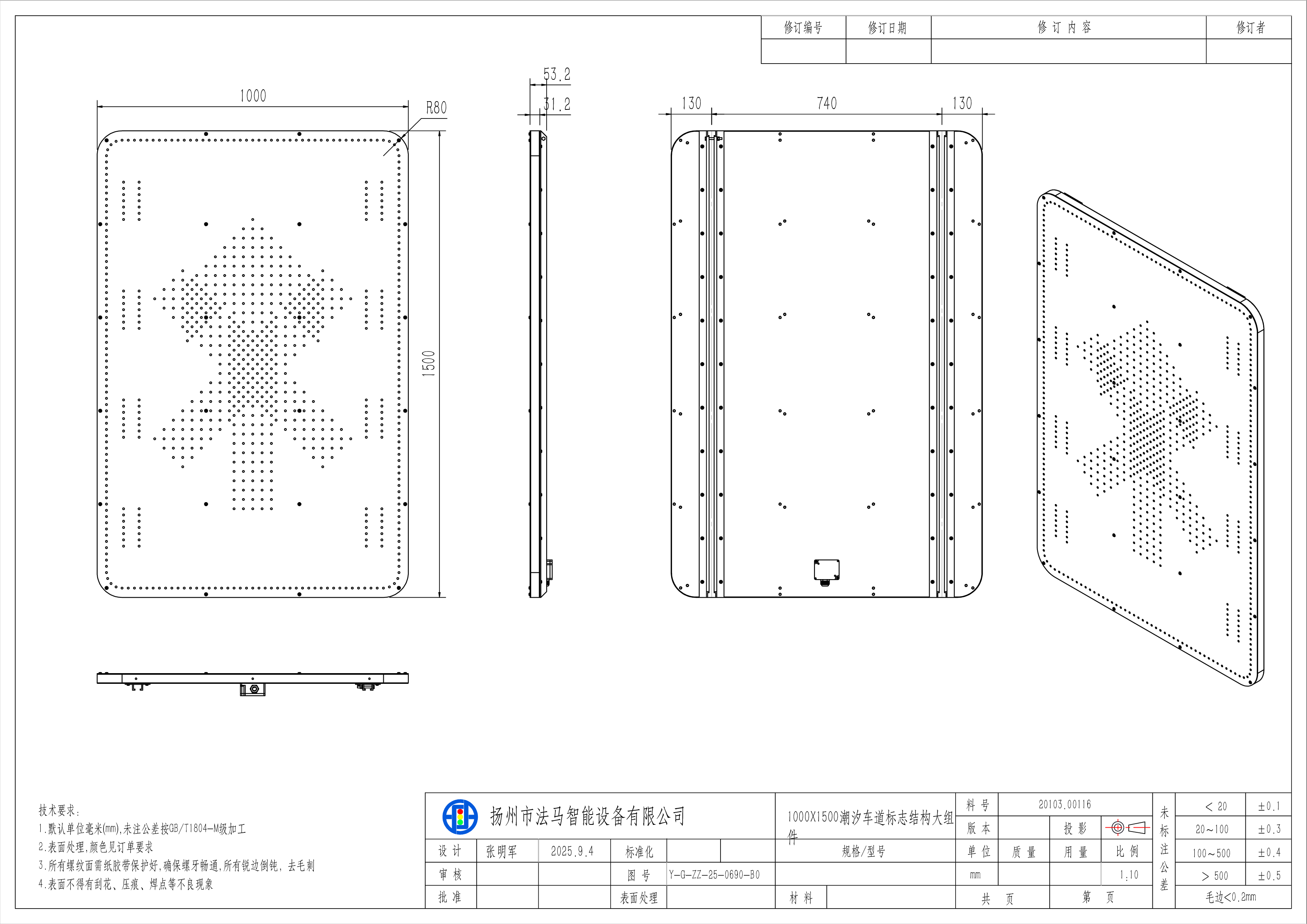

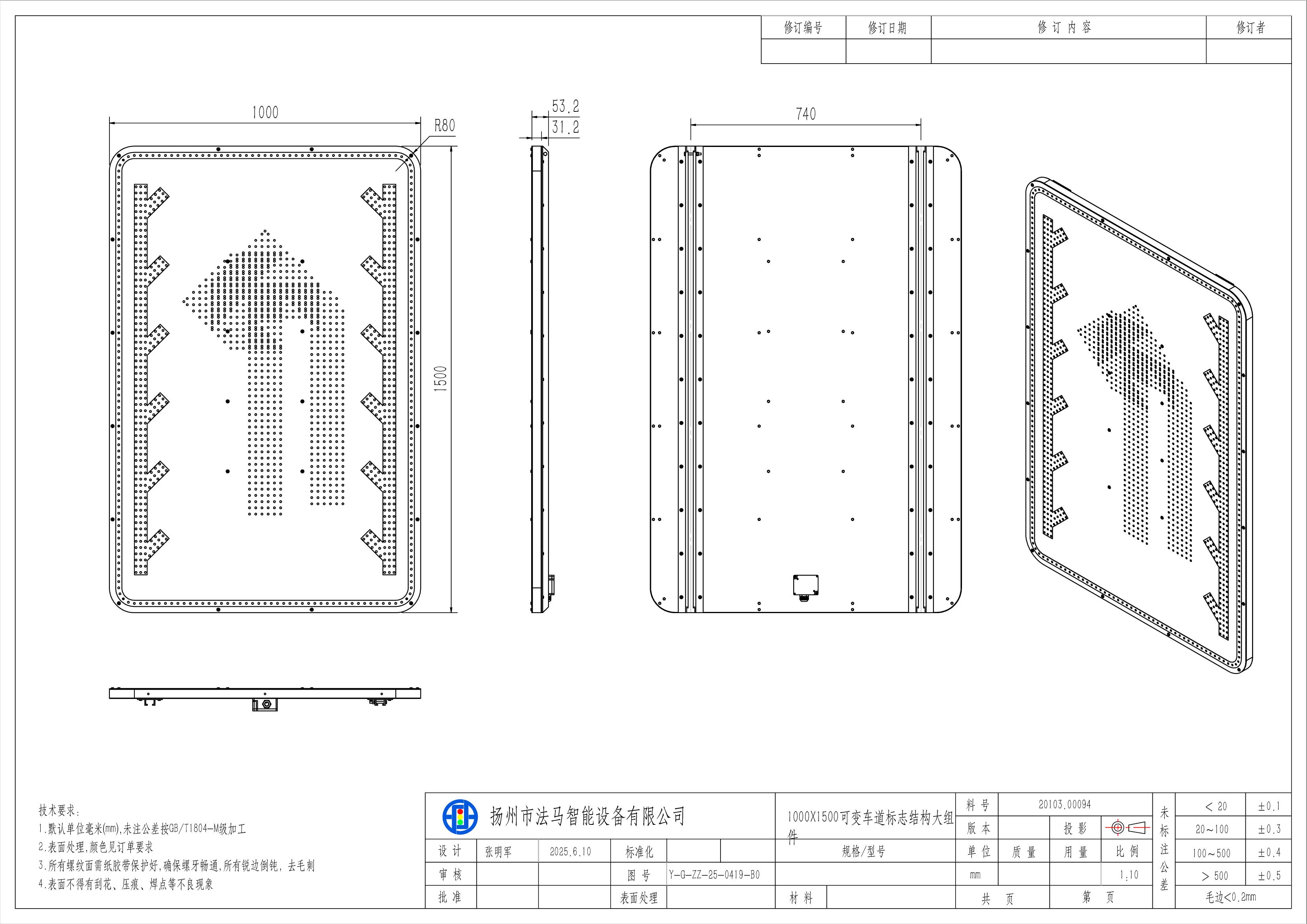

Structural Components
