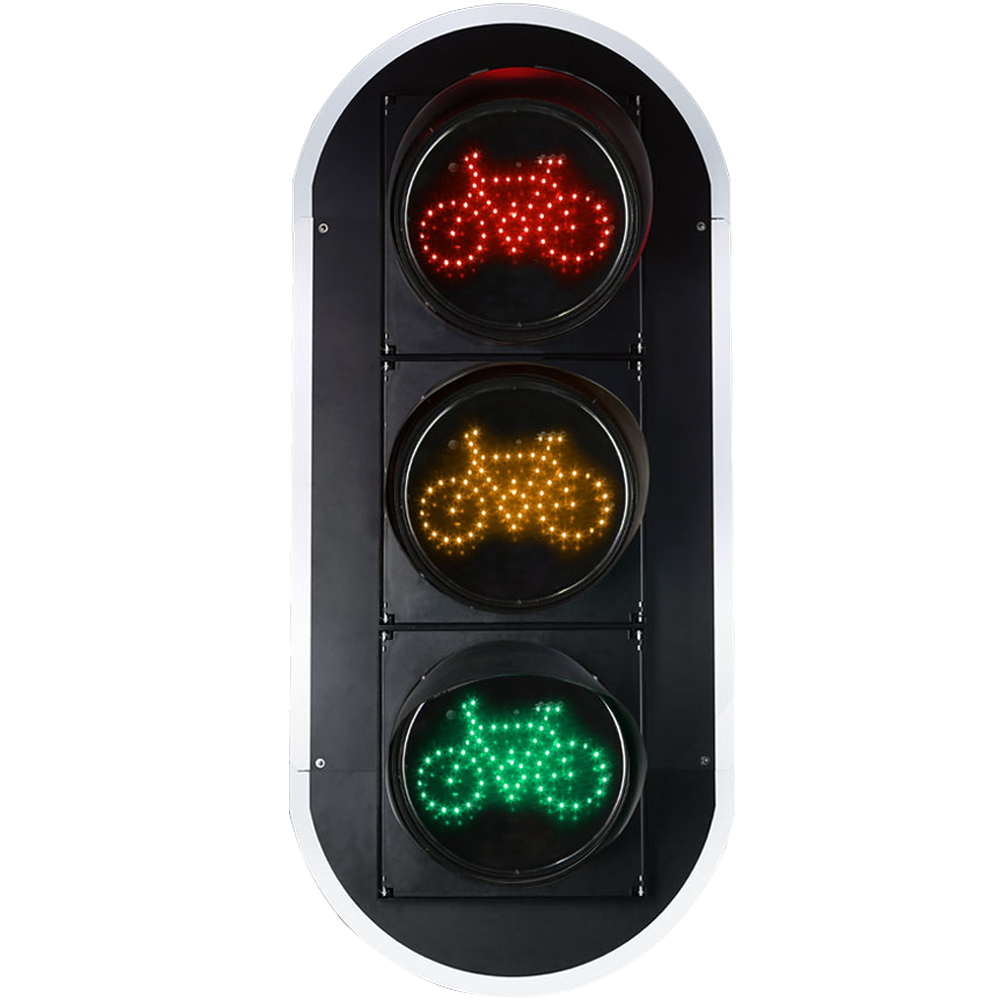

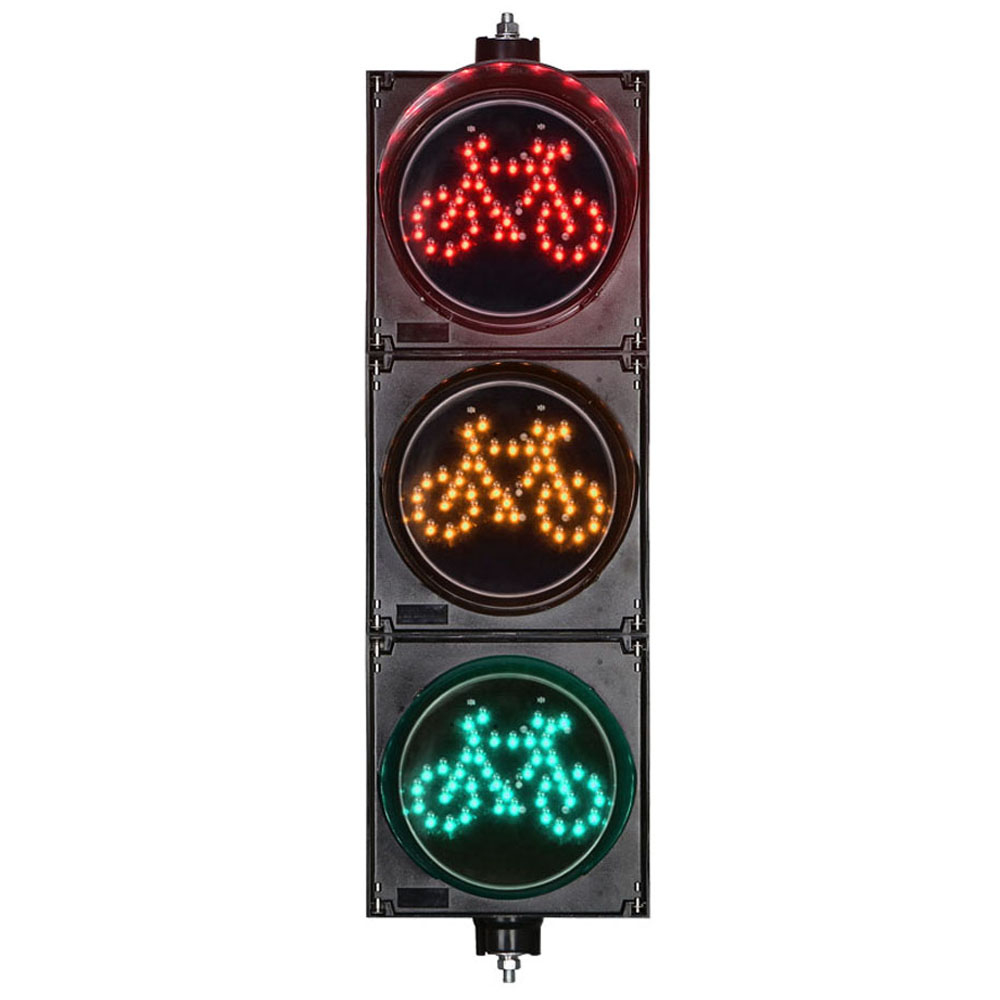

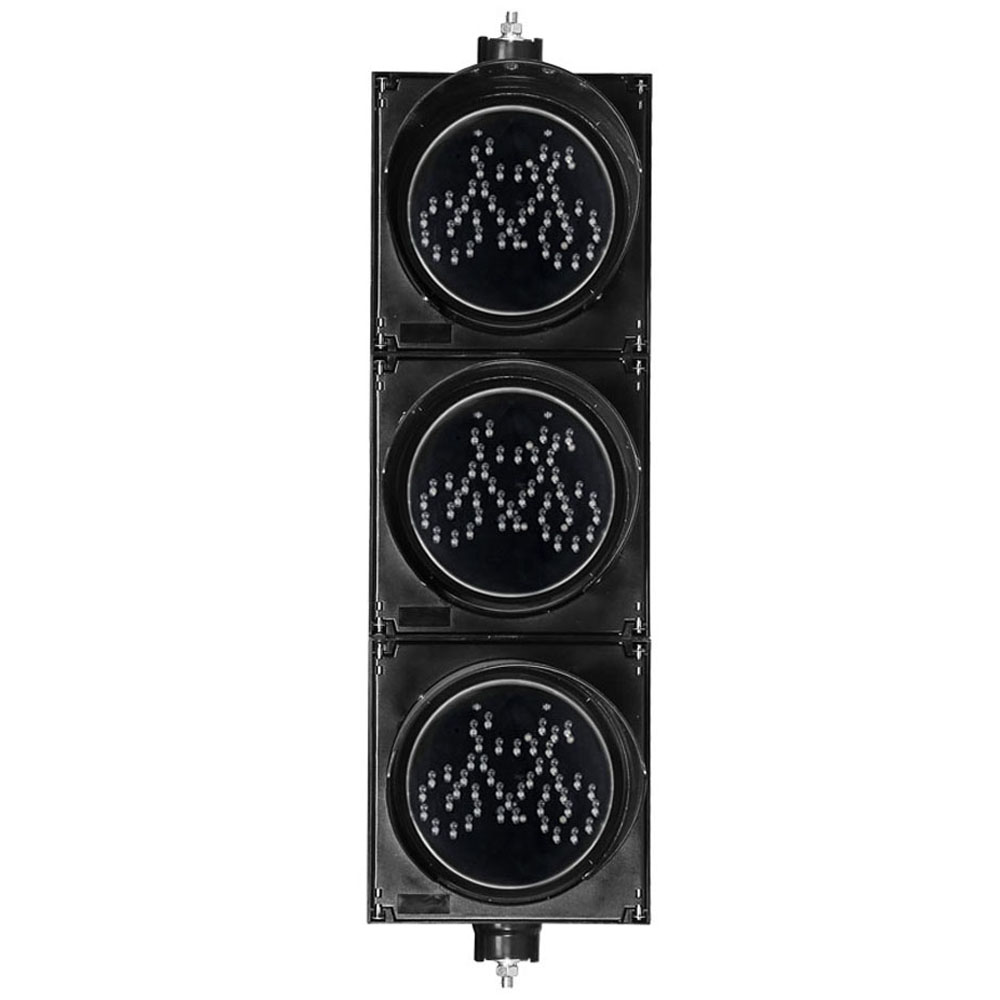

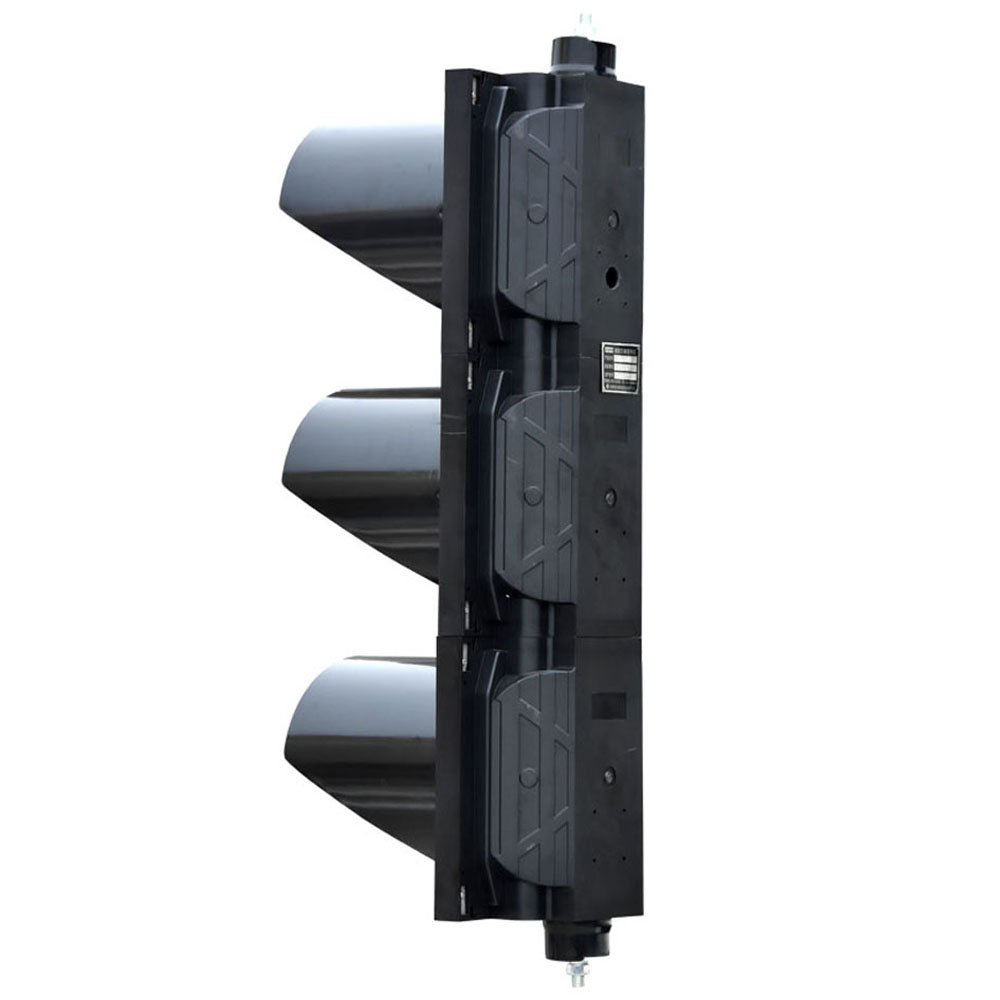

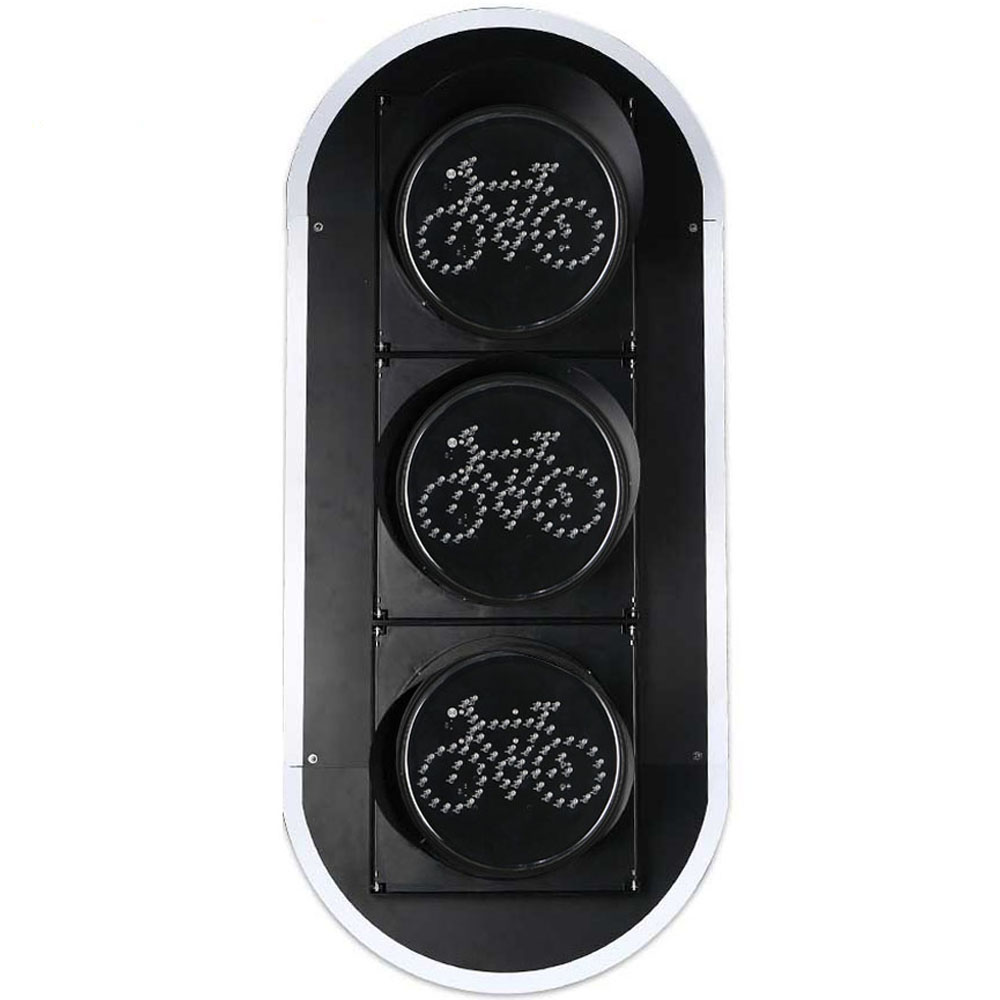

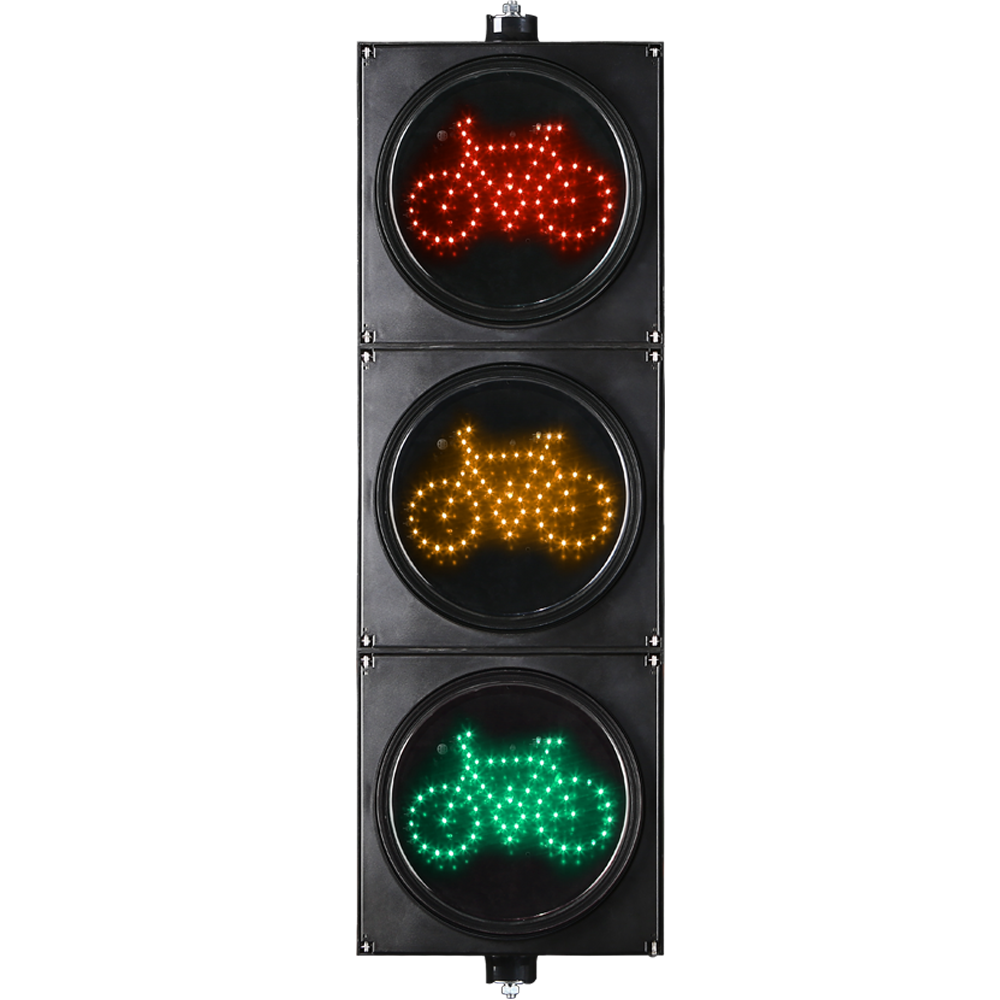

Low Power Bicycle Traffic Light
-

Model:

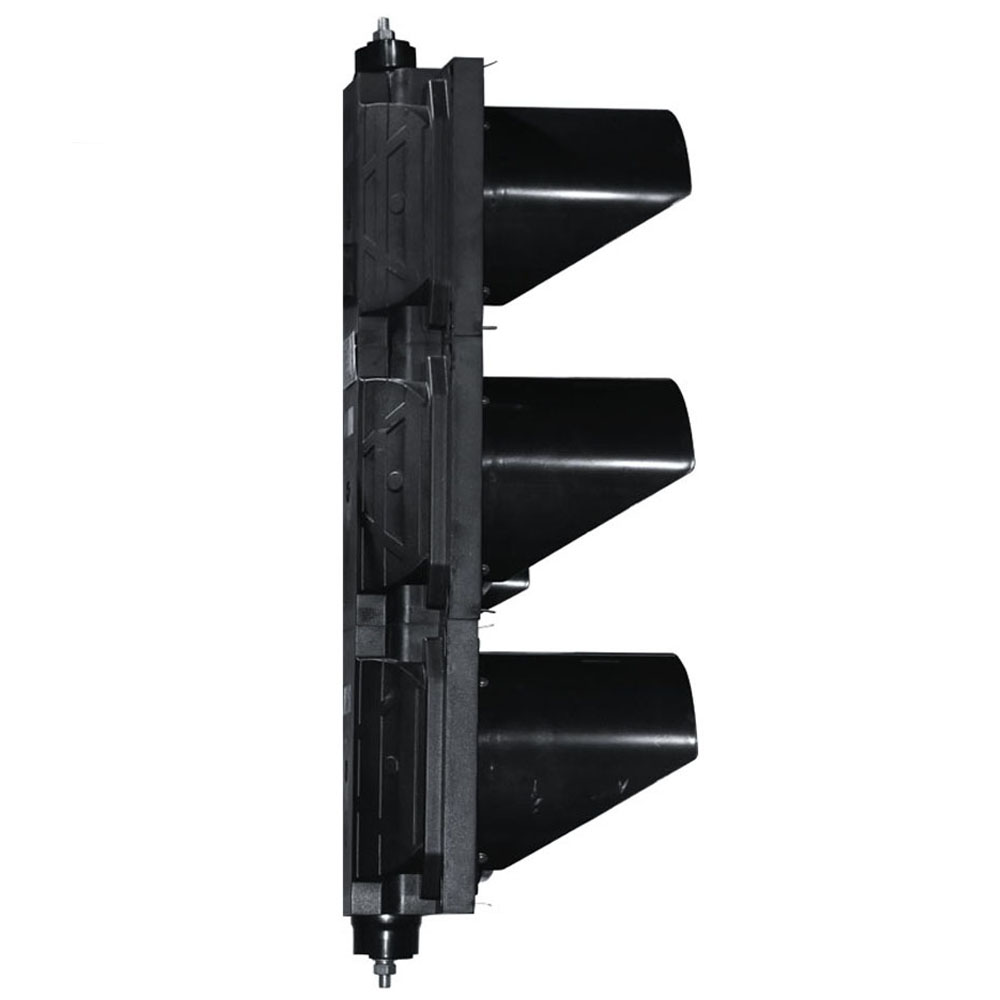

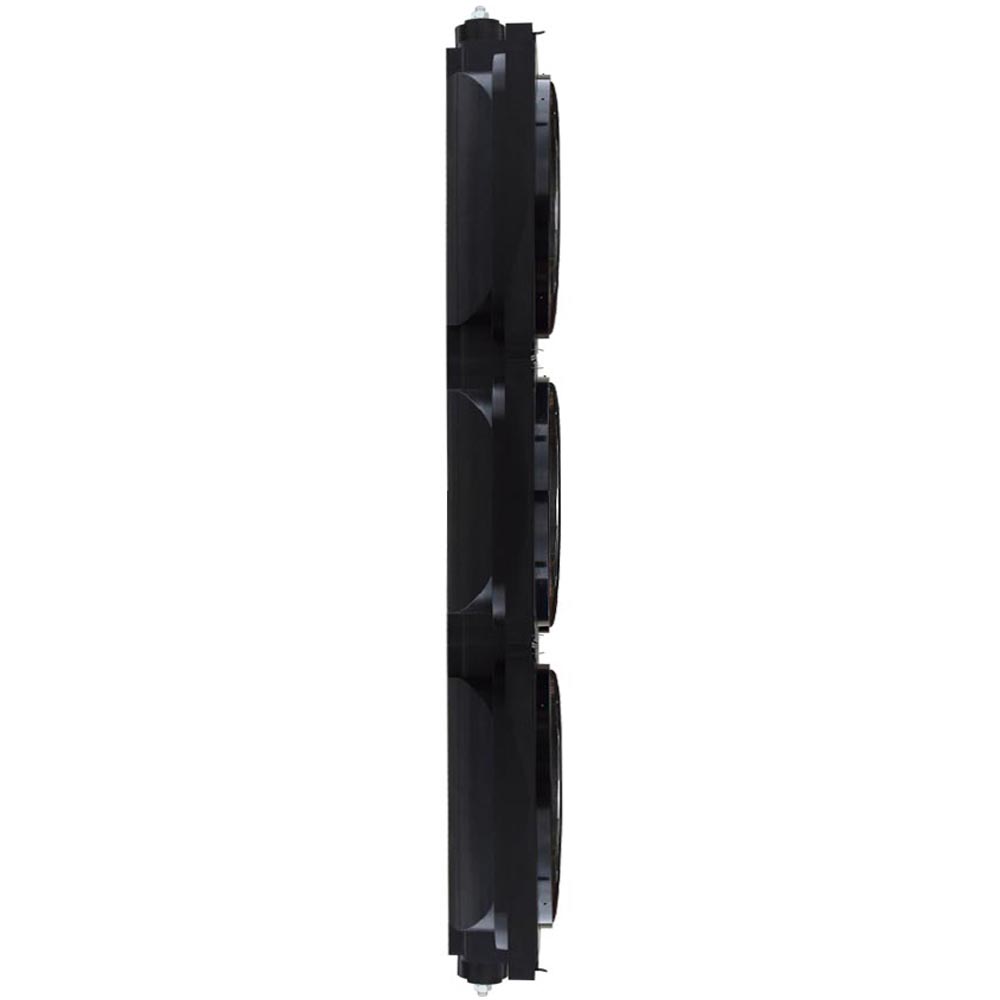

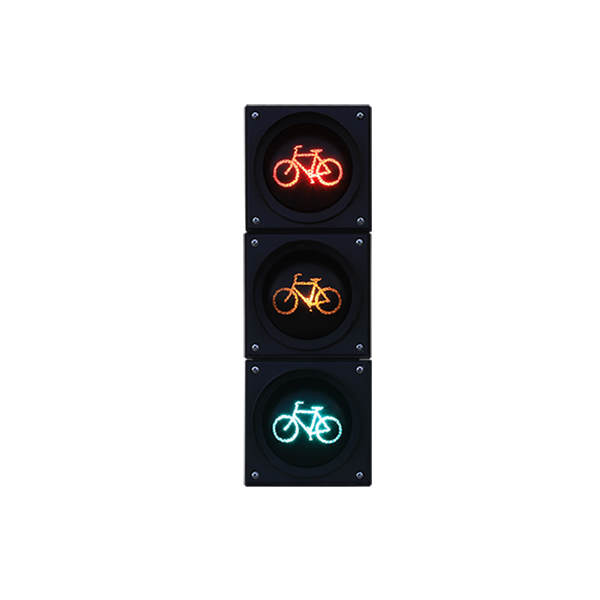

The Low Power Bicycle Traffic Light is a three-unit assembly. The lamp core consists of the lamp board, lens, power supply, and lamp bowl. It is designed for use in traffic signal control at intersections designated for bicycle lanes.
  • Low Power Bicycle Traffic Light
  • Low Power Bicycle Traffic Light
  • Low Power Bicycle Traffic Light
  • Low Power Bicycle Traffic Light
  • Low Power Bicycle Traffic Light
  • Low Power Bicycle Traffic Light
  • Low Power Bicycle Traffic Light
  • Low Power Bicycle Traffic Light
  • Low Power Bicycle Traffic Light
Overview

Product Introduction:

The Low Power Bicycle Traffic Light is a three-unit assembly. The lamp core consists of  the lamp board, lens, power supply, and lamp bowl. It is designed for use in traffic signal control at intersections designated for bicycle lanes.


Add the to your project
Functional Features

Product Selling Points:

1. Mesh circuit design ensures stable product operation:

The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.

2. European standard power supply, more energy-efficient and environmentally friendly:

It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.

3. Constant current drive design, with long service life and low maintenance:

It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.

4. Excellent electromagnetic compatibility, enhancing device stability:

It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.


Product ModelFJ200-3-FM31FJ300-3-FM31
Light-Emitting Surface (LES)  Size200mm300mm
Housing MaterialPolycarbonate housingAluminum housing/
Polycarbonate housing
Housing MaterialTransparentTransparent
Visorsφ208x175mm780x361x0.6mm
Shape of  LESRoundRound
Operating Voltage/FrequencyAC:85~264V/47-63HzAC:85~264V/47-63Hz
LED QuantityR/Y/G:45 PcsR/Y/G:66 Pcs
LED WavelengthRed: 625 ± 5 nm
 Yellow: 590 ± 5 nm
 Green: 505 ± 5 nm
Red: 625 ± 5 nm
 Yellow: 590 ± 5 nm
 Green: 505 ± 5 nm
LED Lifespan≥100,000 hours≥100,000 hours
Operating Temperature-40℃ to +80℃-40℃ to +80℃
Relative Humidity≤97%RH≤97%RH
Lamp Power Consumption Red bicycle ≤ 5 W
 Yellow bicycle ≤ 5 W
 Green bicycle ≤ 5 W
 Red bicycle ≤ 8 W
 Yellow bicycle ≤ 8 W
 Green bicycle ≤ 8 W
Protection GradeIP55IP55
Visual Distance≥300m≥300m
Packaging Specifications1 piece per box, Size: 96.5 × 35.5 × 27cm, Weight:6.3 ± 0.5 KG1 piece per box, Size: 121.5 × 38.6 × 18 cm, Weight: 11.5 ± 0.5 KG

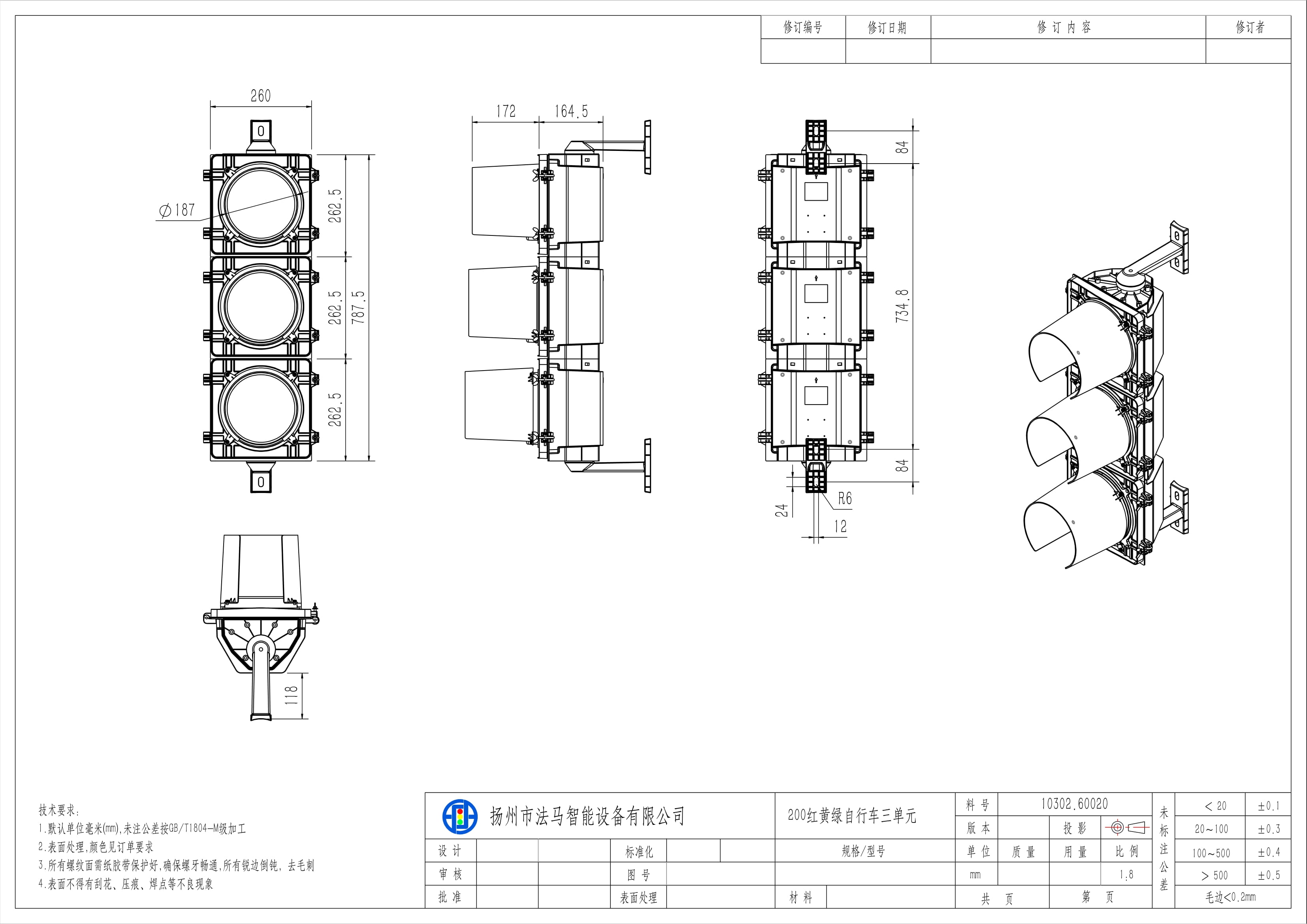

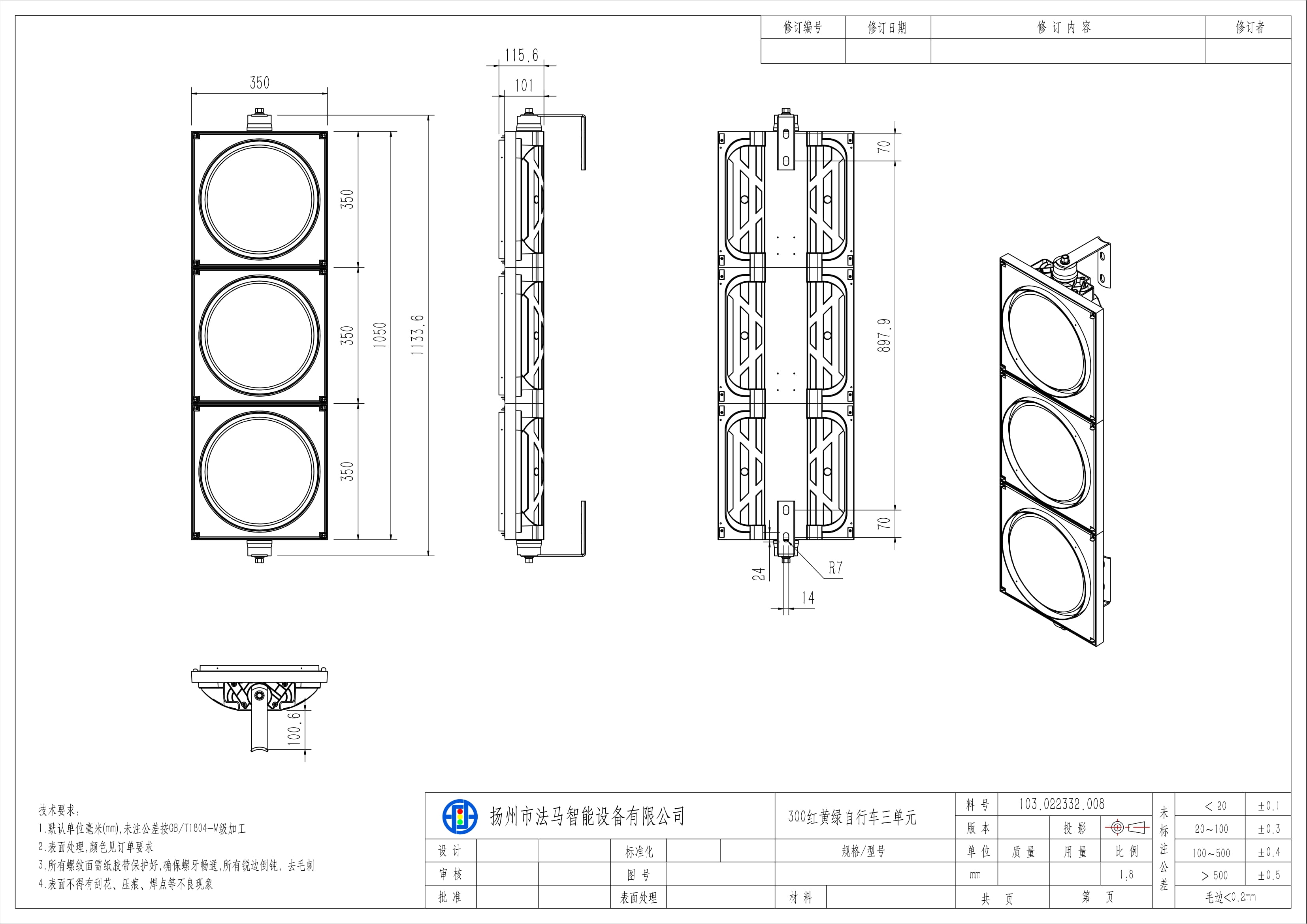

Structural Components
