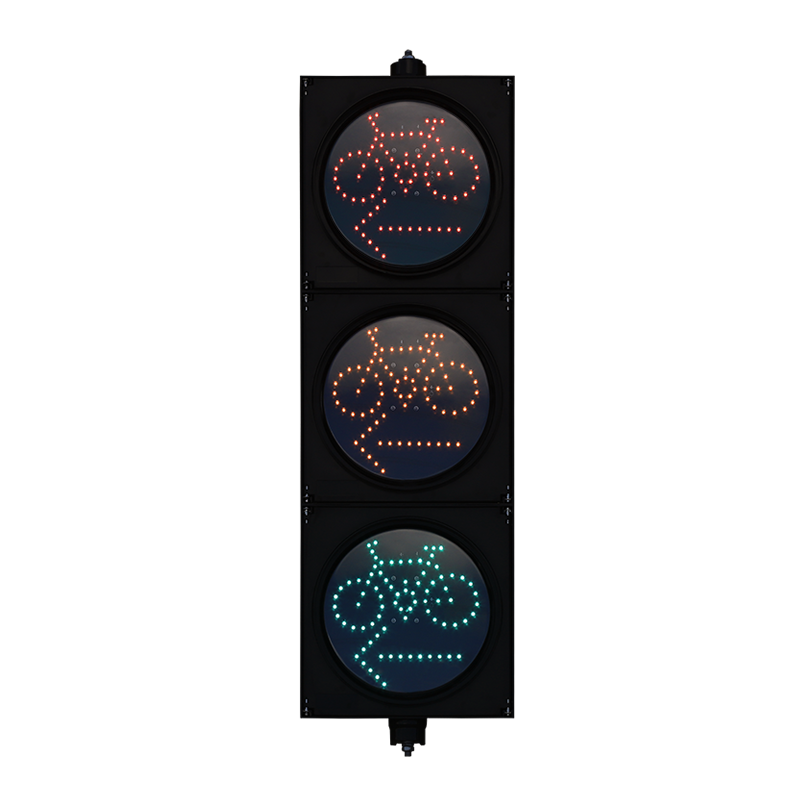

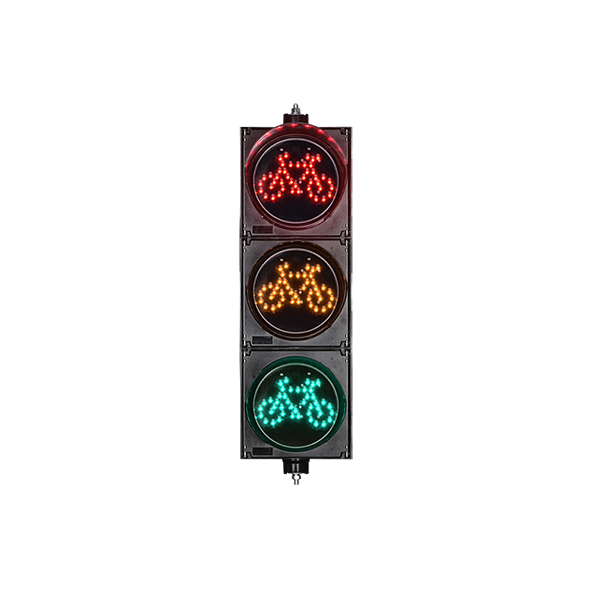

Low Power Bicycle & Arrow Traffic Light
Read more

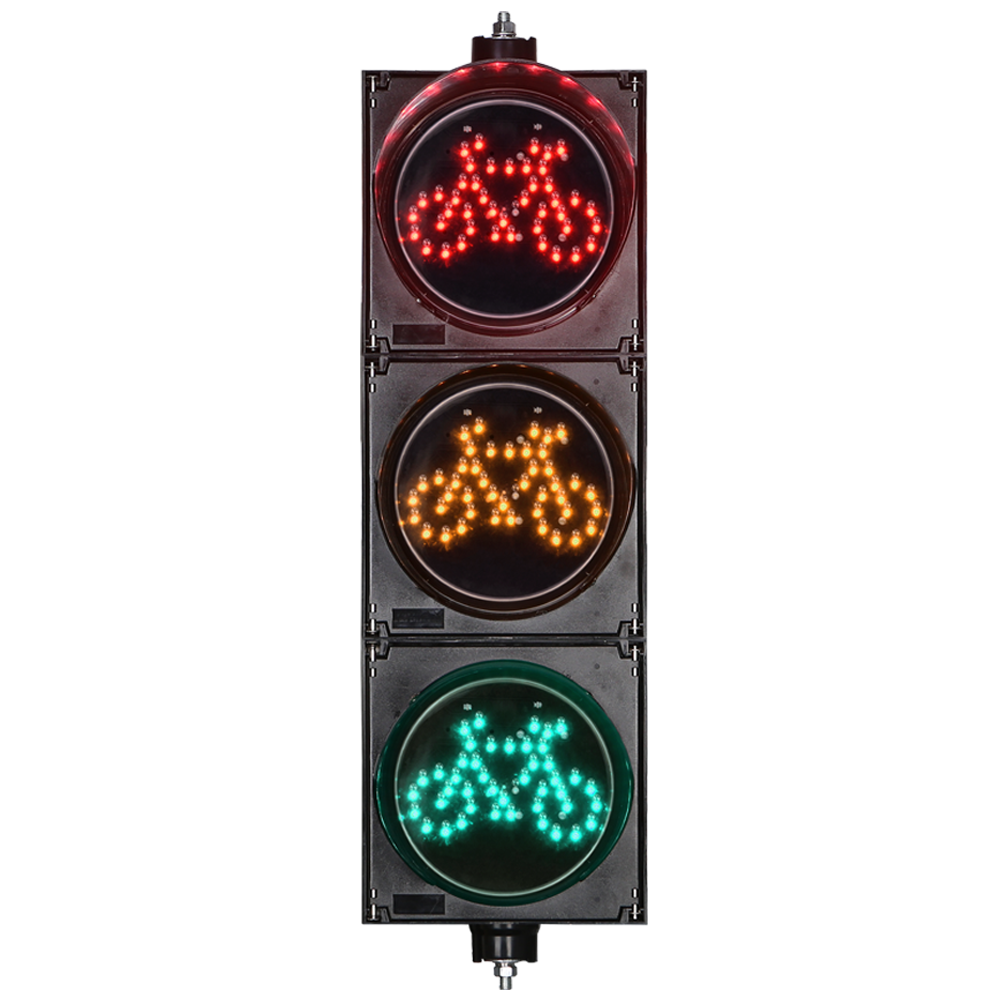

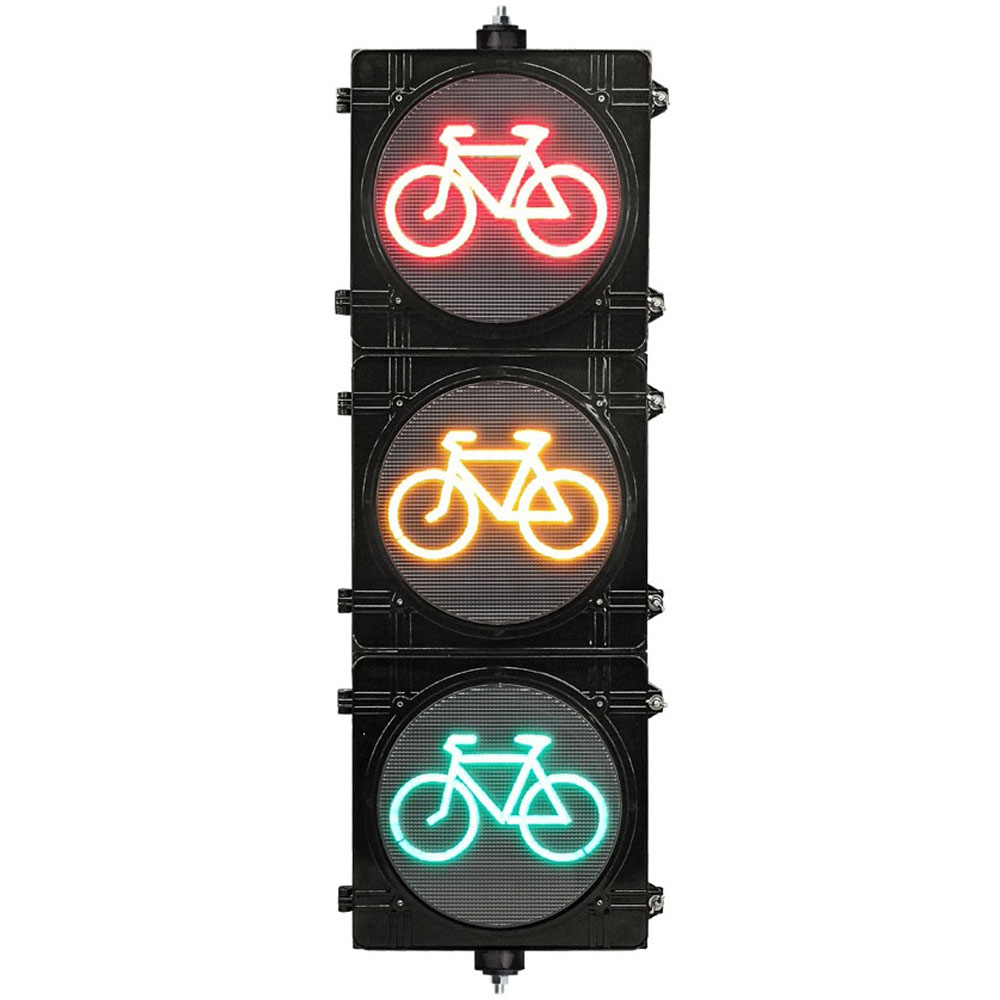

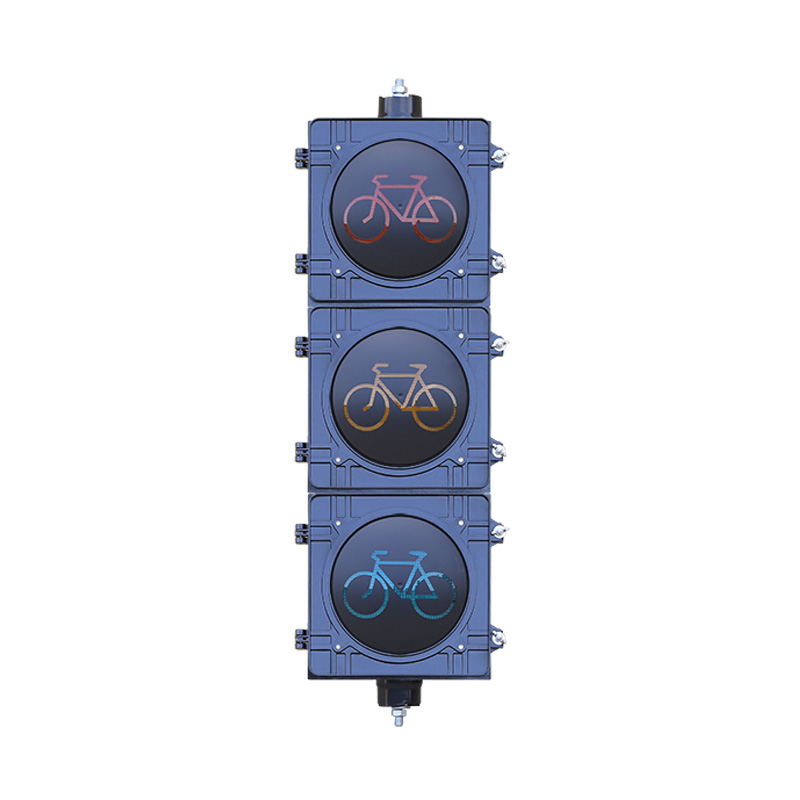

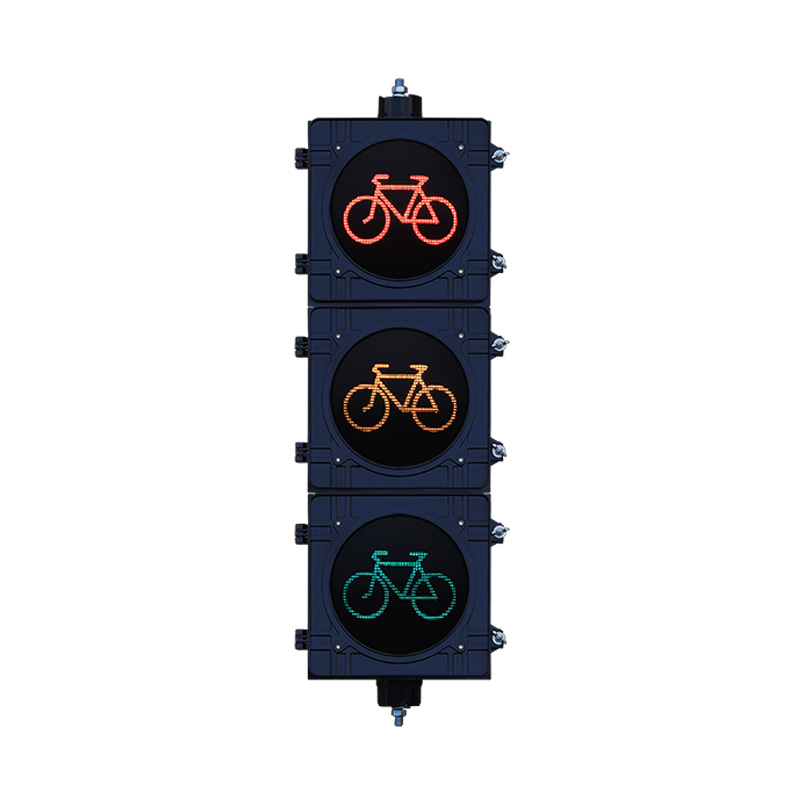

High Flux Bicycle Traffic Light
-
Model:
The High Flux Bicycle Traffic Light is a three-unit assembly. The lamp core consists of large-sized light sources, a three-layer optical lens system, power modules, a lamp bowl, and external heat dissipation components.
Overview
Product Introduction:
The High Flux Bicycle Traffic Light is a three-unit assembly. The lamp core consists of large-sized light sources, a three-layer optical lens system, power modules, a lamp bowl, and external heat dissipation components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It is applicable to traffic signal-controlled intersections designated for bicycle lanes.
Add the to your project
Functional Features
Product Selling Points:
1. Three-layer optical processing - Eliminating glare and reducing light pollution
The high flux full ball traffic light adopts triple optical processing technologies including secondary lens, Fresnel lens and optical mask to achieve uniform surface lighting and output light patterns that comply with international standards. It effectively eliminates glare caused by direct emission from conventional point light sources, thereby significantly mitigating light pollution.
2. Three core technologies – Effectively extending service life
Through the integrated application of external heat dissipation technology to improve heat dissipation efficiency, wide-voltage and high-surge-protection (AC 90–264V / 4000V) constant-current power supply technology to ensure stable system operation, and large-sized LED chips featuring low light attenuation and high luminous efficiency, these three core technologies collectively ensure the product's exceptional reliability and an extended service life.
At a glance
| Product Model | FJ100-3-FM35 | FJ200-3-FM35 | FJ300-3-FM35 |
| Light-Emitting Surface (LES) Size | 100 | 200 | 300 |
| Housing Material | Aluminum housing/ Polycarbonate housing | Polycarbonate housing | Polycarbonate housing |
| Mask Color | Transparent | Coloured | Coloured |
| Visors | φ129.5x47mm | φ208x175mm | φ293x200mm |
| Shape of LES | Round | Round | Round |
| Operating Voltage/Frequency | AC：85~264V/47-63Hz | AC：85~264V/47-63Hz | AC：85~264V/47-63Hz |
| LED Quantity | R/Y/G：1 Pcs | R/Y/G：2 Pcs | R/Y/G：4 Pcs |
| LED Wavelength | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm | Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤97%RH | ≤97%RH | ≤97%RH |
| Lamp Power Consumption | Red bicycle ≤ 3.2 W Yellow bicycle ≤ 3.2 W Green bicycle ≤ 3.2 W | Red bicycle ≤ 6.3 W Yellow bicycle ≤ 6.3 W Green bicycle ≤ 5.5 W | Red bicycle ≤ 10 W Yellow bicycle ≤ 13 W Green bicycle ≤ 13 W |
| Protection Grade | IP65 | IP65 | IP65 |
| Visual Distance | ≥300m | ≥300m | ≥300m |
| Packaging Specifications | 1 piece per box, Size: 65 × 22 × 26 cm, Weight: 3.1 ± 0.5 kg | 1 piece per box, Size: 96.5 × 35.5 × 27 cm, Weight: 5.75 ± 0.5 KG | 1 piece per box, Size: 120 × 40.8 × 28.8 cm, Weight: 12.5 ± 0.5 KG |

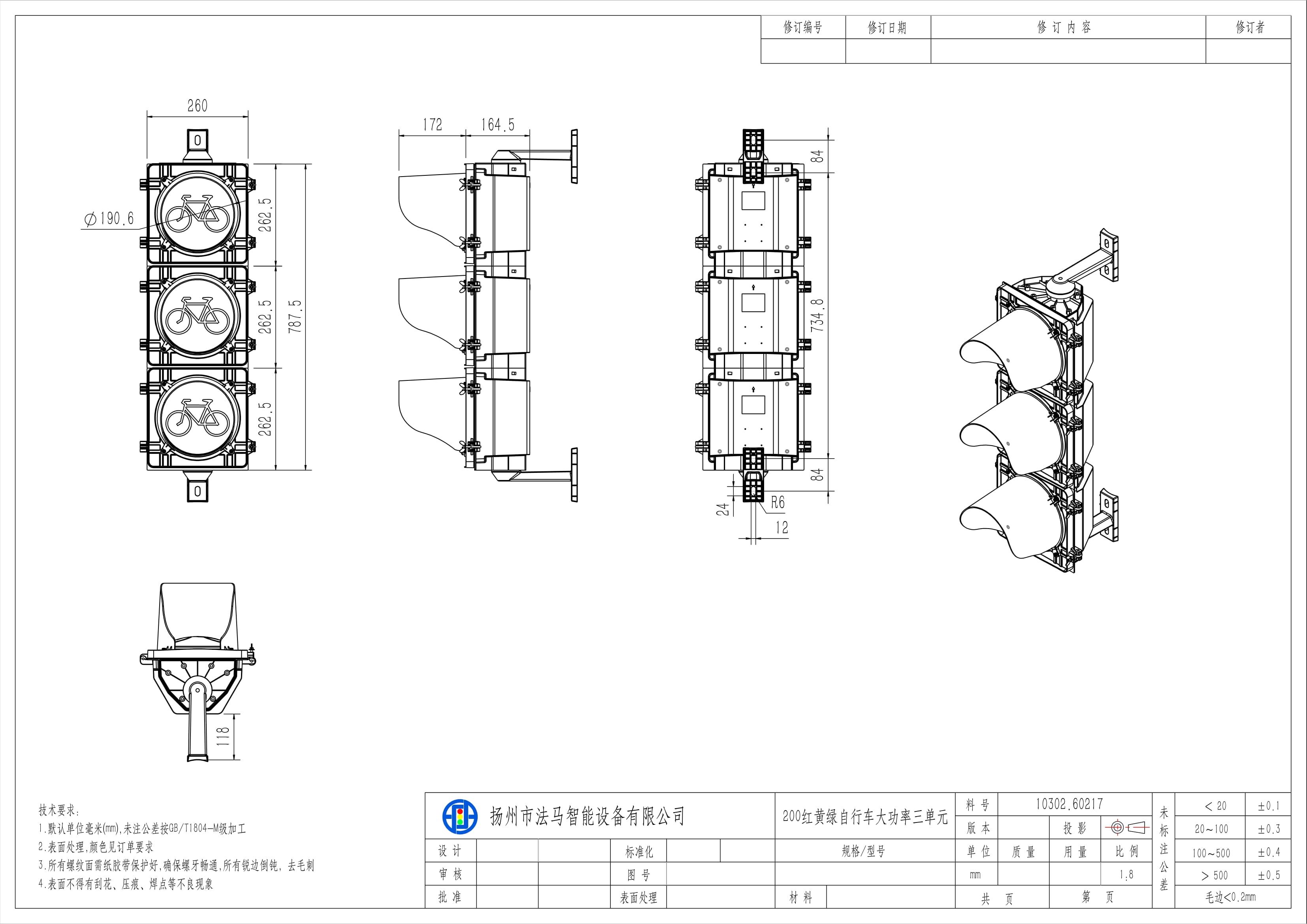

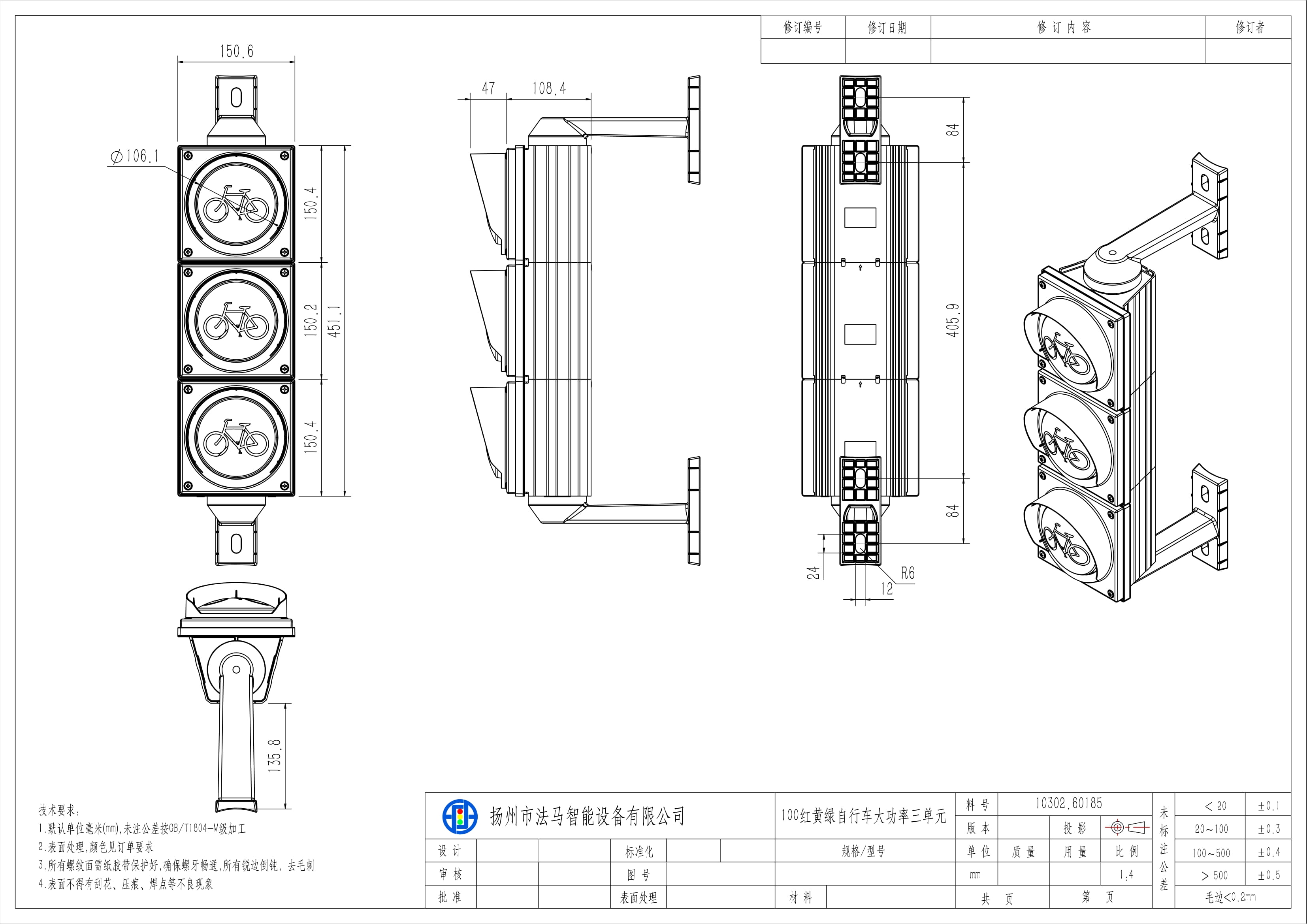

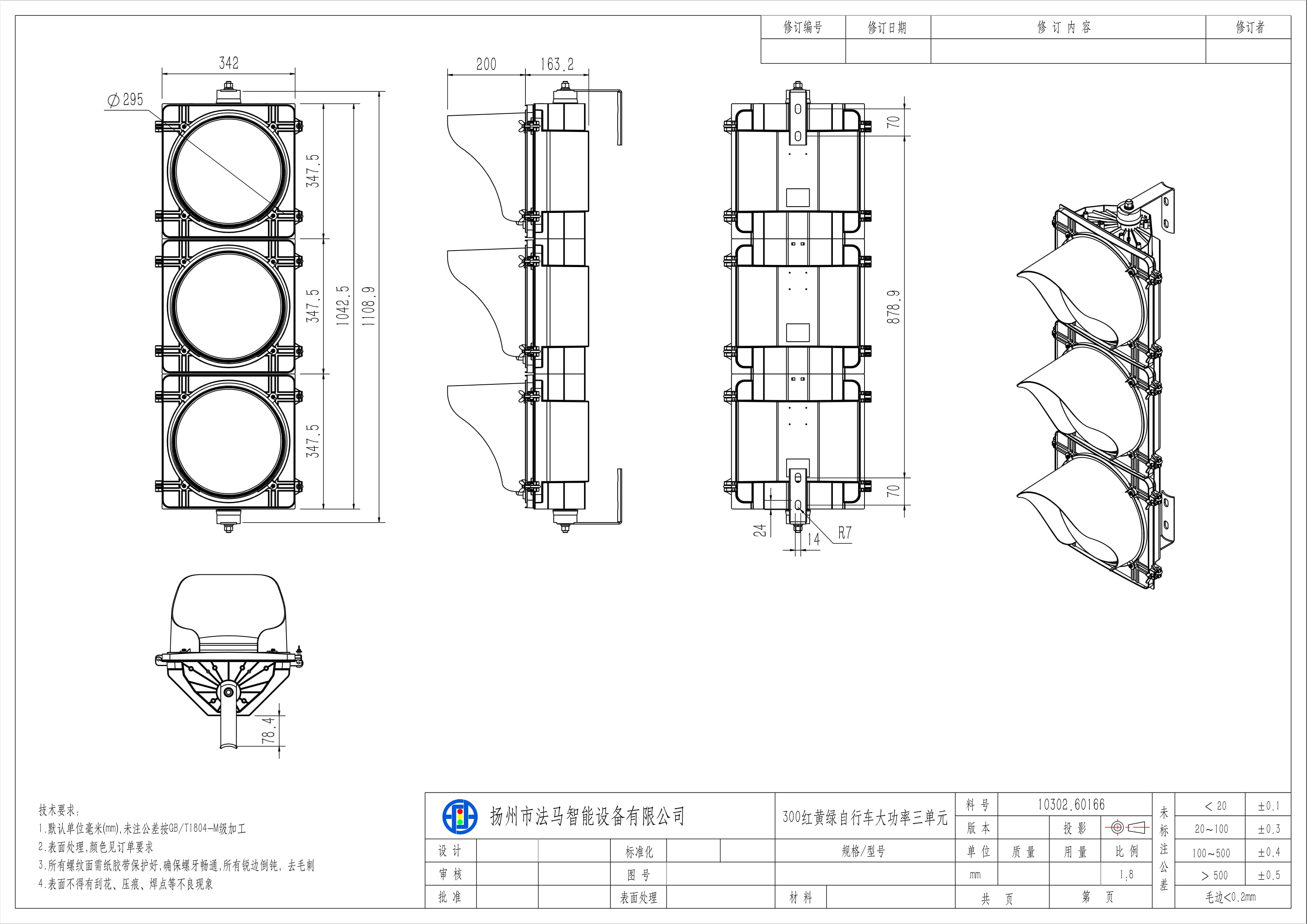

Structural Components
