How an Induction Type Pedestrian Crossing Push Button Improves Accessibility, Signal Integration and Maintenance at Urban Intersections

Introduction

Traditional mechanical pedestrian push buttons provide a straightforward way for people to request a crossing phase, but a single mechanical interface may not meet every user's needs. Pedestrians with visual impairments may require audible guidance, while busy intersections can benefit from clearer visual feedback and configurable sound levels. For traffic authorities and system integrators, equipment compatibility and on-site commissioning are equally important, particularly when upgrading existing intersections without replacing the entire signal control system.

An Induction Type Pedestrian Crossing Push Button addresses these requirements by combining touchless sensing, mechanical operation, countdown display, pedestrian symbols and audible prompts in one device. Rather than treating each function as a separate roadside installation, the integrated design brings several pedestrian interaction features together in a single unit.

For municipal traffic departments, road infrastructure contractors and traffic equipment distributors evaluating a pedestrian crossing button for sale, the key question is how these functions fit the intended intersection, existing controller and local accessibility requirements. FAMA's KH-AN-FM02 provides a practical reference for evaluating these technical considerations.

1. Five-in-One Integration: More Ways for Pedestrians to Request a Crossing

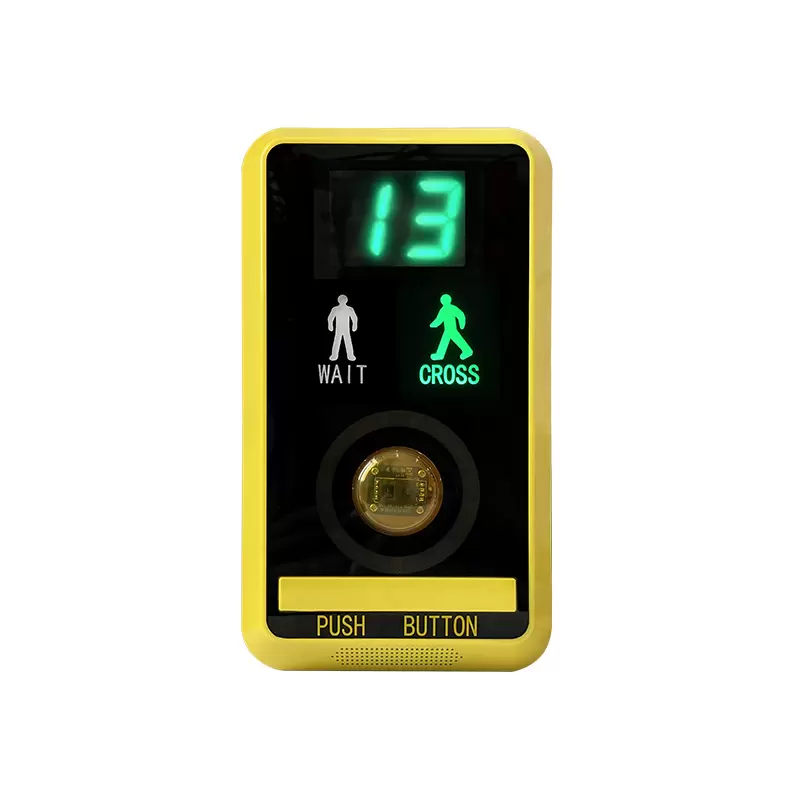

The KH-AN-FM02 integrates five functions: countdown display, audible pedestrian signals, a mechanical push button, touchless sensing and pedestrian pattern display. Each serves a different operational purpose, and their value depends on how the intersection is configured.

Touchless Sensing and Mechanical Button Operation

Touchless sensing provides an alternative to physical button operation. This can be useful at crossings where pedestrians prefer not to touch a shared surface. The mechanical button remains available for users who prefer a conventional, direct interaction method.

Offering both operating modes gives traffic authorities more flexibility when selecting an interface for public spaces. However, sensing distance, response time and activation thresholds should be confirmed through product testing rather than assumed from the presence of induction technology alone.

The device also needs to be configured so that a valid pedestrian request is recognized by the traffic signal controller. The push button initiates a request; it does not independently determine when vehicles must stop or when pedestrians may cross.

Countdown Display and Pedestrian Symbols

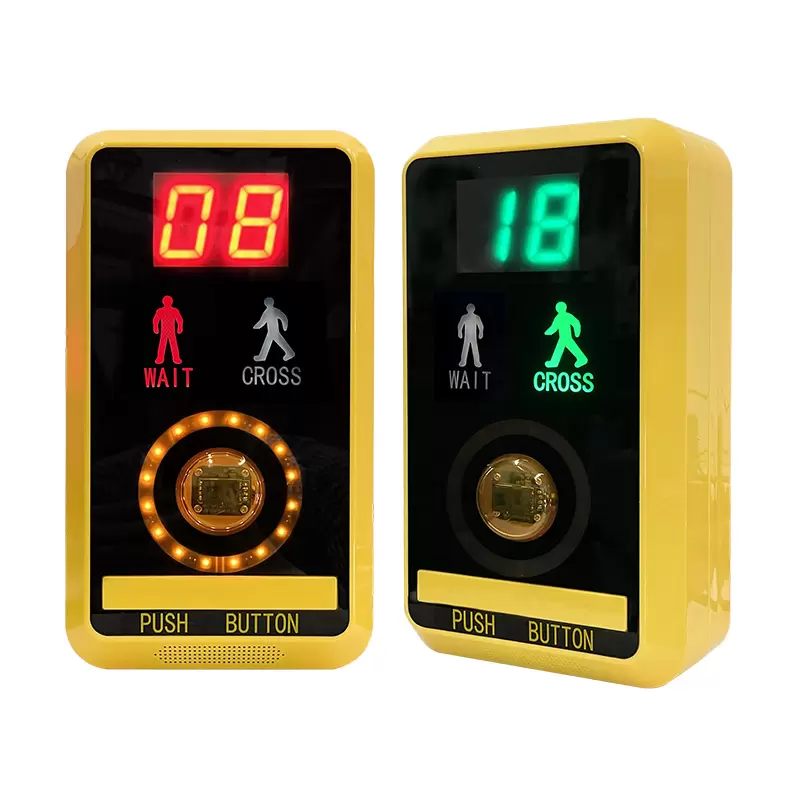

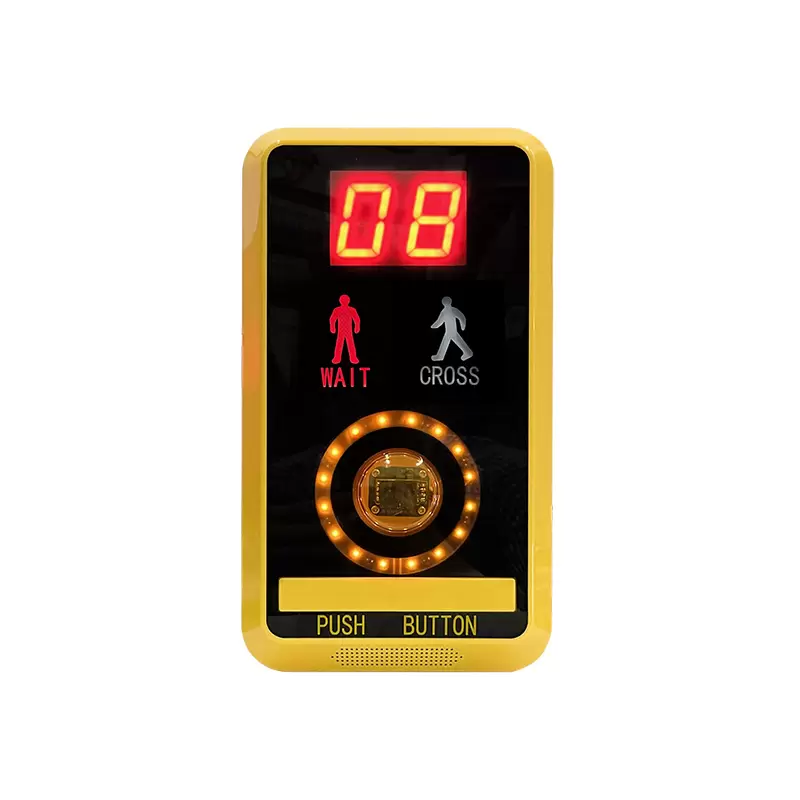

Visual information is another important part of the five-in-one design. The KH-AN-FM02 supports red and green countdown displays, a red pedestrian waiting pattern, a green pedestrian pattern, and a flashing yellow indication when the button is activated.

These indications help communicate different stages of the pedestrian interaction. The activation indication can provide feedback that a request has been registered, while the pedestrian symbols communicate the displayed crossing status.

Countdown operation requires particular attention during integration. The device supports learning, trigger, communication and compatible modes, and its countdown communication protocol is specified as compliant with GA/T 508-2014. The appropriate mode depends on the controller architecture and the available signal information. Countdown behavior should be verified during commissioning to ensure that the display corresponds to the actual signal sequence.

Audible Guidance for Pedestrians with Visual Impairments

The integrated audible pedestrian signal adds an audio channel to the visual interface. This can help pedestrians who cannot rely on illuminated symbols alone to obtain information about the crossing.

The KH-AN-FM02 has a configurable volume range of 0–90 dB and supports time-based configuration of audio volume and voice prompts. This allows project teams to define different settings for daytime and nighttime operation or adapt announcements to the needs of industrial and commercial districts.

For example, a busy commercial street may require audible information that remains distinguishable amid surrounding activity. A quieter residential road may need a lower setting during nighttime hours to limit unnecessary disturbance. The appropriate levels must be determined through on-site assessment and applicable local requirements.

Bluetooth connectivity and a mobile application allow language and broadcast content to be customized. This is useful for projects serving multilingual communities or deploying the same product configuration across different regions. Computer software is also available for debugging.

The five-in-one design therefore consolidates several interaction functions without requiring every feature to be implemented as a separate roadside device. Whether this reduces installation or maintenance costs in a particular project depends on the existing infrastructure, wiring arrangements and maintenance procedures.

2. Outdoor Specifications and Traffic Controller Compatibility

An integrated interface is only useful if its electrical and environmental characteristics match the installation site. Procurement teams should evaluate the following KH-AN-FM02 specifications alongside the project's technical requirements.

Power Supply, Enclosure and Environmental Conditions

The AC 85–264 V input range provides flexibility for projects with different compatible AC supply arrangements. Nevertheless, engineers should verify the actual site voltage, frequency, protection devices and wiring requirements before installation.

The polycarbonate housing and IP55 protection rating are relevant when assessing an outdoor installation. IP55 indicates protection against dust ingress at the specified level and water jets under defined test conditions; it does not mean that the device is waterproof under every condition. Mounting orientation, cable entry, sealing and exposure to standing water should still be considered.

The specified operating temperature range of −40°C to +80°C provides a reference for assessing installations exposed to substantial temperature variation. Project teams should also check the complete installation environment, including solar heating, enclosure exposure and the environmental limits of connected equipment.

With power consumption specified at no more than 2.4 W, the device's electrical load can be included in the project's power budget. Actual system consumption should account for the wider installation rather than treating the button's rating as the total energy demand of the crossing.

The stated service life of at least 100,000 cycles is a product specification, not a guarantee of a fixed number of years in service. Buyers should clarify the test conditions and which mechanical component or operating cycle the rating covers.

RS-485, Operating Modes and Controller Integration

Compatibility is one of the most important considerations when purchasing a pedestrian crossing button. The KH-AN-FM02 uses an RS-485 communication interface and supports standard switch signal output. FAMA describes the product as compatible with mainstream domestic and international signal controllers, but actual compatibility must be confirmed for the specific project.

The product supports learning, triggering and communication operating modes, with intelligent automatic switching described in its product information. Its countdown function additionally lists learning, trigger, communication and compatible modes.

These modes provide alternative approaches to obtaining or processing the information needed for countdown operation. Their practical suitability depends on the controller's output signals, communication protocol and configuration. They should not be interpreted as proof that every controller can use every mode without additional configuration.

Before ordering, the integrator should confirm the controller manufacturer and model, electrical input and output requirements, RS-485 communication settings, supported protocol and required countdown behavior. Bench testing or a site acceptance test is advisable when replacing legacy equipment or combining devices from different manufacturers.

3. Choosing a Pedestrian Crossing Button for Different Road Environments

A reliable selection process starts with the intersection's operating requirements, not simply the product's feature list.

Urban Road Upgrades and New Crossings

For an existing urban intersection, the first priority is determining whether the new device can work with the installed signal controller and available power supply. The dimensions of 240 × 136 × 87.6 mm should also be checked against the mounting pole, installation height, cable entry and pedestrian approach space.

For new crossings, engineers have greater flexibility to plan the button location, power distribution, controller interfaces and accessibility features together. The five-in-one design may simplify the physical arrangement by consolidating multiple interaction functions, although the actual installation scope must be assessed for each project.

Commercial Districts and Industrial Parks

Commercial districts often experience changes in pedestrian volume throughout the day. Time-based voice and volume configuration can help align audible output with changing ambient conditions. Language selection may also matter in locations serving international visitors.

Industrial parks present a different set of considerations. Ambient noise, shift changes, vehicle movements and exposure to dust or water can affect how the device should be positioned and configured. Although the KH-AN-FM02 specifies IP55 protection and a wide operating temperature range, its suitability should still be assessed against the site's actual environmental conditions.

In both settings, configuration should be tested during the periods when the crossing is expected to operate. An acceptable daytime audio setting may not be appropriate at night, and a setting suitable for a quiet test area may be difficult to hear in a noisy industrial environment.

Accessibility Upgrades

When upgrading facilities for pedestrians with visual impairments, buyers should evaluate audible prompts, visual indications, activation feedback and the physical accessibility of the installed device as a complete system.

An audible signal is a useful feature, but its presence alone does not establish compliance with a particular accessible pedestrian signal standard. The project team should verify applicable local requirements, including sound patterns, volume limits, installation position and the relationship between audible indications and pedestrian signal phases.

FAMA's project case studies provide a starting point for understanding its wider traffic infrastructure work. Relevant examples include the Chengdu Pedestrian Integrated Traffic Signal project. Buyers should review each case's documented scope before treating it as evidence of a specific push-button deployment.

4. Procurement Checklist: What Buyers Should Verify Before Ordering

When evaluating a pedestrian crossing button for sale, procurement teams should compare more than the purchase price.

First, confirm whether both touchless sensing and mechanical operation are required, and determine how each mode registers a pedestrian request. Second, verify the controller interface, electrical specifications and countdown communication requirements. Third, assess the enclosure rating, temperature range, mounting arrangement and cable protection against the installation environment.

Commissioning requirements also deserve attention. The KH-AN-FM02 supports Bluetooth, a mobile application and computer software for debugging. These options provide alternative configuration methods, but buyers should confirm which settings can be adjusted through each tool, whether access permissions are required and what diagnostic information is available to maintenance personnel.

For long-term maintenance, request documentation covering wiring, configuration, troubleshooting, spare parts and warranty terms. The stated cycle-life specification is useful for technical comparison, but it should be evaluated alongside the actual test basis, operating conditions and the manufacturer's support arrangements.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

Yangzhou FAMA Intelligent Equipment Co., Ltd. provides integrated intelligent transportation solutions spanning smart signal control, traffic safety and multifunctional smart poles. Its broader portfolio can be explored through the FAMA product catalogue. For projects involving both pedestrian interaction equipment and signal control infrastructure, buyers can assess the relevant products together while confirming their technical interfaces individually.

Frequently Asked Questions

What is an induction type pedestrian crossing push button?

It is a pedestrian request device that combines touchless sensing with a conventional mechanical button. The KH-AN-FM02 also integrates countdown display, audible pedestrian guidance and pedestrian symbols in one unit.

How does a touchless pedestrian crossing button work?

A pedestrian activates the sensing interface, which registers a crossing request for the connected traffic signal system. The controller determines how that request is handled within its programmed signal sequence. The exact sensing principle and activation performance should be confirmed from the manufacturer's technical documentation and test results.

How do I choose a reliable pedestrian crossing button for sale?

Compare the operating modes, controller compatibility, communication interface, power supply, protection rating, temperature range, service-life specification and available commissioning support. Verify the requirements against the actual intersection before placing an order.

How can I confirm compatibility with an existing traffic signal controller?

Provide the controller manufacturer and model to the supplier, then verify electrical interfaces, RS-485 settings, communication protocols and countdown operation. Test the complete arrangement before deployment, especially when integrating equipment from different manufacturers.

How do audible prompts and countdown displays support different pedestrians?

Audible prompts provide an additional information channel for people who cannot rely on visual indications alone, while countdowns and pedestrian symbols provide visual information. Language, voice content and volume can be configured for different operating periods. The final arrangement should be checked against local accessibility standards and the needs of the intended users.

Conclusion

Selecting an induction-type pedestrian crossing push button requires a balance between user interaction, accessibility, environmental suitability and traffic controller integration. The KH-AN-FM02 combines five pedestrian interface functions with RS-485 communication, configurable audible output, multiple debugging options and a defined set of electrical and environmental specifications.

For municipal authorities, system integrators and infrastructure contractors, the next step is to match these specifications to the existing controller, installation conditions and local accessibility requirements. Reviewing the product details and relevant project documentation can help establish whether the device meets the technical requirements of a specific crossing before procurement and deployment.
