How a Coordinated Traffic Signal Controller and Traffic Signal Controller Cabinet Improve Intersection Reliability and Fault Management

Traffic signal infrastructure is expected to operate continuously, but many conventional systems still face practical limitations in power redundancy, surge protection, equipment monitoring, and fault diagnosis. A single power source can leave a controller vulnerable to supply interruptions. Lightning protection may depend on periodic manual inspection rather than continuous condition monitoring. At the same time, maintenance teams may have limited visibility into cabinet operating conditions, while conventional lamp fault detection can struggle to identify one failed lamp in a parallel circuit.

For traffic engineering contractors, road authorities, and intelligent transportation system integrators, these issues are not simply hardware concerns. They directly affect how quickly an intersection problem can be identified, diagnosed, and addressed. This is where the combination of a Coordinated Traffic Signal Controller and a properly integrated Traffic signal Controller cabinet becomes important.

The FM5000 Series Traffic Signal Controller from FAMA combines established signal control functions with modular architecture and several monitoring and protection technologies designed around these operational requirements. Its approach covers not only signal timing and coordination, but also power continuity, surge-event monitoring, real-time status visibility, and more precise lamp fault localization.

Coordinated Traffic Signal Controller: More Than Signal Timing

A coordinated controller needs to manage more than a fixed sequence of red, yellow, and green indications. At a complex intersection or along a coordinated corridor, the control system may need to respond to vehicle detection, pedestrian requests, emergency priority requirements, and different traffic plans throughout the day.

The FM5000 Series supports several established control functions, including inductive control, adaptive control, pedestrian crossing support, emergency priority, and multi-period schemes. These functions allow the controller to accommodate different traffic conditions and operational requirements without relying on a single fixed timing strategy. Its modular design also provides a structured architecture for integrating the controller's control and monitoring functions.

For example, a multi-period scheme can be used where traffic demand changes between different periods of the day. Pedestrian crossing functions can be incorporated when pedestrian movements must be considered alongside vehicle phases. Emergency priority provides a dedicated control function for situations where normal signal operation needs to accommodate priority requirements.

For procurement teams, the important consideration is therefore not simply whether a controller supports "smart traffic control." The more useful questions are how many signal channels and phases it can handle, what control modes it supports, how it communicates with external systems, and how the cabinet provides visibility into actual operating conditions.

The FM5000 model XHJ-CW-GA-FM5001, for example, supports up to 96 signal channels, with a standard configuration of 48 channels, and supports up to 32 control phases, with a default capacity of 16 phases. It uses a 32-bit processor with an embedded Linux operating system and provides two RJ45, three RS232, and one RS485 communication interface.

Dual power supply for continuous controller operation

Power continuity is another practical consideration for a controller expected to operate around the clock.

The FM5000 incorporates a dual power supply control system with an automatic alternation mechanism. According to FAMA's product specification, the system switches between the two power sources every 12 hours. If a power failure occurs, it switches to the backup supply while reporting the fault to the central platform in real time.

The value of this arrangement is not simply having two power sources. The controller combines power-source alternation, backup operation, and fault reporting into one operating mechanism. For a traffic management department, this can provide an additional layer of continuity when one supply becomes unavailable.

This is particularly relevant when evaluating a Traffic signal Controller cabinet for projects where access to the intersection for troubleshooting is inconvenient or where continuous controller operation is an important project requirement.

What Should Be Integrated into a Traffic Signal Controller Cabinet?

A traffic signal cabinet should be evaluated as an operating system rather than simply a metal enclosure containing a controller.

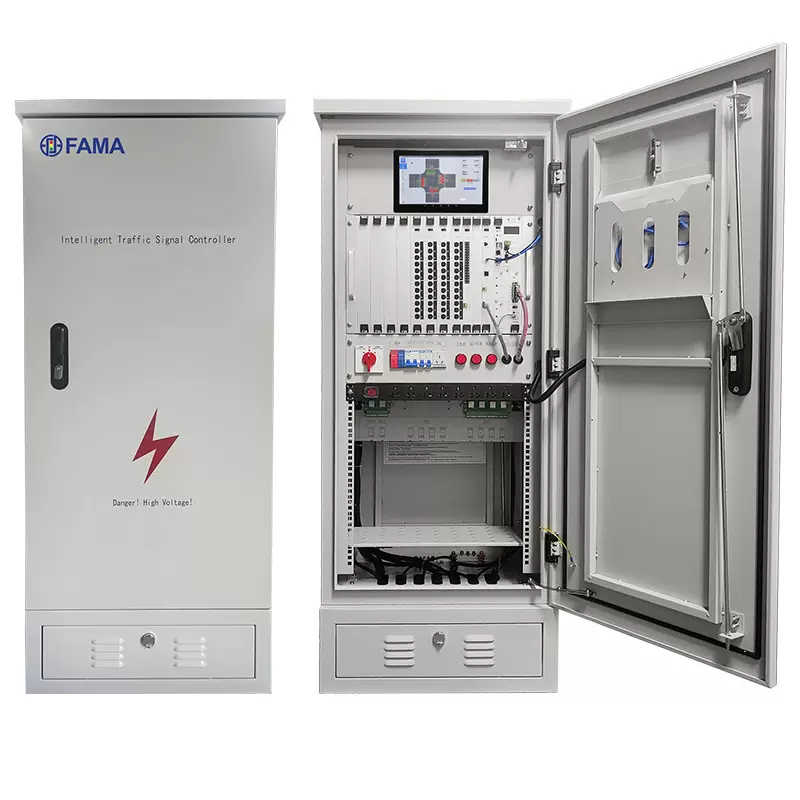

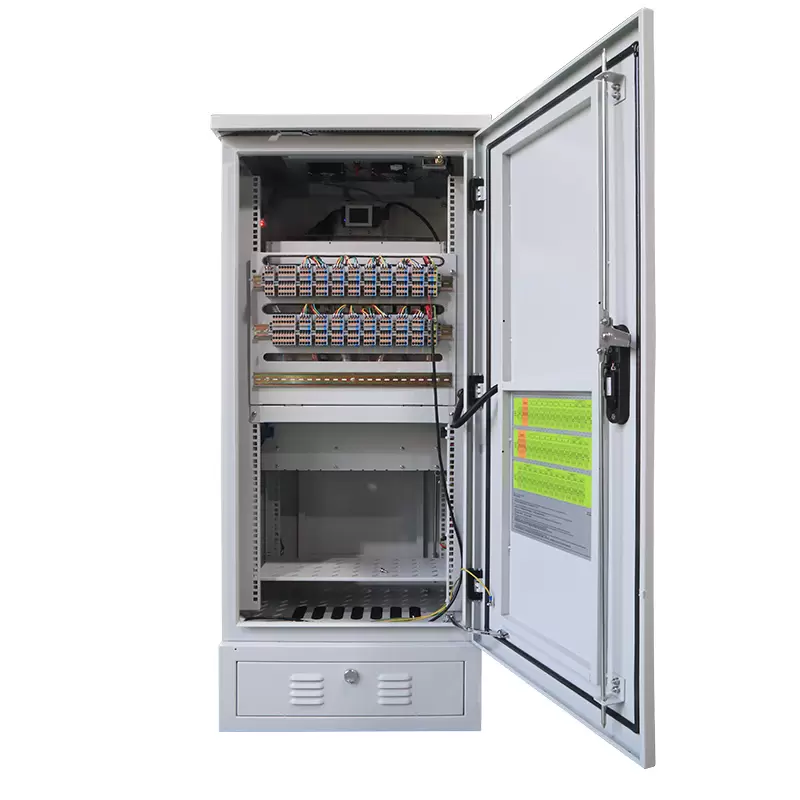

For project procurement, the cabinet needs to accommodate the controller and associated control, power, protection, communication, and monitoring functions required by the intersection. The FM5000's enclosure is specified at 630 × 500 × 1520 mm, with an operating voltage range of AC 85–264V / 47–63Hz, an operating temperature range of -40°C to +80°C, relative humidity of ≤95% RH, and IP55 protection.

The controller also specifies a 3A drive current per channel, a 160A surge impulse current per channel, insulation resistance of ≥20MΩ, and machine standby power consumption of ≤50W. These are the types of technical parameters that should be reviewed alongside the project's phase count, signal channel requirements, communication architecture, environmental conditions, and cabinet configuration.

Real-time cabinet information improves on-site visibility

One of the FM5000's distinguishing features is its multi-screen information display system.

The main control panel displays more than 12 key operating indicators, including temperature, humidity, power consumption, voltage, IP address, and the current signal release scheme. The side panel incorporates an OLED traffic simulation display that visualizes the intersection's current control strategy. An optional touchscreen interface can provide embedded web access for operations such as special-duty activation and scheme fine-tuning without requiring an external device.

This changes how maintenance personnel interact with the cabinet.

Instead of beginning troubleshooting by connecting separate equipment simply to determine basic operating conditions, personnel can obtain important system information directly from the cabinet interface. The OLED simulation also provides a visual representation of the current control strategy, which can help technicians understand what the controller is actually executing at the intersection.

For projects requiring different operating interfaces, FAMA also states that the interface and functions can be customized according to customer requirements.

How Does a Traffic Signal Controller Detect Lamp Faults?

Lamp fault detection becomes more difficult when several signal lamps are connected in parallel. A conventional switch-state approach may identify whether a circuit has changed state, but it does not necessarily provide enough information to determine which individual lamp has failed.

The FM5000 takes a different approach by analyzing the dynamic baseline of voltage, current, and power.

When the system detects an abnormal change, it can identify an individual lamp failure within a single circuit, locate the faulty signal lamp within seconds, and report the fault to the central platform. This is particularly relevant to multi-lamp parallel configurations where identifying the exact failed lamp manually can otherwise require additional inspection at the intersection.

From a maintenance perspective, precise fault localization matters because the maintenance task is not merely "find that a circuit has a problem." The practical objective is to determine where the problem is so that the appropriate component can be inspected or replaced.

FAMA states that this lamp group fault detection technology can improve maintenance efficiency by more than 300%. This figure should be understood specifically in the context provided by FAMA for its fault-detection application rather than treated as a universal maintenance-performance figure for every traffic signal project.

How Does Surge Event Recording Help Traffic Signal Cabinet Maintenance?

Lightning and grid overvoltage create another maintenance challenge. Traditional protection management can depend heavily on periodic inspection, making it difficult to determine how much stress a surge protection device has experienced between inspections.

The FM5000 incorporates an embedded surge event recorder. It monitors the frequency and intensity of lightning strikes or overvoltage surges in the power grid and uses the recorded information to predict the degradation trend of the lightning arrester. The system can then issue a replacement warning before the protection device reaches a critical condition.

This approach shifts part of maintenance from periodic physical inspection toward condition-based monitoring.

FAMA states that the technology can reduce annual maintenance costs by 60% based on a benchmark of 1,000 intersections. This is a specific benchmark supplied by the manufacturer and should not be interpreted as a guaranteed saving for every project.

For infrastructure owners managing a large number of intersections, the underlying concept is particularly relevant: maintenance teams can prioritize equipment that has generated a warning instead of relying exclusively on routine inspection schedules.

How Can Traffic Signal Controllers Reduce Maintenance Work?

The maintenance value of a modern controller does not come from one feature alone. It comes from connecting several layers of information.

The FM5000 combines real-time operating parameters, power-fault reporting, surge-event recording, visual operating information, and lamp fault localization. This gives maintenance personnel several different types of information from the controller and cabinet itself.

Consider a typical troubleshooting sequence. If a cabinet loses one power source, the controller can transition to the backup supply and report the fault. If the power system experiences surge events, the embedded recorder can retain information for protection-status assessment. If the intersection develops a lamp fault, voltage, current, and power analysis can help identify the affected lamp. Meanwhile, the cabinet's display provides operating information such as temperature, humidity, voltage, power consumption, and the active signal scheme.

The result is a more information-driven maintenance process. Instead of treating every abnormal intersection condition as a separate manual inspection task, the maintenance team can use the controller's reported information to narrow the problem before taking action on site.

This distinction is important for large-scale traffic infrastructure. Reducing unnecessary field investigation is not the same as claiming that every fault can be solved remotely. Rather, better monitoring can help maintenance personnel arrive at the intersection with more precise information about what needs to be checked.

How Does a Coordinated Traffic Signal Controller Work?

A coordinated traffic signal controller executes programmed signal-control logic while managing the relationships between different signal phases and operating plans. Depending on the configured system, control may incorporate detection, pedestrian requests, adaptive strategies, emergency priority, and different timing schemes.

The FM5000 retains these conventional coordinated-control functions while adding modular architecture and integrated monitoring technologies. It supports up to 32 control phases and up to 96 signal channels in the specified FM5001 configuration, giving project engineers concrete capacity figures to consider when matching the controller with an intersection design.

For a project engineer, the correct evaluation therefore starts with the intersection's actual phase diagram, signal channel requirements, detection strategy, coordination requirements, communication interfaces, environmental conditions, and cabinet configuration rather than choosing a controller based only on a general "smart controller" description.

What Should I Look for in a Traffic Signal Controller Cabinet?

A procurement specification should consider at least five areas: control capacity, power continuity, protection and environmental performance, monitoring capability, and fault diagnosis.

For the controller itself, the FM5001 specification provides measurable references such as 96 maximum signal channels, 32 maximum control phases, AC 85–264V operation, -40°C to +80°C operating temperature, IP55 protection, and multiple communication interfaces.

For the cabinet and maintenance system, buyers should also examine whether operating parameters can be viewed locally, whether abnormal power conditions are reported, whether surge protection status can be monitored, and whether lamp faults can be localized rather than simply detected at circuit level.

These requirements become increasingly important when a traffic management authority or system integrator is responsible for multiple intersections rather than a single isolated installation.

Why the Controller and Cabinet Should Be Evaluated as One System

A Coordinated Traffic Signal Controller and Traffic signal Controller cabinet should not be evaluated independently when the project objective includes long-term operational reliability.

The controller determines how signal phases, coordination strategies, pedestrian requirements, emergency priorities, and timing schemes are executed. The cabinet provides the physical and electrical environment in which that controller operates, while power management, protection, monitoring, communications, and fault reporting determine how effectively the system can be maintained over time.

The FM5000 approach brings these elements together through modular control architecture, dual power supply operation, surge-event recording, multi-screen status visualization, and dynamic lamp fault detection. These functions address different points in the equipment lifecycle: control, continuity, protection, visibility, diagnosis, and maintenance.

FAMA's broader traffic signal portfolio includes coordinated, single-point, networked, pedestrian crossing, and wireless traffic signal controllers, while its project portfolio includes traffic signal projects across regions such as South America, Asia, North America, Europe, and Africa.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

For buyers evaluating a complete traffic signal solution rather than a standalone controller, FAMA's product portfolio includes traffic signal controllers alongside vehicle traffic lights, pedestrian and bicycle signals, countdown-related products, and other traffic signal equipment. Its project portfolio can also provide a reference for understanding the company's experience across different traffic infrastructure applications.

For procurement teams, the key question is ultimately not whether a controller has more functions on a specification sheet. It is whether those functions address the operational problems that matter after installation: maintaining coordinated signal control, keeping the system operating through power abnormalities, understanding cabinet conditions in real time, identifying protection-device degradation, and locating individual lamp faults more precisely.

That is the practical value of evaluating the Coordinated Traffic Signal Controller and Traffic signal Controller cabinet as an integrated traffic control system rather than as two independent hardware components.
