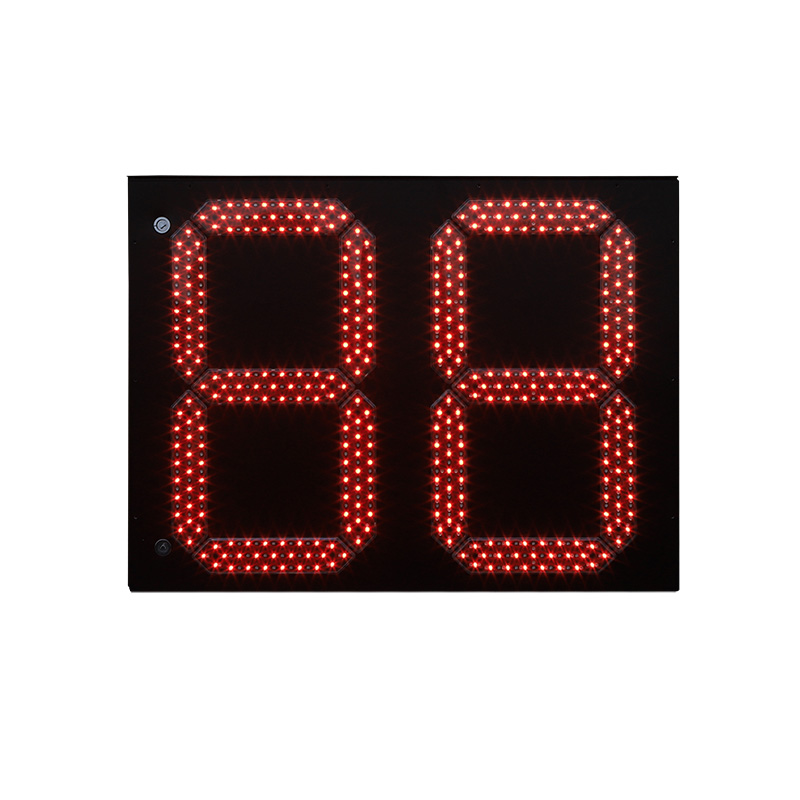

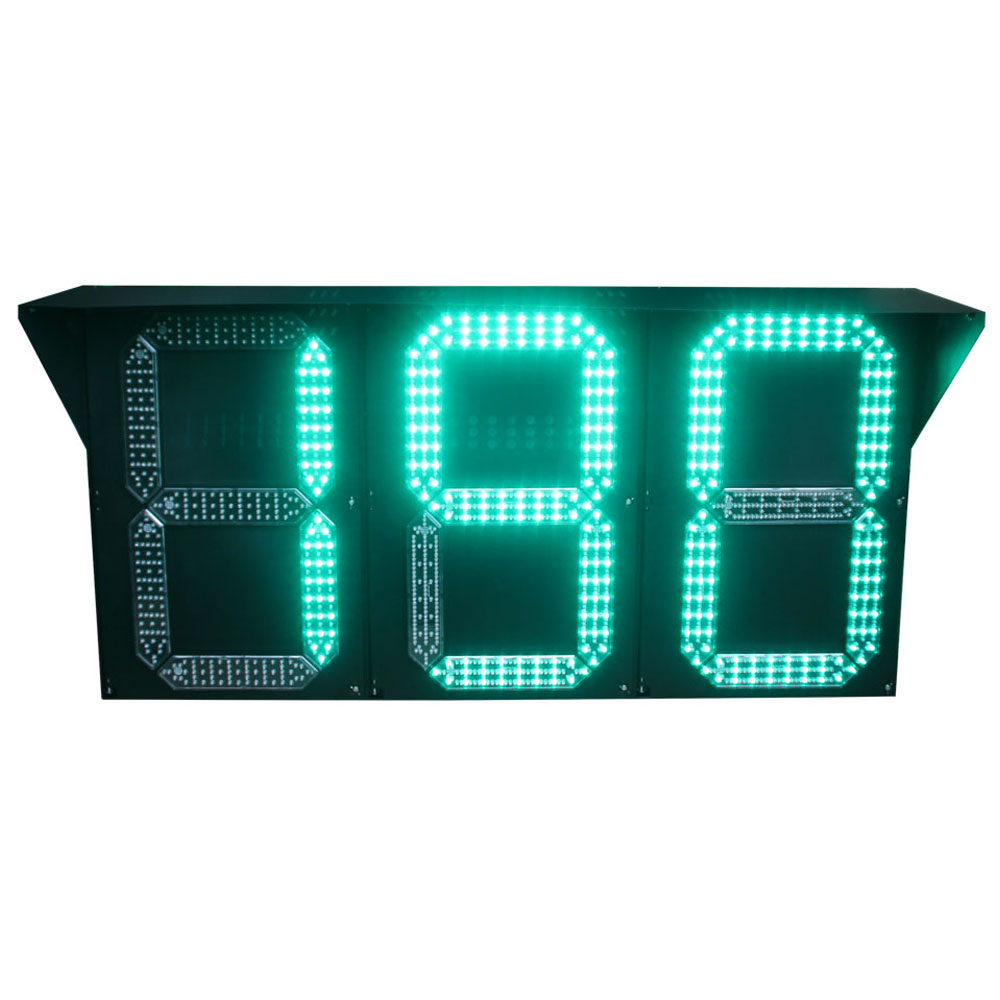

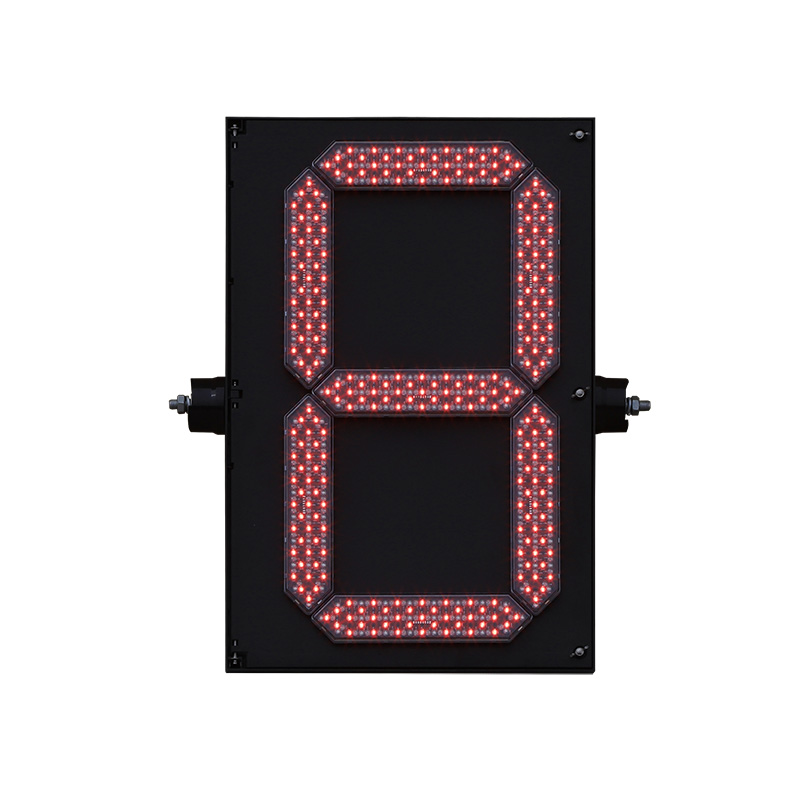

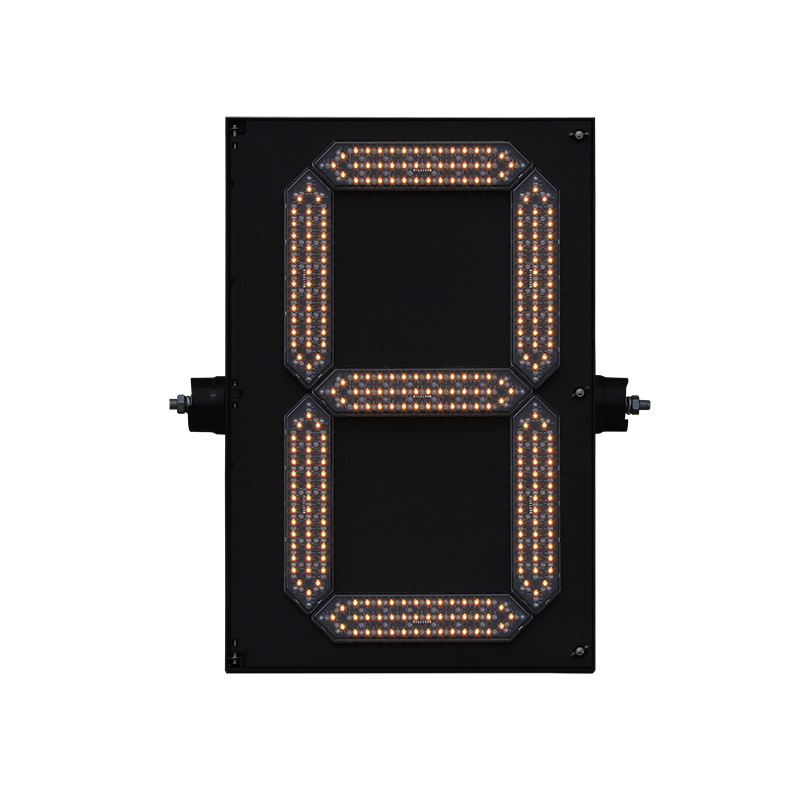

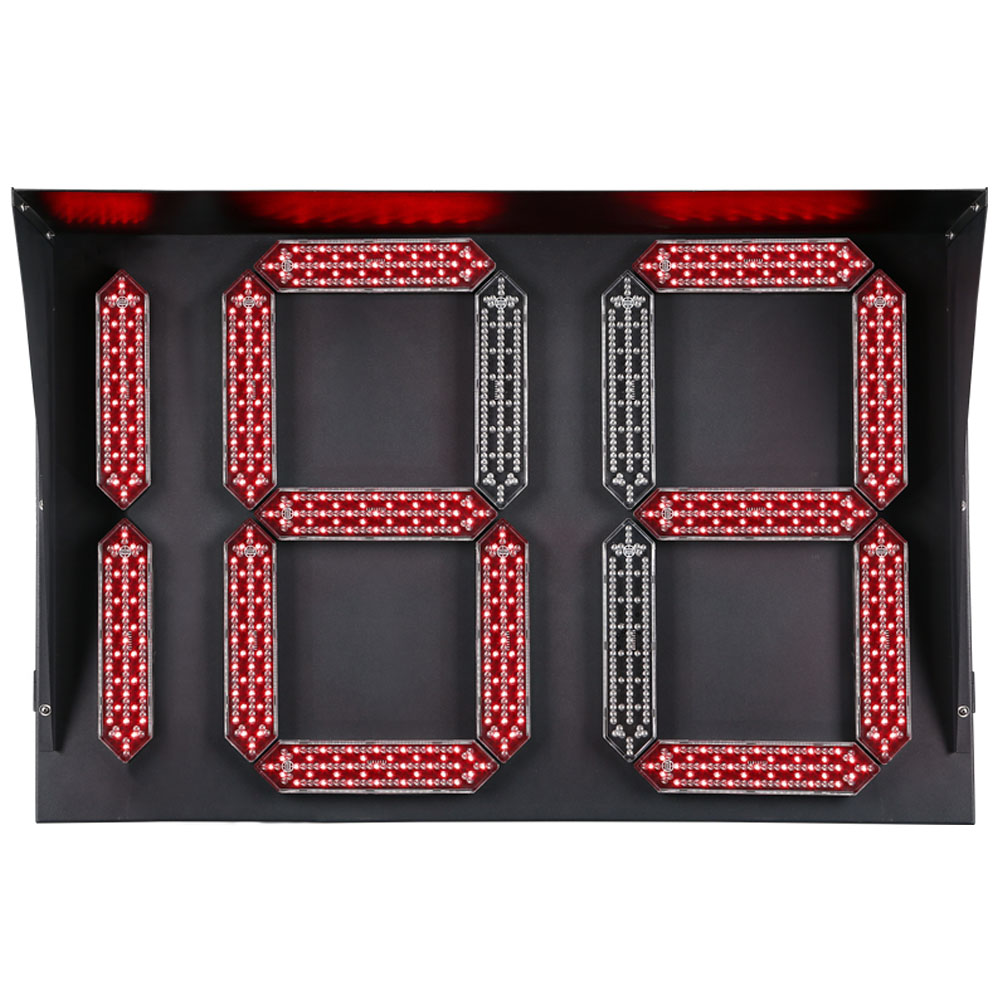

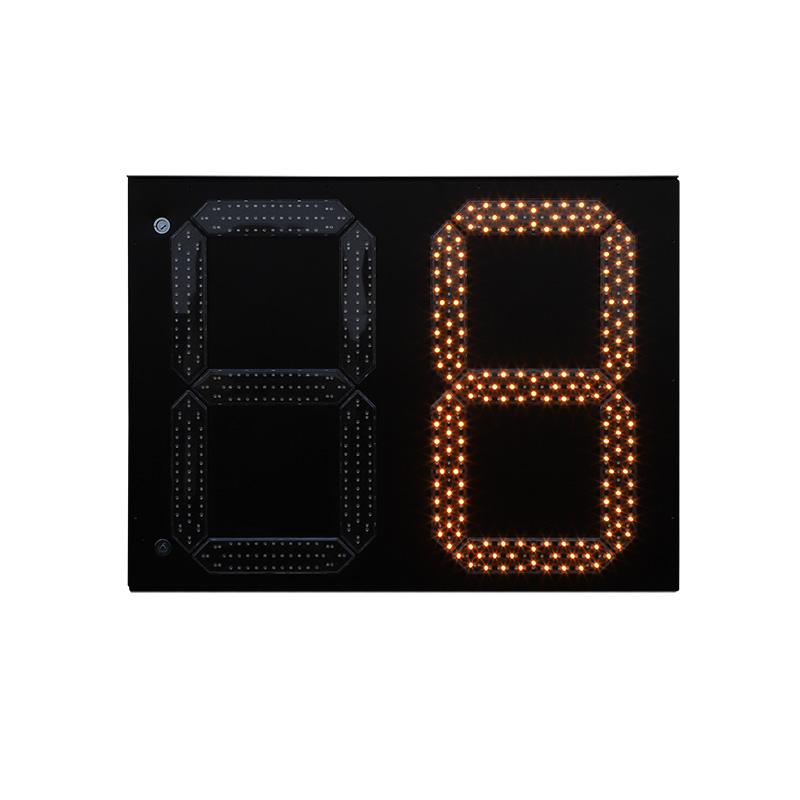

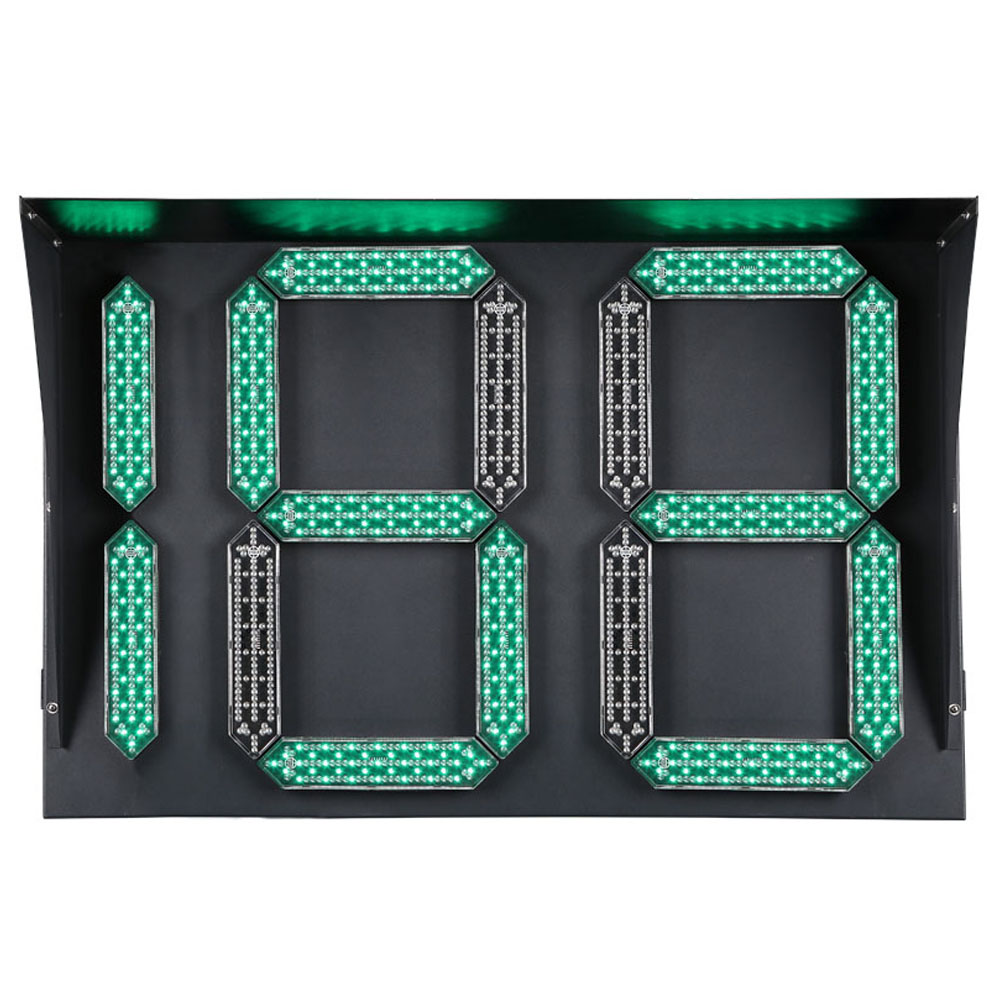

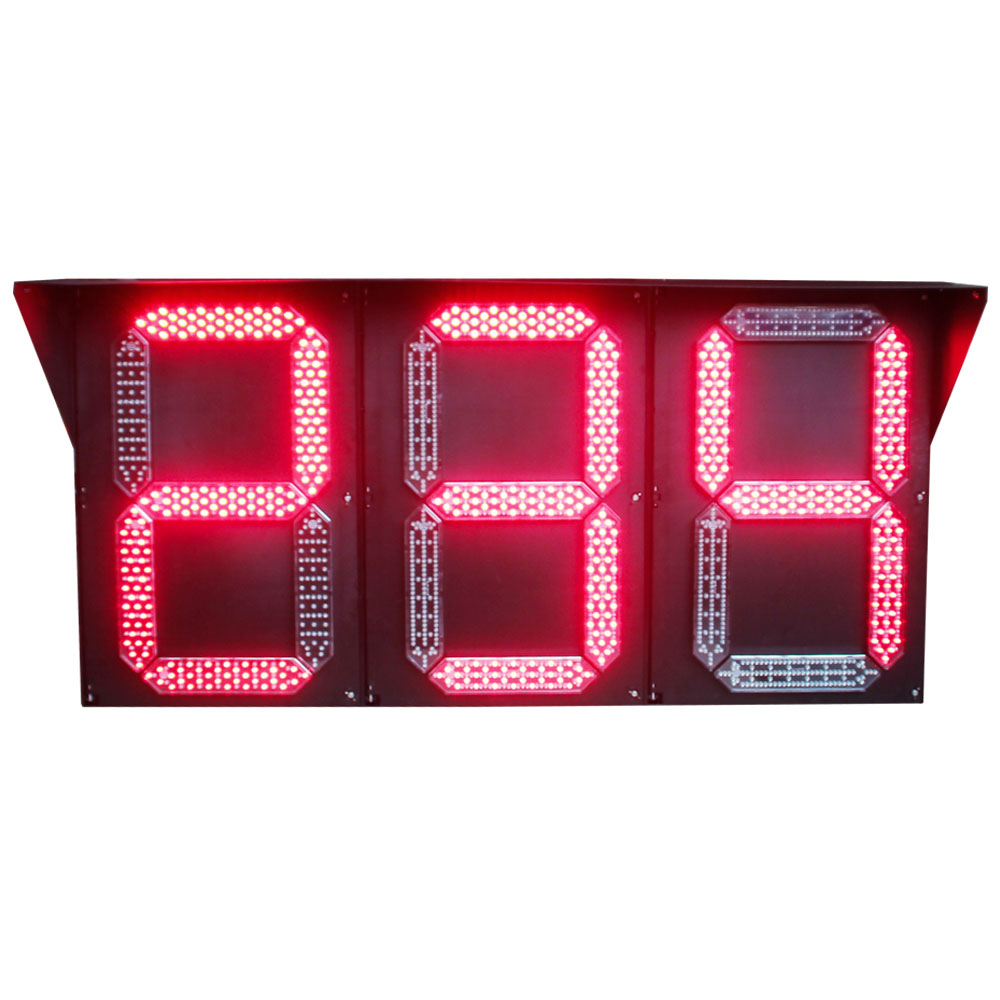

Segment Type Countdown Traffic Light (Box-type)

Overview

Product Introduction:

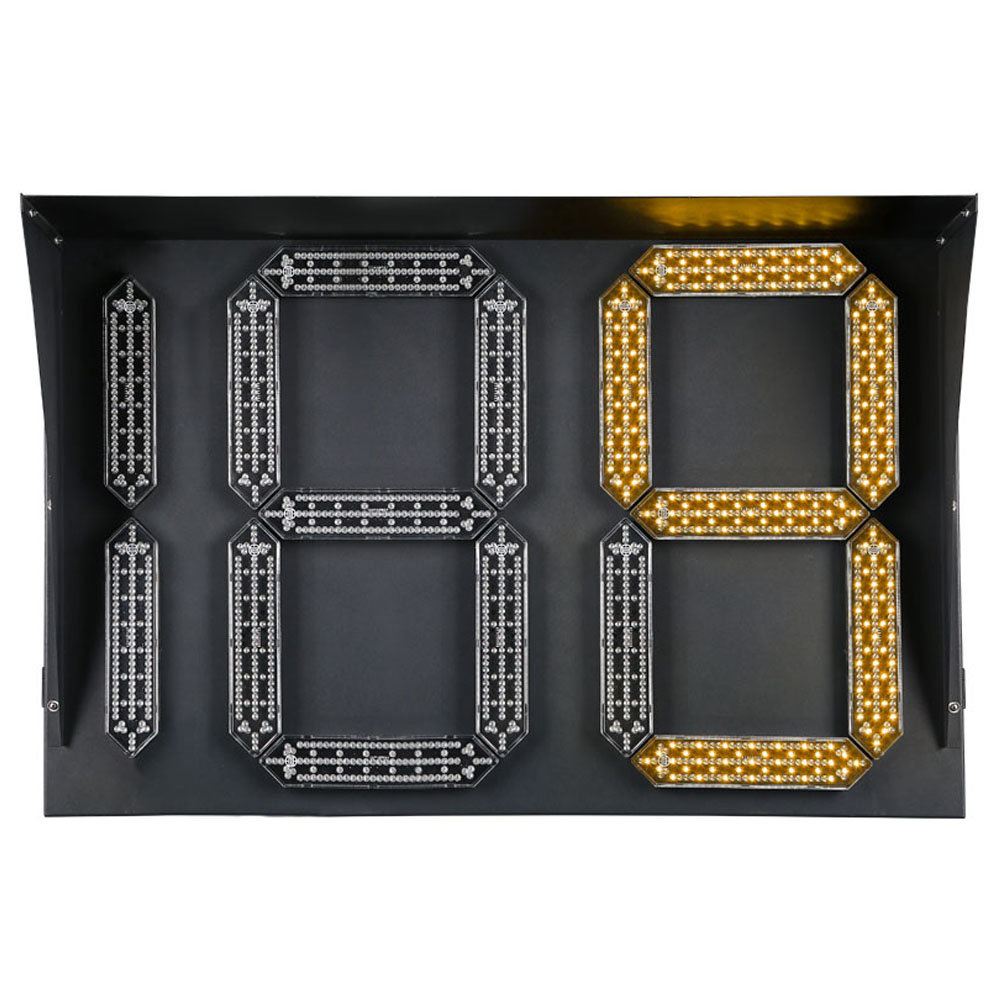

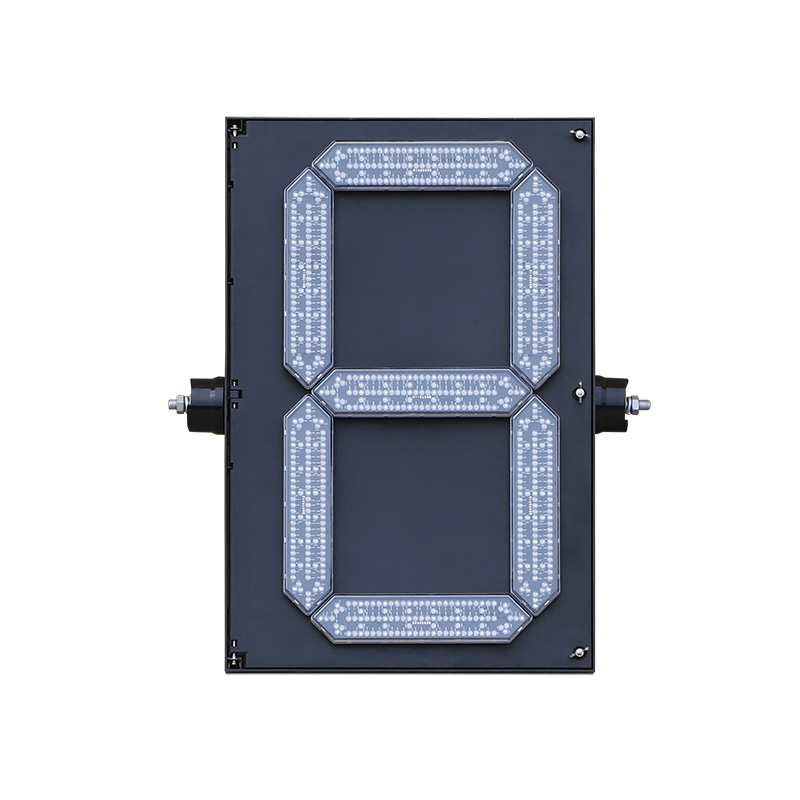

The Segment Type Countdown Traffic Light (Box-type) is an integrated unit composed of segments, control board, power supply, and cabinet. It is suitable for various traffic signal control intersections.

Add the to your project

Contact us to order

Functional Features

Product Selling Points:

1. Universal compatibility for streamlined operations and maintenance

The device supports three adaptive operating modes, ensuring compatibility with over 99% of major domestic and international traffic signal control systems. This design reduces both installation complexity and post-installation commissioning efforts, thereby improving overall operational and maintenance efficiency.

2. Adaptive detection for reliable performance

Incorporating a patented countdown detection circuit with adaptive detection capabilities, the product can automatically match input voltage levels, dynamically adjust operational thresholds, and effectively filter out external electrical interference. This ensures stable and synchronized performance across diverse power environments.

3. Dual surge protection for reduced maintenance costs

Both the power input and communication interfaces are equipped with professional-grade surge protection mechanisms. These safeguards effectively mitigate damage caused by lightning strikes and high-voltage surges, improve equipment stability, substantially reduce failure rates, and effectively decrease maintenance costs by over 50%.

4. Visual and flexible configuration to meet diverse market needs

The device supports remote configuration via a PC-based upper-level control system. System parameters can be adjusted online without requiring hardware replacement, enabling rapid adaptation to varying project requirements and significantly improving deployment and maintenance efficiency.

At a glance

Product Model	DX-4-G-1-FM61	DX-3-G-1-FM81	DX-3-G-1-FM91	DX-5-G-1-FM121
Light-Emitting Surface (LES) Size	600mmx400mm	800mmx600mm	900mmx600mm	1200mmx600mm
Executive Standard	GA/T 508-2014	GA/T 508-2014	GA/T 508-2014	GA/T 508-2014
Housing Material	Galvanized sheet	Galvanized sheet	Galvanized sheet	ABS plastic shell
Signal Light Color	□Red □Yellow □Green	□Red □Yellow □Green	□Red □Yellow □Green	□Red □Yellow □Green
Mask Color	Transparent	Transparent	Transparent	Transparent
Visors	Upper light shield: 405 × 265 × 17 mm; Left and right light shields: 265 × 230 × 0.8 mm	Upper light shield: 760 × 250 × 31.4 mm; Left and right light shields: 250 × 510 × 15 mm	Upper light shield: 860 × 250 × 15 mm; Left and right light shields: 250 × 510 × 15 mm	1205x265x17mm
Operating Voltage	AC85V~264V/47HZ~63HZ	AC85V~264V/47HZ~63HZ	AC85V~264V/47HZ~63HZ	AC85V~264V/47HZ~63HZ
Operating Mode	□ Learning Mode □ Trigger Mode □ Communication Mode □ Compatible Mode	□ Learning Mode □ Trigger Mode □ Communication Mode □ Compatible Mode	□ Learning Mode □ Trigger Mode □ Communication Mode □ Compatible Mode	□ Learning Mode □ Trigger Mode □ Communication Mode □ Compatible Mode
Display Range	0~9s	0~99s	0~199s	0~999s
LED Quantity	Red countdown: 175 pcs Yellow countdown: 182 pcs Green countdown: 154 pcs	Red countdown: 350 pcs Yellow countdown: 182 pcs Green countdown: 308 pcs	Red countdown: 624 pcs Yellow countdown: 294 pcs Green countdown: 384 pcs	Red countdown timer: 819pcs Yellow countdown timer: 588pcs Green countdown timer: 504pcs
Lamp Power Consumption	≤12W	≤25W	≤30W	≤30W
Input Power Consumption of the Whole Machine	≤15W@AC220/50HZ	≤20W@AC220/50HZ	≤20W@AC220/50HZ	≤30W@AC220/50HZ
LED Wavelength	Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm	Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm	Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm	Red: 625 ± 5 nm Yellow: 590 ± 5 nm Green: 505 ± 5 nm
Luminous Intensity	5000~15000cd/m²	5000~15000cd/m²	5000~15000cd/m²	5000~15000cd/m²
LED Lifespan	≥100000h	≥100000h	≥100000h	≥100000h
Insulation Resistance	＞2MΩ	＞2MΩ	＞2MΩ	＞2MΩ
Response Time	Startup/Shutdown < 100 ms	Startup/Shutdown < 100 ms	Startup/Shutdown < 100 ms	Startup/Shutdown < 100 ms
Operating Temperature	-40℃ to +80℃	-40℃ to +80℃	-40℃ to +80℃	-40℃ to +80℃
Relative Humidity	≤97%RH	≤97%RH	≤97%RH	≤97%RH
Protection Grade	IP55	IP55	IP55	IP55
Visual Distance	≥300m	≥300m	≥300m	≥300m
Packaging Specifications	1 piece per box, Size: 56.5 × 64.5 × 19.5cm; Weight: 11.75 ± 0.5KG	1 piece per box, Size: 84.5 × 64.5 × 16cm; Weight: 24.7 ± 0.5KG	1 piece per box, Size: 97 × 67 × 20cm; Weight: 26.5 ± 0.5KG	1 piece per box, Size: 138 × 68 × 23 cm; Weight: 18.8 ± 0.5 KG

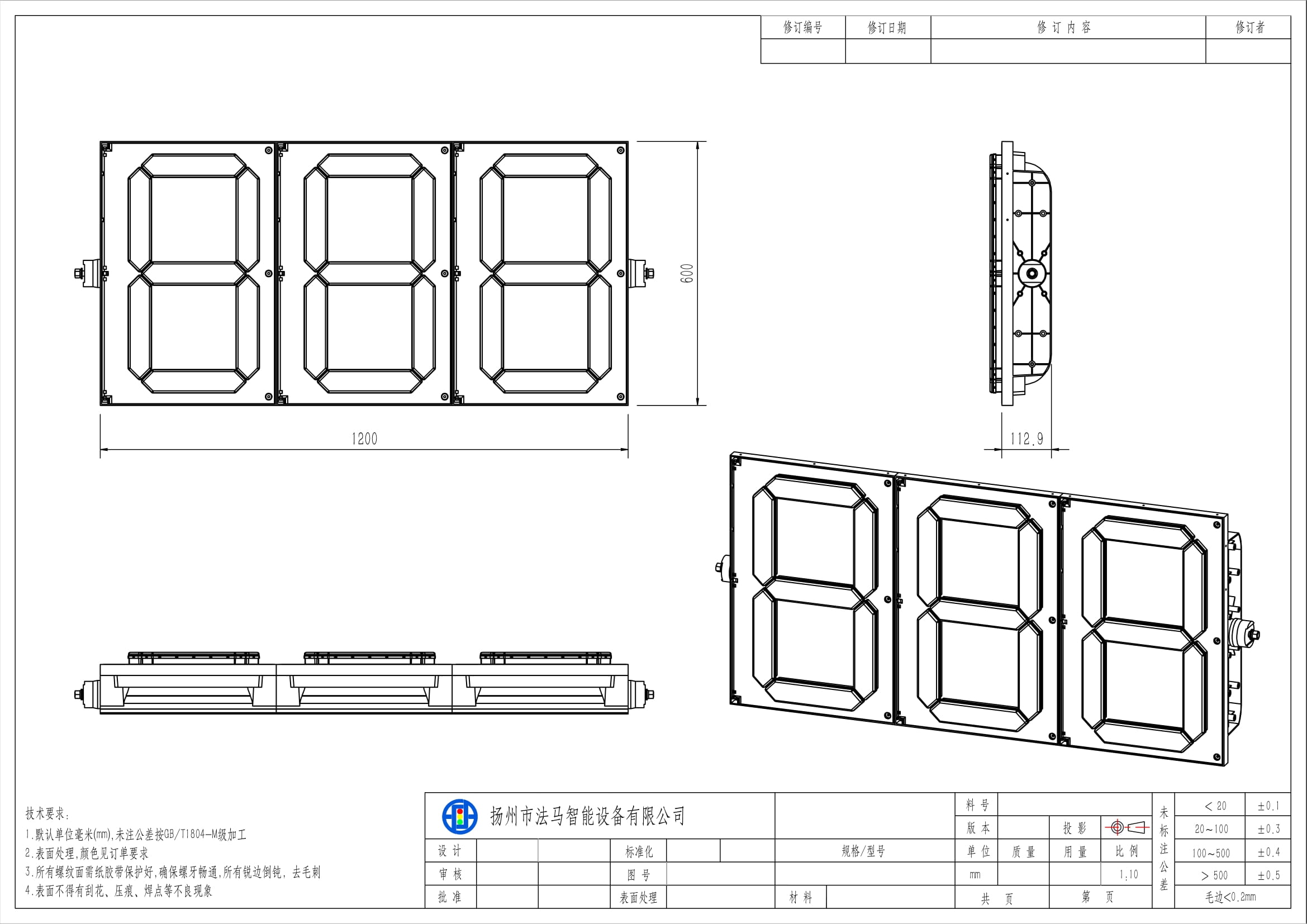

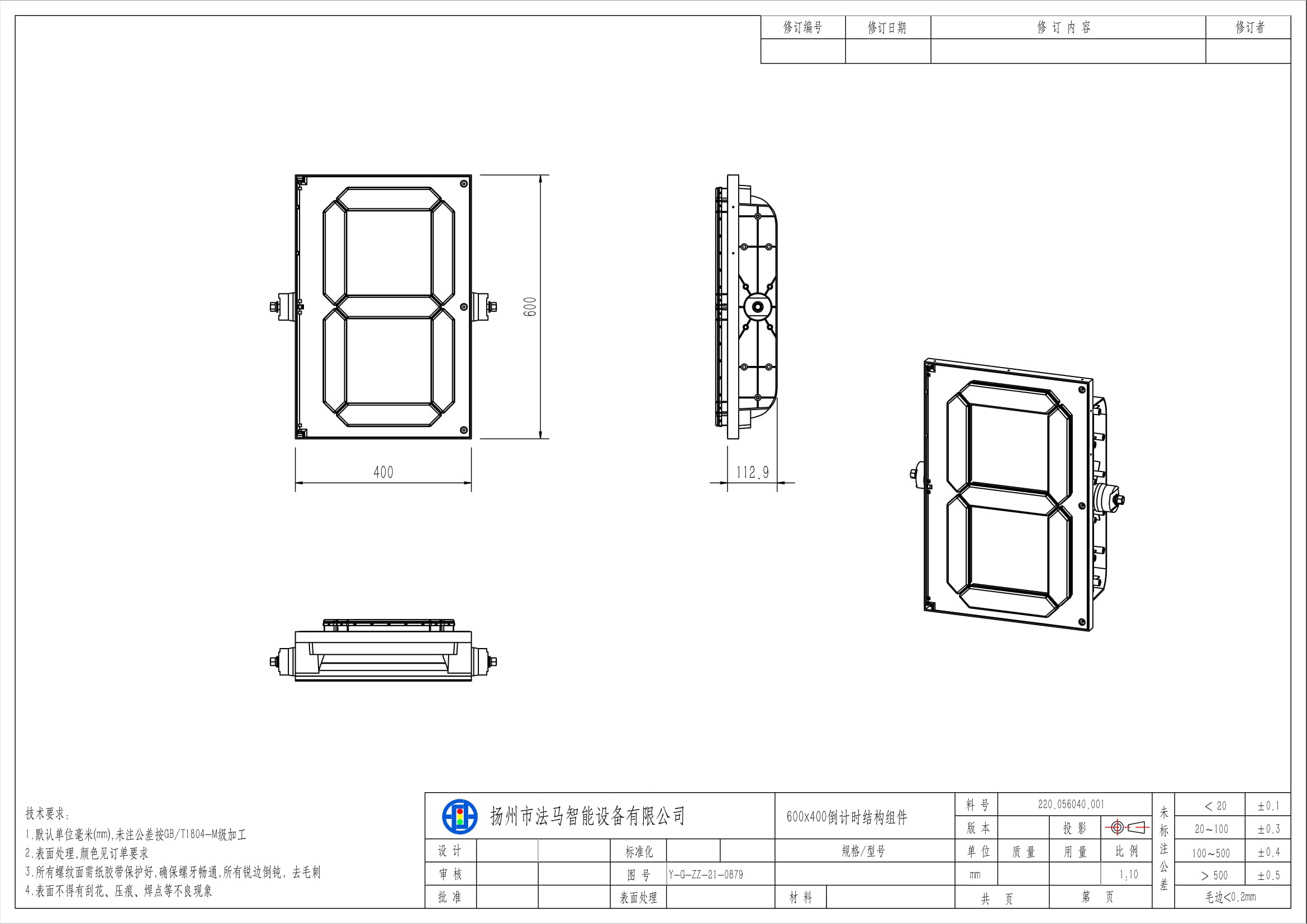

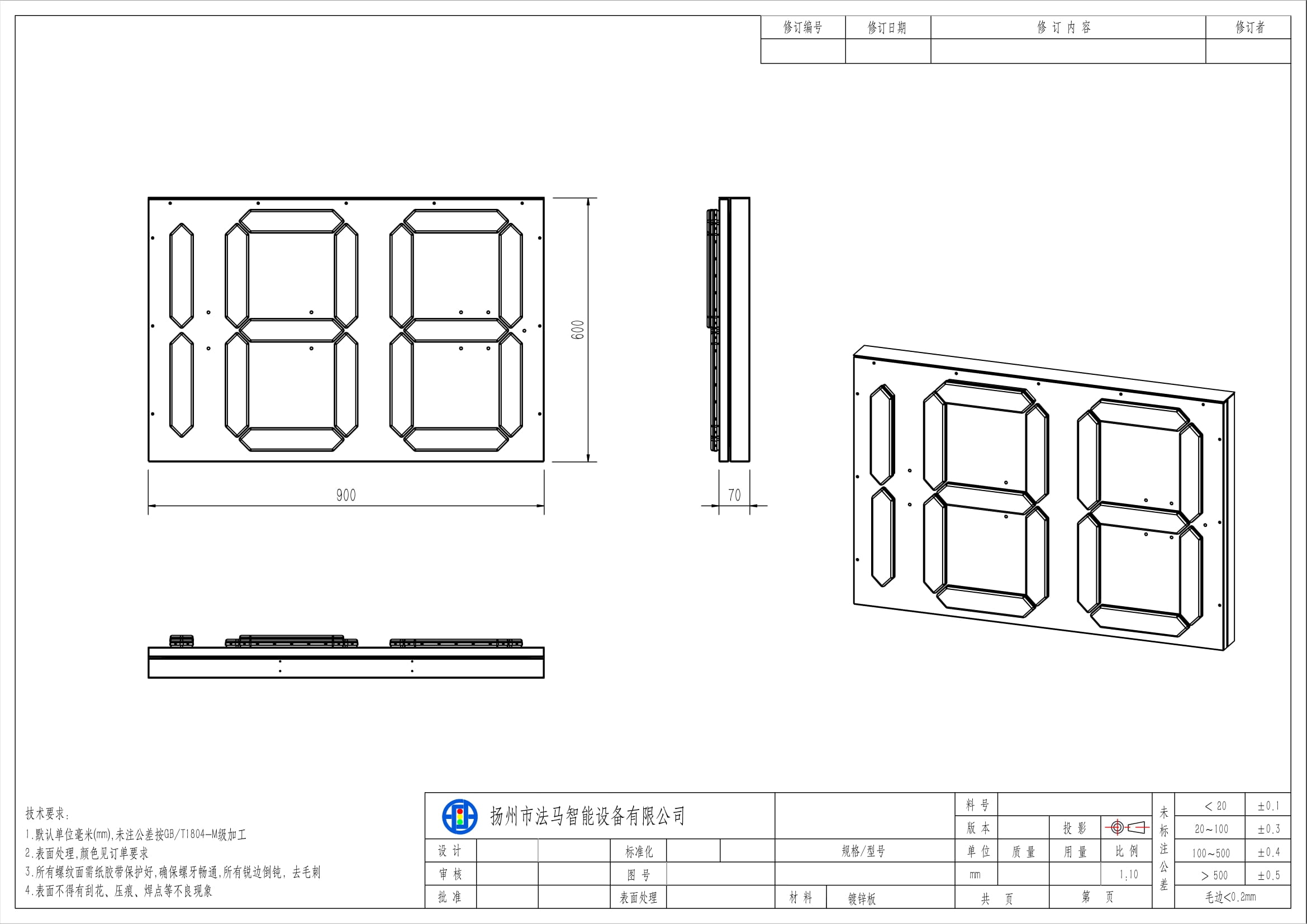

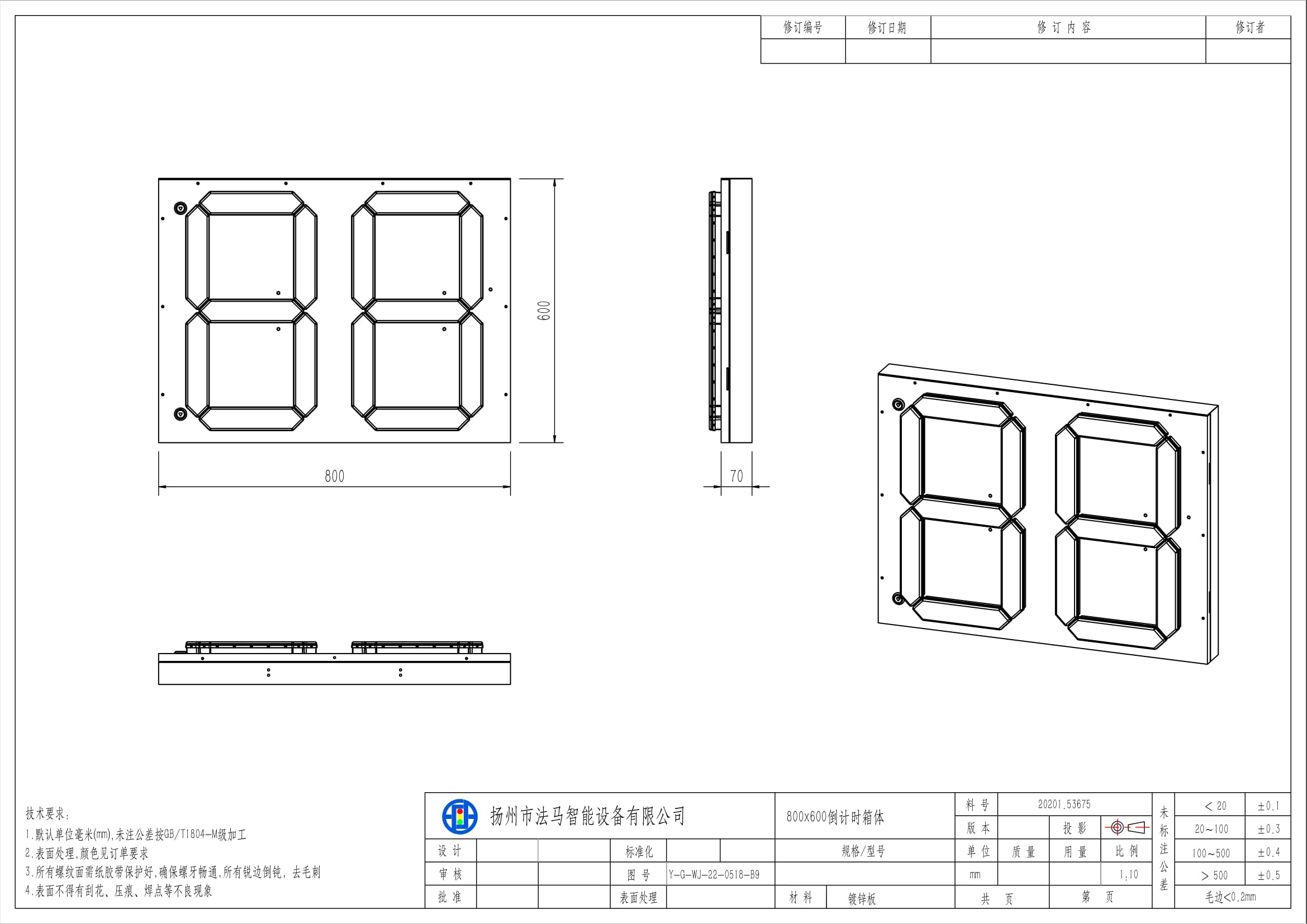

Structural Components
