How to Choose a Pedestrian Crossing Traffic Controller: 5-Channel vs. 12-Channel Models and Key Factors for Traffic Signal Controller Manufacturers

Introduction: Why Pedestrian Crossing Control Requires the Right Configuration

Pedestrian crossing projects often involve more than switching a signal between red and green. A controller must follow the intended signal sequence, accommodate the road layout, manage pedestrian requests where required, and operate consistently with the wider traffic control system. When a project uses a control mode that does not match its requirements, engineers may face additional configuration work, integration difficulties, or limitations in future operation.

These challenges become particularly important on one-way streets, at crossings with a central refuge, and at locations where pedestrian movements must be coordinated with vehicle traffic. A basic fixed-time arrangement may suit a straightforward crossing, while a more complex site may require multiple crossing stages, scheduled operation, network connectivity, or remote commands.

For contractors, system integrators, and public-sector procurement teams, selecting a Pedestrian Crossing Traffic Controller therefore involves more than comparing product prices. Channel capacity, phase configuration, available control modes, field commissioning, and compatibility with existing infrastructure must all be evaluated.

FAMA - The Leading Enterprise In China's Traffic Signal Lights Industry

Yangzhou FAMA Intelligent Equipment Co., Ltd. (FAMA) provides intelligent transportation solutions covering signal control, traffic safety, and multifunctional smart poles. Its pedestrian crossing controller is available in 5-channel and 12-channel configurations, giving project teams two options for different control requirements. The appropriate choice depends on the intended crossing logic and verified project specifications rather than channel count alone. View FAMA's pedestrian crossing controller.

1. Understanding Pedestrian Crossing Traffic Controller Configurations

Single-Stage vs. Two-Stage Pedestrian Crossing

A single-stage pedestrian crossing allows pedestrians to cross the designated roadway within one planned crossing stage. The controller must coordinate the pedestrian indication with the applicable vehicle movements and the approved signal timing plan. This arrangement is generally easier to configure when the road layout and signal requirements are relatively straightforward.

A two-stage crossing divides the pedestrian journey into separate stages. At a suitable site, a central refuge may allow pedestrians to cross one section of the road, wait, and then cross the next section when the relevant signal permits it. This arrangement introduces additional control considerations, including the relationship between stages, the location of pedestrian waiting areas, and the coordination of vehicle and pedestrian indications.

The controller must implement the approved design, but the physical crossing layout and traffic engineering plan determine how the stages should operate. A two-stage arrangement is not automatically appropriate simply because a road is wide or a controller has more output channels.

Engineers should assess crossing distance, pedestrian demand, vehicle turning movements, refuge capacity, visibility, and applicable local regulations before finalizing the control sequence. Pedestrian clearance times and intergreen intervals must follow the project's engineering design and governing requirements.

Comparing 5-Channel and 12-Channel Models

FAMA's Pedestrian Crossing Traffic Controller offers two configurations with different intended applications. The principal distinction is the combination of output capacity and supported control functions.

The 5-channel model: for straightforward single-stage crossings

The 5-channel model is intended for single-stage pedestrian crossing applications, particularly where the control arrangement is relatively simple. Its more focused configuration may be suitable for a one-way street crossing that does not require the additional functionality of the 12-channel model.

For procurement teams, the key question is whether the five signal outputs and the documented phase configuration can accommodate every required signal group and the intended operating sequence. The number of channels should be checked against the complete signal schedule rather than treated as a direct measure of the number of roads or pedestrian movements that can be controlled.

A simpler configuration may reduce unnecessary functionality and simplify deployment. However, its suitability still depends on the actual signal loads, input requirements, electrical interfaces, and project-specific control logic.

The 12-channel model: for more complex crossing requirements

The 12-channel model is designed to support two-stage pedestrian crossings and offers additional control options, including networked operation, time-based scheduling, flashing yellow signals, pedestrian-initiated crossing, and remote command execution.

These capabilities are relevant when a project needs different operating arrangements at different times, pedestrian requests to influence the control sequence, or remote interaction with a wider traffic management system.

For example, a crossing near a public facility may use scheduled control arrangements during different operating periods. A pedestrian-activated mode may be appropriate where requests need to be registered instead of running an identical crossing sequence continuously. Network connectivity may also be useful when authorized operators need to issue commands remotely.

However, these functions should not be interpreted as evidence that every existing management platform is compatible. The communication interface, command definitions, network requirements, and control permissions must be confirmed before procurement.

The following comparison summarizes the intended applications:

The output and phase configurations are product characteristics, not guarantees of suitability for every intersection. The manufacturer's technical documentation should be checked against the final signal plan before an order is placed. FAMA product specifications.

How Should Buyers Select the Right Model?

Start with the crossing design, not the product catalogue.

For a straightforward one-way street crossing, the 5-channel model may be a practical candidate if the signal groups and operating sequence fit its documented capabilities. Where the design calls for two-stage crossing logic, scheduled control, pedestrian requests, or remote commands, the 12-channel model deserves closer evaluation.

The engineering review should establish whether a central refuge is present, how many signal groups must be controlled, whether pedestrian requests are required, and how the controller interacts with vehicle signals. The review should also consider expected pedestrian demand and whether the operating strategy needs to change by time of day.

Most importantly, additional output channels do not automatically provide additional safety functions or guarantee correct phase coordination. The complete design must account for signal sequencing, conflict prevention, pedestrian clearance, and the requirements of the relevant jurisdiction.

2. System Integration, Field Commissioning, and Maintenance

Why On-Site Configuration Matters

A controller can meet the basic functional requirements on paper and still require substantial commissioning work if its interfaces or settings do not match the installed equipment.

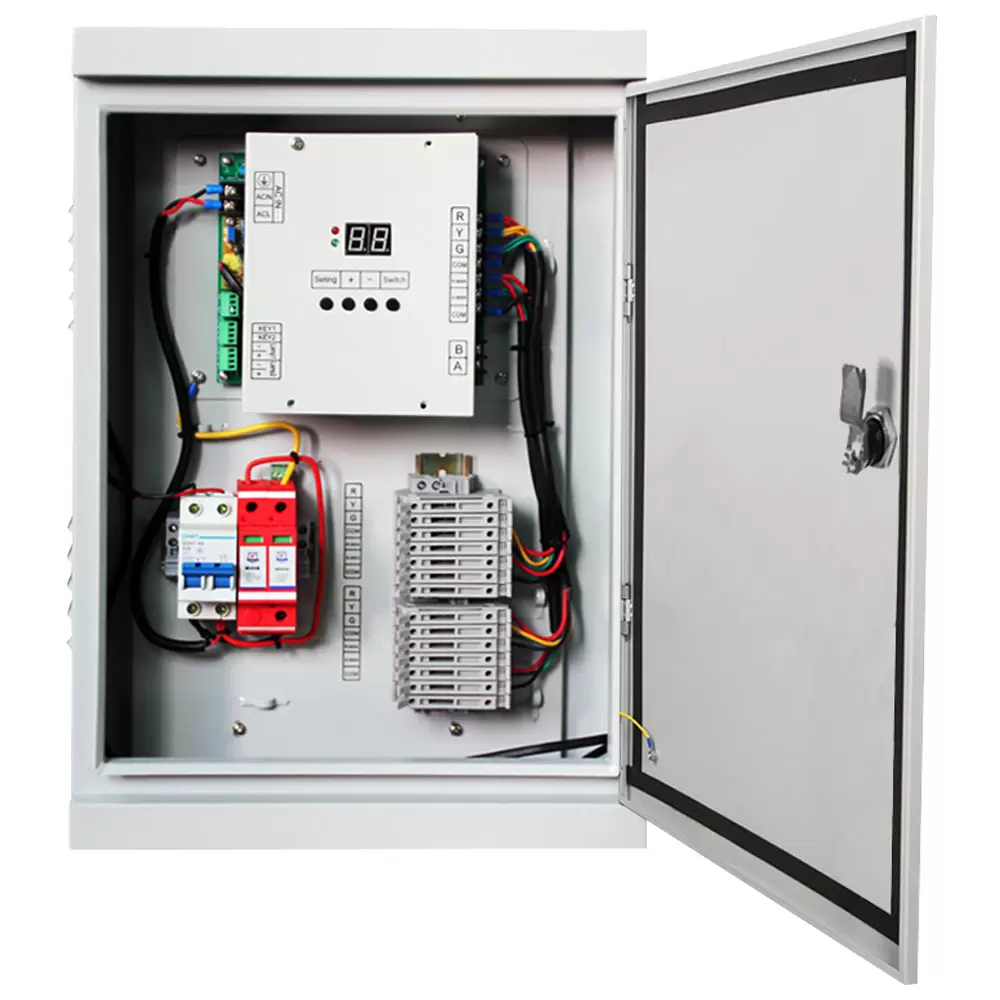

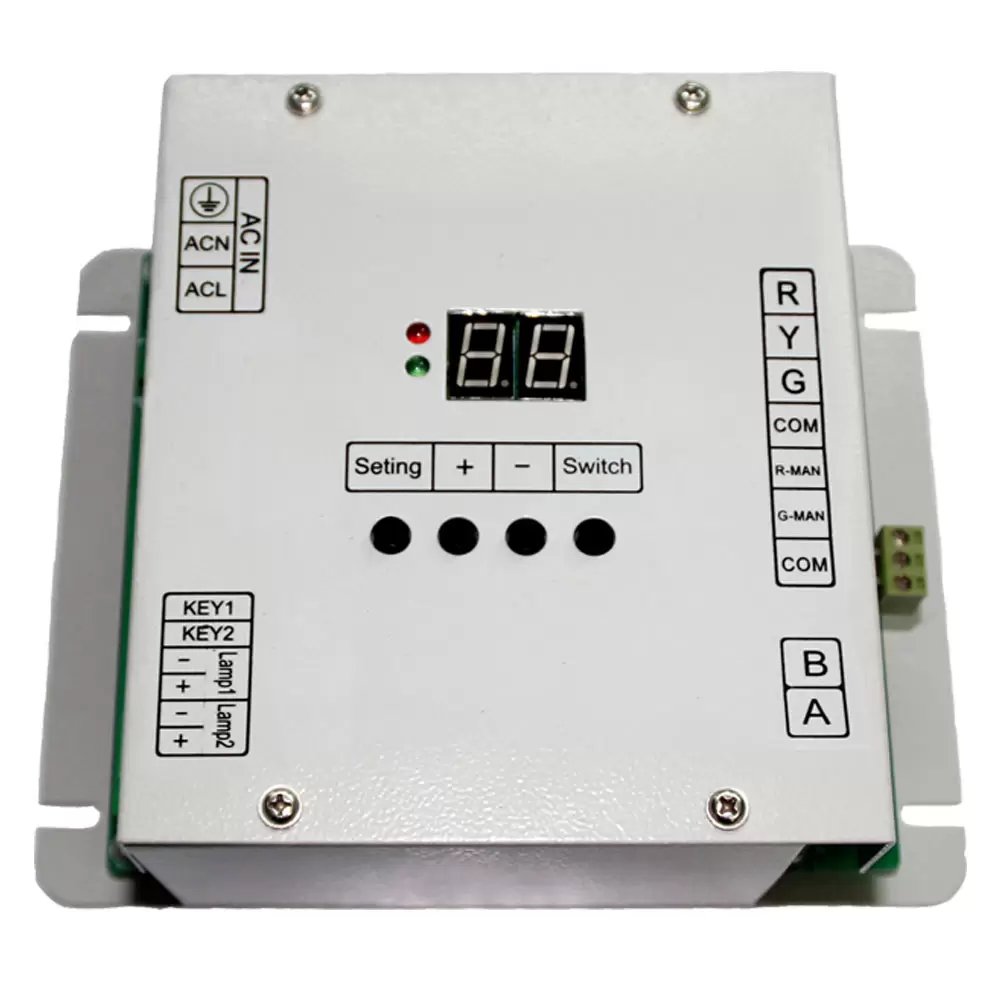

FAMA's pedestrian crossing controller incorporates an integrated control panel for on-site configuration and debugging without requiring external tools for those tasks. This can make routine parameter adjustments more convenient for maintenance personnel, subject to the functions available on the selected model.

During commissioning, technicians should verify the configured phase sequence, signal output assignments, pedestrian request inputs where applicable, and transitions between operating stages. Testing should also establish whether the actual signal indications correspond to the approved timing plan.

The control panel does not eliminate the need for qualified personnel, documented configuration settings, or appropriate test procedures. Changes to a live traffic control system should follow the responsible authority's procedures.

Networking and Remote Control in Practical Applications

For projects using the 12-channel model, networking and remote command capabilities can support centralized operation when the surrounding infrastructure is compatible.

Before deployment, integrators should confirm the available communication interfaces, network architecture, supported commands, access permissions, and behavior during communication loss. They should also establish whether the existing supervisory system can exchange the information required by the project.

A network connection alone does not establish interoperability. Two devices may have physical communication interfaces but use different message structures or control conventions. Compatibility must be demonstrated through documentation and integration testing.

The project team should also distinguish between remote command execution and autonomous local control. The required behavior when communication is interrupted, a command is rejected, or a system component fails must be defined and tested rather than assumed.

Pre-Installation and Acceptance Checks

Before installation, buyers and contractors should verify the controller's supply requirements, output configuration, electrical load limits, communication interfaces, enclosure dimensions, environmental ratings, and applicable standards.

The signal plan should then be checked against the controller configuration. Field testing should cover normal signal transitions, pedestrian request registration, stage changes, scheduled operation where applicable, and remote commands where supported.

The team should also verify the prescribed response to abnormal conditions, including loss of communication and relevant equipment faults. These tests must follow the approved design and local traffic control requirements.

For maintenance planning, useful documentation includes the final parameter settings, wiring diagrams, interface specifications, commissioning records, troubleshooting instructions, and procedures for restoring an approved configuration. These records help technicians distinguish between a configuration issue, a field wiring problem, and a component fault.

3. Purchasing Considerations for Traffic Signal Controller Manufacturers

What Affects Pedestrian Crossing Traffic Controller Prices?

There is no reliable universal price for a pedestrian crossing controller without defining the required configuration. Buyers should request quotations based on an agreed technical scope.

The principal cost factors include the number of signal outputs, phase configuration, supported control modes, communication interfaces, and any project-specific customization. Additional costs may arise from cabinet requirements, installation work, integration with existing equipment, commissioning, testing, training, and ongoing technical support.

Order quantity, delivery requirements, spare-parts arrangements, and documentation requirements may also affect the commercial quotation. These factors should be itemized where possible so procurement teams can compare equivalent configurations rather than prices for products with different capabilities.

Is a Networked Controller Worth the Additional Investment?

A basic controller may be sufficient when the crossing has a straightforward signal sequence and does not require networked operation or advanced control modes. In such cases, purchasing unnecessary functions may add complexity without addressing a real project requirement.

A networked controller may be more appropriate when the operating plan requires scheduled changes, pedestrian-initiated control, remote commands, or integration with a compatible management system. Its value depends on how those functions will be used and whether the existing infrastructure can support them.

The total cost of ownership should include installation and commissioning, compatibility verification, maintenance training, spare parts, software or system integration where applicable, and future changes to the traffic control plan. A lower initial purchase price does not necessarily translate into a lower overall project cost if additional integration work is required.

What Should Buyers Check When Evaluating Traffic Signal Controller Manufacturers?

A capable manufacturer should be able to explain how its product configuration maps to the buyer's actual signal plan. Procurement teams should request model-specific technical specifications, wiring and interface documentation, supported operating modes, test records, and evidence of compliance with the standards applicable to the project.

Manufacturers should also clarify the limits of each model, the process for field commissioning, the availability of troubleshooting support, and the arrangements for spare parts and technical assistance.

For international projects, regional traffic signal conventions and local approval requirements are particularly important. Buyers should not assume that a controller suitable for one jurisdiction can be deployed unchanged in another.

FAMA provides a broader portfolio of traffic signal control equipment and pedestrian signal products. Buyers can review the FAMA product catalogue to assess related equipment and explore the FAMA project portfolio for examples of traffic infrastructure applications. Project examples can provide useful context, but they should not be treated as proof that a particular controller configuration meets a new project's requirements.

Frequently Asked Questions

Can a 5-channel controller handle every single-stage pedestrian crossing?

No. The 5-channel model is intended for single-stage applications, but suitability depends on the required signal outputs, phase arrangement, electrical loads, and control logic. The project signal schedule must be checked against the manufacturer's specifications.

Does a 12-channel controller automatically make a crossing safer?

No. Its additional channels and control options can accommodate more varied requirements, but safety depends on the crossing design, approved signal timing, correct installation, appropriate configuration, and verified operation.

Can a pedestrian crossing controller be integrated into an existing traffic management system?

Potentially, provided that the controller's interfaces, communication behavior, supported commands, and control logic are compatible with the existing system. These details should be confirmed and tested before deployment.

What information should buyers provide when requesting a quotation?

Provide the road layout, single-stage or two-stage crossing requirement, signal group and phase schedule, pedestrian button requirements, intended operating modes, communication and network requirements, local standards, installation conditions, and order quantity. This information allows the manufacturer to evaluate the required configuration and prepare a more meaningful quotation.

Conclusion

Selecting a Pedestrian Crossing Traffic Controller requires a clear understanding of the crossing geometry, signal sequence, output capacity, control modes, integration requirements, and maintenance arrangements. The 5-channel model is intended for straightforward single-stage crossings, while the 12-channel model supports two-stage applications and additional functions such as networking, scheduled operation, pedestrian activation, flashing yellow signals, and remote commands.

For contractors, system integrators, distributors, and government procurement teams, the most effective approach is to define the engineering requirements before comparing products or prices. Request model-specific documentation, verify interfaces and operating logic, and confirm compliance with applicable local requirements.

By matching the controller configuration to the approved crossing design and the project's operational needs, buyers can make a more informed equipment selection and reduce avoidable integration and maintenance difficulties. Contact FAMA to discuss the required signal configuration, available control functions, technical documentation, and project-specific compatibility requirements before finalizing procurement.
